SEASPAN OCEANIA
9286009 | VRBI2 | 9286009 by ********* Last update: Wed Jul 03 2024
General Info
Ship Name:SEASPAN OCEANIA
IMO Code:9286009
Call Sign:VRBI2
Line Operator:9286009
Class Name for Sister Ships:CSCL
Year Built:2004
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:077
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,223
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

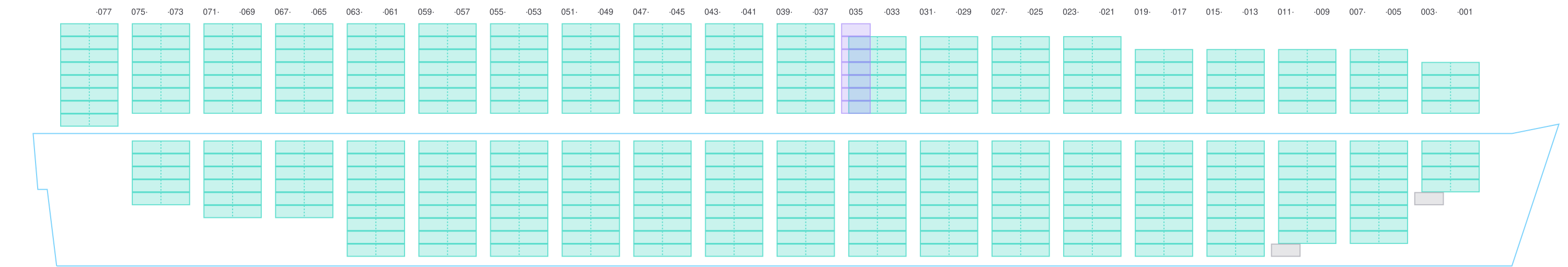

Side View

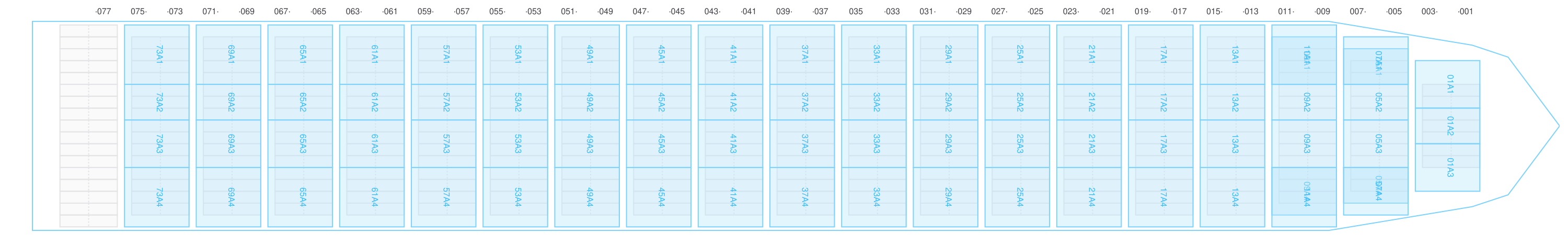

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →

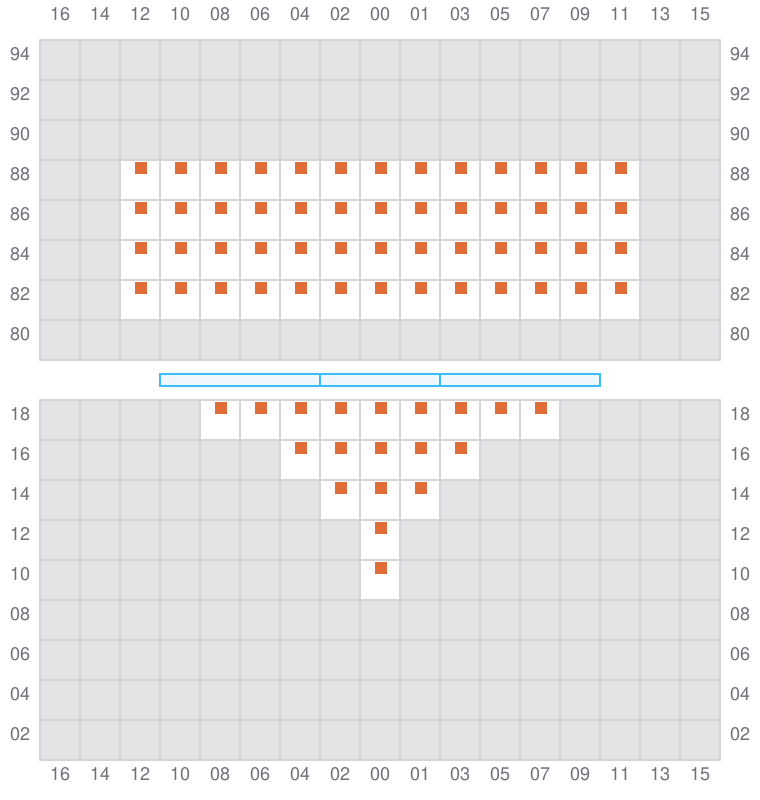

003
- ←
005 (006)
- →
007
- ←

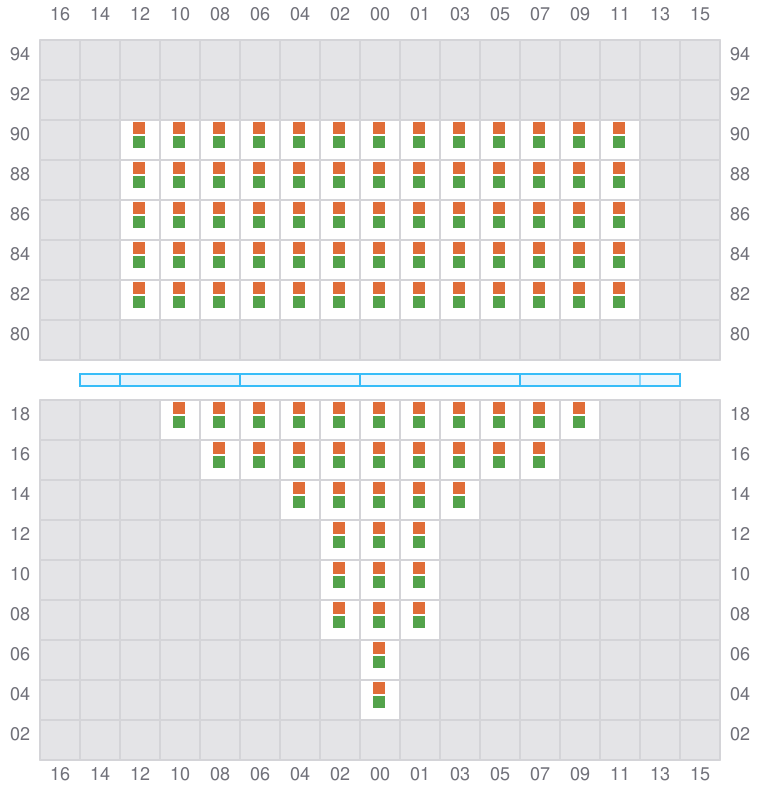

009 (010)
- →
011
- ←
013 (014)
- →
015
- ←
017 (018)
- →

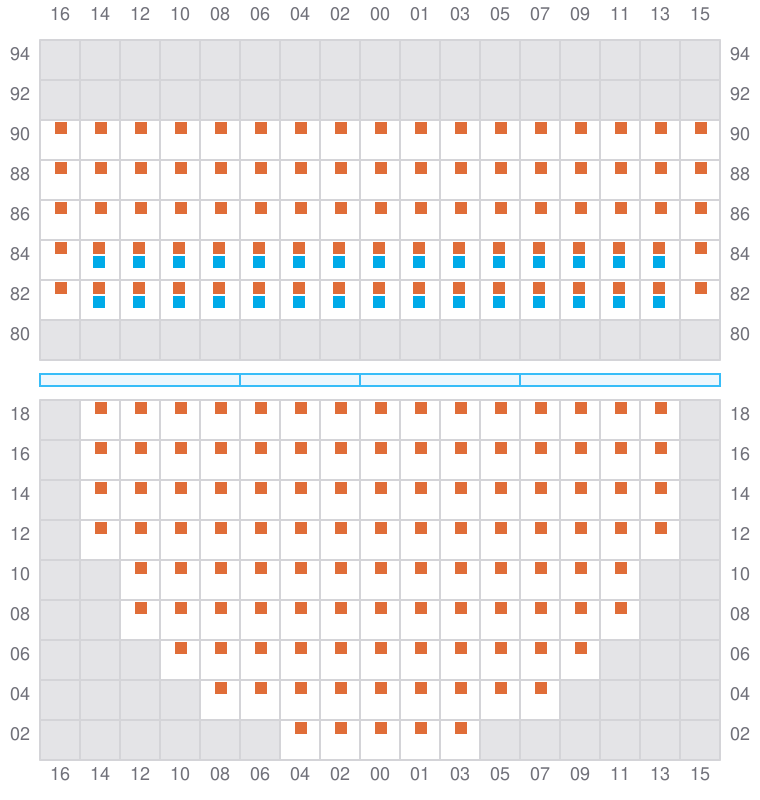

019
- ←

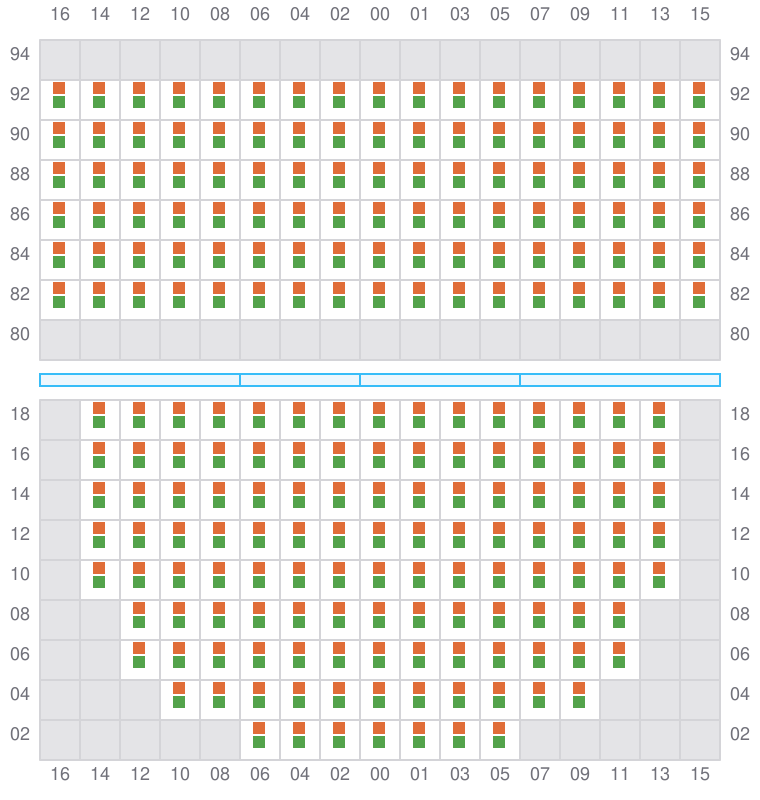

021 (022)
- →

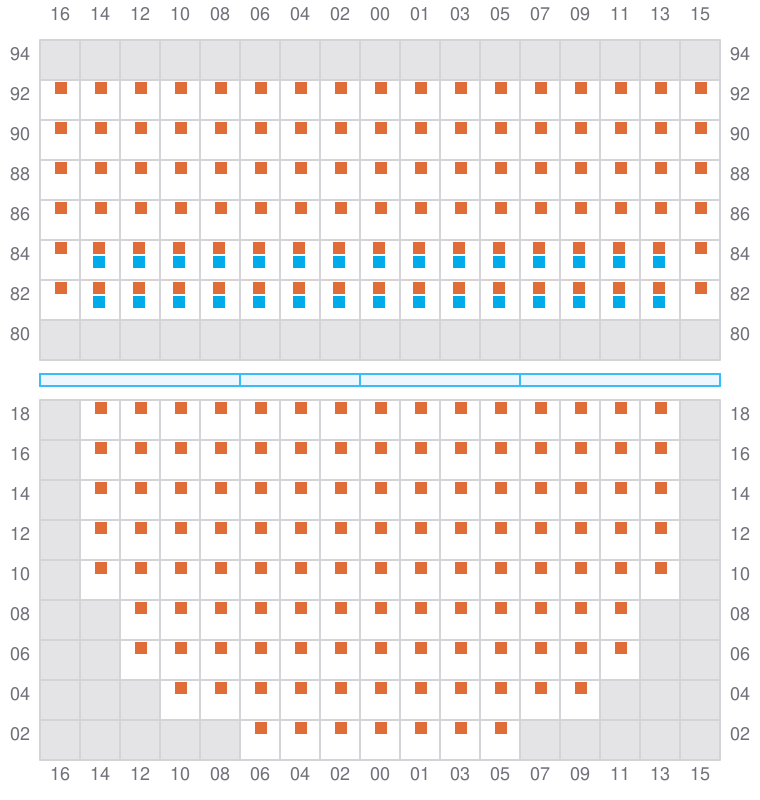

023
- ←
025 (026)
- →
027
- ←
029 (030)
- →
031
- ←
033 (034)
- →
035
- ? / ←

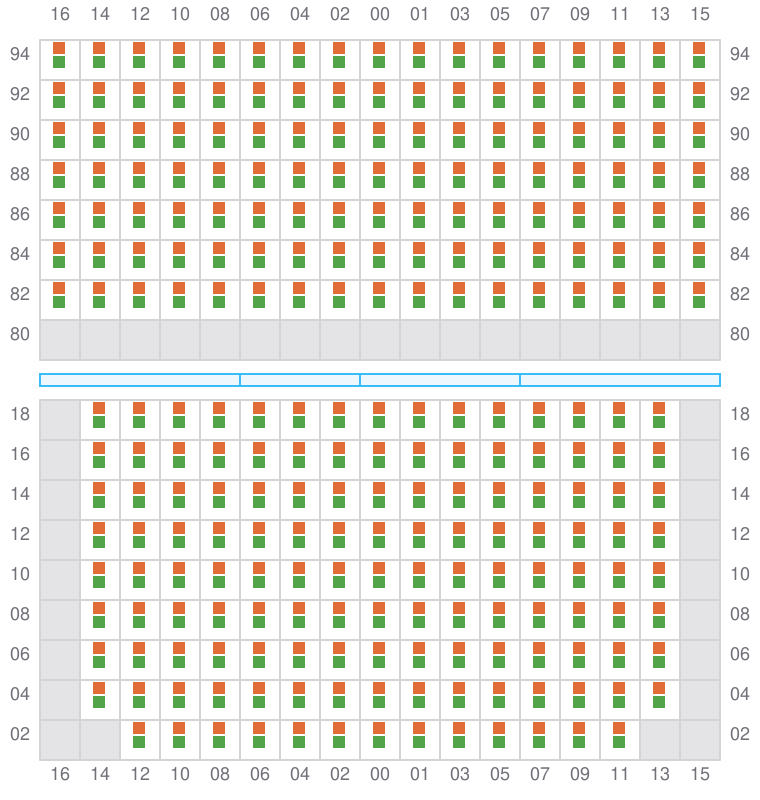

037 (038)
- →
039
- ←
041 (042)
- →

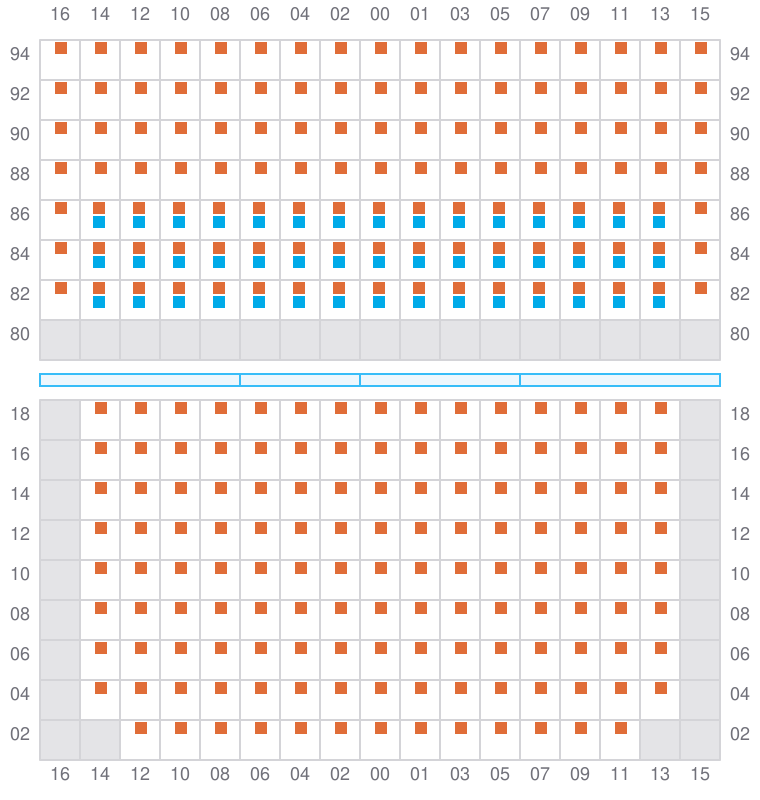

043
- ←
045 (046)
- →
047
- ←
049 (050)
- →
051
- ←
053 (054)
- →
055
- ←
057 (058)
- →
059
- ←
061 (062)
- →
063
- ←

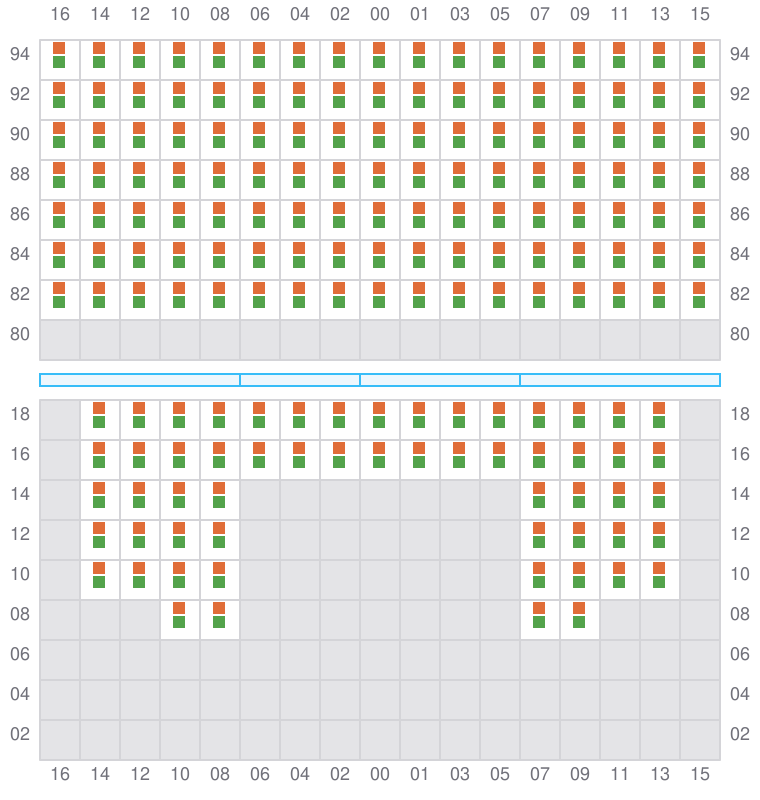

065 (066)
- →

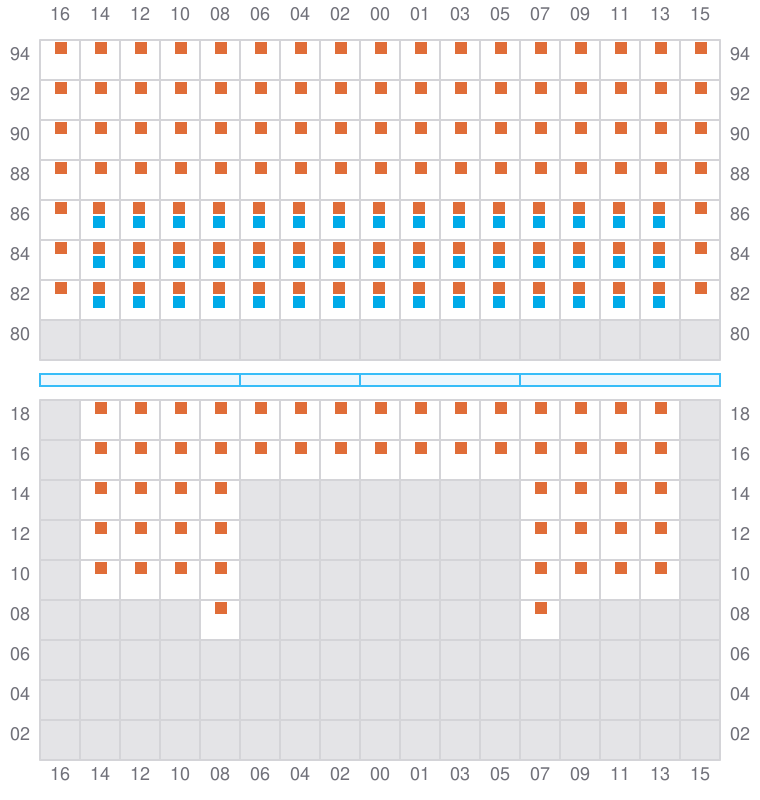

067
- ←

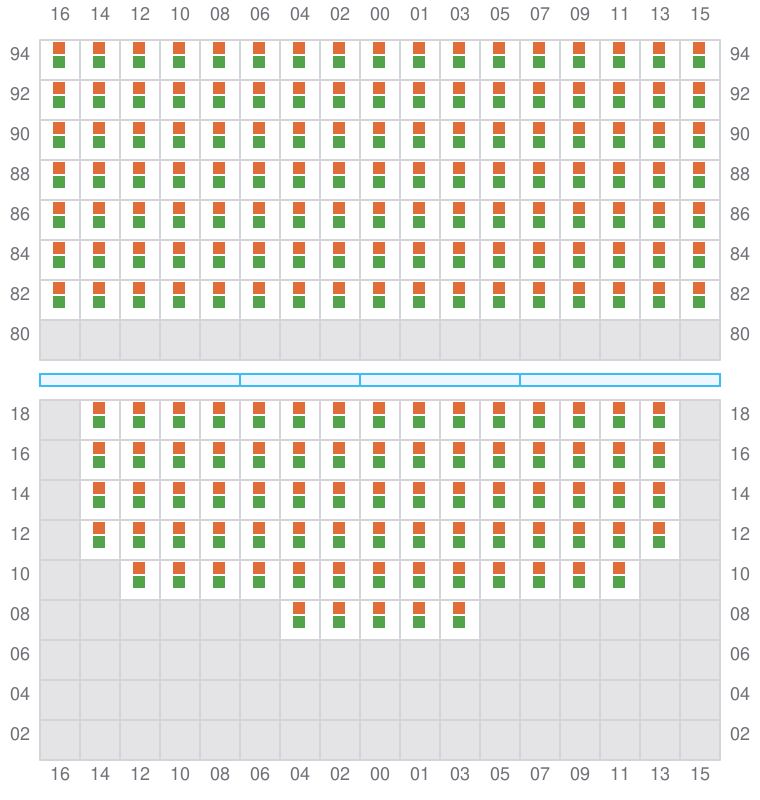

069 (070)
- →

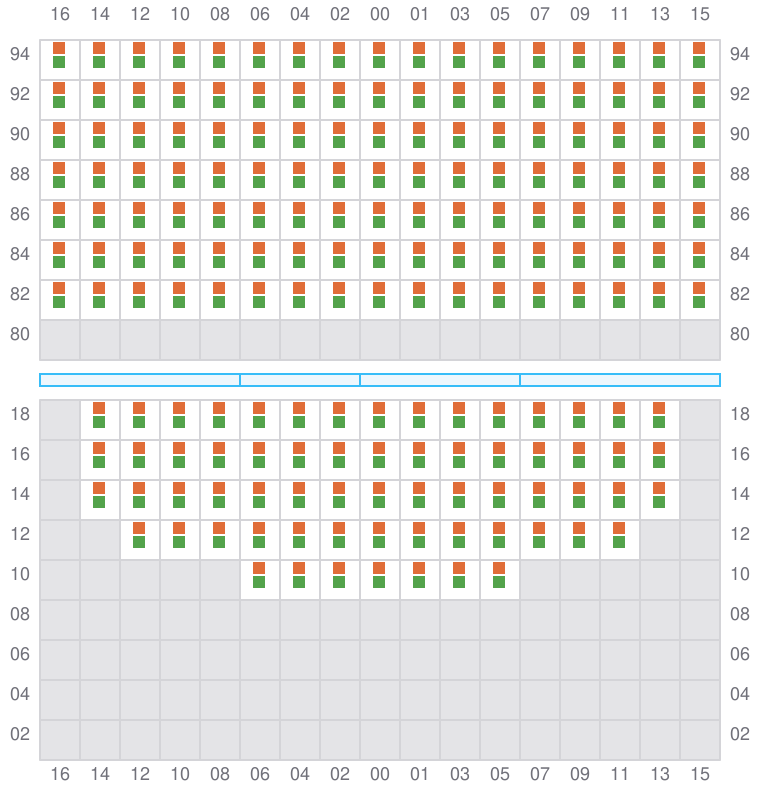

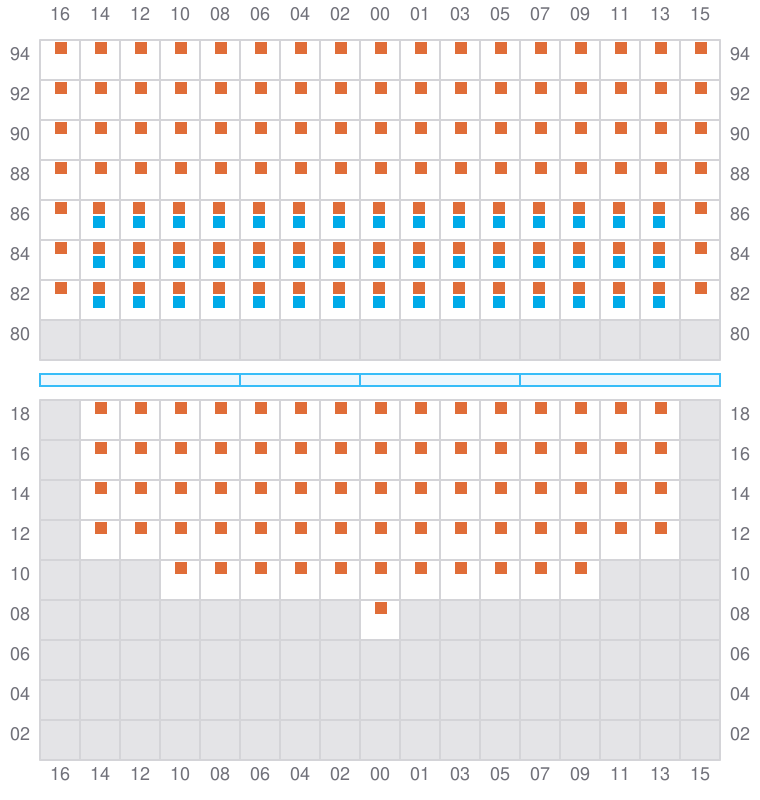

071
- ←
073 (074)
- →

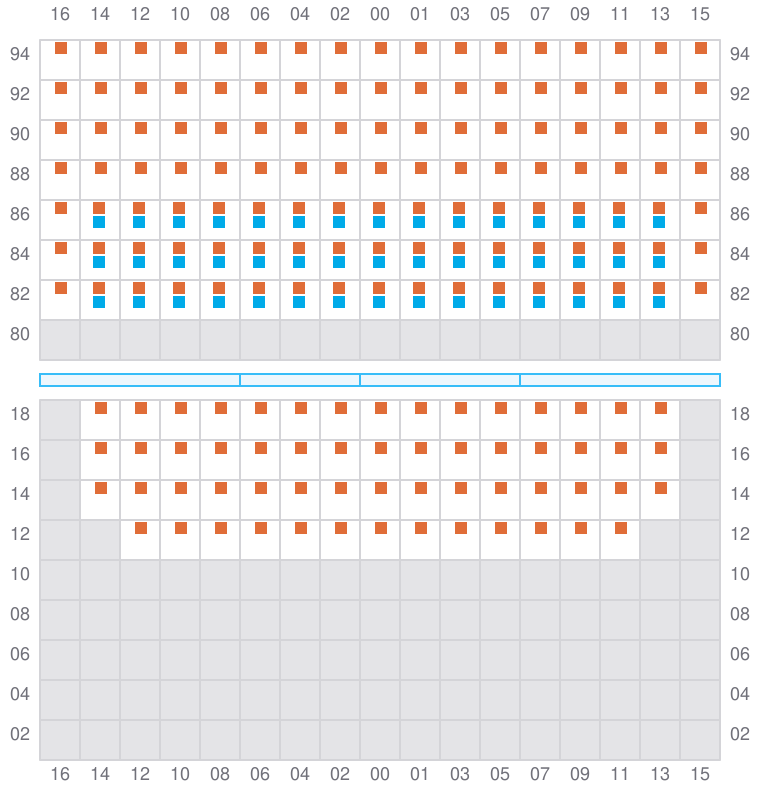

075
- ←
077 (078)
- → / ?
