SEASPAN ZAMBEZI
9630406 | VRNF7 | HLC by *********************** Last update: Tue Feb 04 2025

General Info

Ship Name:SEASPAN ZAMBEZI
IMO Code:9630406
Call Sign:VRNF7
Line Operator:HLC
Class Name for Sister Ships:HSZA
Year Built:2014
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:077
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:10,100

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Known
TCG Data:100%

Side View

Side view of SEASPAN ZAMBEZI

Hatch-Covers View

Deck view of SEASPAN ZAMBEZI

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

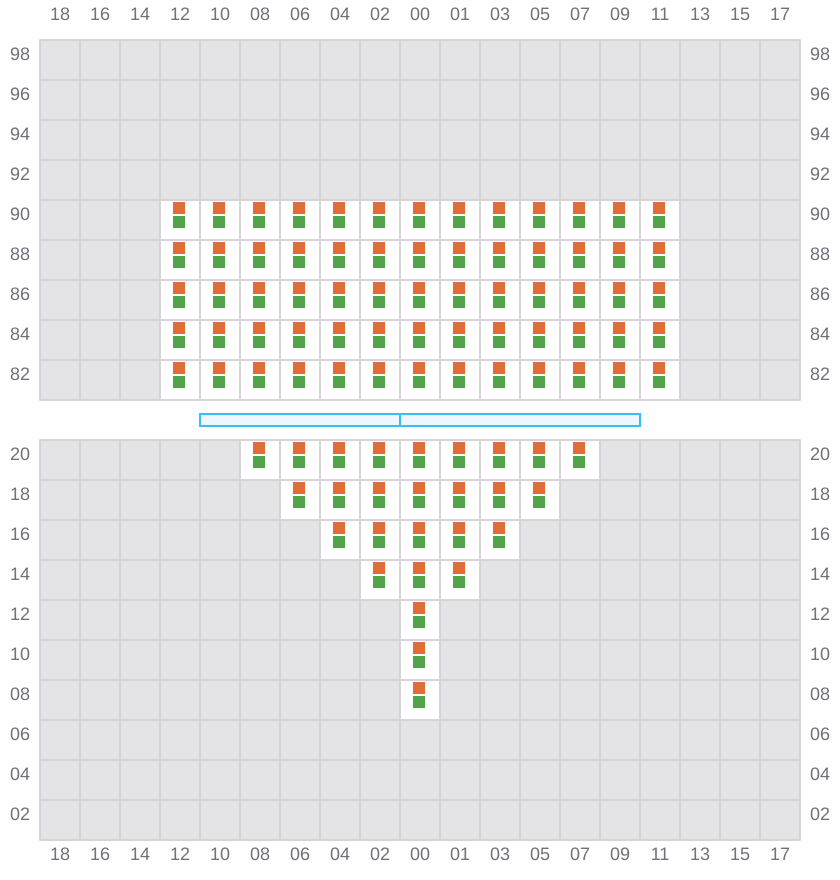

001 (002)

  • →
  • → / ?
  • →
Bay 001 view and slots of SEASPAN ZAMBEZI

003

  • ←
  • → / ?
  • →

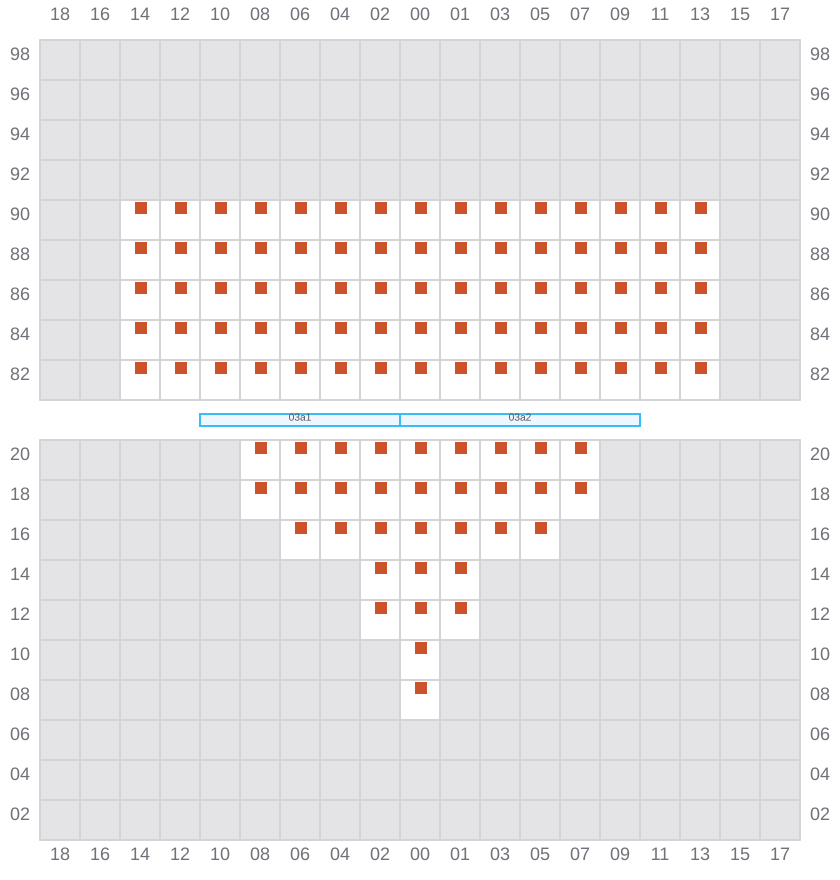

Bay 003 view and slots of SEASPAN ZAMBEZI

005 (006)

  • →
  • → / ?
  • →

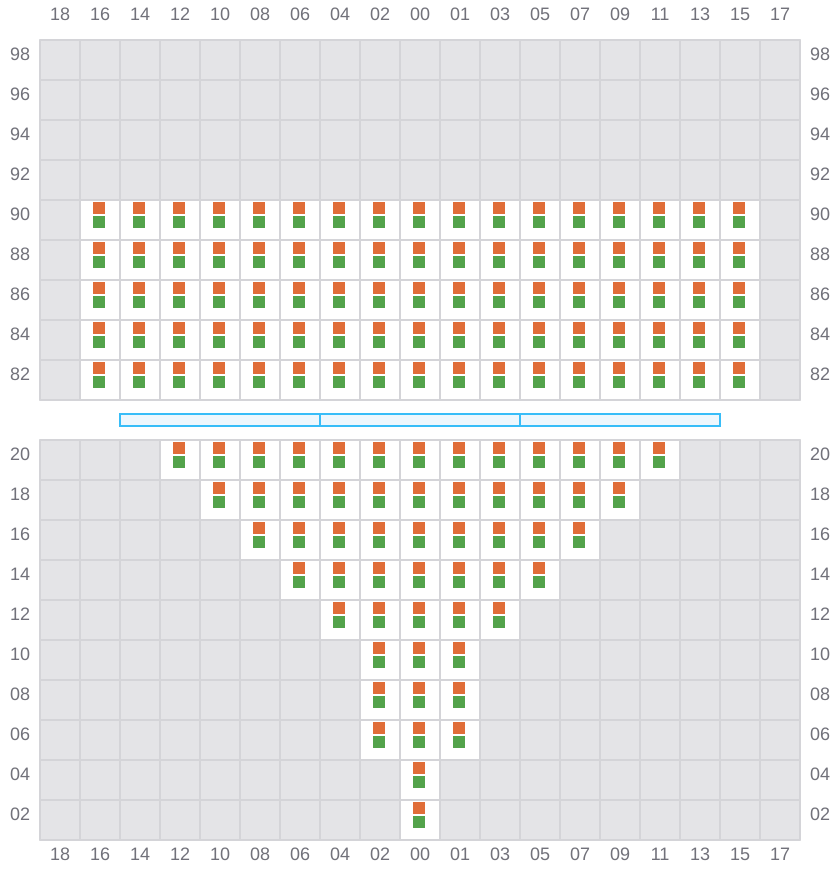

Bay 005 view and slots of SEASPAN ZAMBEZI

007

  • ←
  • → / ?
  • →

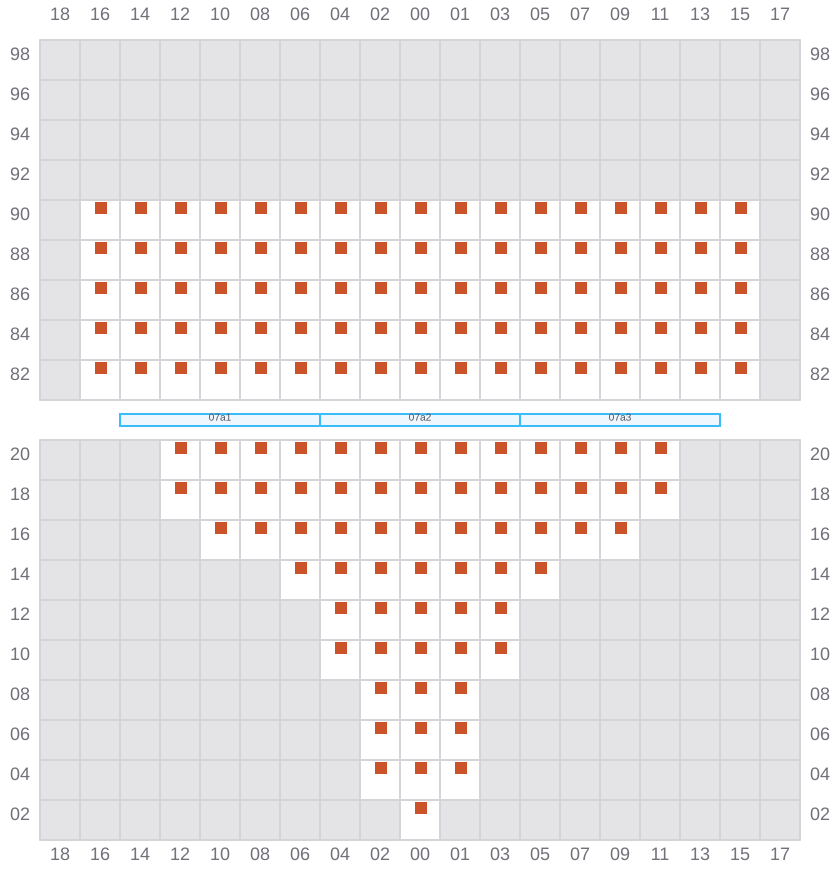

Bay 007 view and slots of SEASPAN ZAMBEZI

009 (010)

  • →
  • → / ?
  • →

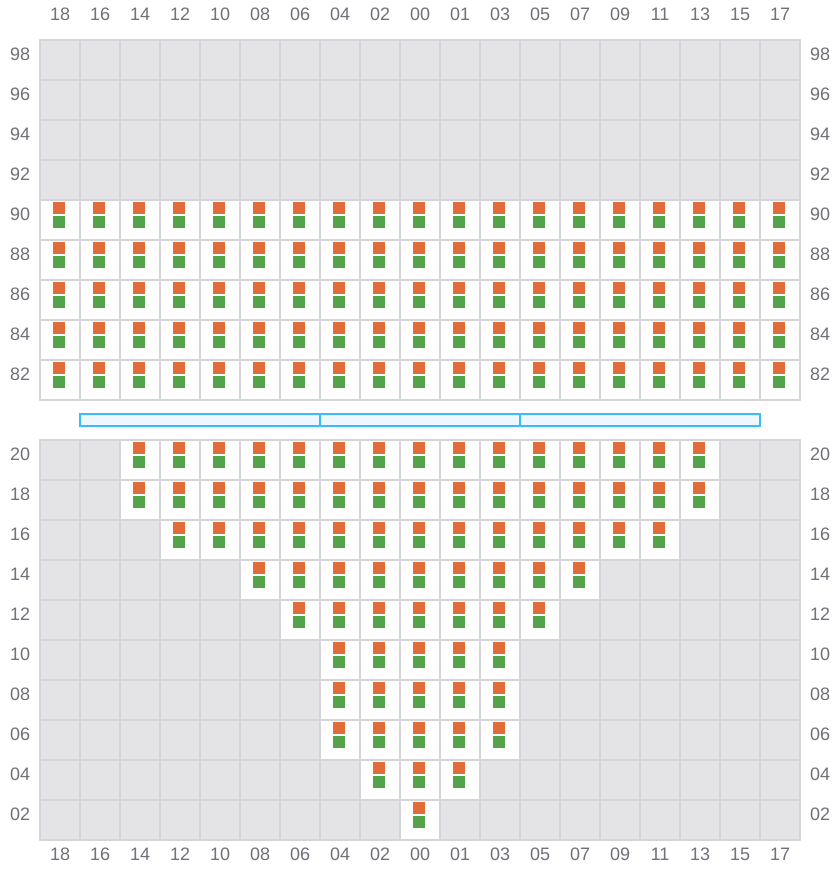

Bay 009 view and slots of SEASPAN ZAMBEZI

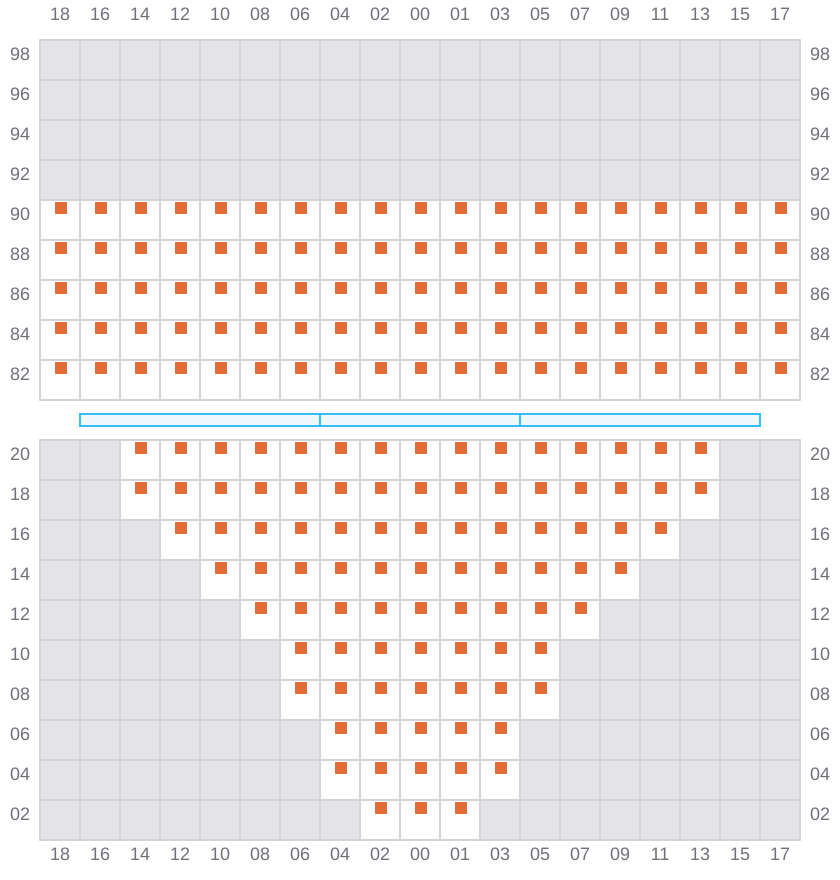

011

  • ←
  • → / ?
  • →
Bay 011 view and slots of SEASPAN ZAMBEZI

013 (014)

  • →
  • → / ?
  • →

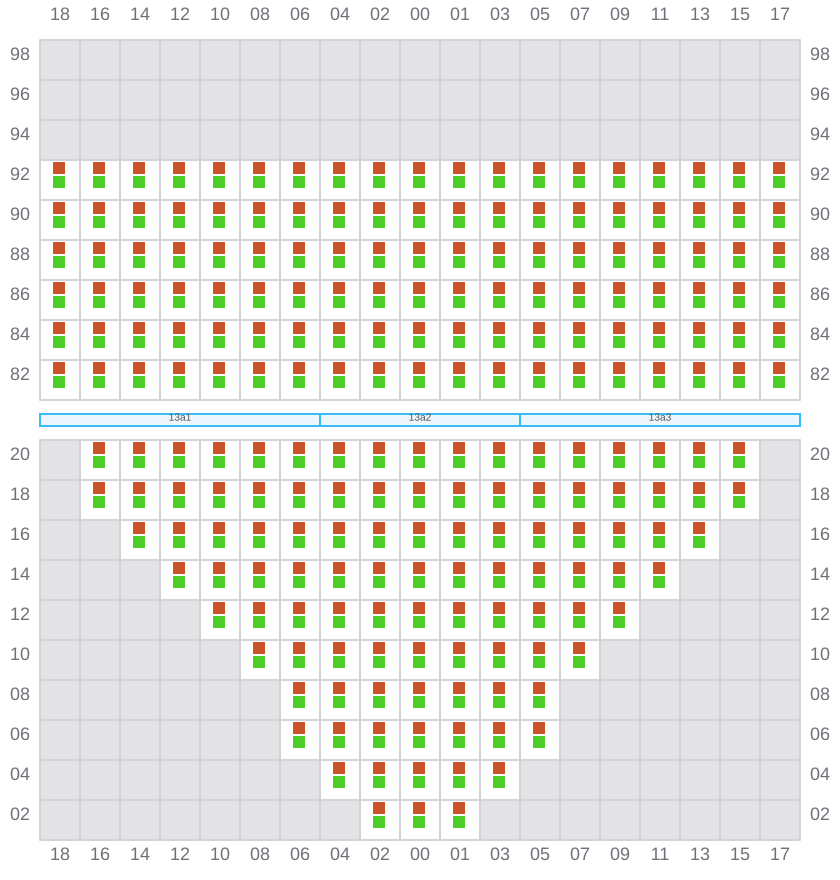

Bay 013 view and slots of SEASPAN ZAMBEZI

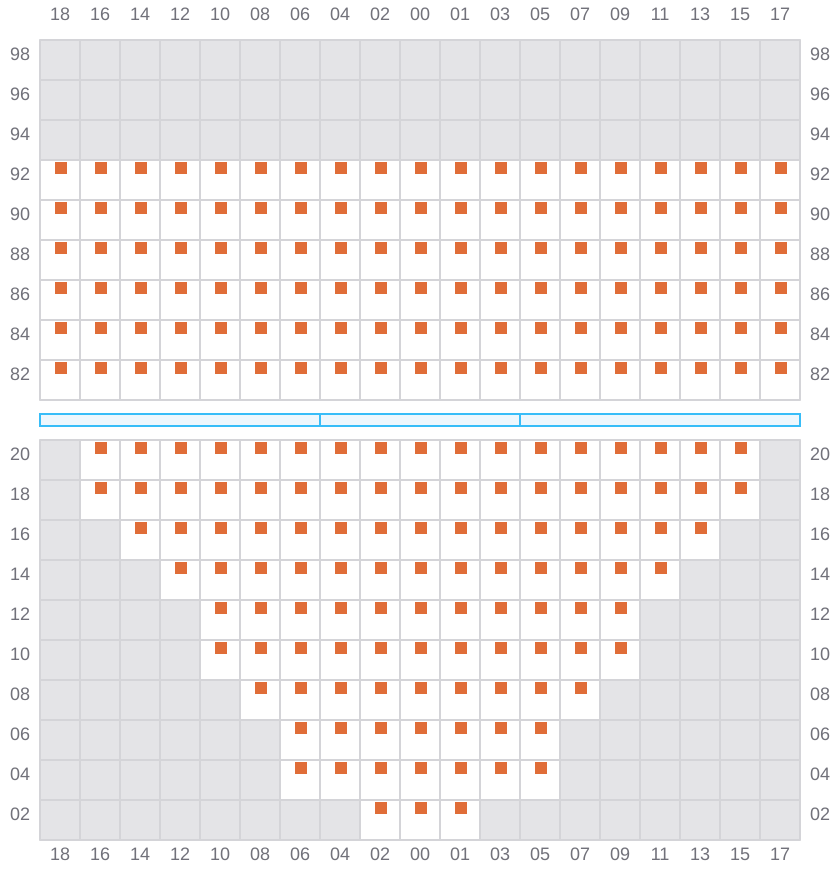

015

  • ←
  • → / ?
  • →
Bay 015 view and slots of SEASPAN ZAMBEZI

017 (018)

  • →
  • → / ?
  • →

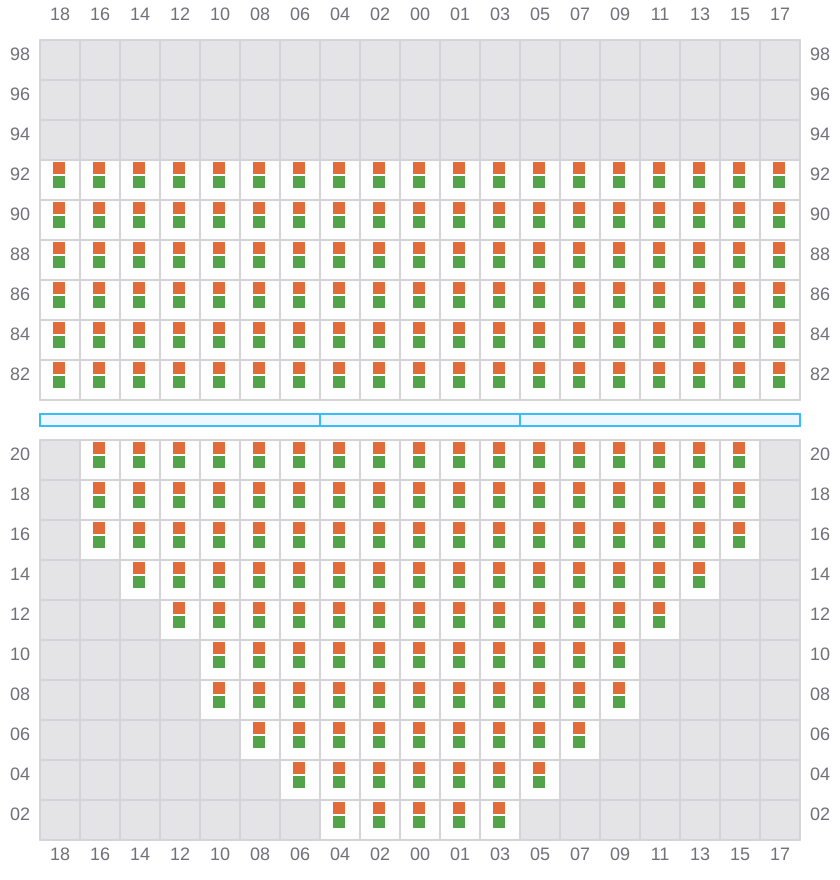

Bay 017 view and slots of SEASPAN ZAMBEZI

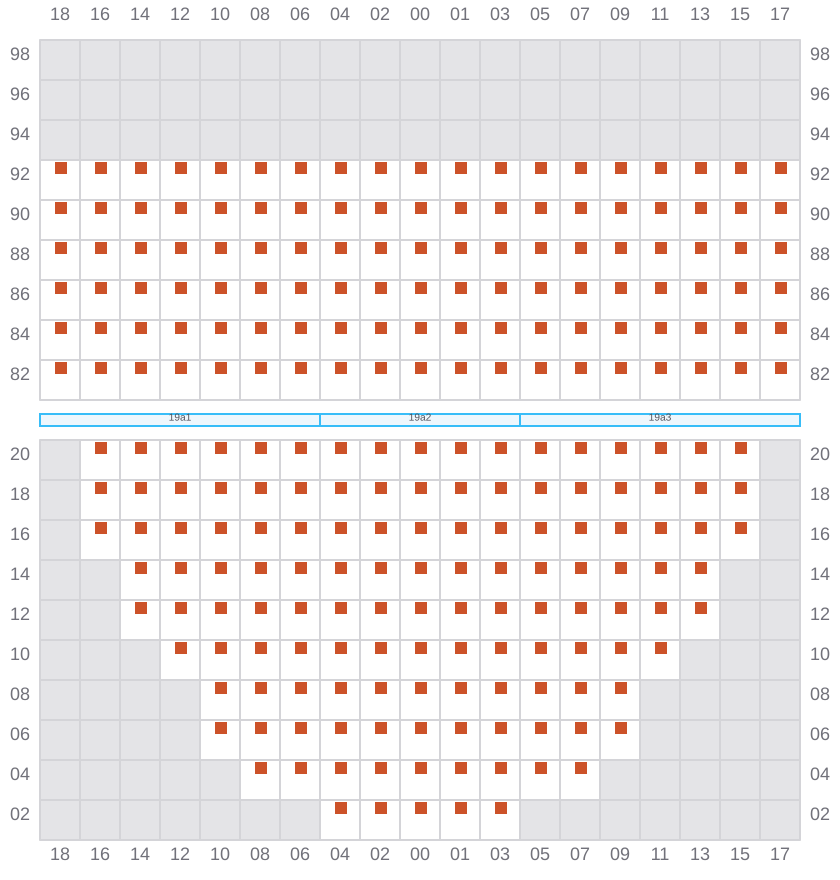

019

  • ←
  • → / ?
  • →
Bay 019 view and slots of SEASPAN ZAMBEZI

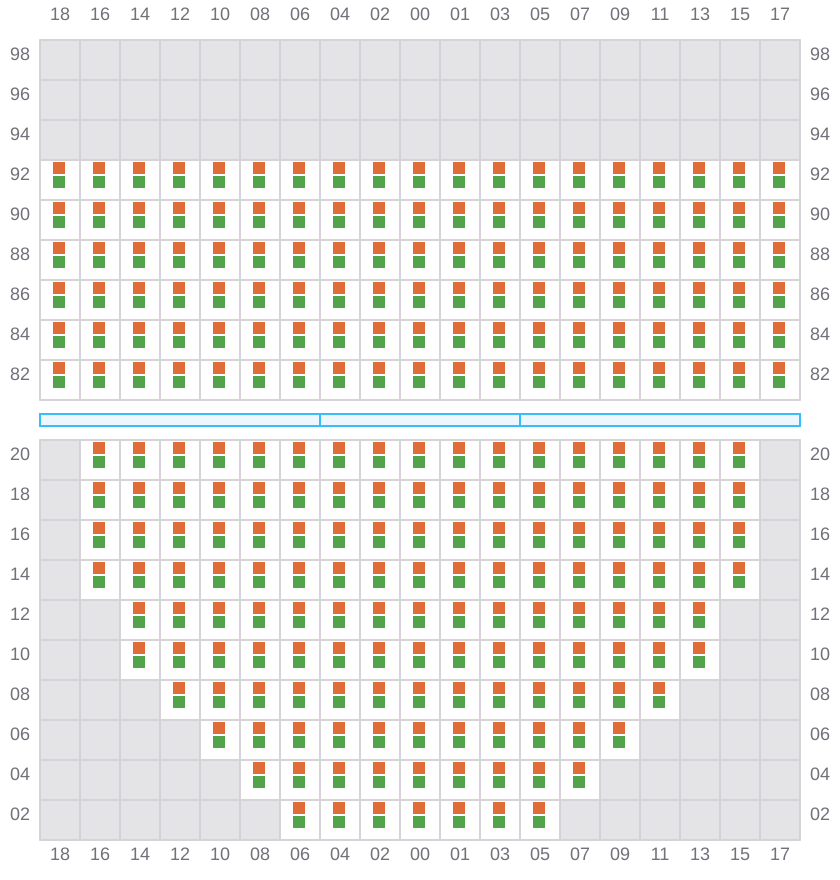

021 (022)

  • →
  • → / ?
  • →
Bay 021 view and slots of SEASPAN ZAMBEZI

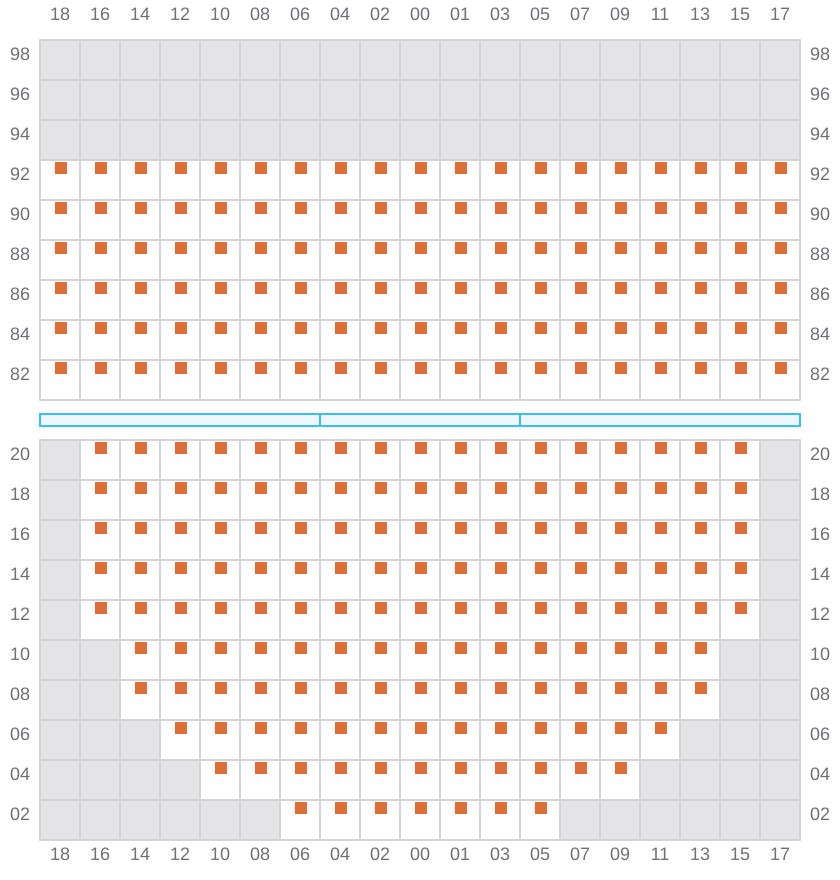

023

  • ←
  • → / ?
  • →
Bay 023 view and slots of SEASPAN ZAMBEZI

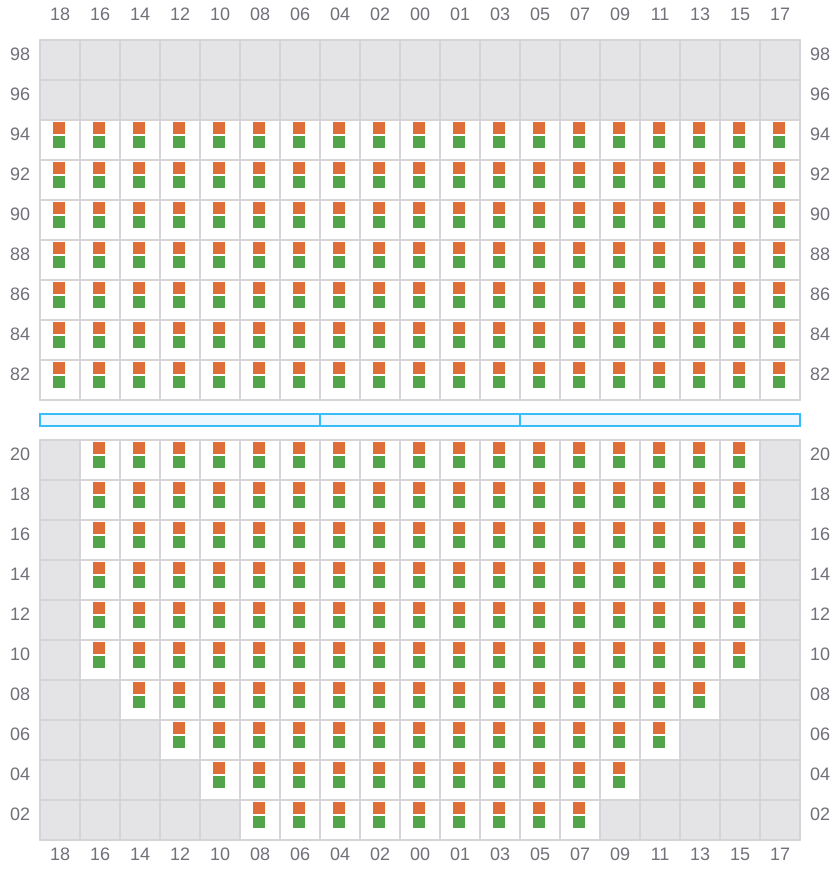

025 (026)

  • →
  • → / ?
  • →
Bay 025 view and slots of SEASPAN ZAMBEZI

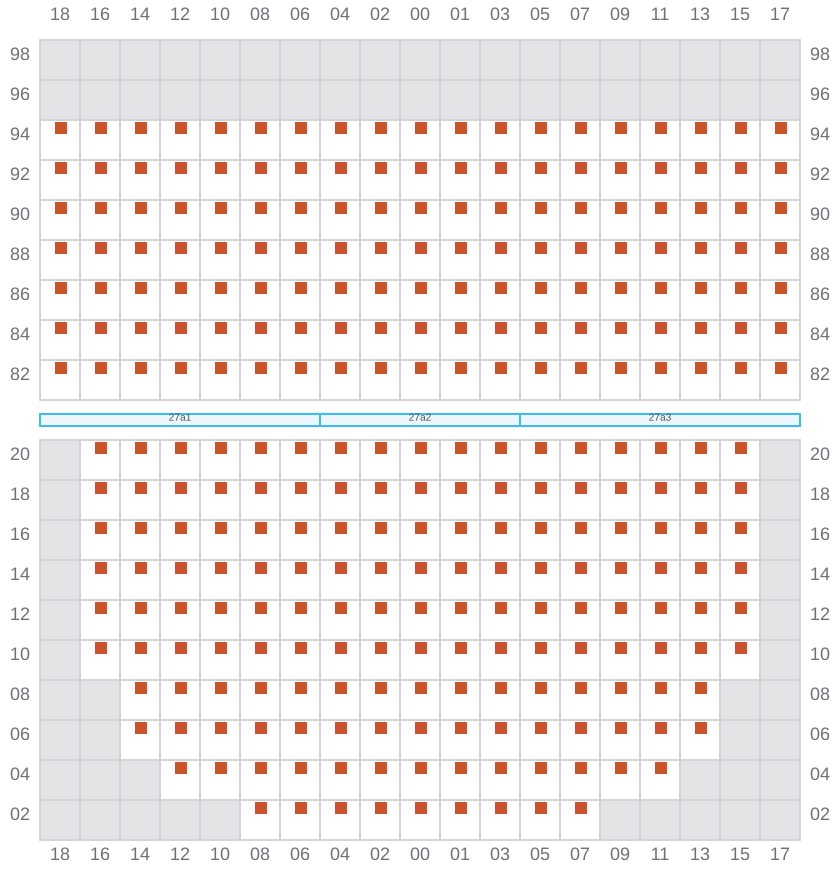

027

  • ←
  • → / ?
  • →
Bay 027 view and slots of SEASPAN ZAMBEZI

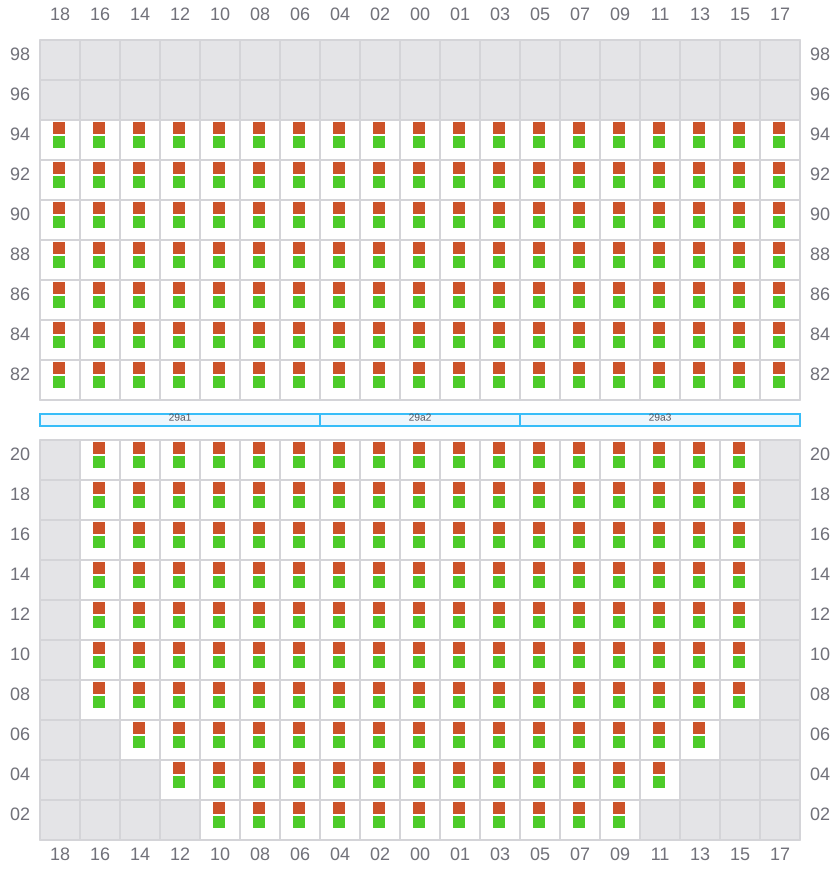

029 (030)

  • →
  • → / ?
  • →
Bay 029 view and slots of SEASPAN ZAMBEZI

031

  • ←
  • → / ?
  • →

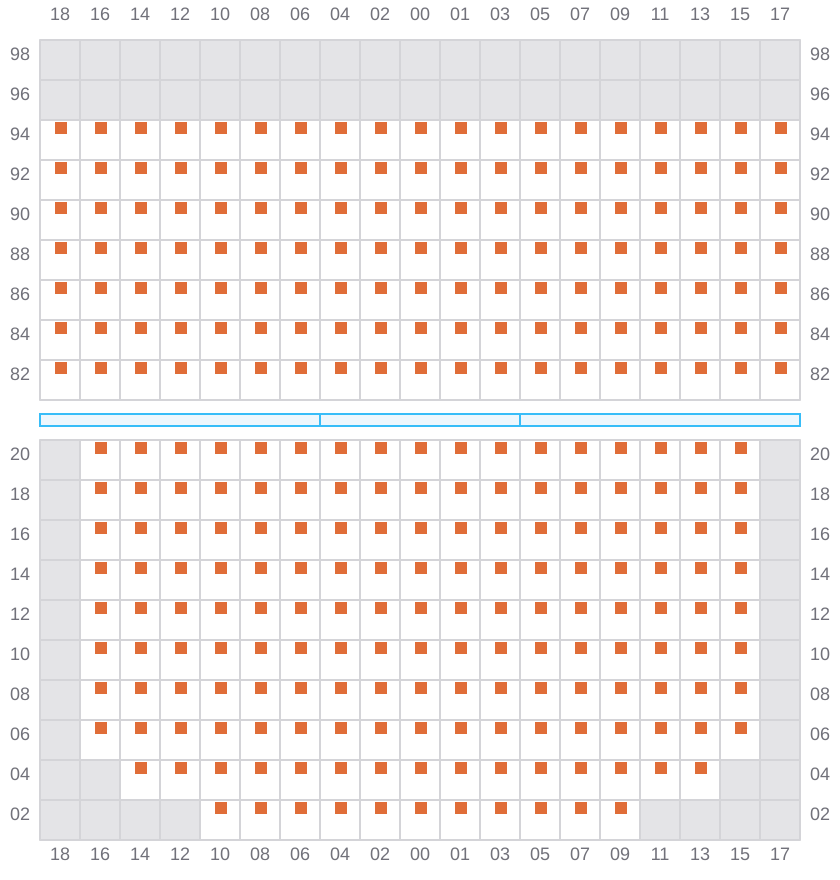

Bay 031 view and slots of SEASPAN ZAMBEZI

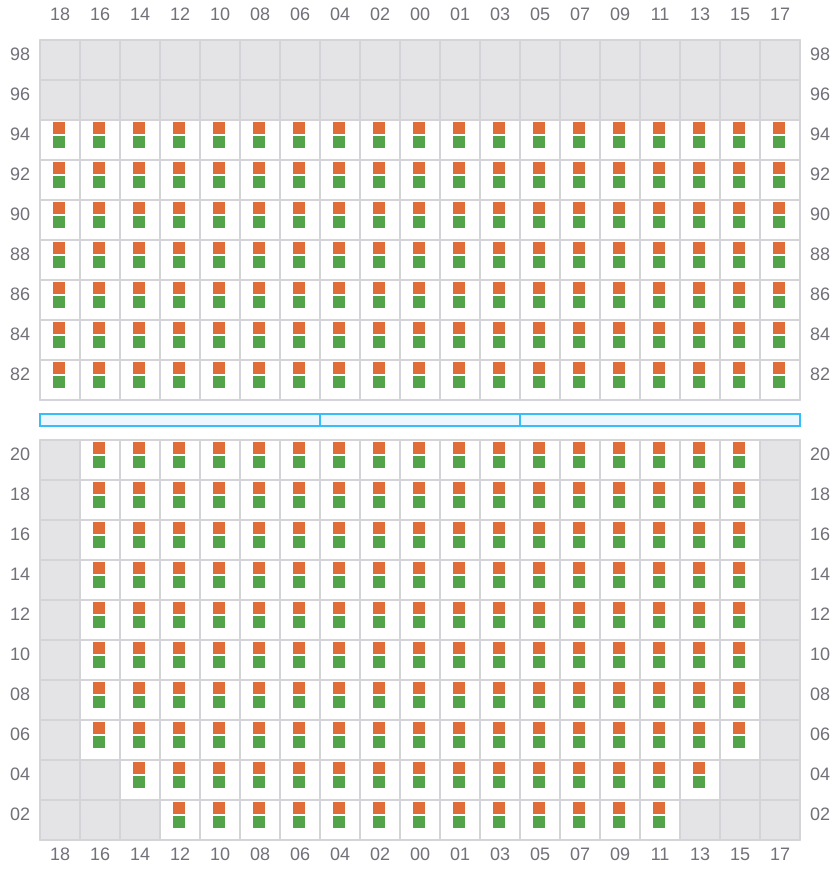

033 (034)

  • →
  • → / ?
  • →
Bay 033 view and slots of SEASPAN ZAMBEZI

035

  • ←
  • → / ?
  • →

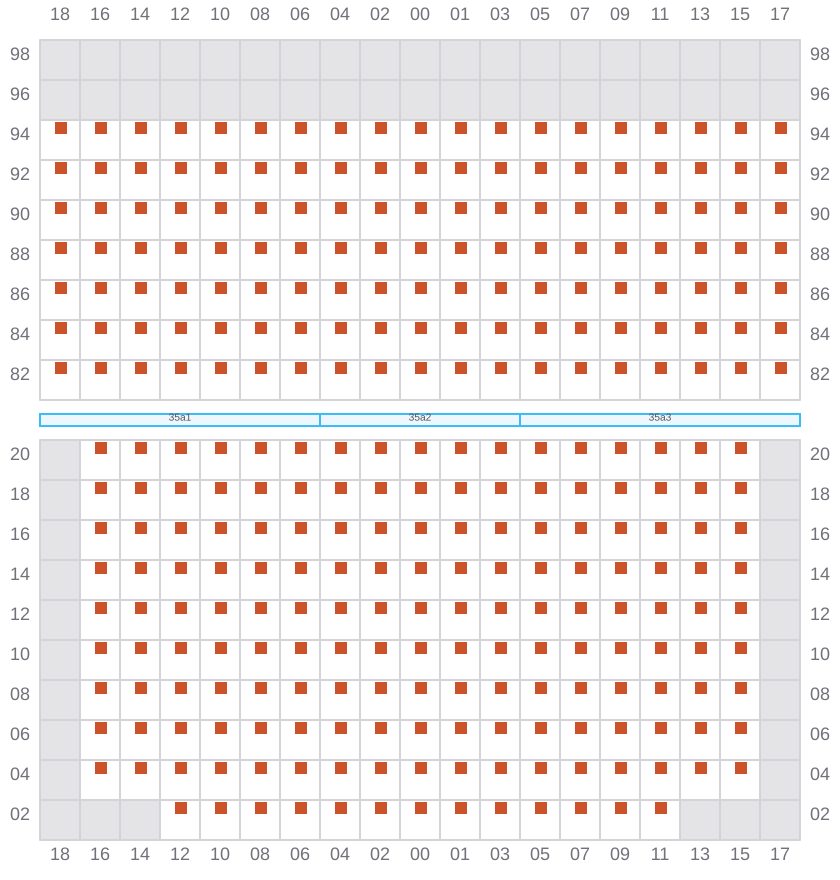

Bay 035 view and slots of SEASPAN ZAMBEZI

037 (038)

  • →
  • → / ?
  • →

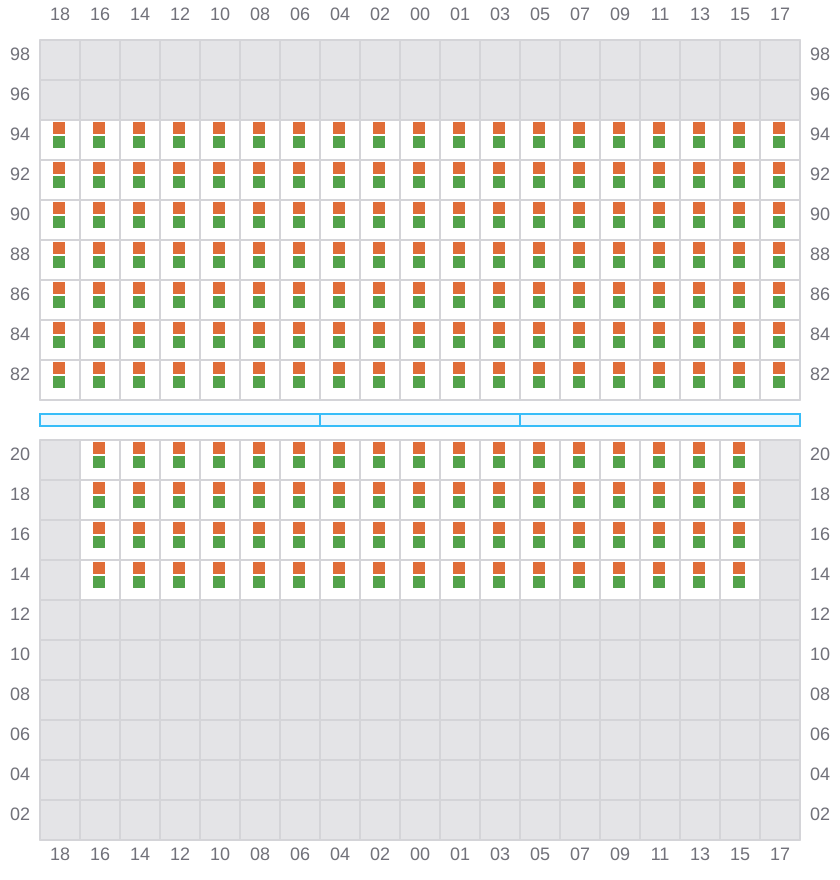

Bay 037 view and slots of SEASPAN ZAMBEZI

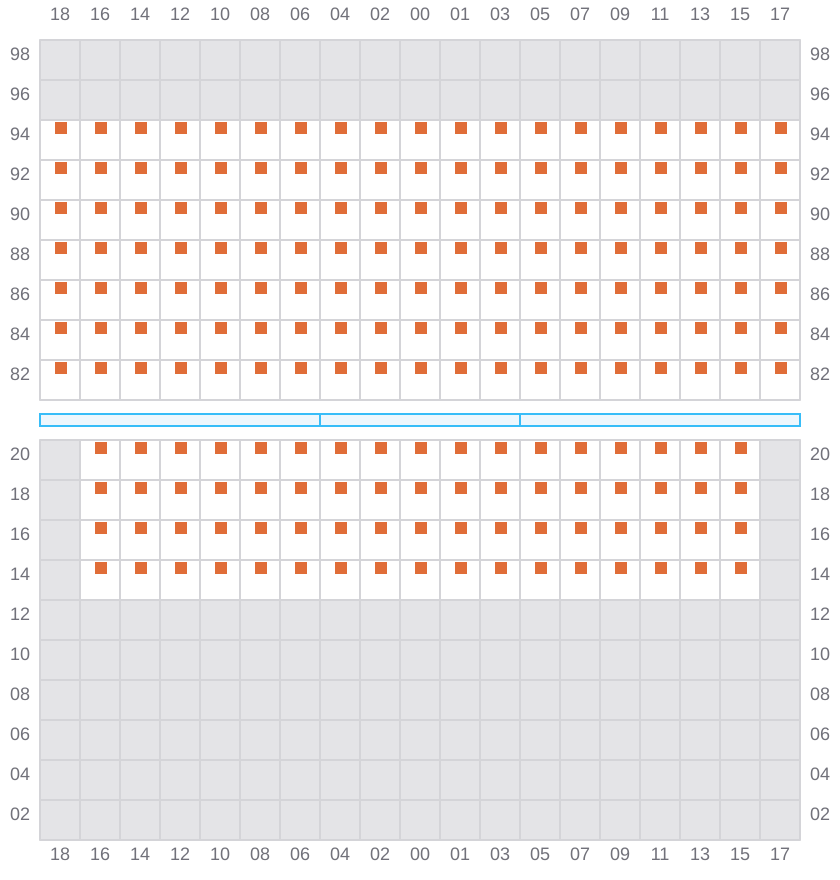

039

  • ←
  • → / ?
  • →
Bay 039 view and slots of SEASPAN ZAMBEZI

041 (042)

  • →
  • → / ?
  • →
Bay 041 view and slots of SEASPAN ZAMBEZI

043

  • ←
  • → / ?
  • →

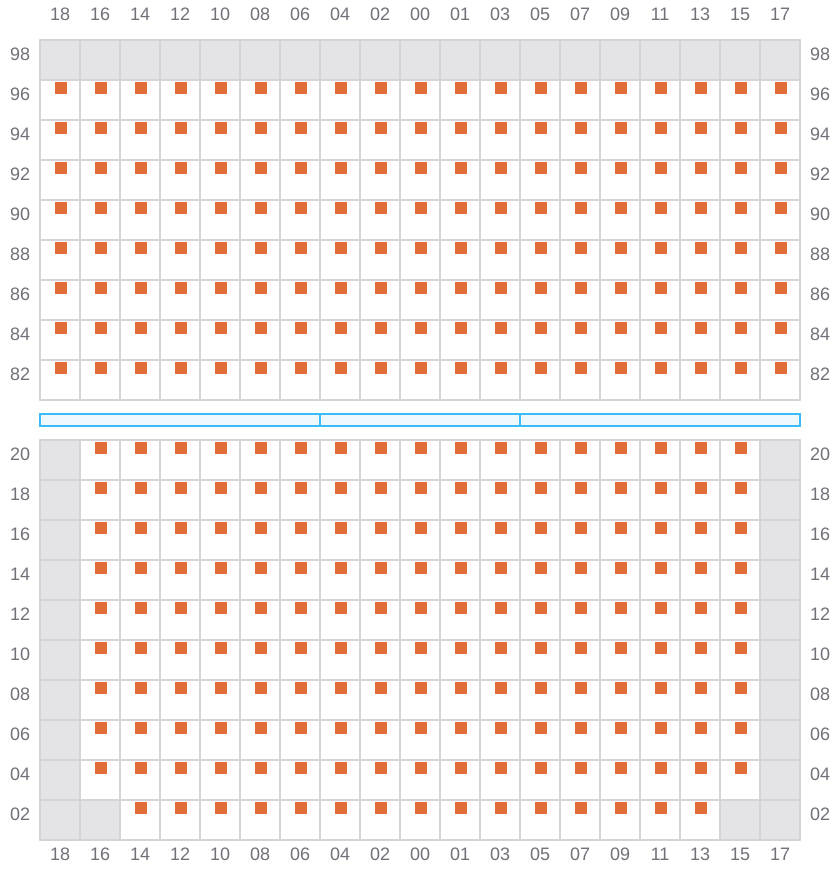

Bay 043 view and slots of SEASPAN ZAMBEZI

045 (046)

  • →
  • →
  • →

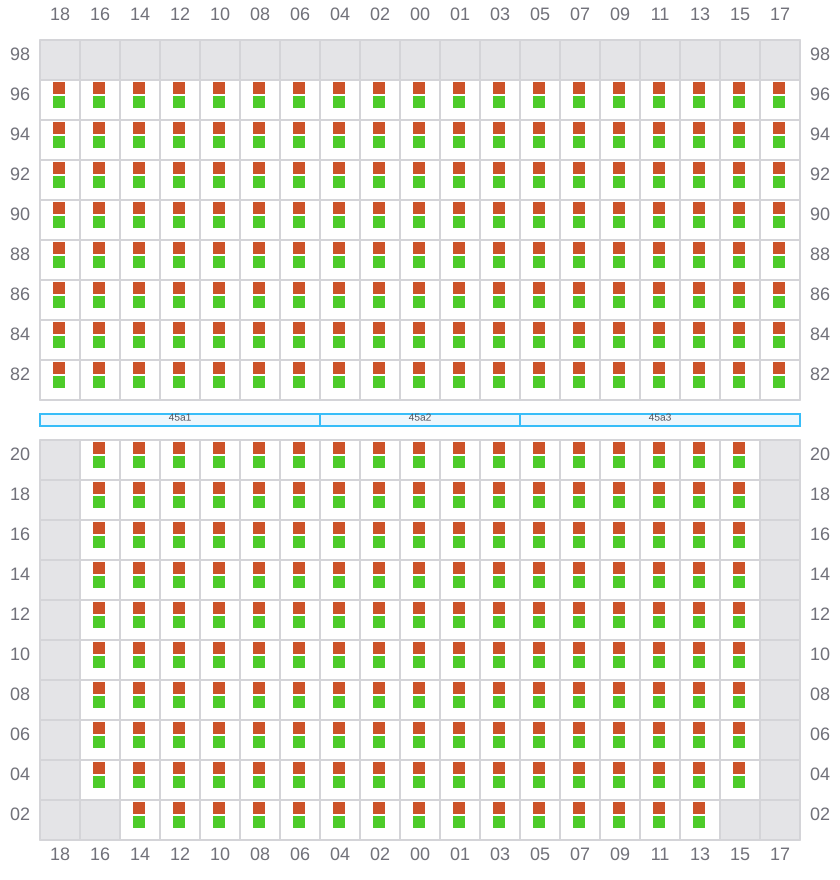

Bay 045 view and slots of SEASPAN ZAMBEZI

047

  • ←
  • →
  • →
Bay 047 view and slots of SEASPAN ZAMBEZI

049 (050)

  • →
  • →
  • →

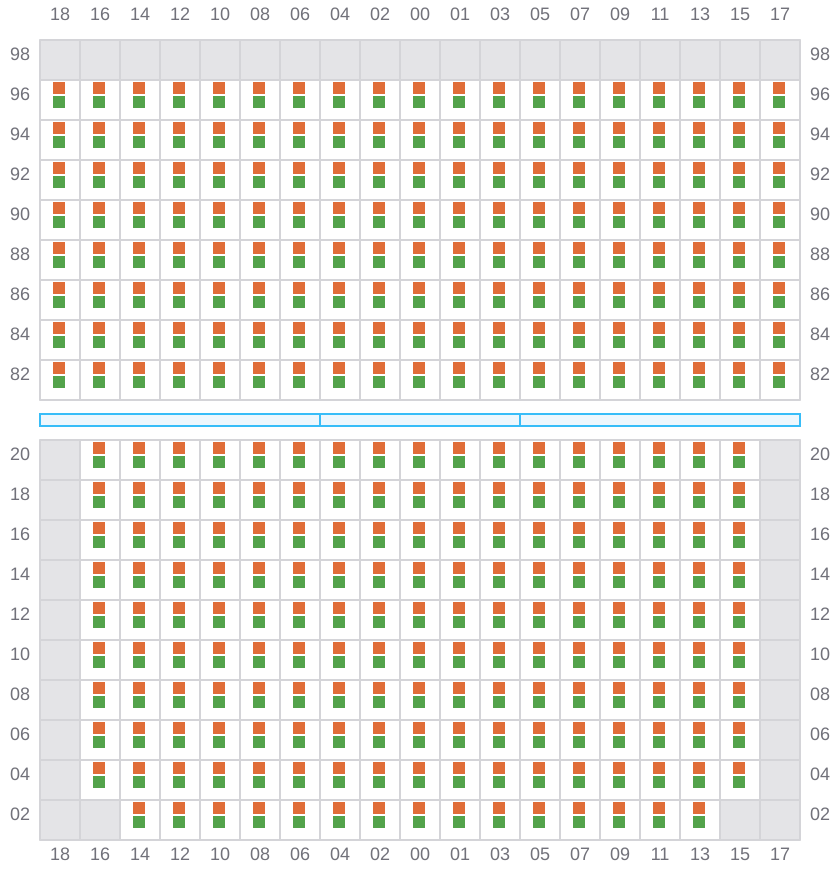

Bay 049 view and slots of SEASPAN ZAMBEZI

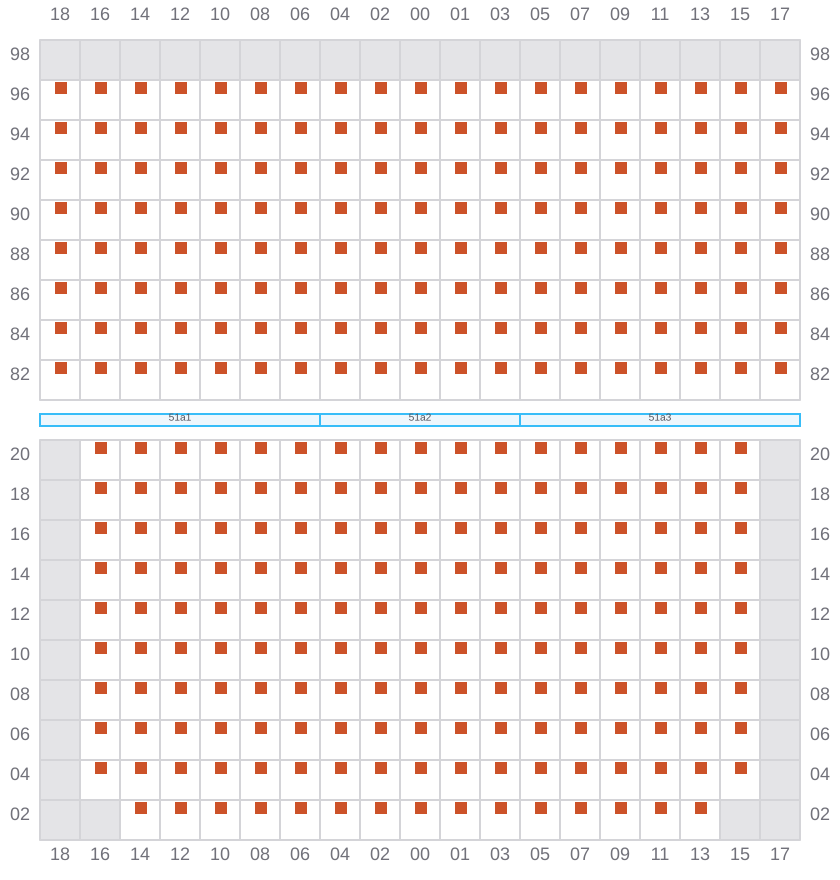

051

  • ←
  • →
  • →
Bay 051 view and slots of SEASPAN ZAMBEZI

053 (054)

  • →
  • →
  • →

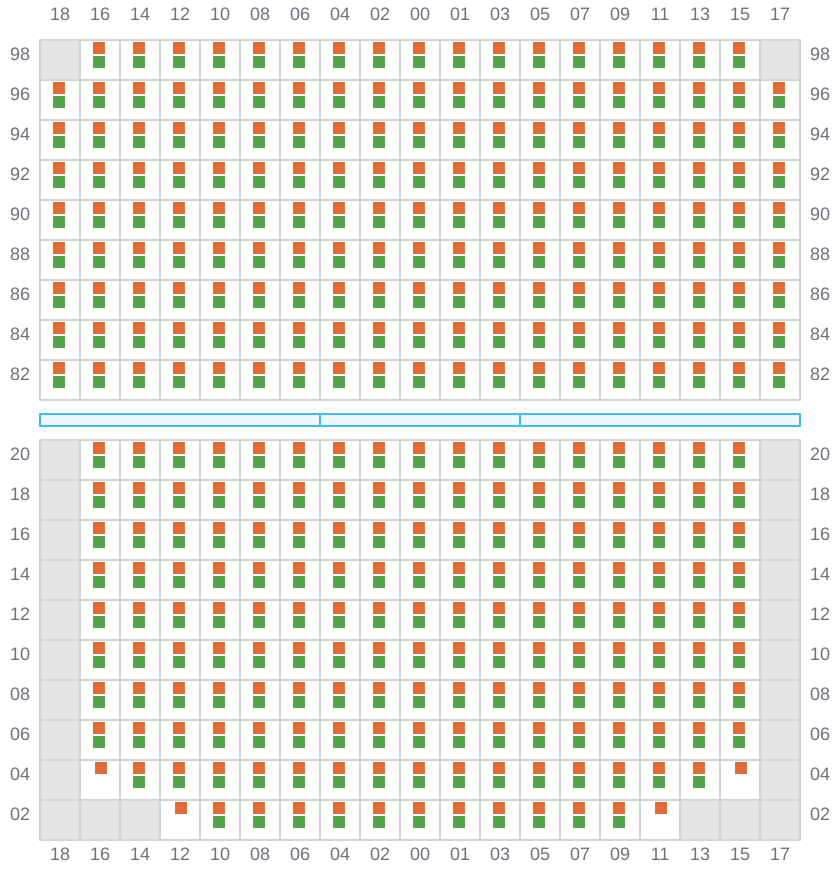

Bay 053 view and slots of SEASPAN ZAMBEZI

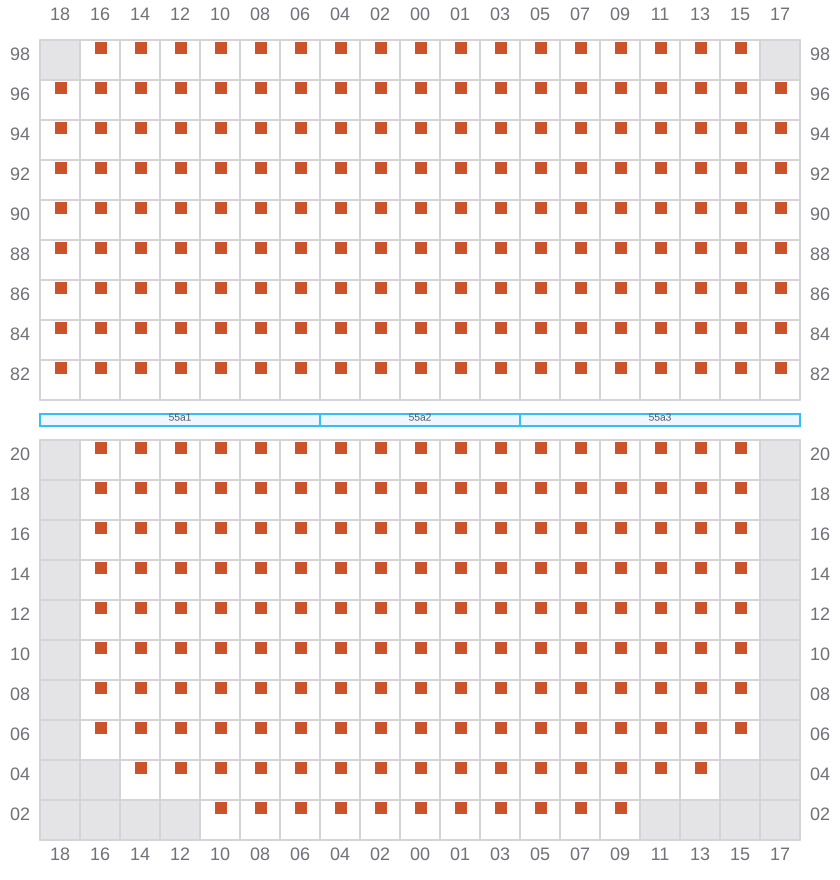

055

  • ←
  • →
  • →
Bay 055 view and slots of SEASPAN ZAMBEZI

057 (058)

  • →
  • →
  • →

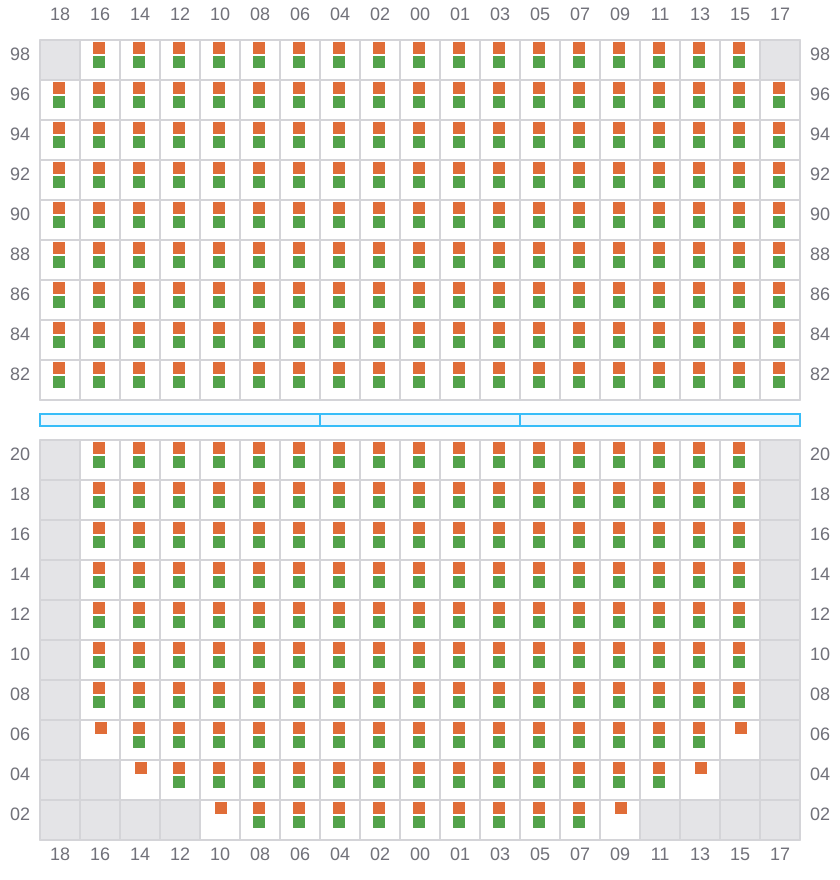

Bay 057 view and slots of SEASPAN ZAMBEZI

059

  • ←
  • →
  • →

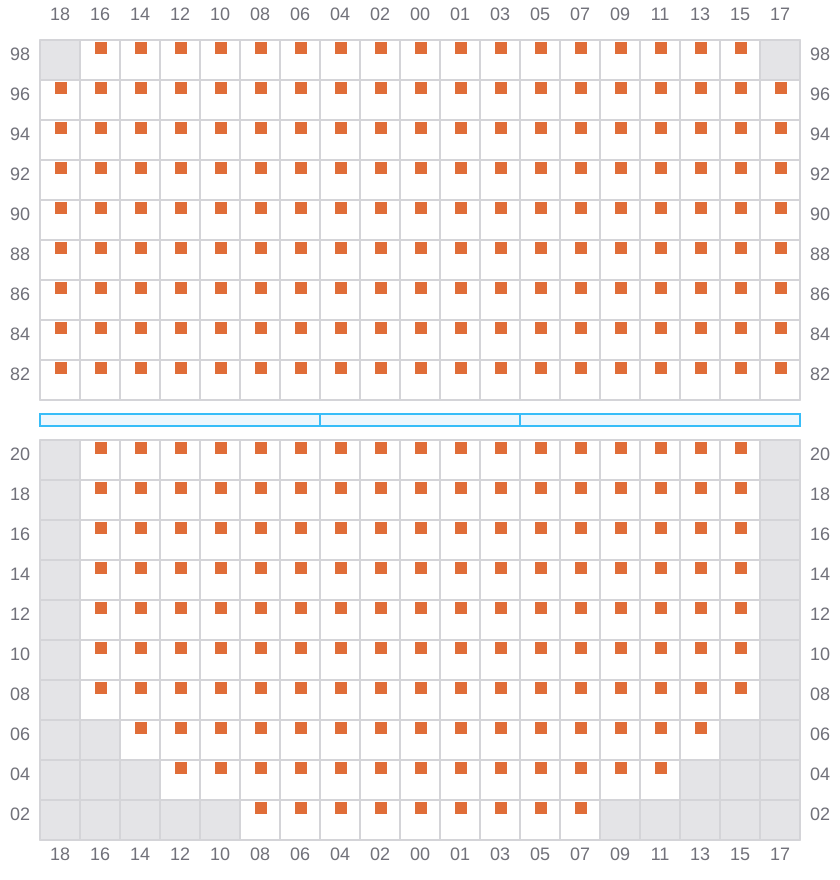

Bay 059 view and slots of SEASPAN ZAMBEZI

061 (062)

  • →
  • → / ?
  • →

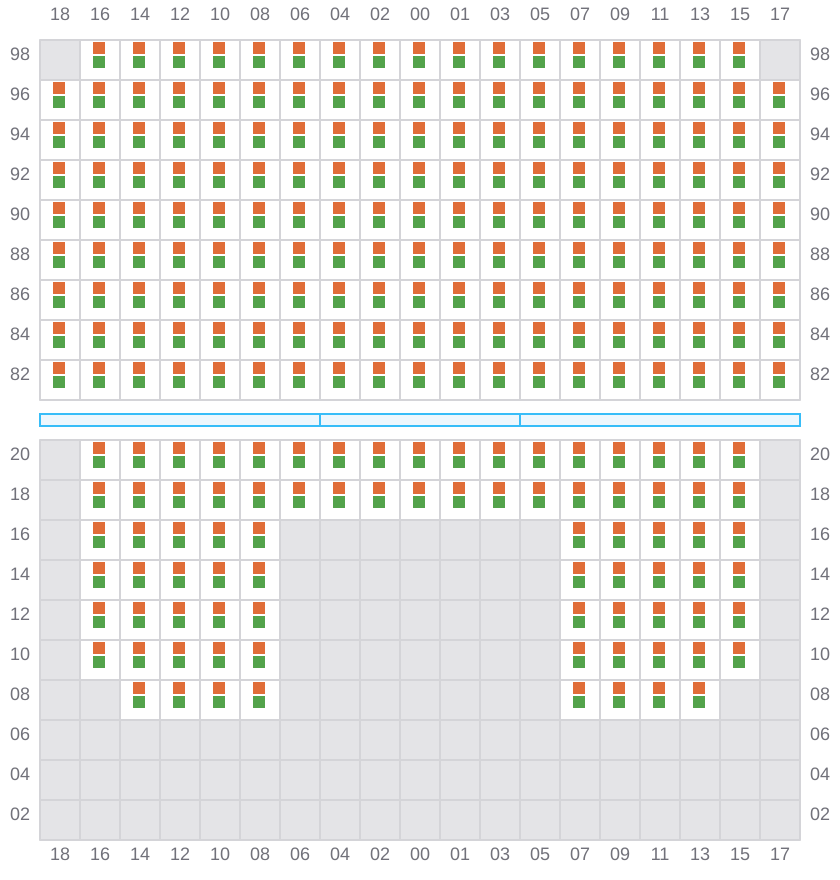

Bay 061 view and slots of SEASPAN ZAMBEZI

063

  • ←
  • → / ?
  • →

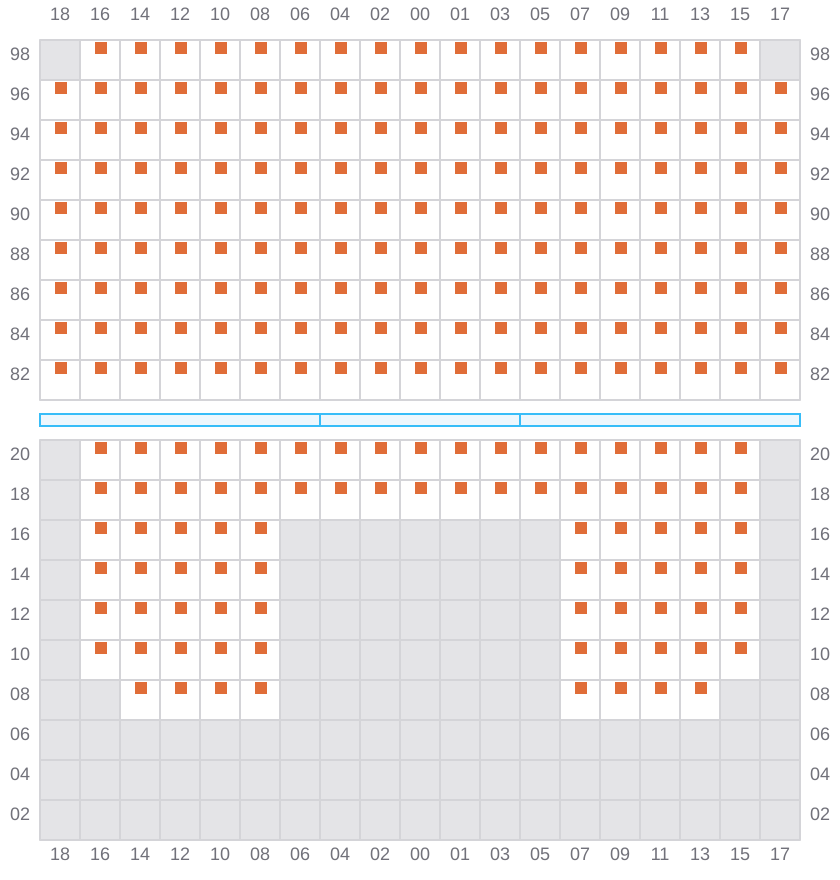

Bay 063 view and slots of SEASPAN ZAMBEZI

065 (066)

  • →
  • → / ?
  • →

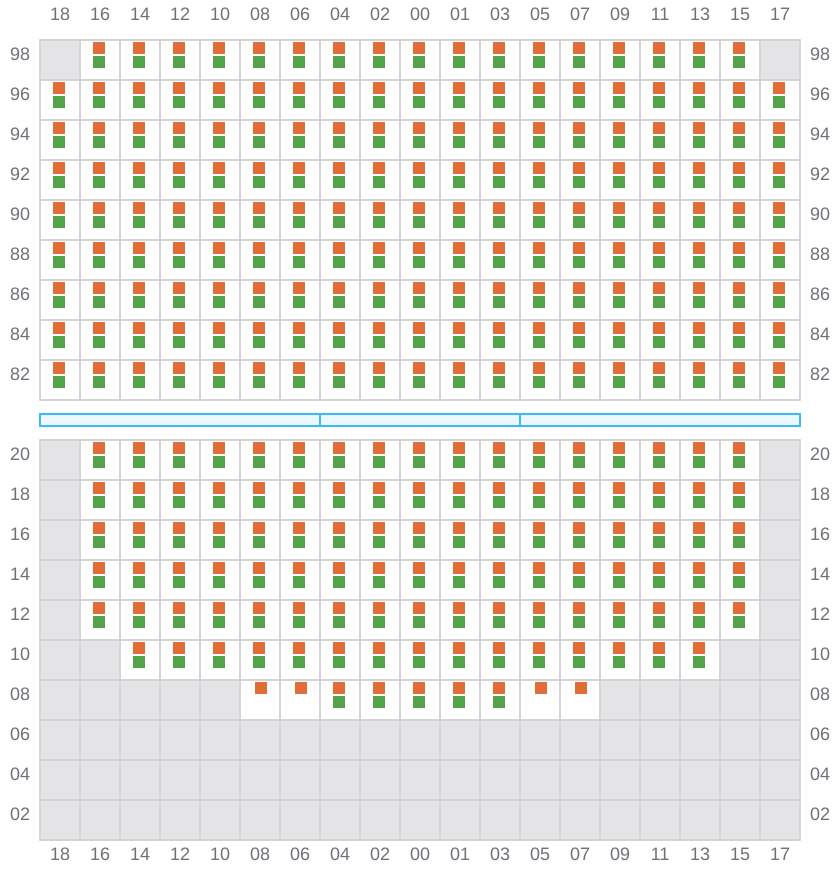

Bay 065 view and slots of SEASPAN ZAMBEZI

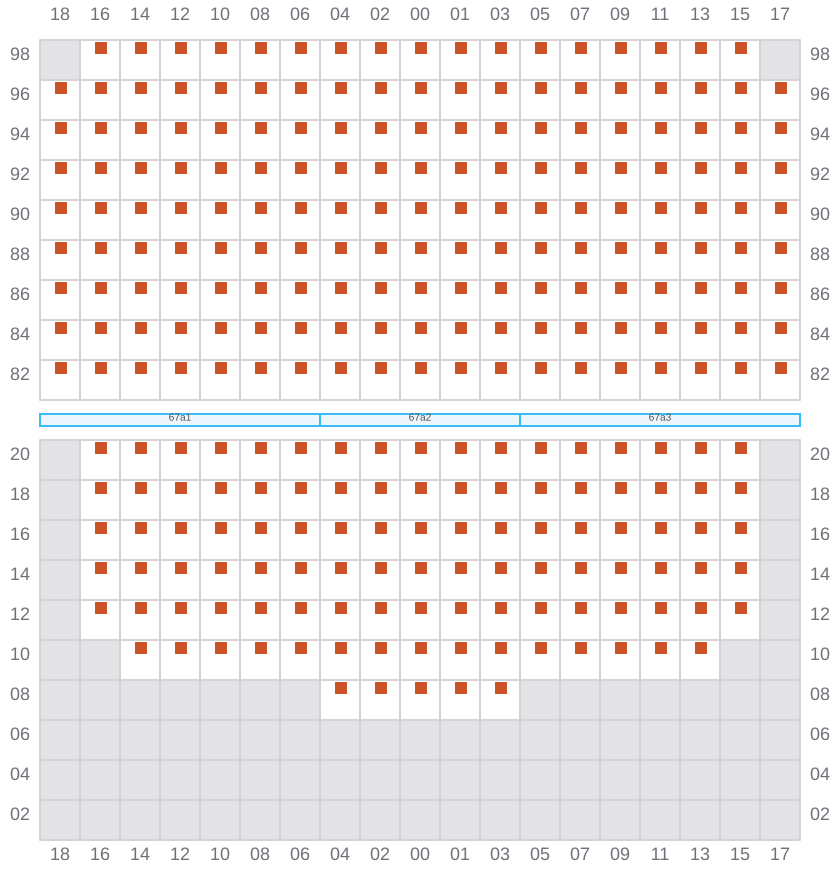

067

  • ←
  • → / ?
  • →
Bay 067 view and slots of SEASPAN ZAMBEZI

069 (070)

  • →
  • → / ?
  • →

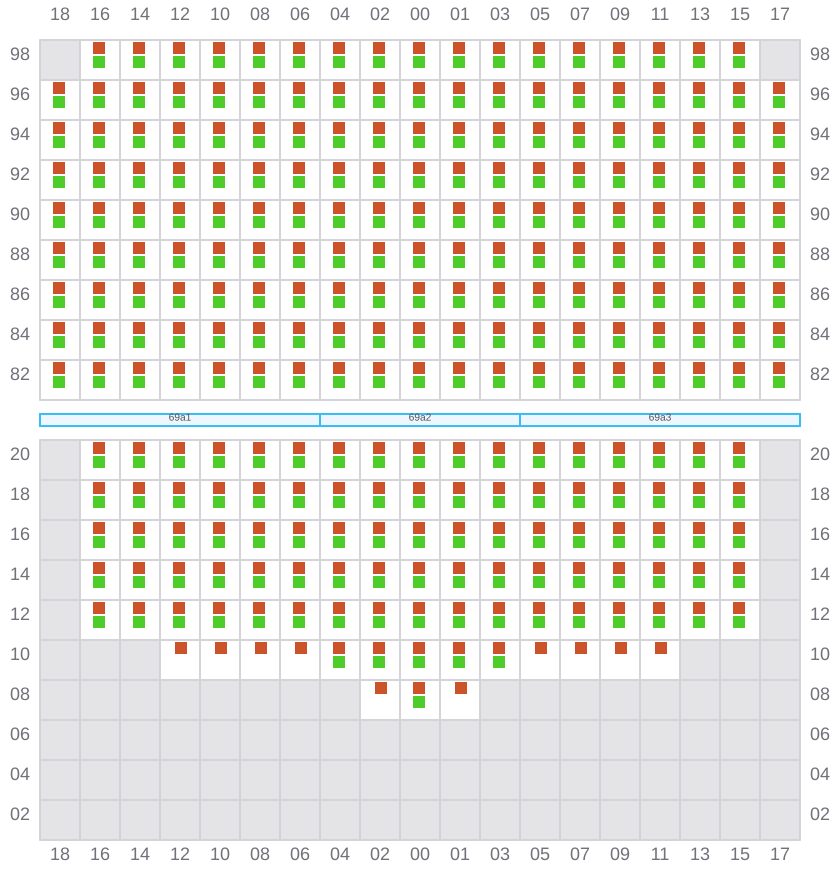

Bay 069 view and slots of SEASPAN ZAMBEZI

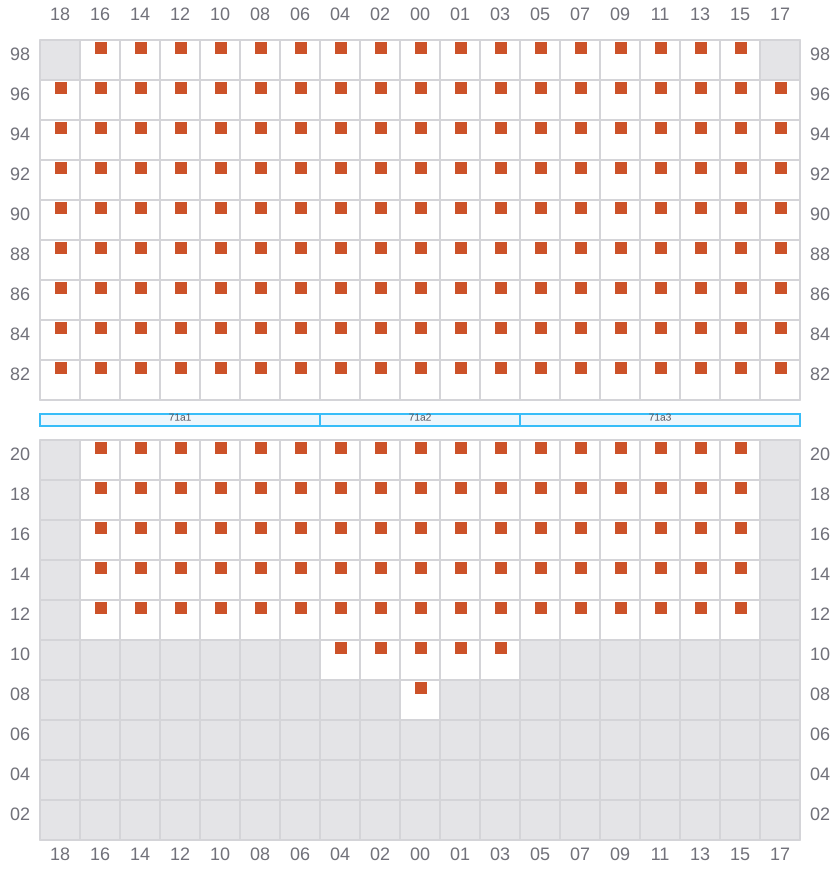

071

  • ←
  • → / ?
  • →
Bay 071 view and slots of SEASPAN ZAMBEZI

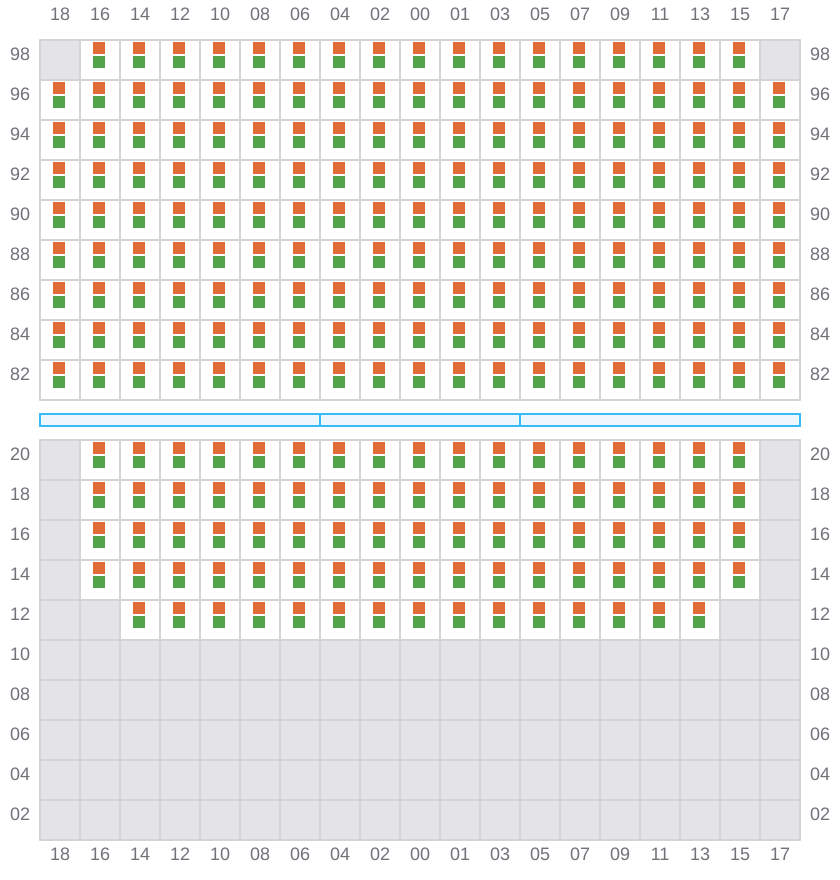

073 (074)

  • →
  • → / ?
  • →
Bay 073 view and slots of SEASPAN ZAMBEZI

075

  • ←
  • → / ?
  • →

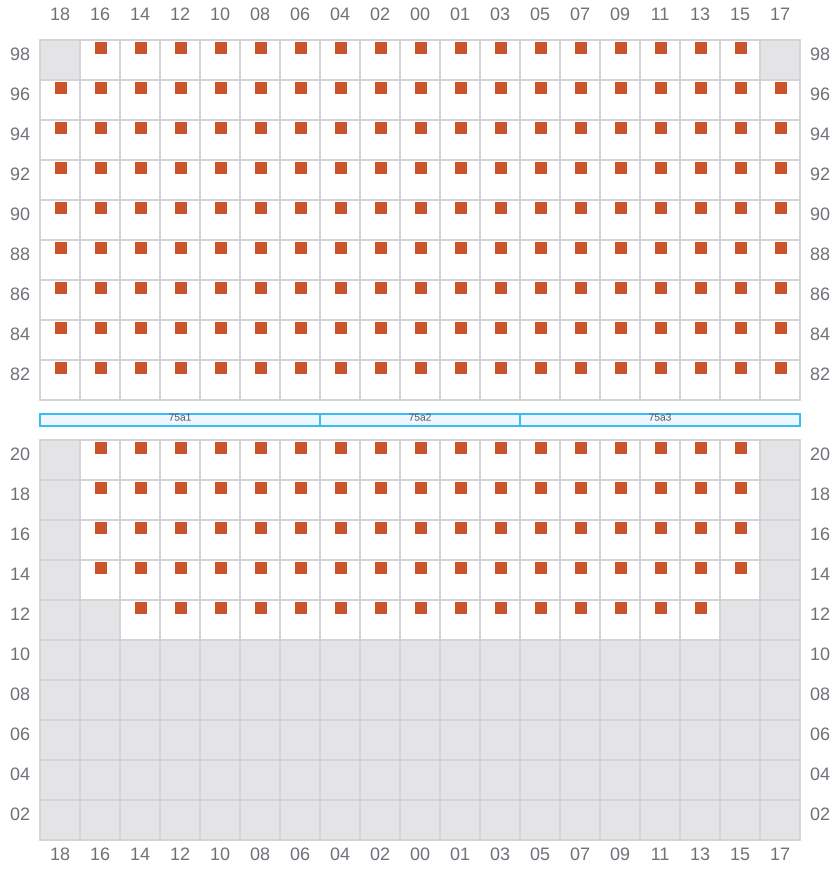

Bay 075 view and slots of SEASPAN ZAMBEZI

077 (078)

  • → / ?
  • → / ?
  • → / ?

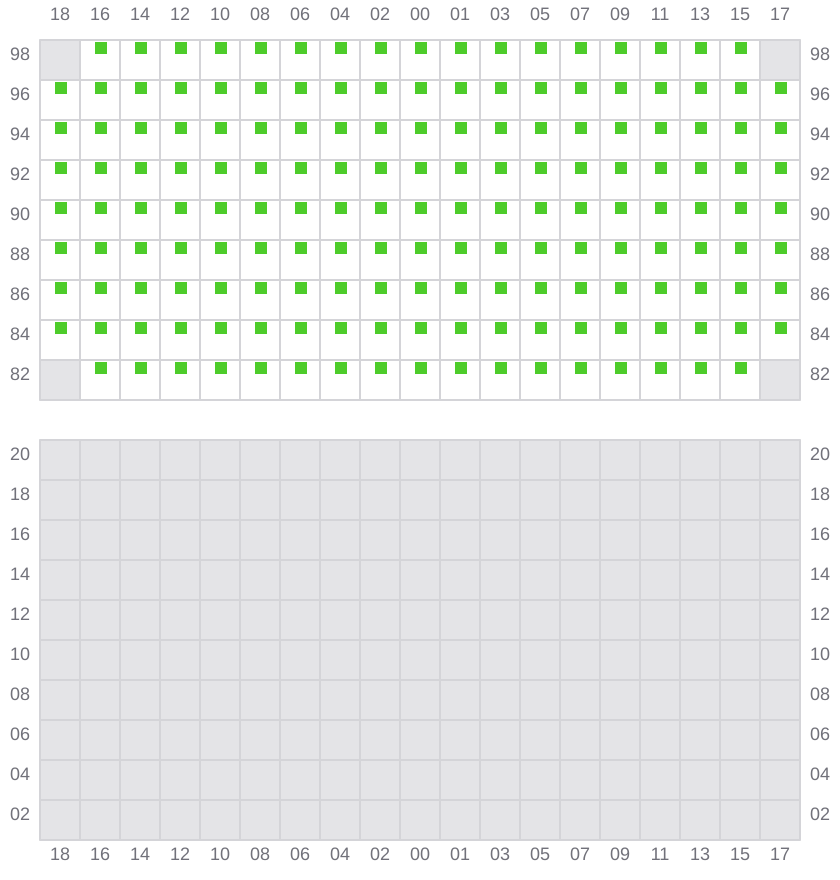

Bay 077 view and slots of SEASPAN ZAMBEZI
