SEATTLE BRIDGE
9560352 | 3FFH5 | ONE by ******************** Last update: Thu Jun 19 2025

General Info

Ship Name:SEATTLE BRIDGE
IMO Code:9560352
Call Sign:3FFH5
Line Operator:ONE
Class Name for Sister Ships:SEFT
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):285.00
LOA (Length Overall):293.18
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
40' Bays Location:-

Size Summary

ISO Bays:069
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,332

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

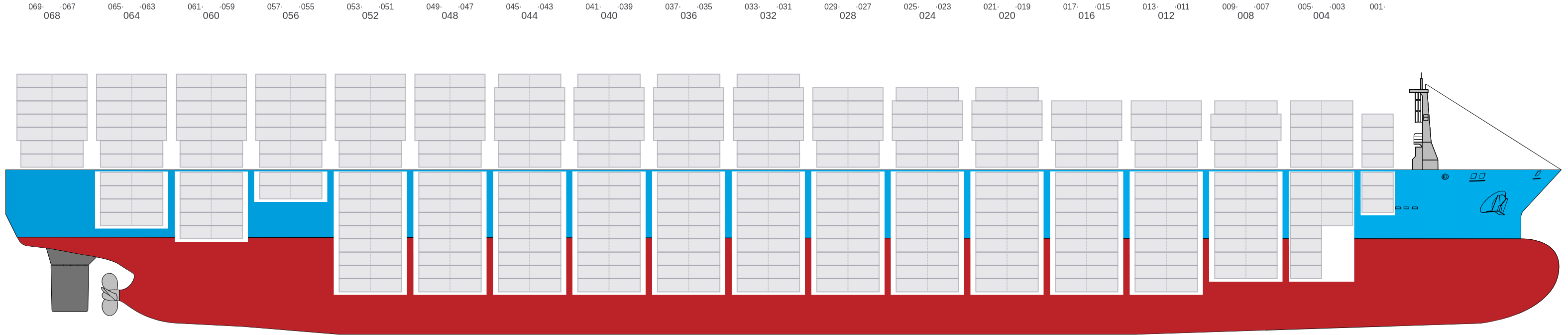

Side View

Side view of SEATTLE BRIDGE

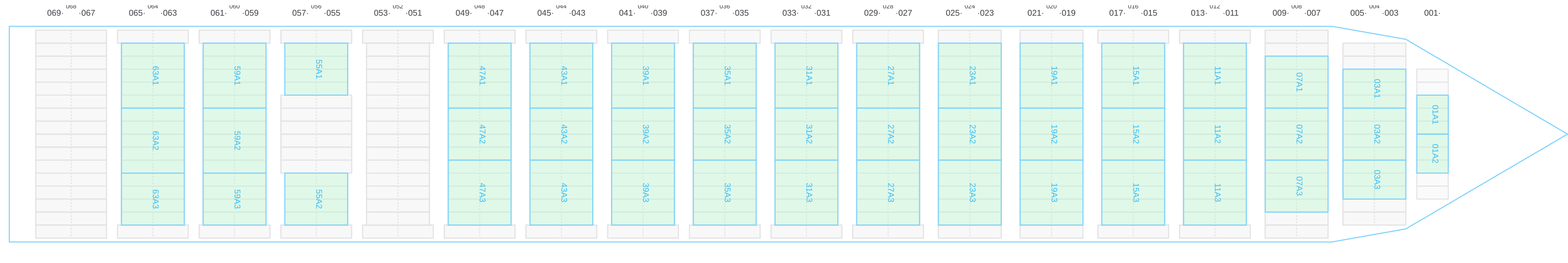

Hatch-Covers View

Deck view of SEATTLE BRIDGE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001

  • ←
  • ✓

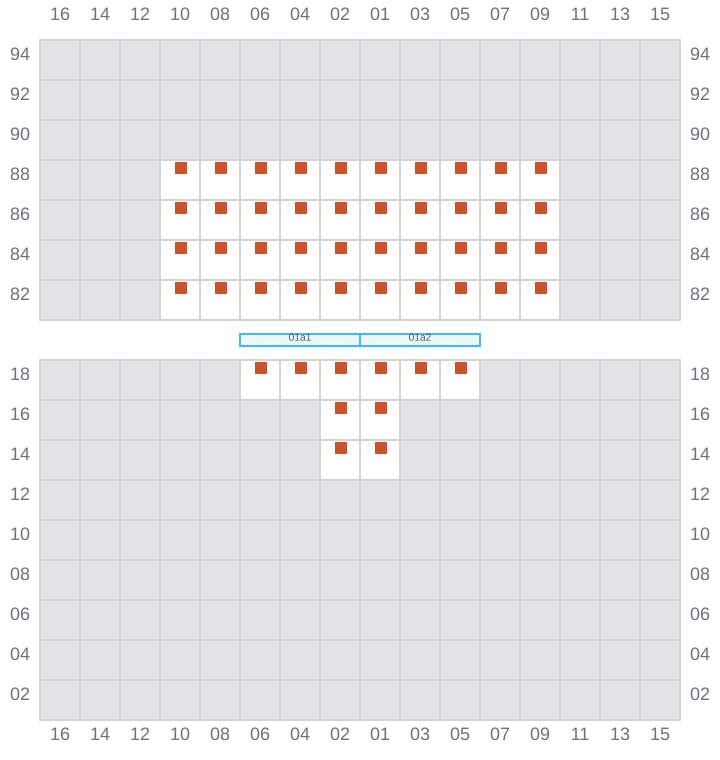

Bay 001 view and slots of SEATTLE BRIDGE

003

  • →
  • ✓

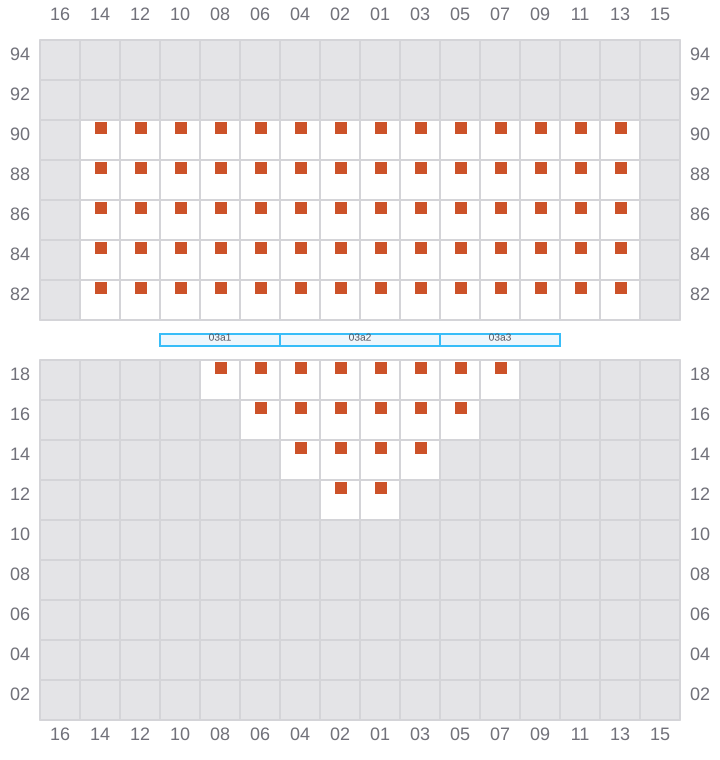

Bay 003 view and slots of SEATTLE BRIDGE

005 (004)

  • ←
  • ✓
Bay 005 view and slots of SEATTLE BRIDGE

007

  • →
  • ✓

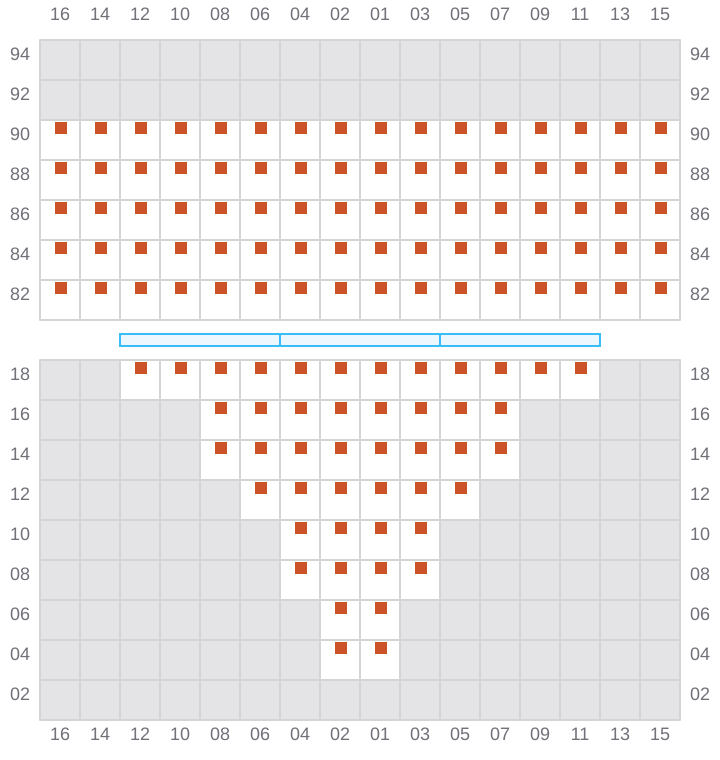

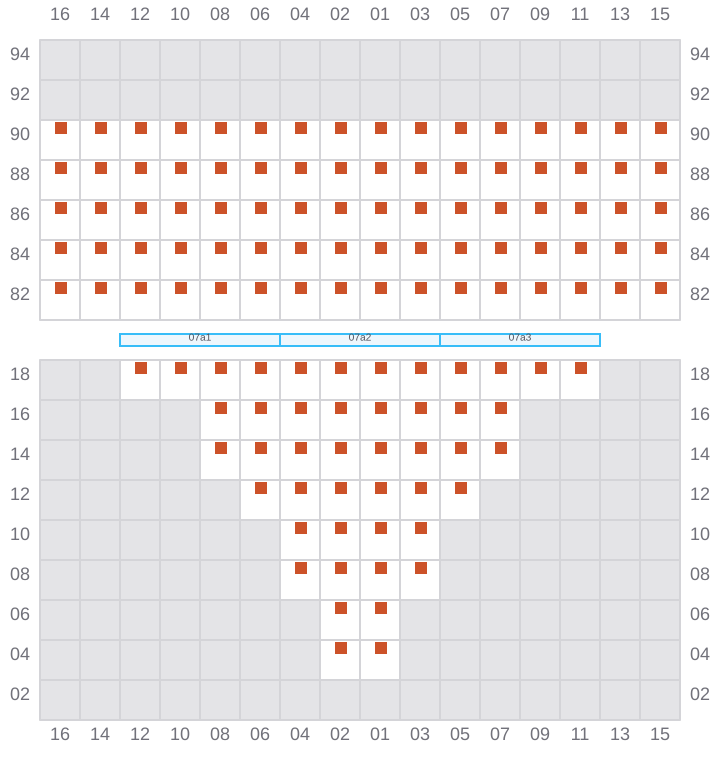

Bay 007 view and slots of SEATTLE BRIDGE

009 (008)

  • ←
  • ✓

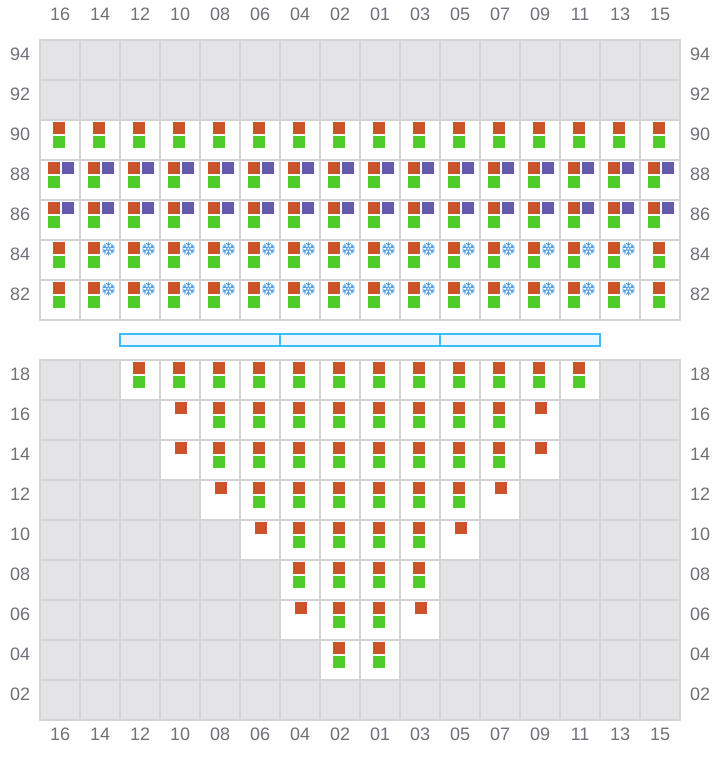

Bay 009 view and slots of SEATTLE BRIDGE

011

  • →
  • ✓

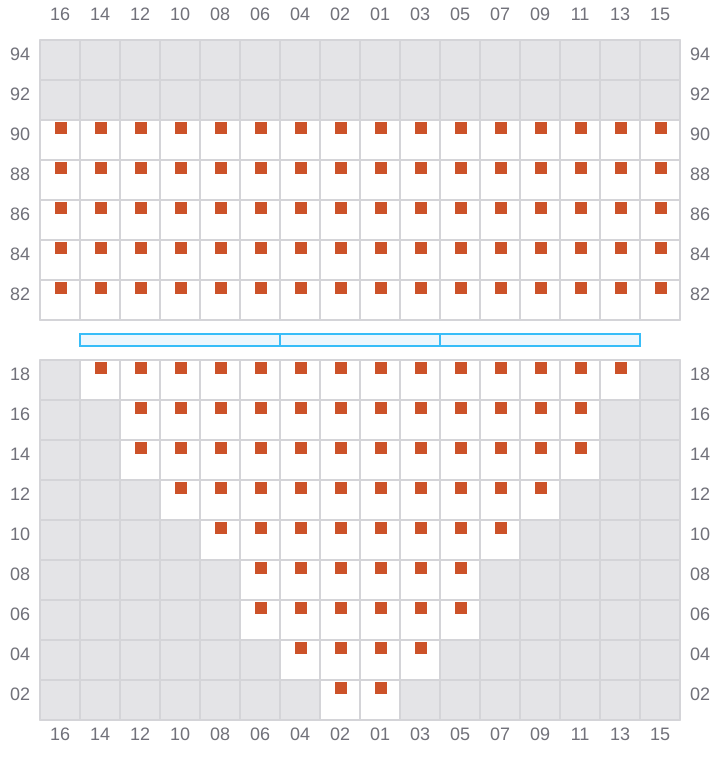

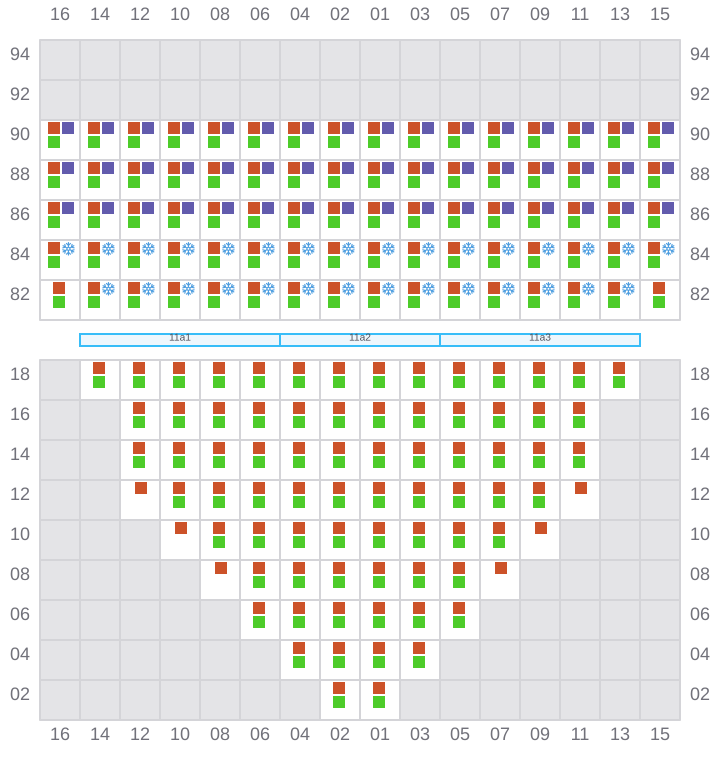

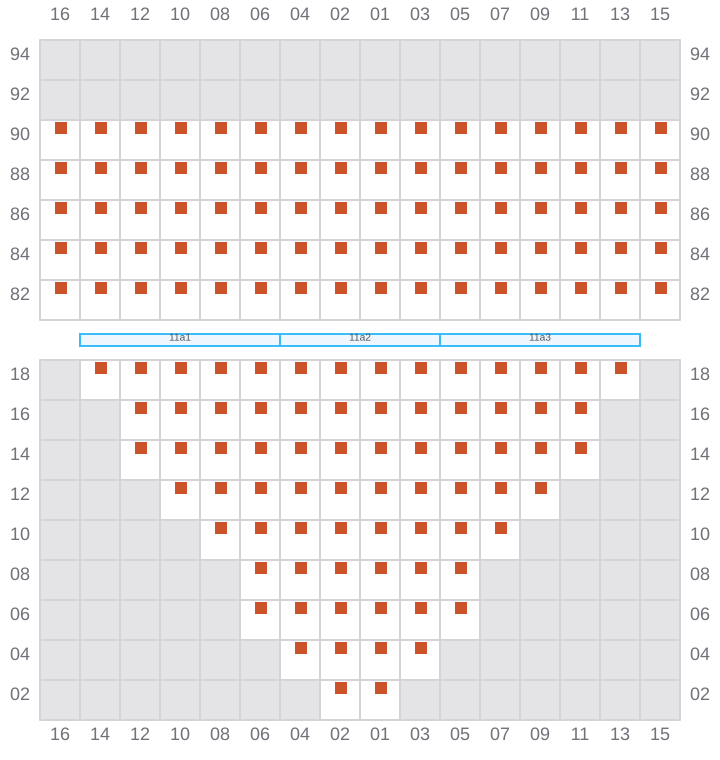

Bay 011 view and slots of SEATTLE BRIDGE

013 (012)

  • ←
  • ✓

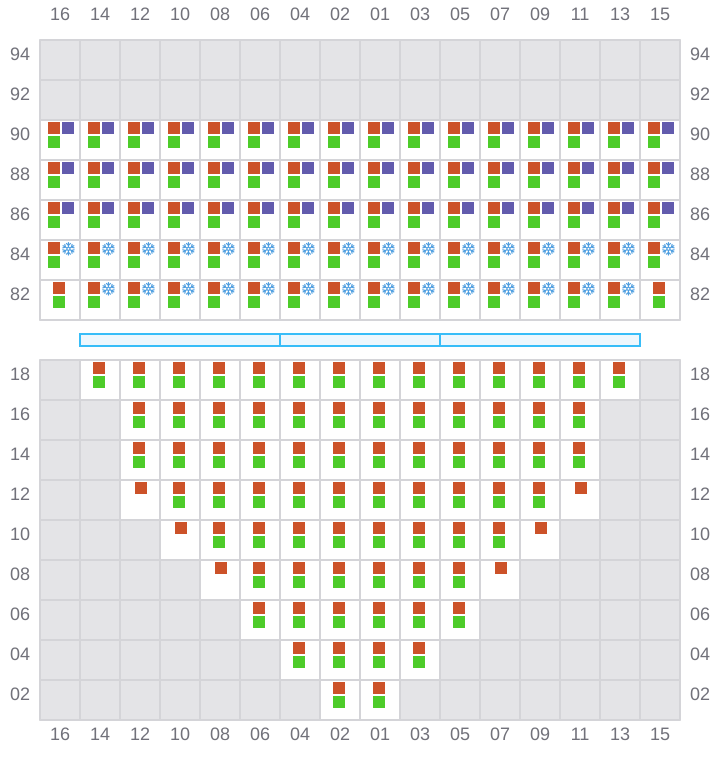

Bay 013 view and slots of SEATTLE BRIDGE

015

  • →
  • ✓

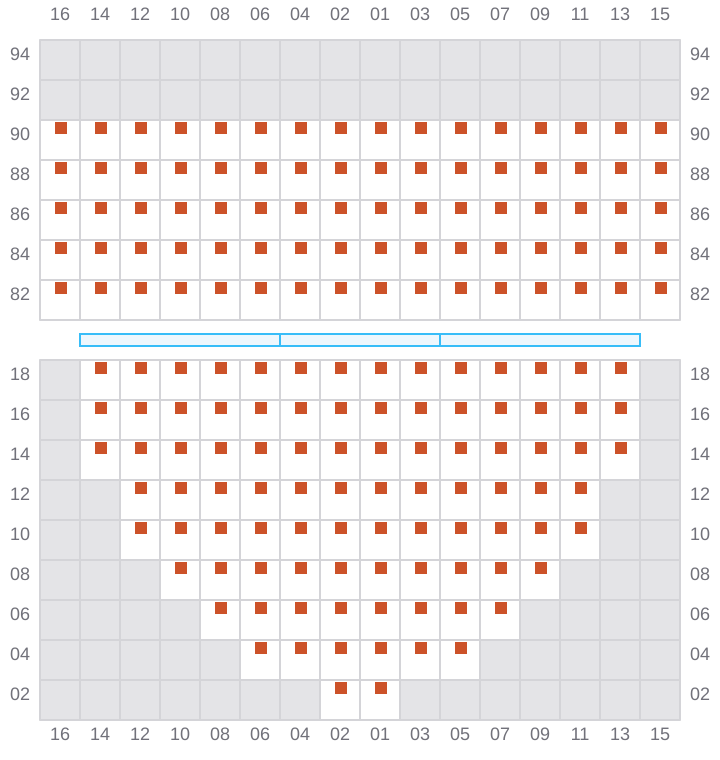

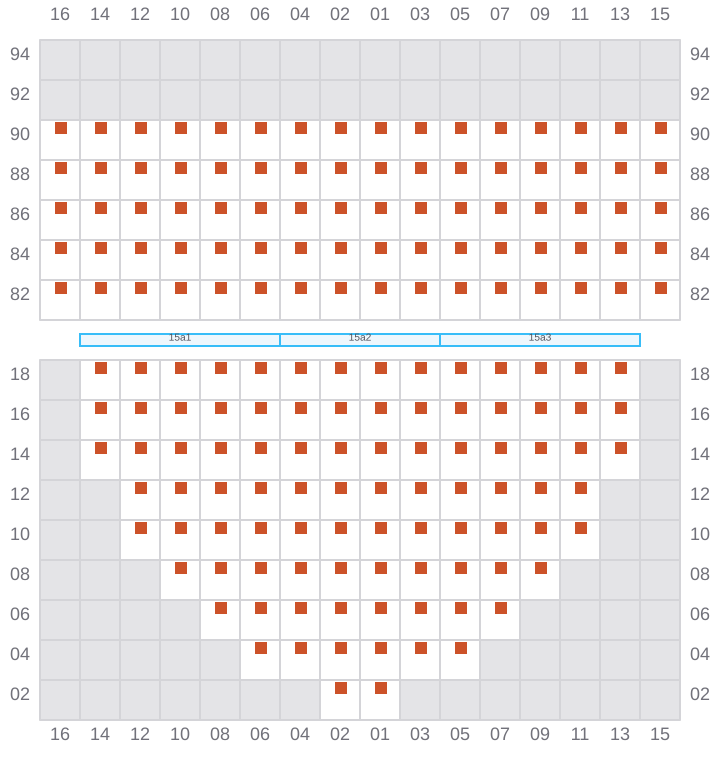

Bay 015 view and slots of SEATTLE BRIDGE

017 (016)

  • ←
  • ✓

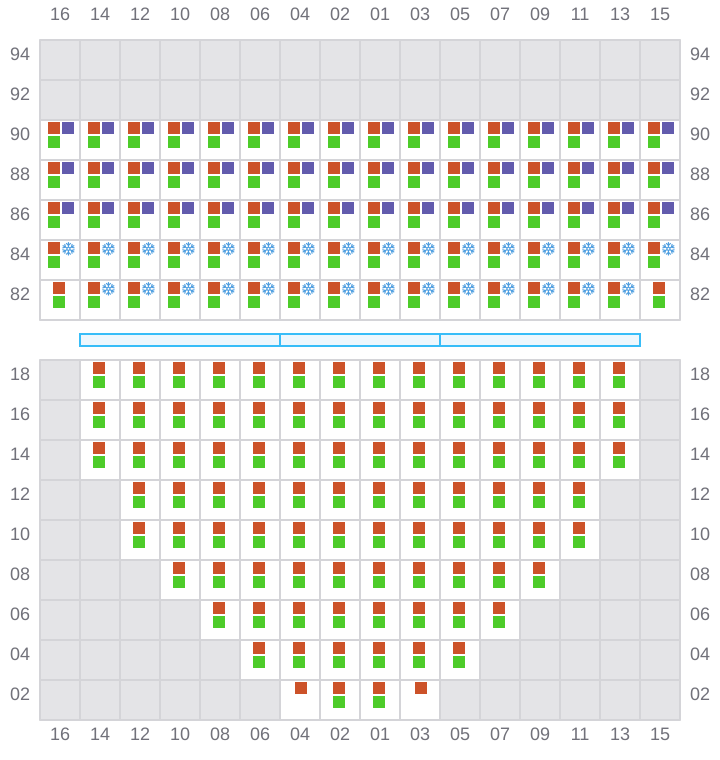

Bay 017 view and slots of SEATTLE BRIDGE

019

  • →
  • ✓

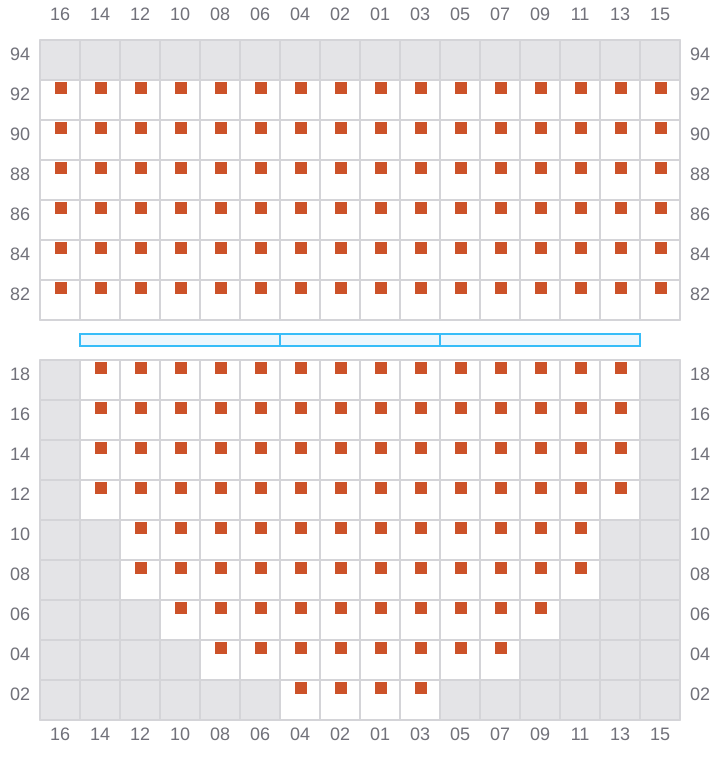

Bay 019 view and slots of SEATTLE BRIDGE

021 (020)

  • ←
  • ✓

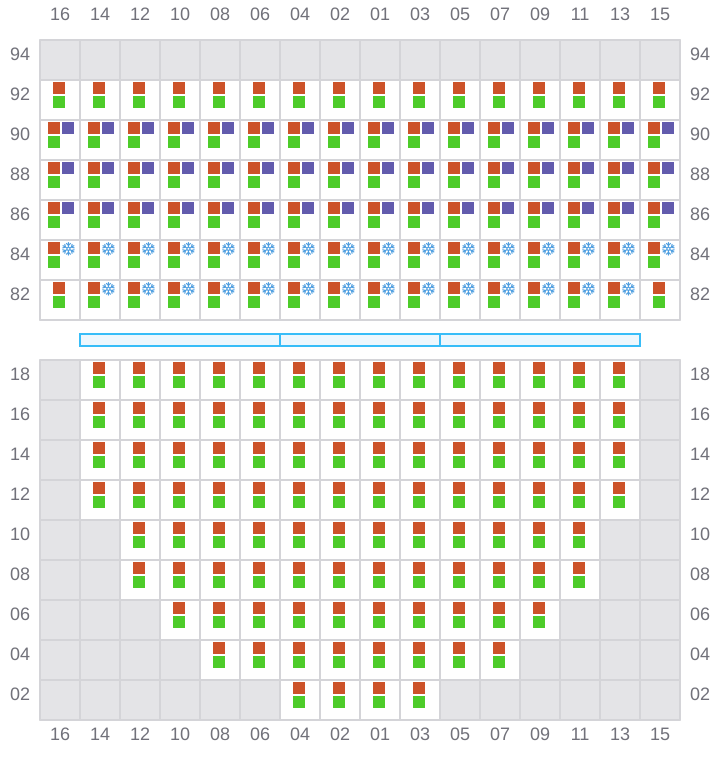

Bay 021 view and slots of SEATTLE BRIDGE

023

  • →
  • ✓

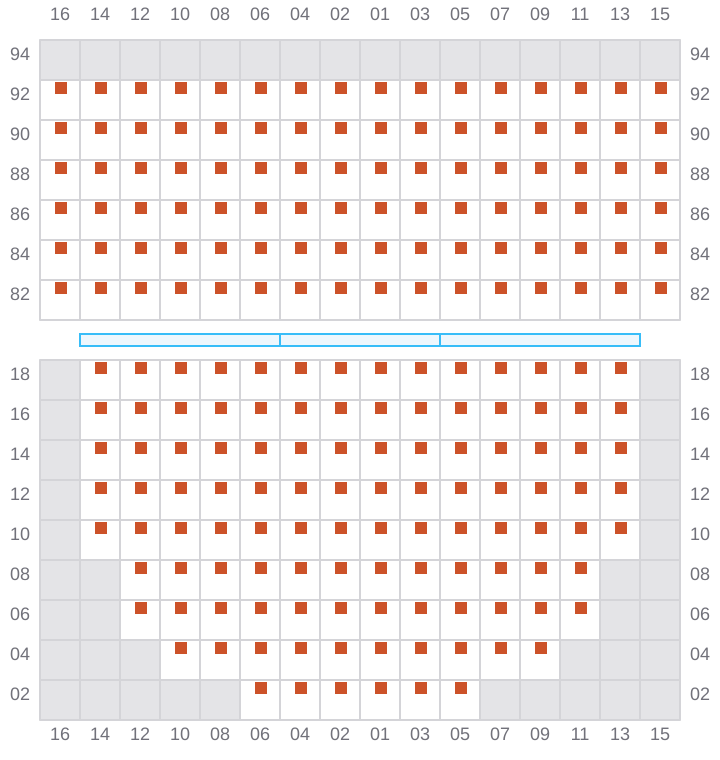

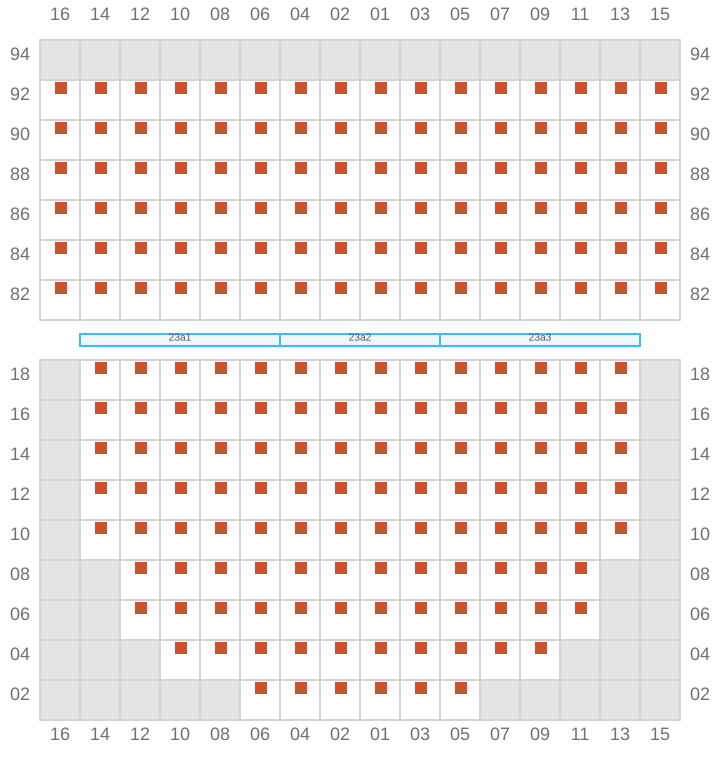

Bay 023 view and slots of SEATTLE BRIDGE

025 (024)

  • ←
  • ✓

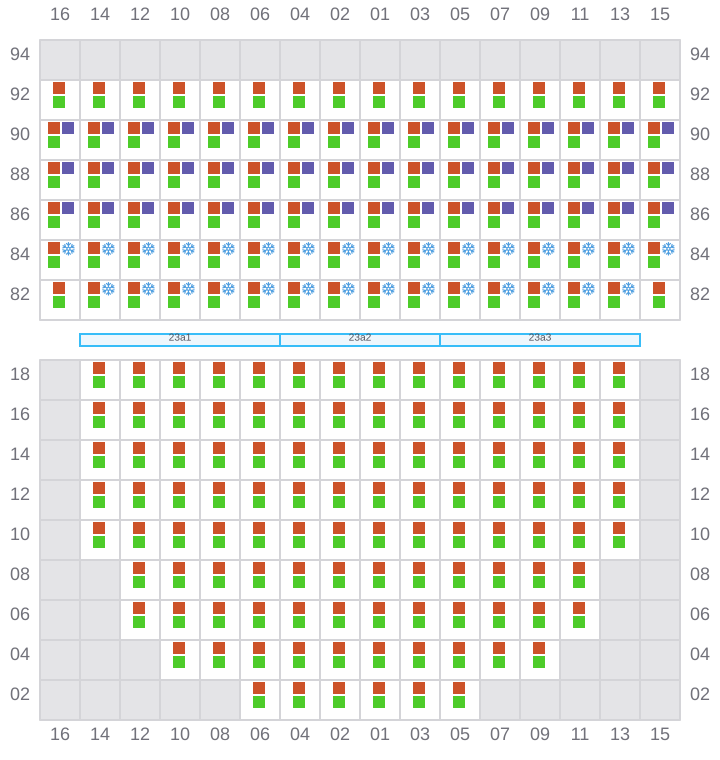

Bay 025 view and slots of SEATTLE BRIDGE

027

  • →
  • ✓

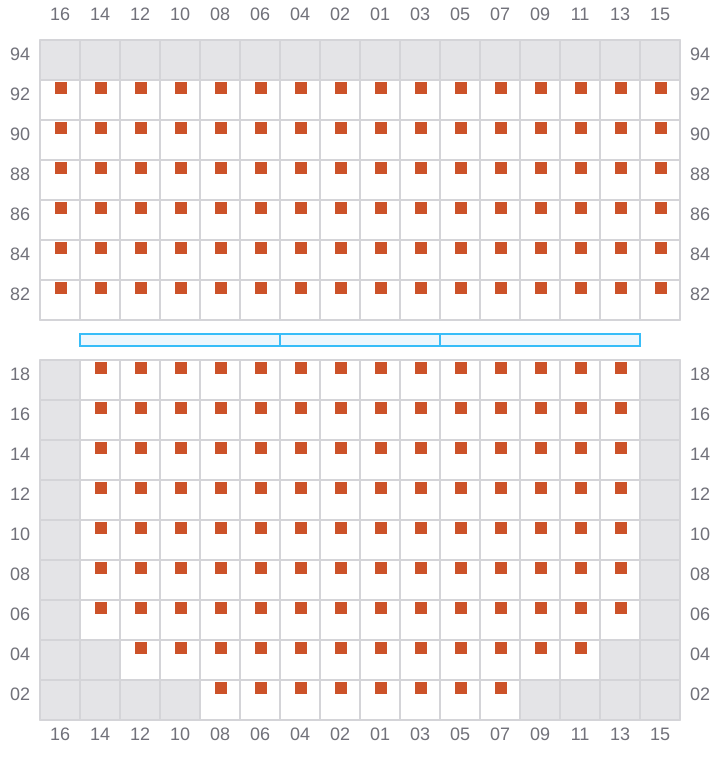

Bay 027 view and slots of SEATTLE BRIDGE

029 (028)

  • ←
  • ✓

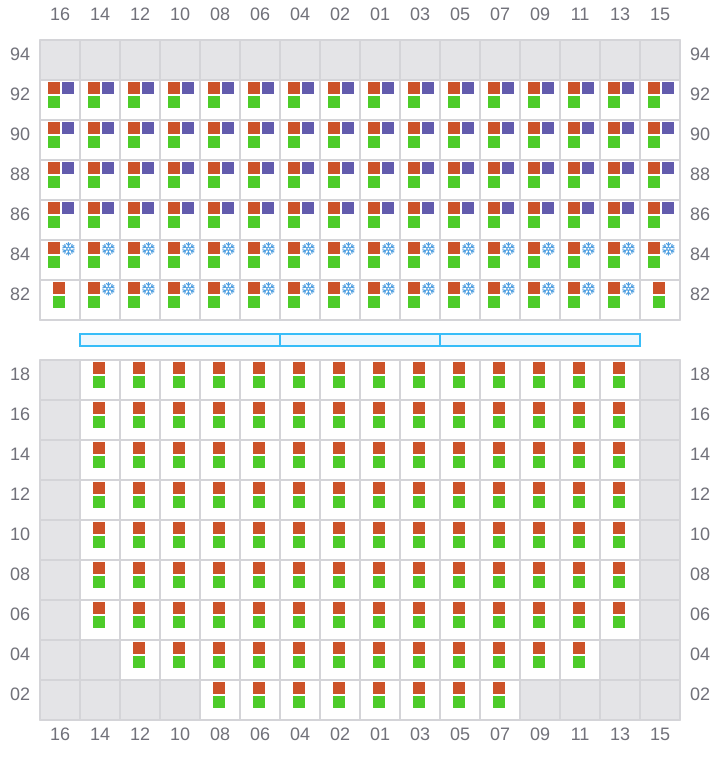

Bay 029 view and slots of SEATTLE BRIDGE

031

  • →
  • ✓

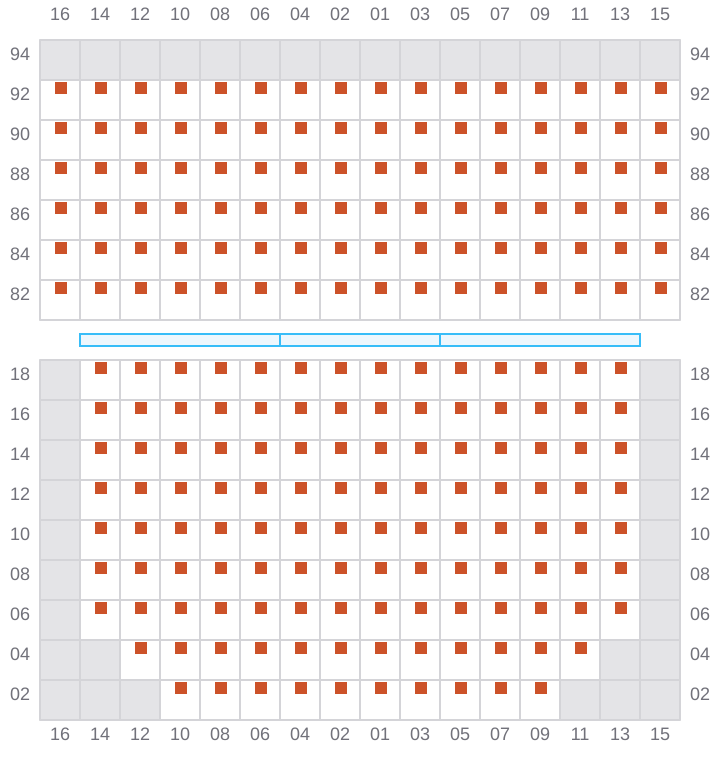

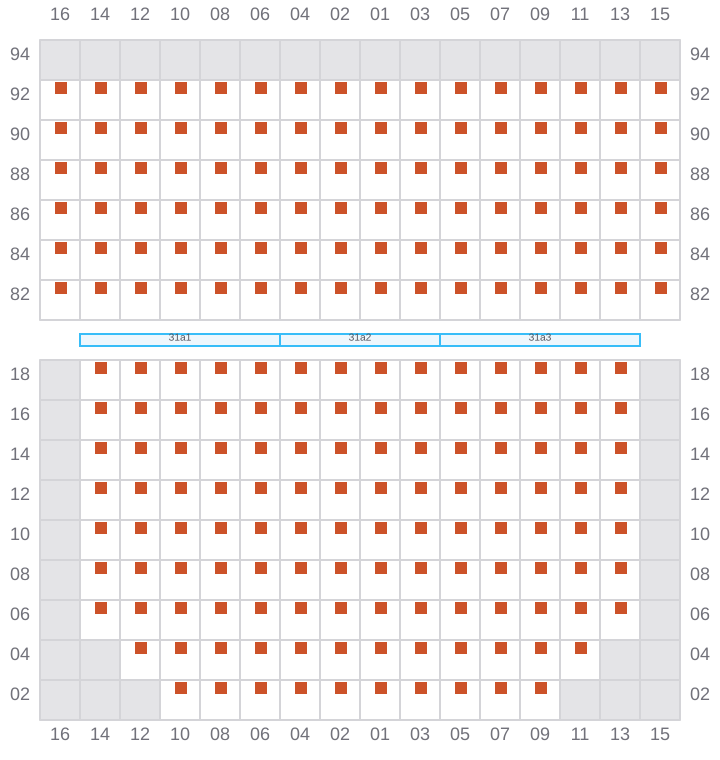

Bay 031 view and slots of SEATTLE BRIDGE

033 (032)

  • ←
  • ✓

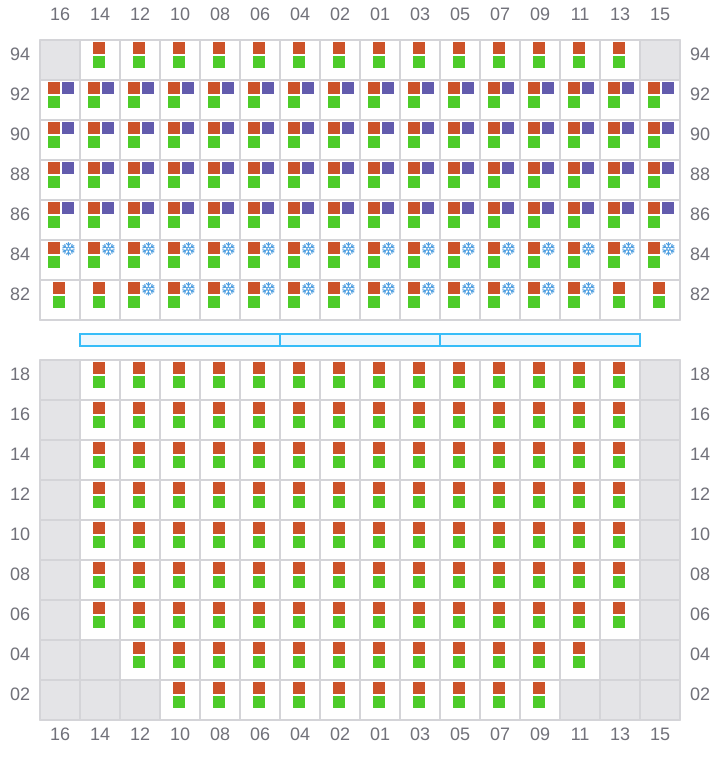

Bay 033 view and slots of SEATTLE BRIDGE

035

  • →
  • ✓
Bay 035 view and slots of SEATTLE BRIDGE

037 (036)

  • ←
  • ✓
Bay 037 view and slots of SEATTLE BRIDGE

039

  • →
  • ✓

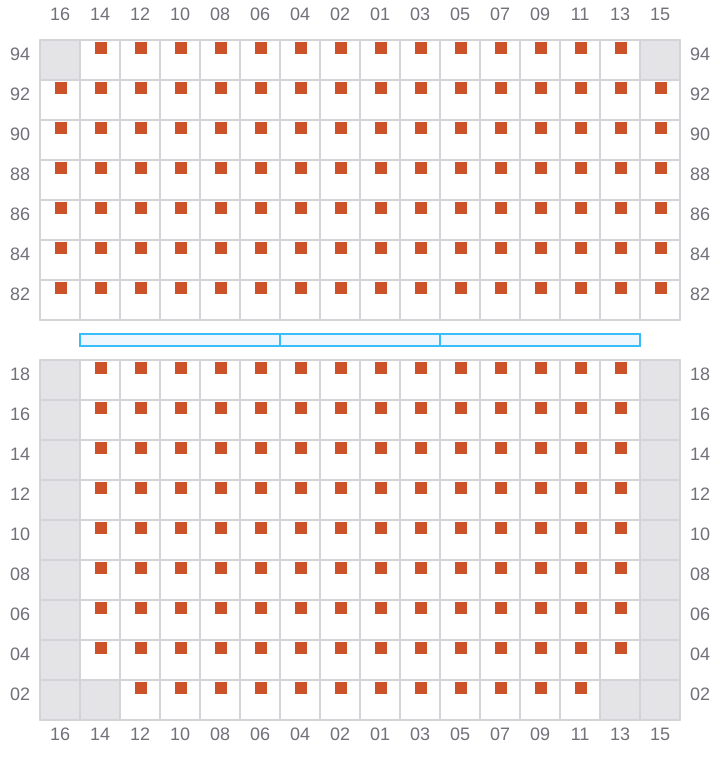

Bay 039 view and slots of SEATTLE BRIDGE

041 (040)

  • ←
  • ✓

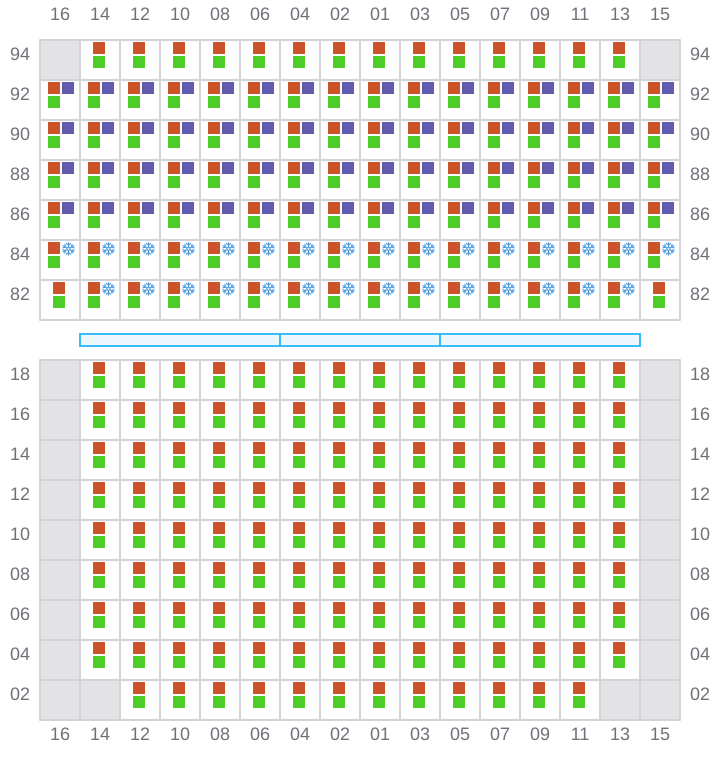

Bay 041 view and slots of SEATTLE BRIDGE

043

  • →
  • ✓

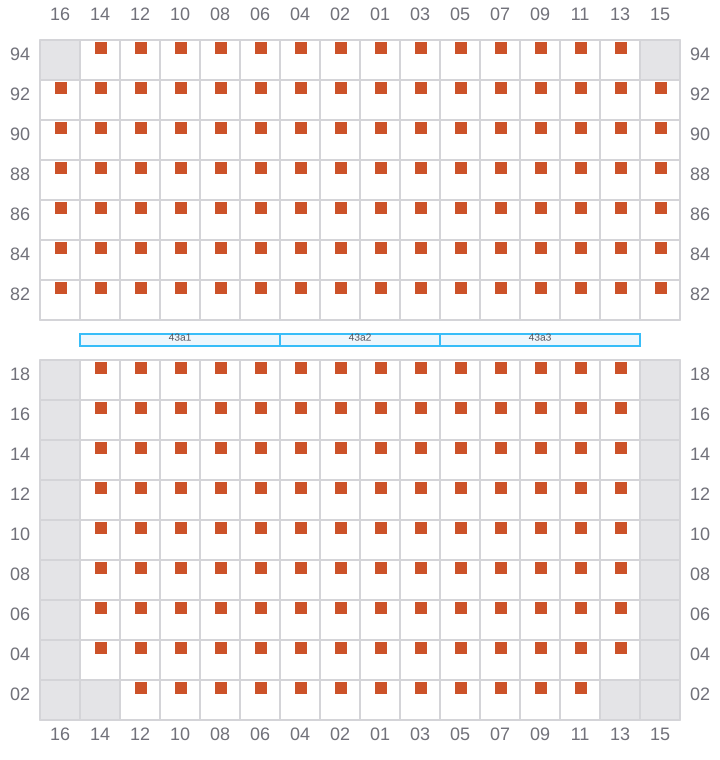

Bay 043 view and slots of SEATTLE BRIDGE

045 (044)

  • ←
  • ✓

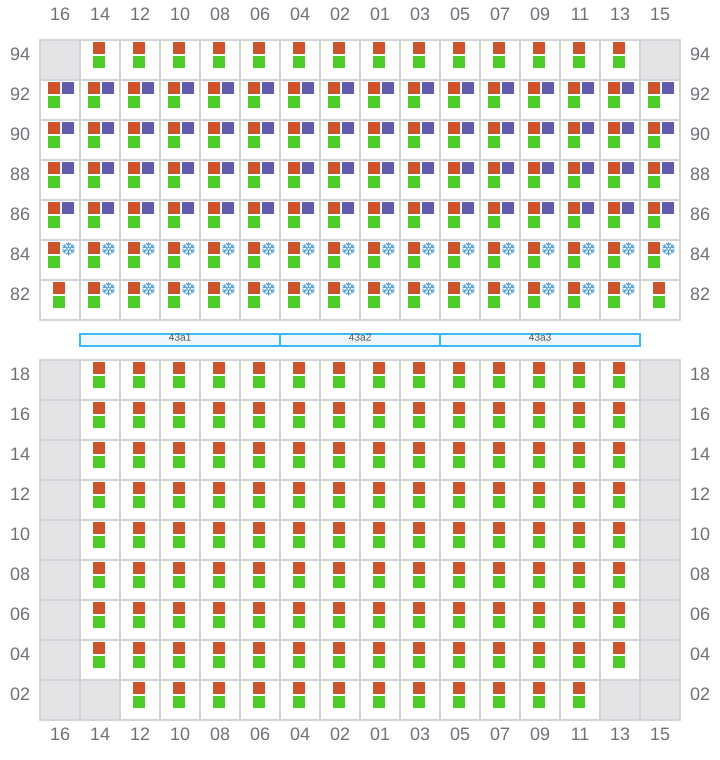

Bay 045 view and slots of SEATTLE BRIDGE

047

  • →
  • ✓

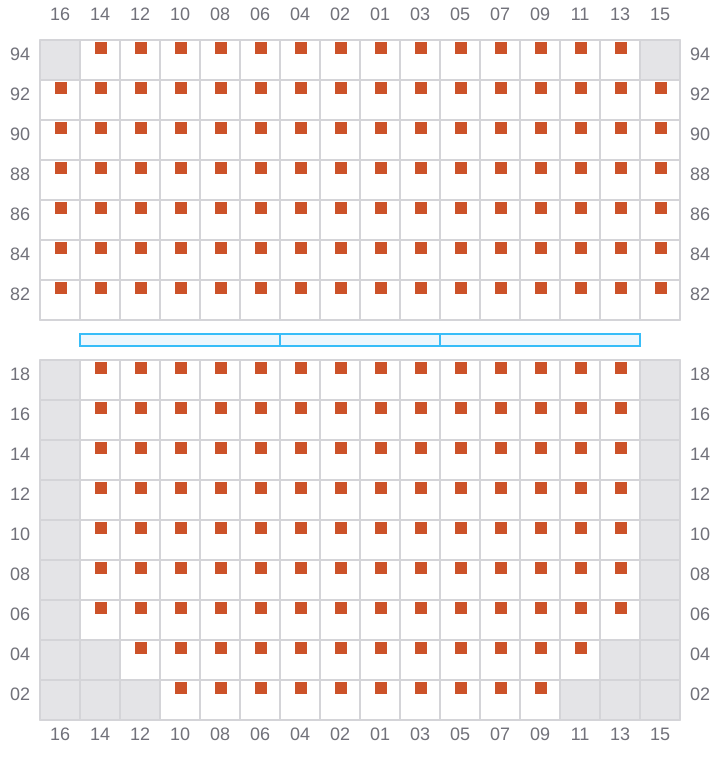

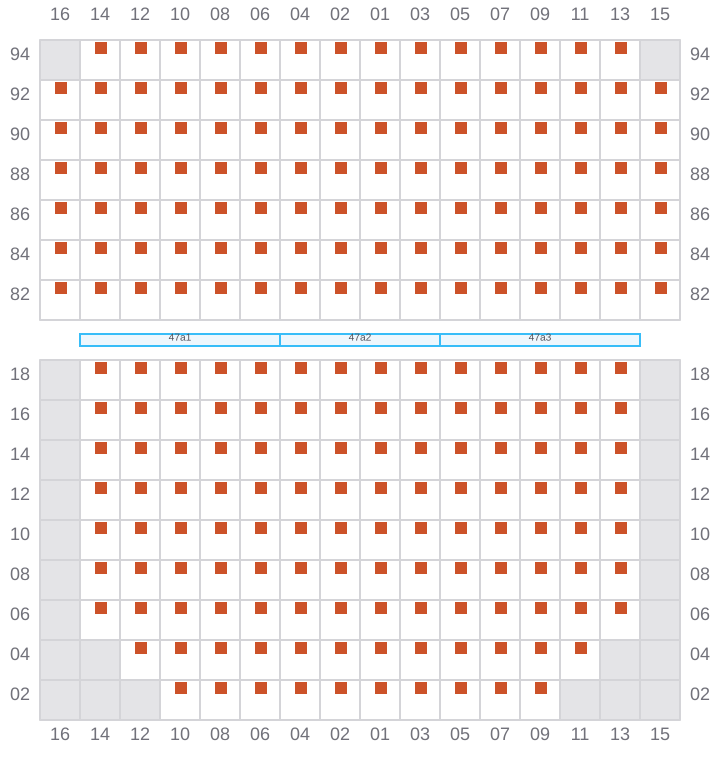

Bay 047 view and slots of SEATTLE BRIDGE

049 (048)

  • ←
  • ✓

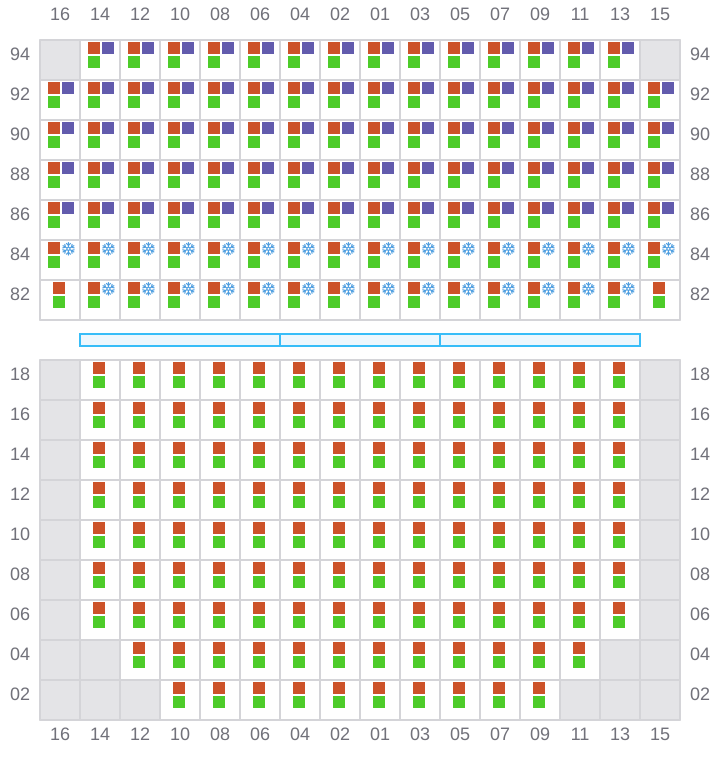

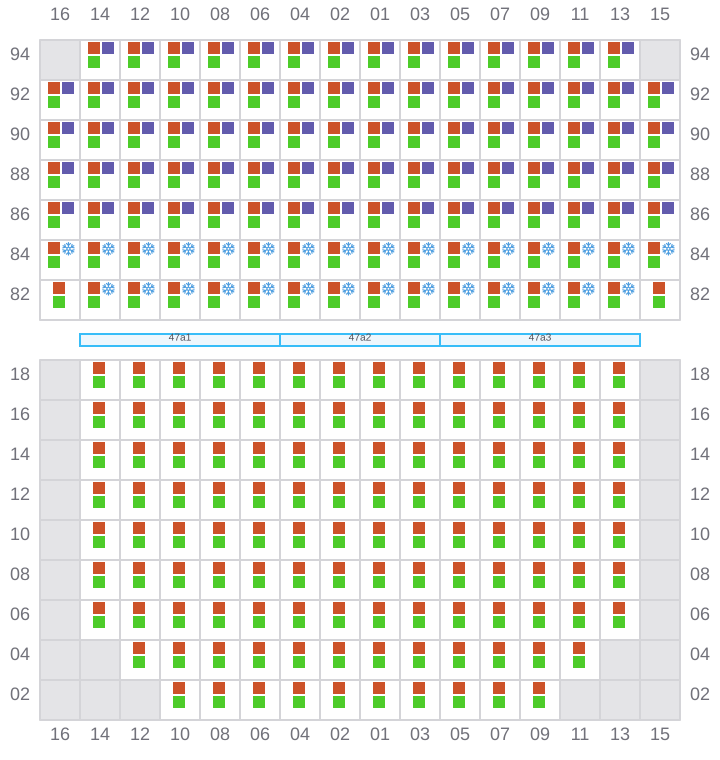

Bay 049 view and slots of SEATTLE BRIDGE

051

  • →
  • ✓

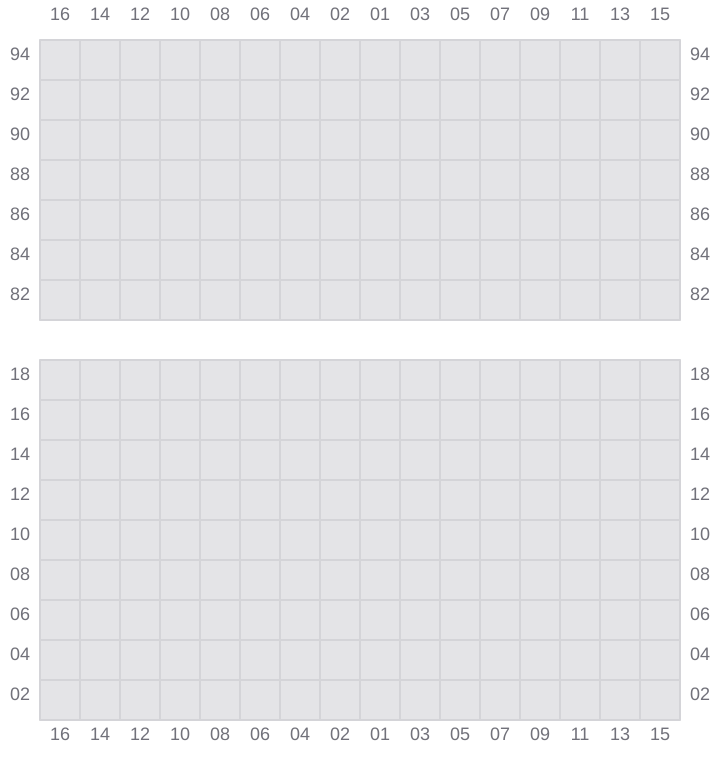

Bay 051 view and slots of SEATTLE BRIDGE

053 (052)

  • ←
  • ✓
Bay 053 view and slots of SEATTLE BRIDGE

055

  • →
  • ✓

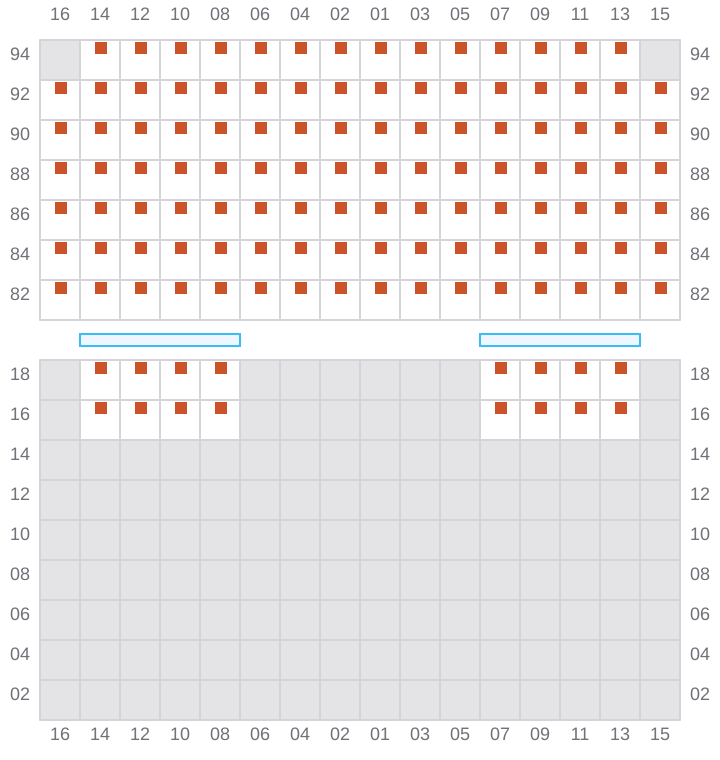

Bay 055 view and slots of SEATTLE BRIDGE

057 (056)

  • ←
  • ✓

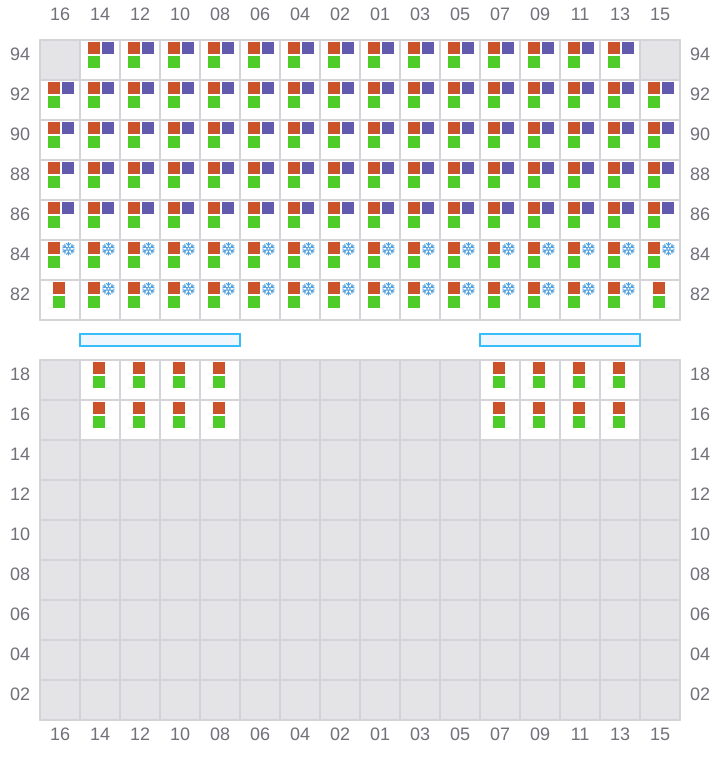

Bay 057 view and slots of SEATTLE BRIDGE

059

  • →
  • ✓

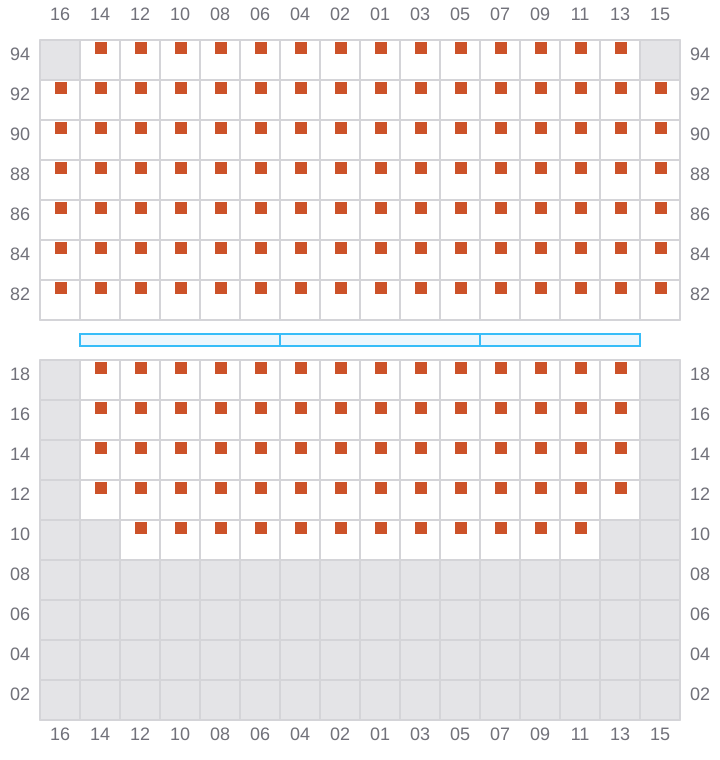

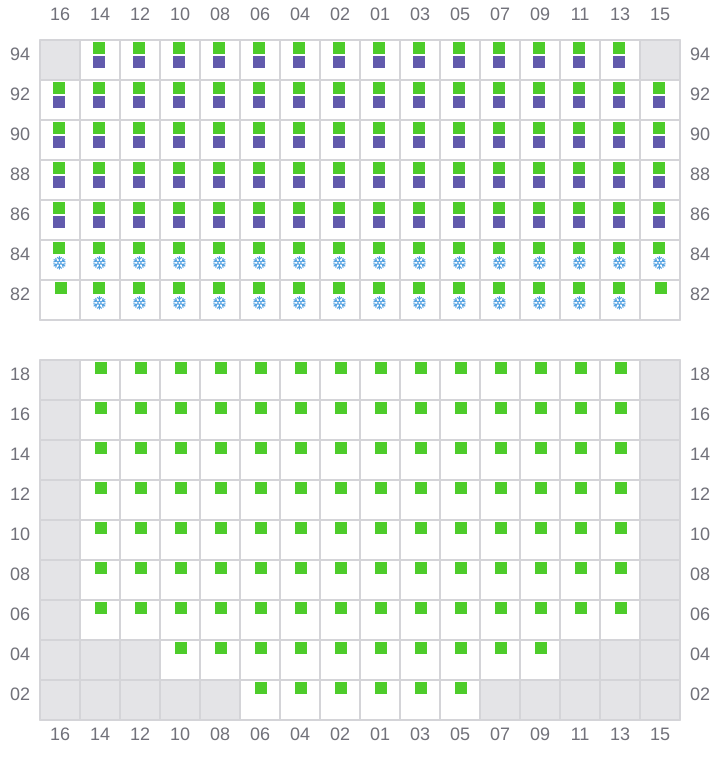

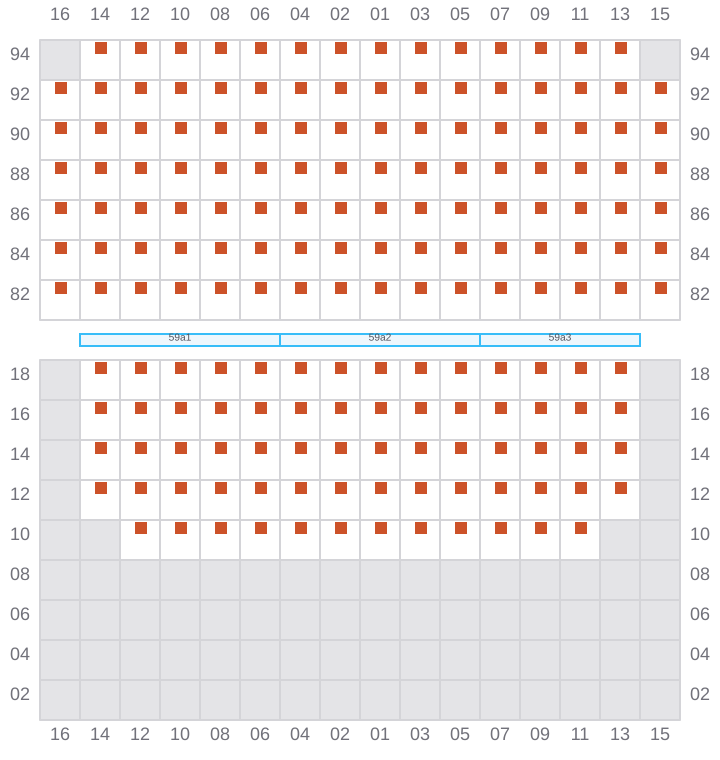

Bay 059 view and slots of SEATTLE BRIDGE

061 (060)

  • ←
  • ✓

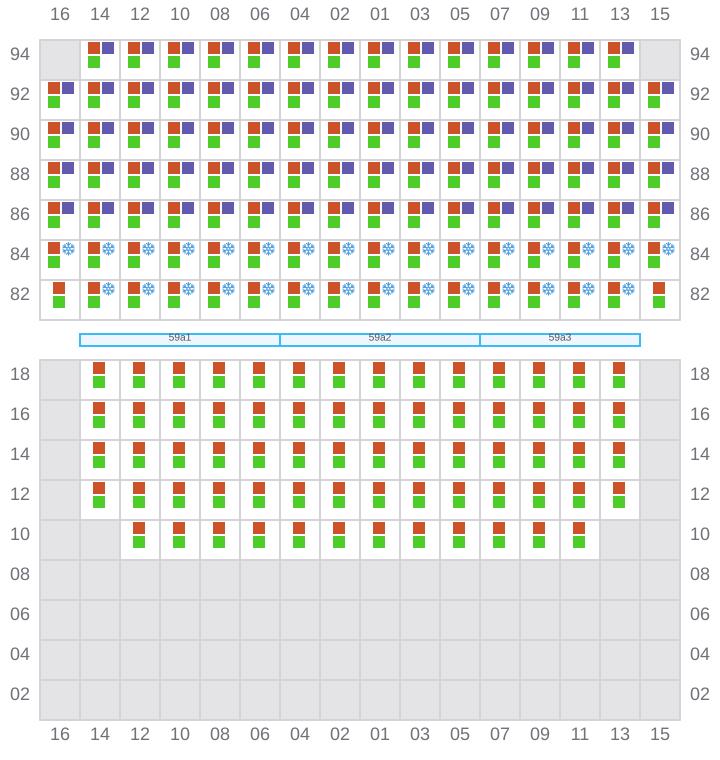

Bay 061 view and slots of SEATTLE BRIDGE

063

  • →
  • ✓

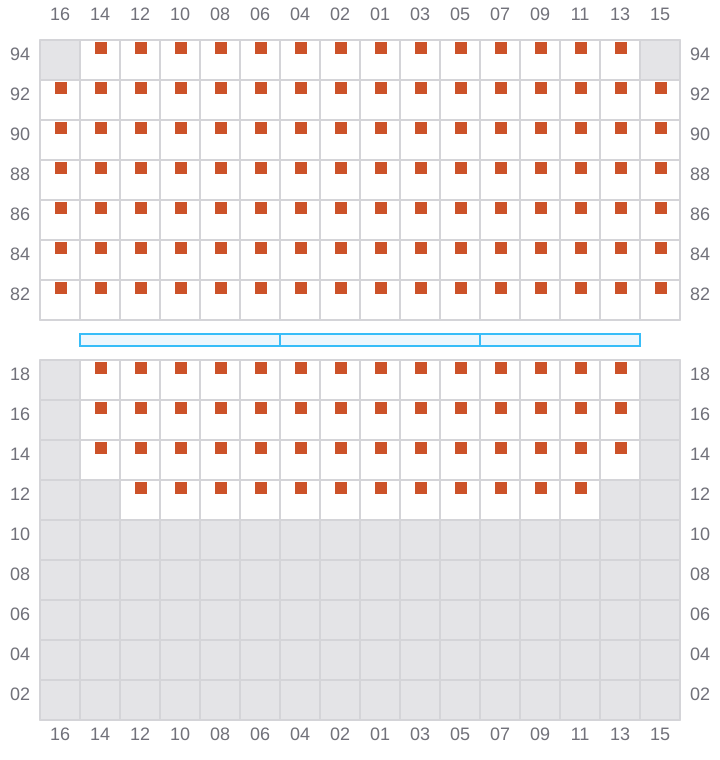

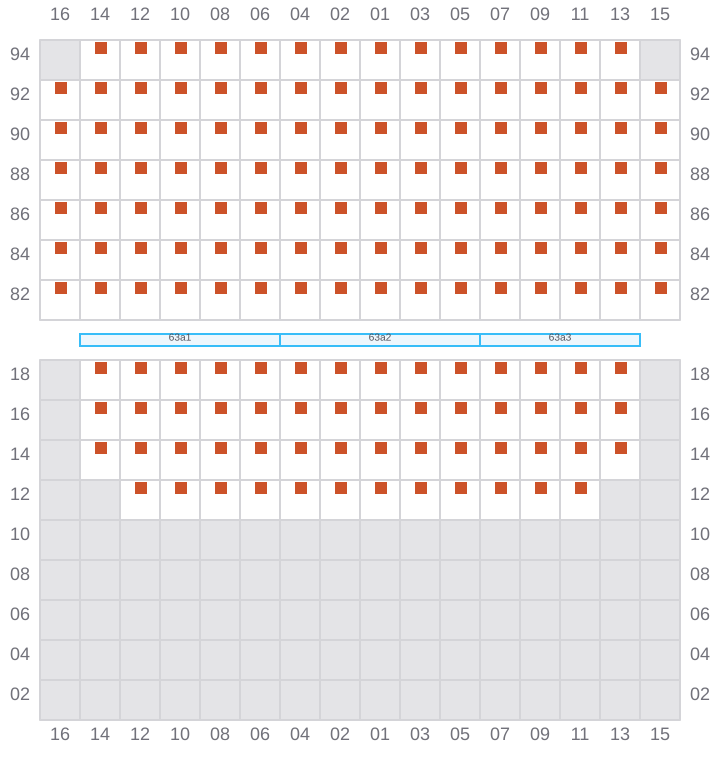

Bay 063 view and slots of SEATTLE BRIDGE

065 (064)

  • ←
  • ✓

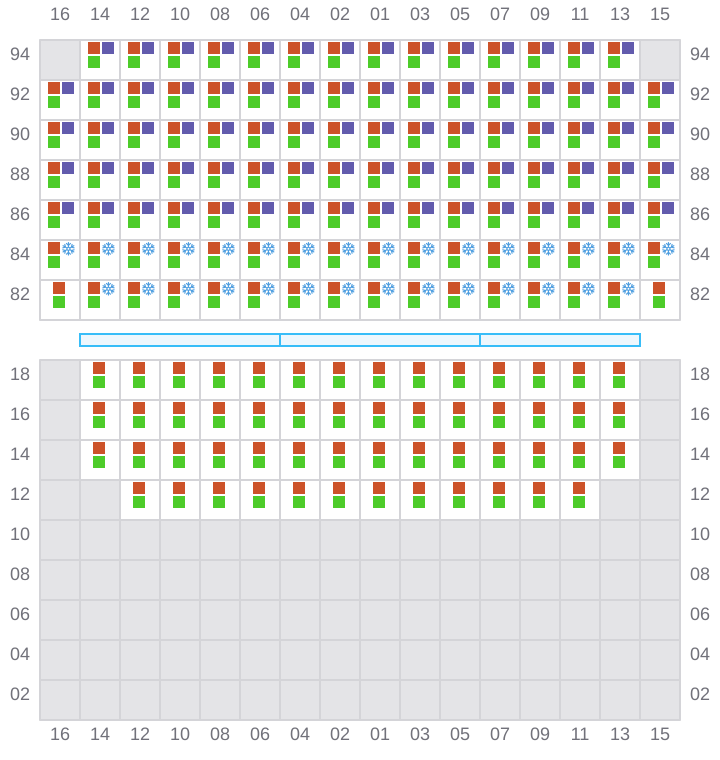

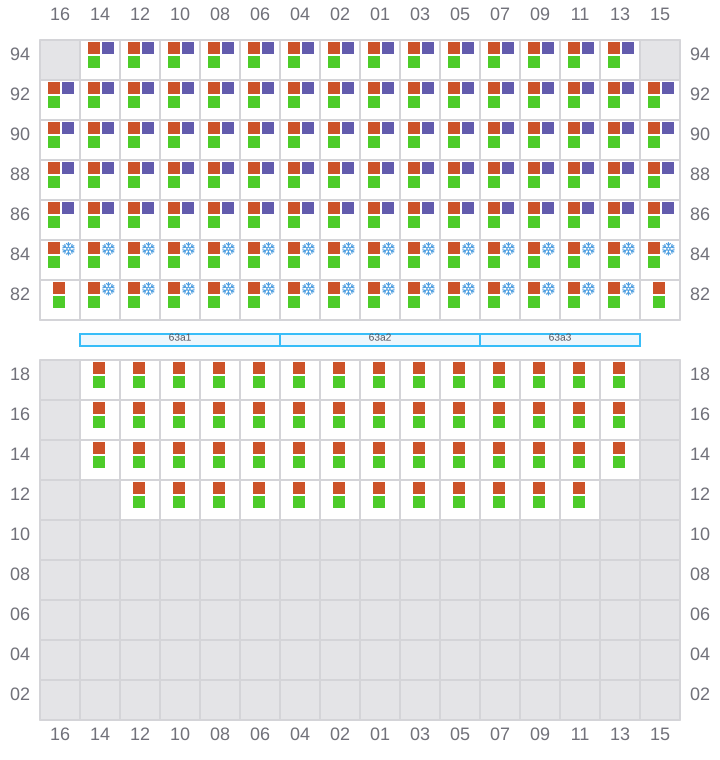

Bay 065 view and slots of SEATTLE BRIDGE

067

  • →
  • ✓
Bay 067 view and slots of SEATTLE BRIDGE

069 (068)

  • ←
  • ✓

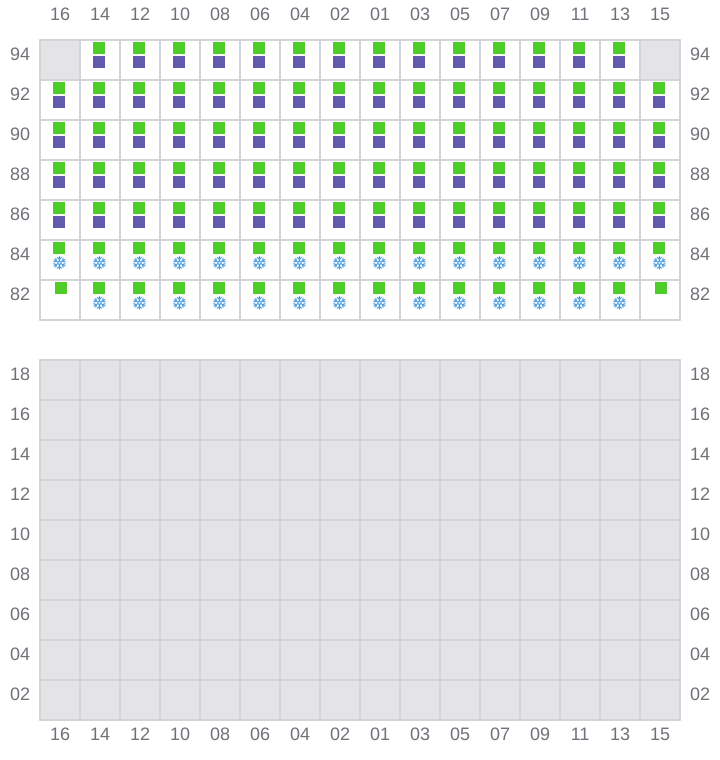

Bay 069 view and slots of SEATTLE BRIDGE
