SEDRA
9043146 | H8YL | 9043146 by *********** Last update: Sun Mar 03 2024
General Info
Ship Name:SEDRA
IMO Code:9043146
Call Sign:H8YL
Line Operator:9043146
Class Name for Sister Ships:71B
Year Built:1997
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:033
Max ISO Row:06
Center Line Row:Yes
Max Above ISO Tier:88
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:566
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

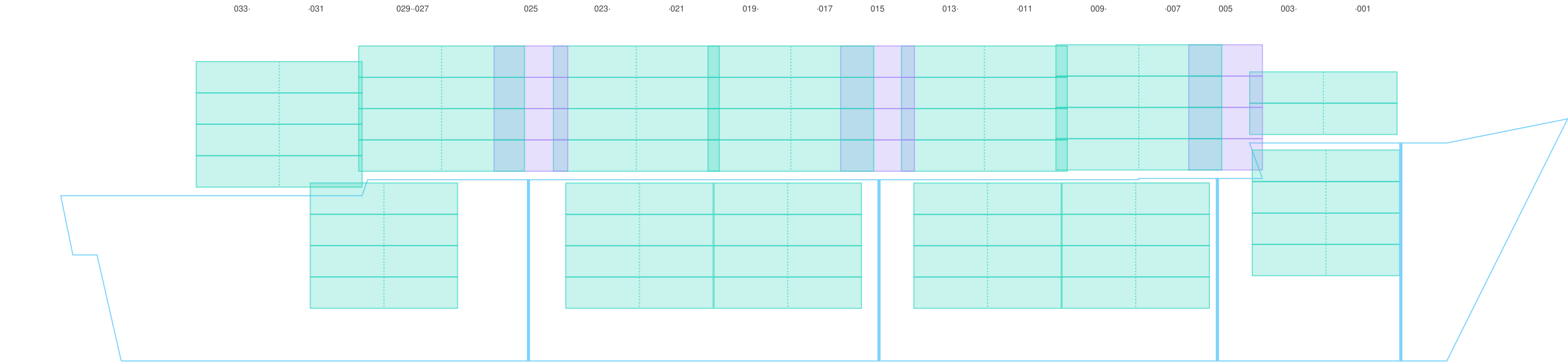

Side View

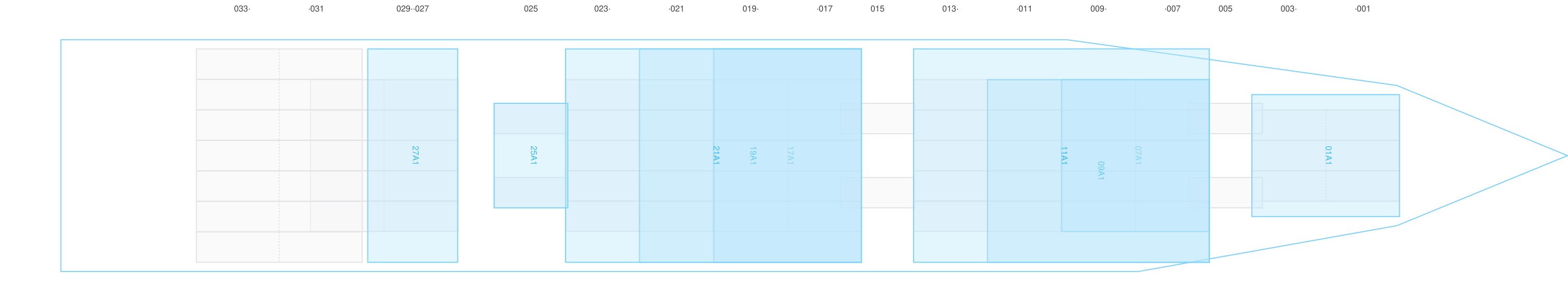

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

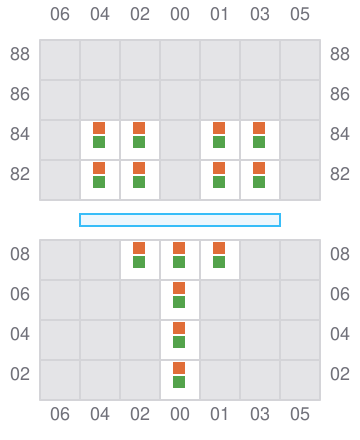

001 (002)
- →

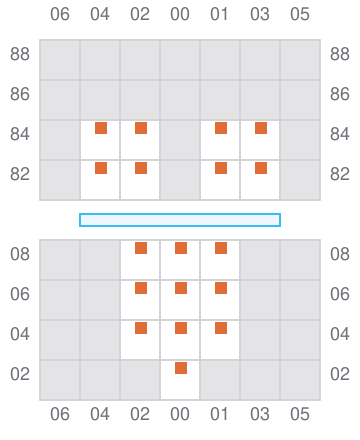

003
- ←

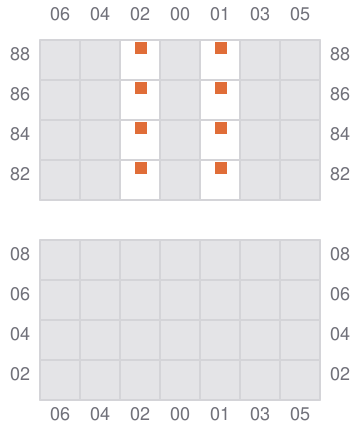

005
007 (008)
- →

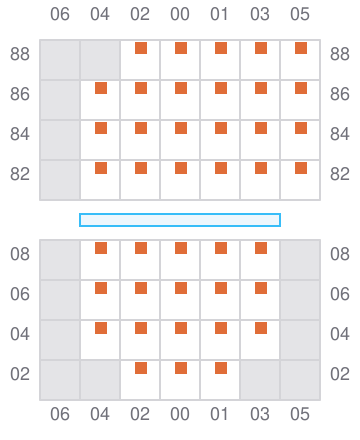

009
- ←

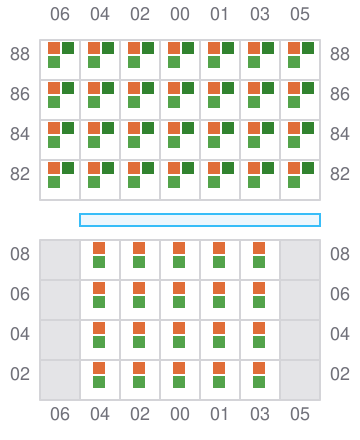

011 (012)
- →
013
- ←
015

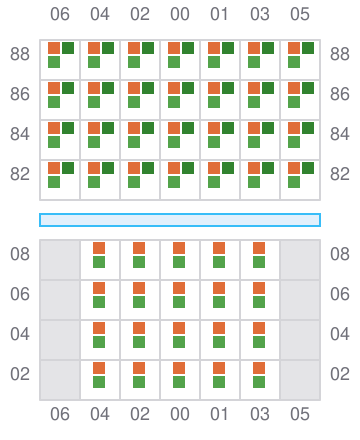

017 (018)
- →

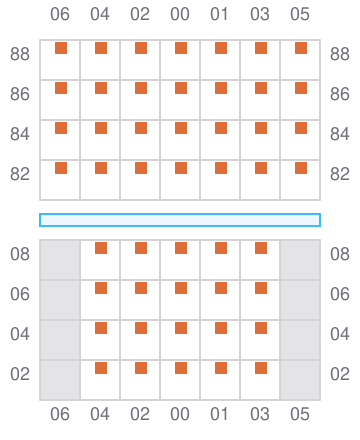

019
- ←
021 (022)
- →
023
- ←

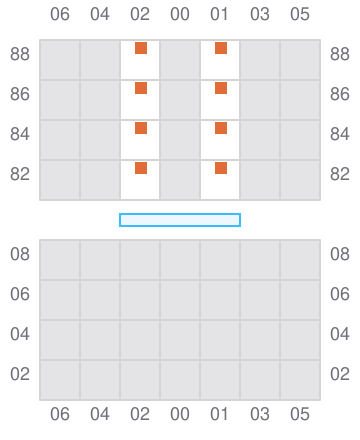

025

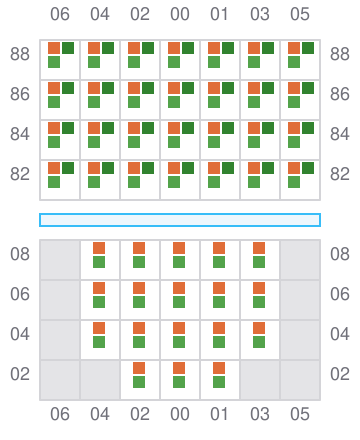

027 (028)
- →

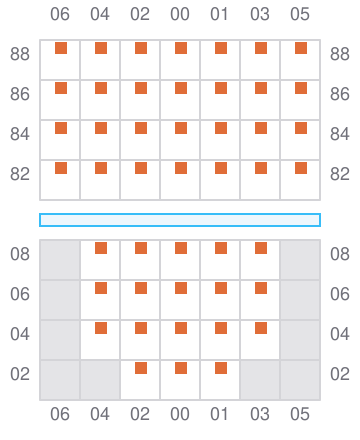

029
- ←

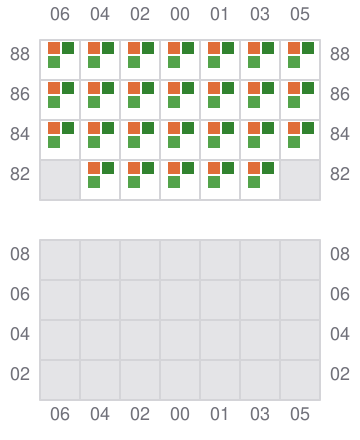

031 (032)
- → / ?

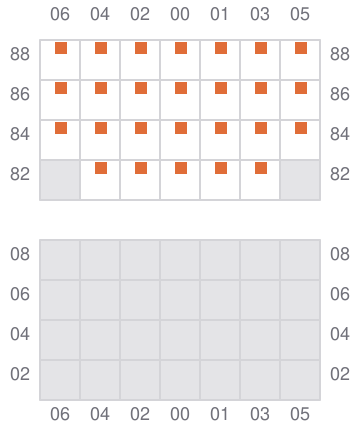

033
- ← / ?
