SELFOSS
9433456 | OZ2171 | CMA by *********************** Last update: Wed Jan 29 2025
General Info
Ship Name:SELFOSS
IMO Code:9433456
Call Sign:OZ2171
Line Operator:CMA
Class Name for Sister Ships:FSOP
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
40' Bays Location:-
Size Summary
ISO Bays:029
Max ISO Row:08
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:686
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

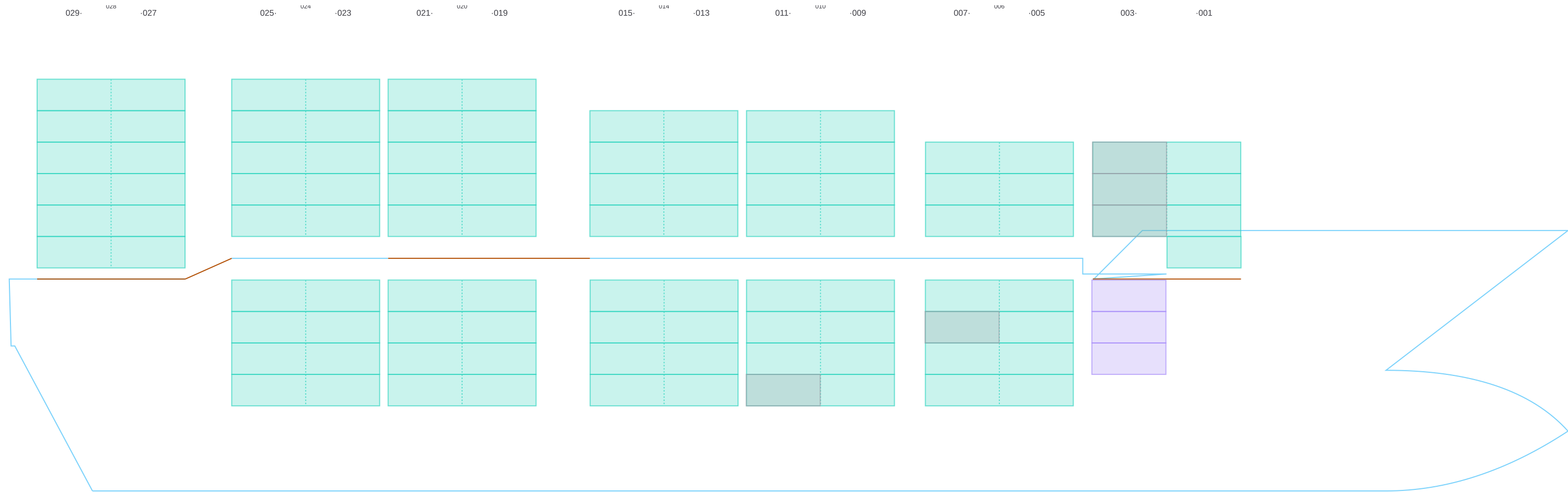

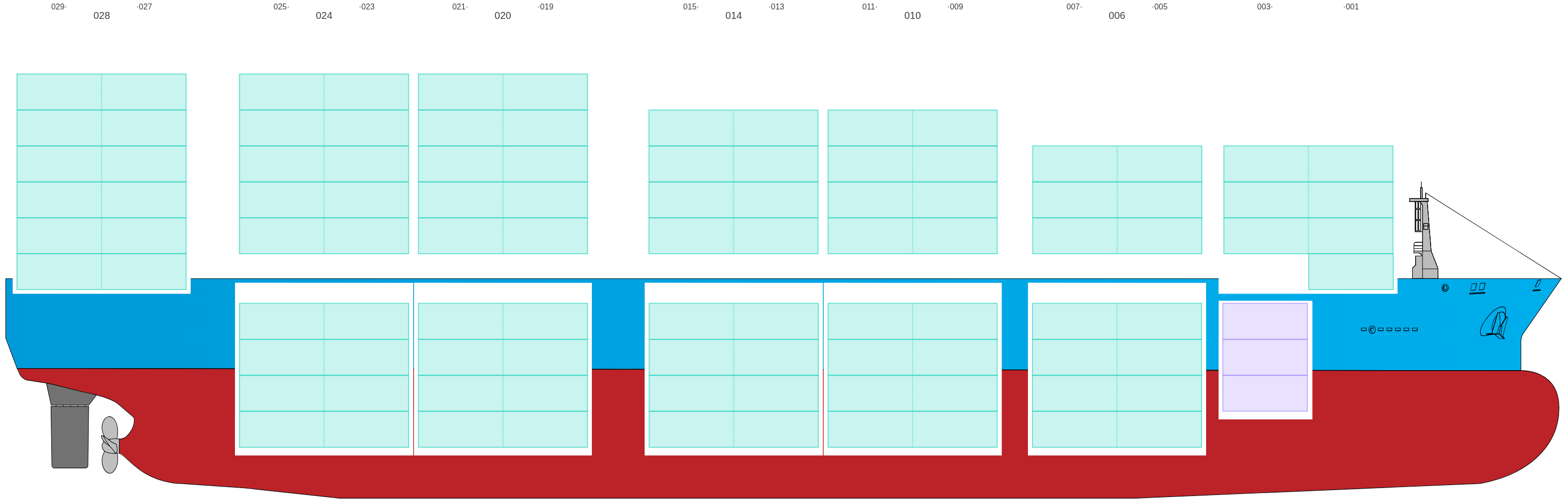

Side View

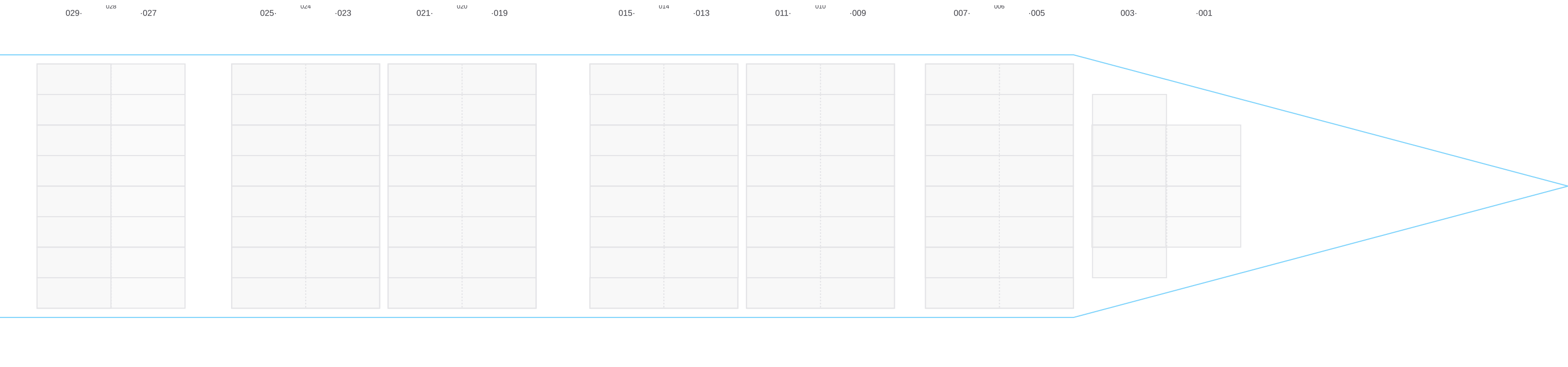

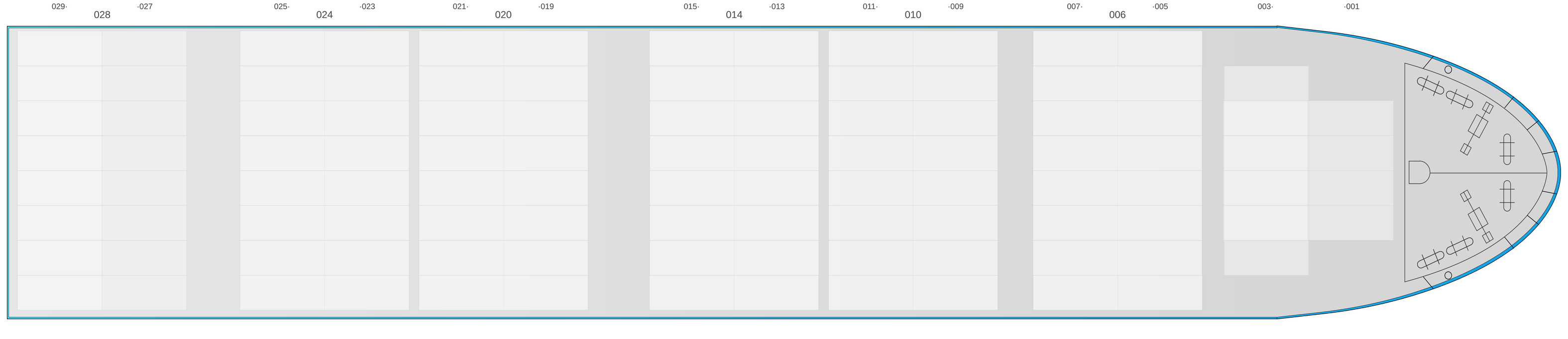

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

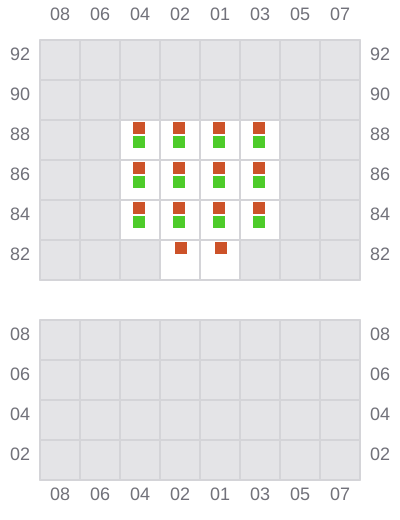

001 (002)
- → / ?
- → / ?

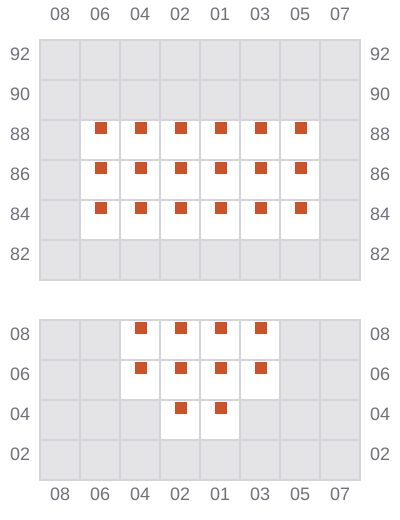

003
- ← / ?
- →

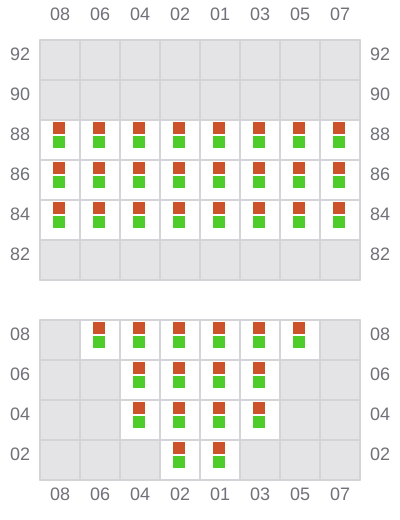

005 (006)
- →
- →

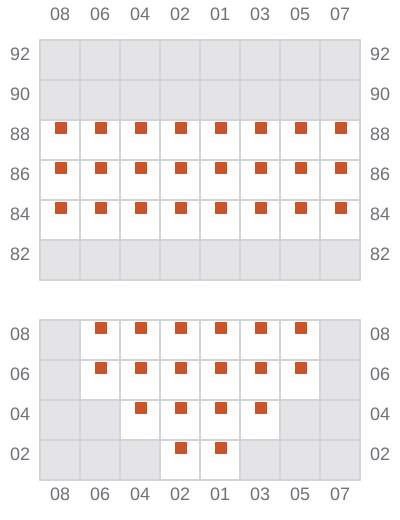

007
- ←
- →
009 (010)
- →
- ? / ←
- →

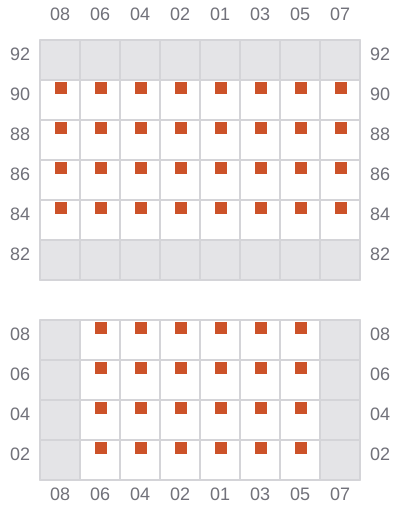

011
- ←
- →
013 (014)
- →
- ? / →

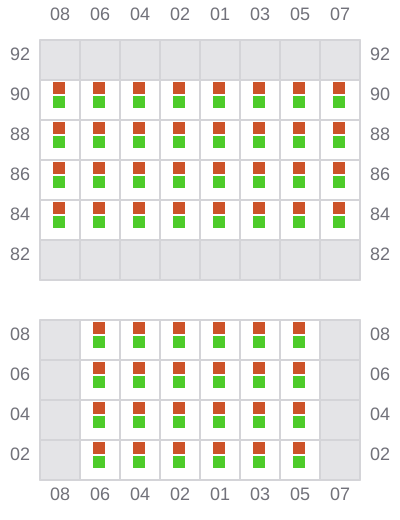

015
- ←
- →

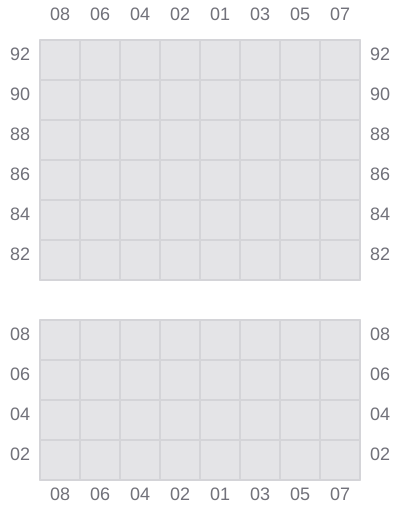

017

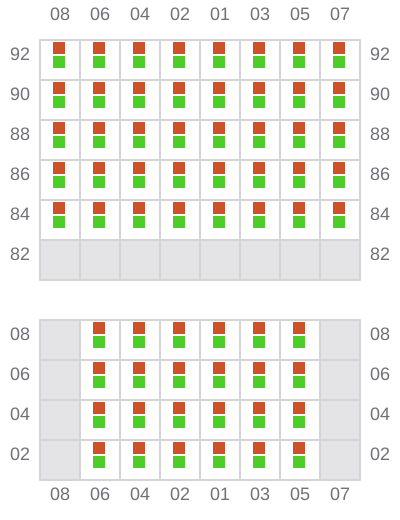

019 (020)
- →
- ← / ?
- →
021
- ←
- →

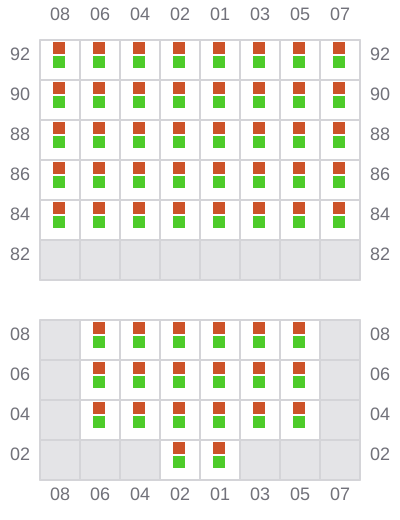

023 (024)
- →
- →

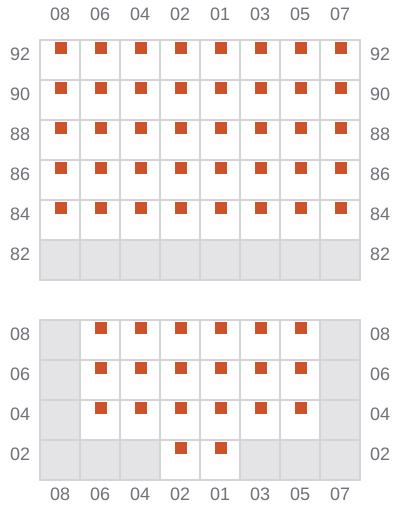

025
- ←
- →

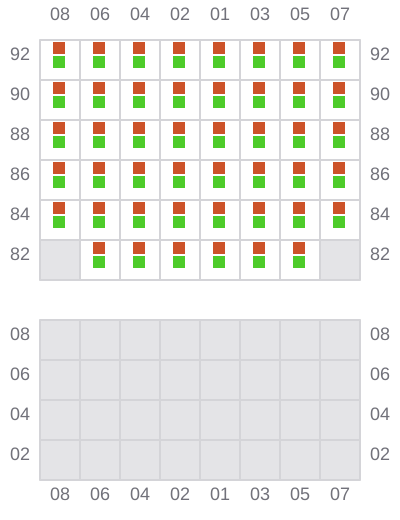

027 (028)
- → / ?
- → / ?
- → / ?

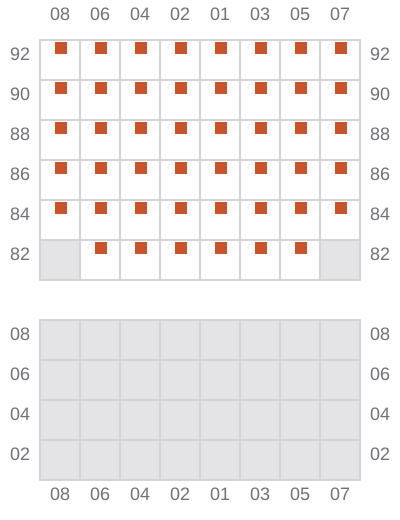

029
- ← / ?
- → / ?
