SEOUL GLOW
9357535 | D5QC7 | 9357535 by ********* Last update: Tue Jun 18 2024
General Info
Ship Name:SEOUL GLOW
IMO Code:9357535
Call Sign:D5QC7
Line Operator:9357535
Class Name for Sister Ships:MCC
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:033
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,714
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

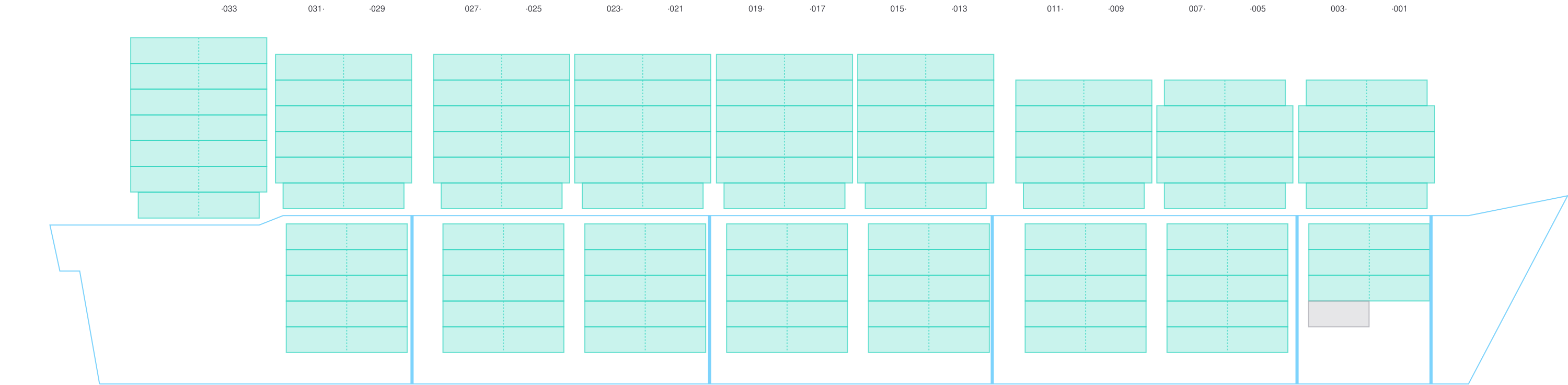

Side View

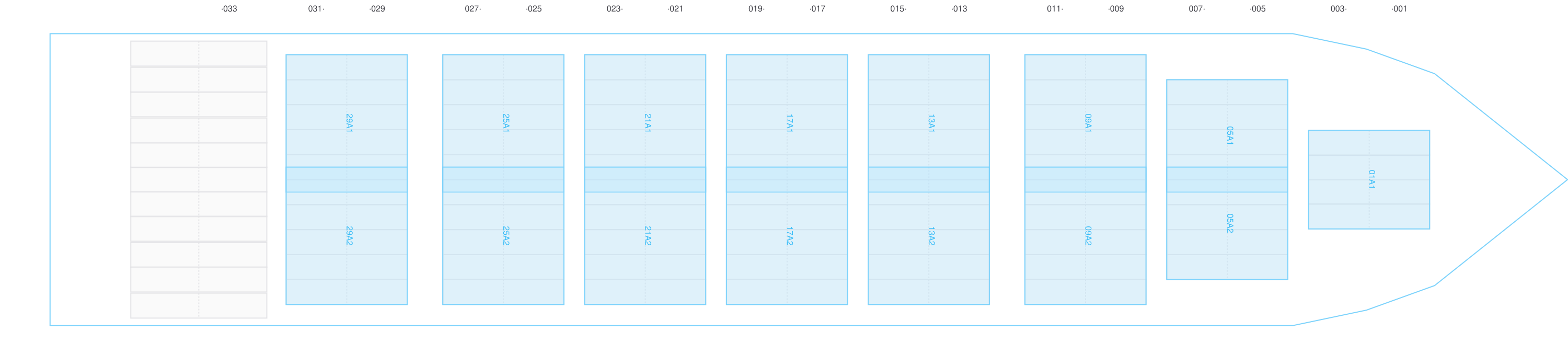

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

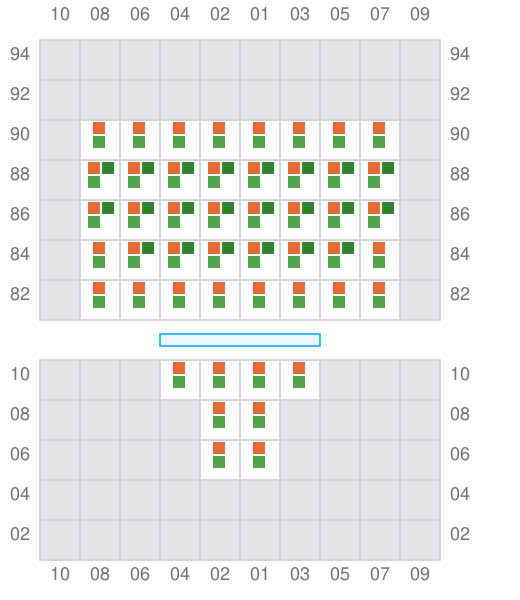

001 (002)
- →

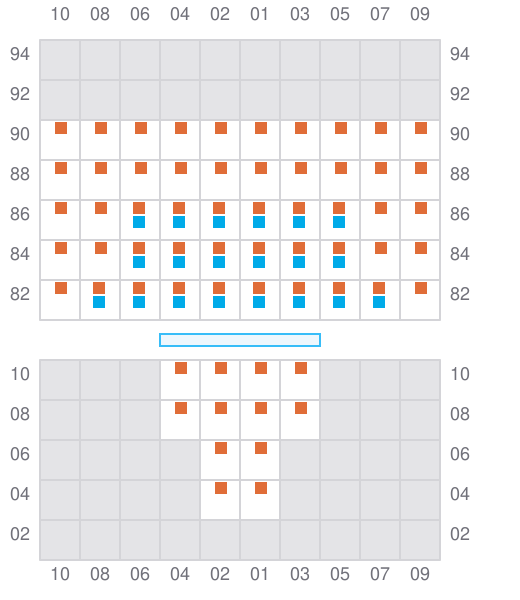

003
- ←
- → / ?

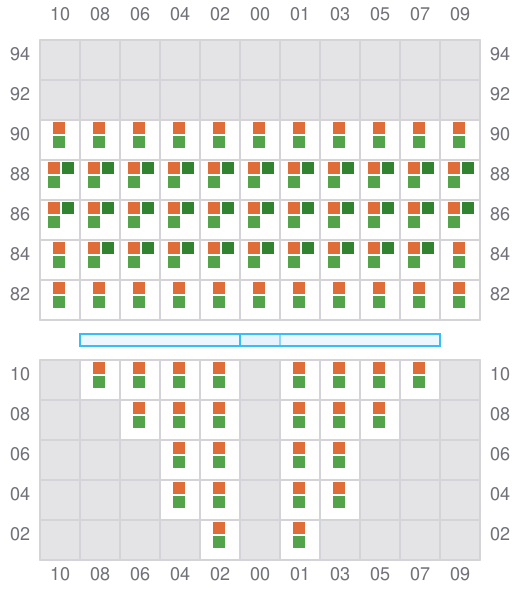

005 (006)
- →

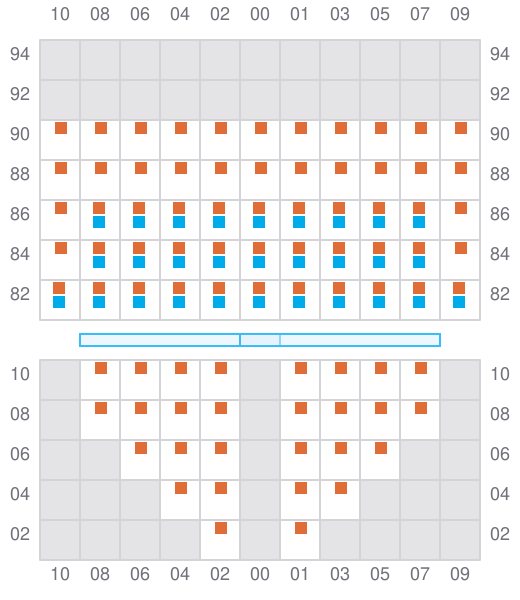

007
- ←
- → / ?

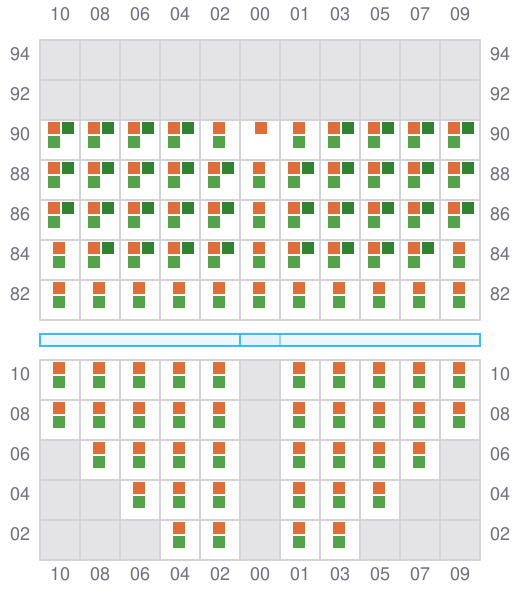

009 (010)
- →

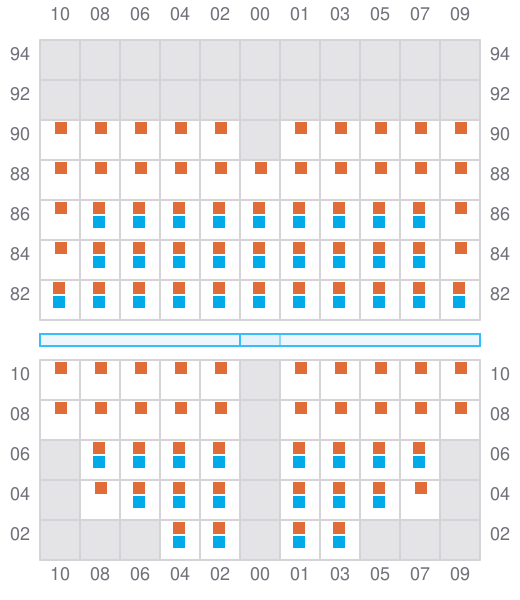

011
- ←
- →

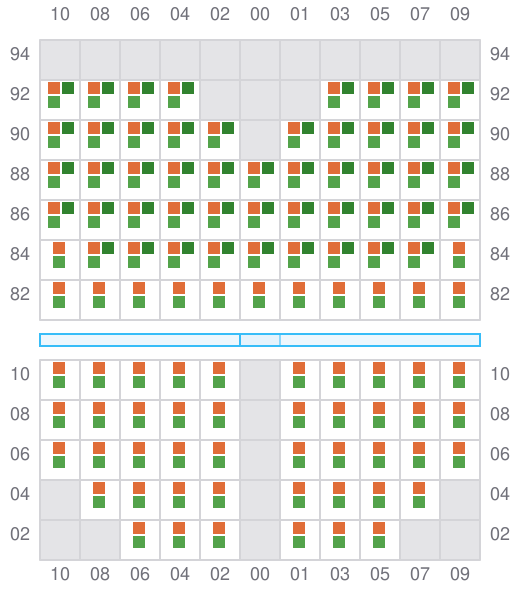

013 (014)
- →
- ← / ?
015
- ←
- →
017 (018)
- →
019
- ←
- →

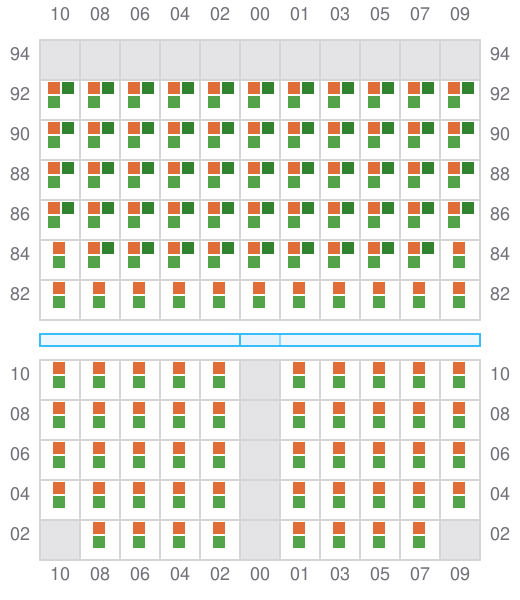

021 (022)
- →

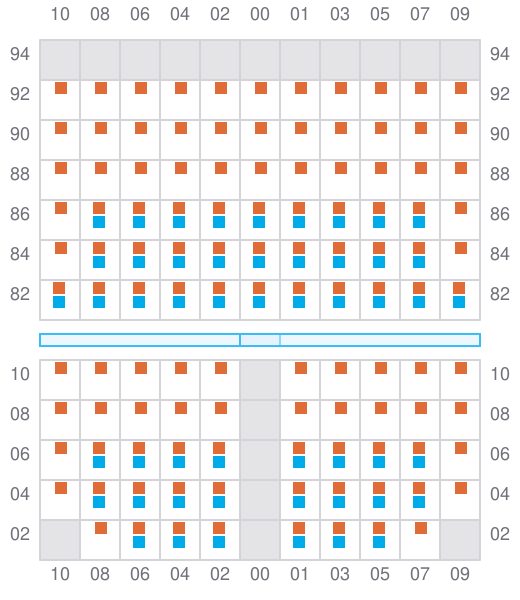

023
- ←
- →

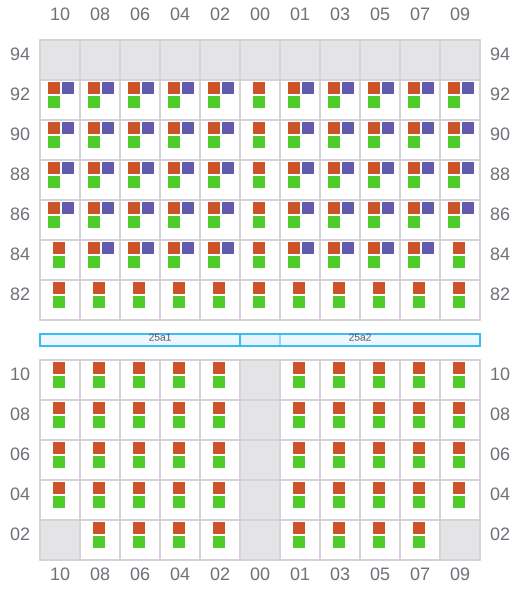

025 (026)
- →
027
- ←
- → / ?

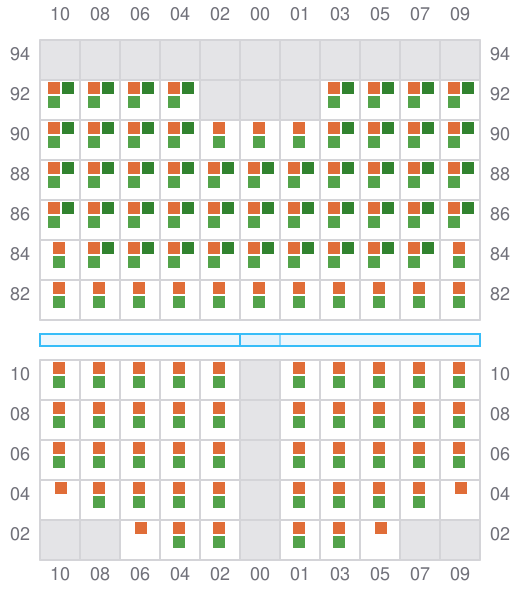

029 (030)
- →

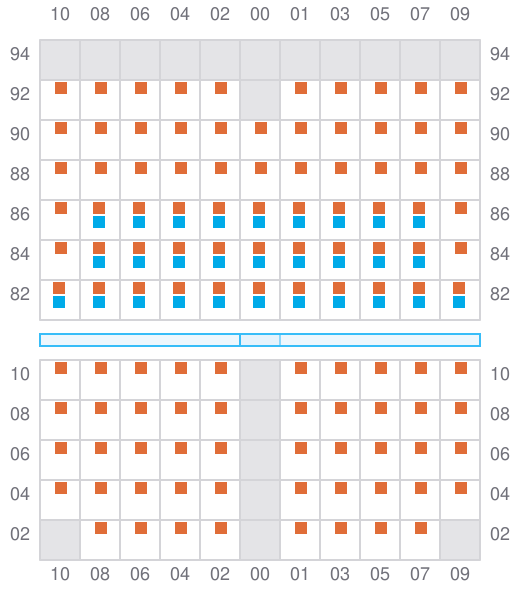

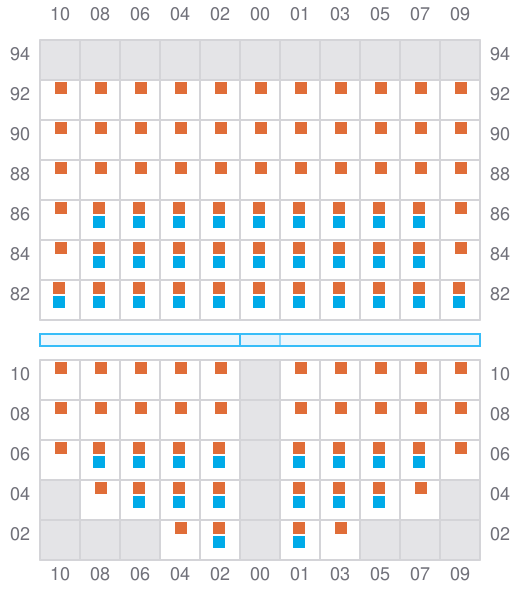

031
- ←
- →

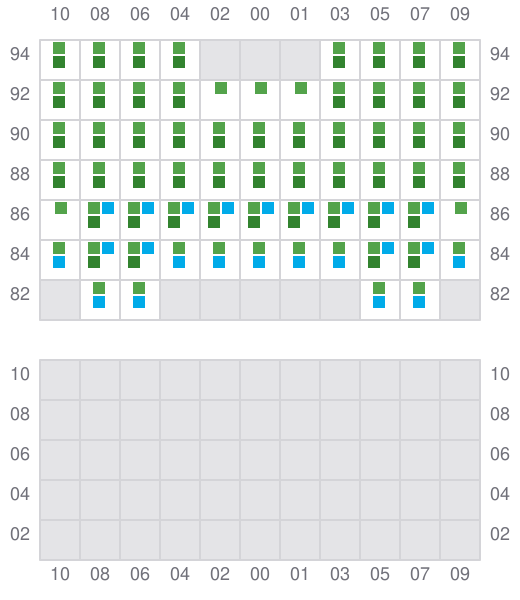

033 (034)
- → / ?
