SFT SAUDI
9224324 | V7KF6 | 9224324 by ********* Last update: Wed May 01 2024

General Info

Ship Name:SFT SAUDI
IMO Code:9224324
Call Sign:V7KF6
Line Operator:9224324
Class Name for Sister Ships:CSAV LANCO
Year Built:2001
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,253

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

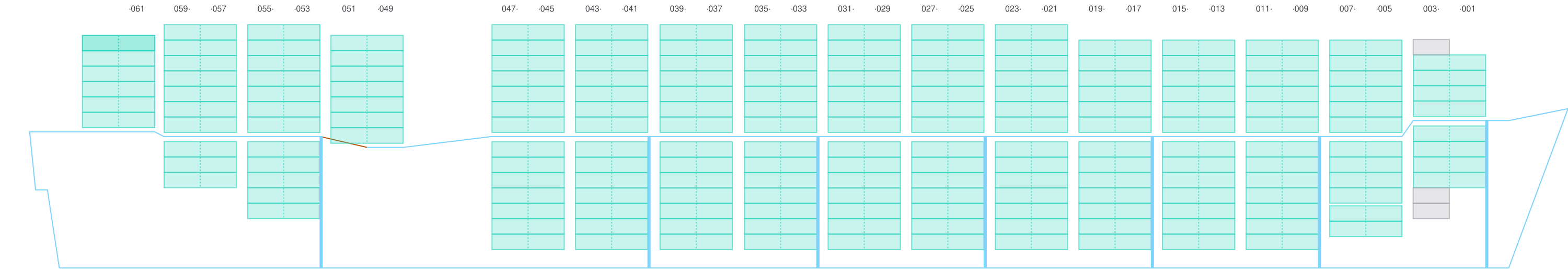

Side View

Side view of SFT SAUDI

Hatch-Covers View

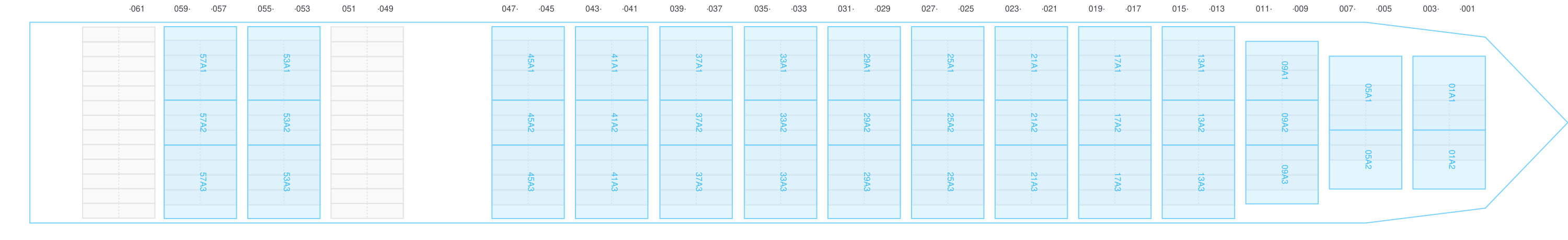

Deck view of SFT SAUDI

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

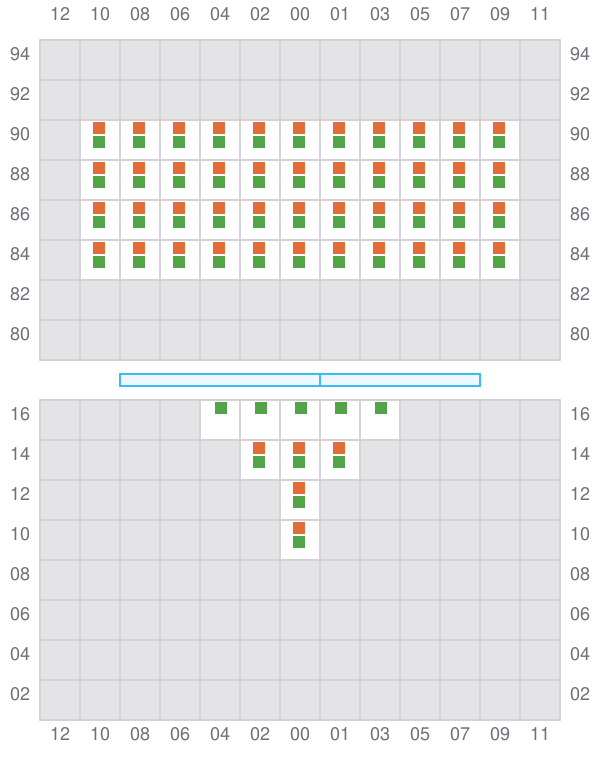

Bay 001 view and slots of SFT SAUDI

003

  • ←

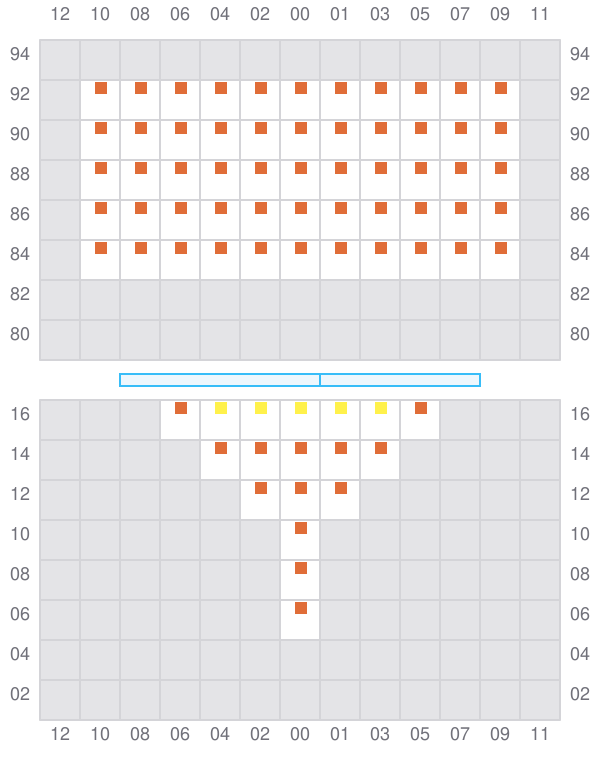

Bay 003 view and slots of SFT SAUDI

005 (006)

  • →

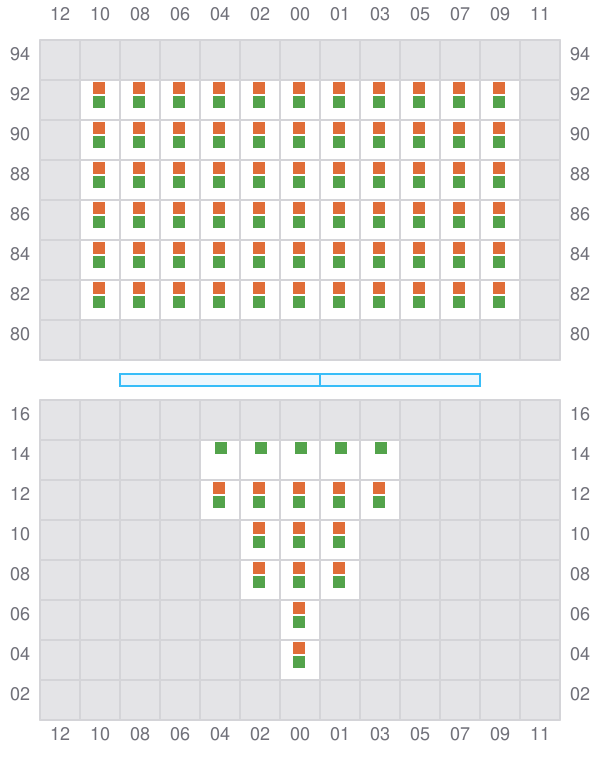

Bay 005 view and slots of SFT SAUDI

007

  • ←
  • → / ?

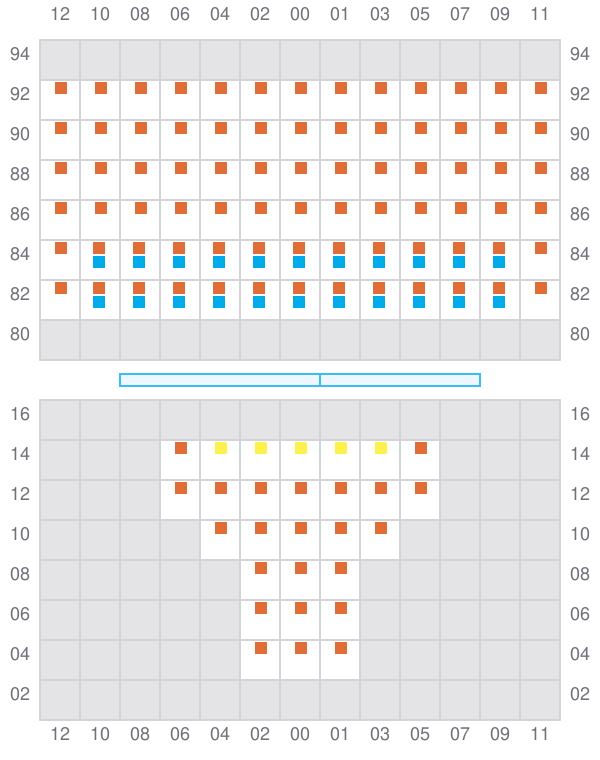

Bay 007 view and slots of SFT SAUDI

009 (010)

  • →

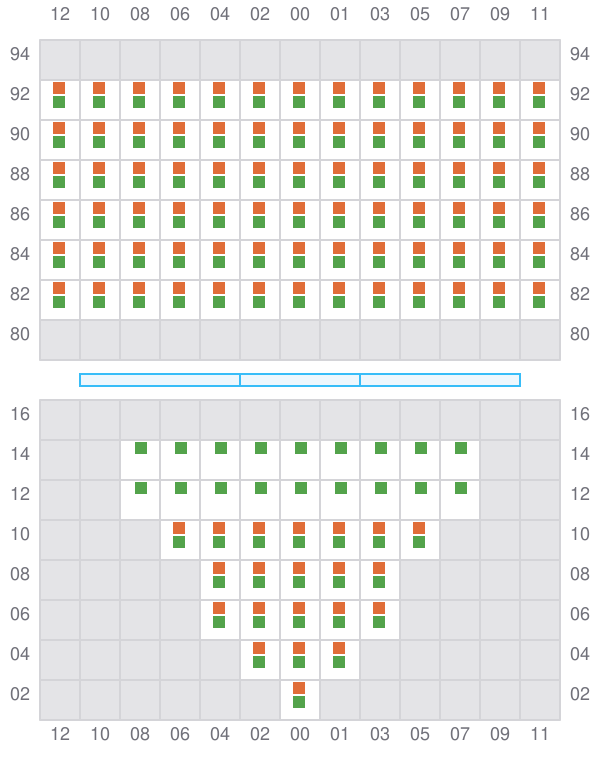

Bay 009 view and slots of SFT SAUDI

011

  • ←
  • → / ?
Bay 011 view and slots of SFT SAUDI

013 (014)

  • →

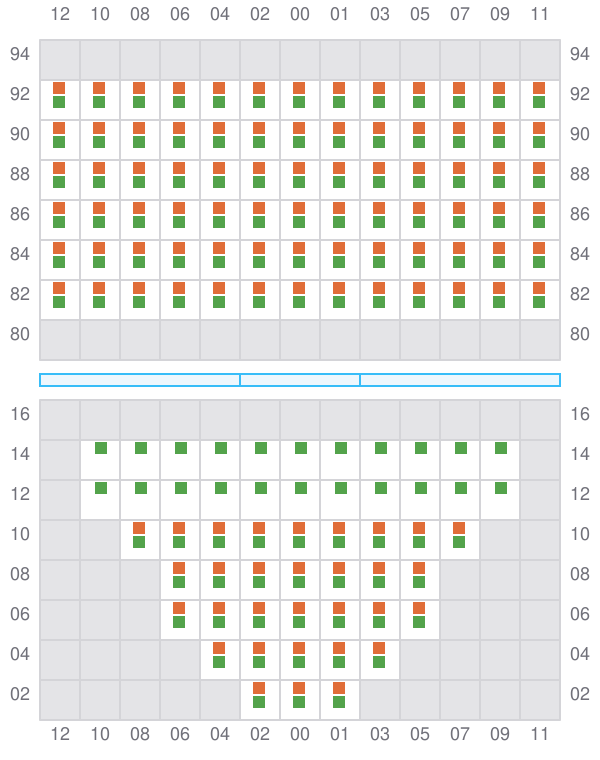

Bay 013 view and slots of SFT SAUDI

015

  • ←
  • → / ?

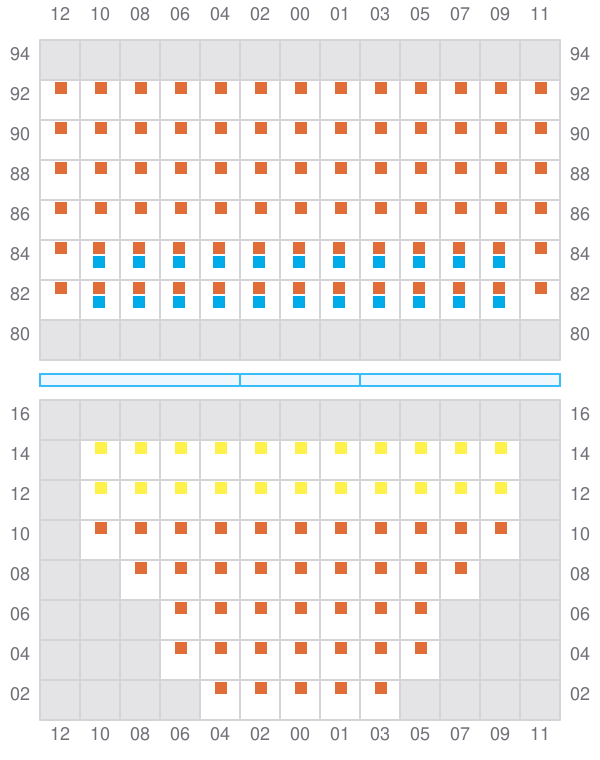

Bay 015 view and slots of SFT SAUDI

017 (018)

  • →

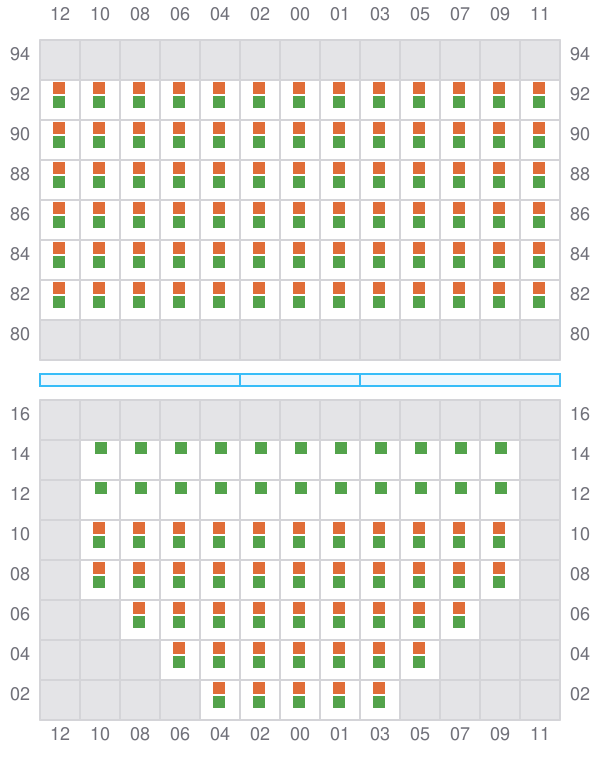

Bay 017 view and slots of SFT SAUDI

019

  • ←
  • → / ?
Bay 019 view and slots of SFT SAUDI

021 (022)

  • →

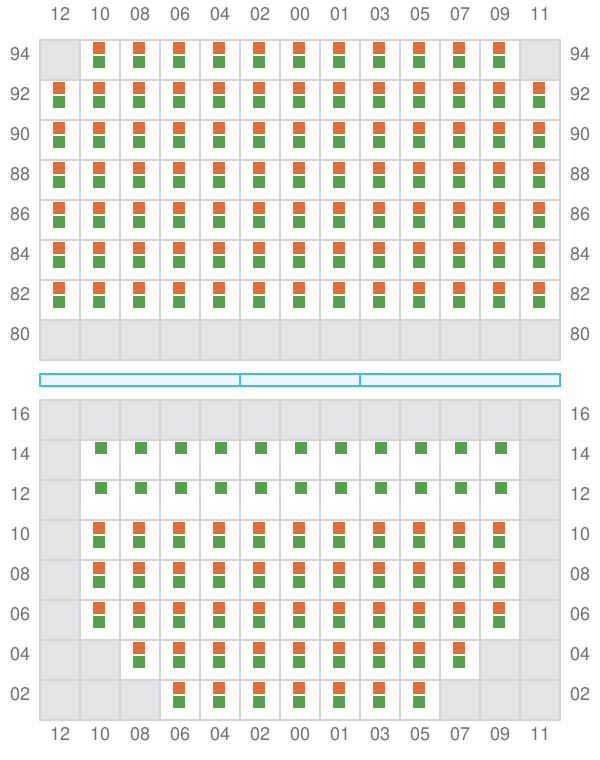

Bay 021 view and slots of SFT SAUDI

023

  • ←
  • → / ?
Bay 023 view and slots of SFT SAUDI

025 (026)

  • →
Bay 025 view and slots of SFT SAUDI

027

  • ←
  • → / ?

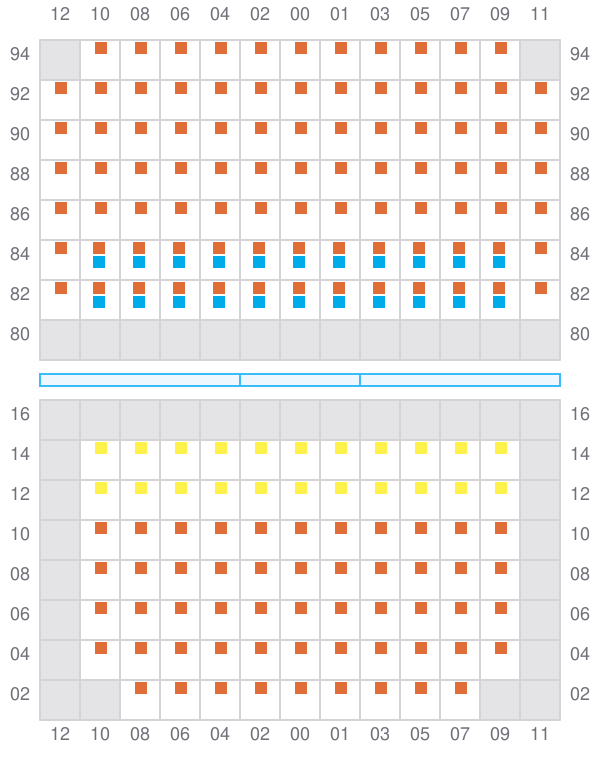

Bay 027 view and slots of SFT SAUDI

029 (030)

  • →

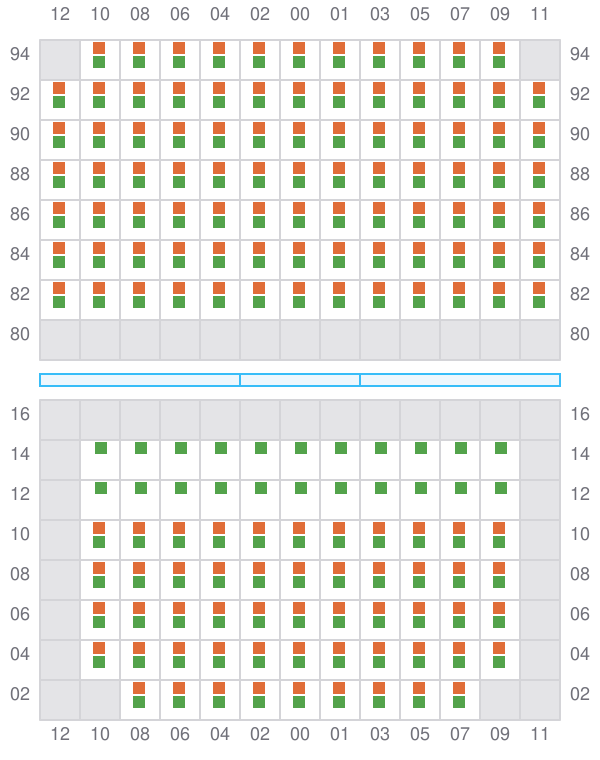

Bay 029 view and slots of SFT SAUDI

031

  • ←
  • → / ?
Bay 031 view and slots of SFT SAUDI

033 (034)

  • →
Bay 033 view and slots of SFT SAUDI

035

  • ←
  • →
Bay 035 view and slots of SFT SAUDI

037 (038)

  • →
Bay 037 view and slots of SFT SAUDI

039

  • ←
  • →

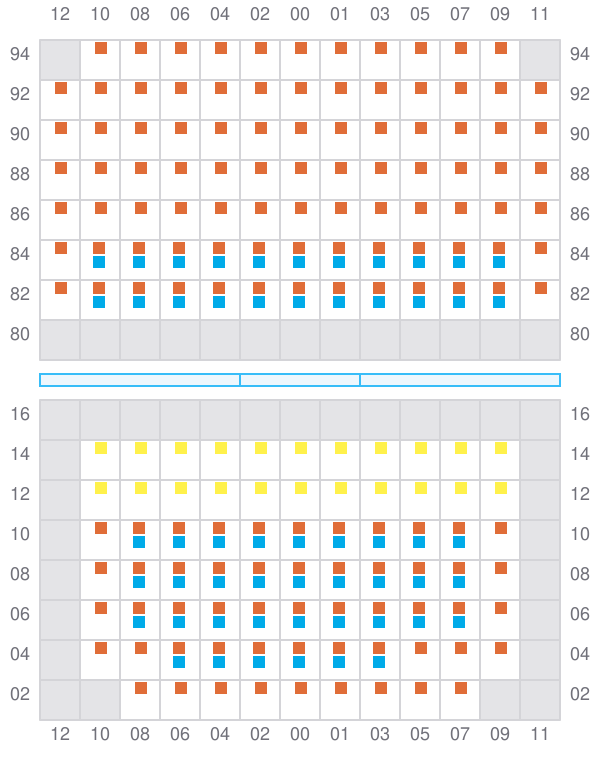

Bay 039 view and slots of SFT SAUDI

041 (042)

  • →

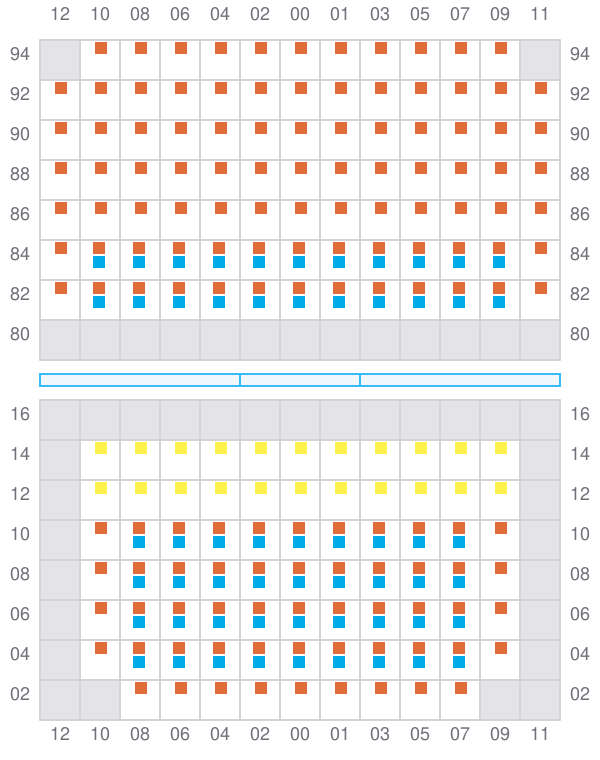

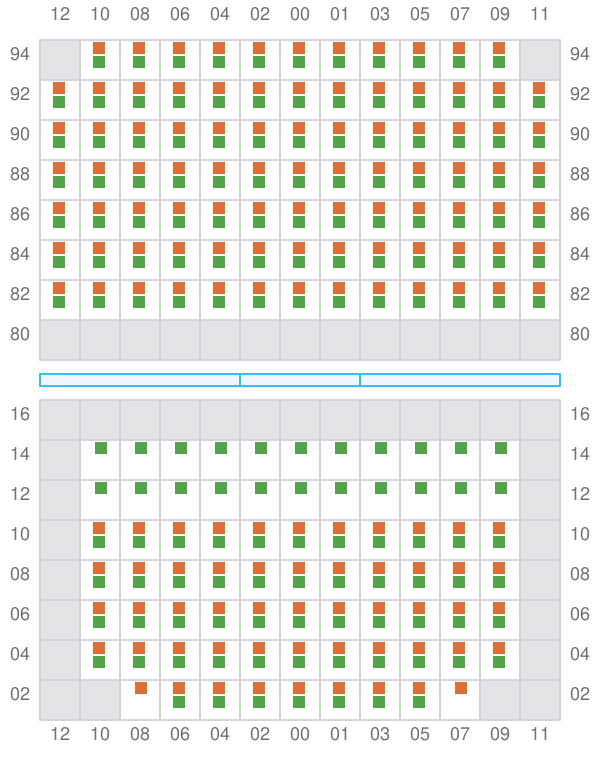

Bay 041 view and slots of SFT SAUDI

043

  • ←
  • → / ?

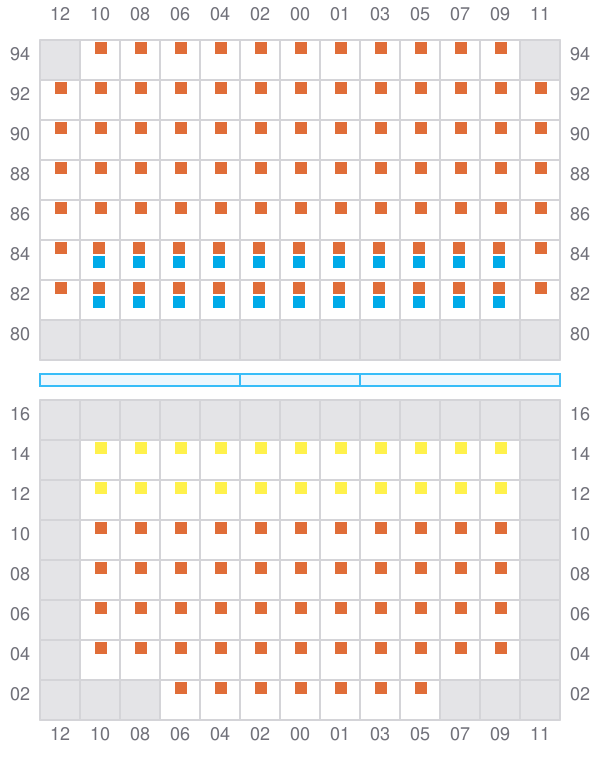

Bay 043 view and slots of SFT SAUDI

045 (046)

  • →

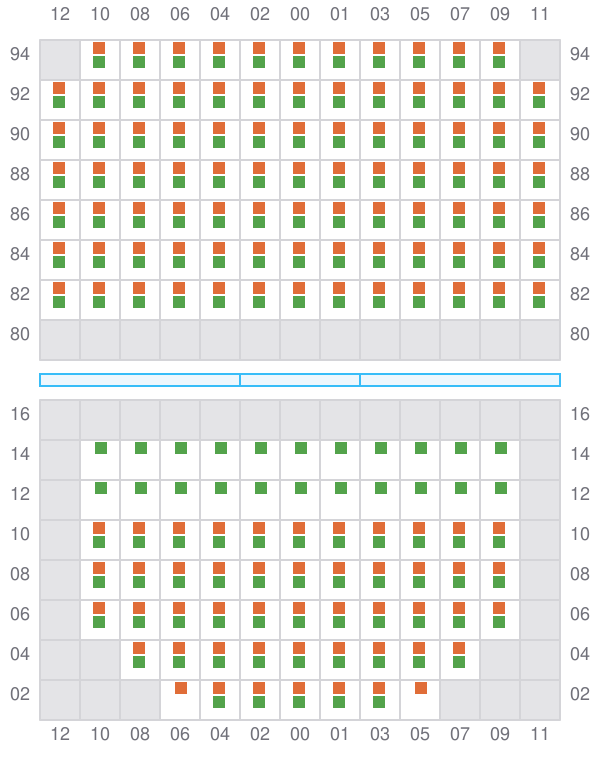

Bay 045 view and slots of SFT SAUDI

047

  • ←
  • → / ?

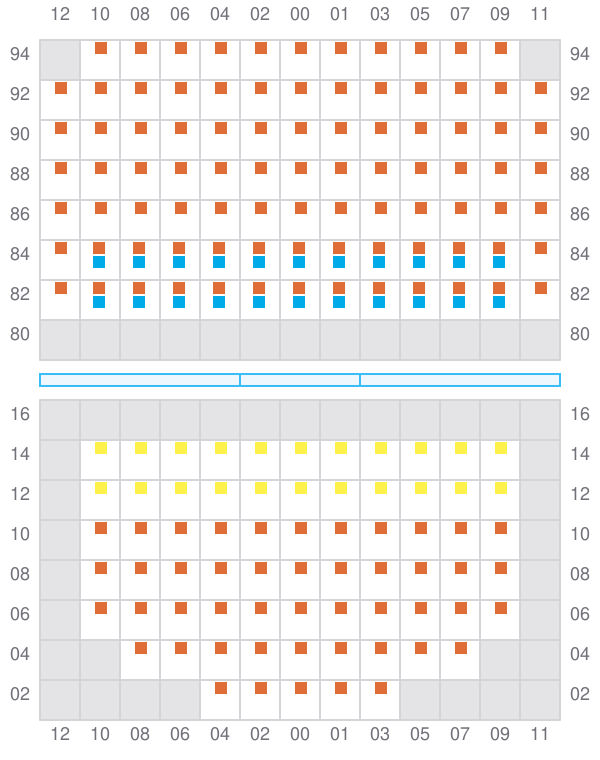

Bay 047 view and slots of SFT SAUDI

049 (050)

  • → / ?
  • ← / ?

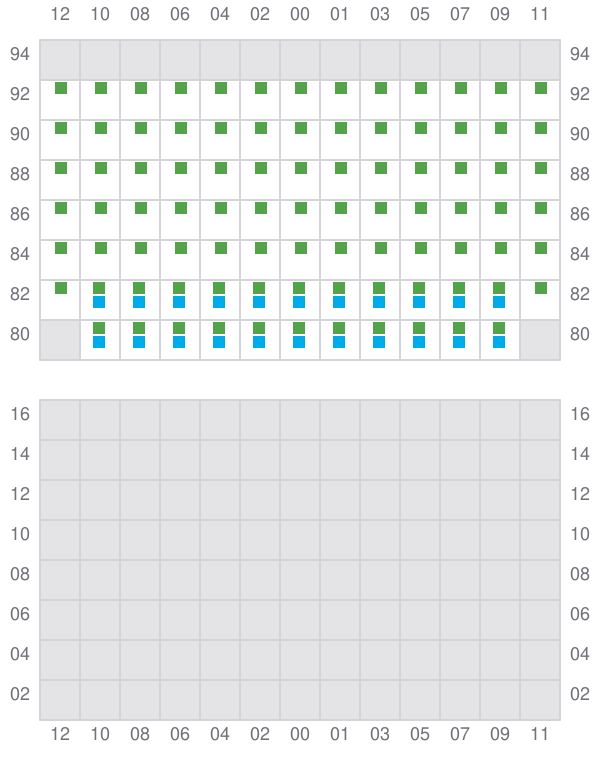

Bay 049 view and slots of SFT SAUDI

051

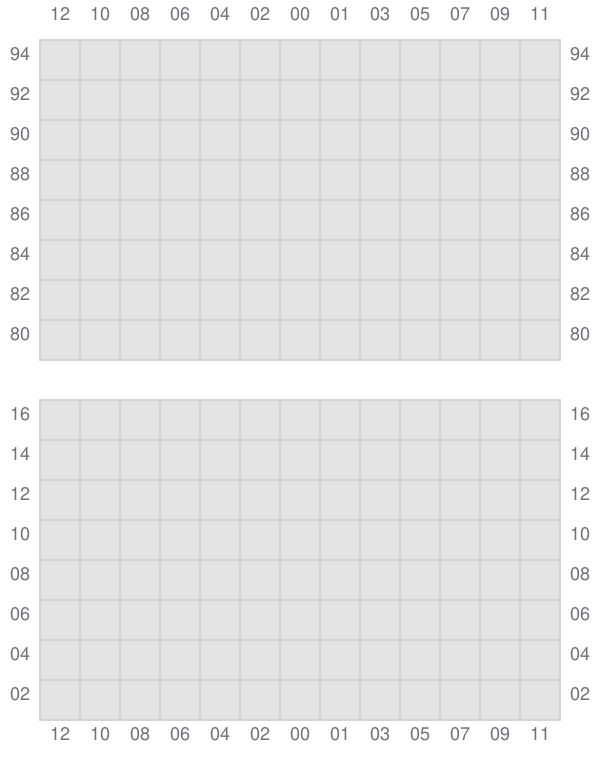

Bay 051 view and slots of SFT SAUDI

053 (054)

  • →
  • ← / ?

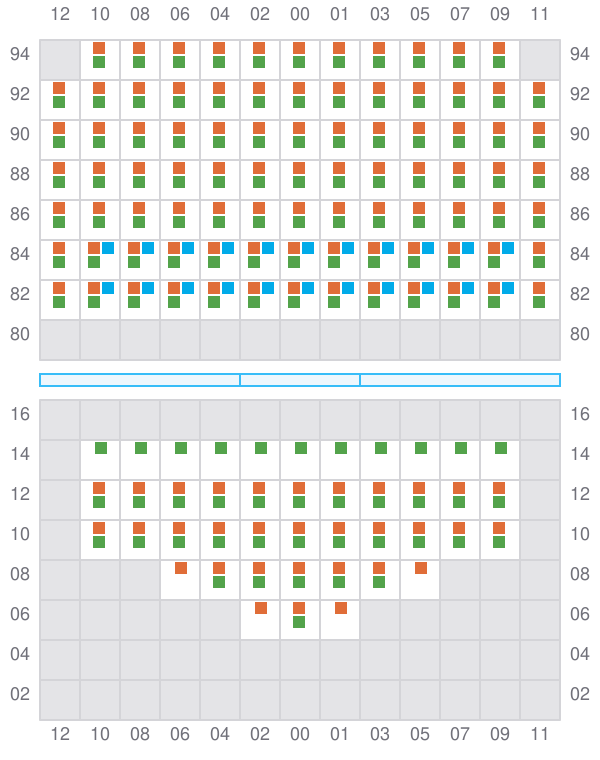

Bay 053 view and slots of SFT SAUDI

055

  • ←
  • → / ?
Bay 055 view and slots of SFT SAUDI

057 (058)

  • →
  • ← / ?

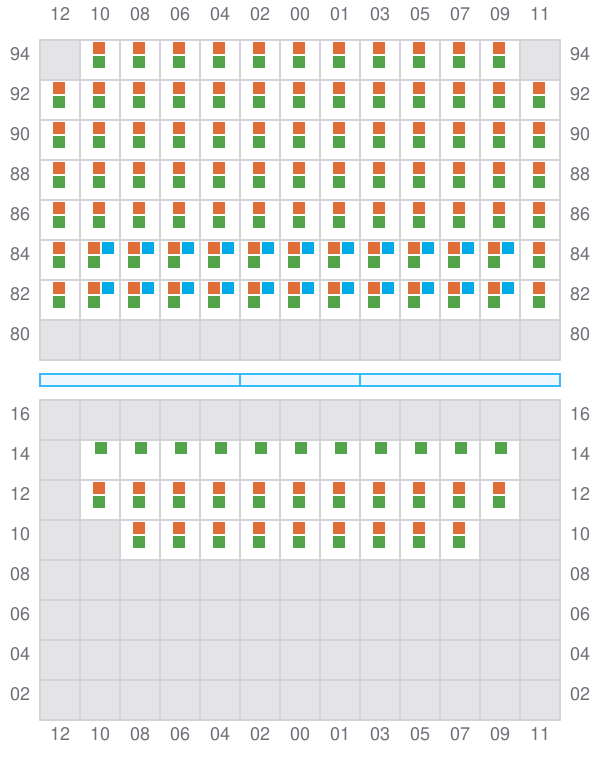

Bay 057 view and slots of SFT SAUDI

059

  • ←
  • → / ?

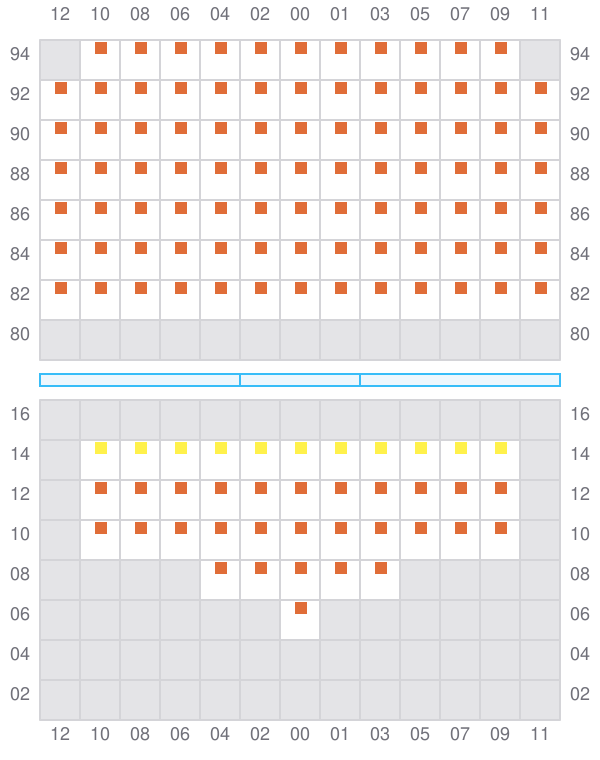

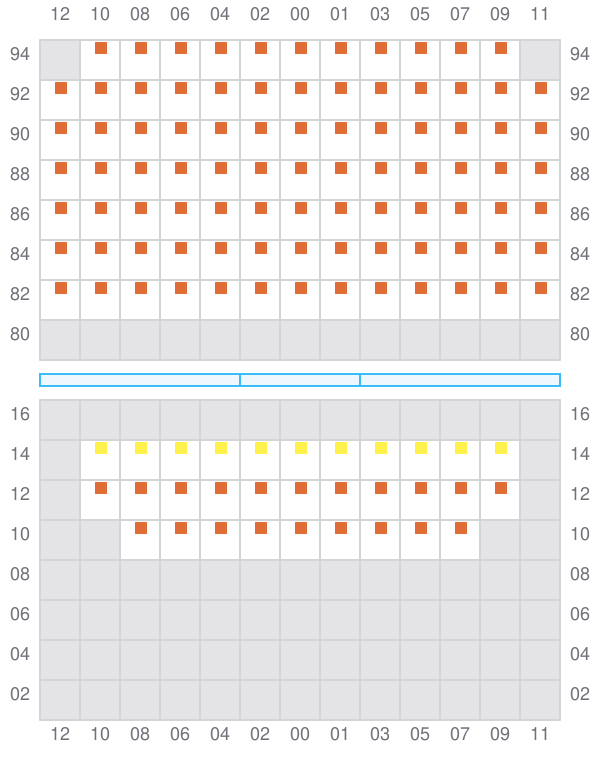

Bay 059 view and slots of SFT SAUDI

061 (062)

  • → / ?
  • ← / ?

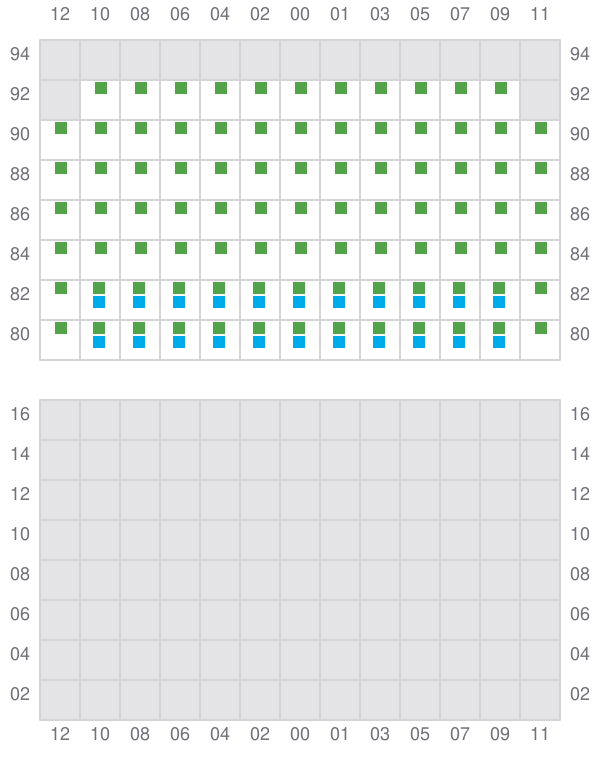

Bay 061 view and slots of SFT SAUDI
