SFT TURKEY
9238753 | 3E2328 | 9238753 by ********* Last update: Thu Mar 14 2024

General Info

Ship Name:SFT TURKEY

IMO Code:9238753

Call Sign:3E2328

Line Operator:9238753

Class Name for Sister Ships:34Y

Year Built:2003

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:061

Max ISO Row:12

Center Line Row:Yes

Max Above ISO Tier:94

Min Above ISO Tier:80

Max Below ISO Tier:16

Min Below ISO Tier:02

Total TEU:4,253

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

Side View

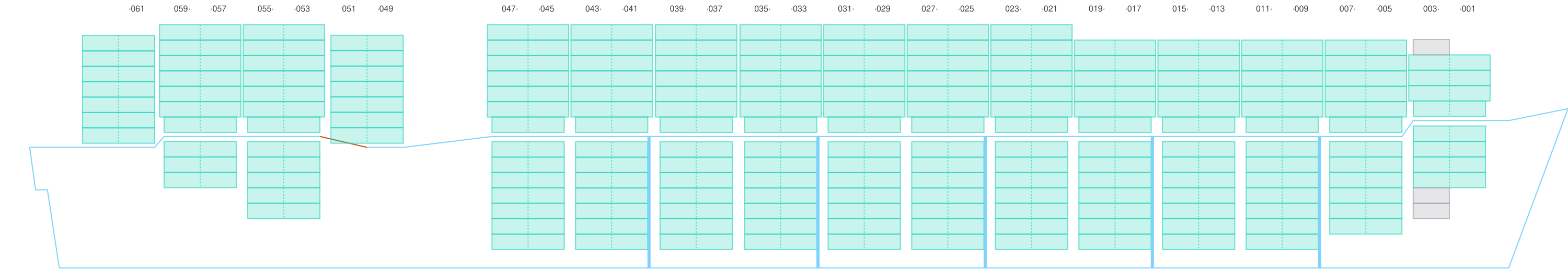

Side view of SFT TURKEY

Hatch-Covers View

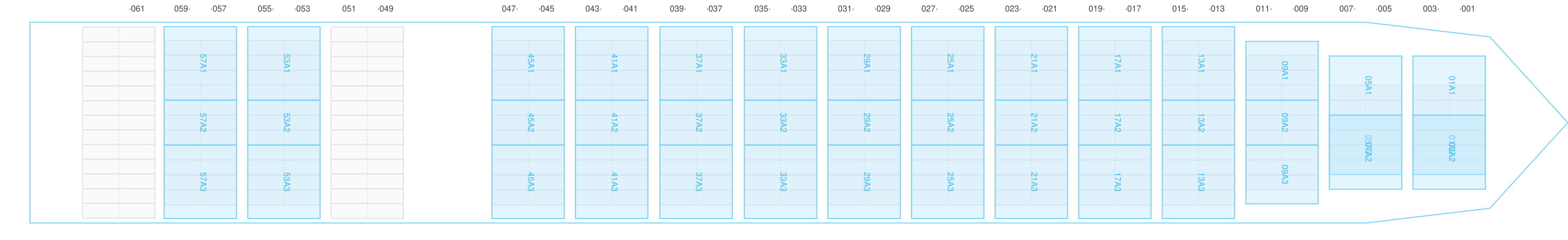

Deck view of SFT TURKEY

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001 (002)

→

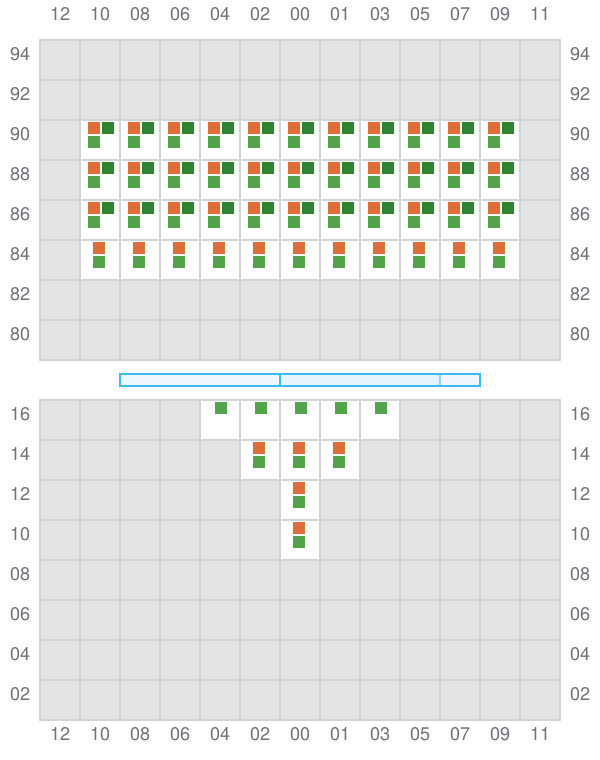

Bay 001 view and slots of SFT TURKEY

003

←

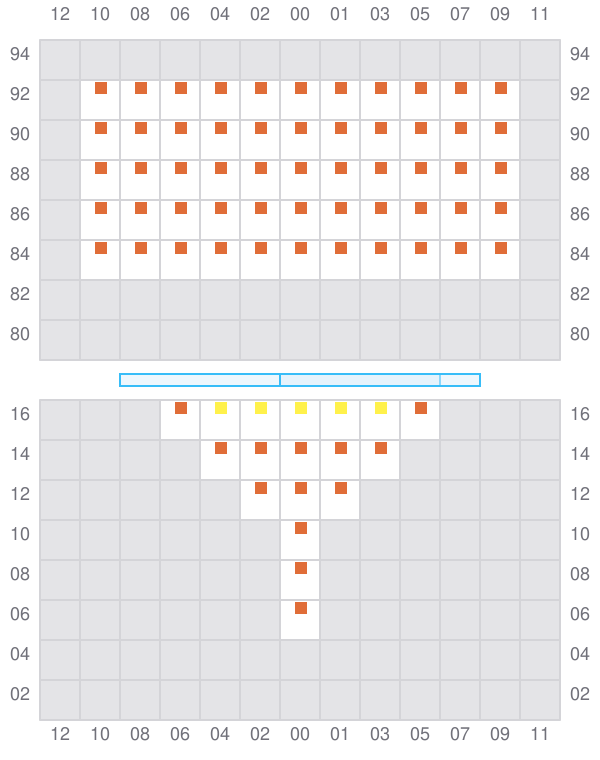

Bay 003 view and slots of SFT TURKEY

005 (006)

→

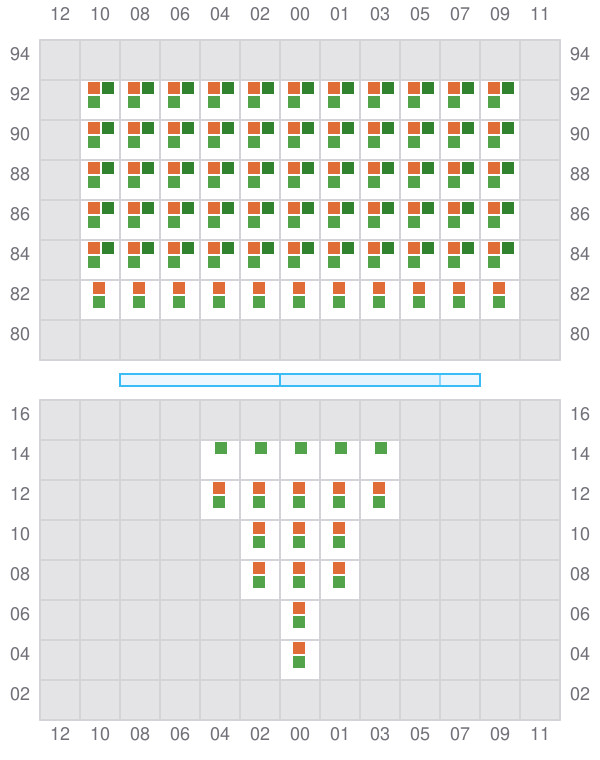

Bay 005 view and slots of SFT TURKEY

007

←
^→ / _?

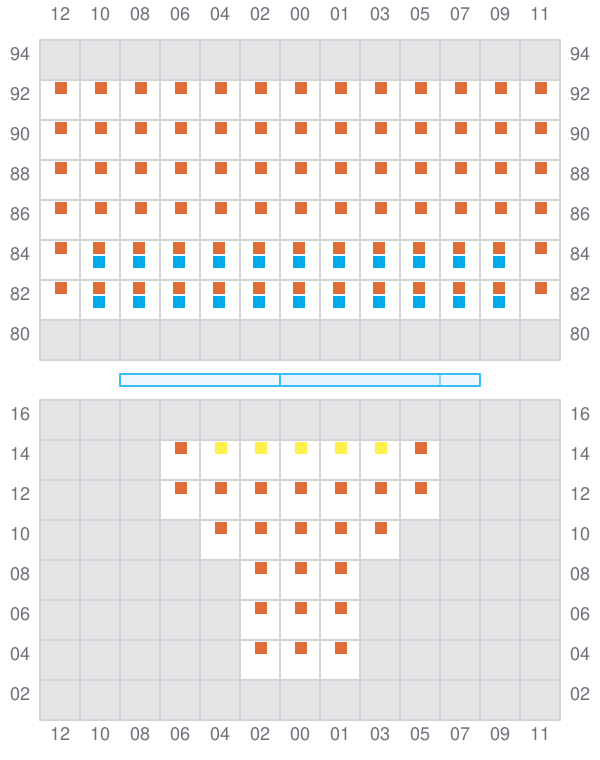

Bay 007 view and slots of SFT TURKEY

009 (010)

→

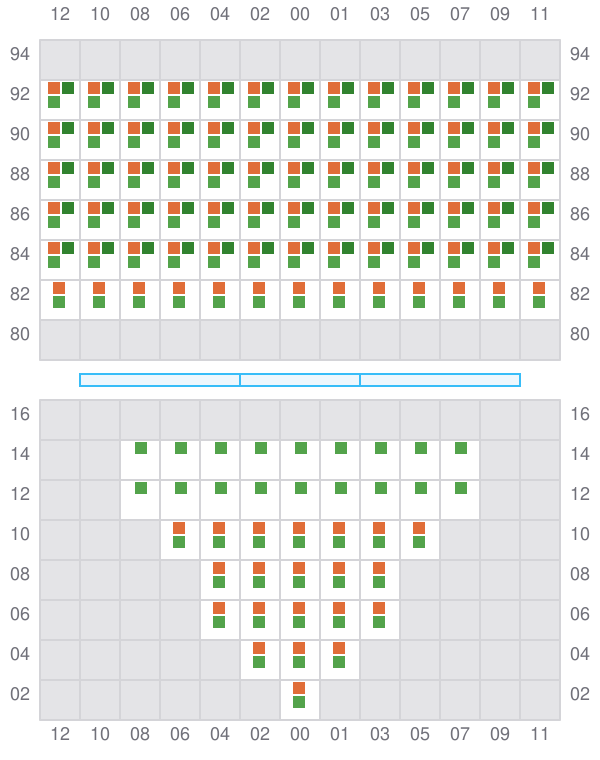

Bay 009 view and slots of SFT TURKEY

011

←
^→ / _?

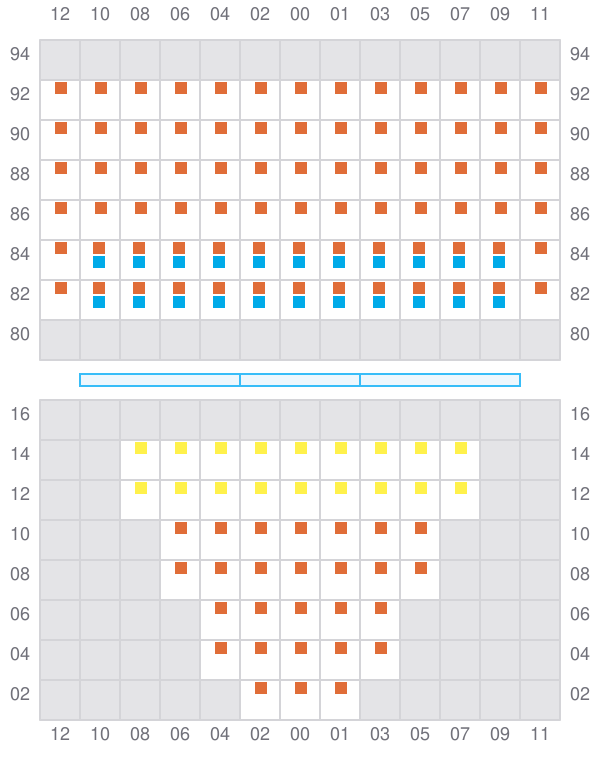

Bay 011 view and slots of SFT TURKEY

013 (014)

→

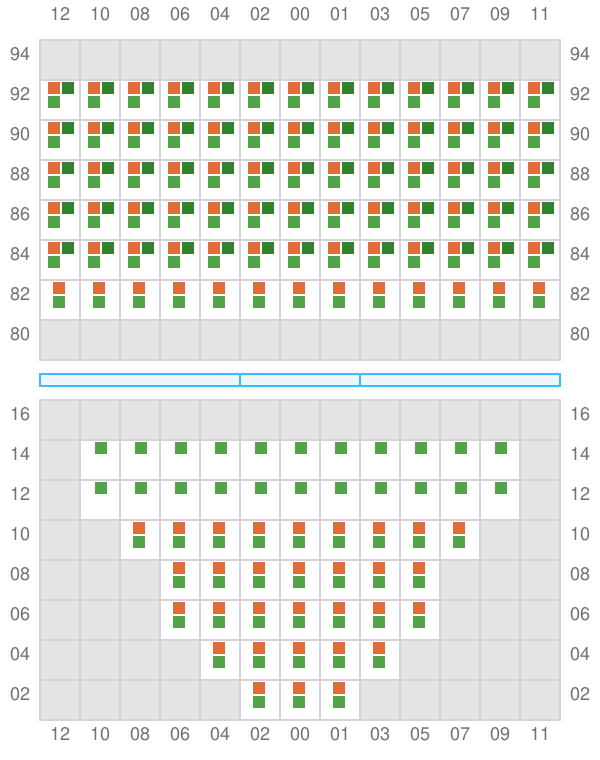

Bay 013 view and slots of SFT TURKEY

015

←
^→ / _?

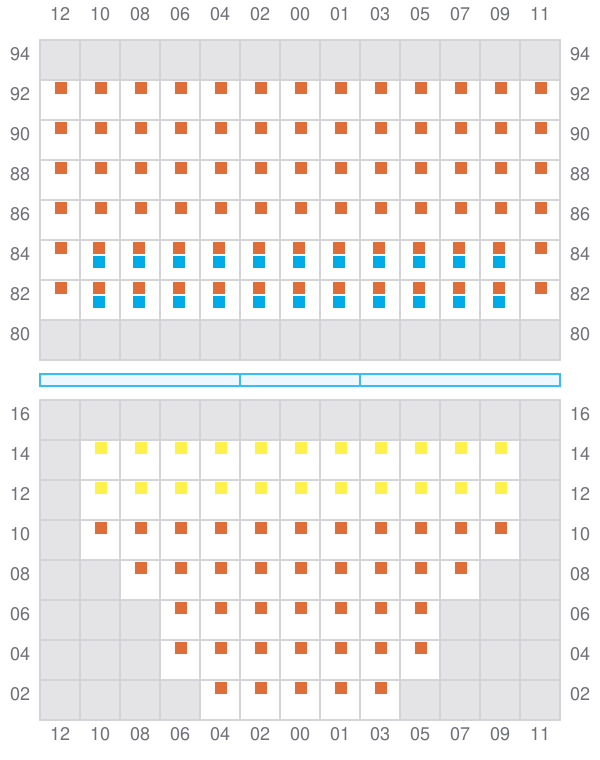

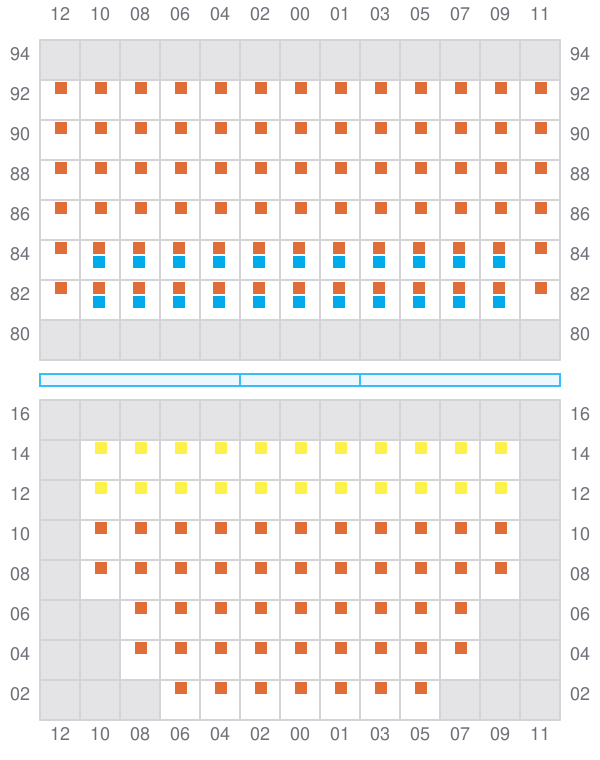

Bay 015 view and slots of SFT TURKEY

017 (018)

→

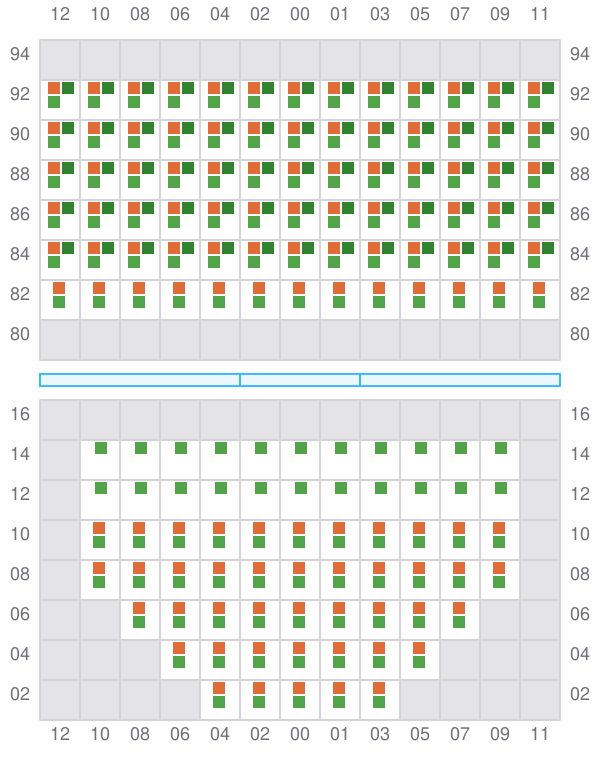

Bay 017 view and slots of SFT TURKEY

019

←
^→ / _?

Bay 019 view and slots of SFT TURKEY

021 (022)

→

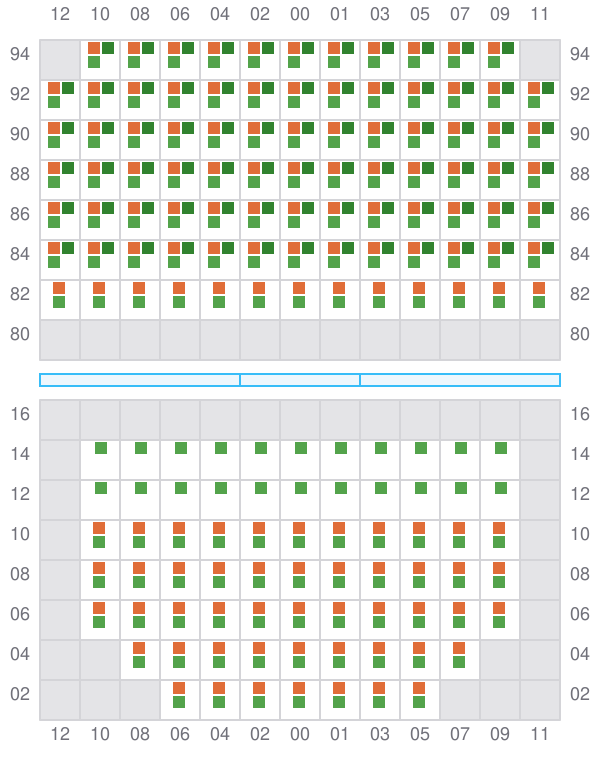

Bay 021 view and slots of SFT TURKEY

023

←
^→ / _?

Bay 023 view and slots of SFT TURKEY

025 (026)

→

Bay 025 view and slots of SFT TURKEY

027

←
^→ / _?

Bay 027 view and slots of SFT TURKEY

029 (030)

→

Bay 029 view and slots of SFT TURKEY

031

←
^→ / _?

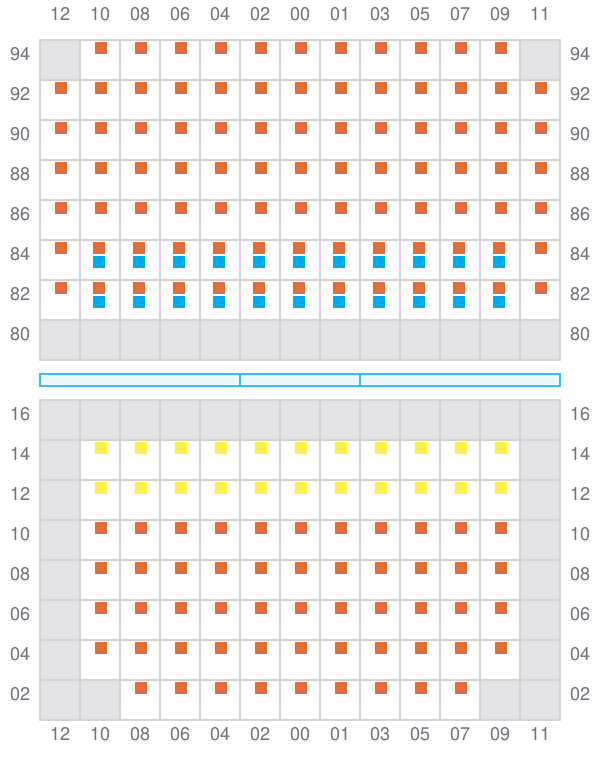

Bay 031 view and slots of SFT TURKEY

033 (034)

→

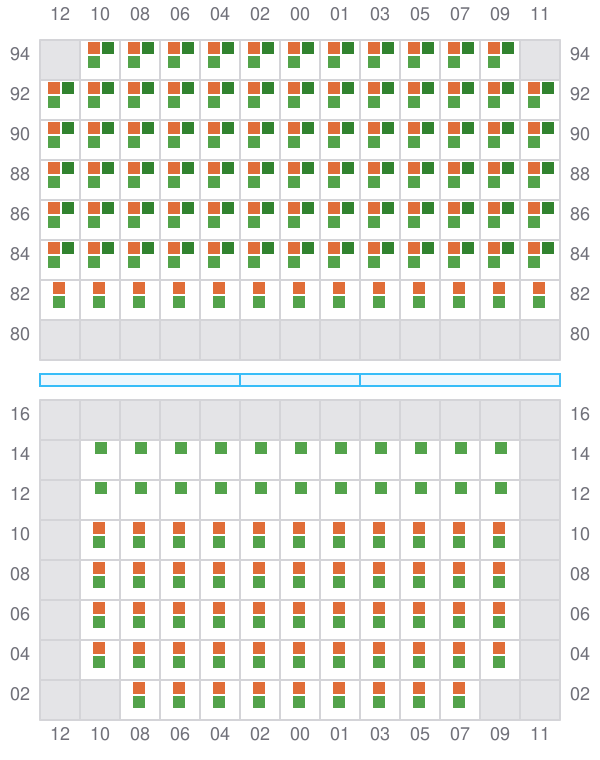

Bay 033 view and slots of SFT TURKEY

035

←
→

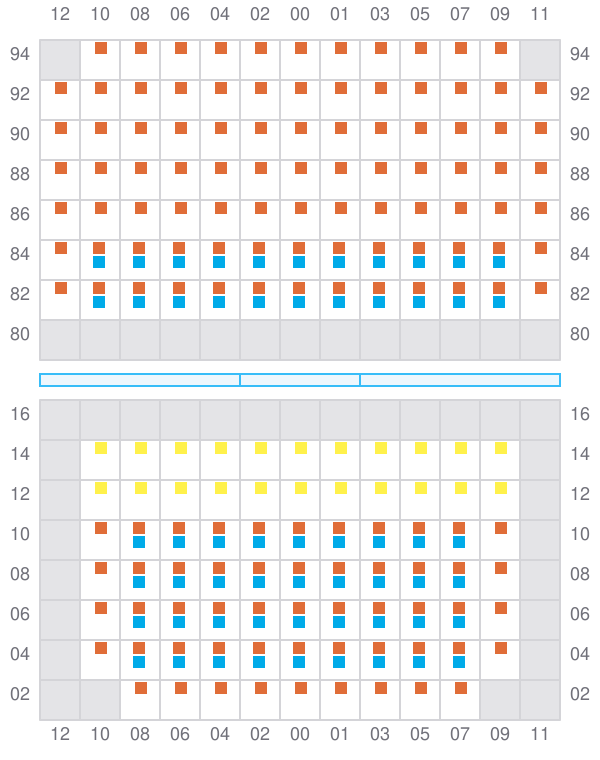

Bay 035 view and slots of SFT TURKEY

037 (038)

→

Bay 037 view and slots of SFT TURKEY

039

←
→

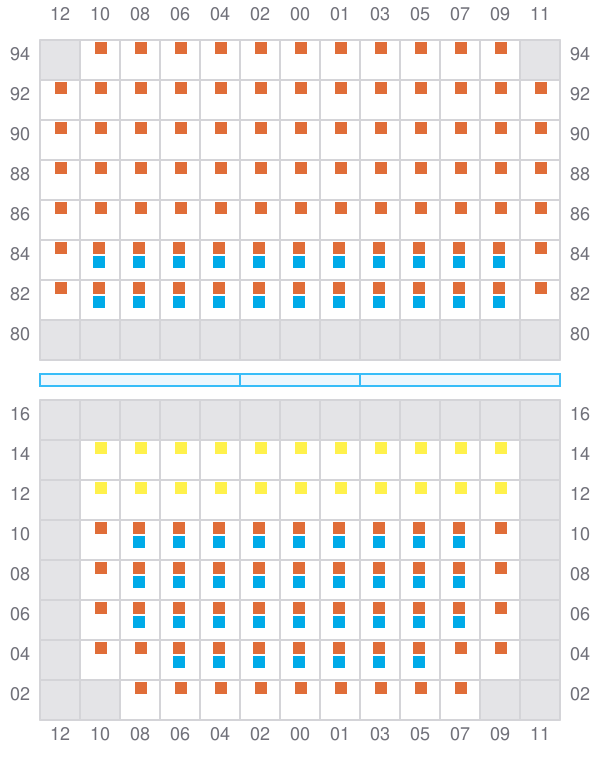

Bay 039 view and slots of SFT TURKEY

041 (042)

→

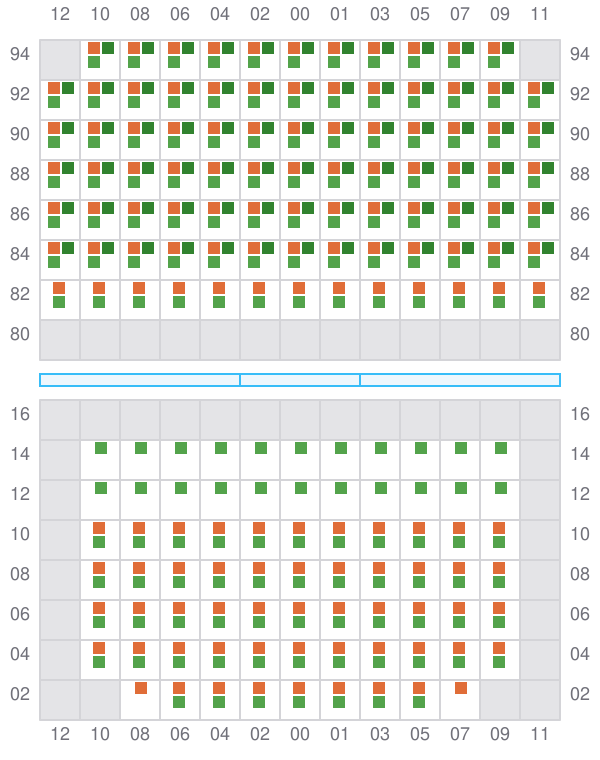

Bay 041 view and slots of SFT TURKEY

043

←
^→ / _?

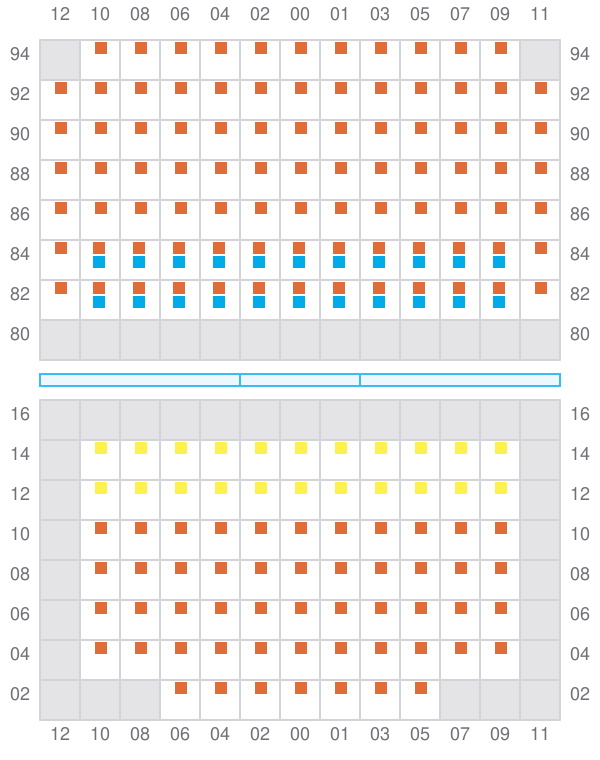

Bay 043 view and slots of SFT TURKEY

045 (046)

→

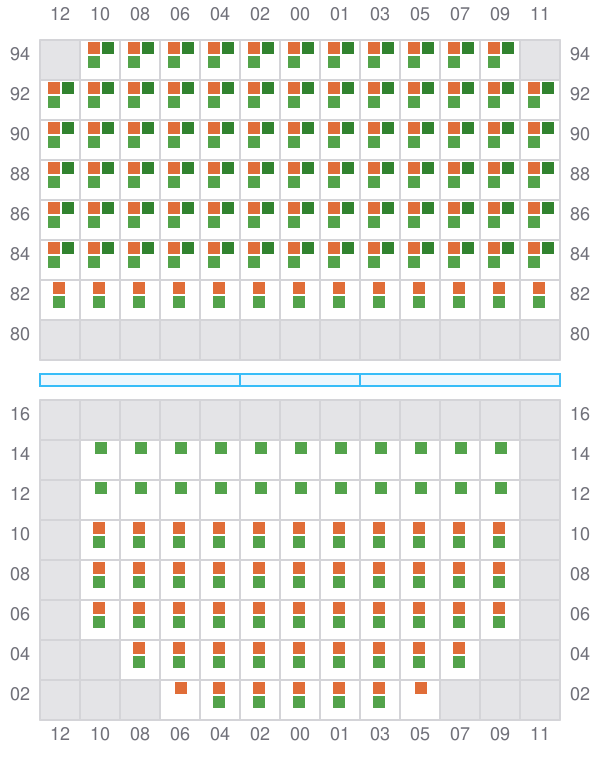

Bay 045 view and slots of SFT TURKEY

047

←
^→ / _?

Bay 047 view and slots of SFT TURKEY

049 (050)

^→ / _?
^← / _?

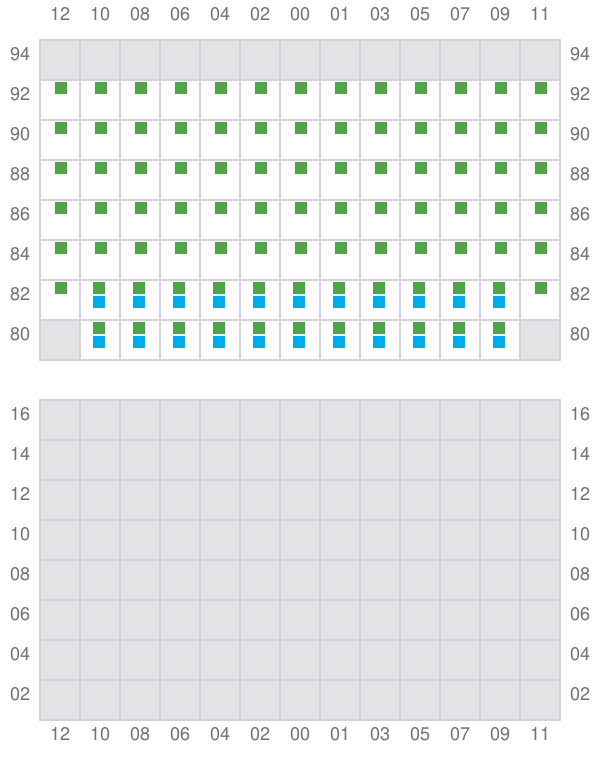

Bay 049 view and slots of SFT TURKEY

051

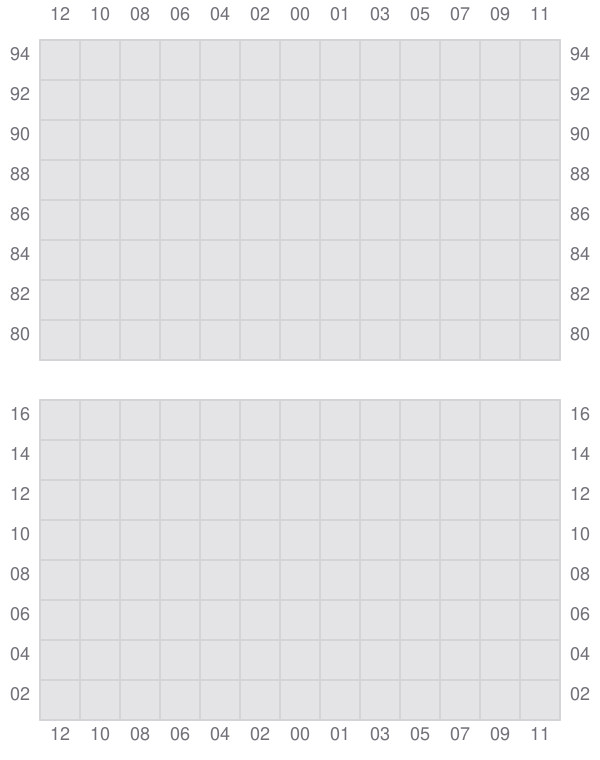

Bay 051 view and slots of SFT TURKEY

053 (054)

→
^← / _?

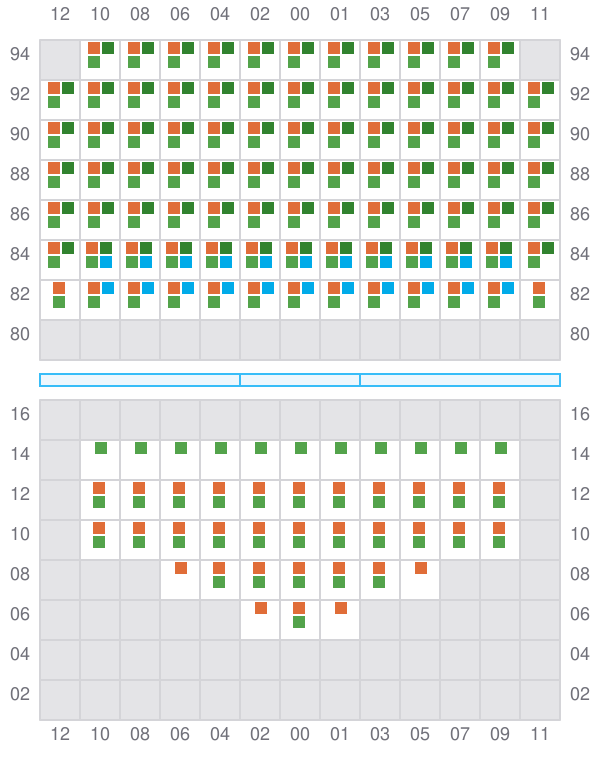

Bay 053 view and slots of SFT TURKEY

055

←

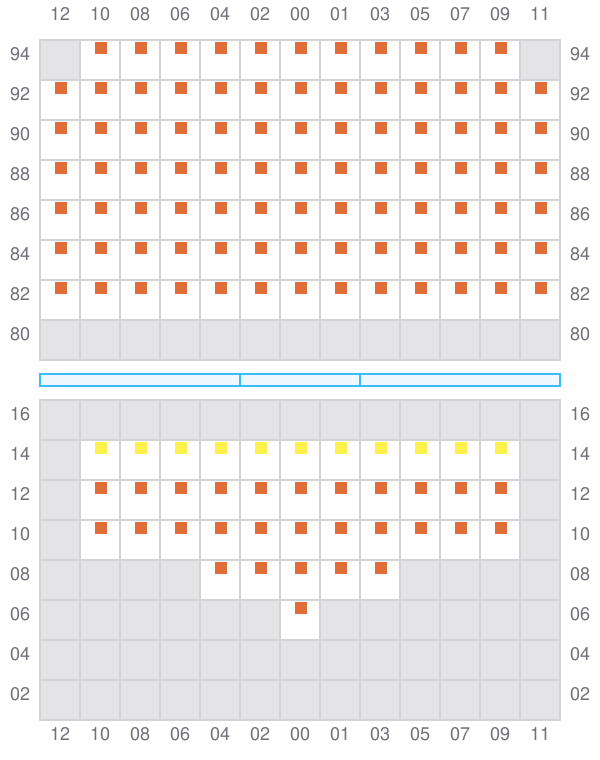

Bay 055 view and slots of SFT TURKEY

057 (058)

→
^← / _?

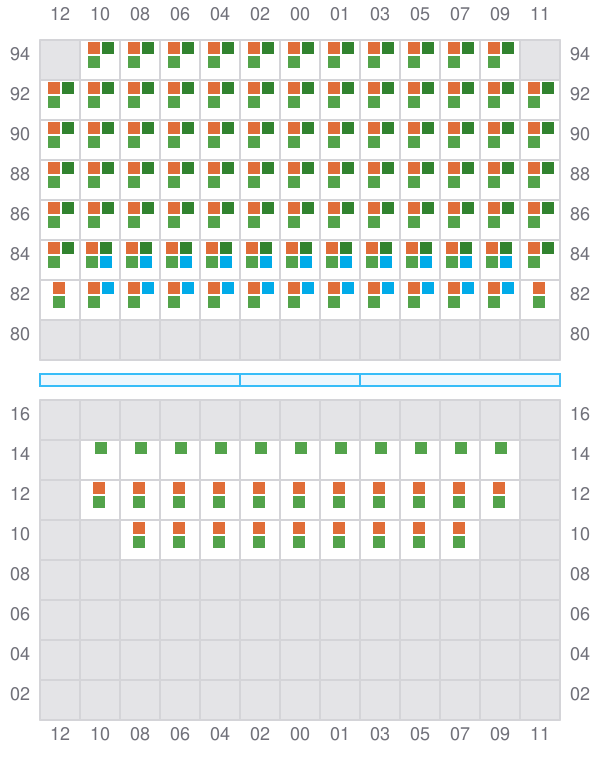

Bay 057 view and slots of SFT TURKEY

059

←

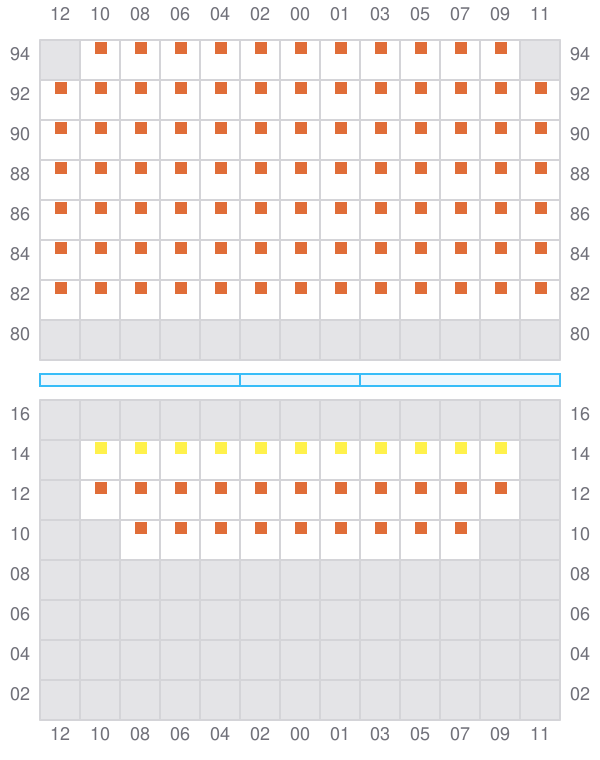

Bay 059 view and slots of SFT TURKEY

061 (062)

^→ / _?
^← / _?

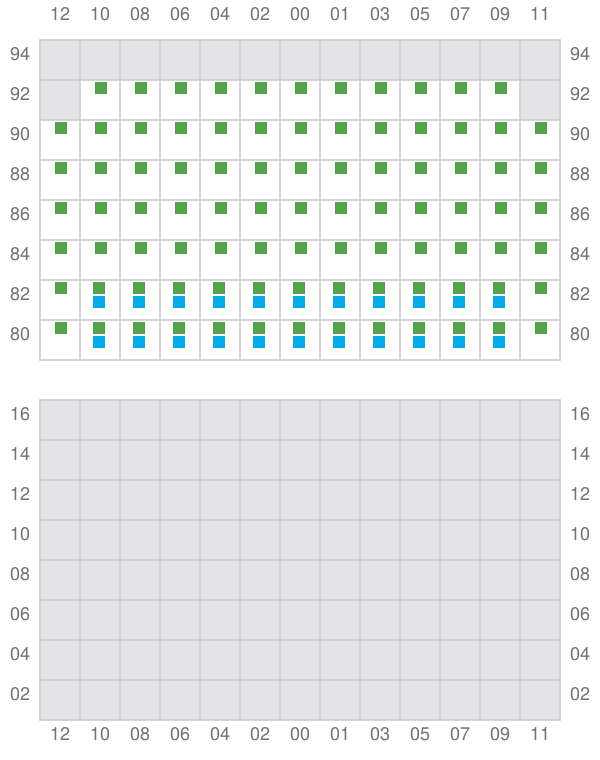

Bay 061 view and slots of SFT TURKEY
