SHEJYOTI
9237876 | S2AZ6 | 9237876 by ********* Last update: Thu Aug 01 2024
General Info
Ship Name:SHEJYOTI
IMO Code:9237876
Call Sign:S2AZ6
Line Operator:9237876
Class Name for Sister Ships:MDV
Year Built:2001
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:021
Max ISO Row:06
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:06
Min Below ISO Tier:02
Total TEU:378
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View

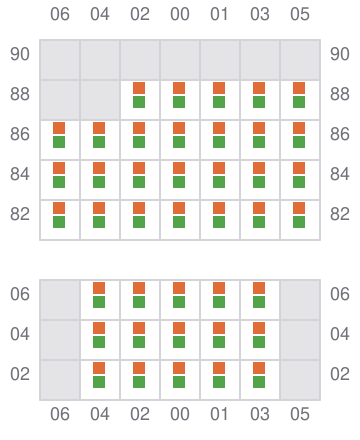

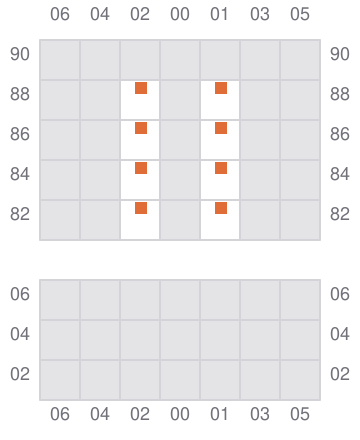

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

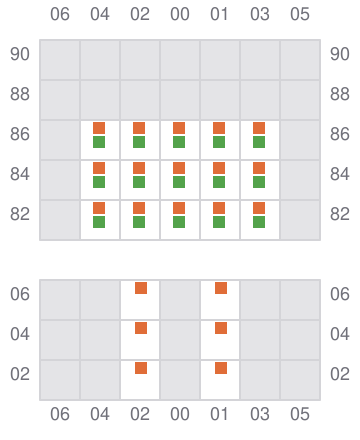

001 (002)
- →

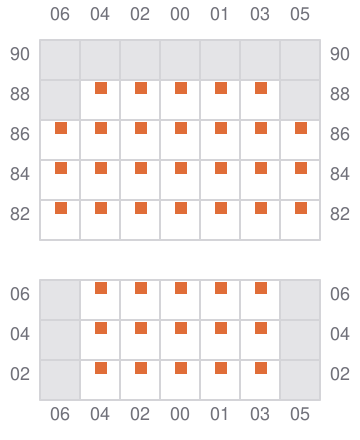

003
- ←

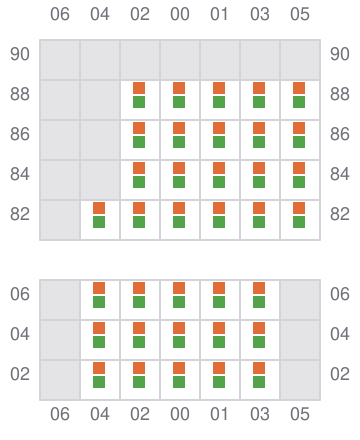

005 (006)
- →

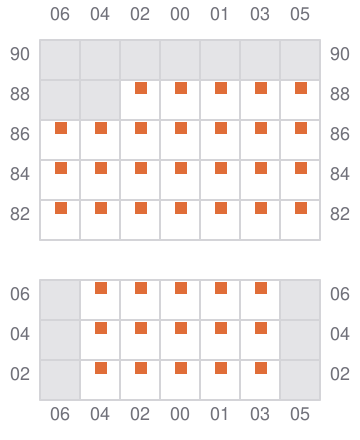

007
- ←
009
- → / ?
011 (012)
- →
013
- ←

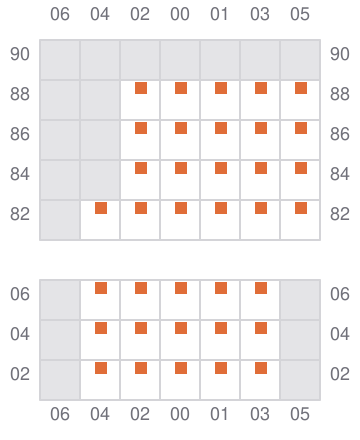

015

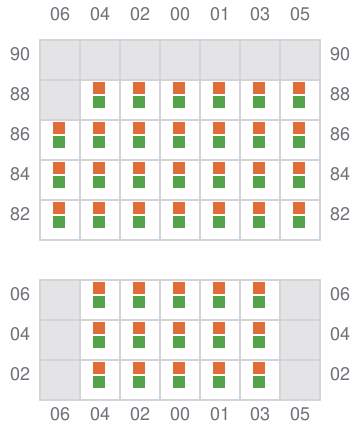

017 (018)
- →
019
- ←

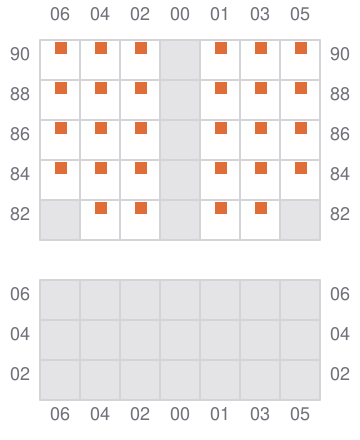

021
