The TEDIVO Vessel Designer allows you to create and download your own vessel
definitions.
SHIJING
9348663 | 5LDJ7 | 9348663 by ********* Last update: Fri Mar 22 2024
General Info
Ship Name:SHIJING
IMO Code:9348663
Call Sign:5LDJ7
Line Operator:9348663
Class Name for Sister Ships:09A
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):294.00
LOA (Length Overall):294.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:5,089
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View

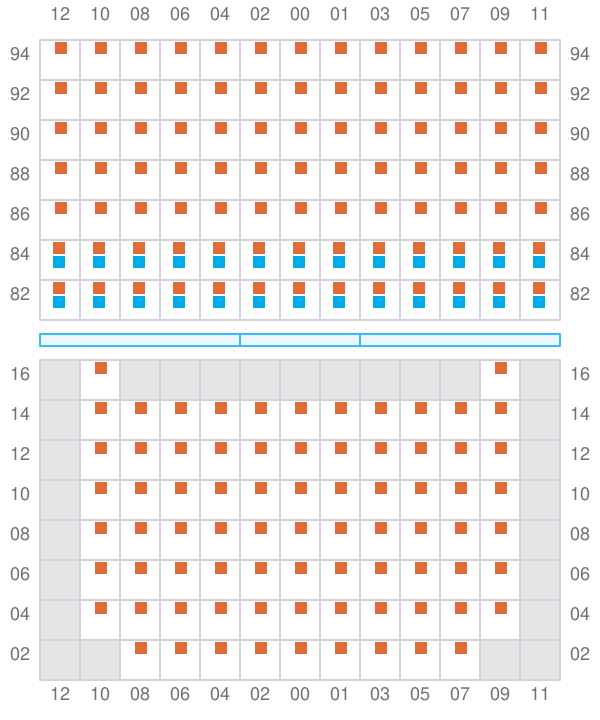

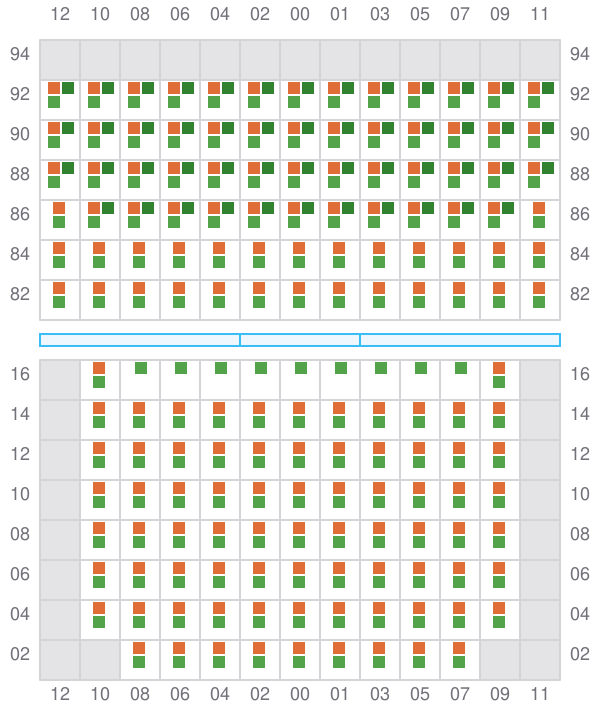

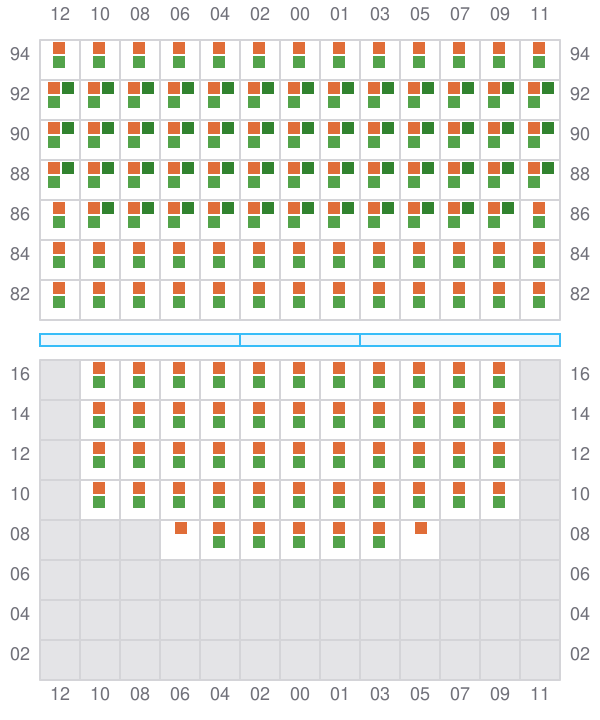

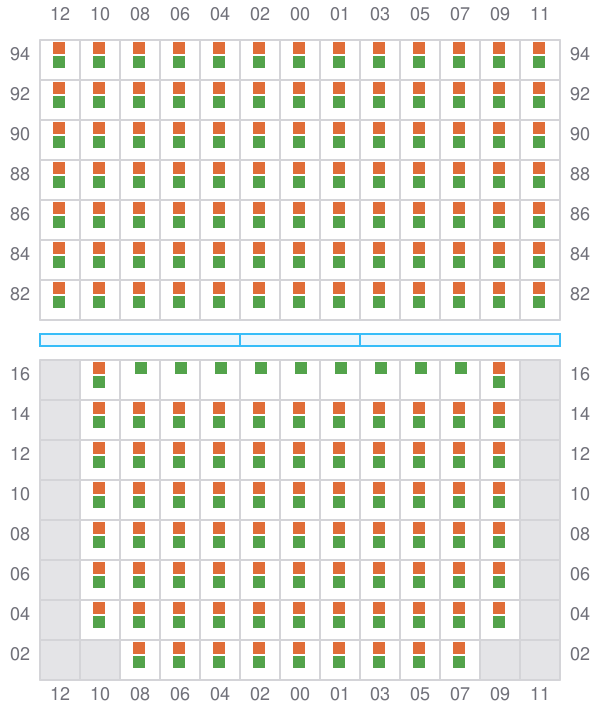

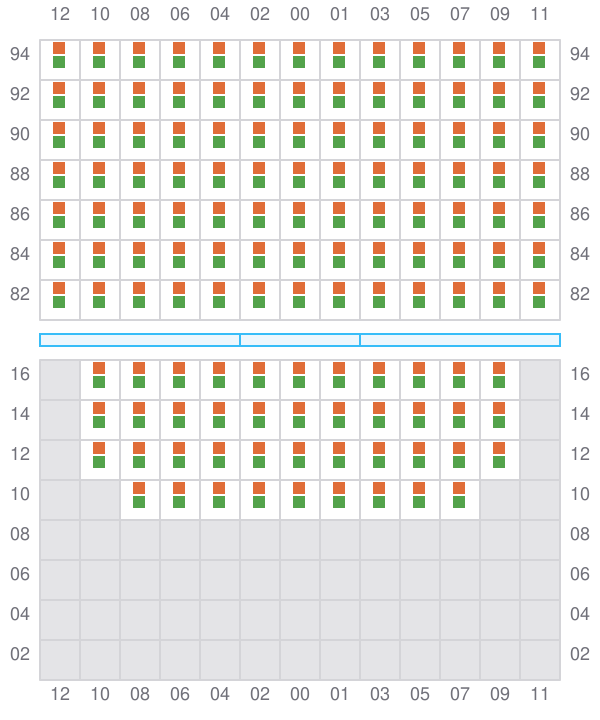

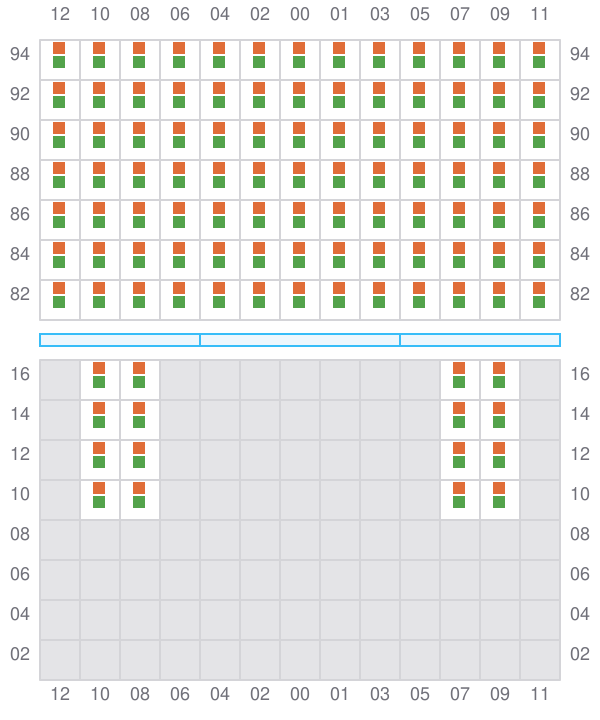

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×
001 (002)
- →
003
- ←

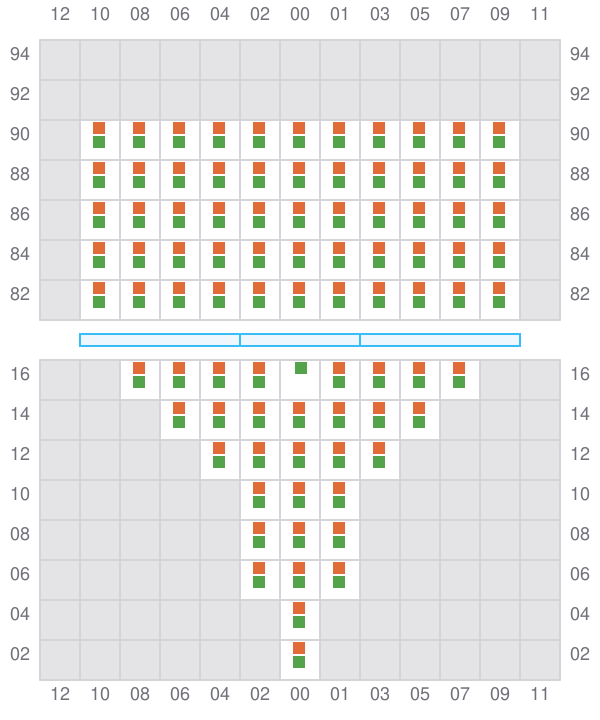

005 (006)
- →

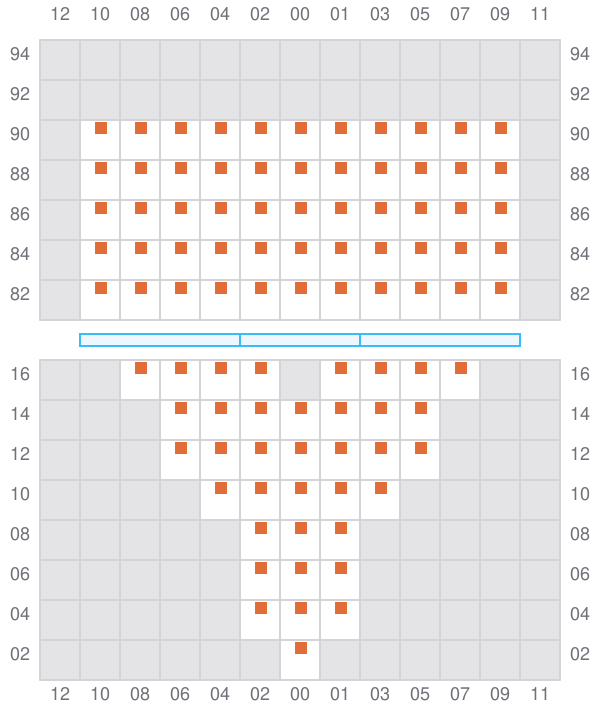

007
- ←

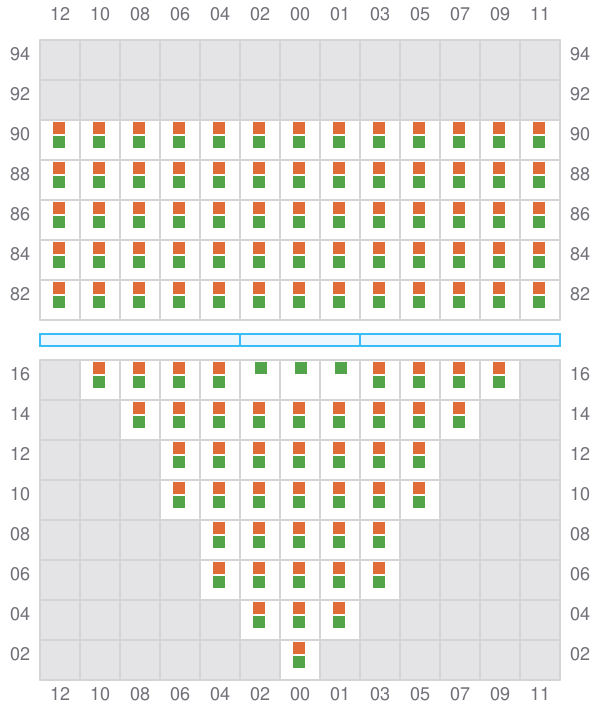

009 (010)
- →
011
- ←
013 (014)
- →
015
- ←
- → / ?
017 (018)
- →
- →
019
- ←
- → / ?
021 (022)
- →
- → / ?

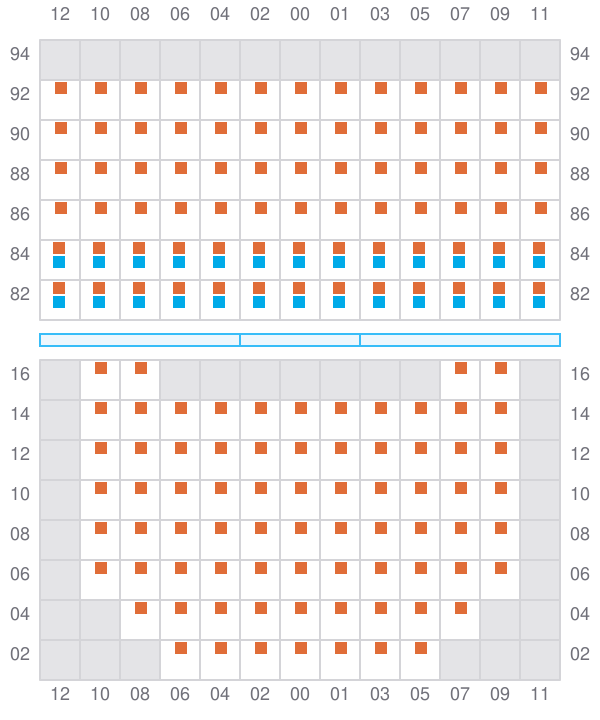

023
- ←
- → / ?
025 (026)
- →
- →
027
- ←
- → / ?
029 (030)
- →
- → / ?
031
- ←
- → / ?
033 (034)
- →
- →
035
- ←
- → / ?
037 (038)
- →
- → / ?
039
- ←
- → / ?
041 (042)
- →
- → / ?
043
- ←
- →

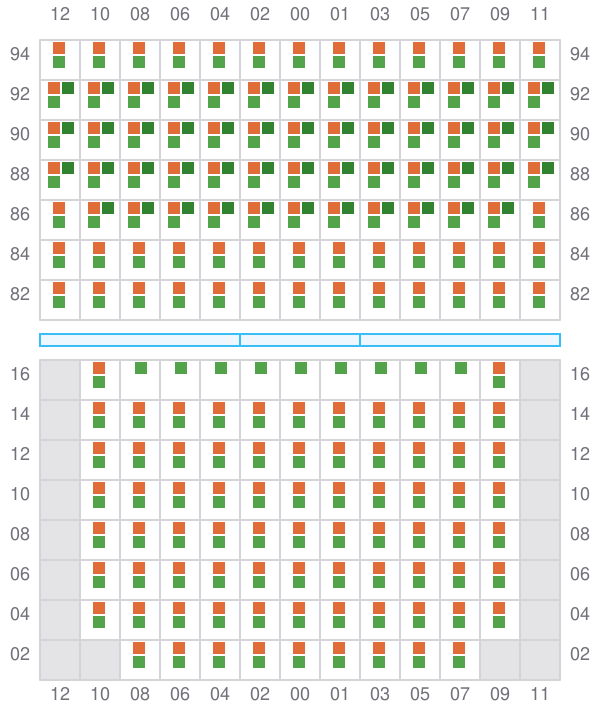

045 (046)
- →
- →
047
- ←
- ? / →
049 (050)
- →
- → / ?
051
- ←
- ? / →

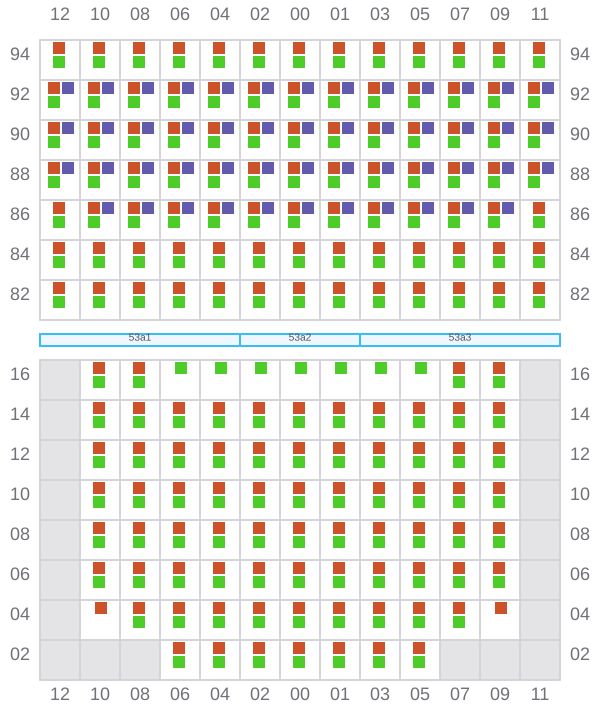

053 (054)
- →
- → / ?
055
- ←
- ? / →
057 (058)
- →
- → / ?

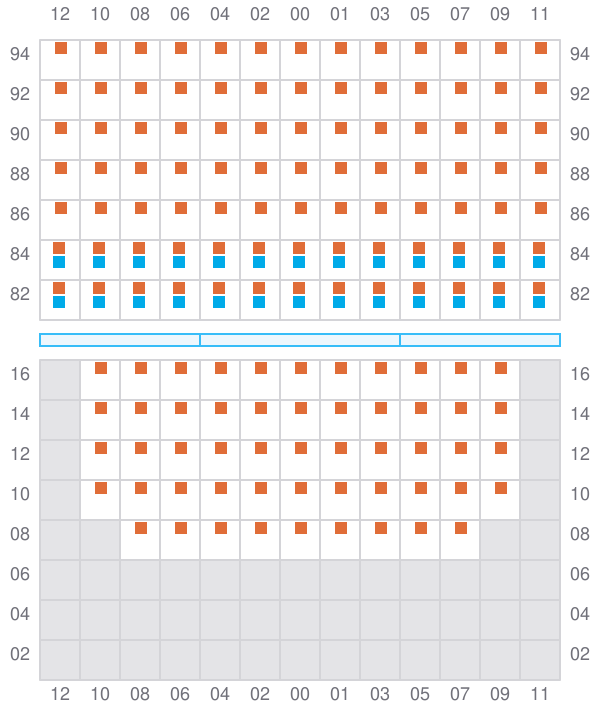

059
- ←
061 (062)
- →
- → / ?
063
- ←
065 (066)
- →
- → / ?

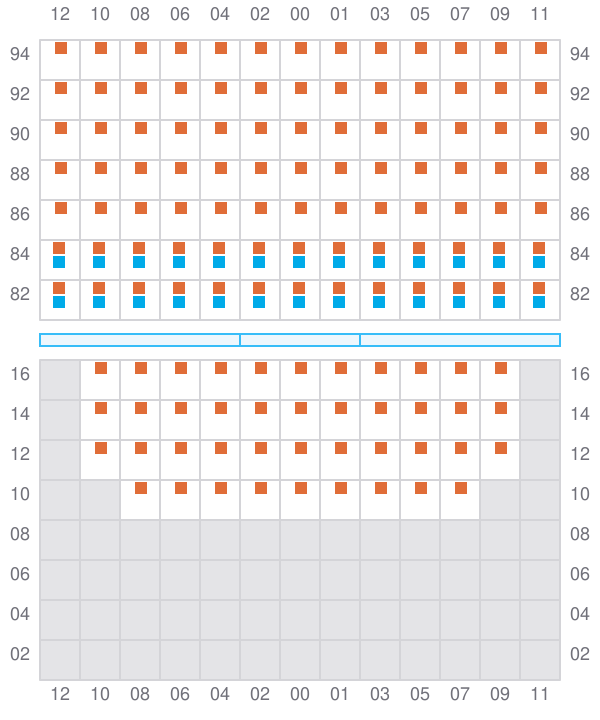

067
- ←
- ← / ?
069 (070)
- → / ?
- ← / ?
