SHINA
9290452 | 9V6719 | 9290452 by ********* Last update: Wed Jul 17 2024
General Info
Ship Name:SHINA
IMO Code:9290452
Call Sign:9V6719
Line Operator:9290452
Class Name for Sister Ships:ZIM
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):283.20
LOA (Length Overall):294.10
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:071
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:5,051
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

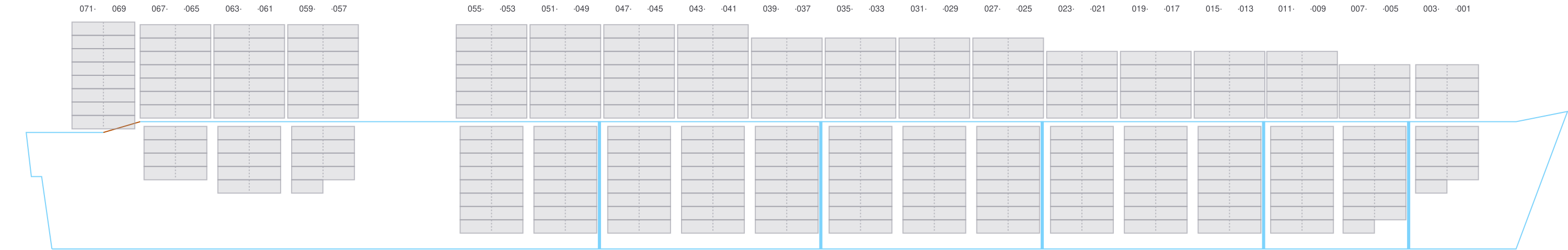

Side View

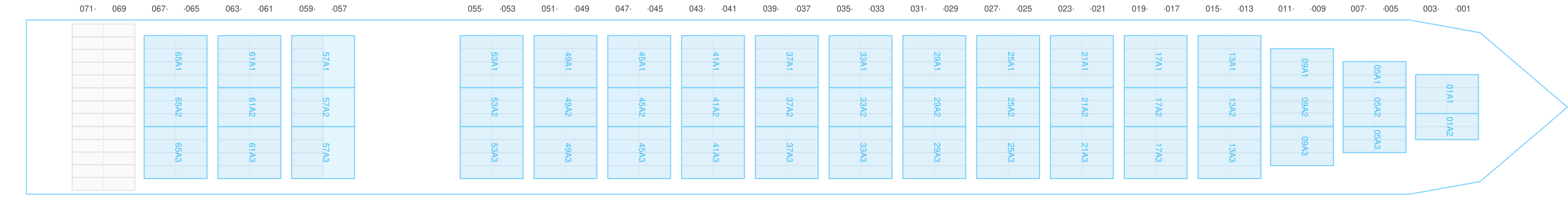

Hatch-Covers View

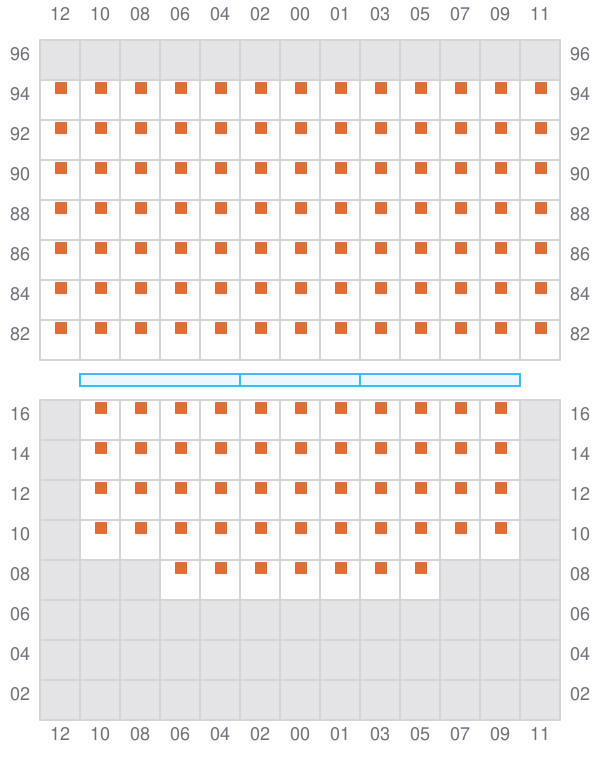

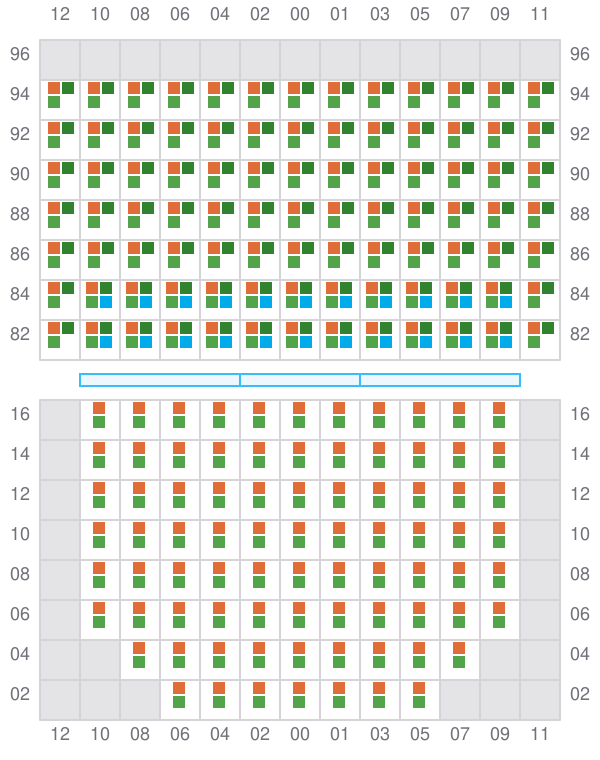

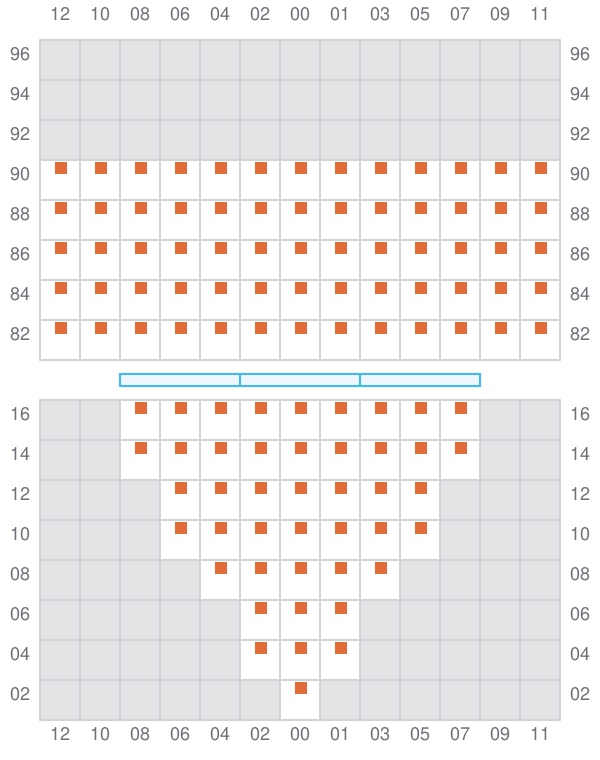

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

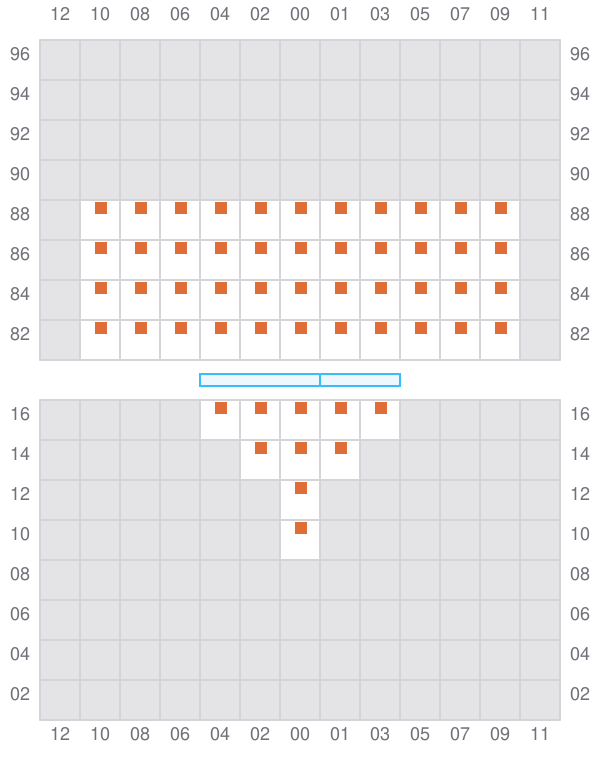

001
- →

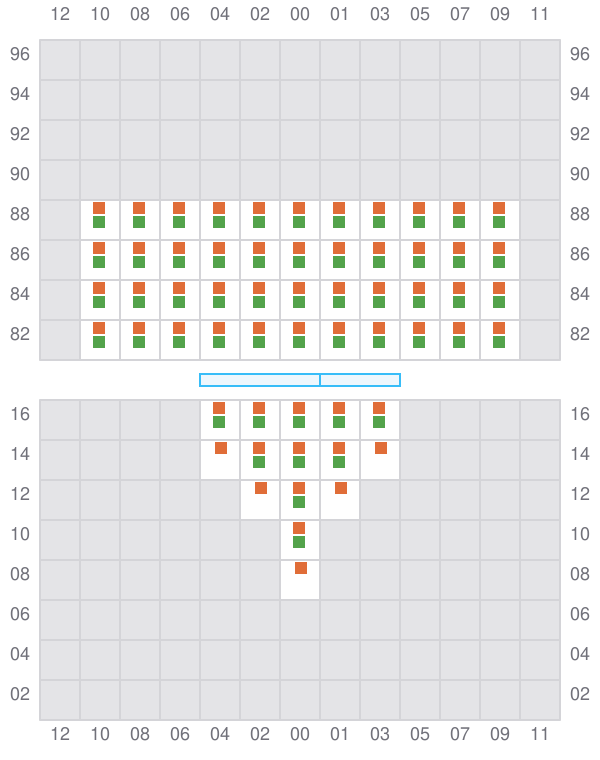

003 (002)
- ←

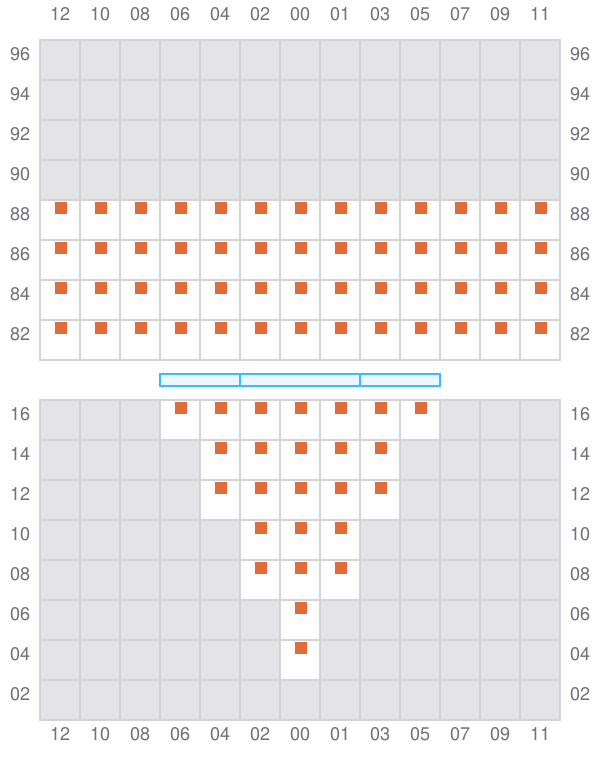

005
- →

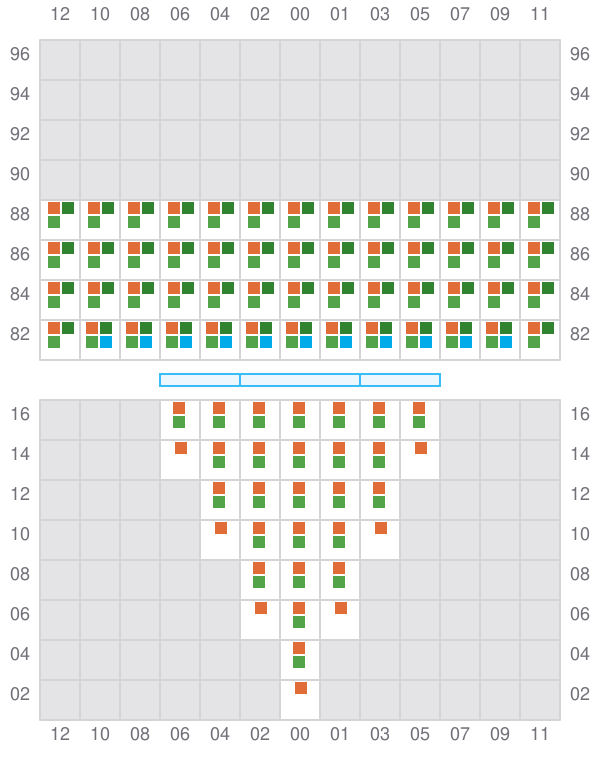

007 (006)
- ←
009
- →
011 (010)
- ←

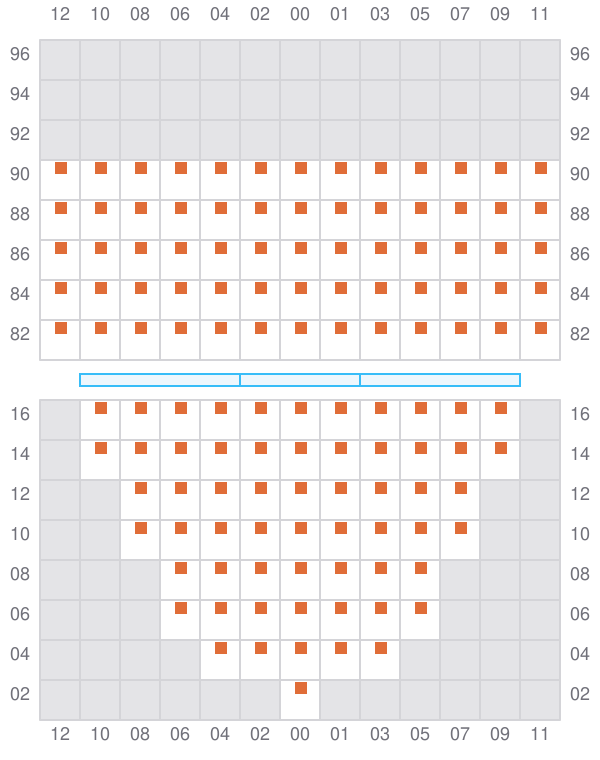

013
- →

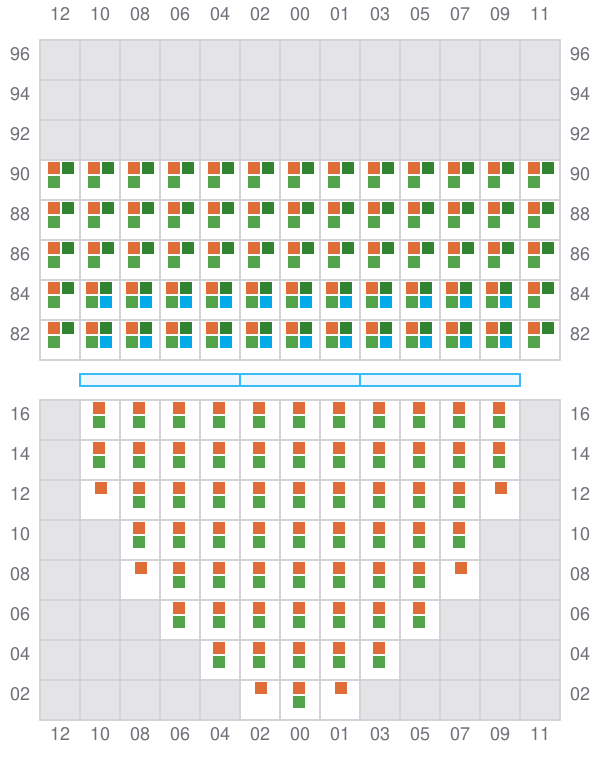

015 (014)
- ←
017
- →

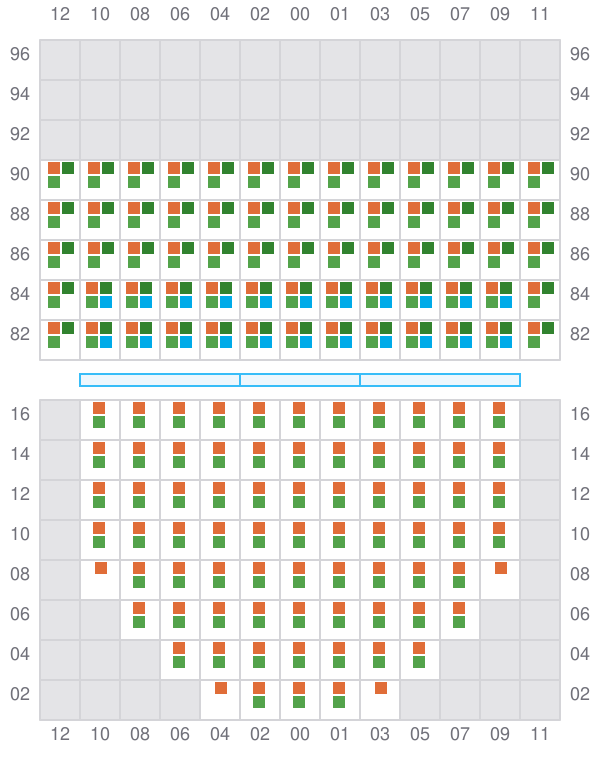

019 (018)
- ←

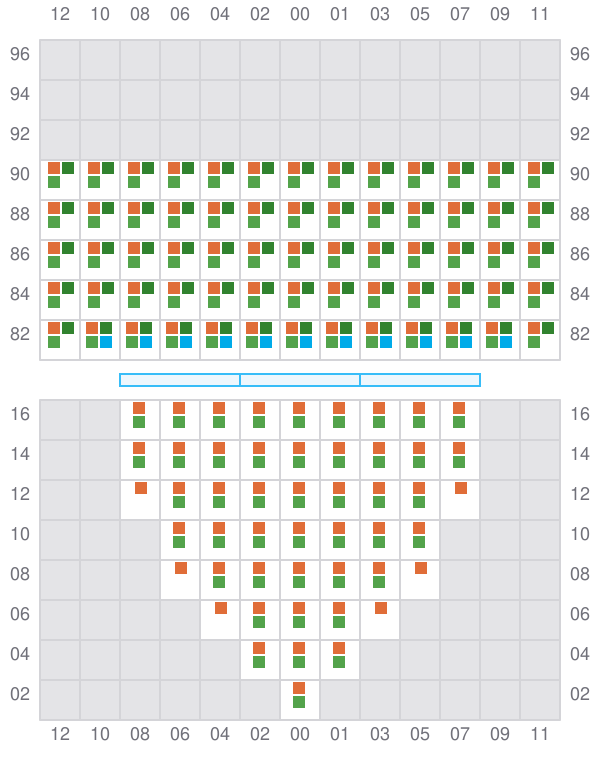

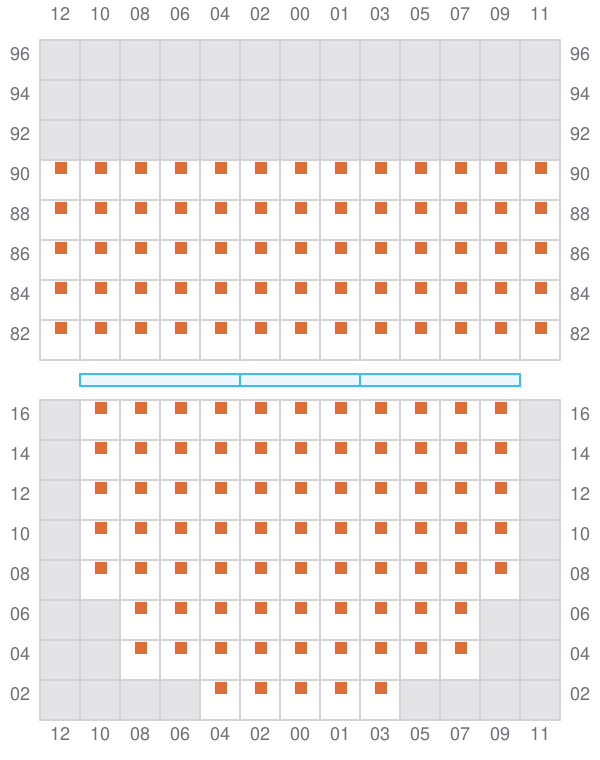

021
- →

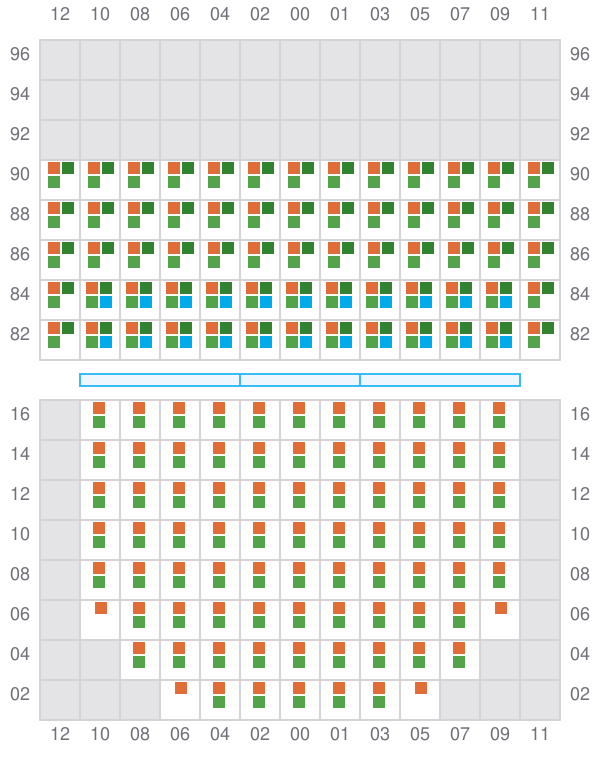

023 (022)
- ←
025
- →
027 (026)
- ←
029
- →

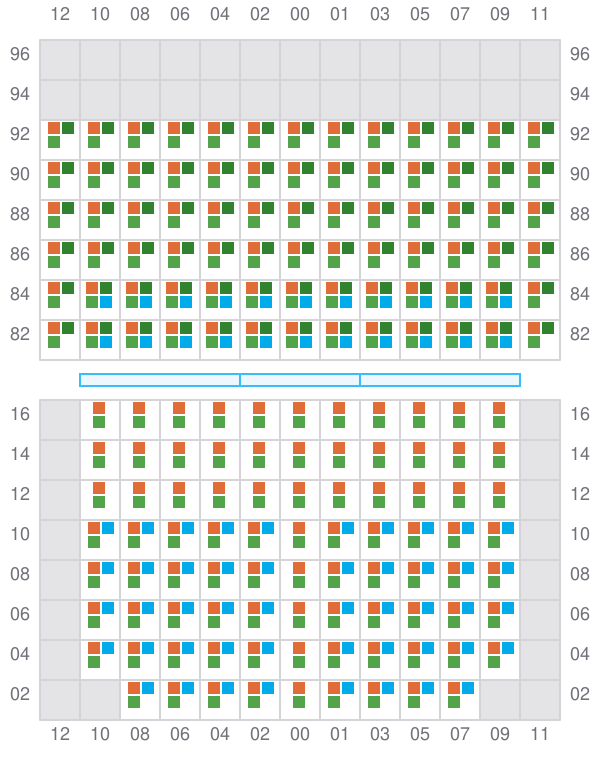

031 (030)
- ←

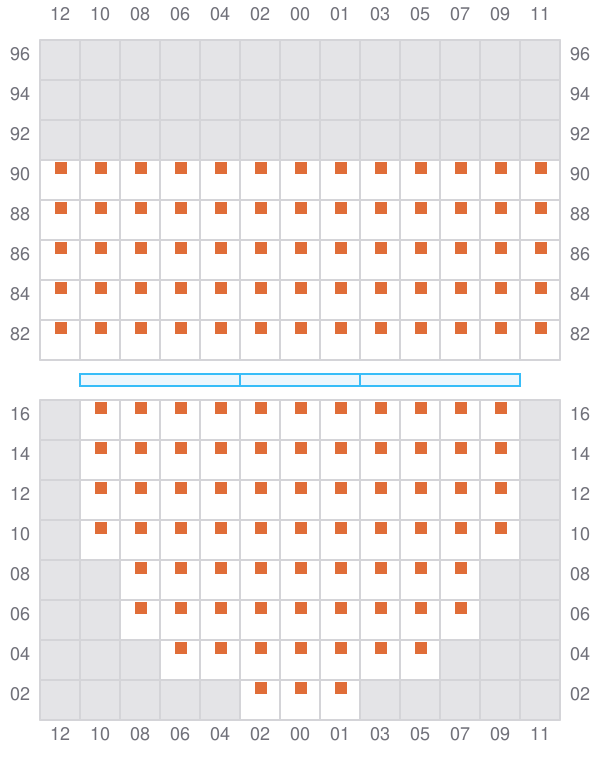

033
- →
035 (034)
- ←
037
- →

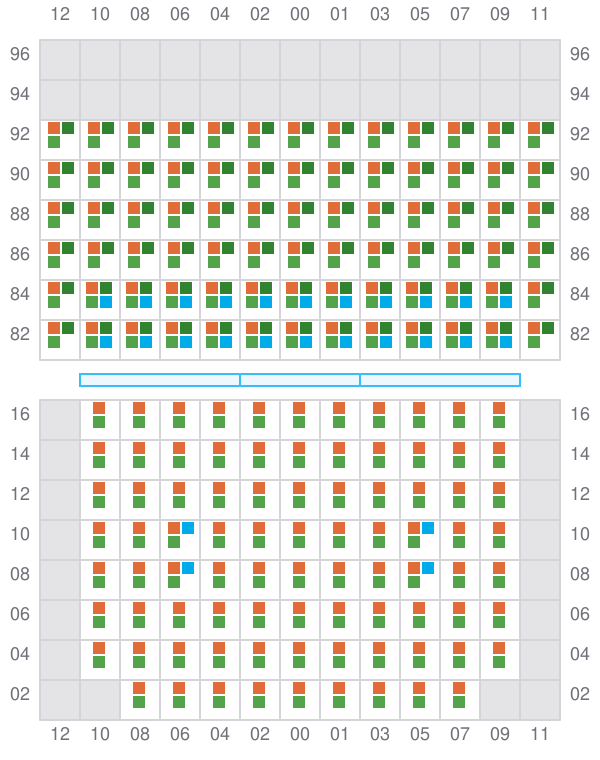

039 (038)
- ←
041
- →
043 (042)
- ←
045
- →

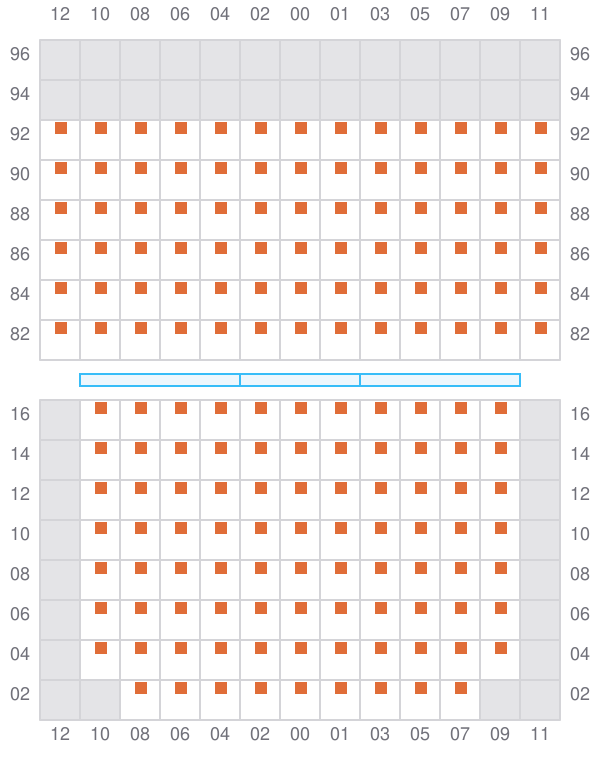

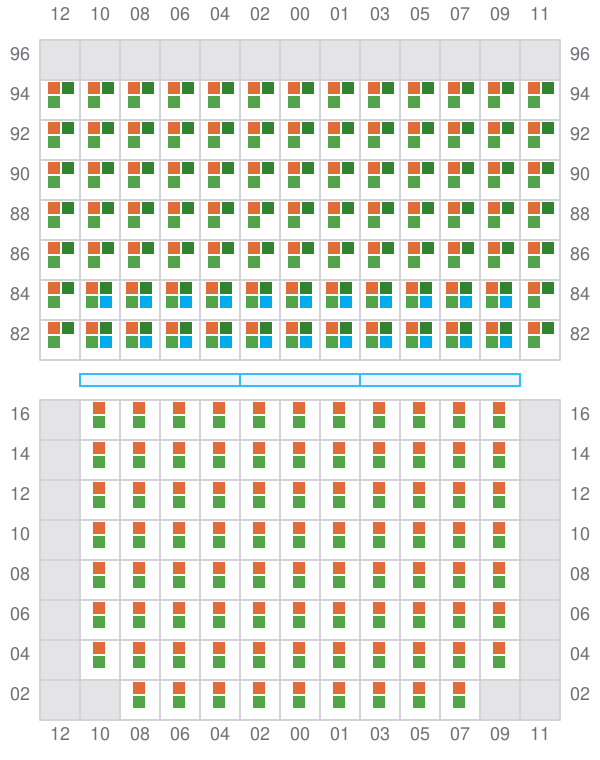

047 (046)
- ←
049
- →

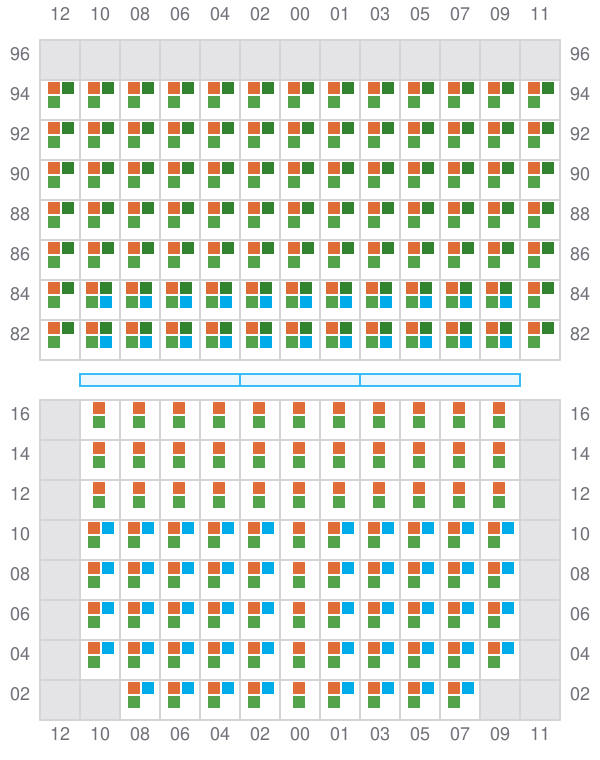

051 (050)
- ←

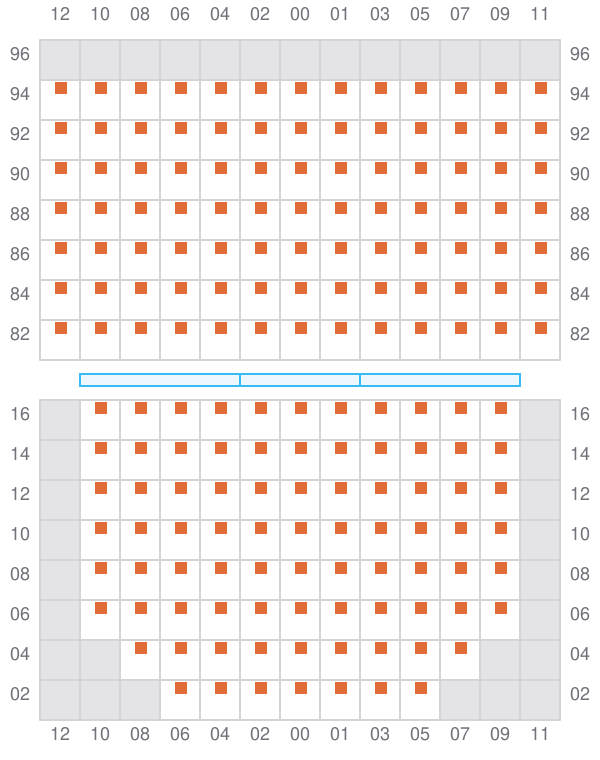

053
- →
055 (054)
- ←
057
- →

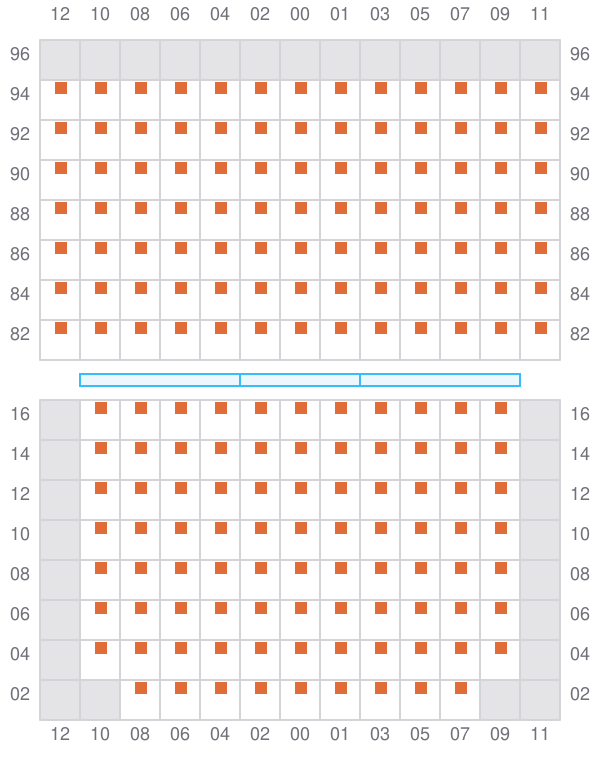

059 (058)
- ←
061
- →
063 (062)
- ←
065
- →
067 (066)
- ←

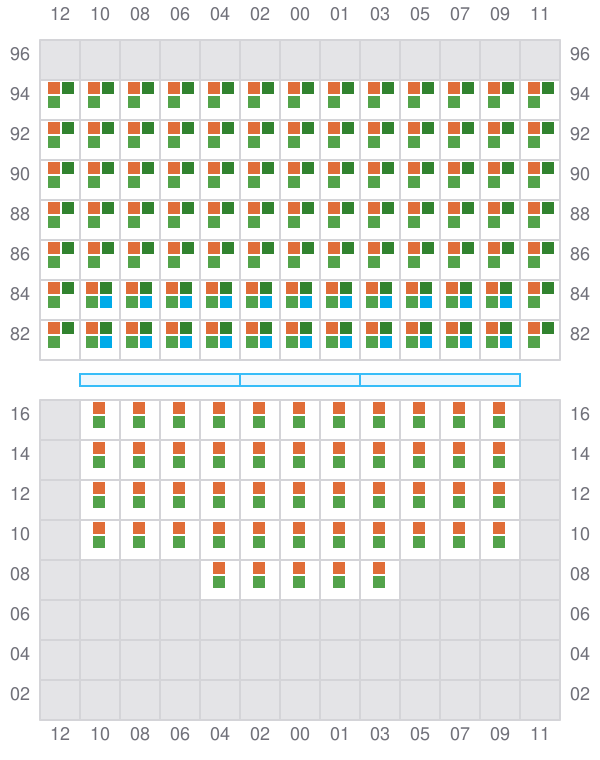

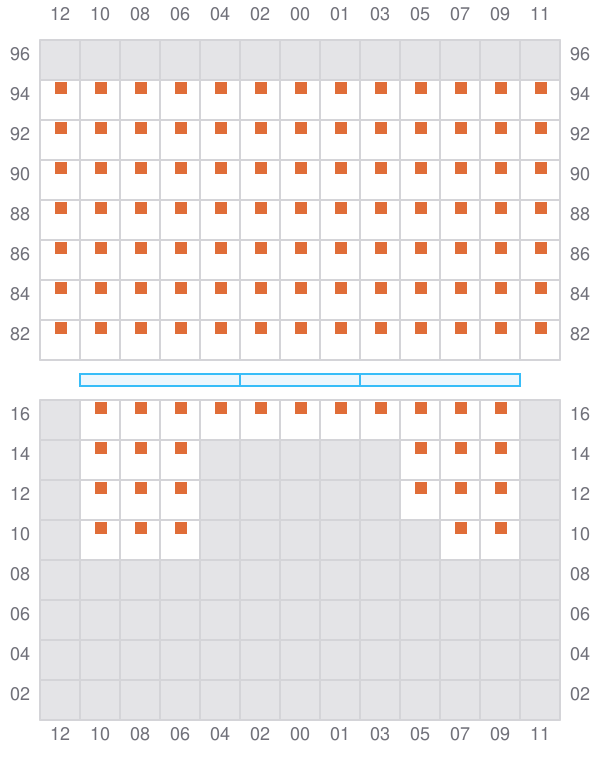

069

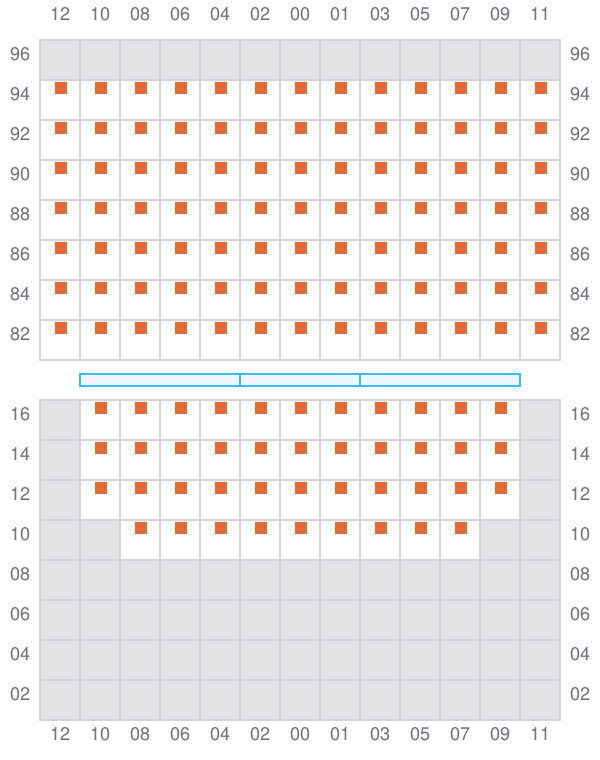

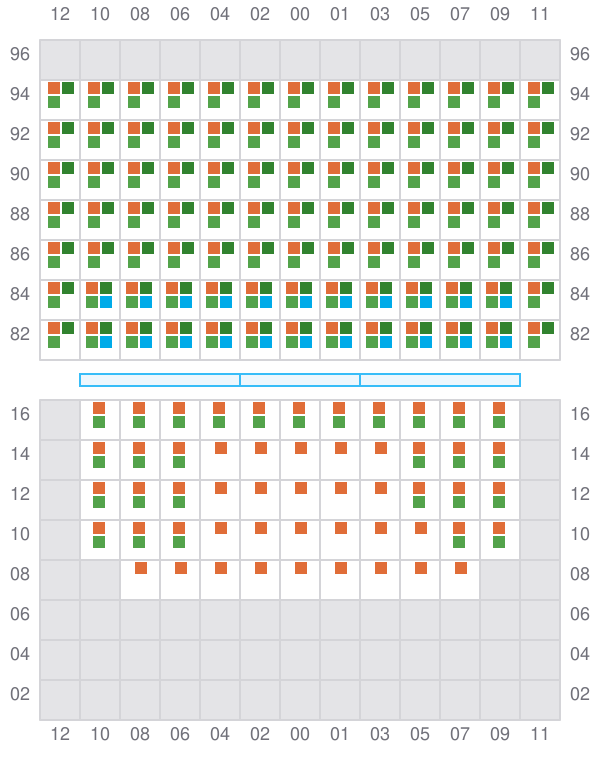

071 (070)
- ← / ?
