SHUI SPIRIT
9216729 | 3E4967 | 9216729 by ********* Last update: Fri Jun 21 2024
General Info
Ship Name:SHUI SPIRIT
IMO Code:9216729
Call Sign:3E4967
Line Operator:9216729
Class Name for Sister Ships:MCC
Year Built:2000
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:037
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,679
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

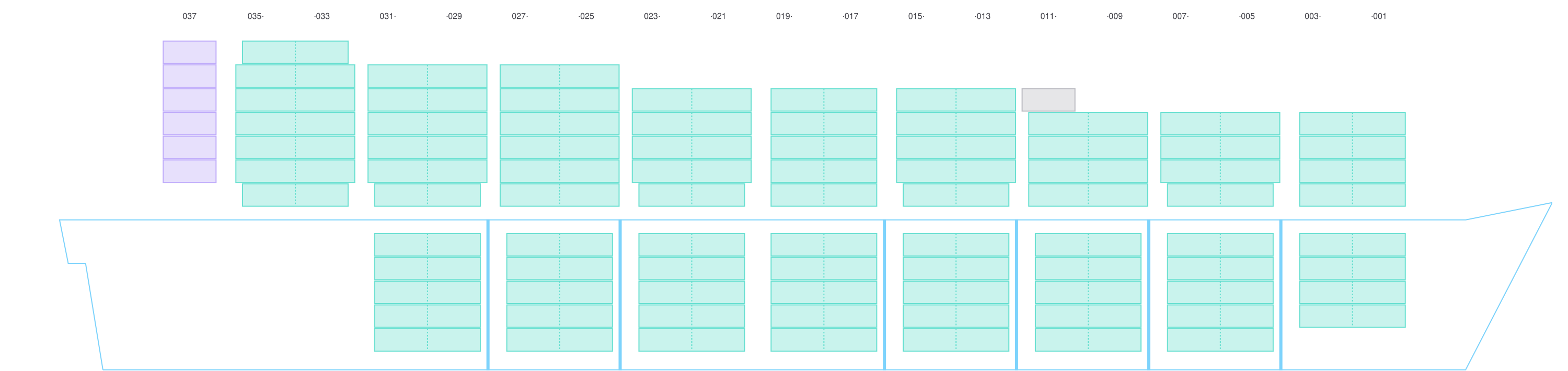

Side View

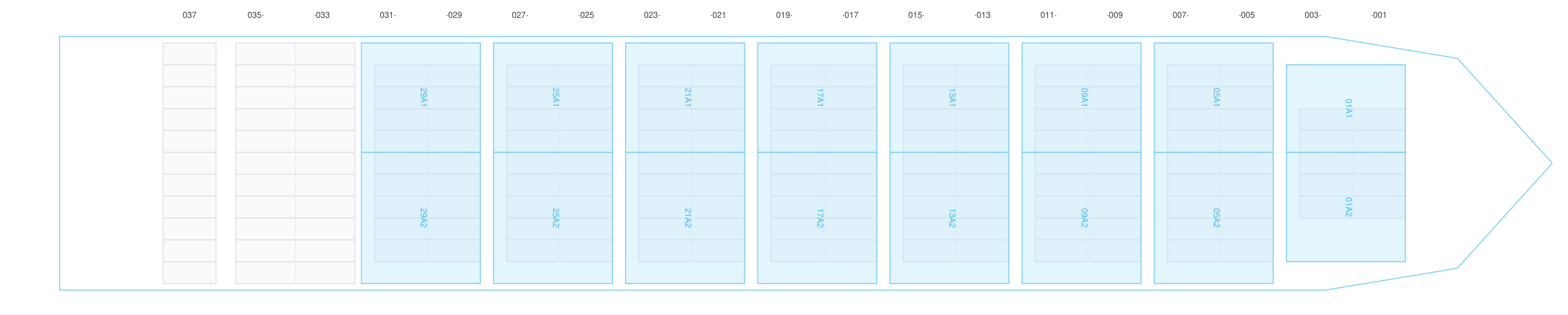

Hatch-Covers View

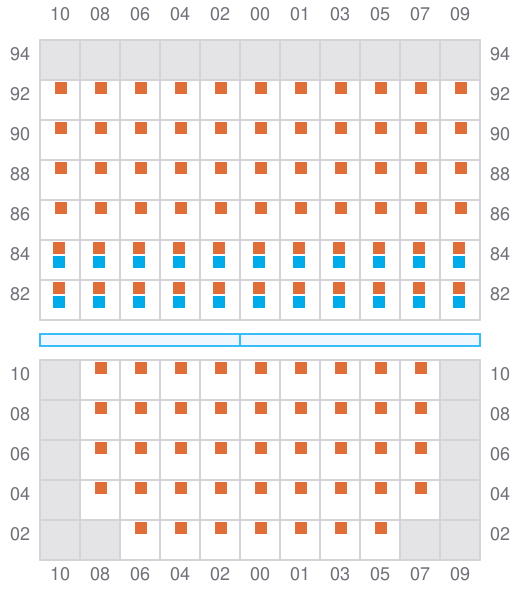

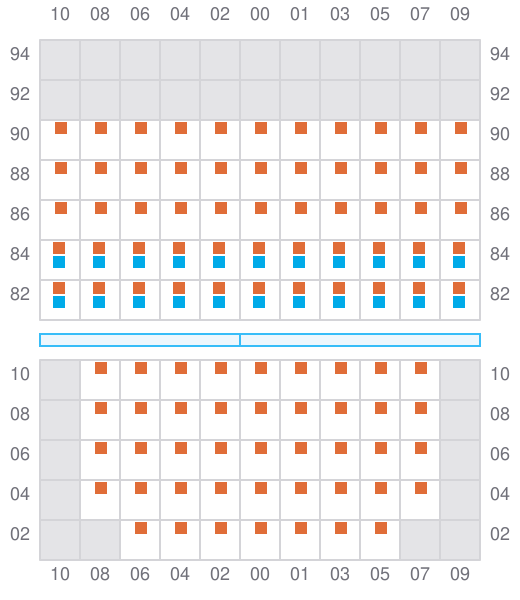

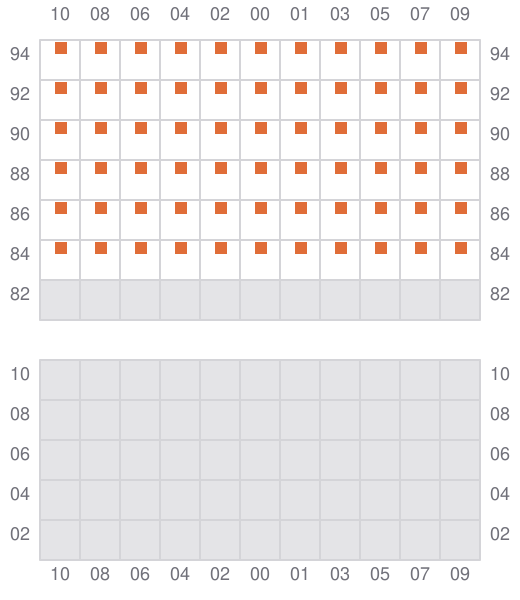

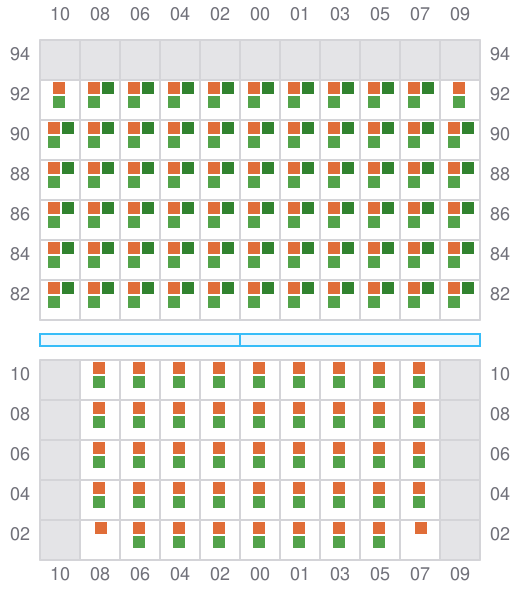

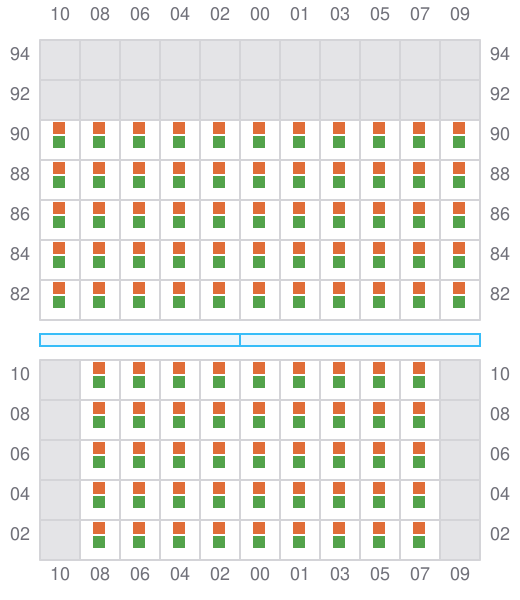

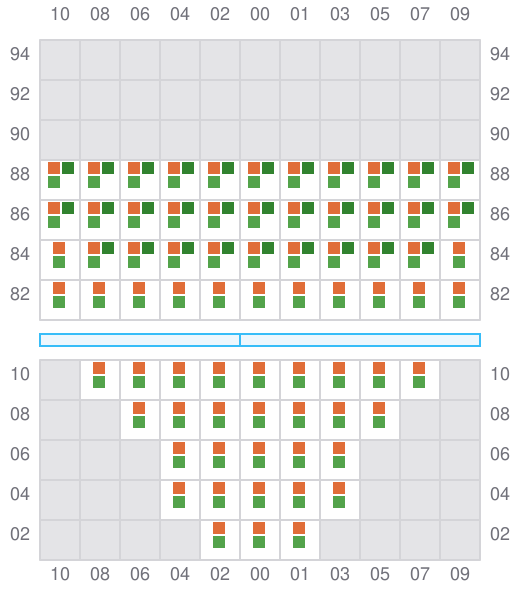

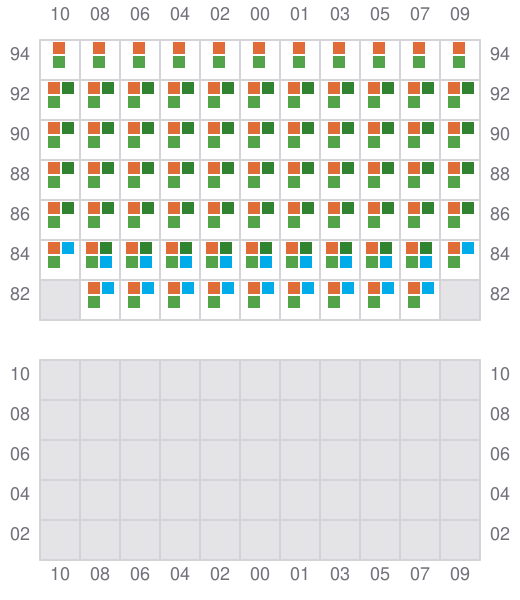

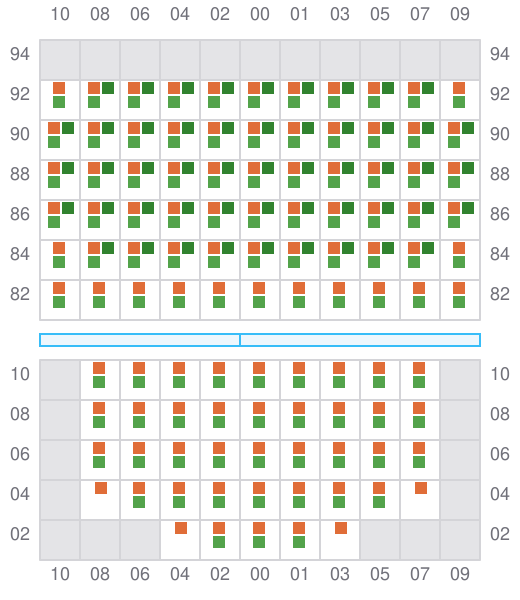

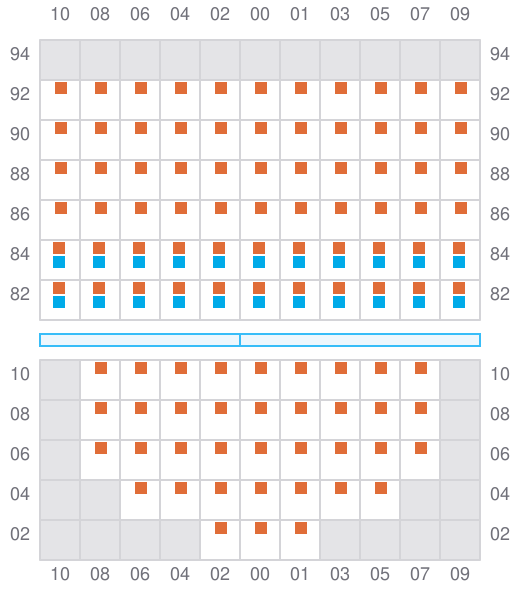

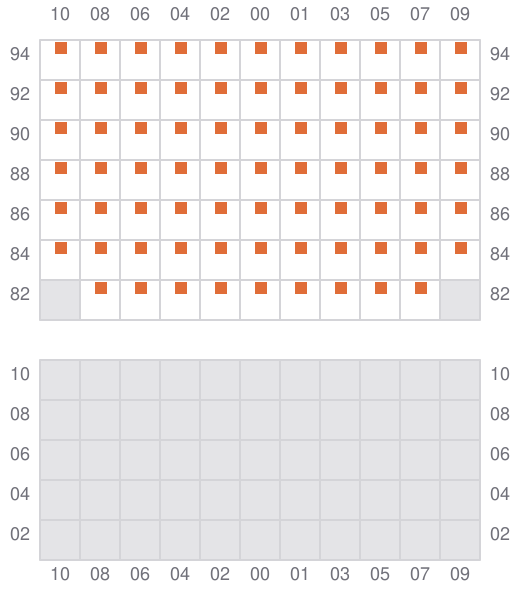

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

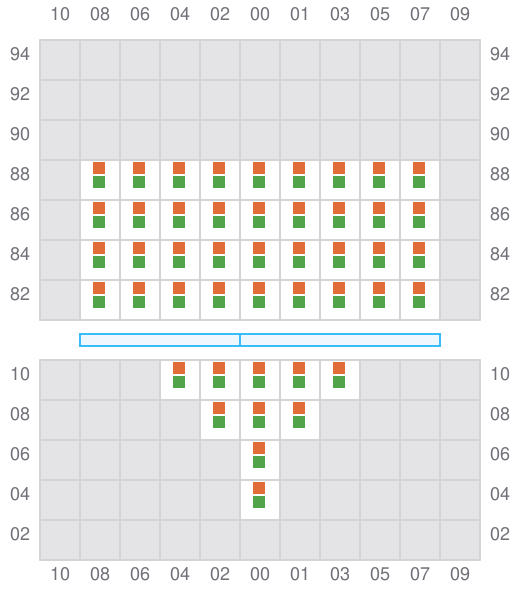

001 (002)
- →
003
- ←
- → / ?
005 (006)
- →
- ← / ?
007
- ←
- → / ?

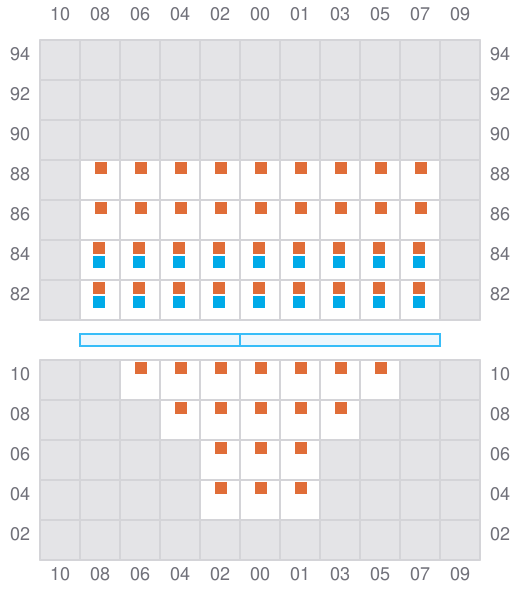

009 (010)
- →
- ←
011
- ←
- → / ?

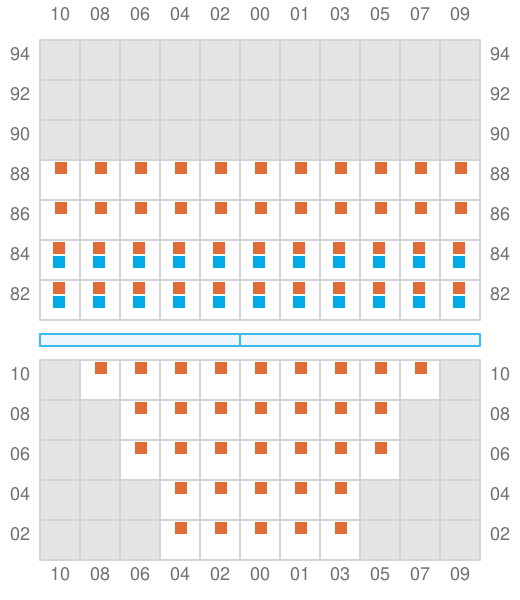

013 (014)
- →
- ← / ?
015
- ←
- → / ?

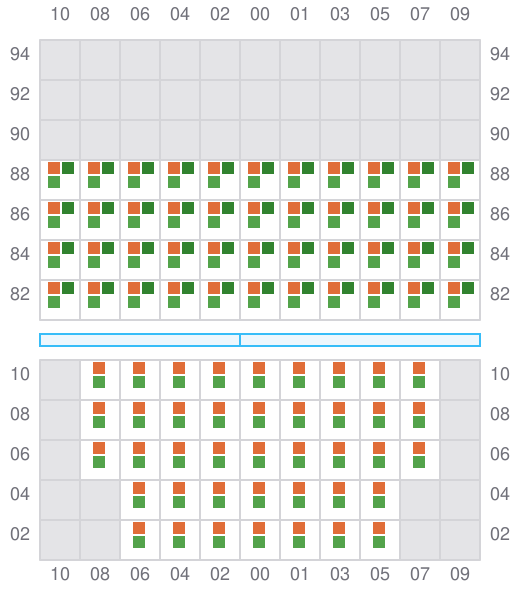

017 (018)
- →
- ← / ?
019
- ←
- → / ?

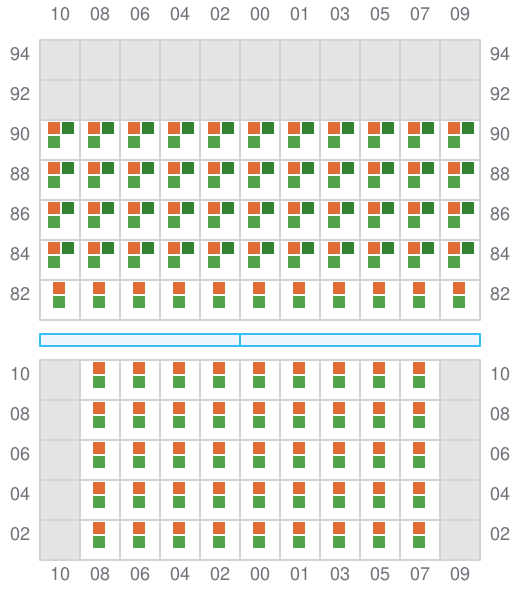

021 (022)
- →
- ← / ?
023
- ←
- → / ?
025 (026)
- →
- ← / ?
027
- ←
- → / ?
029 (030)
- →
- ← / ?

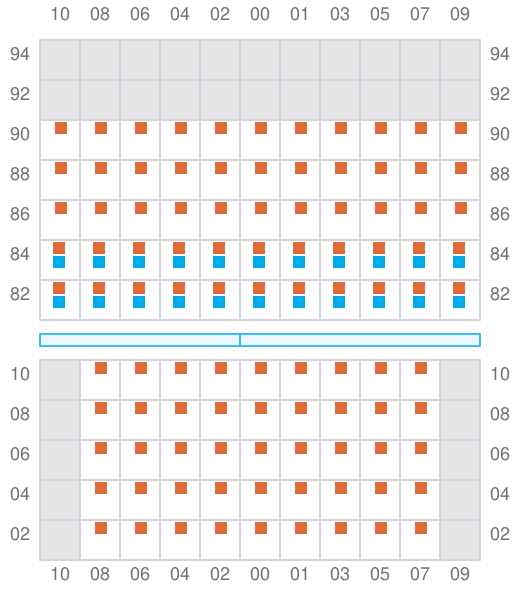

031
- ←
- → / ?
033 (034)
- → / ?
- ← / ?
035
- ← / ?
037
