SHUN LONG
9159646 | 3E2286 | 9159646 by ********* Last update: Fri May 17 2024

General Info

Ship Name:SHUN LONG
IMO Code:9159646
Call Sign:3E2286
Line Operator:9159646
Class Name for Sister Ships:X-PRESS INDUS
Year Built:1998
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:039
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,717

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

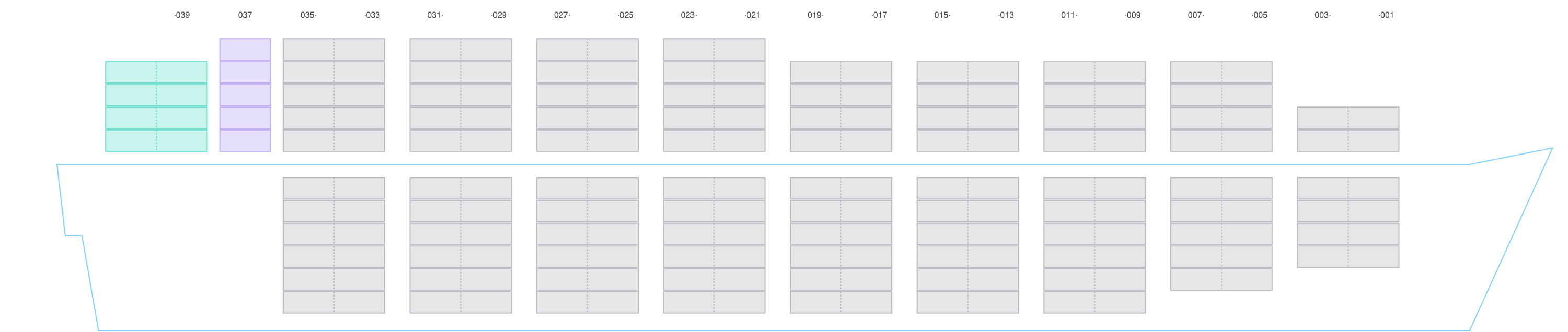

Side View

Side view of SHUN LONG

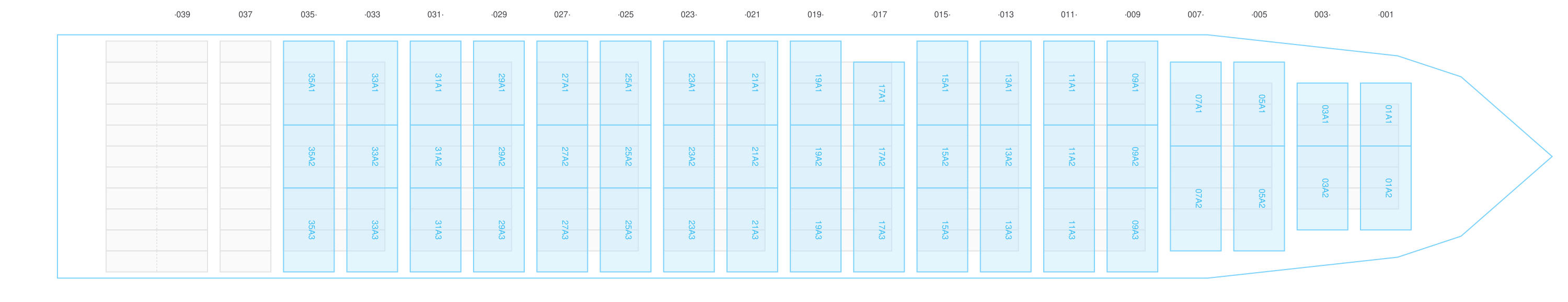

Hatch-Covers View

Deck view of SHUN LONG

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

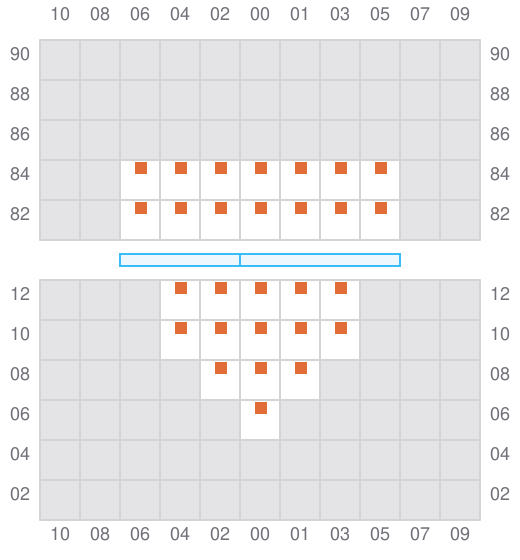

001

  • →
Bay 001 view and slots of SHUN LONG

003 (002)

  • ←

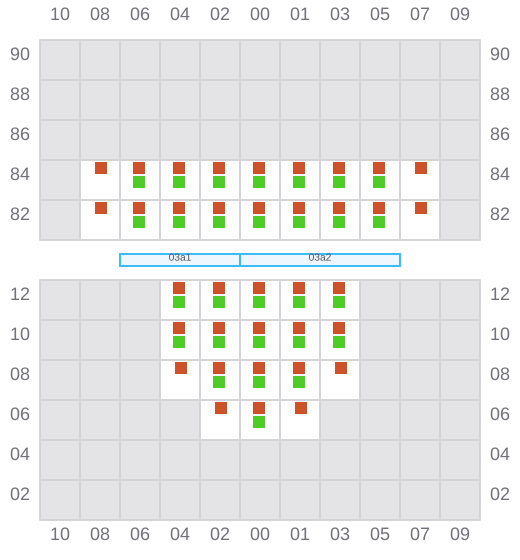

Bay 003 view and slots of SHUN LONG

005

  • →

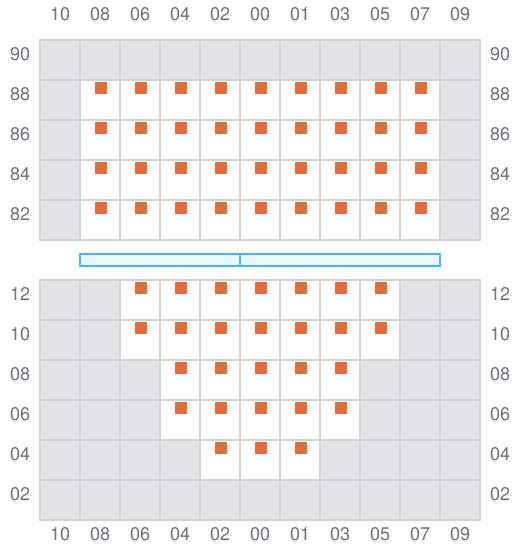

Bay 005 view and slots of SHUN LONG

007 (006)

  • ←

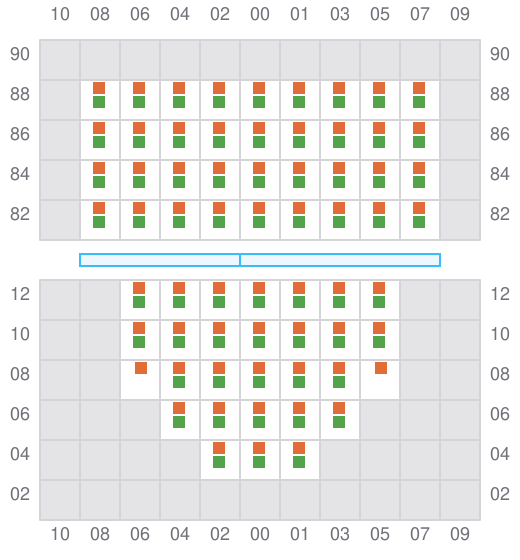

Bay 007 view and slots of SHUN LONG

009

  • →

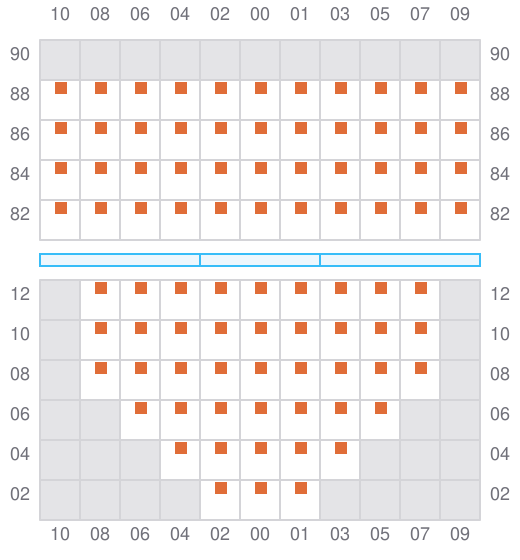

Bay 009 view and slots of SHUN LONG

011 (010)

  • ←

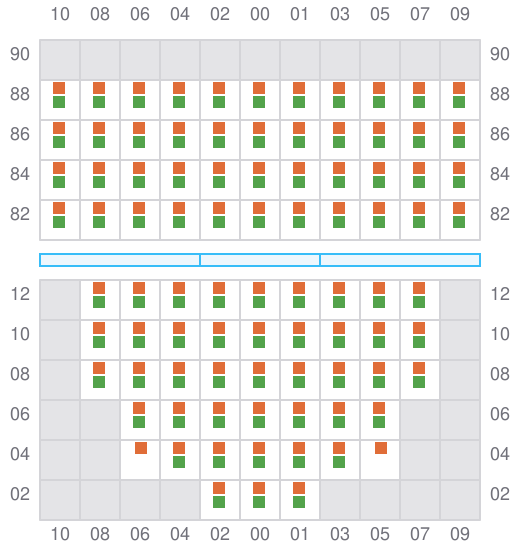

Bay 011 view and slots of SHUN LONG

013

  • →

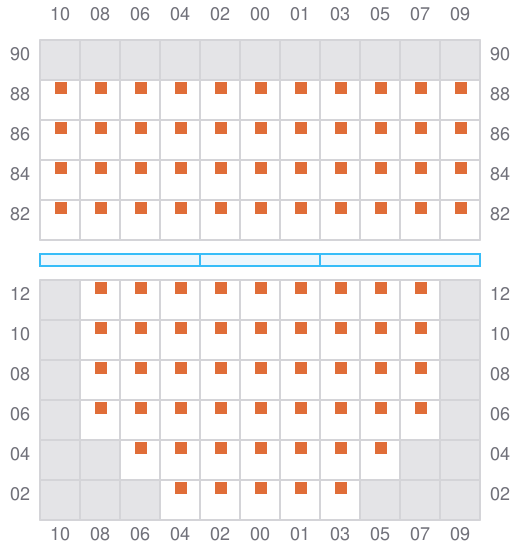

Bay 013 view and slots of SHUN LONG

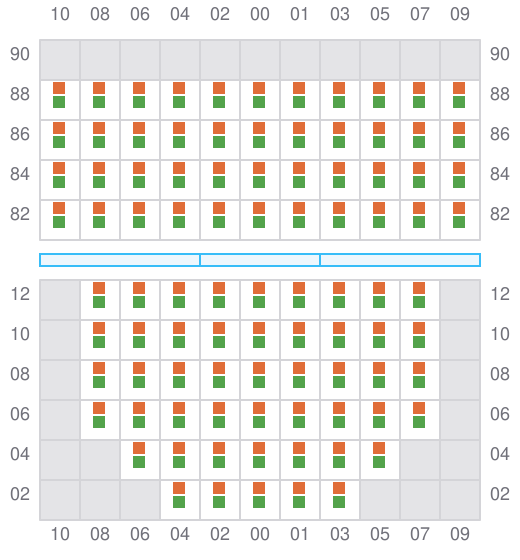

015 (014)

  • ←
Bay 015 view and slots of SHUN LONG

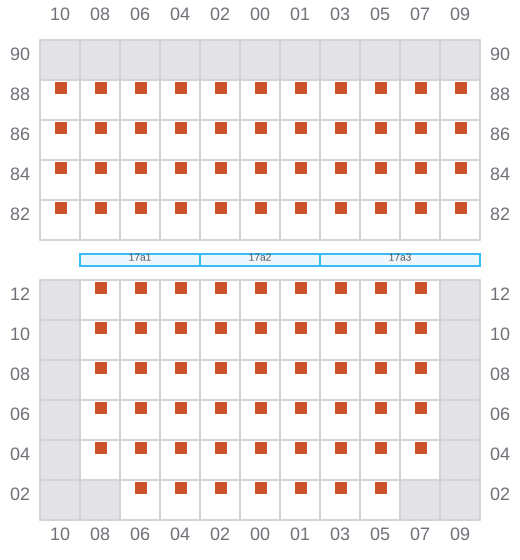

017

  • →
Bay 017 view and slots of SHUN LONG

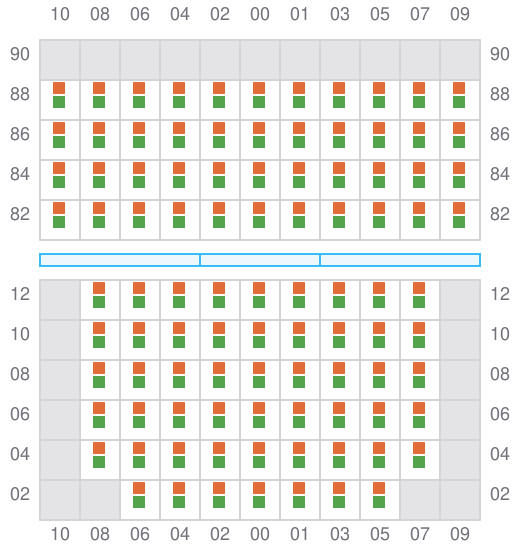

019 (018)

  • ←
Bay 019 view and slots of SHUN LONG

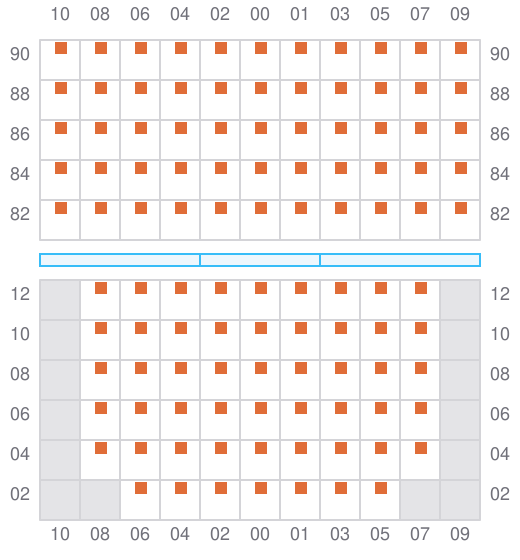

021

  • →
Bay 021 view and slots of SHUN LONG

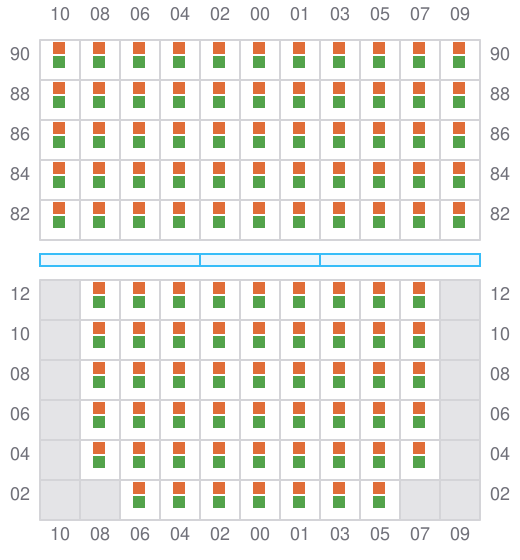

023 (022)

  • ←
Bay 023 view and slots of SHUN LONG

025

  • →
Bay 025 view and slots of SHUN LONG

027 (026)

  • ←

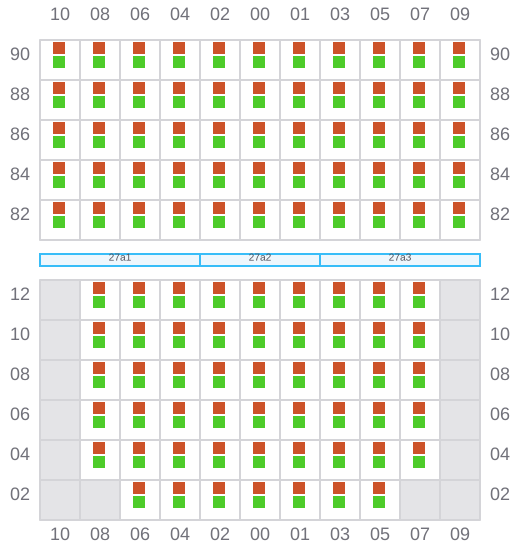

Bay 027 view and slots of SHUN LONG

029

  • →
Bay 029 view and slots of SHUN LONG

031 (030)

  • ←
Bay 031 view and slots of SHUN LONG

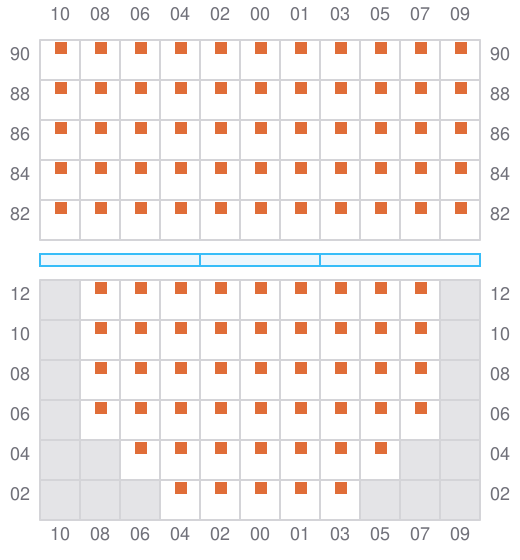

033

  • →
Bay 033 view and slots of SHUN LONG

035 (034)

  • ←
Bay 035 view and slots of SHUN LONG

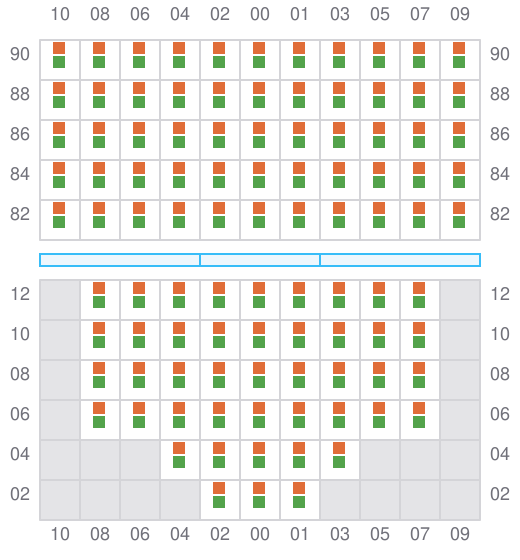

037

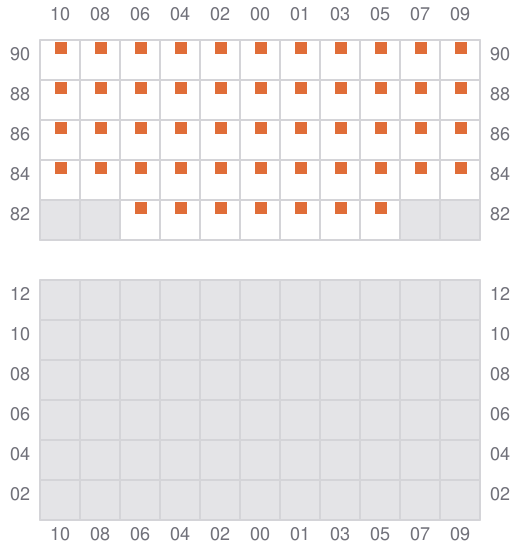

Bay 037 view and slots of SHUN LONG

039 (040)

  • → / ?

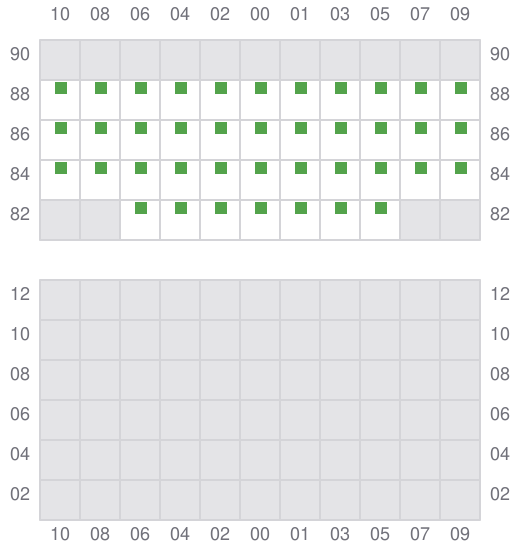

Bay 039 view and slots of SHUN LONG
