SIDIMI
8501414 | 5VHA7 | 8501414 by *********** Last update: Sun Mar 03 2024
General Info
Ship Name:SIDIMI
IMO Code:8501414
Call Sign:5VHA7
Line Operator:8501414
Class Name for Sister Ships:3PE
Year Built:1987
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:025
Max ISO Row:08
Center Line Row:No
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:06
Min Below ISO Tier:02
Total TEU:576
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

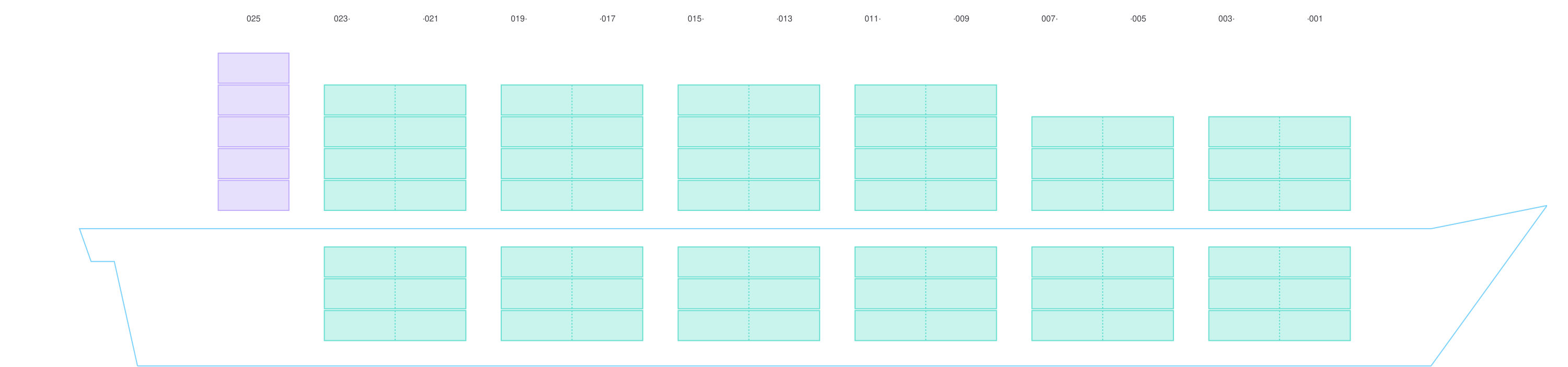

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

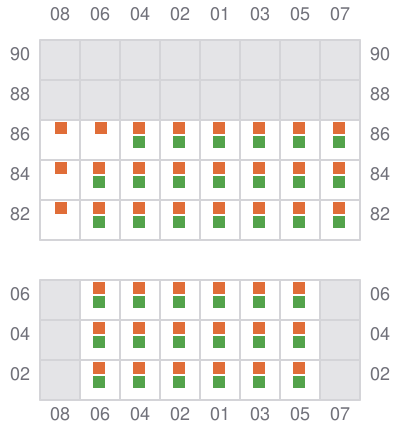

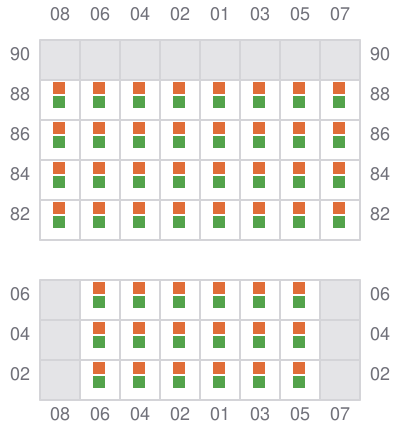

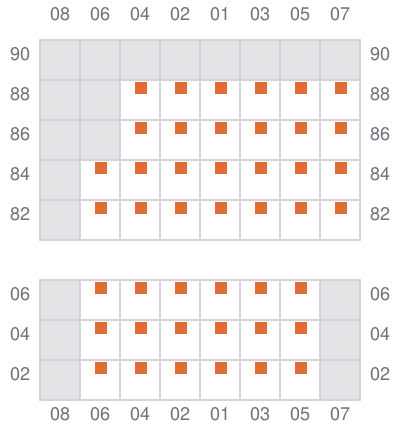

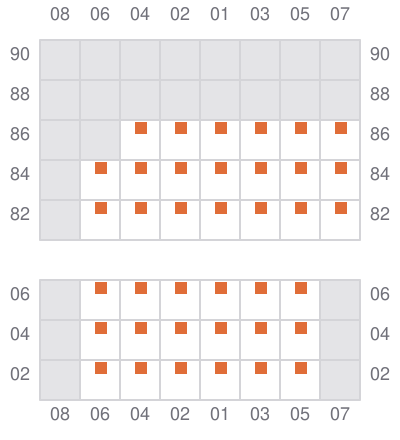

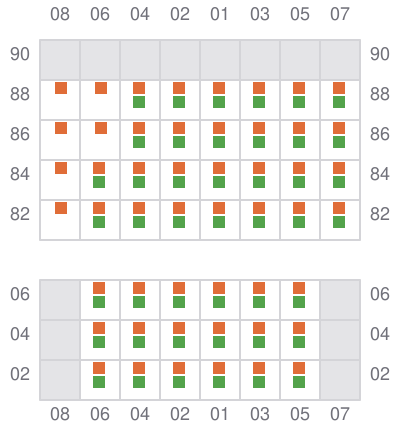

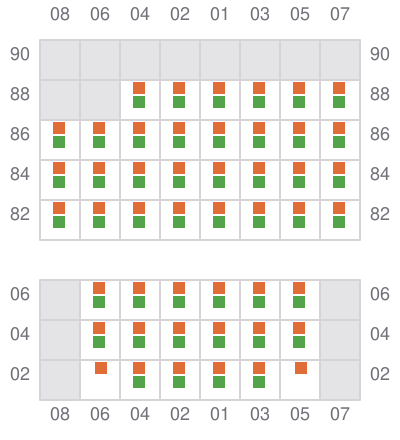

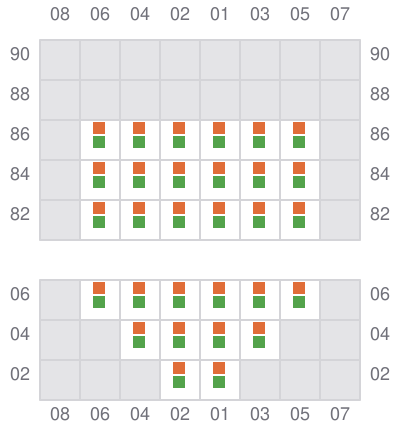

001 (002)
- →
003
- ←
005 (006)
- →
007
- ←
009 (010)
- →
011
- ←
013 (014)
- →

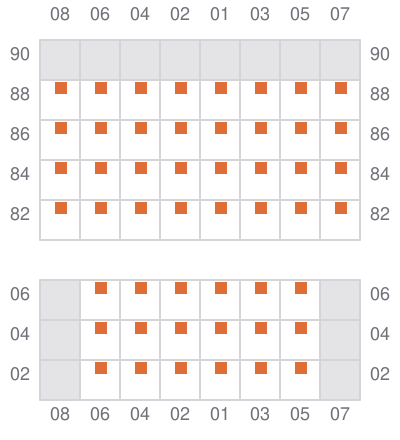

015
- ←
017 (018)
- →
019
- ←
021 (022)
- →

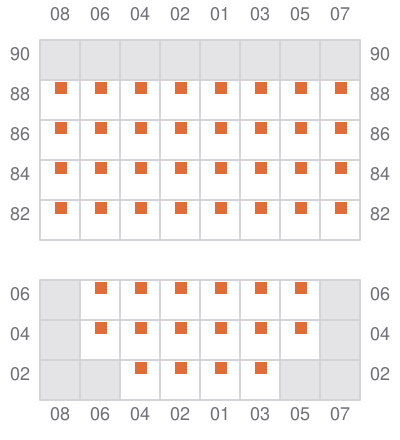

023
- ←

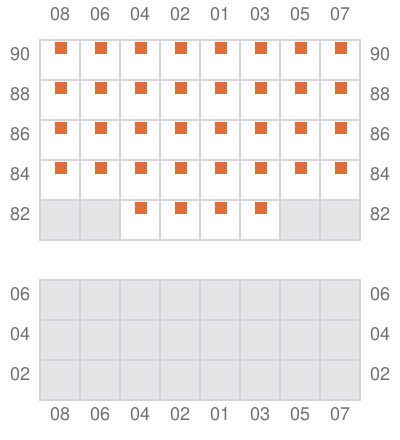

025
