SIMBA
9719862 | 5LDC3 | HLC by *********************** Last update: Fri Feb 07 2025
General Info
Ship Name:SIMBA
IMO Code:9719862
Call Sign:5LDC3
Line Operator:HLC
Class Name for Sister Ships:HCCH
Year Built:2015
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):258.42
LOA (Length Overall):270.97
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:061
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,622
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

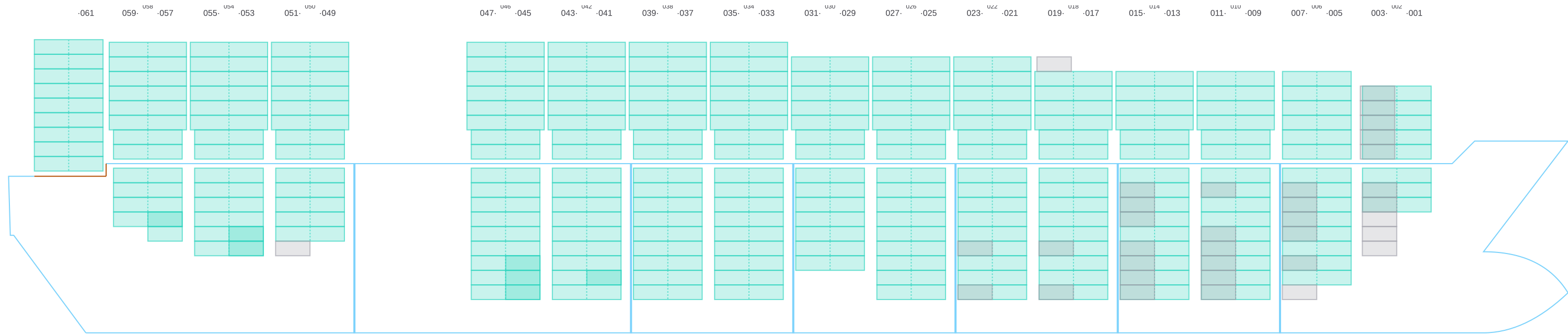

Side View
Hatch-Covers View

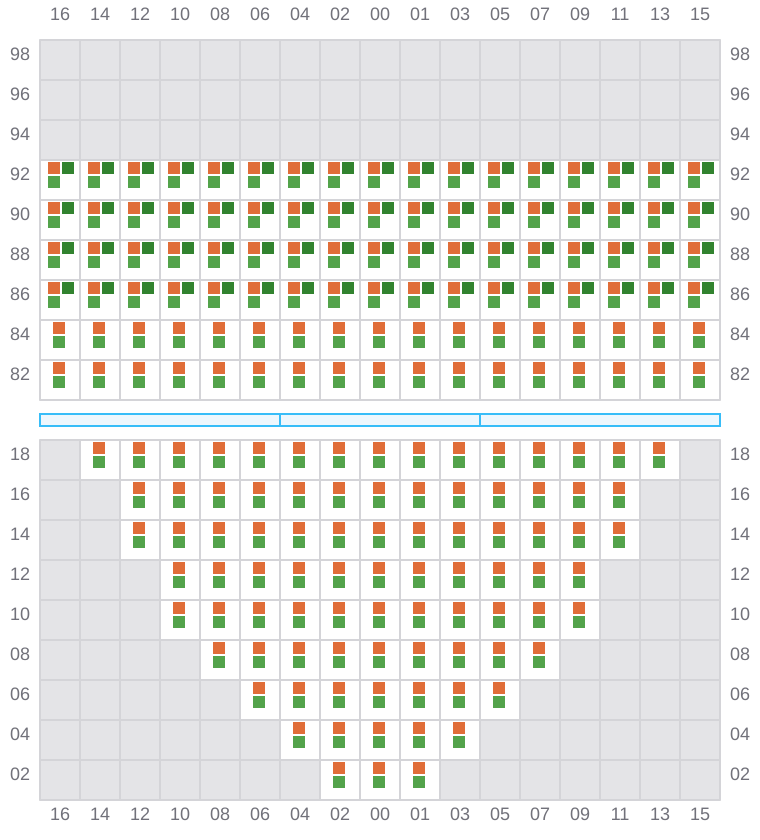

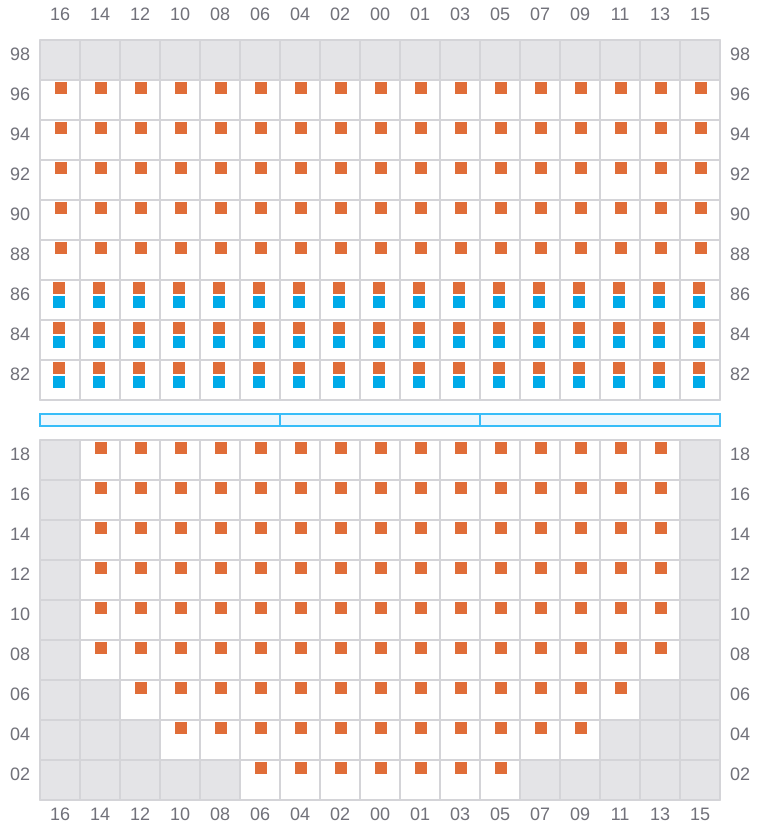

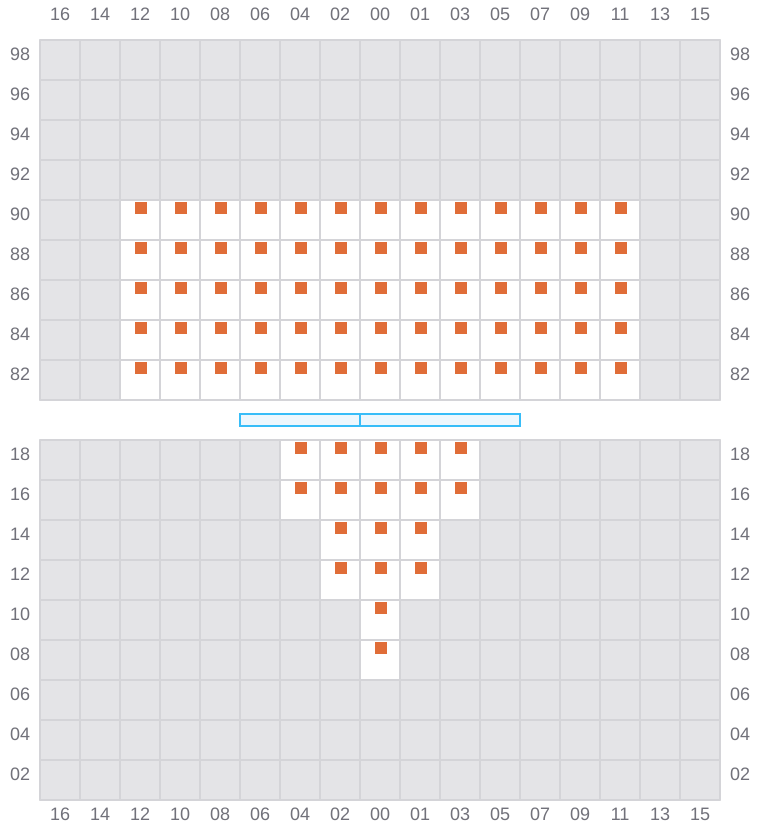

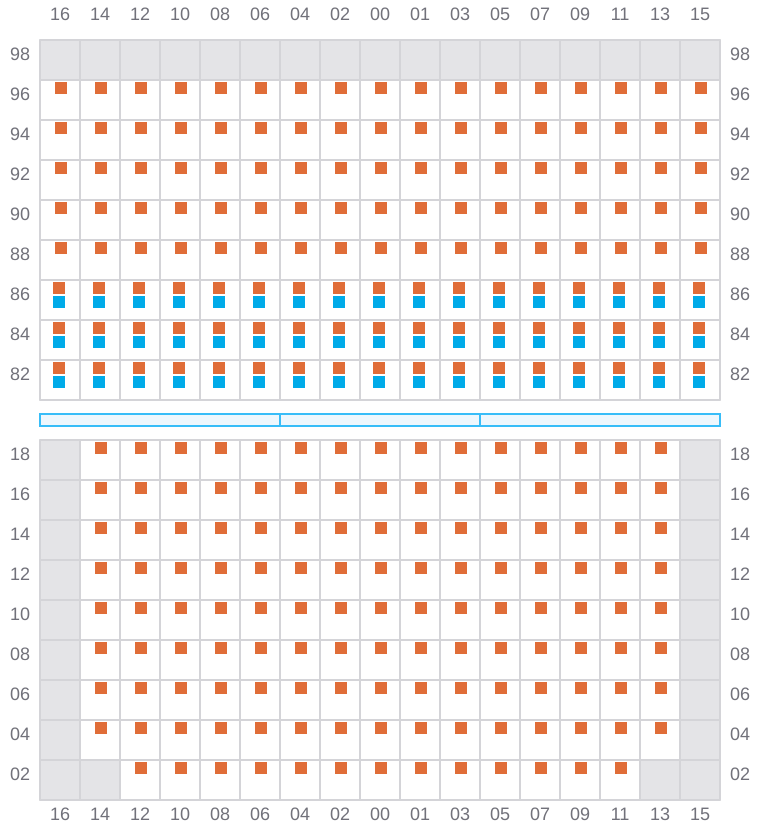

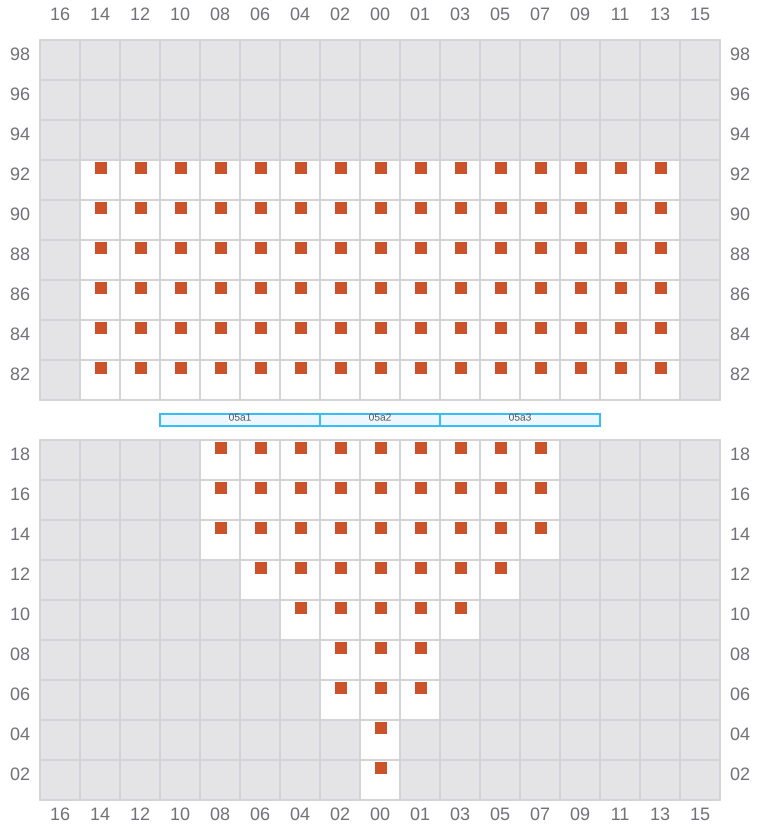

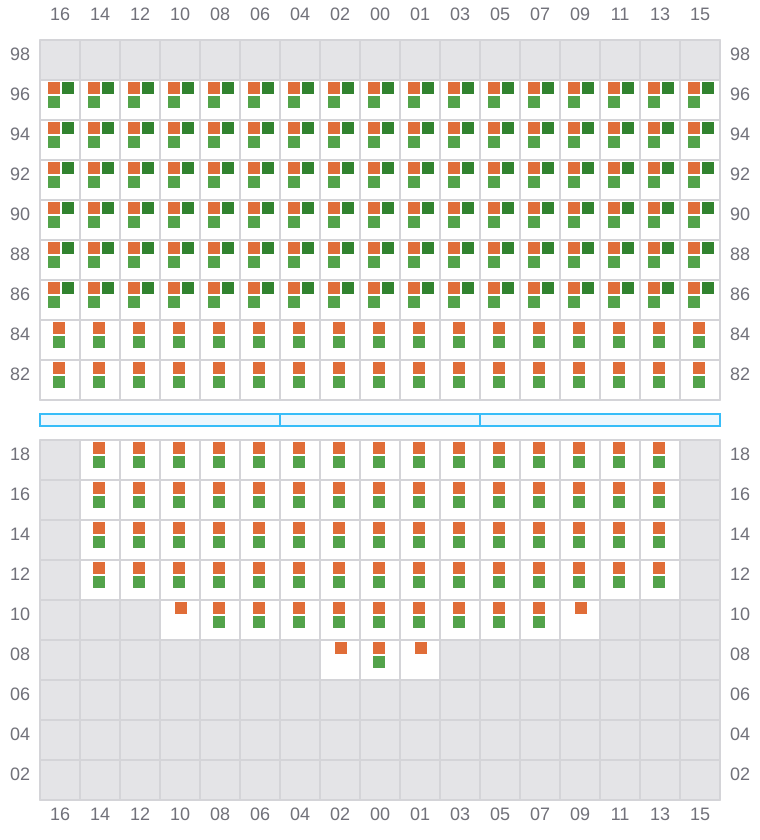

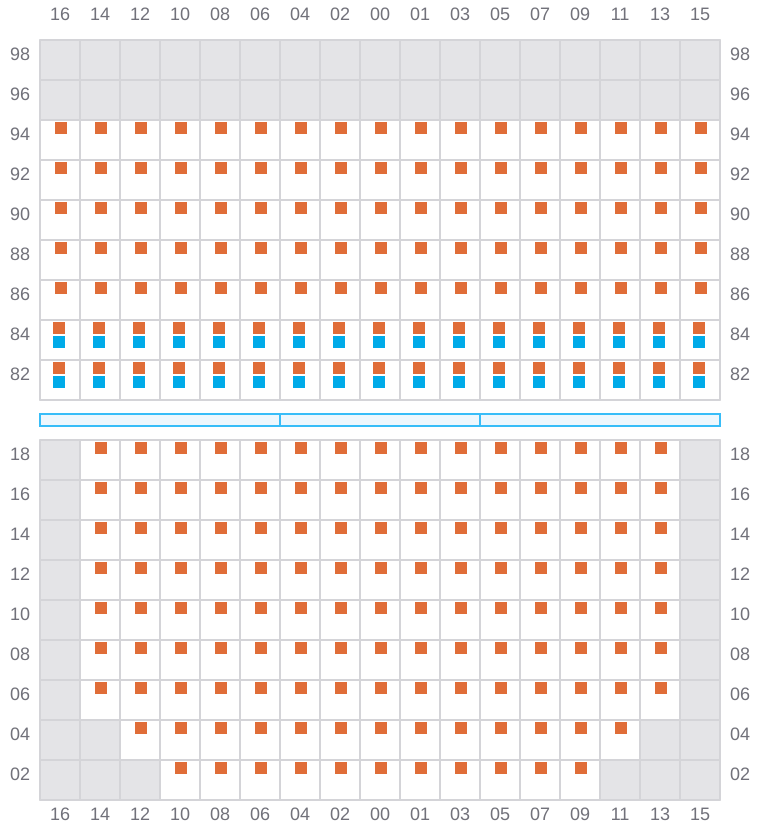

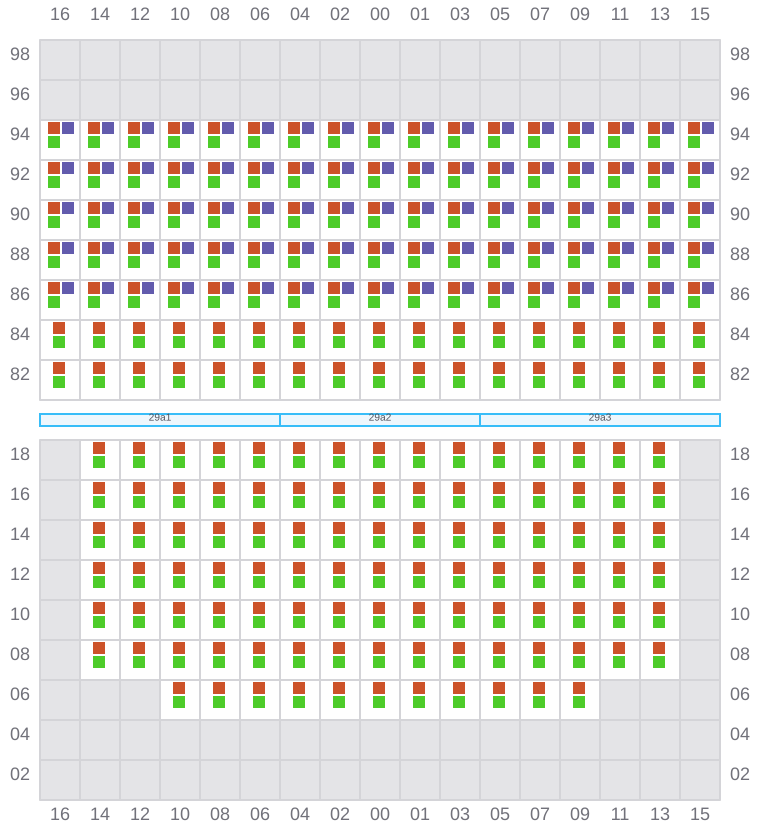

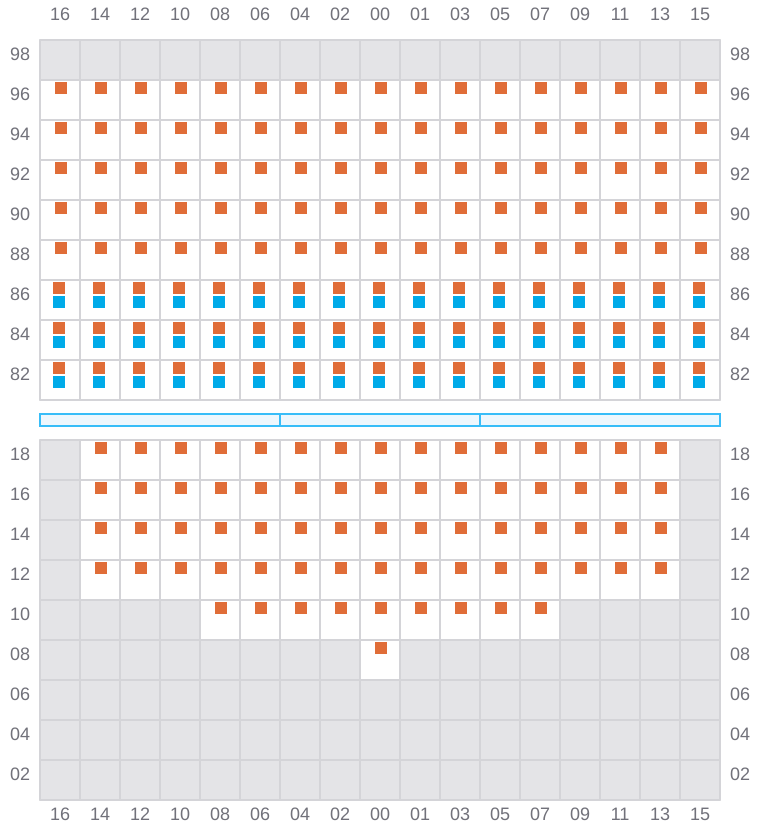

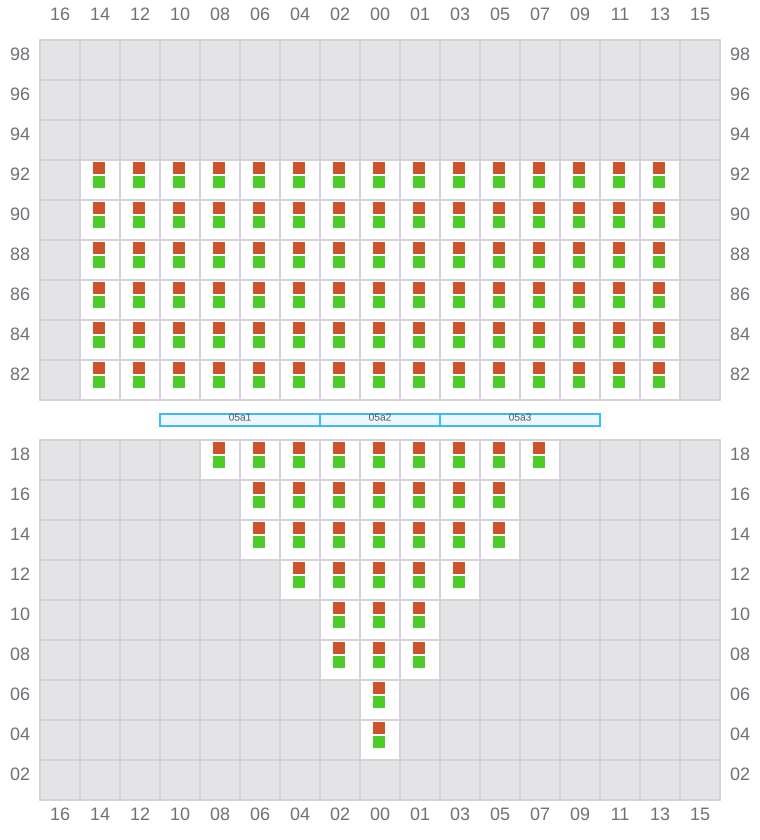

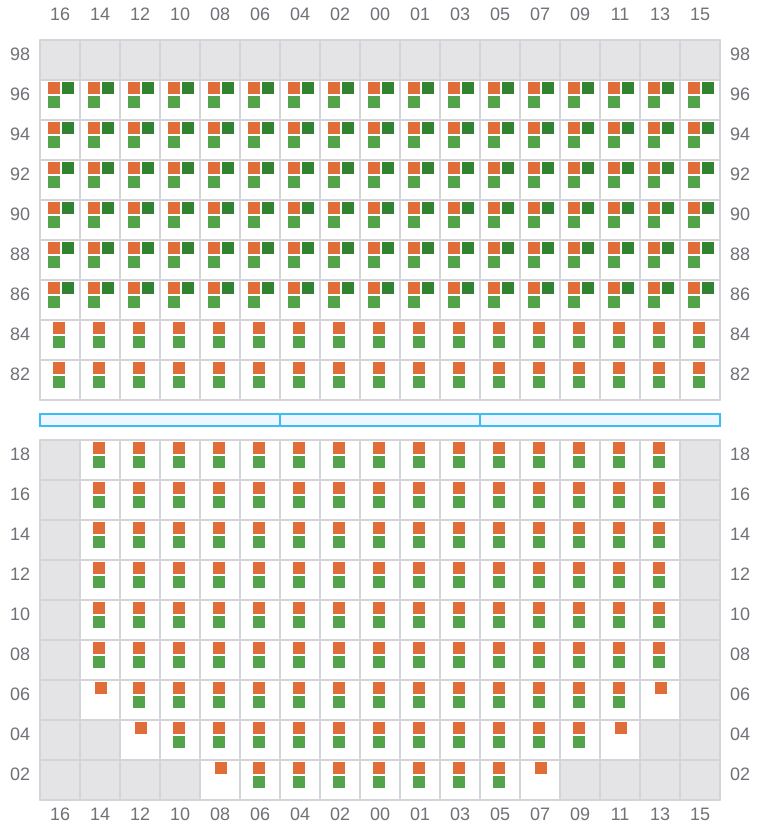

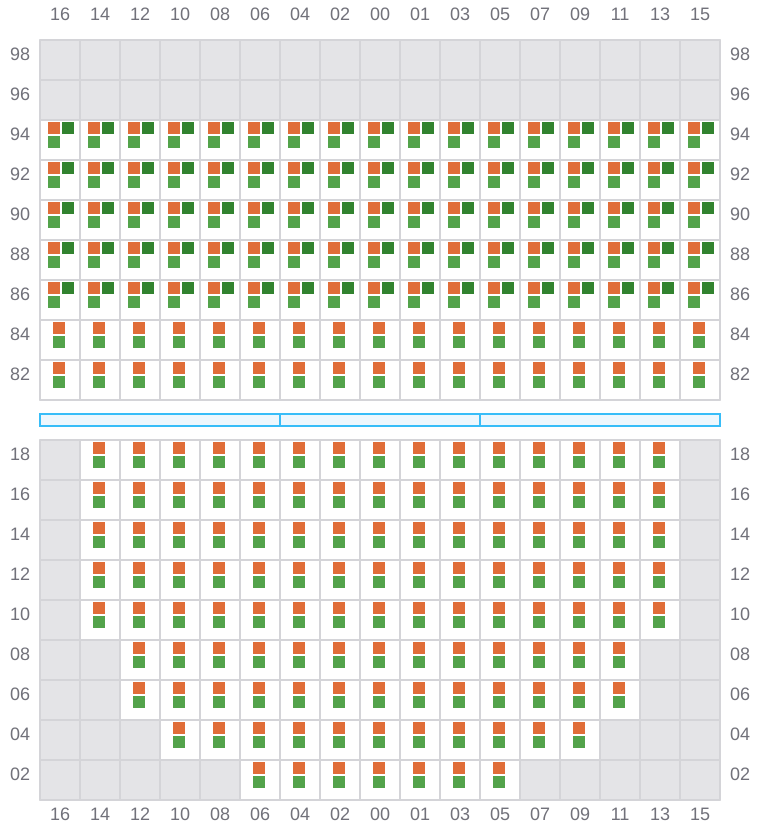

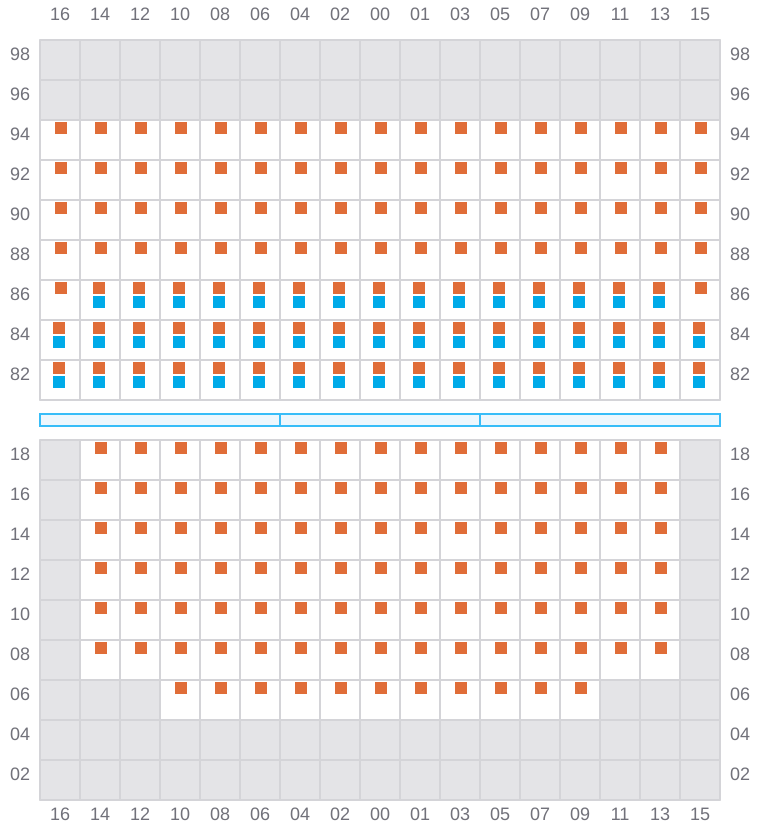

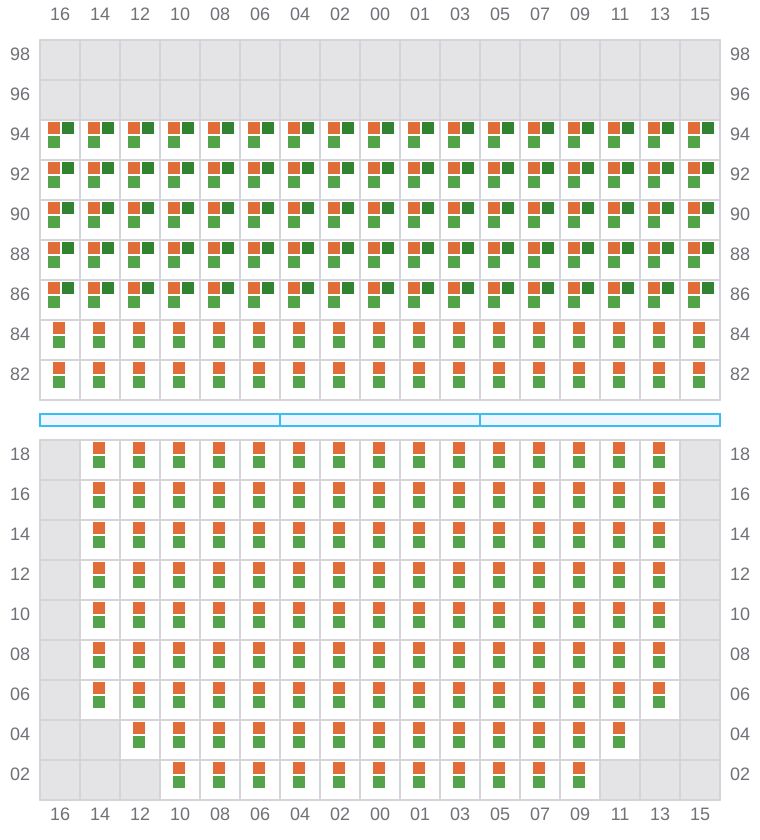

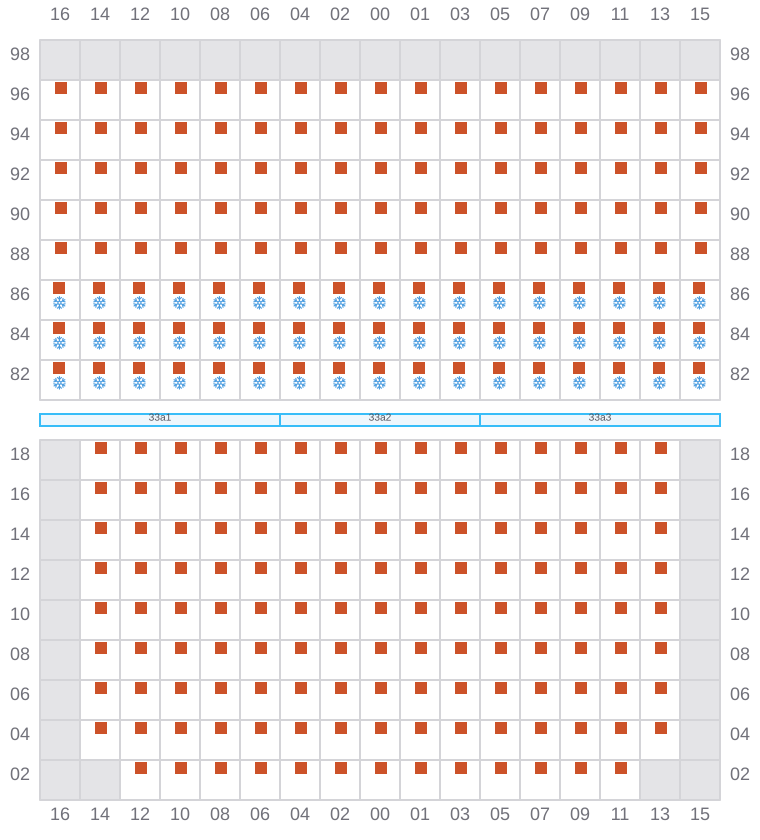

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

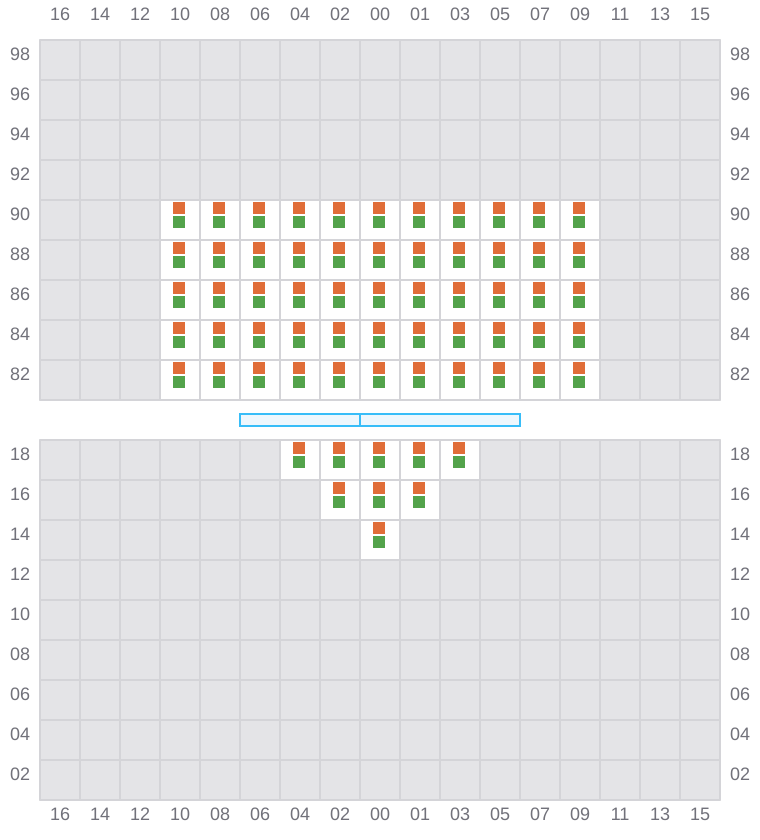

001 (002)
- →
- →
003
- ←
- →
005 (006)
- →
- →
007
- ←
- →

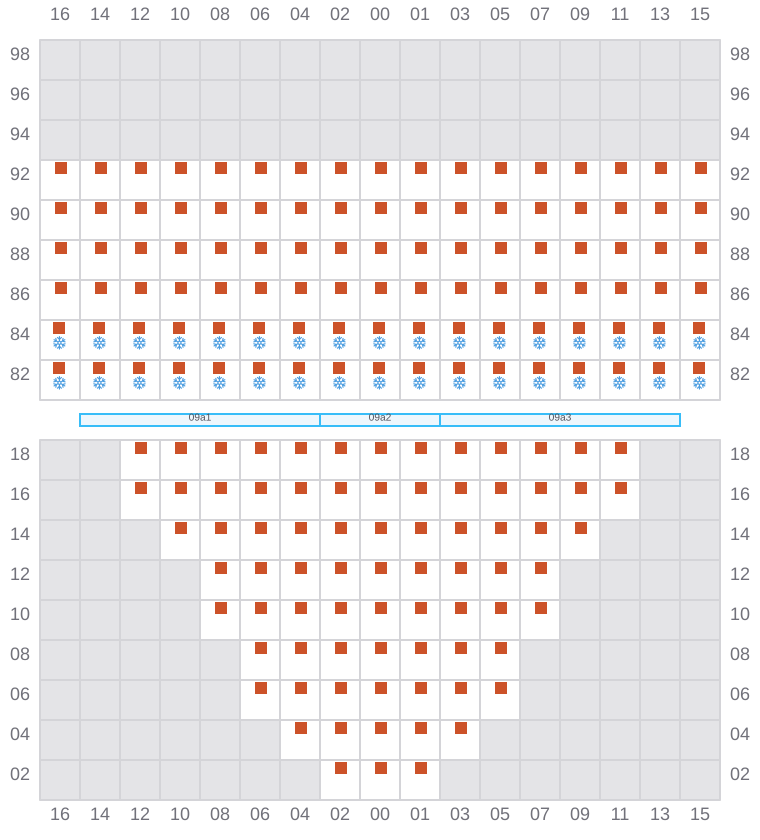

009 (010)
- →
- →
011
- ←
- → / ?
- →
013 (014)
- →
- →

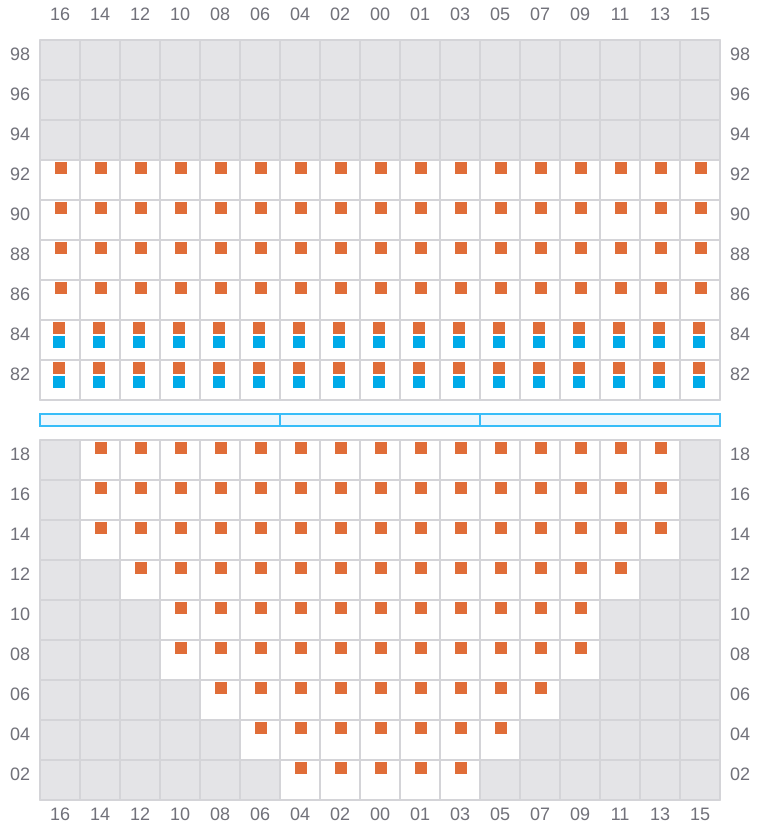

015
- ←
- → / ?
- →
017 (018)
- →
- →
019
- ←
- → / ?
- →
021 (022)
- →
- →

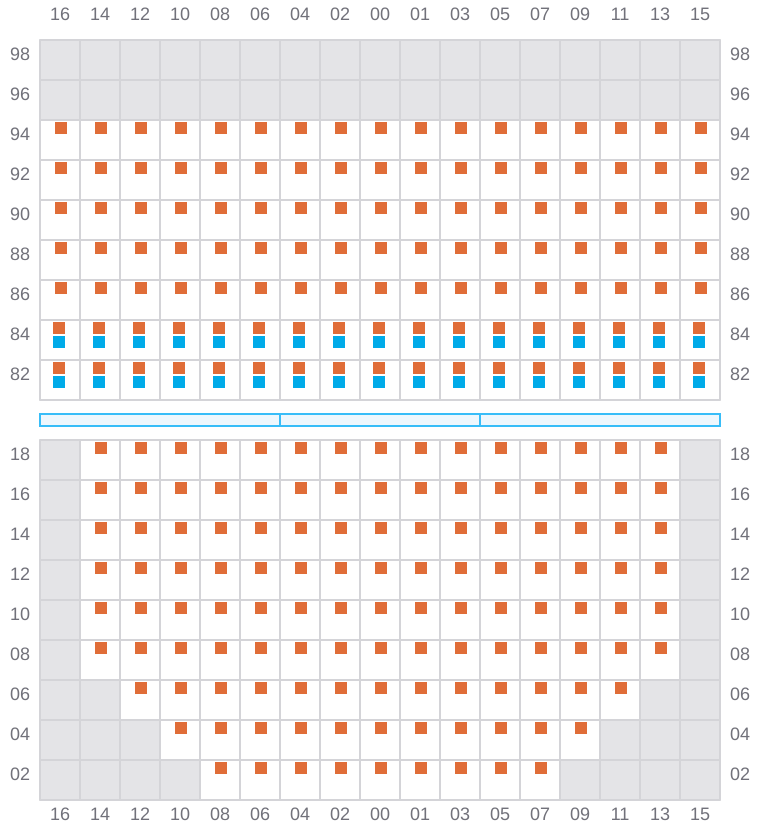

023
- ←
- → / ?
- →
025 (026)
- →
- →
027
- ←
- → / ?
- →
029 (030)
- →
- →
031
- ←
- → / ?
- →
033 (034)
- →
- →
035
- ←
- → / ?
- →
037 (038)
- →
- →

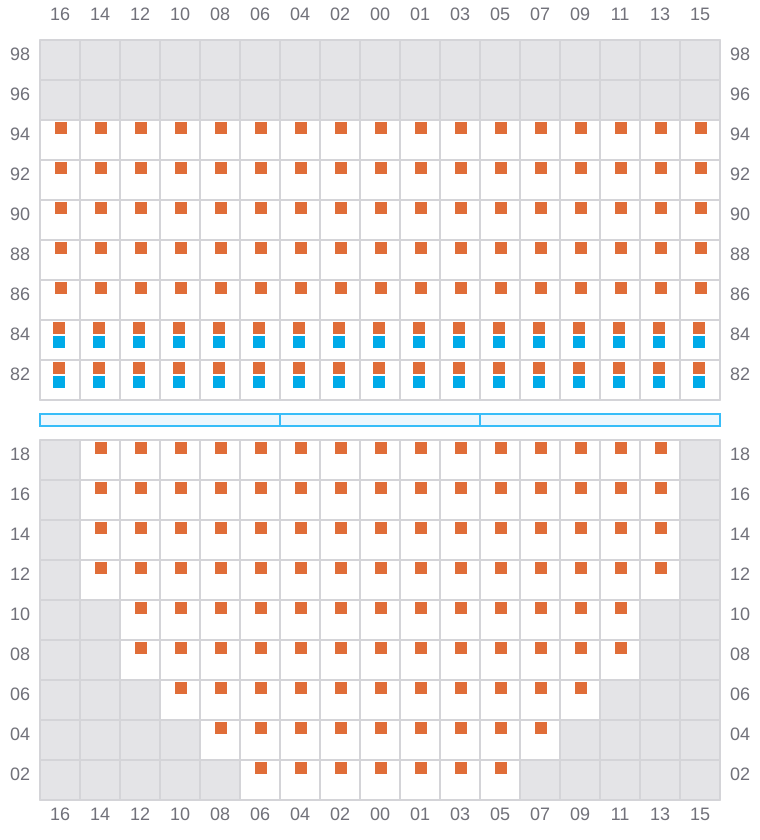

039
- ←
- → / ?
- →
041 (042)
- →
- →
043
- ←
- → / ?
- →
045 (046)
- →
- →
047
- ←
- → / ?
- →
049 (050)
- →
- →

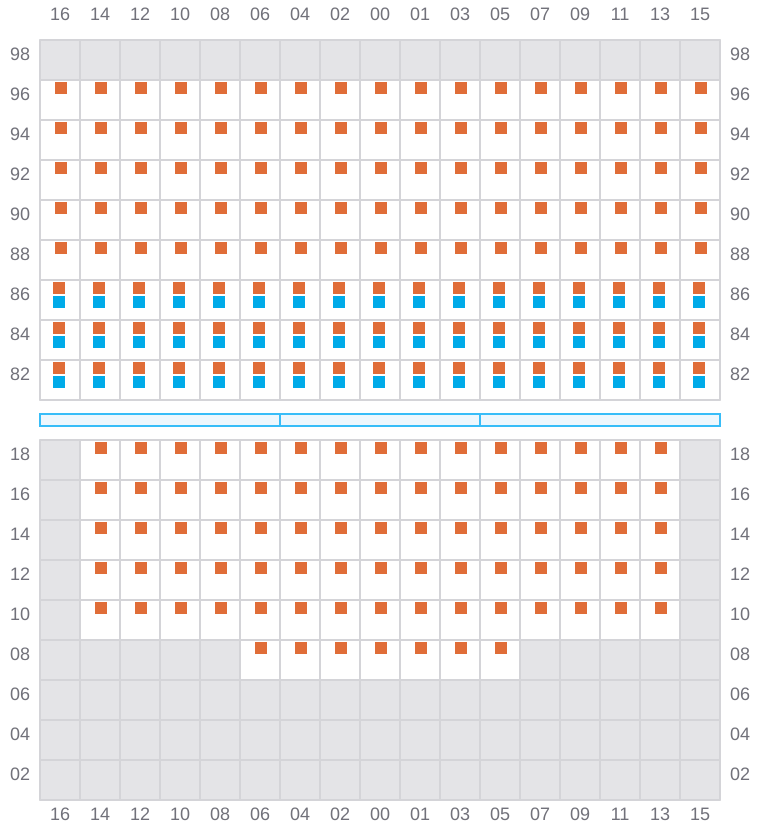

051
- ←
- → / ?
- →
053 (054)
- →
- →
055
- ←
- → / ?
- →

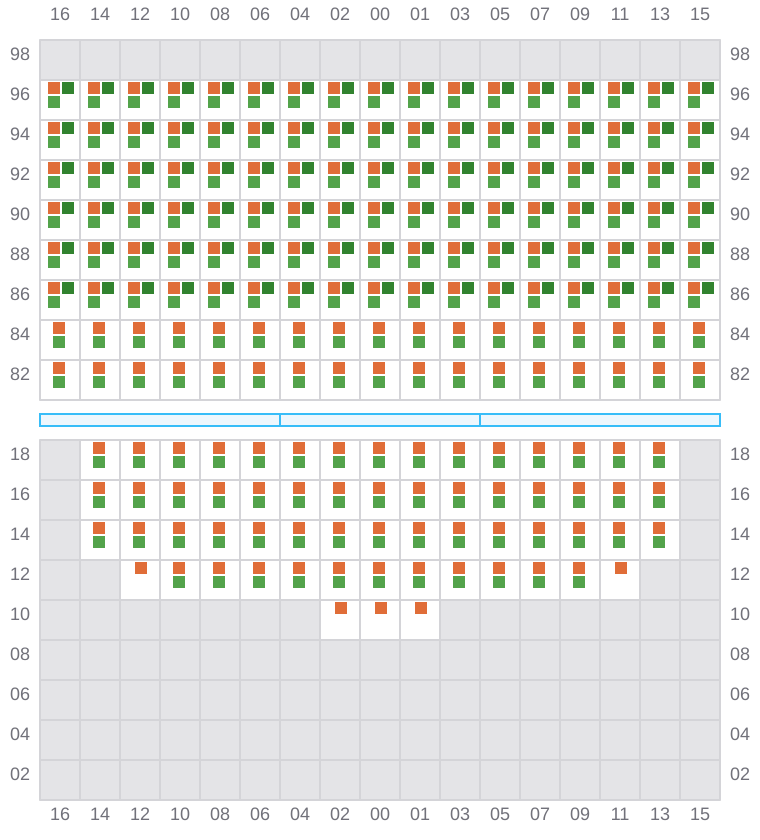

057 (058)
- →
- →
059
- ←
- → / ?
- →

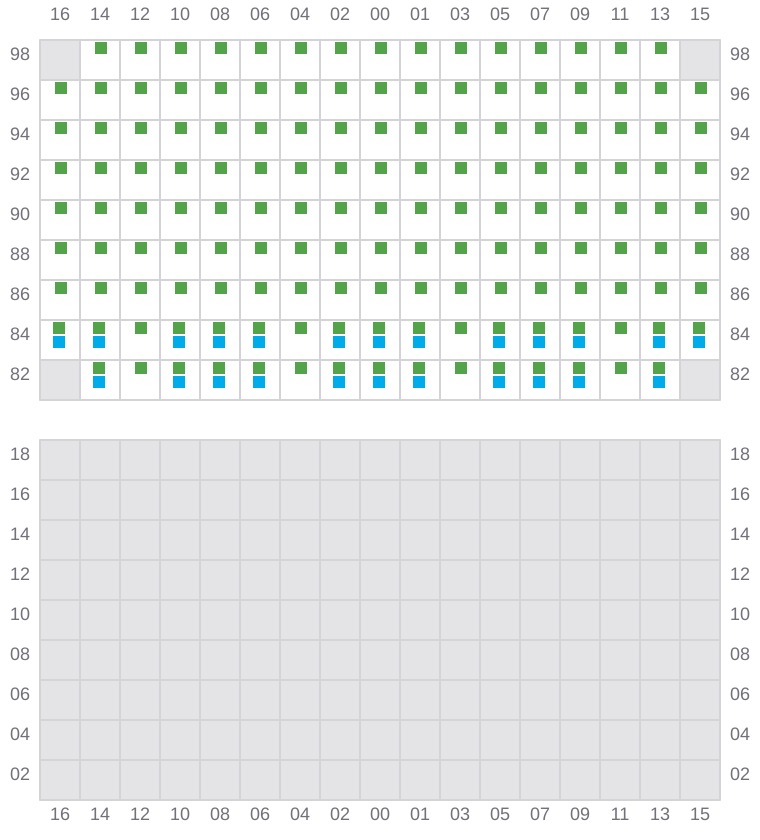

061 (062)
- → / ?
- ← / ?
- → / ?
