SINE A
9343089 | 9HA3885 | 9343089 by ********* Last update: Fri Mar 22 2024

General Info

Ship Name:SINE A
IMO Code:9343089
Call Sign:9HA3885
Line Operator:9343089
Class Name for Sister Ships:72R
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:049
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:2,822

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

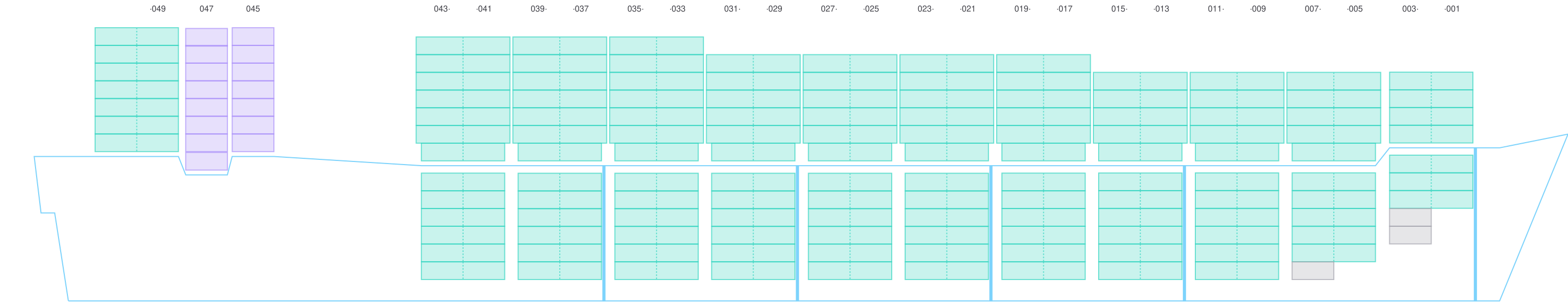

Side view of SINE A

Hatch-Covers View

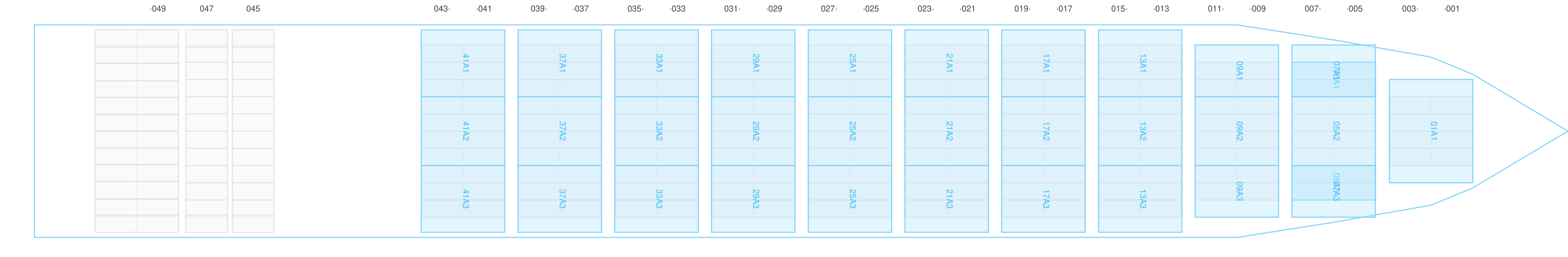

Deck view of SINE A

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

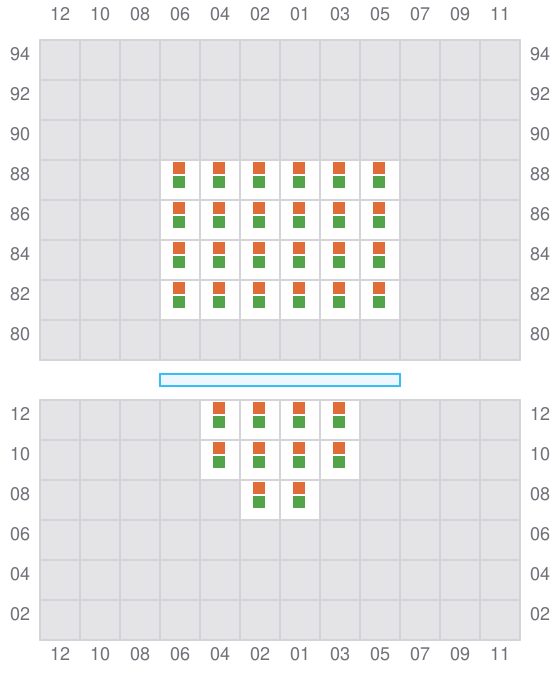

Bay 001 view and slots of SINE A

003

  • ←

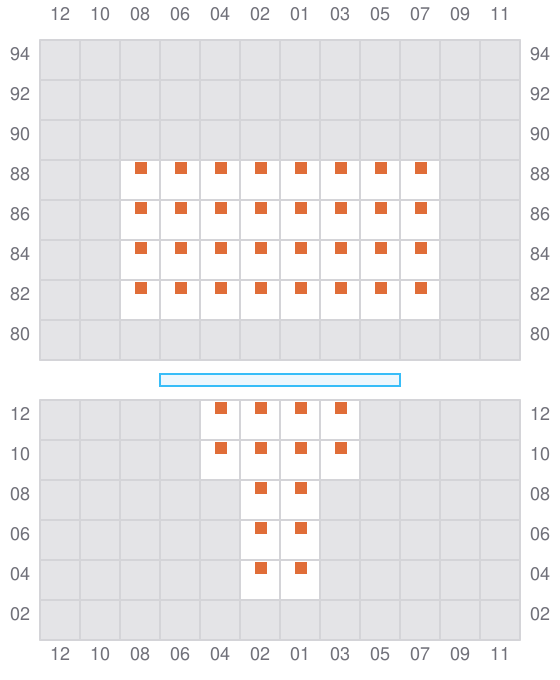

Bay 003 view and slots of SINE A

005 (006)

  • →

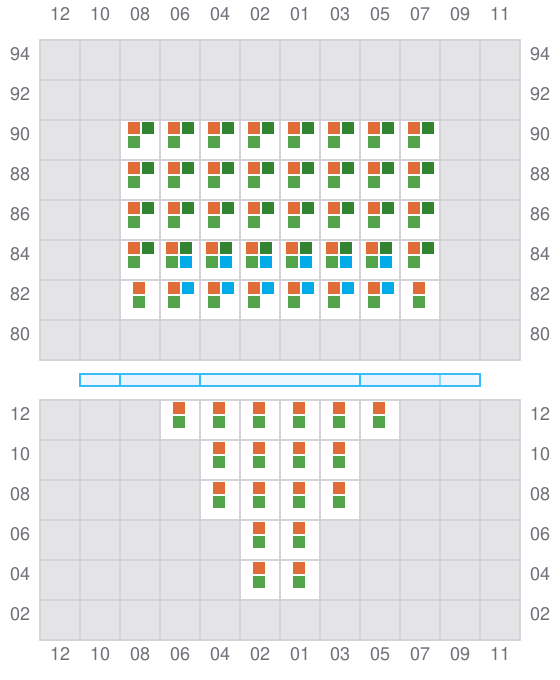

Bay 005 view and slots of SINE A

007

  • ←
  • → / ?

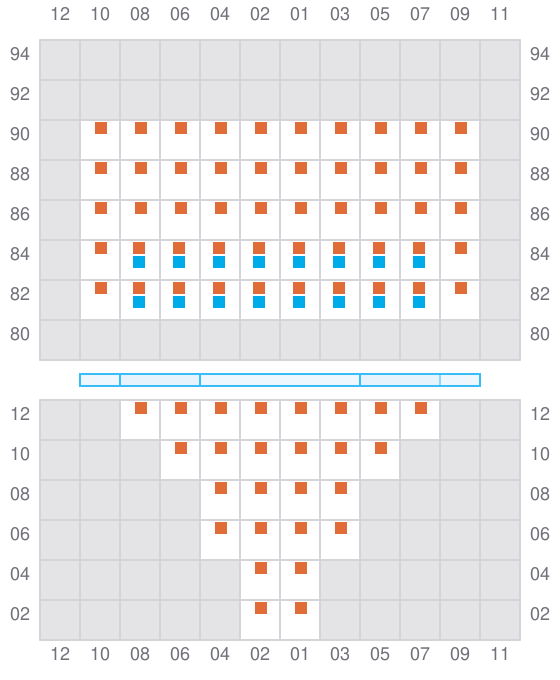

Bay 007 view and slots of SINE A

009 (010)

  • →

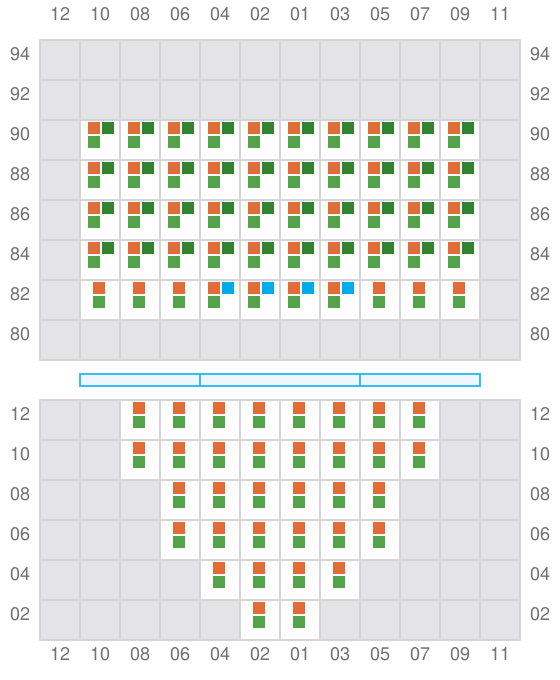

Bay 009 view and slots of SINE A

011

  • ←
  • → / ?

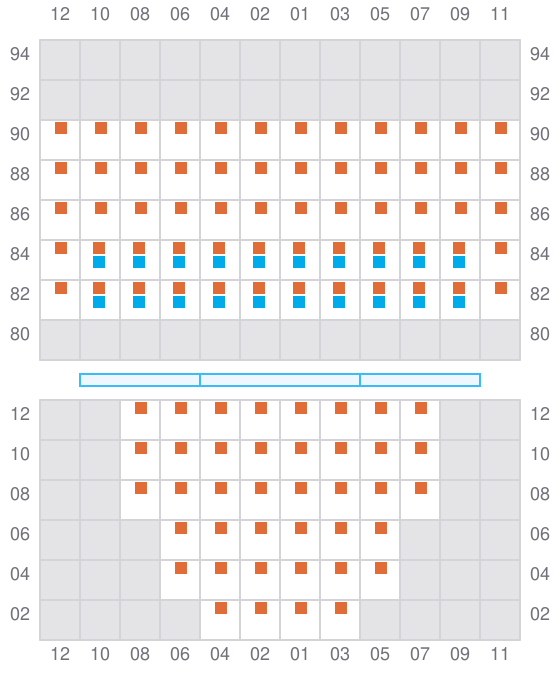

Bay 011 view and slots of SINE A

013 (014)

  • →
  • → / ?

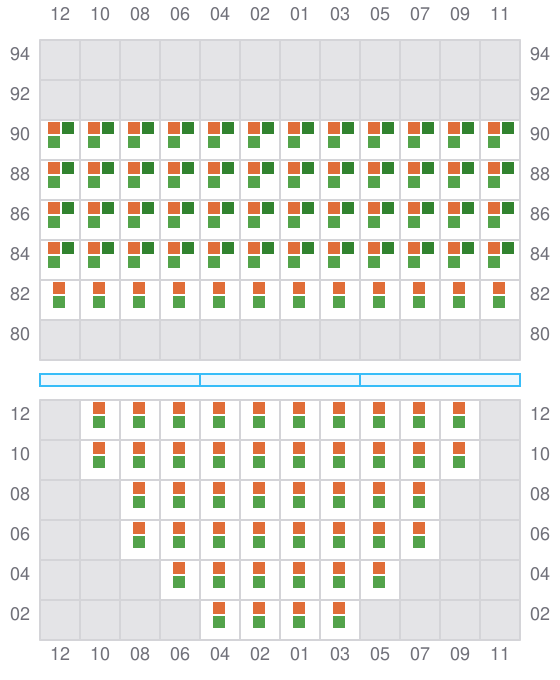

Bay 013 view and slots of SINE A

015

  • ←
  • →

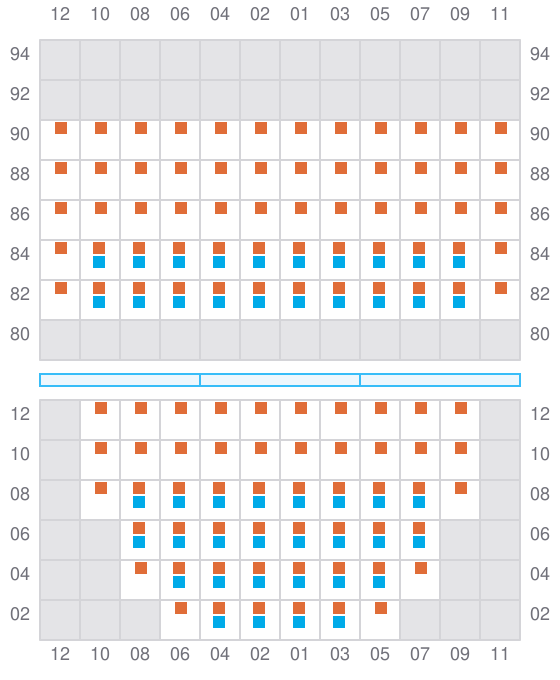

Bay 015 view and slots of SINE A

017 (018)

  • →
Bay 017 view and slots of SINE A

019

  • ←
  • →

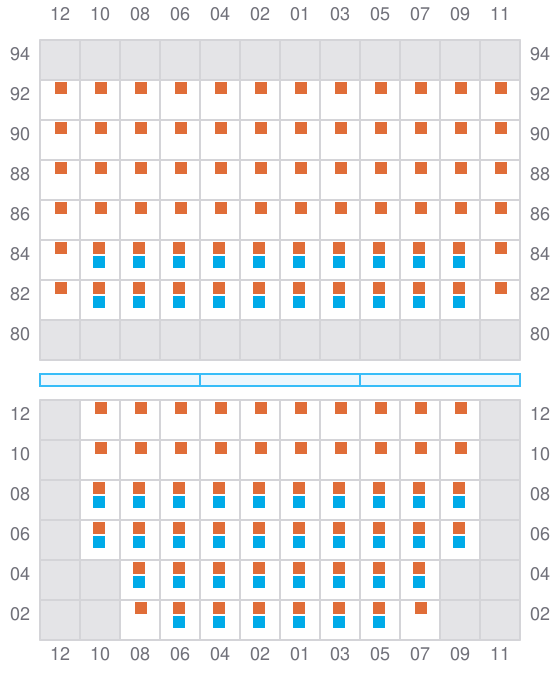

Bay 019 view and slots of SINE A

021 (022)

  • →
Bay 021 view and slots of SINE A

023

  • ←
  • →
Bay 023 view and slots of SINE A

025 (026)

  • →

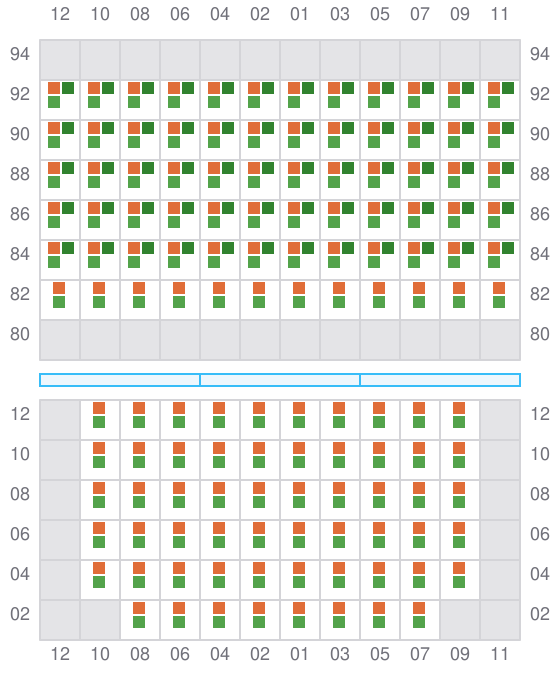

Bay 025 view and slots of SINE A

027

  • ←
  • →

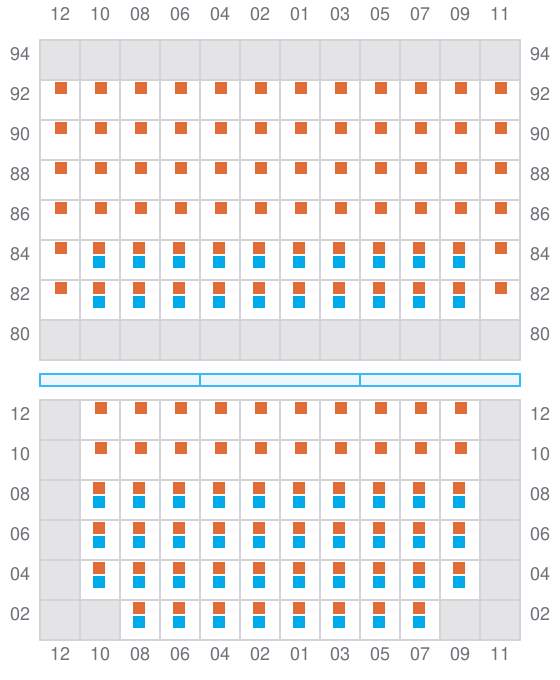

Bay 027 view and slots of SINE A

029 (030)

  • →
Bay 029 view and slots of SINE A

031

  • ←
  • →
Bay 031 view and slots of SINE A

033 (034)

  • →

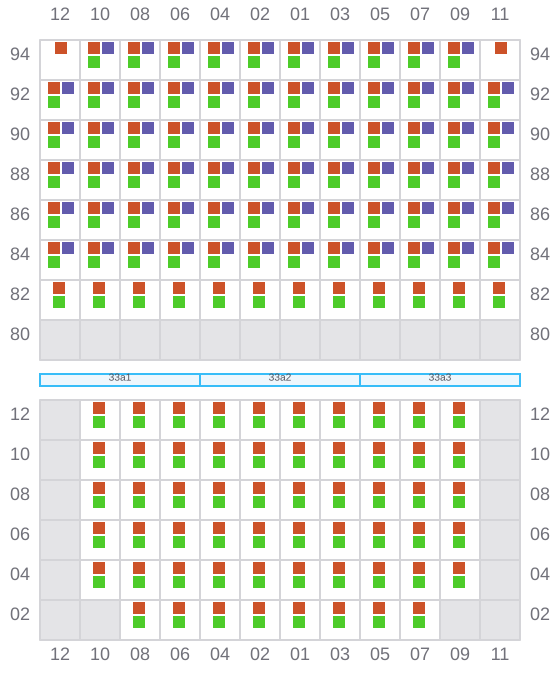

Bay 033 view and slots of SINE A

035

  • ←
  • → / ?
Bay 035 view and slots of SINE A

037 (038)

  • →

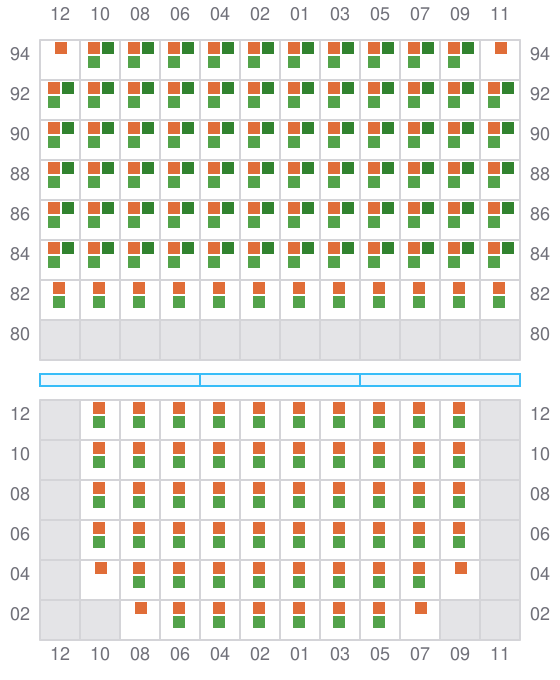

Bay 037 view and slots of SINE A

039

  • ←
  • →

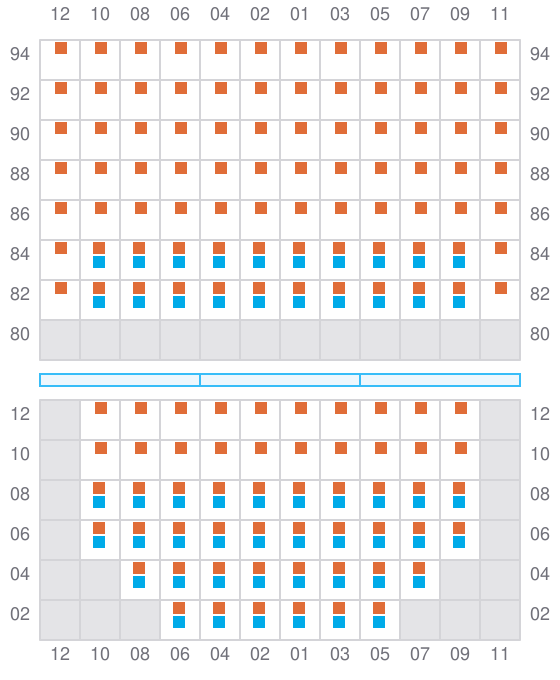

Bay 039 view and slots of SINE A

041 (042)

  • →
  • ← / ?
Bay 041 view and slots of SINE A

043

  • ←
  • →

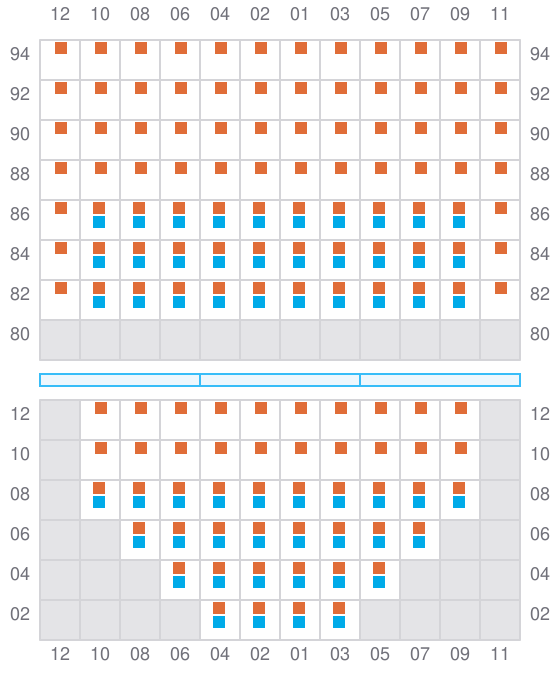

Bay 043 view and slots of SINE A

045

  • ← / ?
Bay 045 view and slots of SINE A

047

  • → / ?

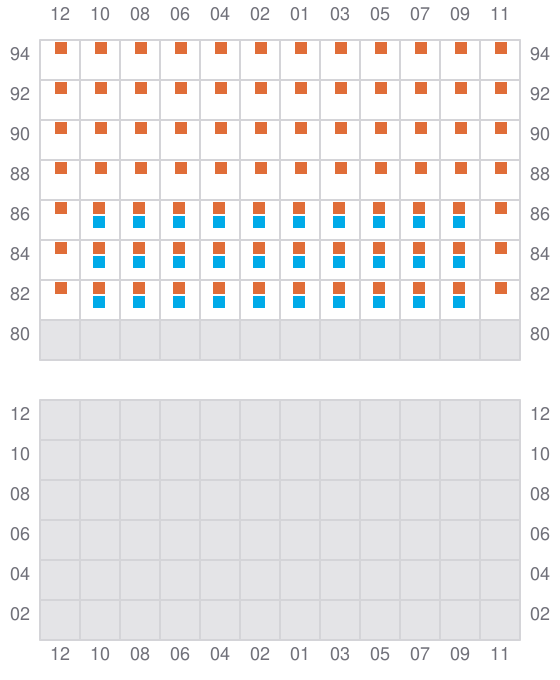

Bay 047 view and slots of SINE A

049 (050)

  • → / ?
  • ← / ?

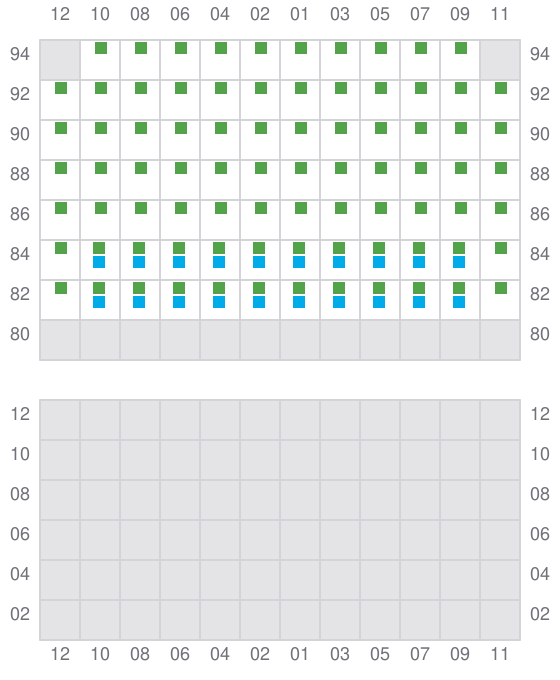

Bay 049 view and slots of SINE A
