SKAGEN MAERSK
9166792 | OYOS2 | 9166792 by ********* Last update: Sat Mar 09 2024

General Info

Ship Name:SKAGEN MAERSK
IMO Code:9166792
Call Sign:OYOS2
Line Operator:9166792
Class Name for Sister Ships:699
Year Built:1999
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:081
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:9,732

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of SKAGEN MAERSK

Hatch-Covers View

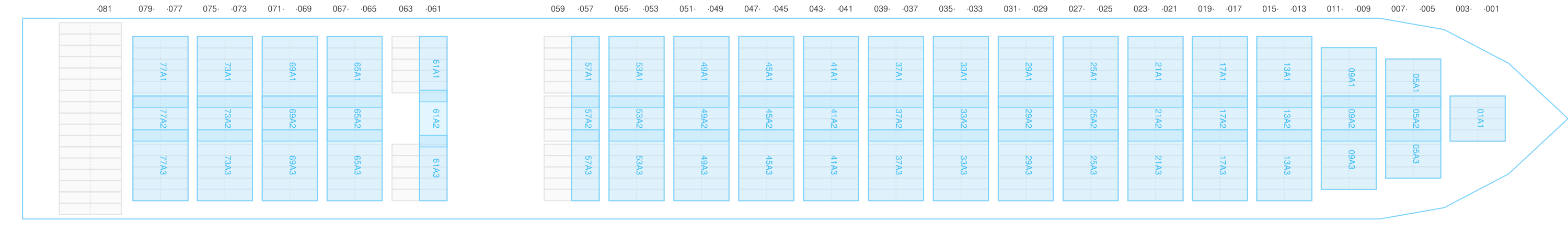

Deck view of SKAGEN MAERSK

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

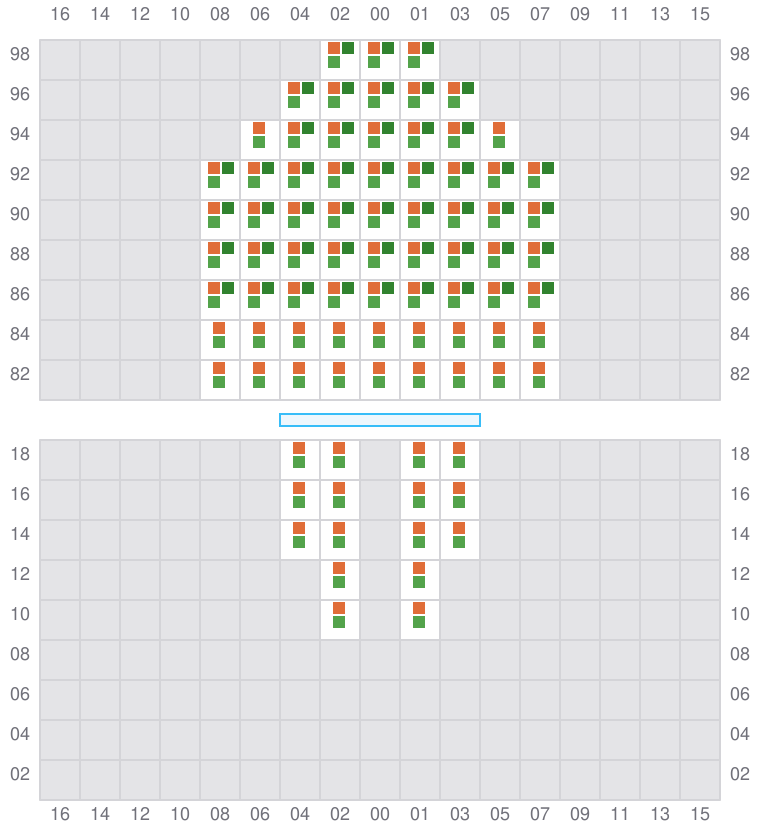

Bay 001 view and slots of SKAGEN MAERSK

003

  • ←

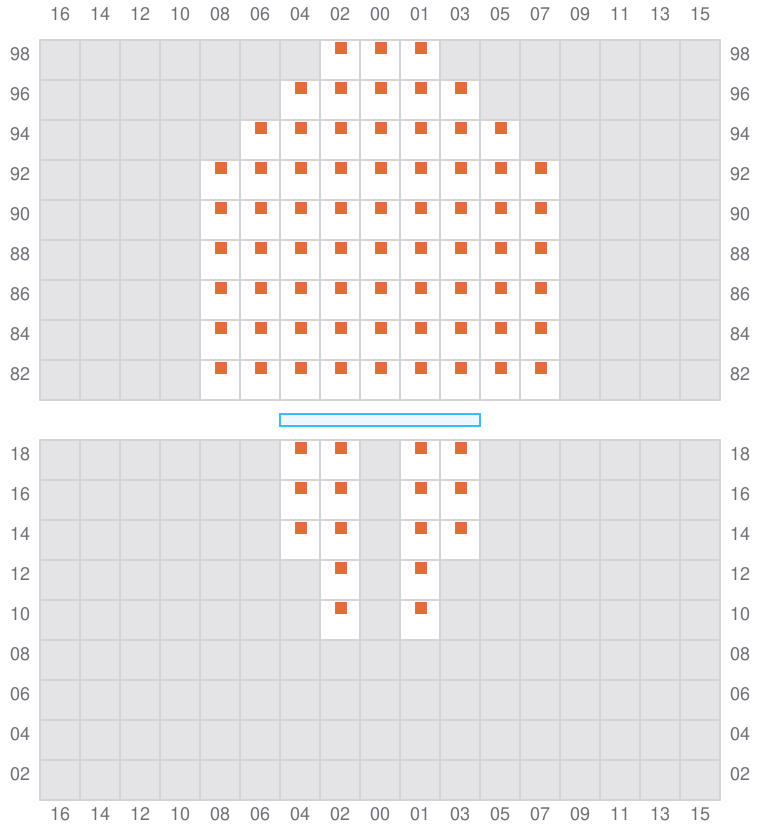

Bay 003 view and slots of SKAGEN MAERSK

005 (006)

  • →

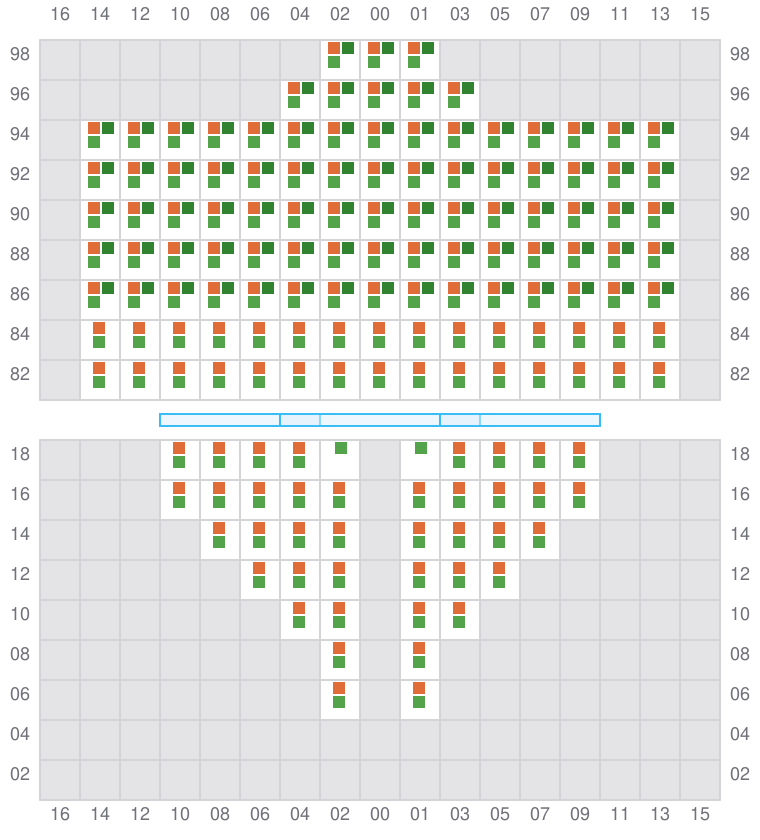

Bay 005 view and slots of SKAGEN MAERSK

007

  • ←

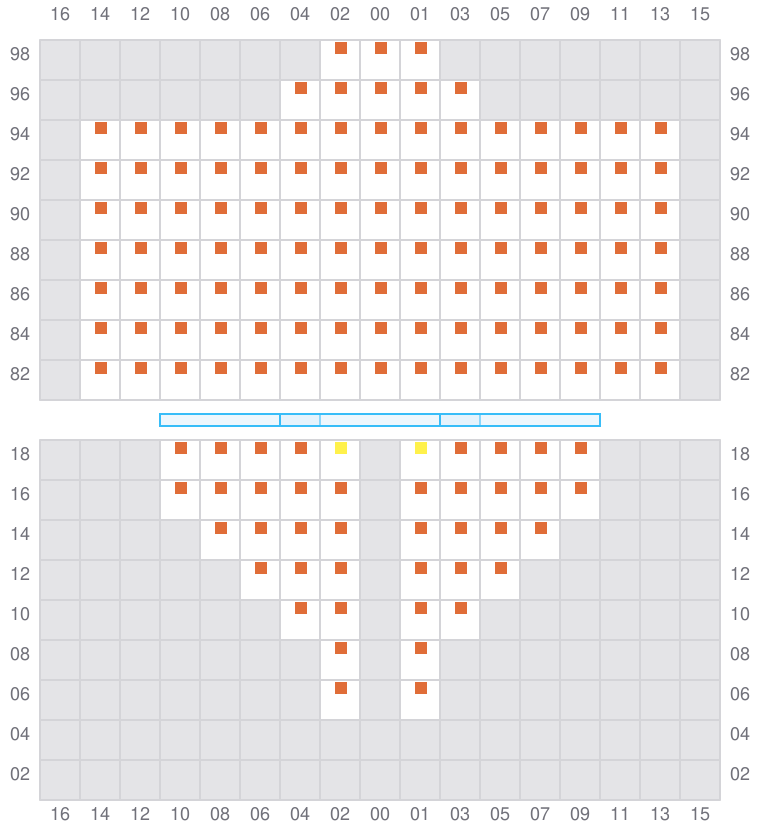

Bay 007 view and slots of SKAGEN MAERSK

009 (010)

  • →
Bay 009 view and slots of SKAGEN MAERSK

011

  • ←

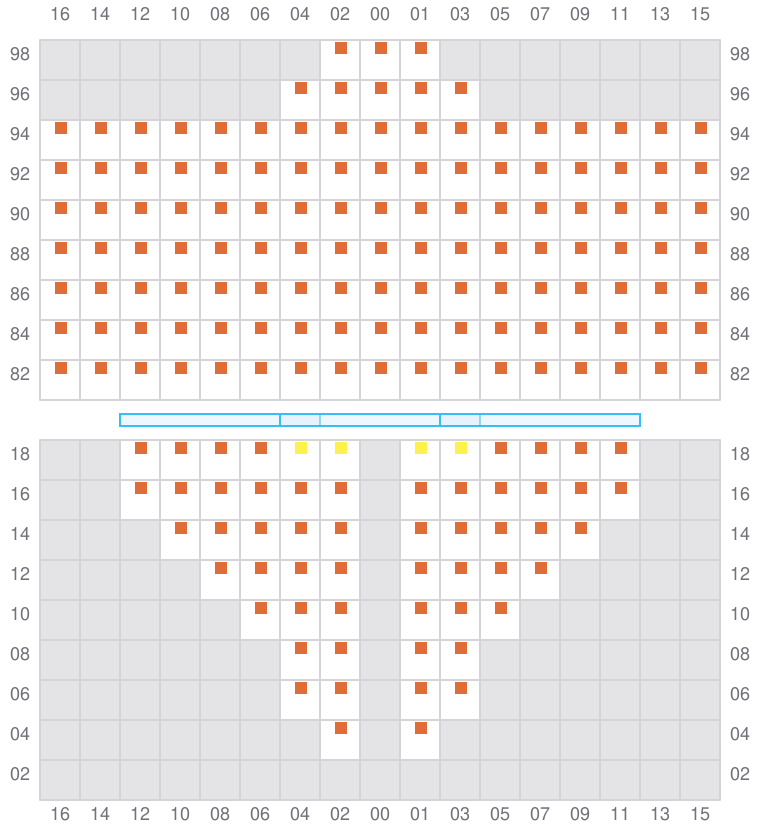

Bay 011 view and slots of SKAGEN MAERSK

013 (014)

  • →
Bay 013 view and slots of SKAGEN MAERSK

015

  • ←

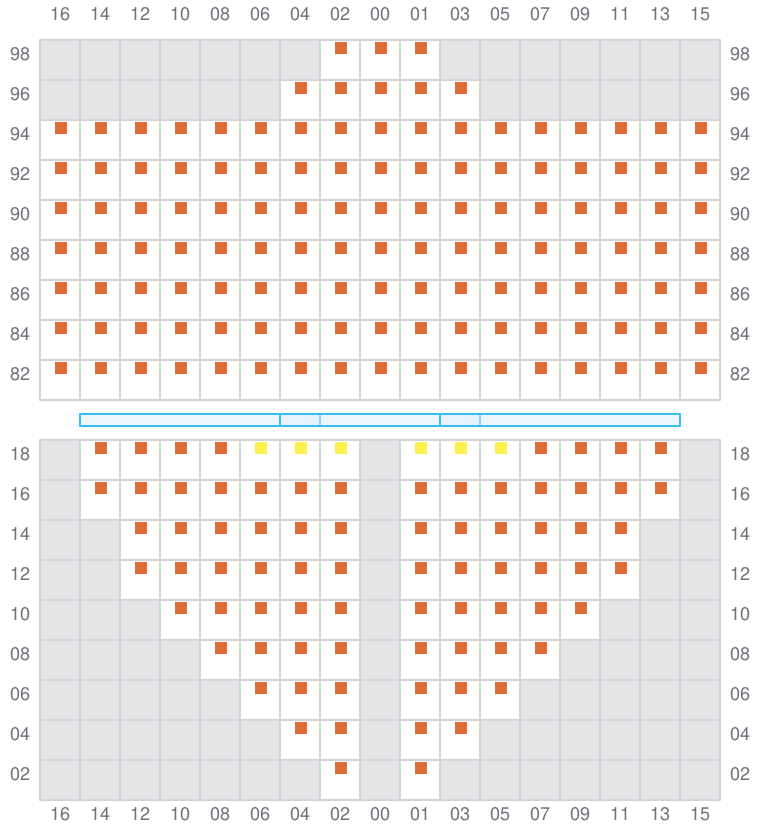

Bay 015 view and slots of SKAGEN MAERSK

017 (018)

  • →
Bay 017 view and slots of SKAGEN MAERSK

019

  • ←
  • → / ?

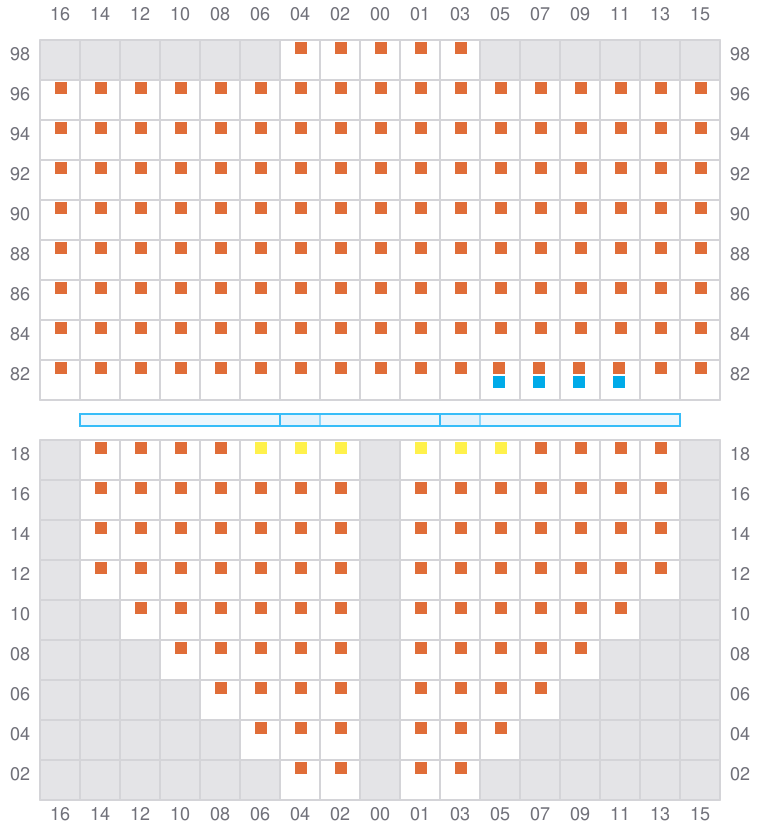

Bay 019 view and slots of SKAGEN MAERSK

021 (022)

  • →
Bay 021 view and slots of SKAGEN MAERSK

023

  • ←
  • → / ?
Bay 023 view and slots of SKAGEN MAERSK

025 (026)

  • →

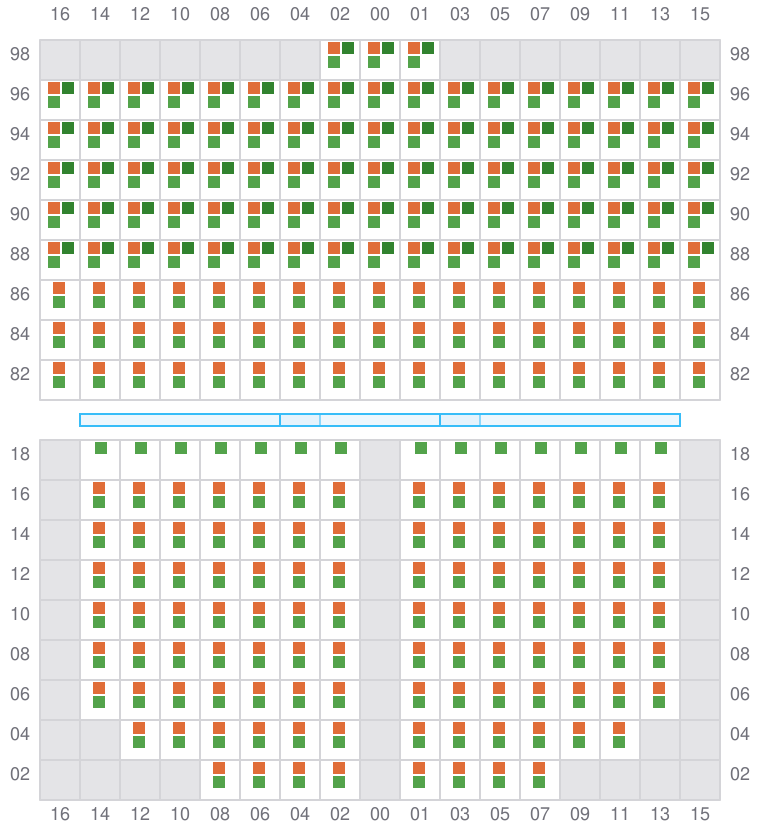

Bay 025 view and slots of SKAGEN MAERSK

027

  • ←

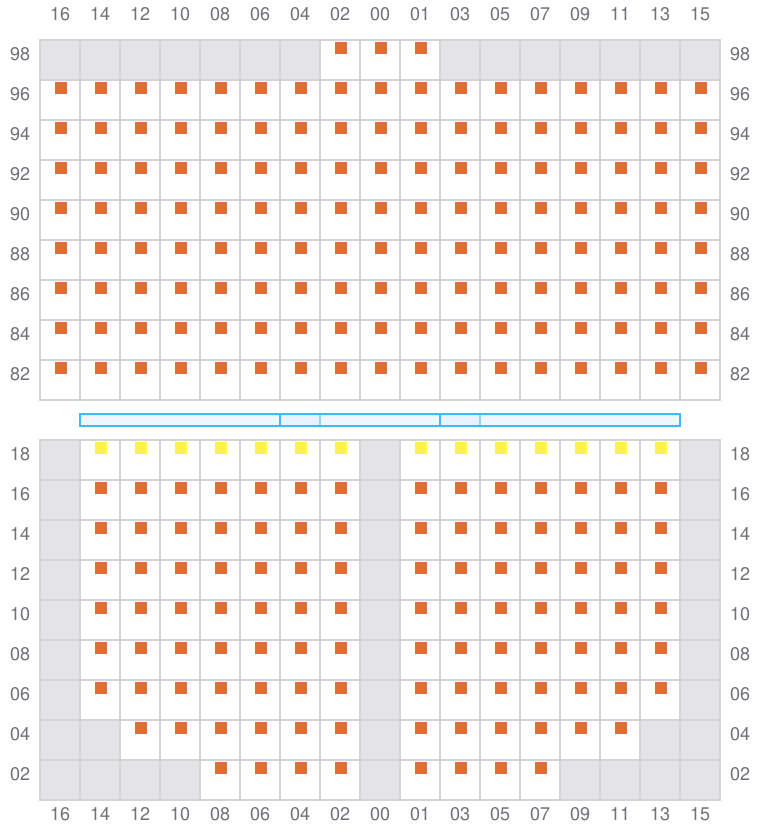

Bay 027 view and slots of SKAGEN MAERSK

029 (030)

  • →
  • ? / →

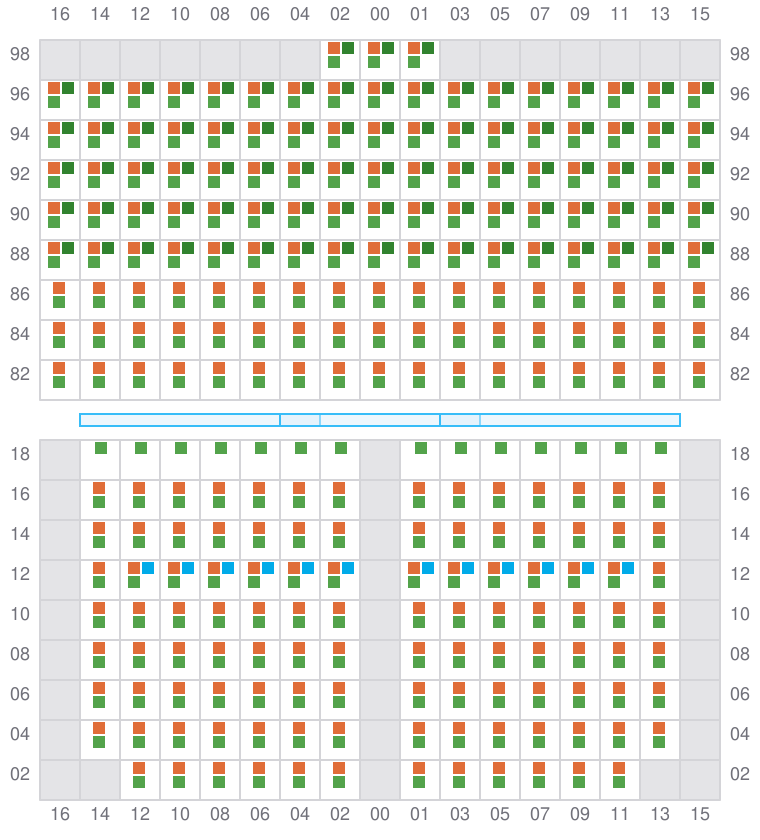

Bay 029 view and slots of SKAGEN MAERSK

031

  • ←
  • →
Bay 031 view and slots of SKAGEN MAERSK

033 (034)

  • →

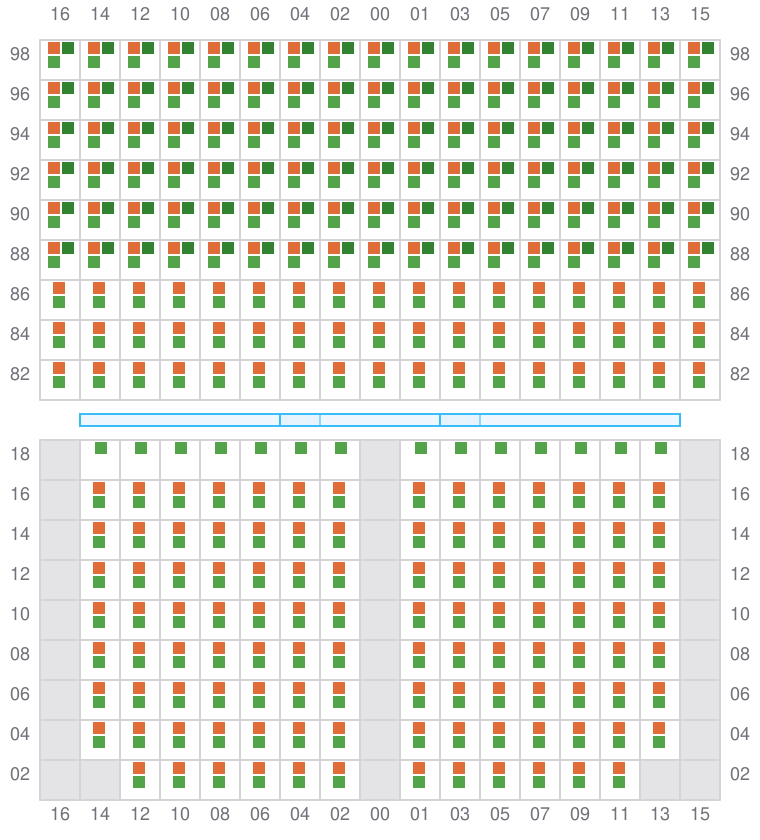

Bay 033 view and slots of SKAGEN MAERSK

035

  • ←
Bay 035 view and slots of SKAGEN MAERSK

037 (038)

  • →
  • ? / →
Bay 037 view and slots of SKAGEN MAERSK

039

  • ←
  • →
Bay 039 view and slots of SKAGEN MAERSK

041 (042)

  • →
Bay 041 view and slots of SKAGEN MAERSK

043

  • ←
Bay 043 view and slots of SKAGEN MAERSK

045 (046)

  • →
  • ? / →
Bay 045 view and slots of SKAGEN MAERSK

047

  • ←
  • →

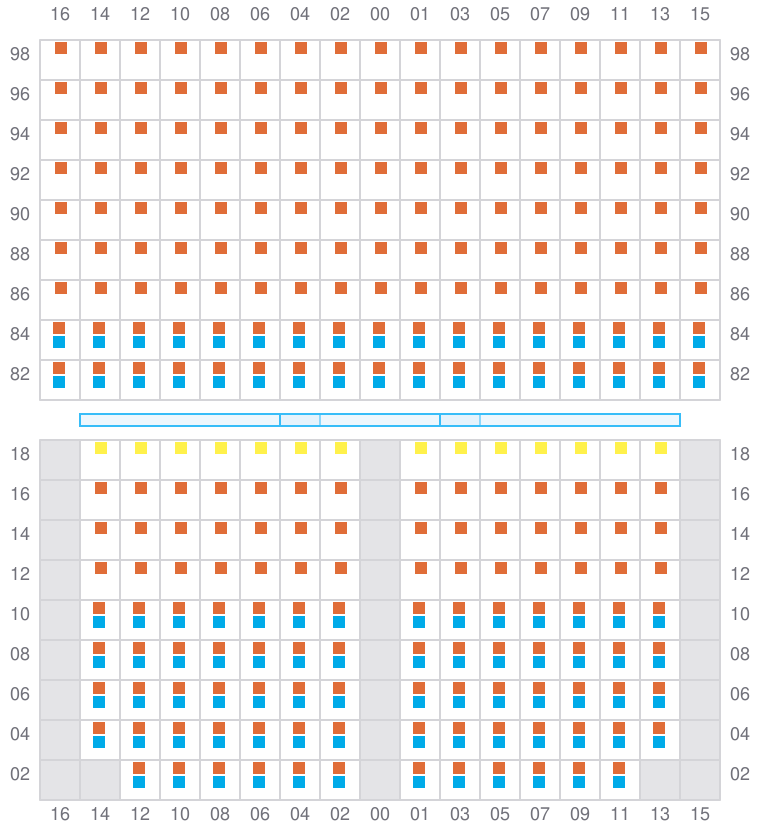

Bay 047 view and slots of SKAGEN MAERSK

049 (050)

  • →

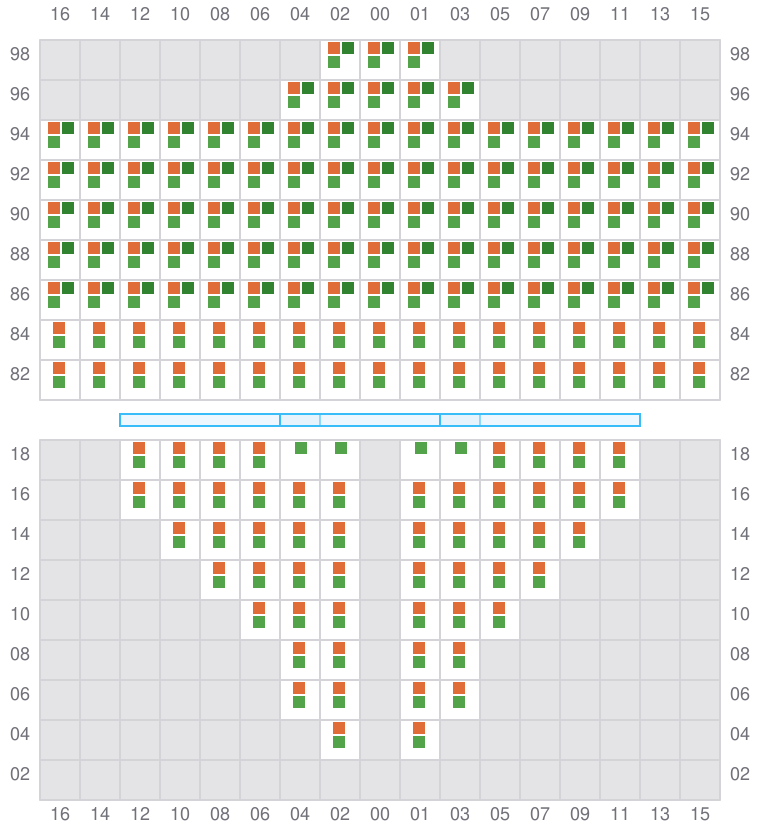

Bay 049 view and slots of SKAGEN MAERSK

051

  • ←

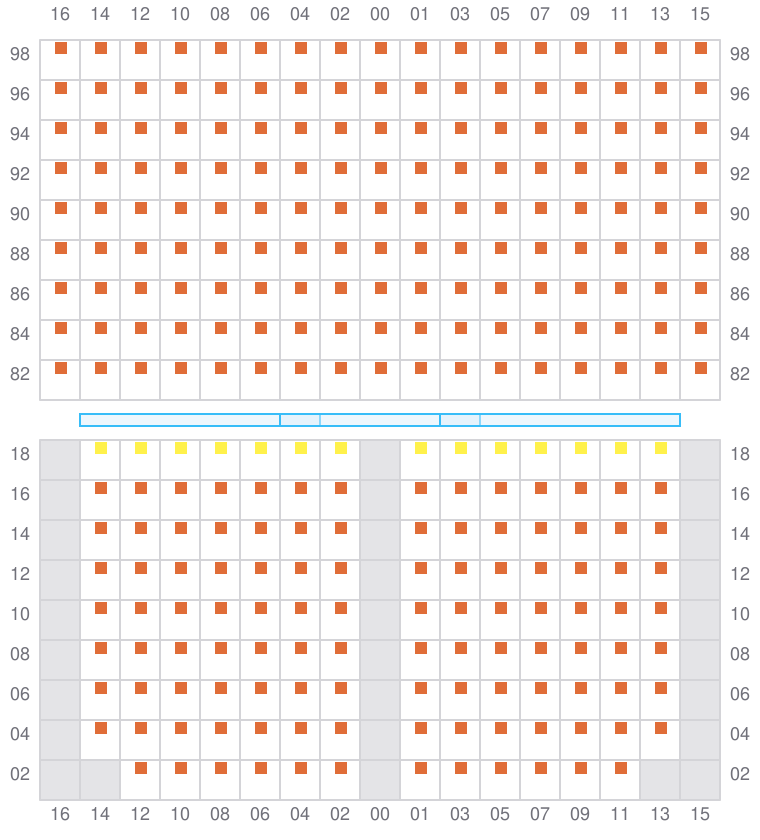

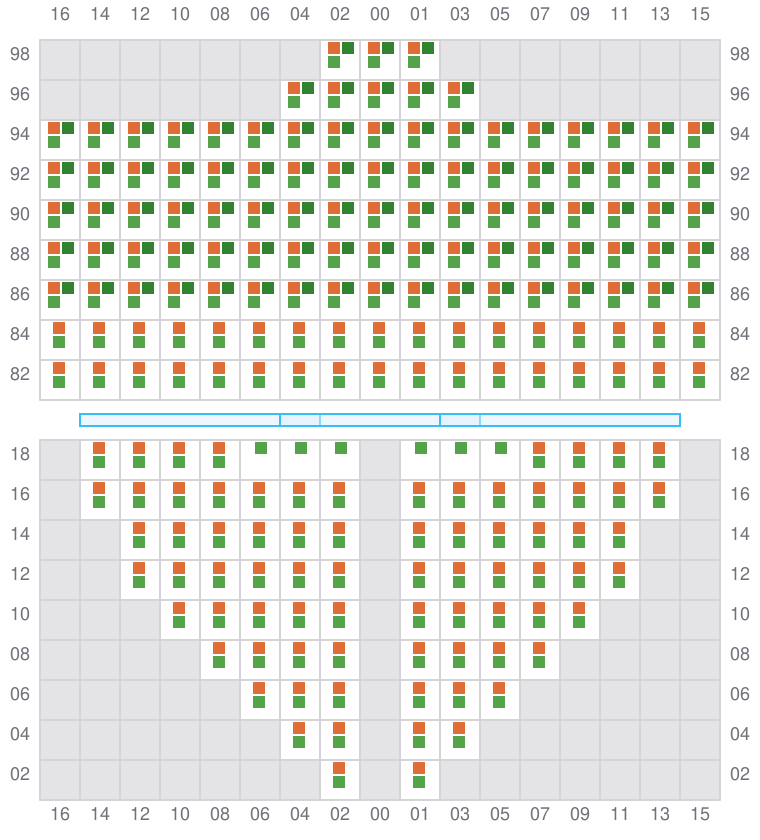

Bay 051 view and slots of SKAGEN MAERSK

053 (054)

  • →
  • ? / →

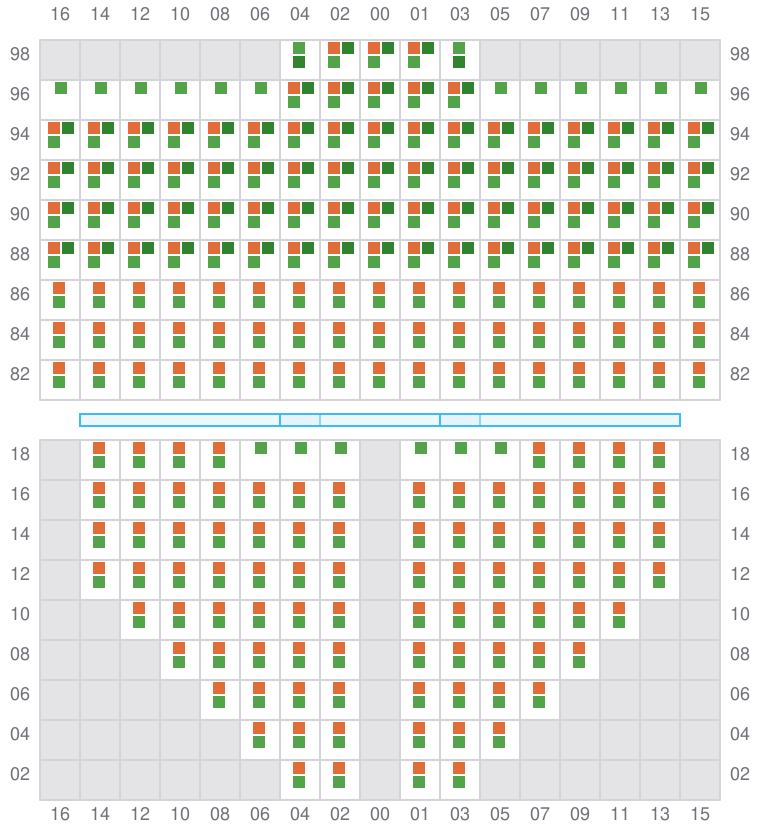

Bay 053 view and slots of SKAGEN MAERSK

055

  • ←
  • →

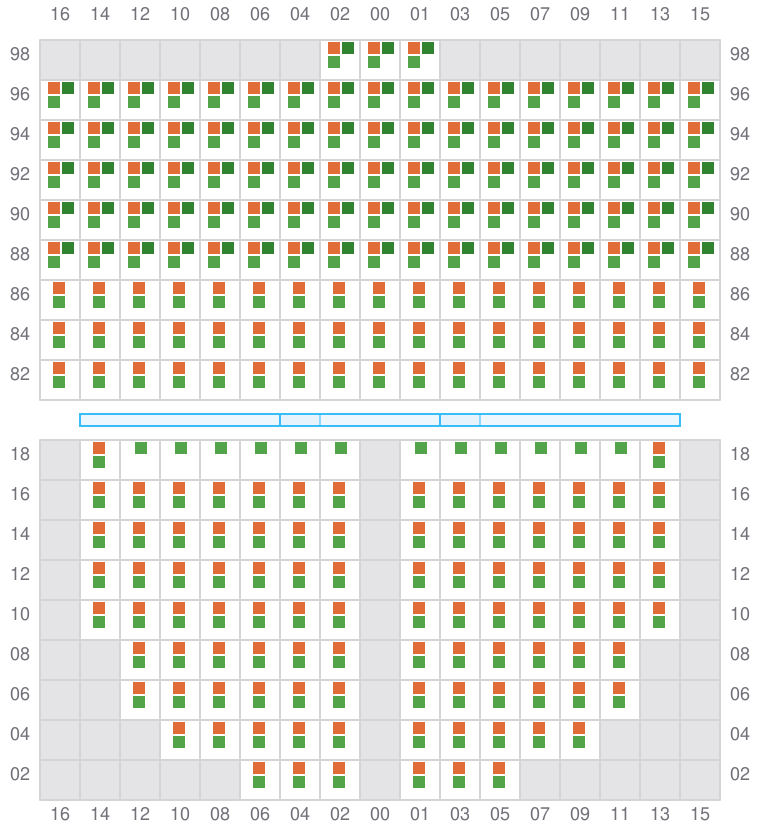

Bay 055 view and slots of SKAGEN MAERSK

057 (058)

  • →
  • → / ?
Bay 057 view and slots of SKAGEN MAERSK

059

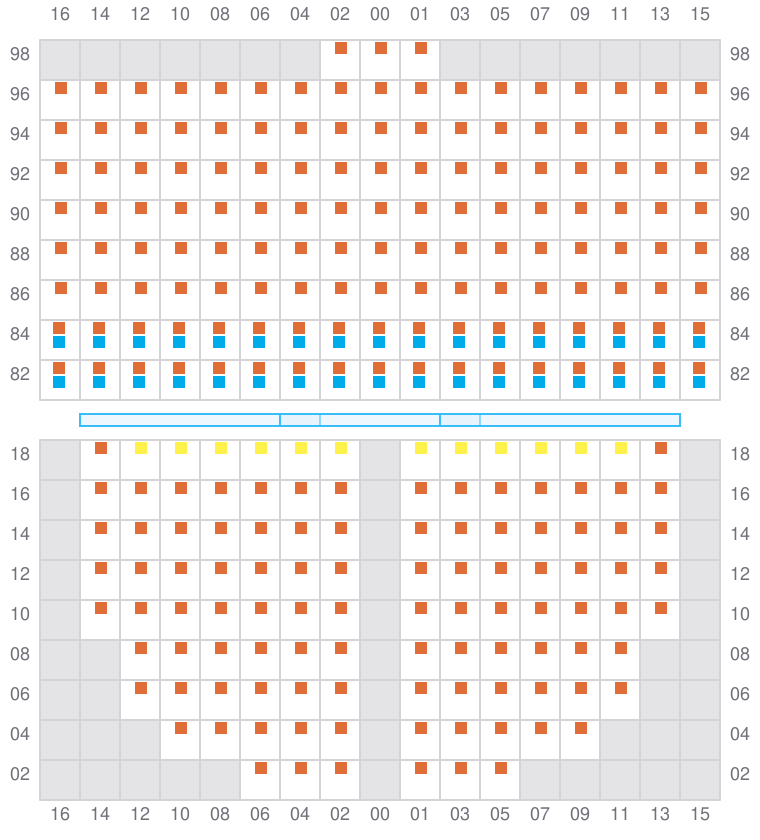

Bay 059 view and slots of SKAGEN MAERSK

061 (062)

  • →
  • ← / ?
Bay 061 view and slots of SKAGEN MAERSK

063

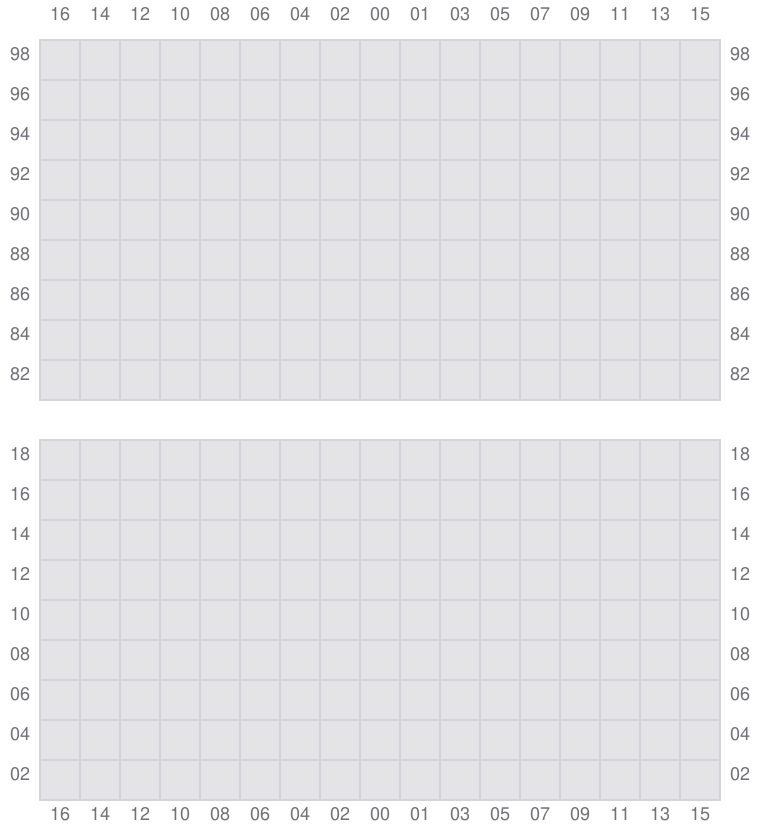

Bay 063 view and slots of SKAGEN MAERSK

065 (066)

  • →
  • ← / →

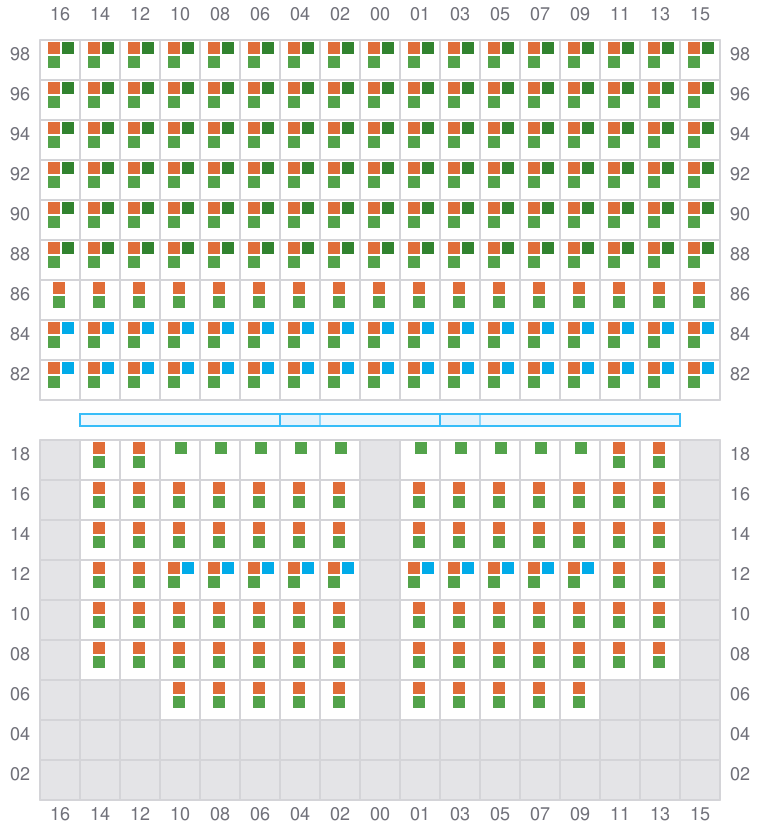

Bay 065 view and slots of SKAGEN MAERSK

067

  • ←
  • ? / →

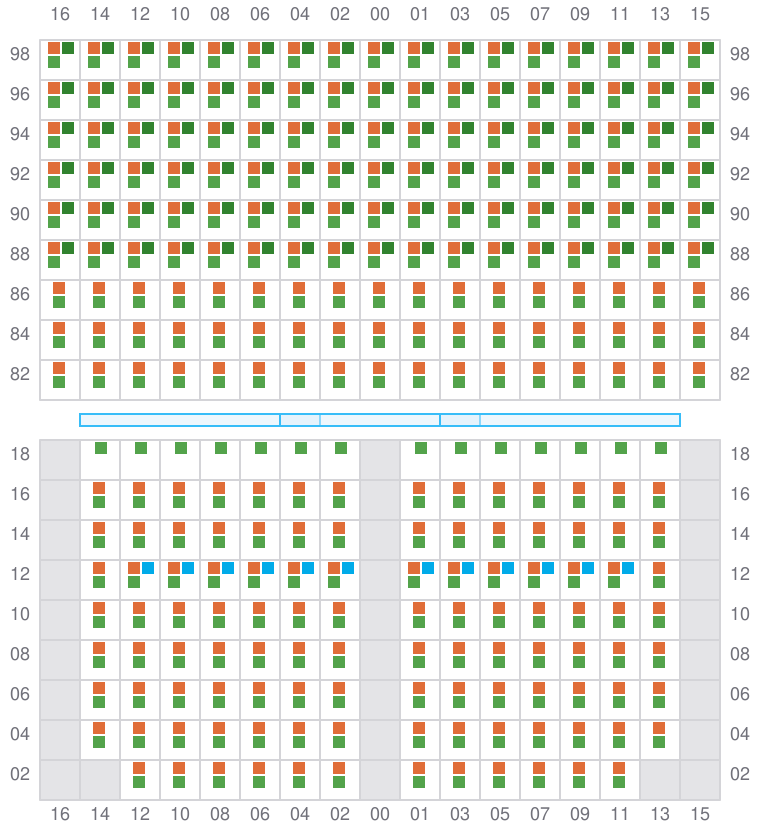

Bay 067 view and slots of SKAGEN MAERSK

069 (070)

  • →
  • ← / ?
Bay 069 view and slots of SKAGEN MAERSK

071

  • ←

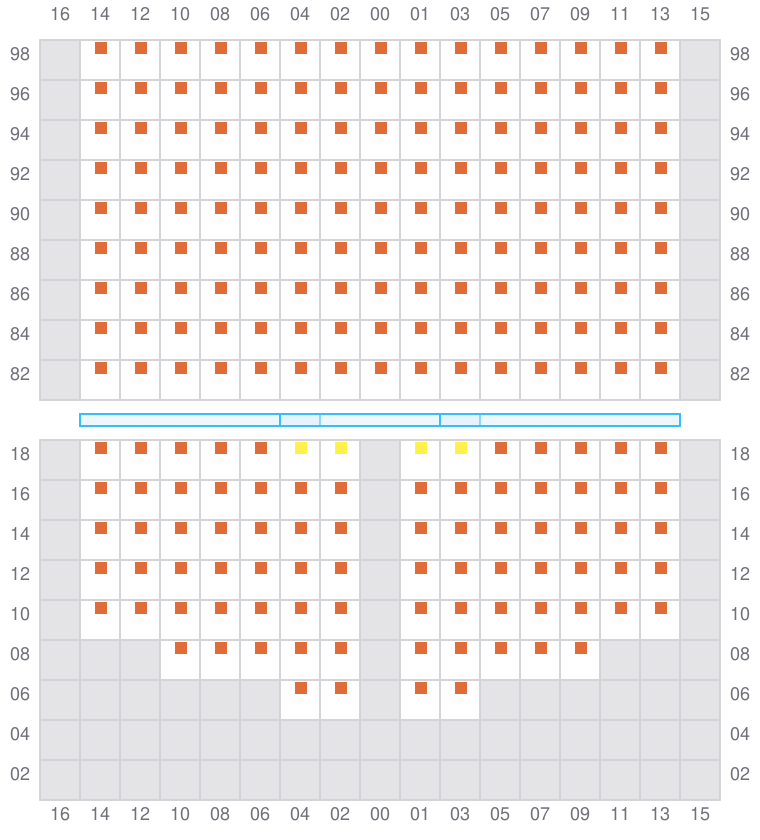

Bay 071 view and slots of SKAGEN MAERSK

073 (074)

  • →
  • ← / ?

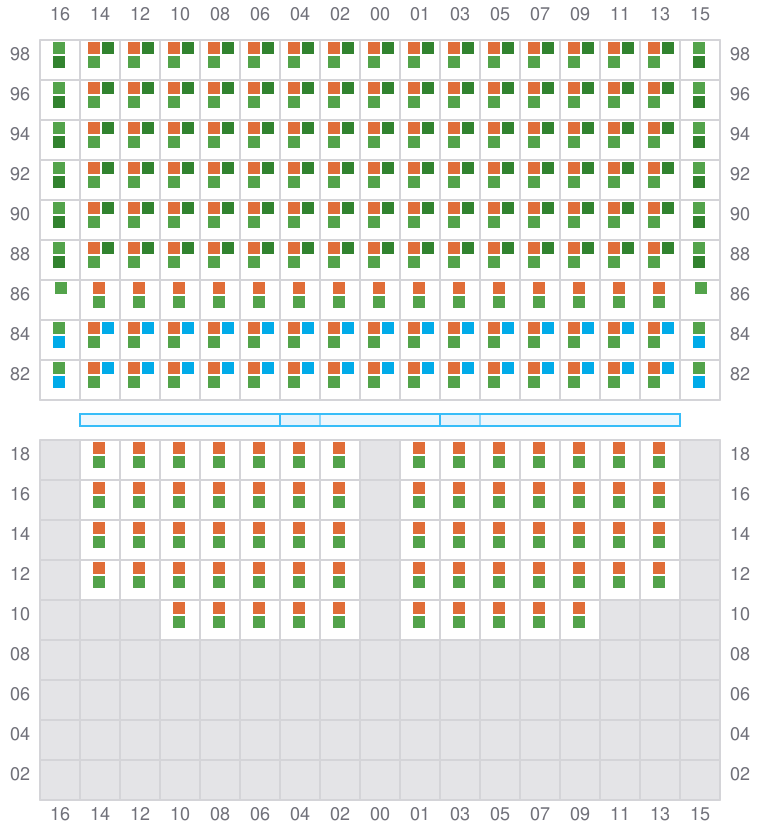

Bay 073 view and slots of SKAGEN MAERSK

075

  • ←

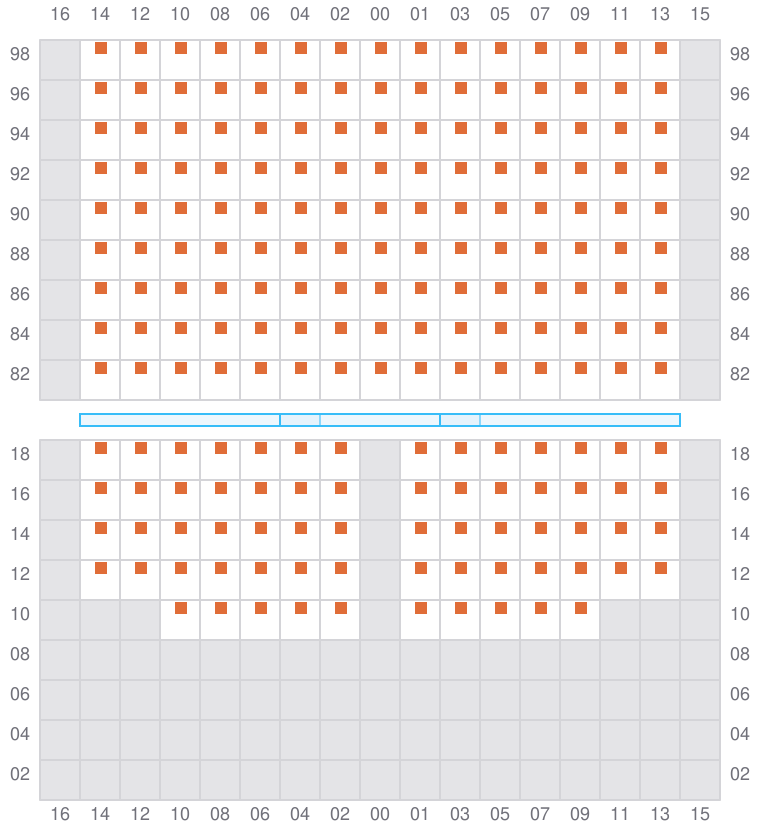

Bay 075 view and slots of SKAGEN MAERSK

077 (078)

  • →
  • ← / ?

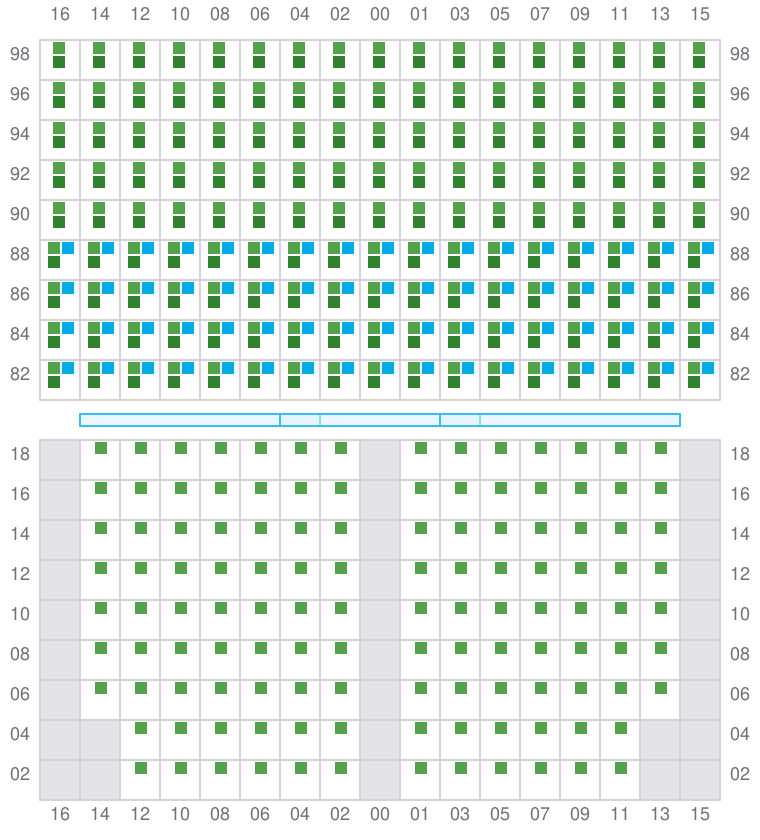

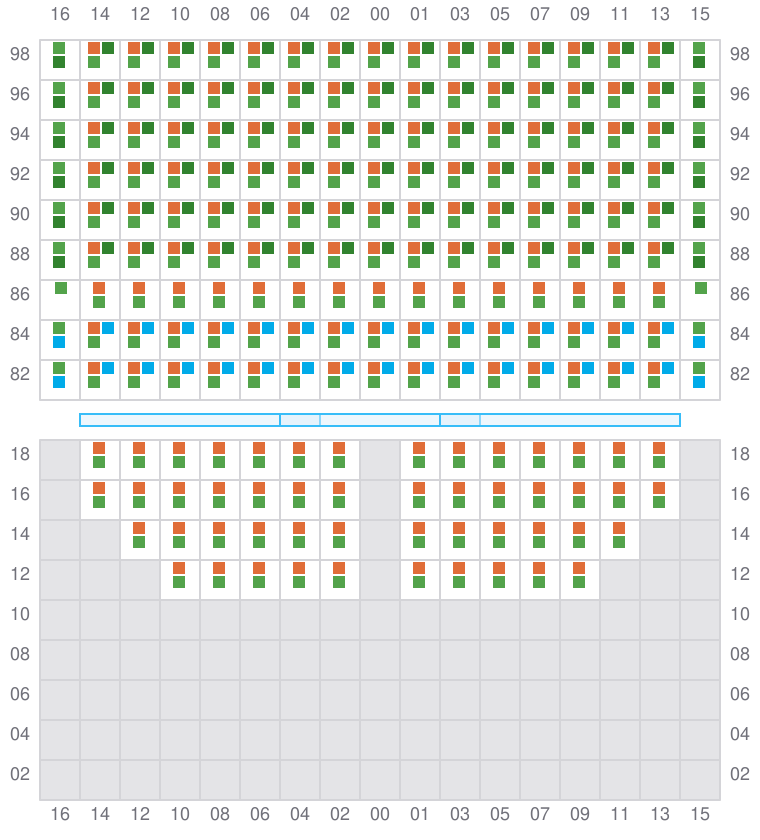

Bay 077 view and slots of SKAGEN MAERSK

079

  • ←

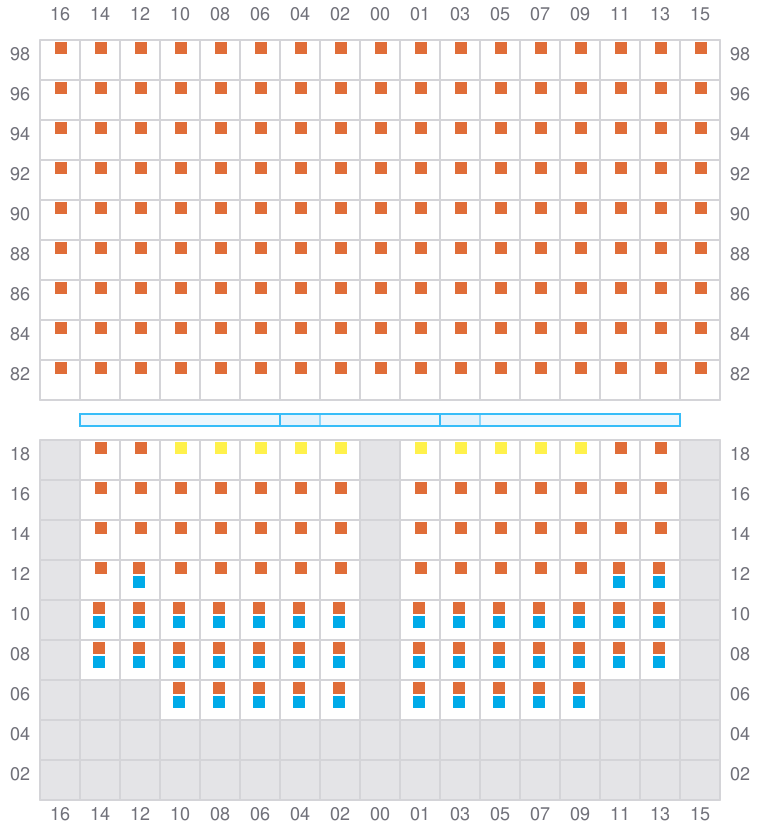

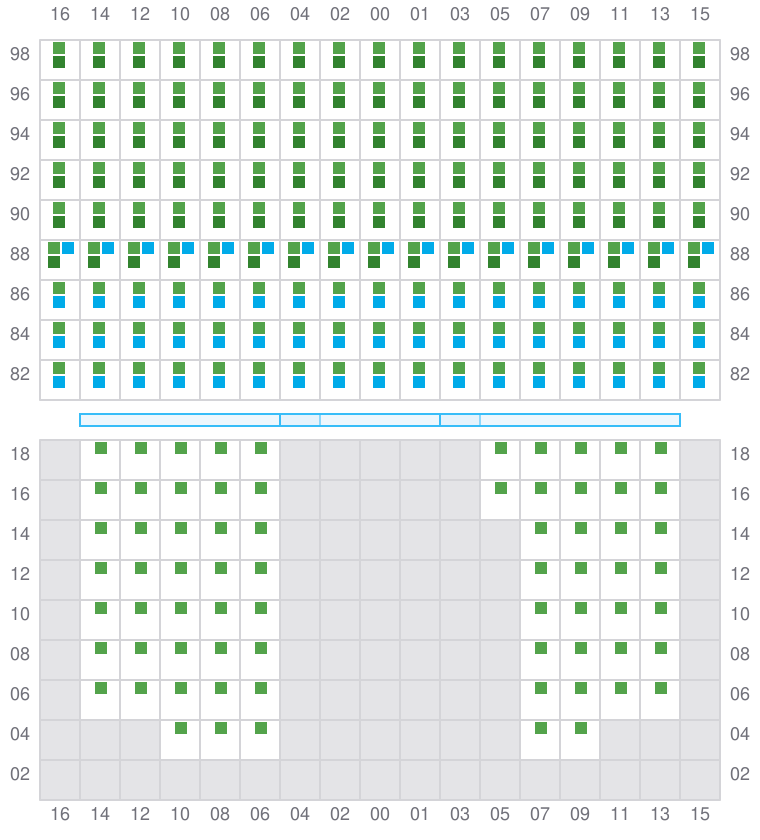

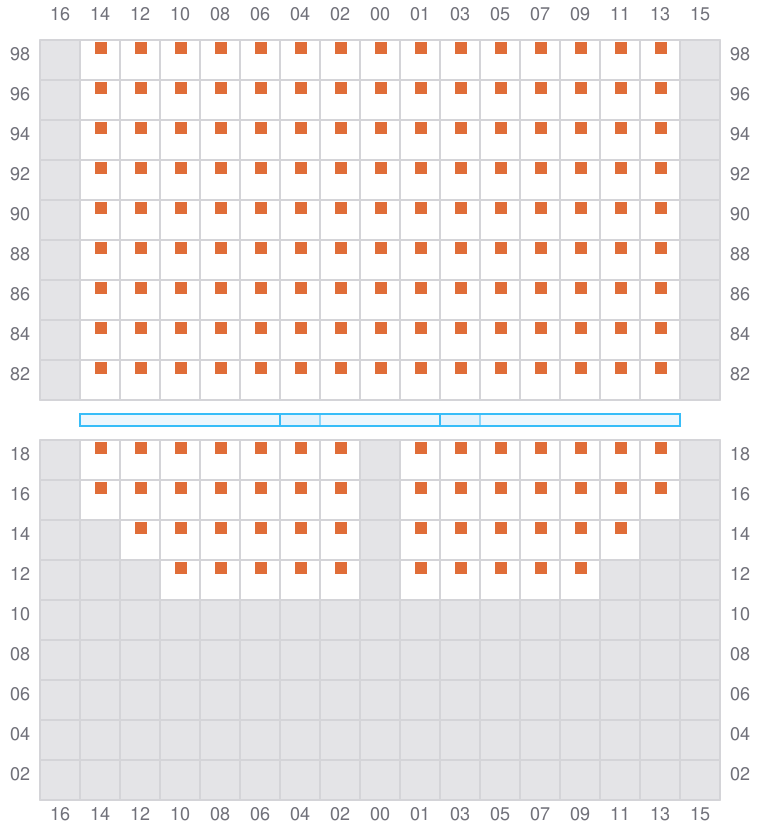

Bay 079 view and slots of SKAGEN MAERSK

081 (082)

  • → / ?

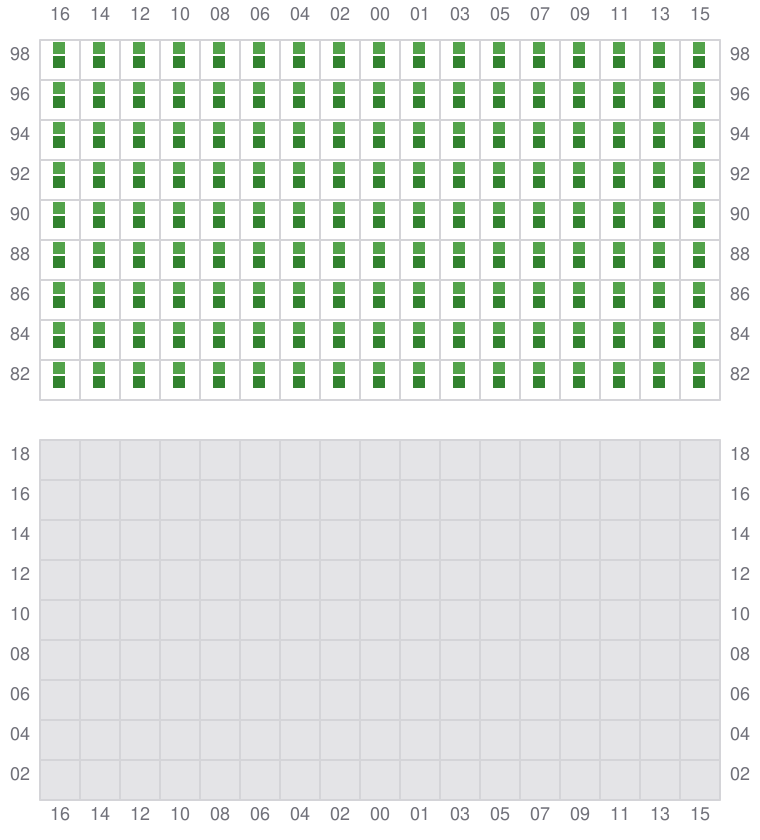

Bay 081 view and slots of SKAGEN MAERSK
