SKY LIGHT
9118513 | V3IY3 | 9118513 by ********* Last update: Thu Mar 07 2024
General Info
Ship Name:SKY LIGHT
IMO Code:9118513
Call Sign:V3IY3
Line Operator:9118513
Class Name for Sister Ships:8U4
Year Built:1996
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:035
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:1,184
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View

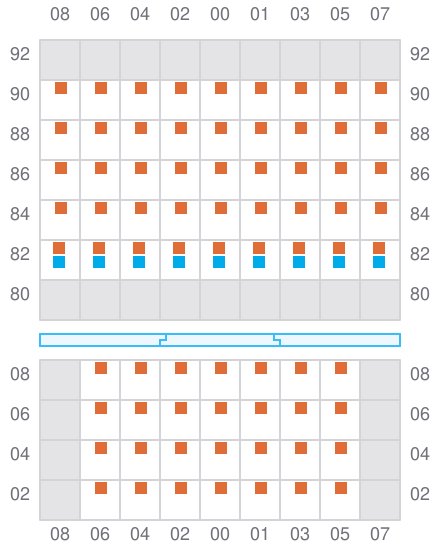

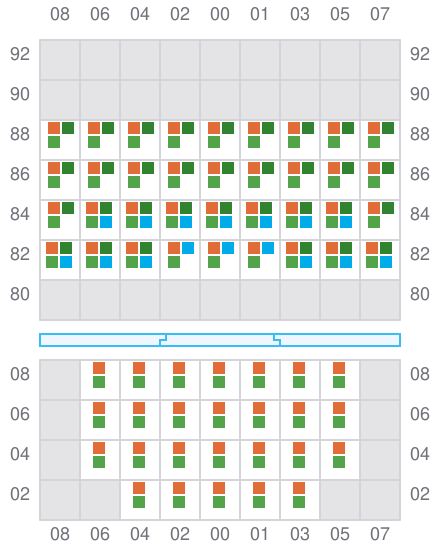

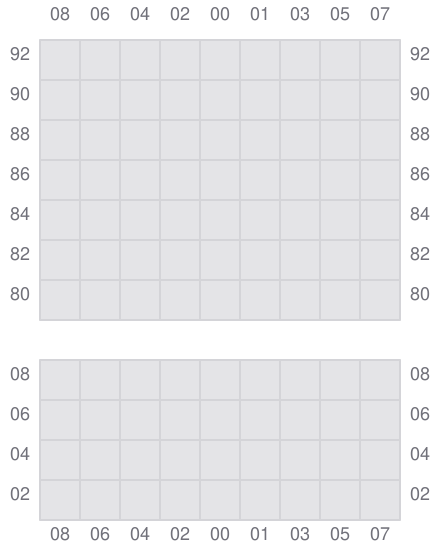

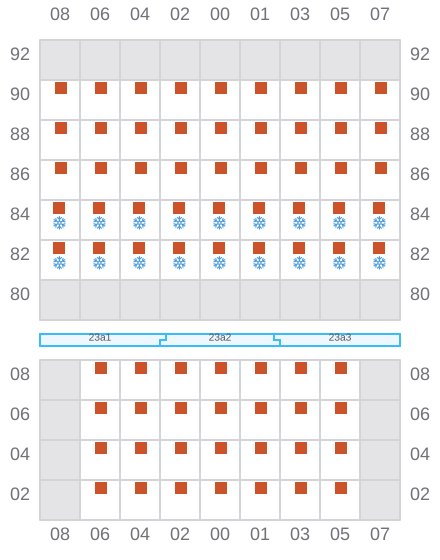

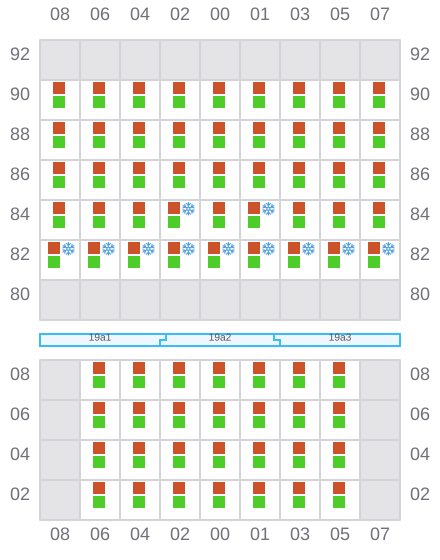

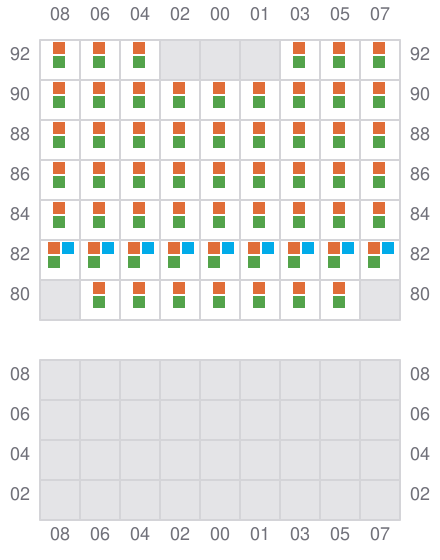

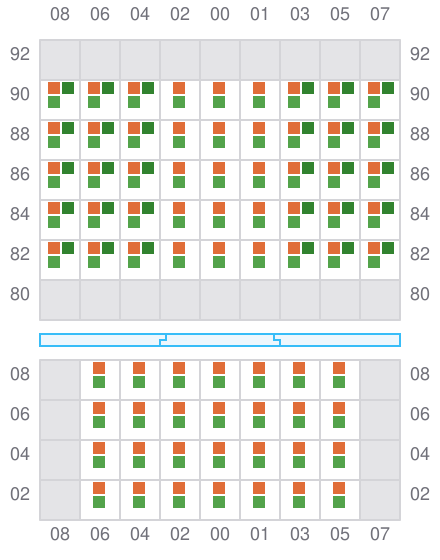

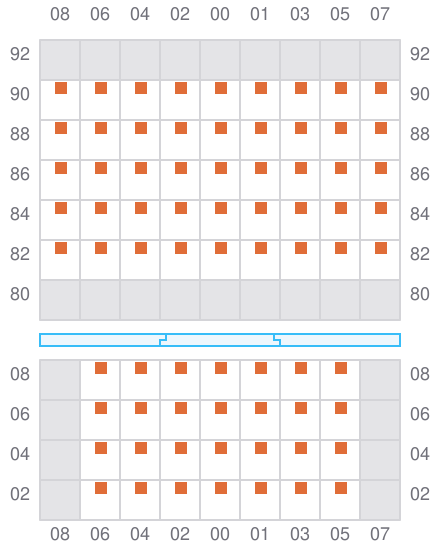

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- → / ?
003
- ← / ?
005 (006)
- → / ?
007
- ← / ?
- → / ?
009
011 (012)
- → / ?
- ← / ?
013
- ← / ?
- → / ?
015 (016)
- → / ?
017
- ← / ?
- → / ?
019 (020)
- → / ?
- ← / ?
021
- ← / ?
- ← / ?
023 (024)
- → / ?
025
- ← / ?
- → / ?
027
029 (030)
- → / ?
- ← / ?
031
- ← / ?
- → / ?
033 (034)
- → / ?
- ← / ?
035
- ← / ?
