SLS AZURE
9155377 | A8CF4 | 9155377 by ********* Last update: Thu Jun 20 2024
General Info
Ship Name:SLS AZURE
IMO Code:9155377
Call Sign:A8CF4
Line Operator:9155377
Class Name for Sister Ships:MCC
Year Built:2000
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:035
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:1,740
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View

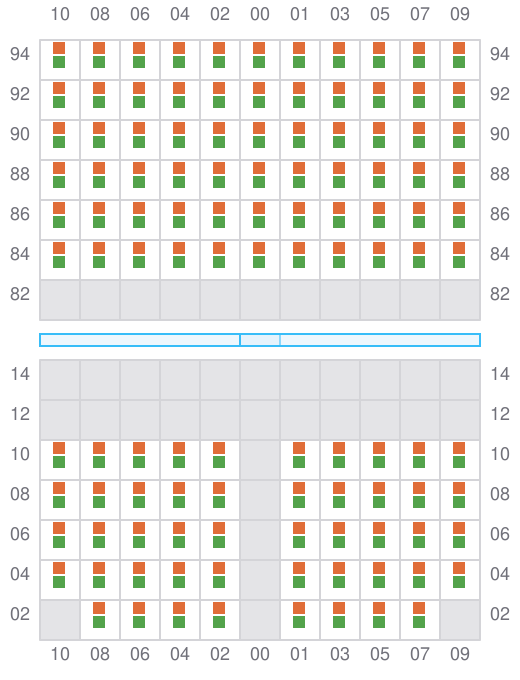

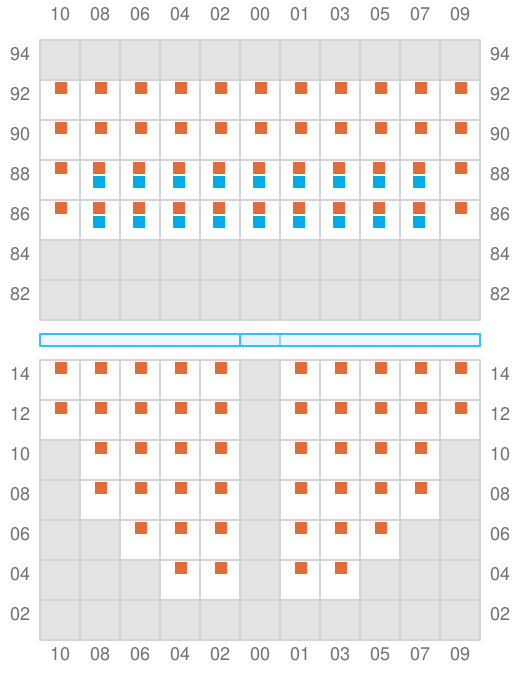

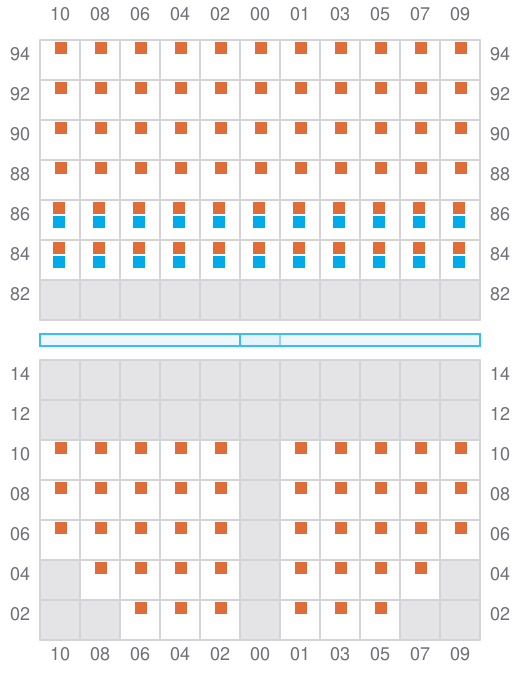

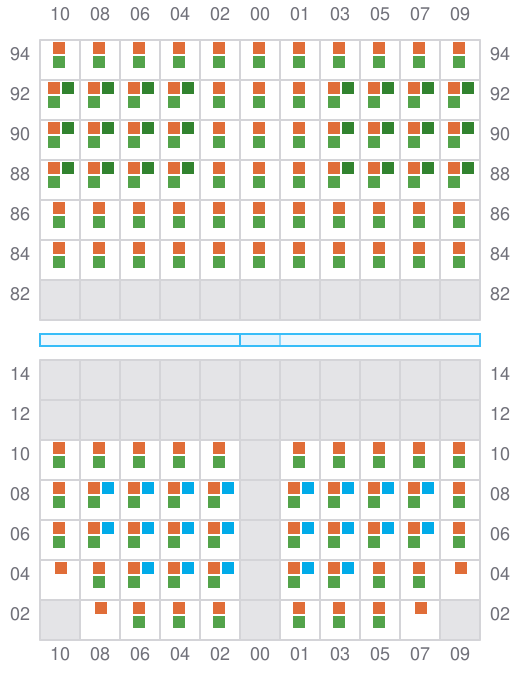

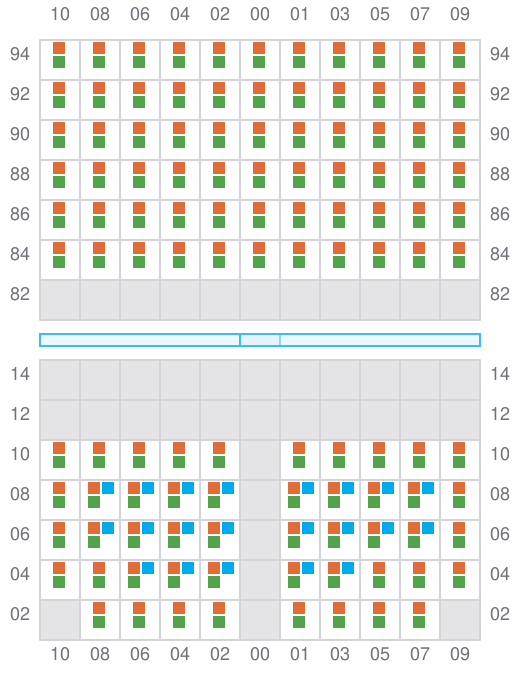

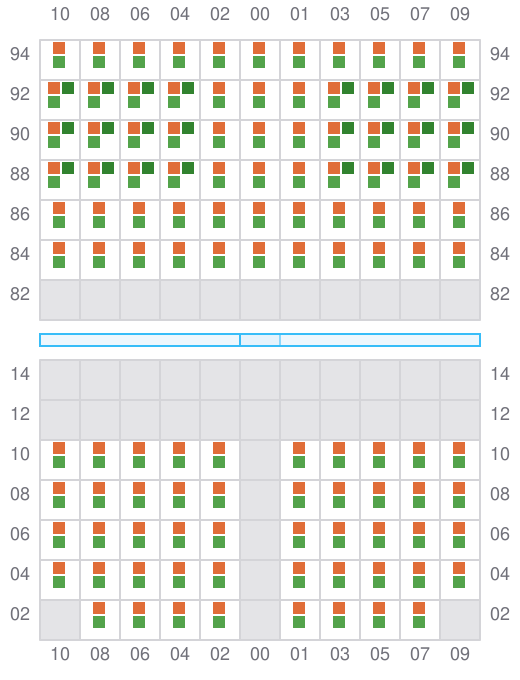

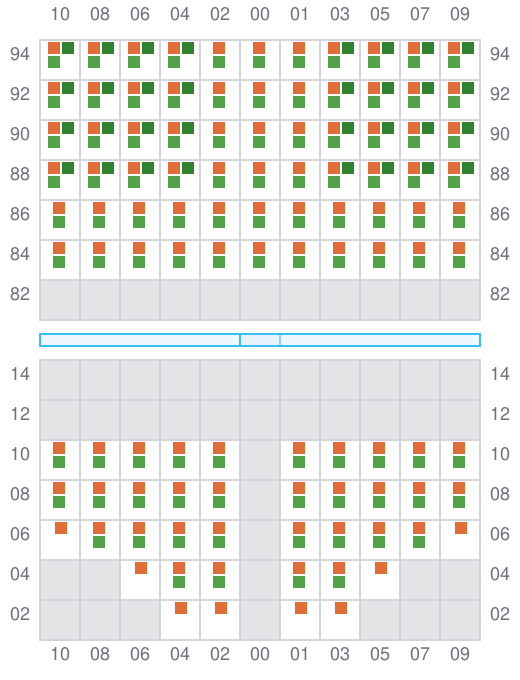

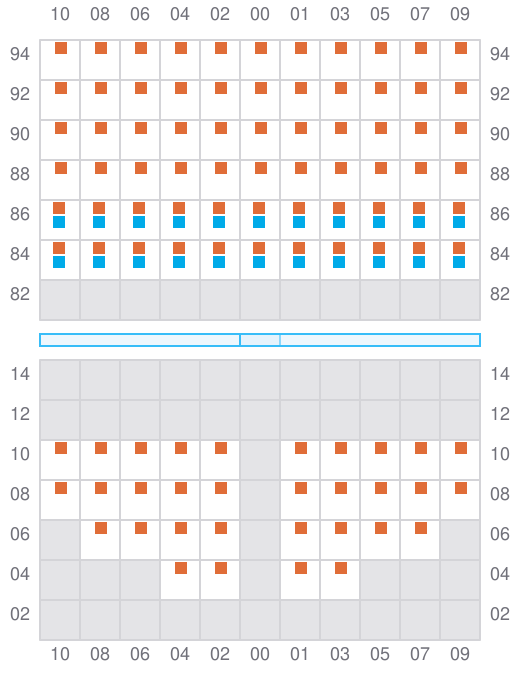

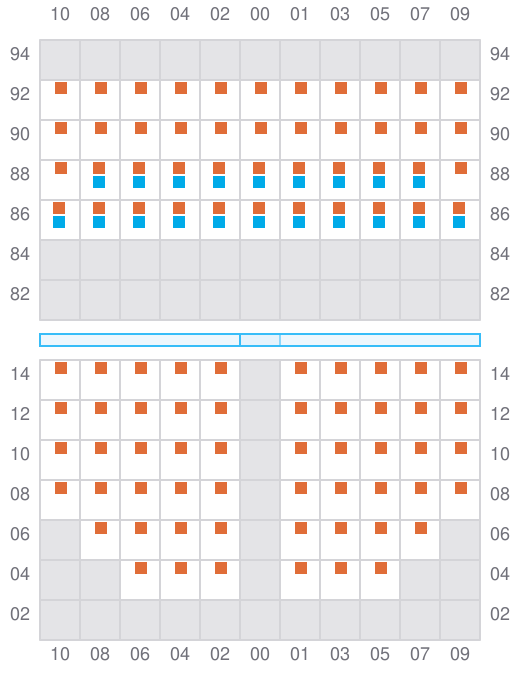

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
003
- ←
- → / ?
005 (006)
- →
007
- ←
- → / ?
009 (010)
- →
011
- ←
- → / ?
013 (014)
- →
015
- ←
- →
017 (018)
- →
- ? / ←
019
- ←
- →
021 (022)
- →
023
- ←
- →
025 (026)
- →
- ? / ←
027
- ←
- →
029 (030)
- →
031
- ←
- → / ?
033 (034)
- → / ?
035
- ← / ?
- → / ?
