SLUISGRACHT
9202522 | PFBE | 9202522 by ********* Last update: Fri Jun 21 2024
General Info
Ship Name:SLUISGRACHT
IMO Code:9202522
Call Sign:PFBE
Line Operator:9202522
Class Name for Sister Ships:HAP
Year Built:2001
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:041
Max ISO Row:10
Center Line Row:No
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:-
Min Below ISO Tier:-
Total TEU:660
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

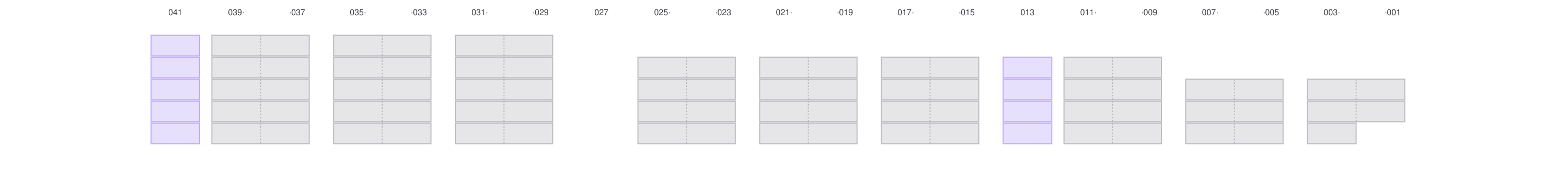

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

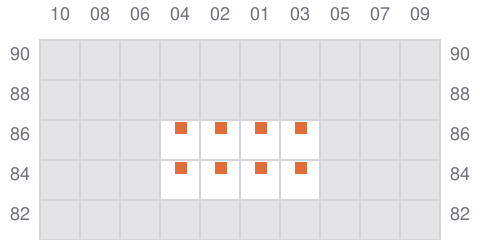

001
- → /
003 (002)
- ← /

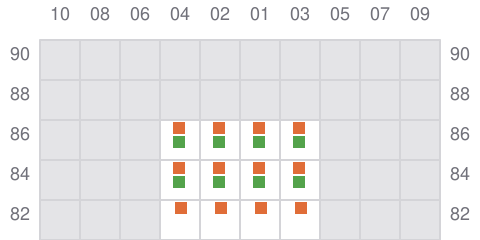

005
- → /

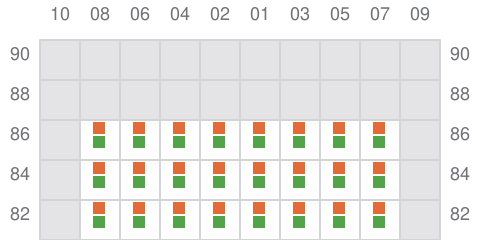

007 (006)
- ← /
009
- → /

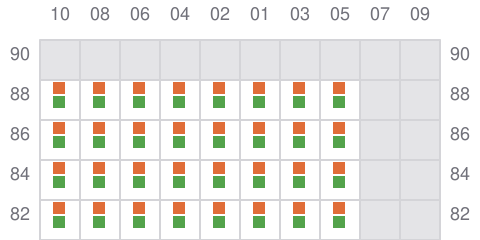

011 (010)
- ← /

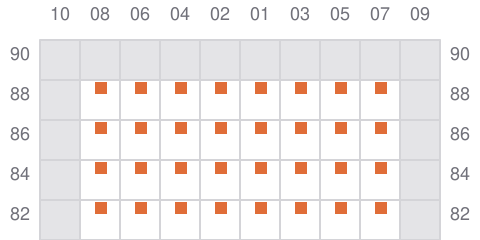

013

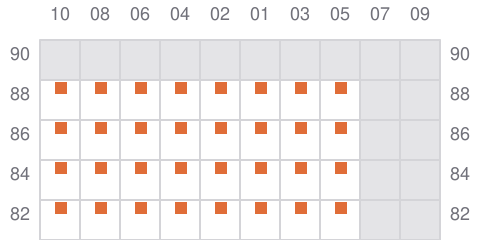

015
- → /
017 (016)
- ← /
019
- → /
021 (020)
- ← /

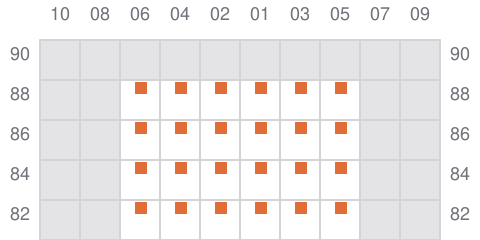

023
- → /

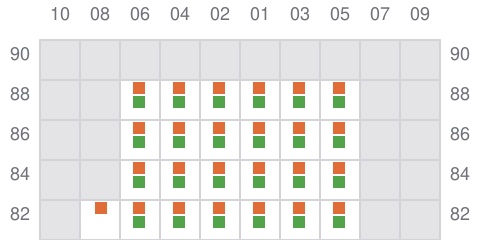

025 (024)
- ← /

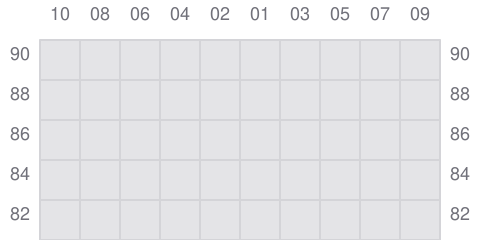

027

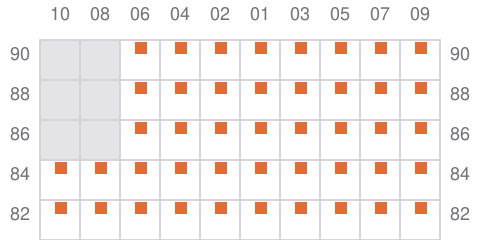

029
- → /

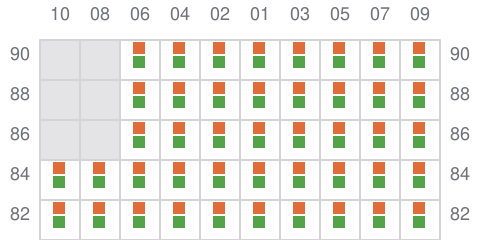

031 (030)
- ← /

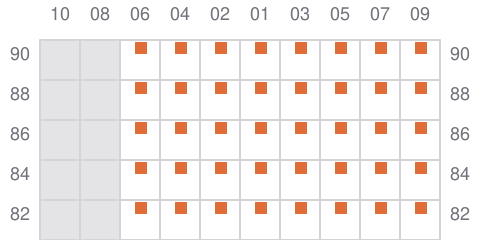

033
- → /
035 (034)
- ← /

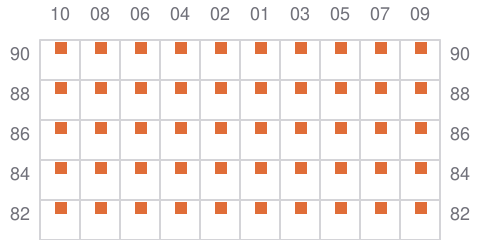

037
- → /

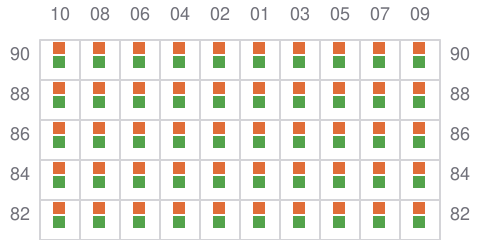

039 (038)
- ← /
041
