SM KAVERI
9236042 | VTID | 9236042 by ********* Last update: Thu Jul 18 2024
General Info
Ship Name:SM KAVERI
IMO Code:9236042
Call Sign:VTID
Line Operator:9236042
Class Name for Sister Ships:CGM
Year Built:2003
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:045
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,689
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

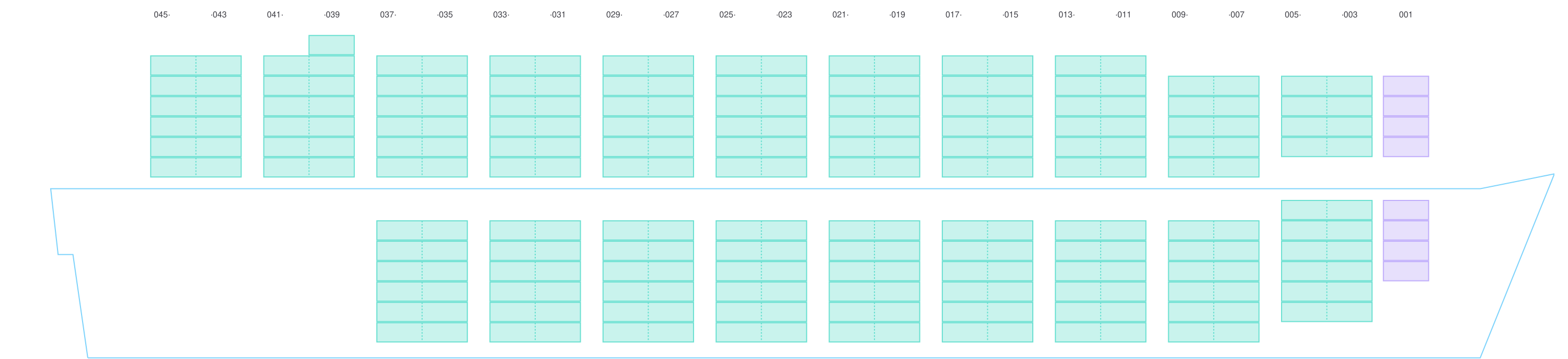

Side View

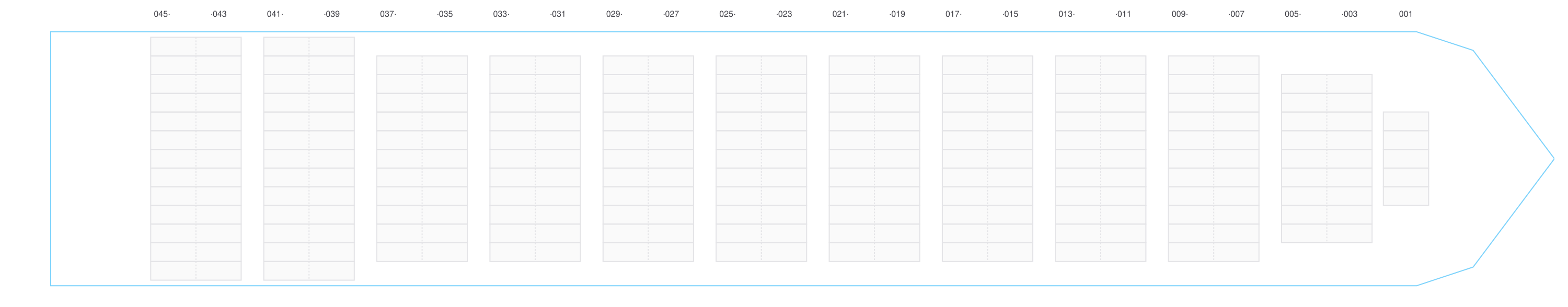

Hatch-Covers View

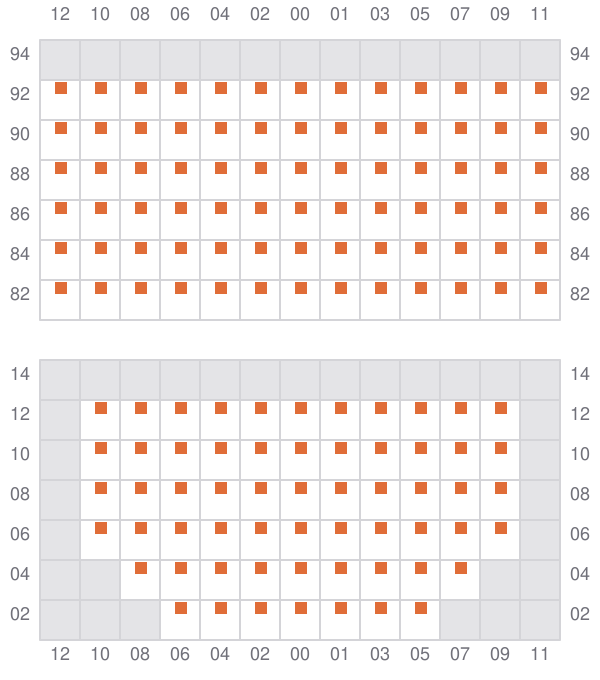

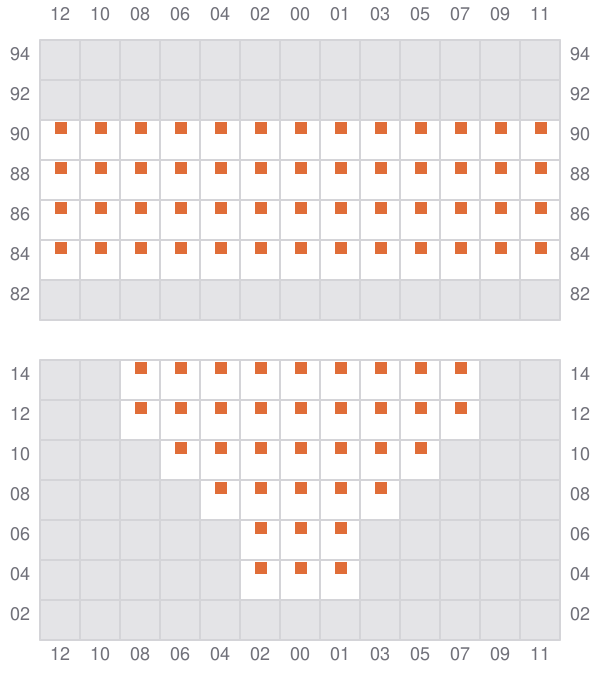

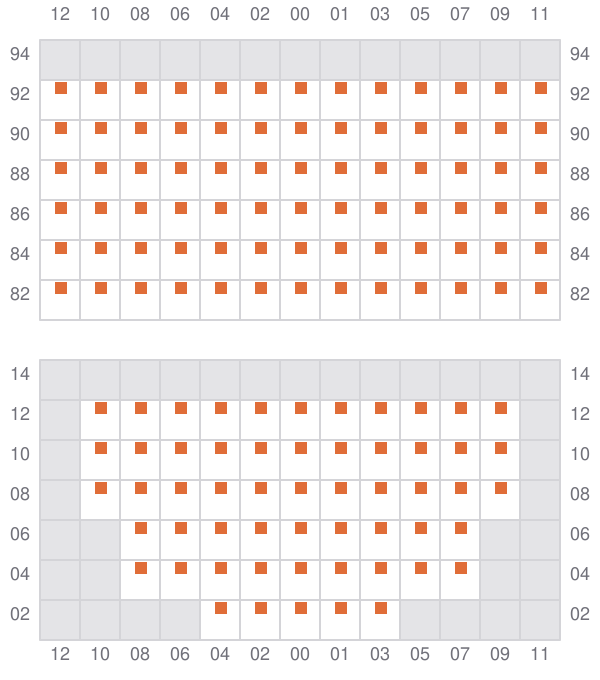

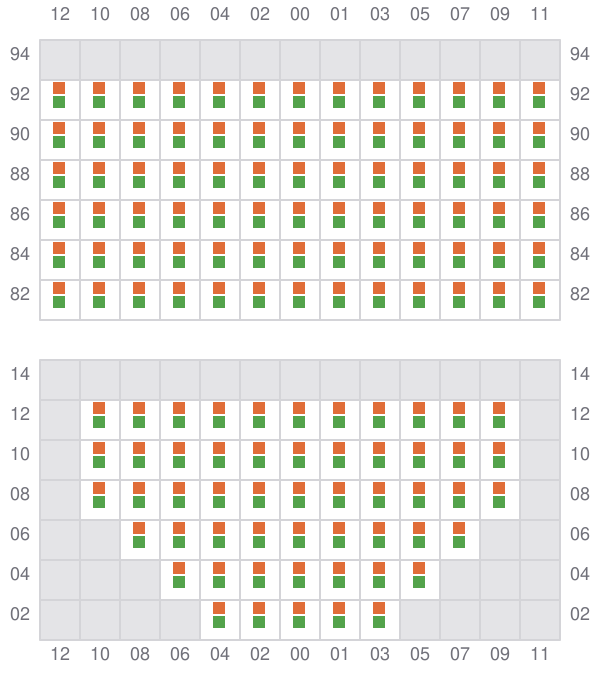

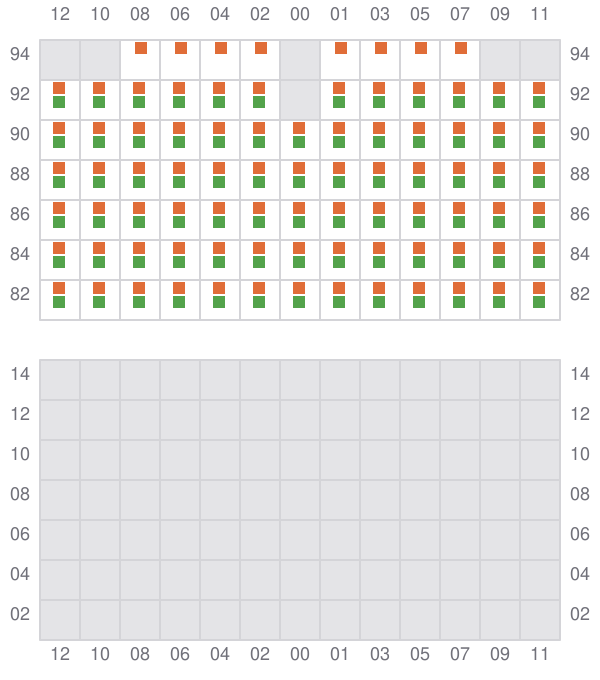

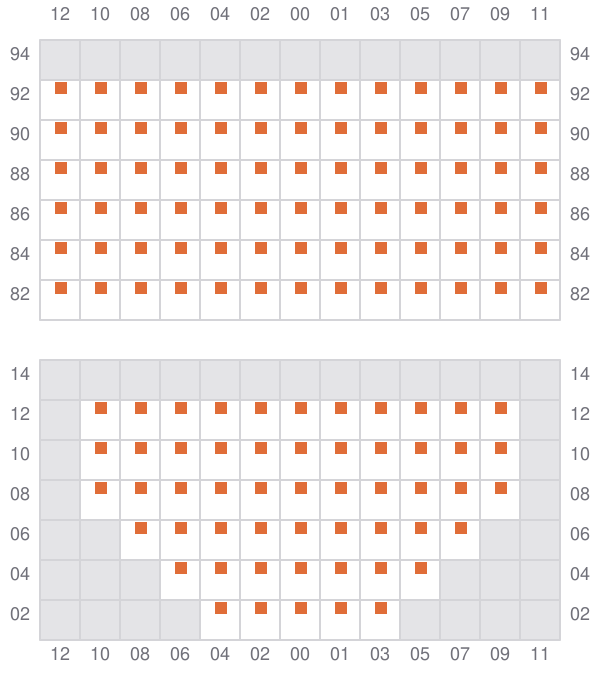

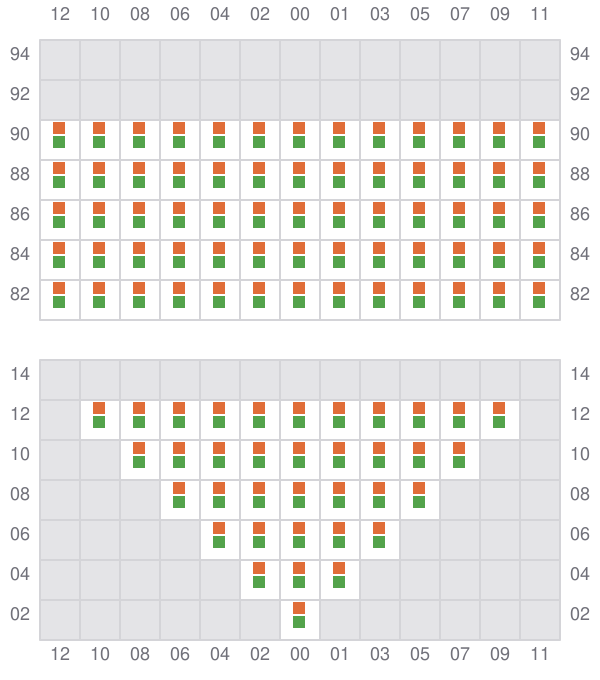

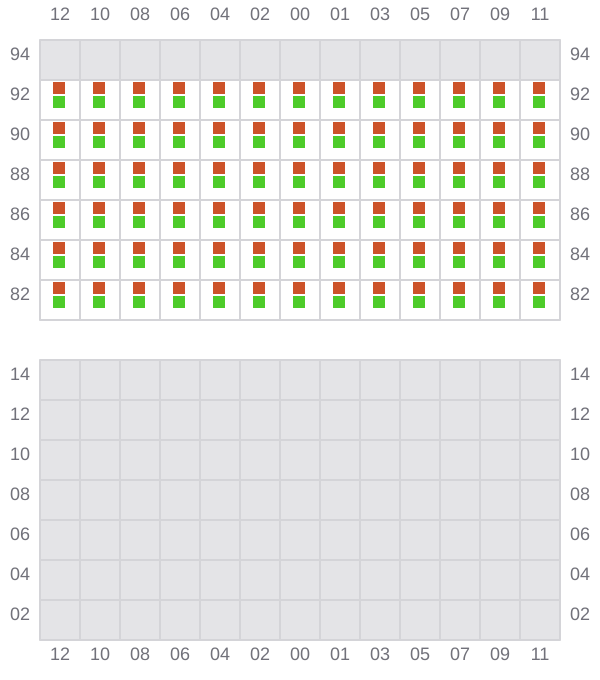

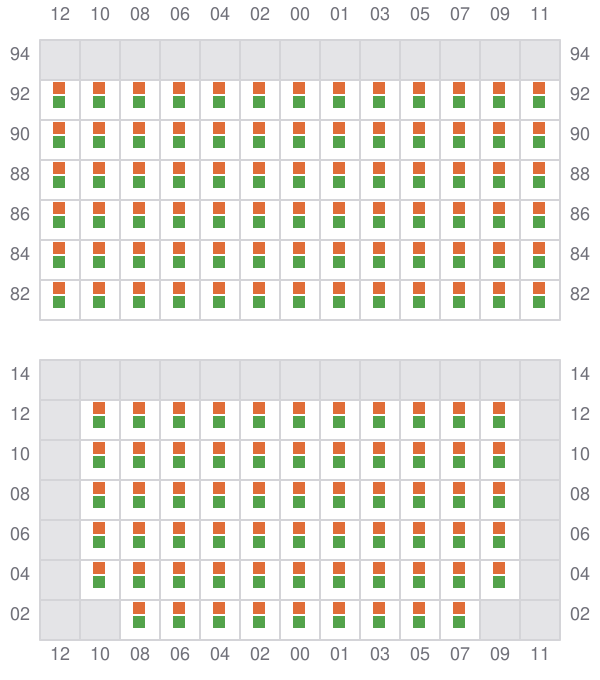

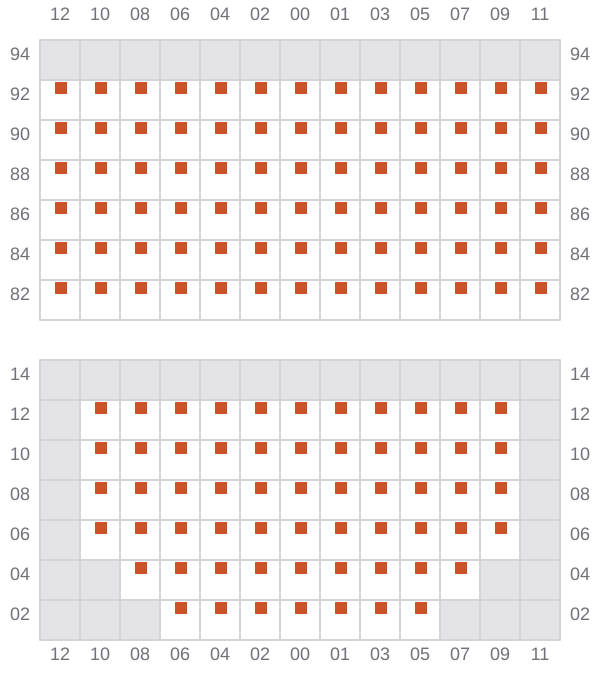

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

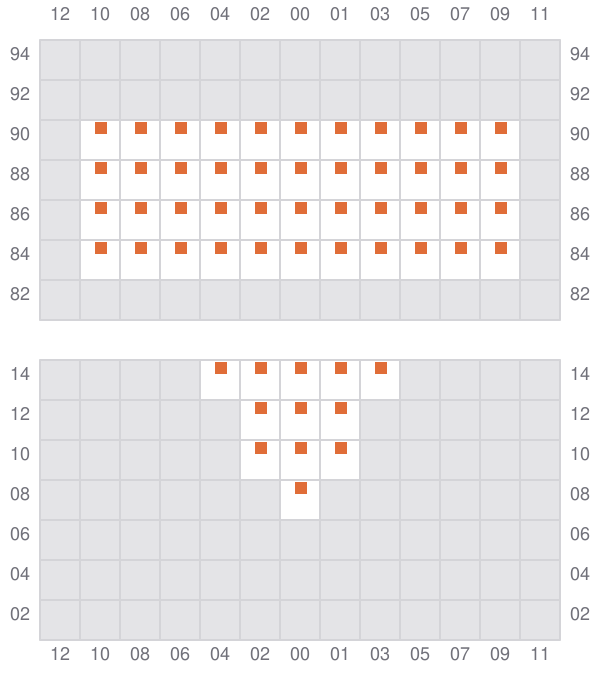

001

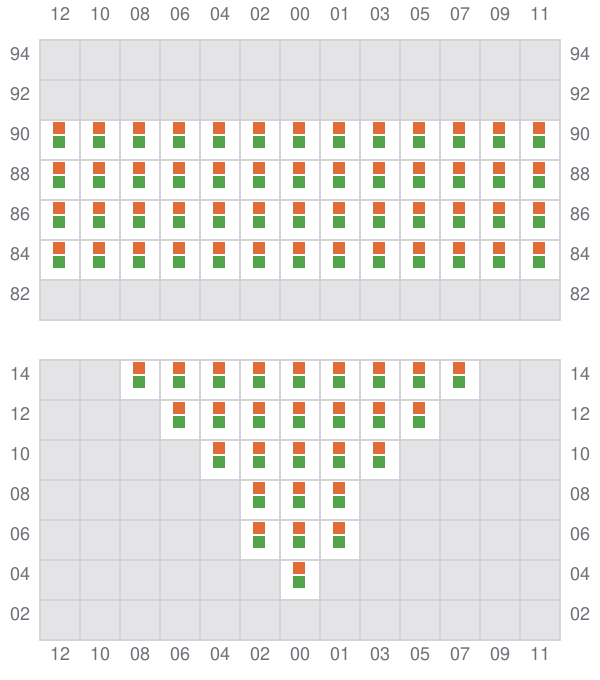

003 (004)
- →
005
- ←
007 (008)
- →
009
- ←
011 (012)
- →
013
- ←

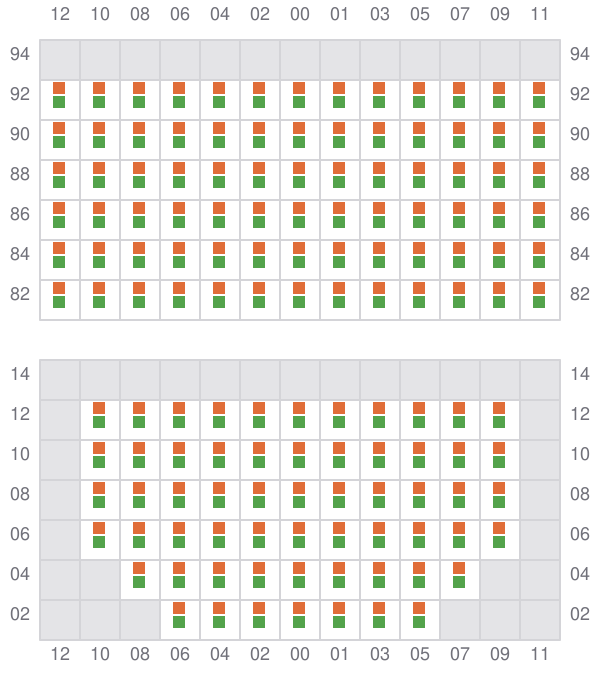

015 (016)
- →
017
- ←

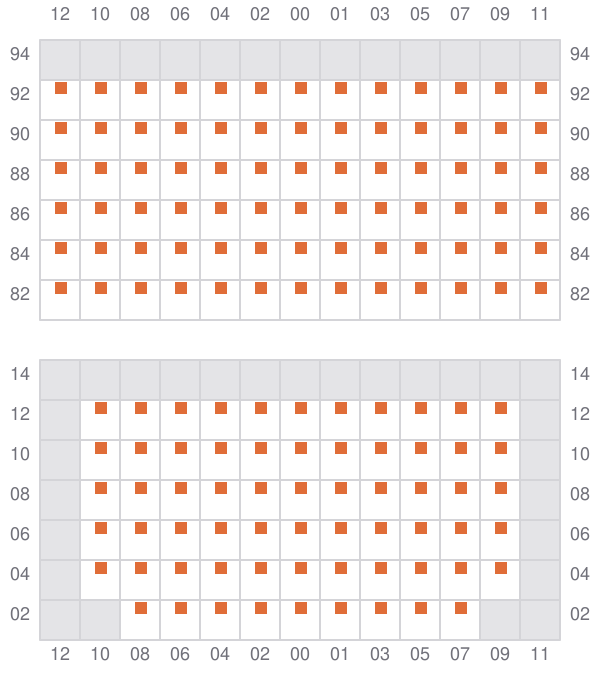

019 (020)
- →

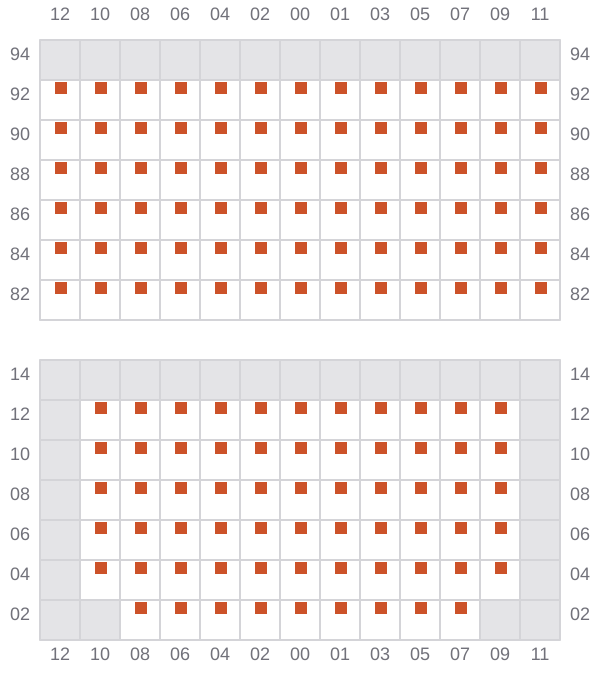

021
- ←
023 (024)
- →
025
- ←
027 (028)
- →

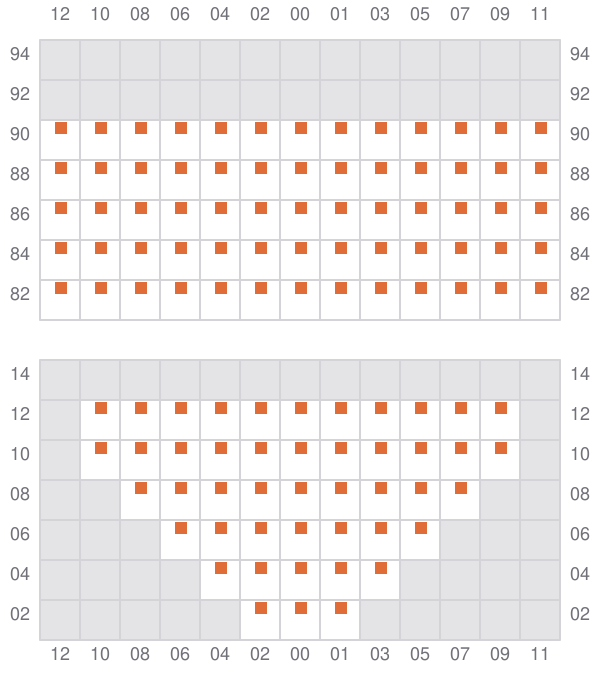

029
- ←
031 (032)
- →
033
- ←
035 (036)
- →
037
- ←
039 (040)
- → / ?
041
- ← / ?
043 (044)
- → / ?

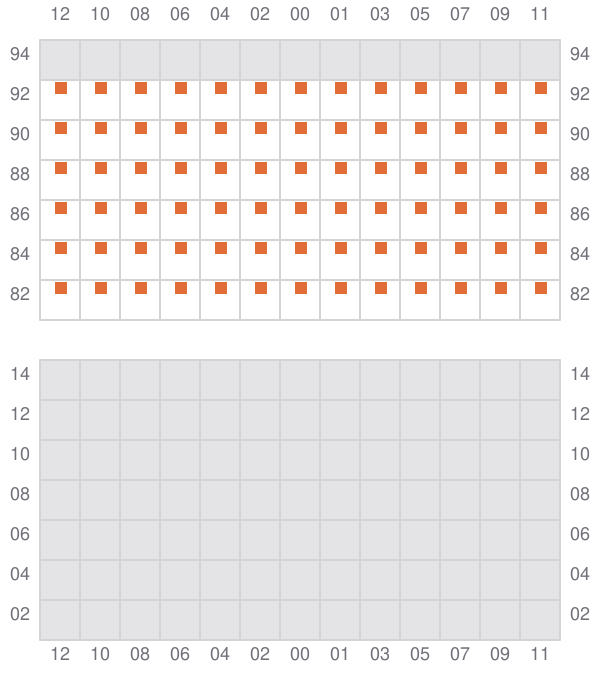

045
- ← / ?
