SM LONG BEACH
9312755 | D7FP | 9312755 by ********* Last update: Tue Apr 30 2024

General Info

Ship Name:SM LONG BEACH
IMO Code:9312755
Call Sign:D7FP
Line Operator:9312755
Class Name for Sister Ships:HANJIN XIAMEN
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):286.00
LOA (Length Overall):304.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:069
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,641

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

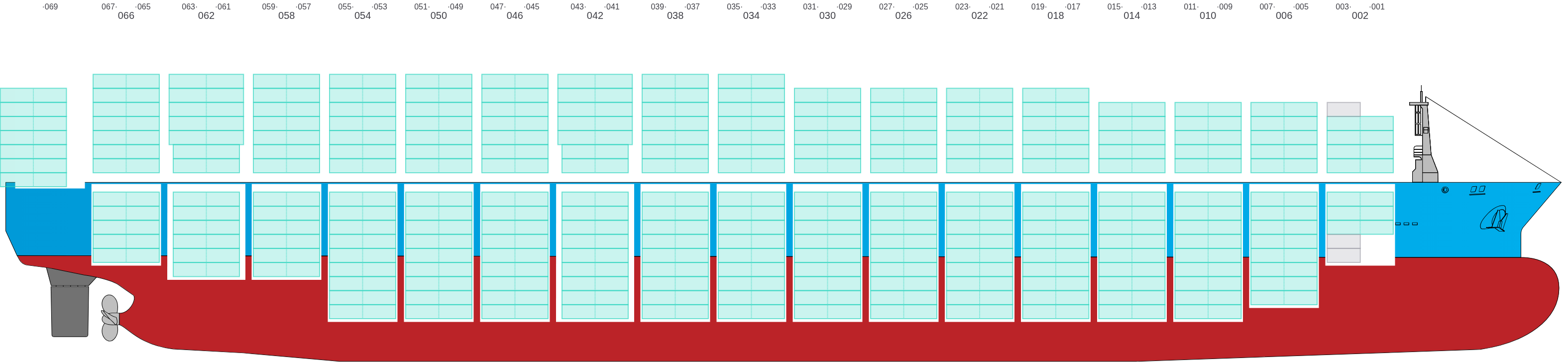

Side view of SM LONG BEACH

Hatch-Covers View

Deck view of SM LONG BEACH

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

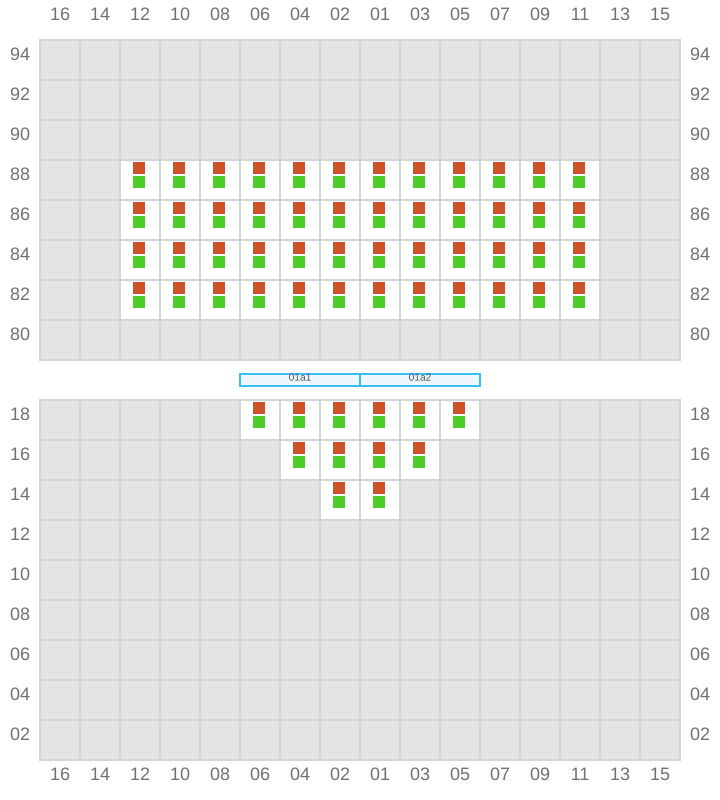

Bay 001 view and slots of SM LONG BEACH

003

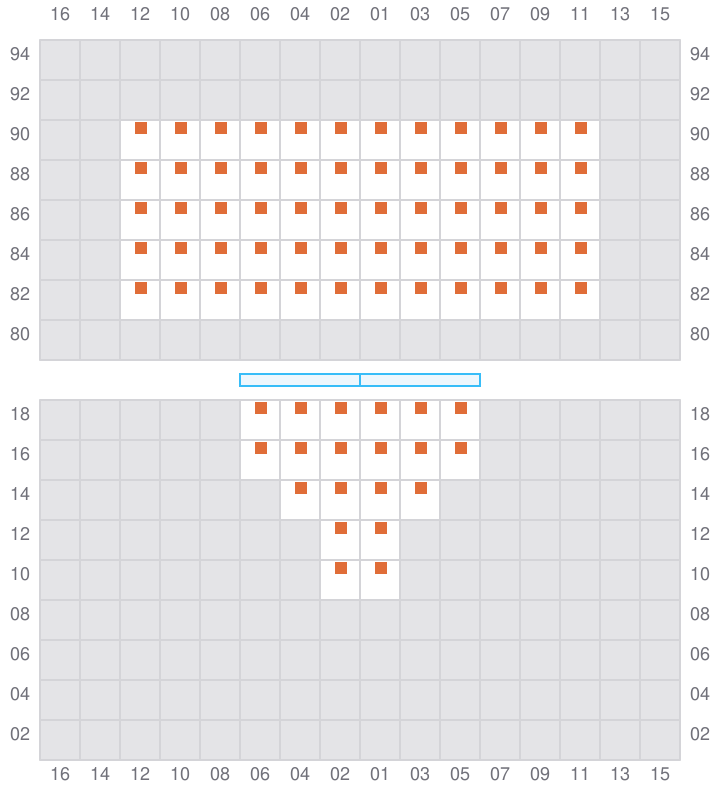

Bay 003 view and slots of SM LONG BEACH

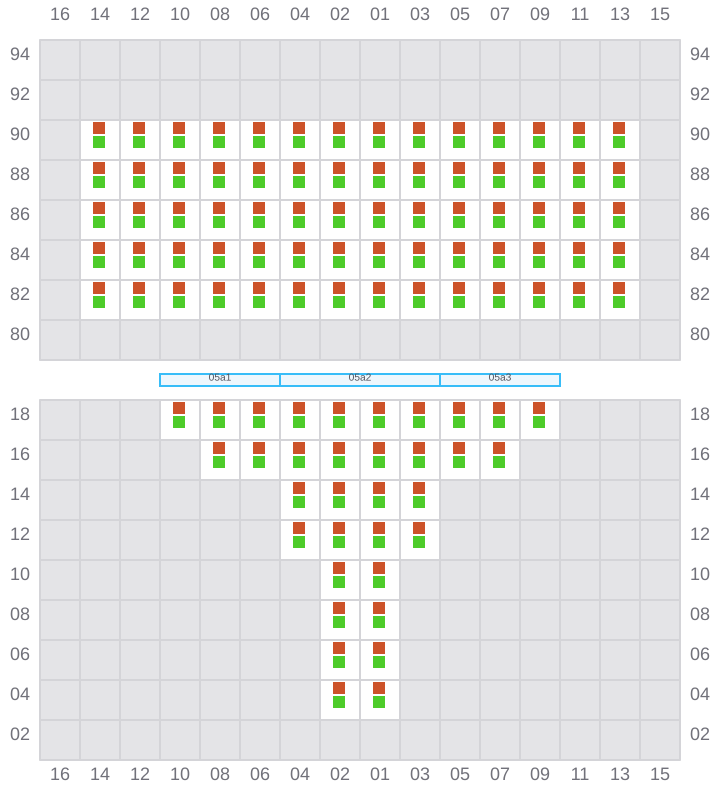

005 (006)

Bay 005 view and slots of SM LONG BEACH

007

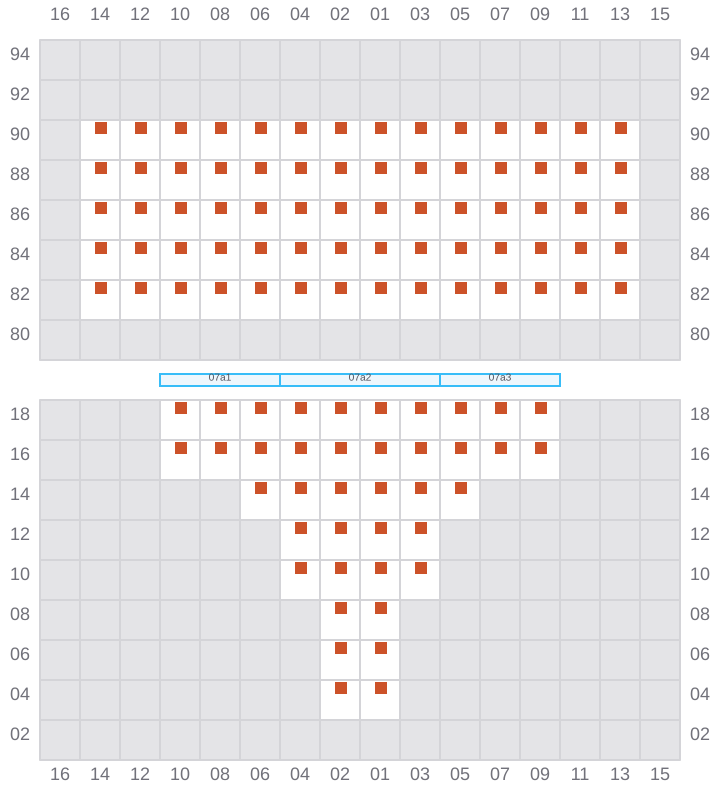

Bay 007 view and slots of SM LONG BEACH

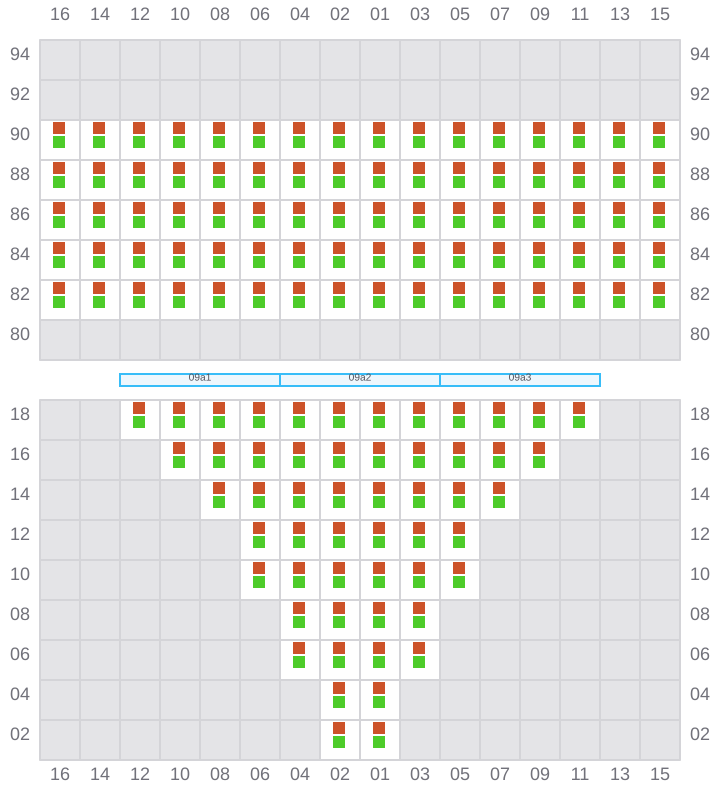

009 (010)

Bay 009 view and slots of SM LONG BEACH

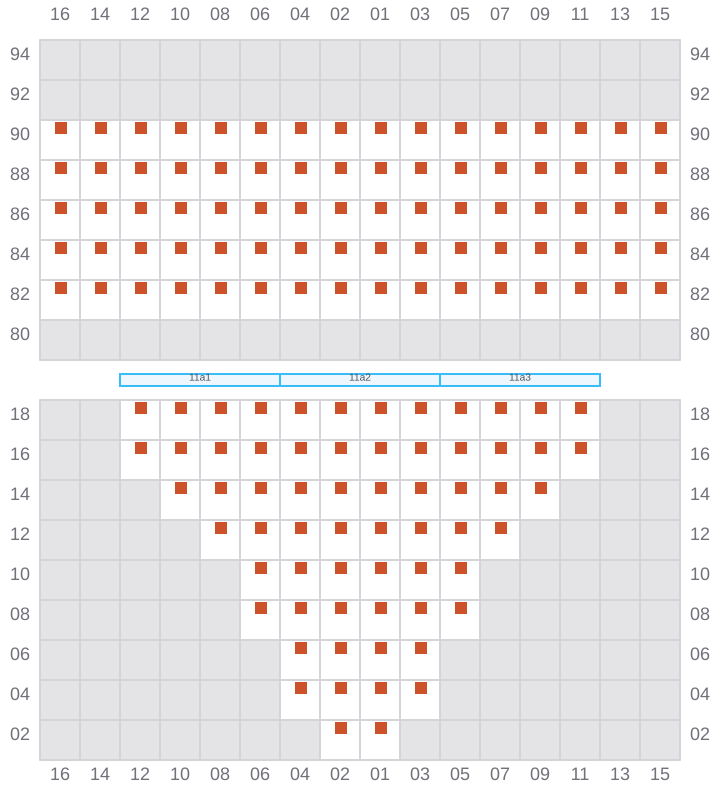

011

Bay 011 view and slots of SM LONG BEACH

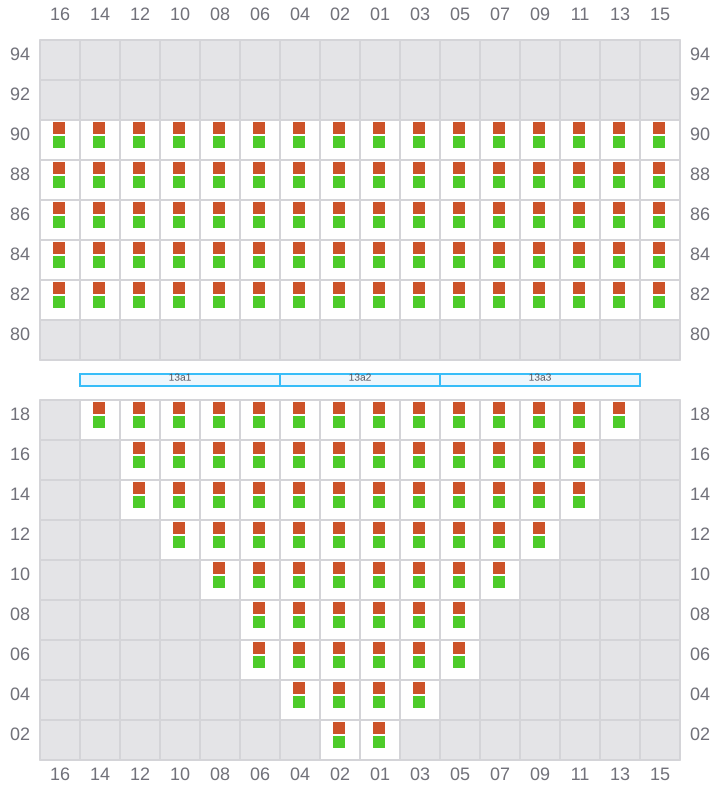

013 (014)

Bay 013 view and slots of SM LONG BEACH

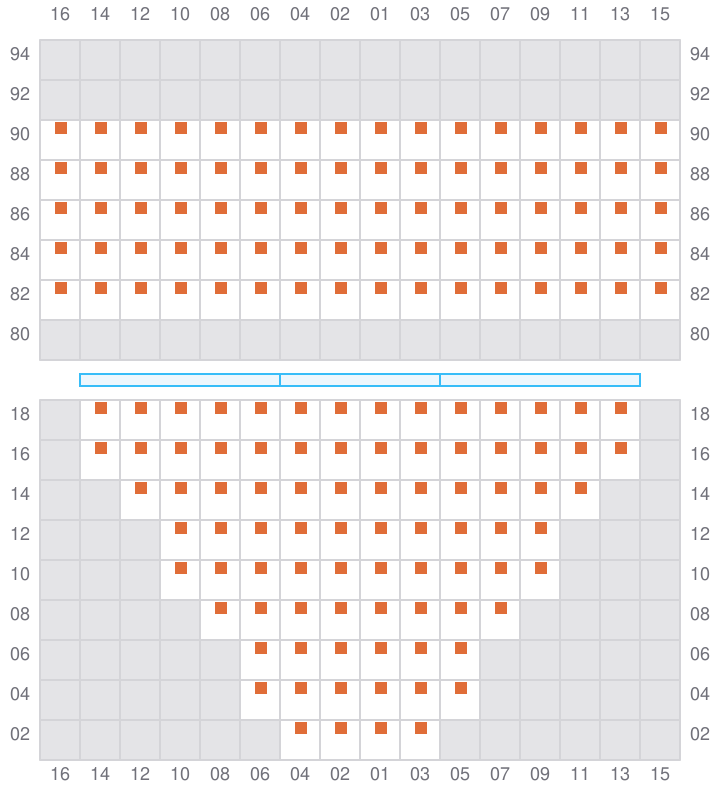

015

Bay 015 view and slots of SM LONG BEACH

017 (018)

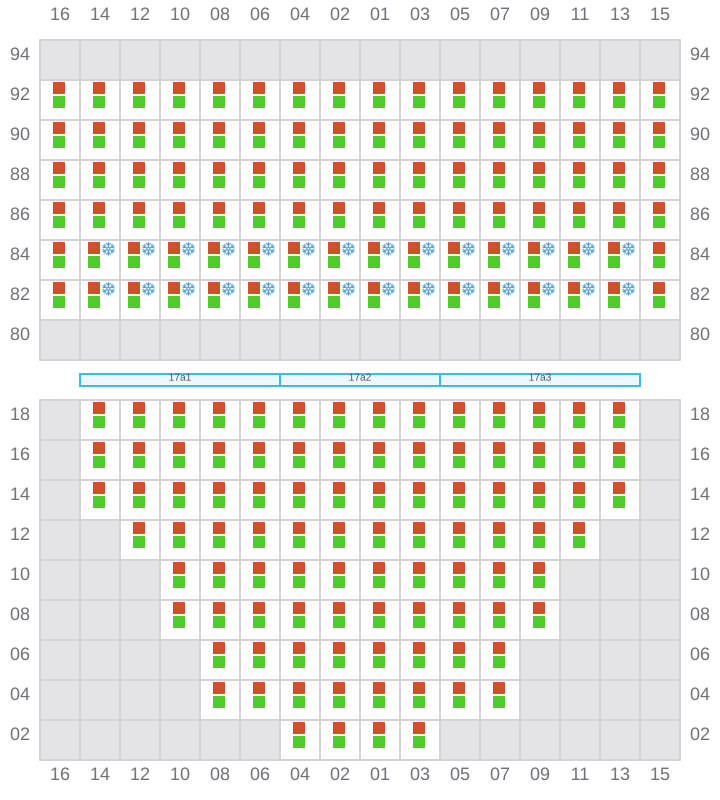

Bay 017 view and slots of SM LONG BEACH

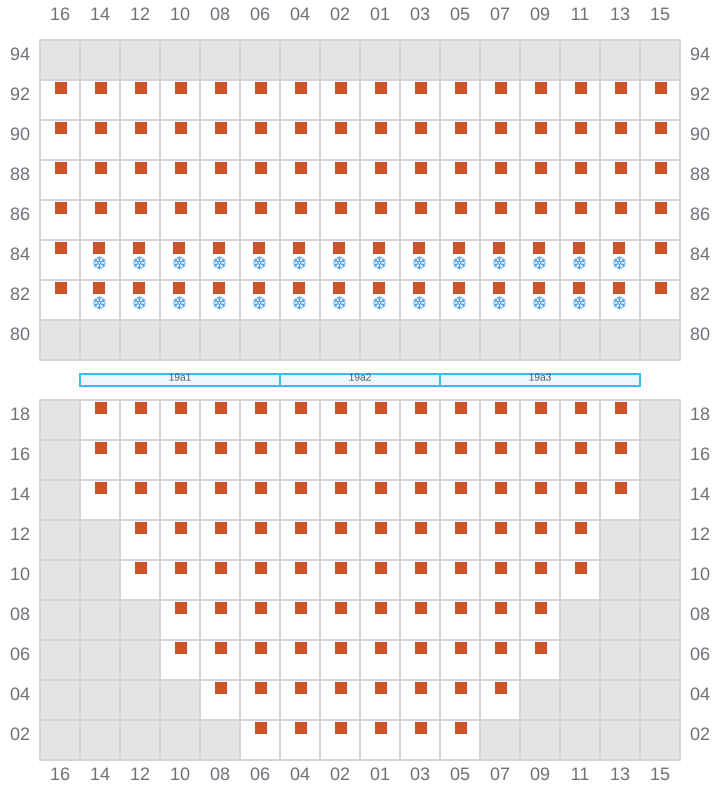

019

Bay 019 view and slots of SM LONG BEACH

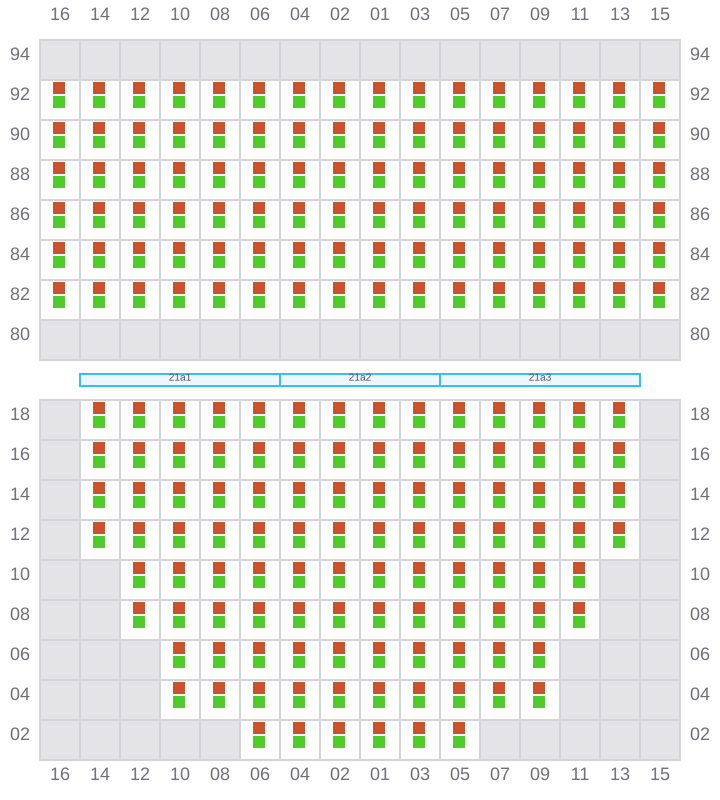

021 (022)

Bay 021 view and slots of SM LONG BEACH

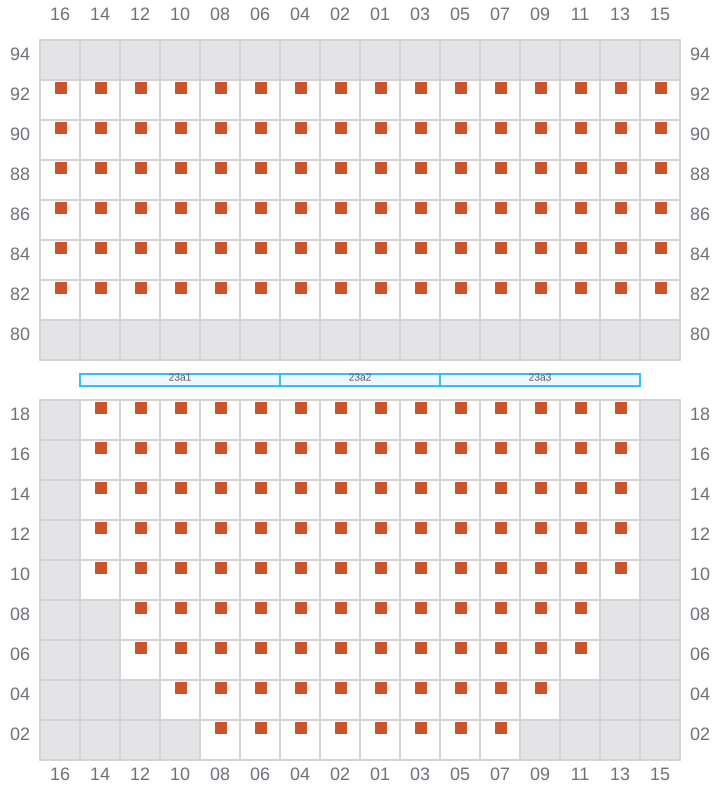

023

Bay 023 view and slots of SM LONG BEACH

025 (026)

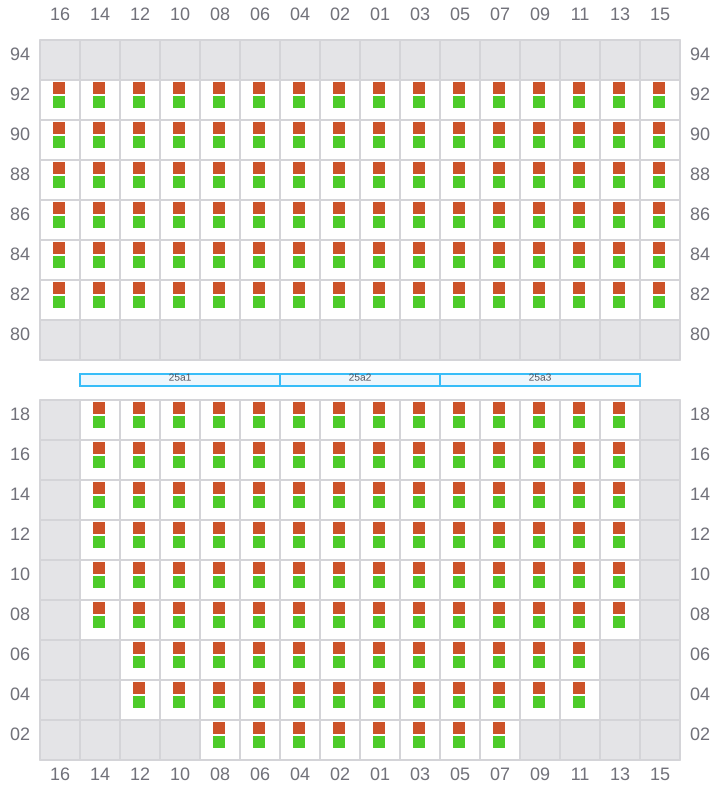

Bay 025 view and slots of SM LONG BEACH

027

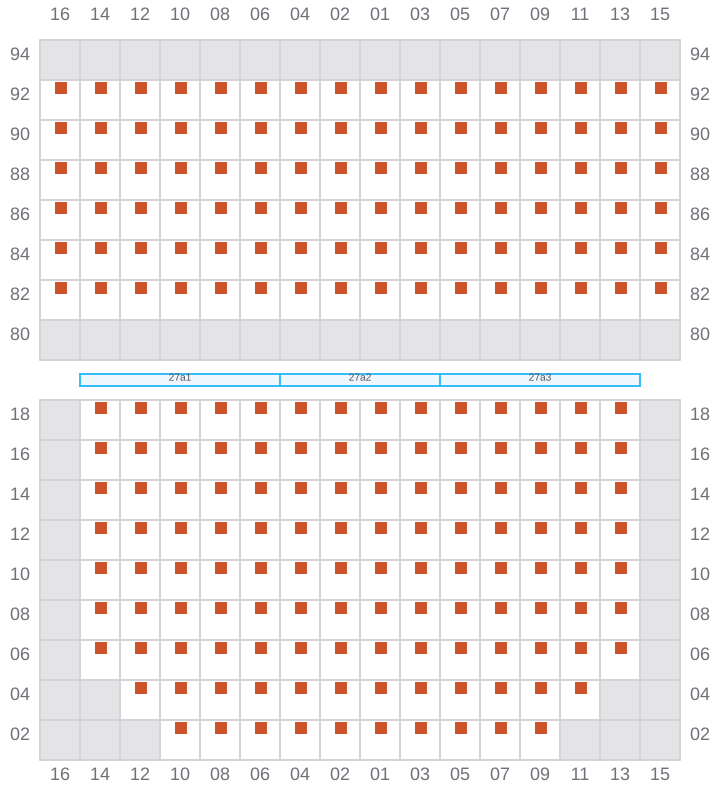

Bay 027 view and slots of SM LONG BEACH

029 (030)

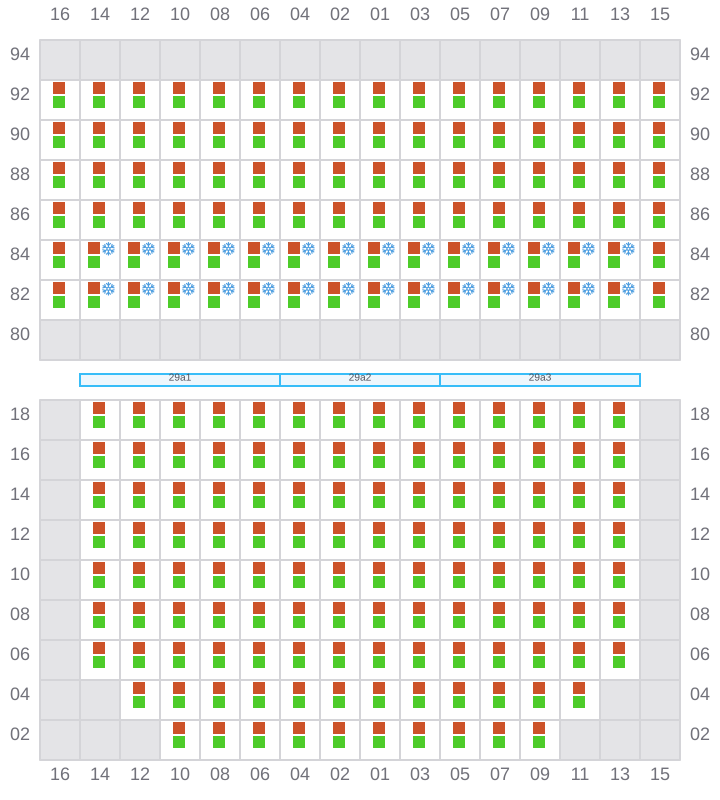

Bay 029 view and slots of SM LONG BEACH

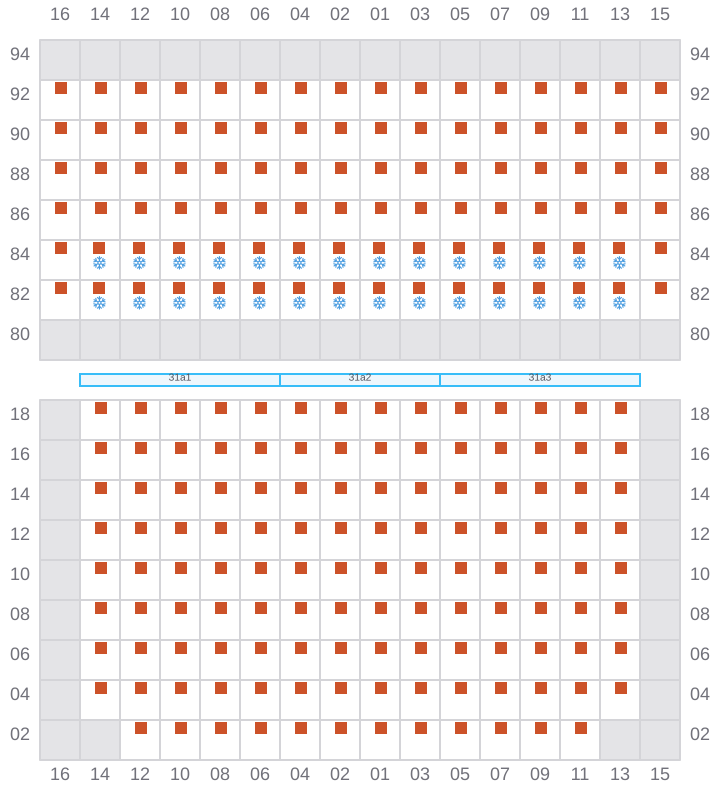

031

Bay 031 view and slots of SM LONG BEACH

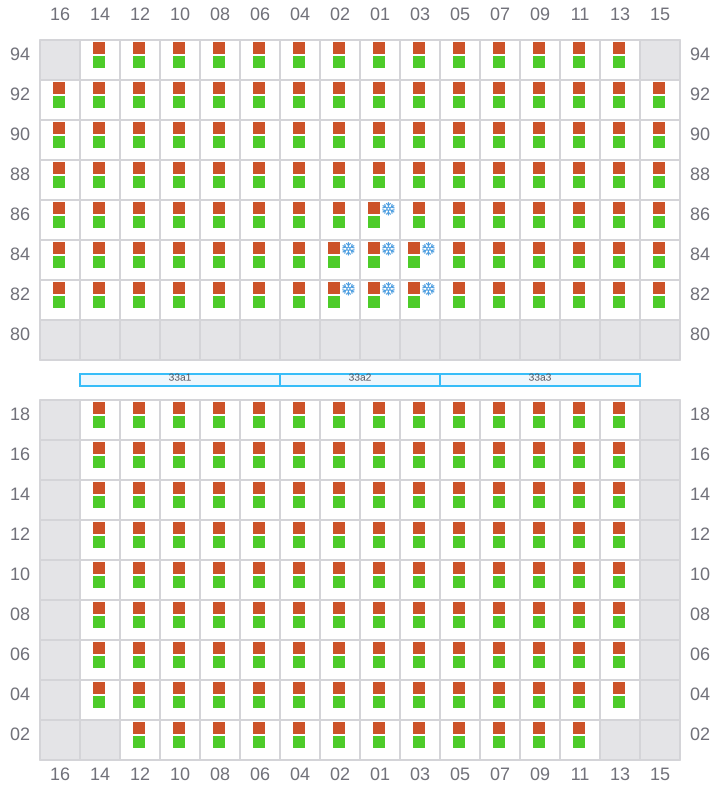

033 (034)

Bay 033 view and slots of SM LONG BEACH

035

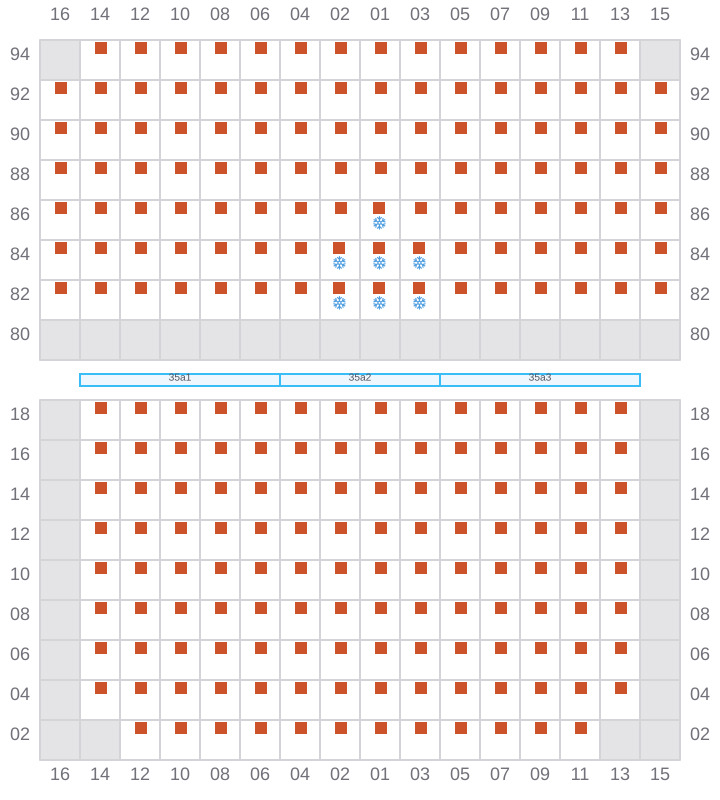

Bay 035 view and slots of SM LONG BEACH

037 (038)

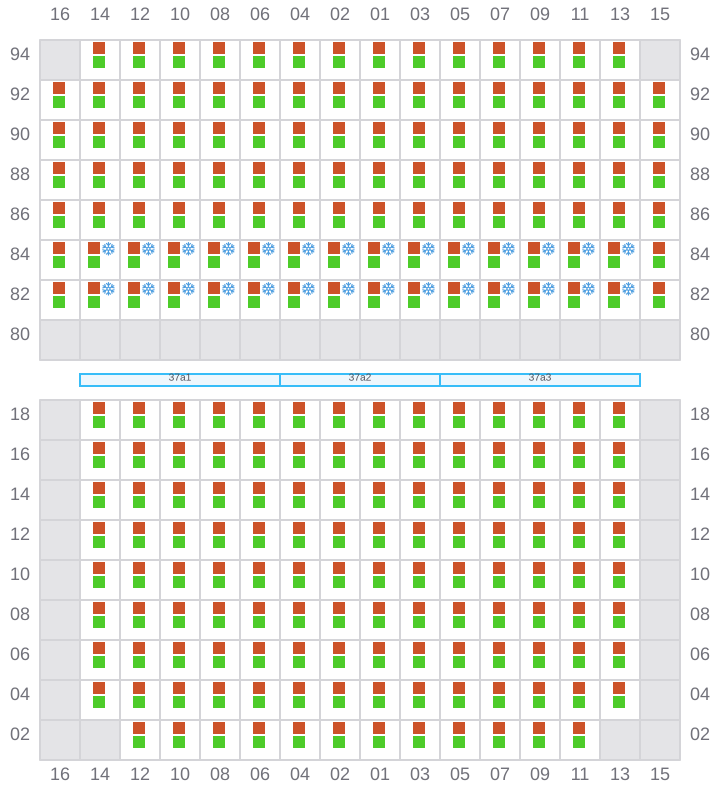

Bay 037 view and slots of SM LONG BEACH

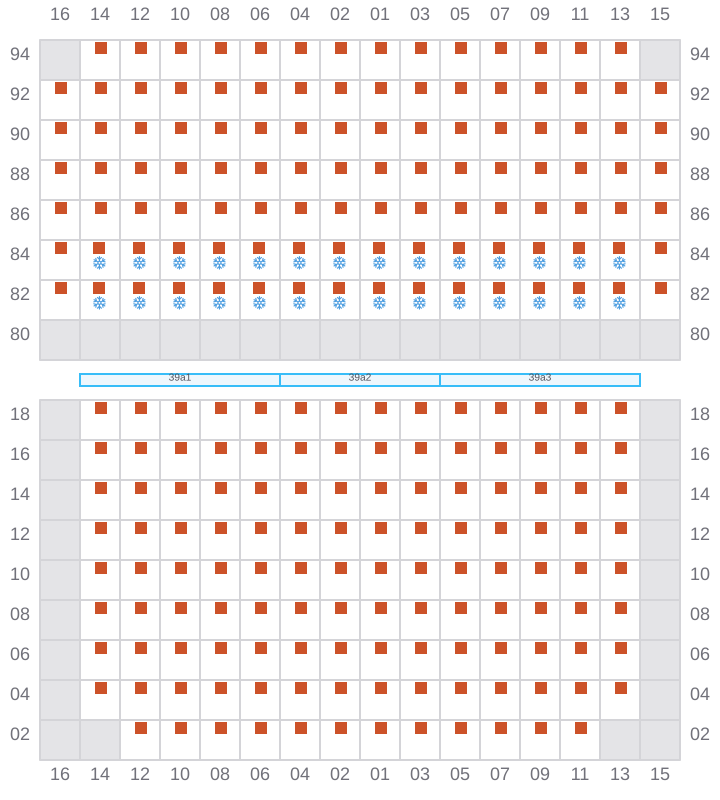

039

Bay 039 view and slots of SM LONG BEACH

041 (042)

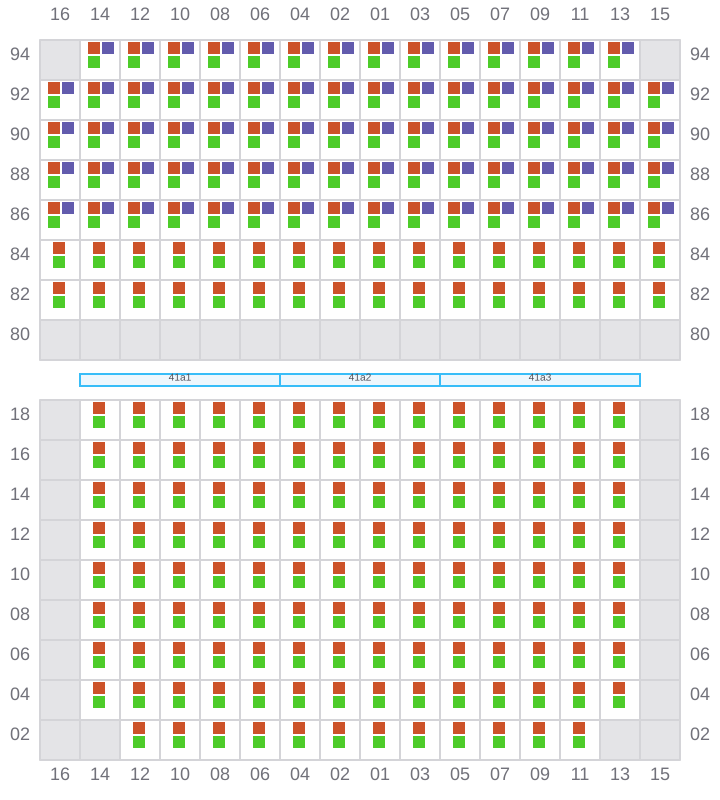

Bay 041 view and slots of SM LONG BEACH

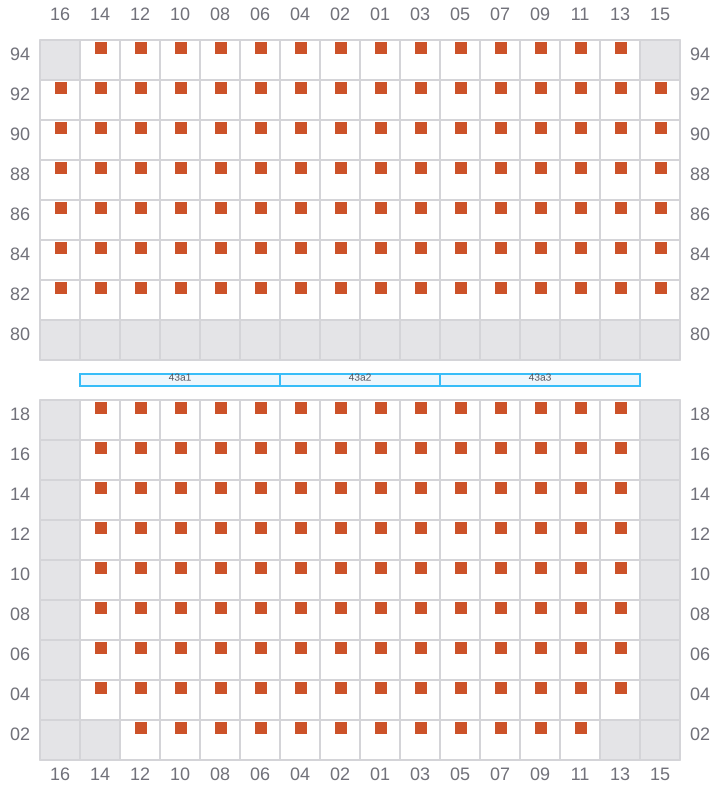

043

Bay 043 view and slots of SM LONG BEACH

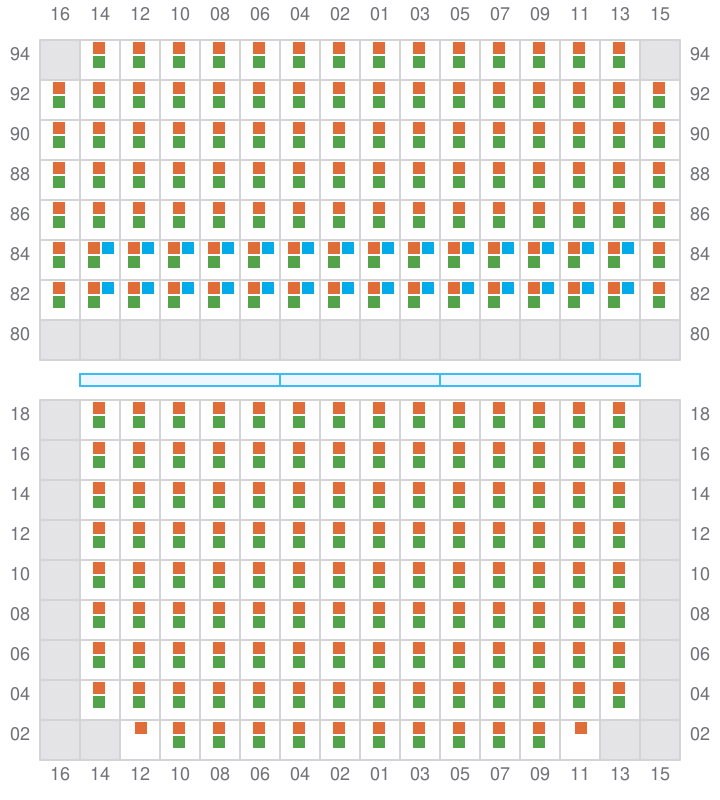

045 (046)

Bay 045 view and slots of SM LONG BEACH

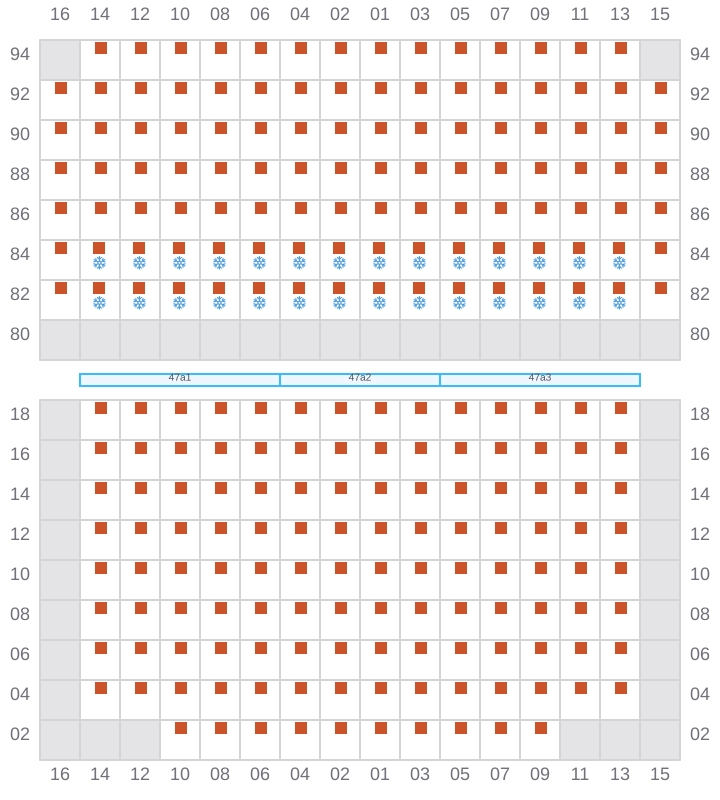

047

Bay 047 view and slots of SM LONG BEACH

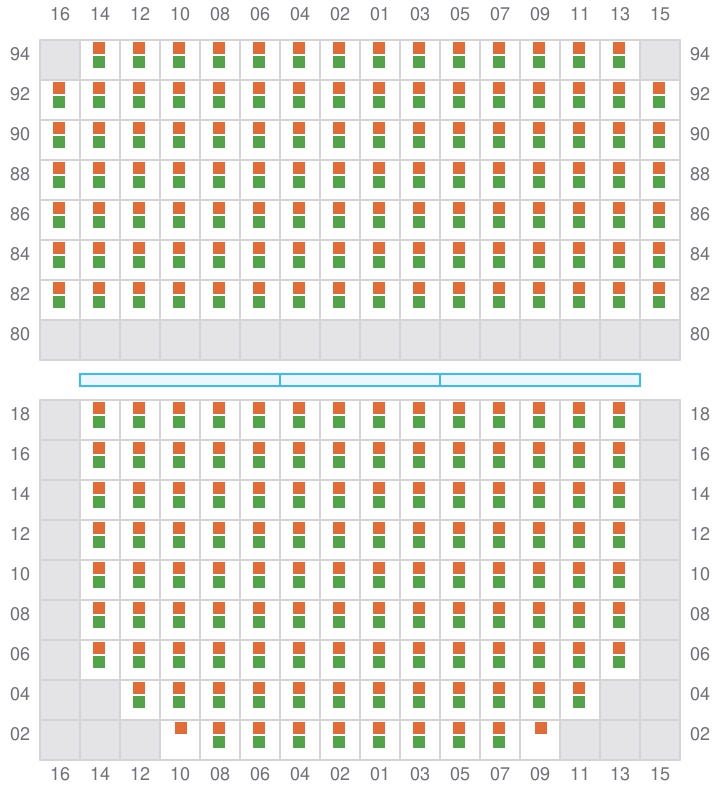

049 (050)

Bay 049 view and slots of SM LONG BEACH

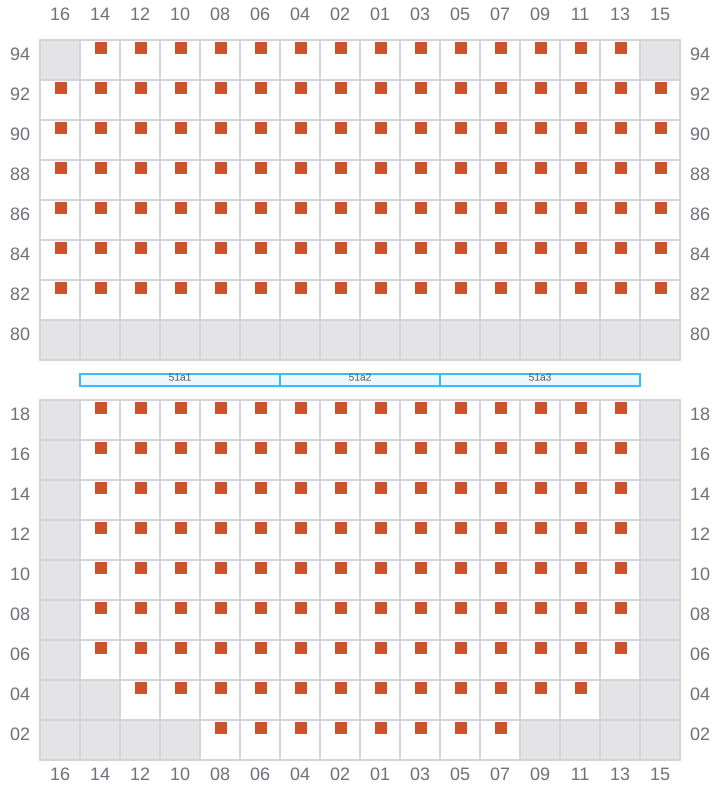

051

Bay 051 view and slots of SM LONG BEACH

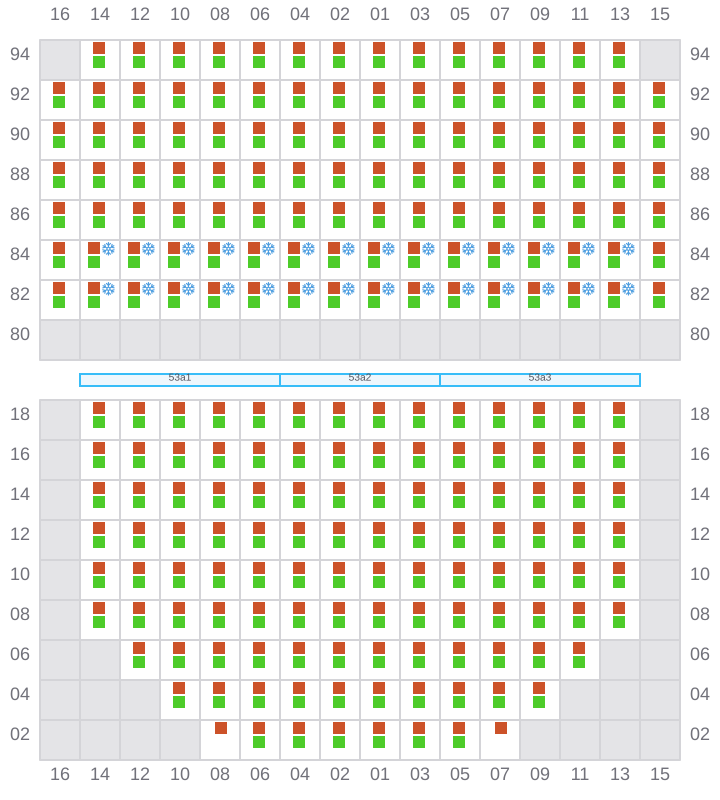

053 (054)

Bay 053 view and slots of SM LONG BEACH

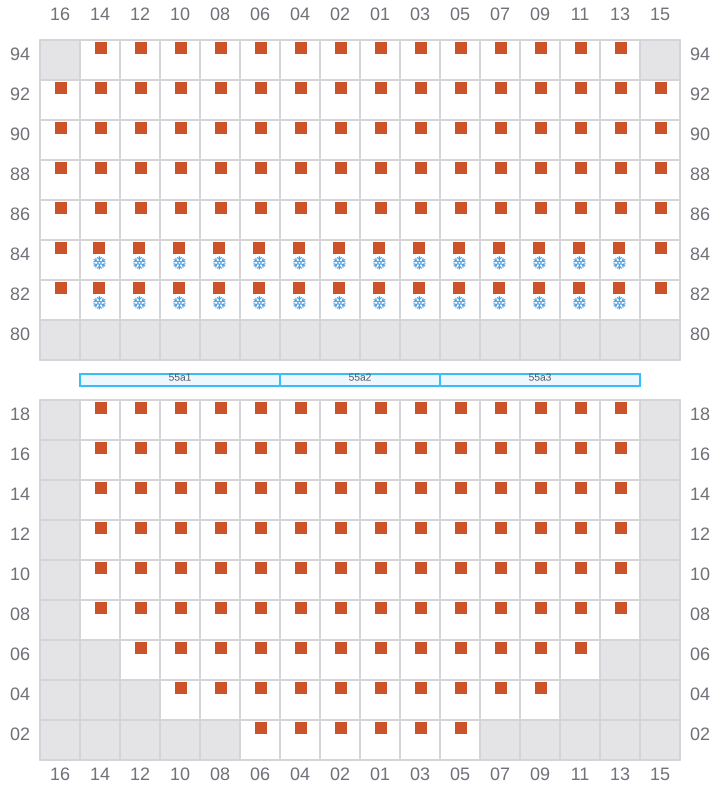

055

Bay 055 view and slots of SM LONG BEACH

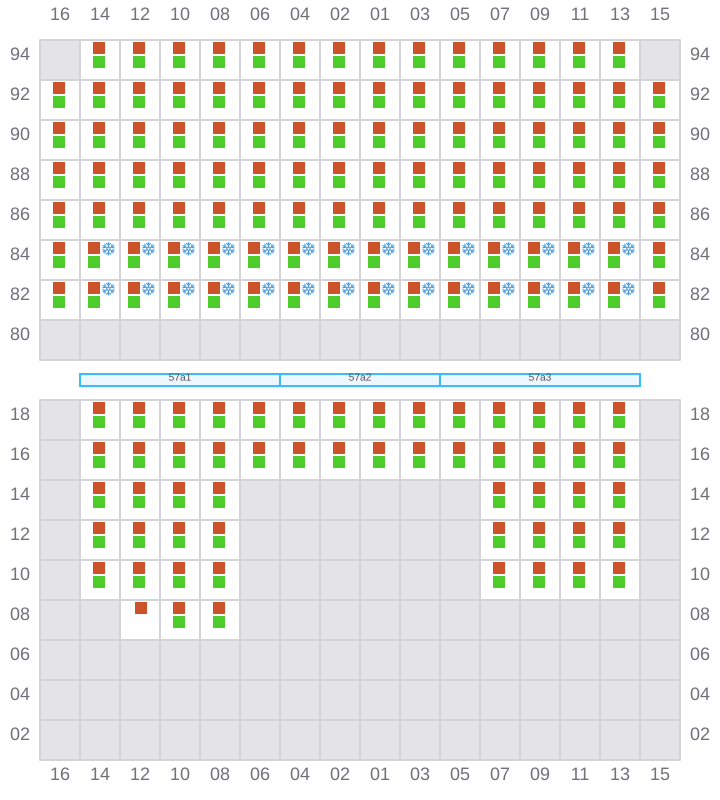

057 (058)

Bay 057 view and slots of SM LONG BEACH

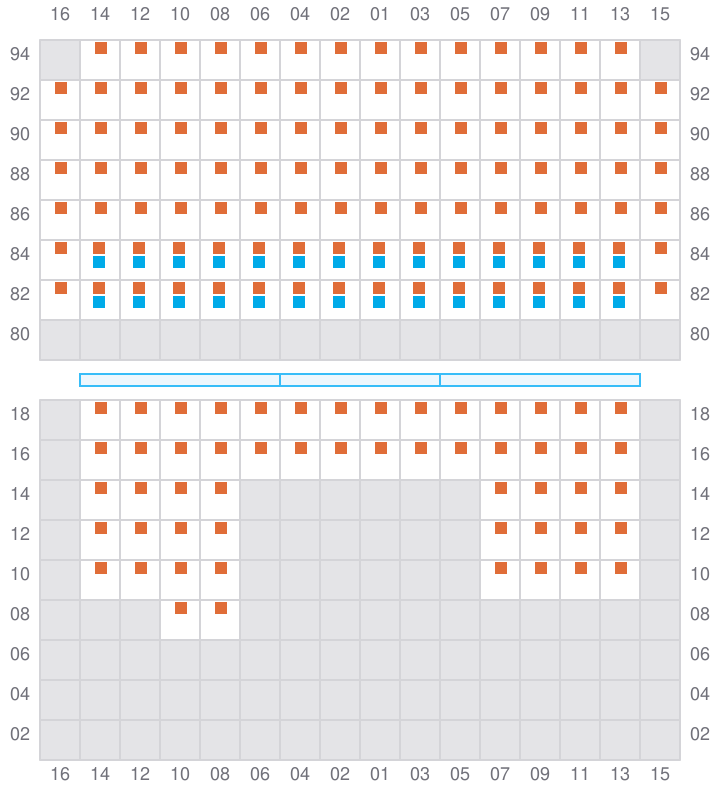

059

Bay 059 view and slots of SM LONG BEACH

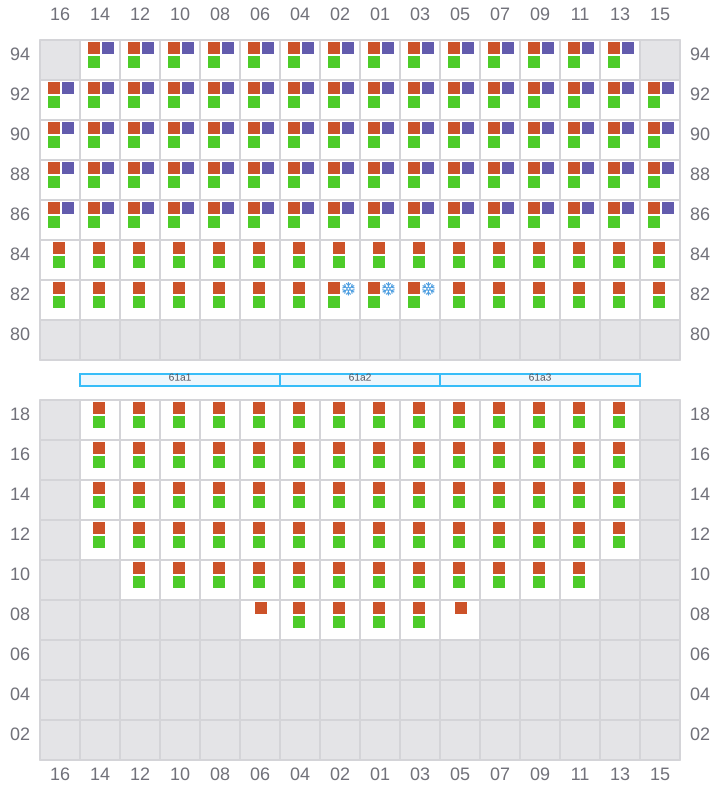

061 (062)

Bay 061 view and slots of SM LONG BEACH

063

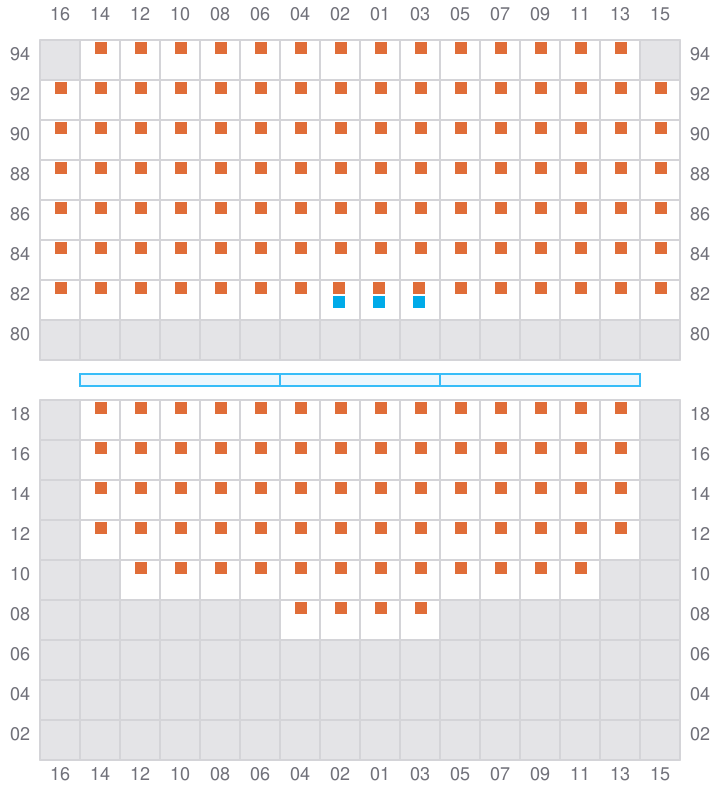

Bay 063 view and slots of SM LONG BEACH

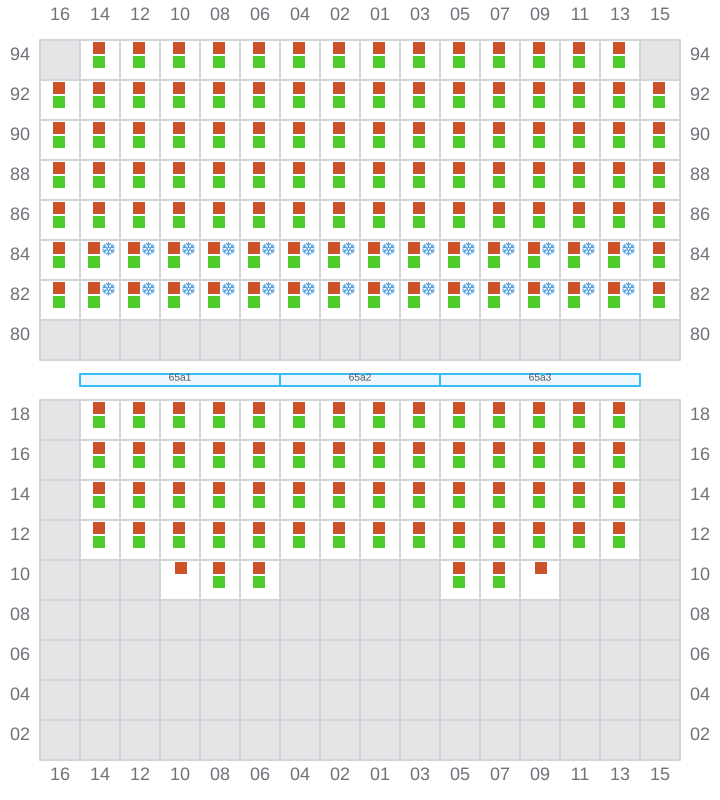

065 (066)

Bay 065 view and slots of SM LONG BEACH

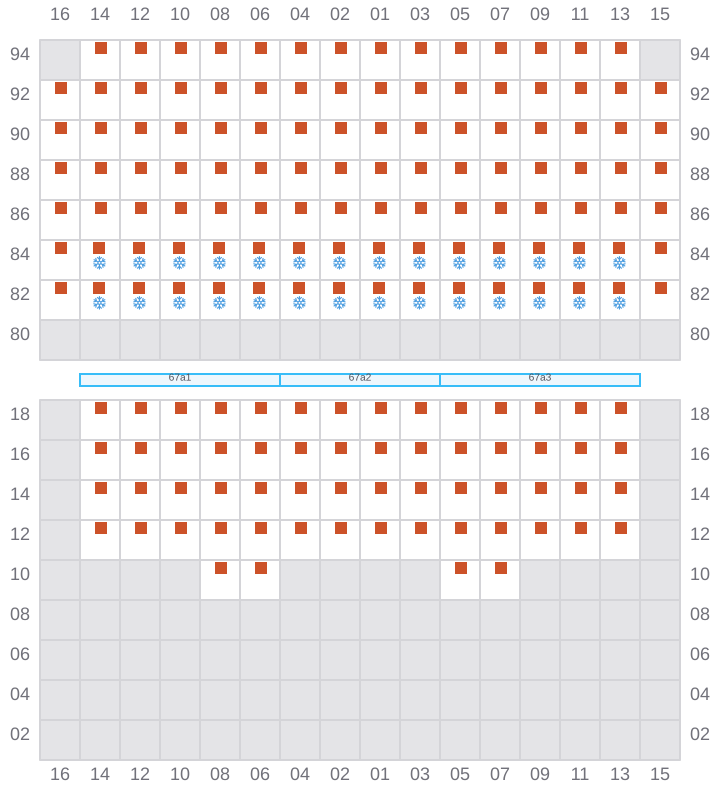

067

Bay 067 view and slots of SM LONG BEACH

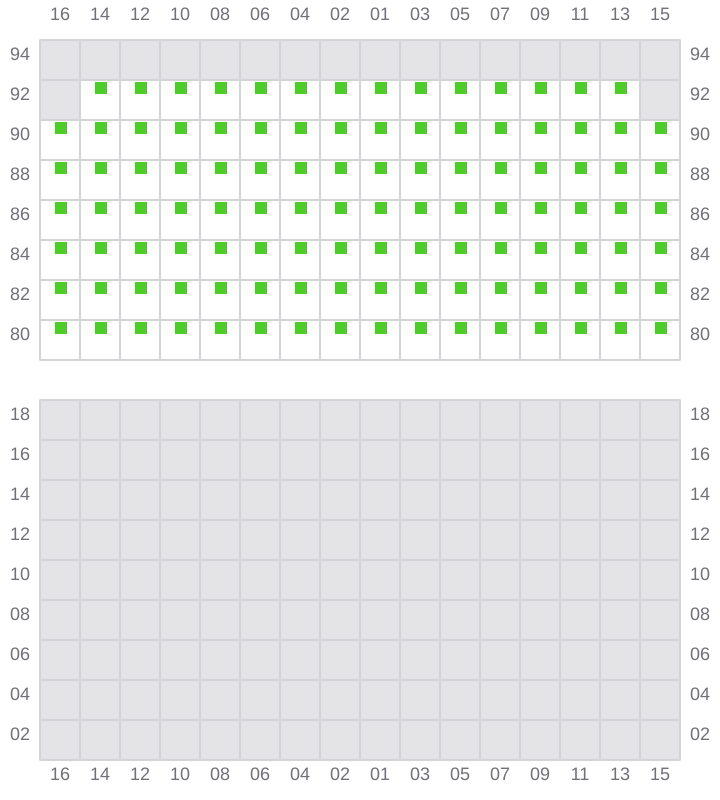

069 (070)

Bay 069 view and slots of SM LONG BEACH
