SM NEYYAR
9305635 | VTJU | 9305635 by ********* Last update: Tue May 14 2024

General Info

Ship Name:SM NEYYAR
IMO Code:9305635
Call Sign:VTJU
Line Operator:9305635
Class Name for Sister Ships:NYK COSMOS
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):248.70
LOA (Length Overall):260.86
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:063
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,130

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of SM NEYYAR

Hatch-Covers View

Deck view of SM NEYYAR

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

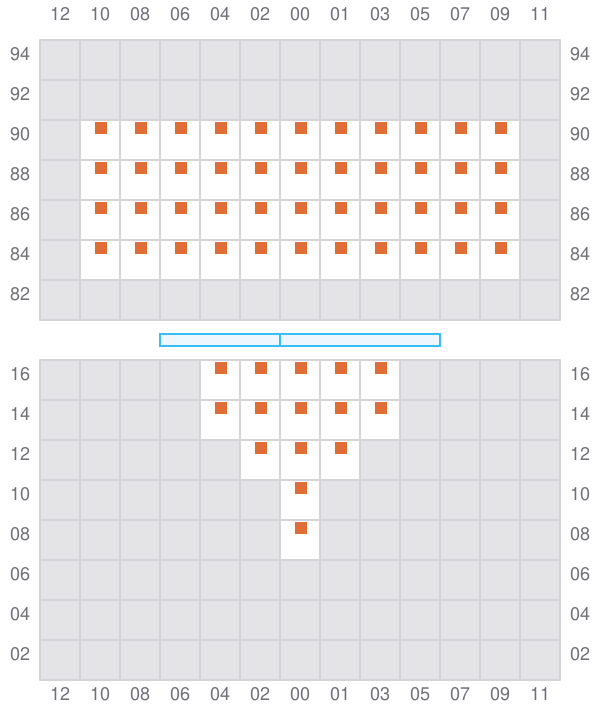

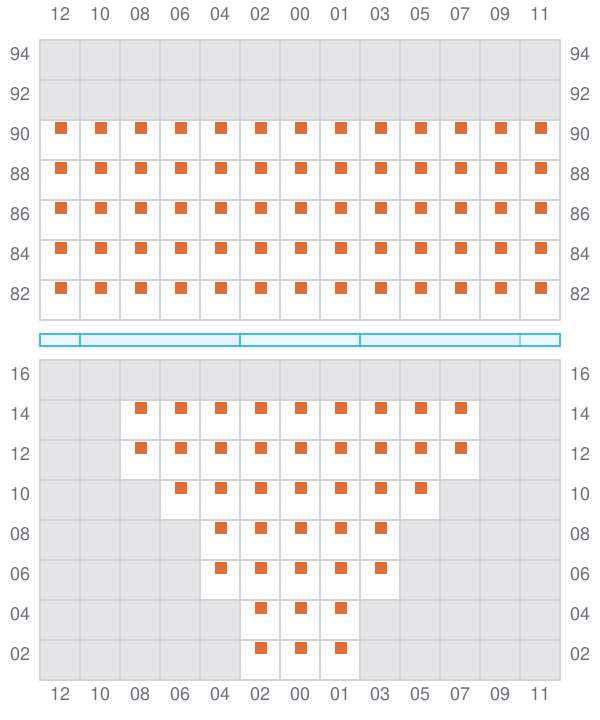

Bay 001 view and slots of SM NEYYAR

003 (002)

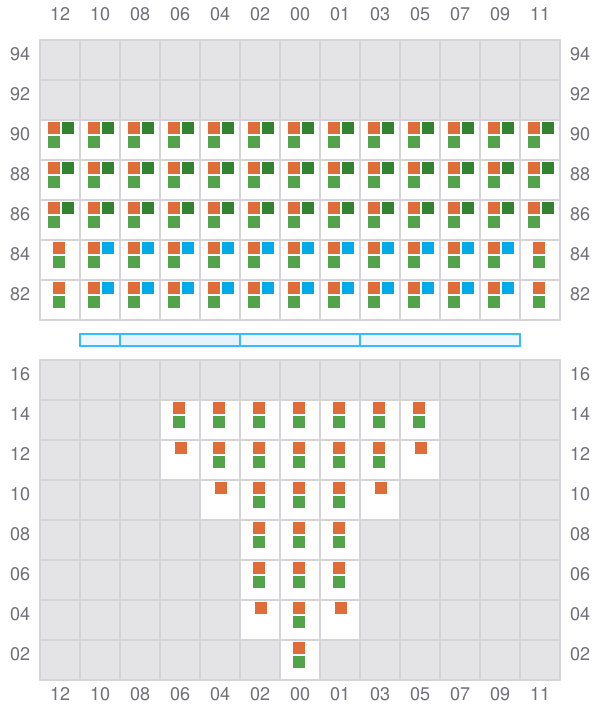

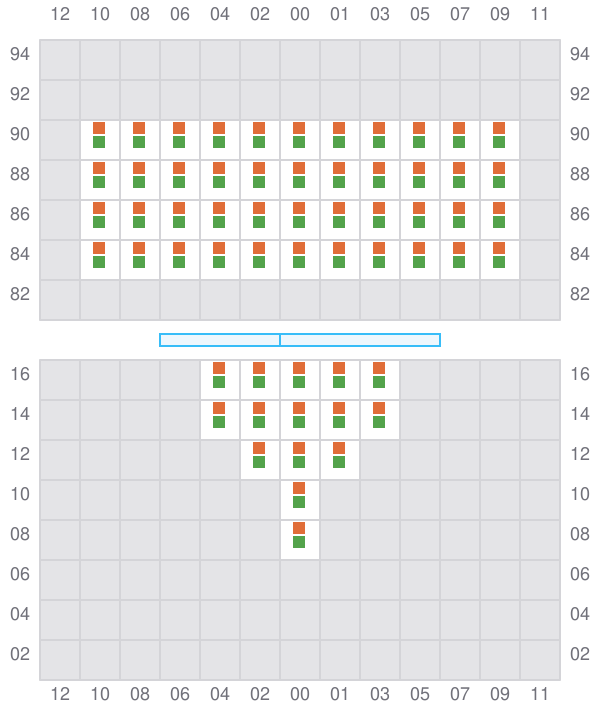

Bay 003 view and slots of SM NEYYAR

005

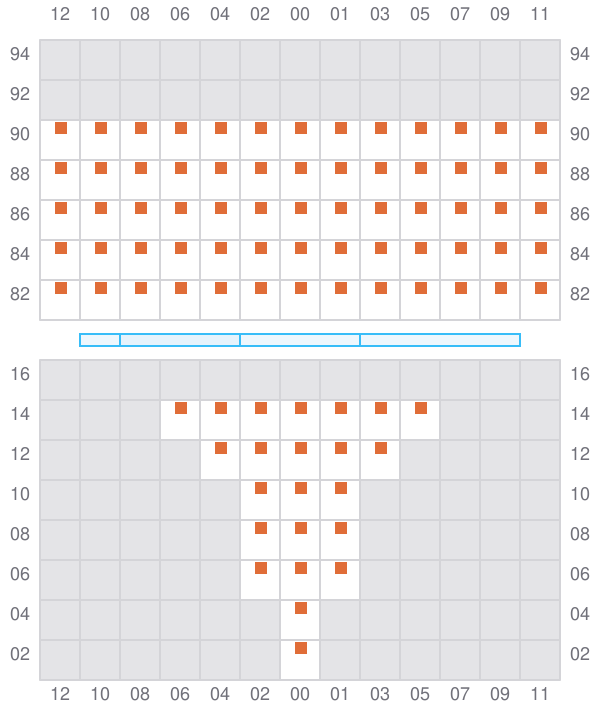

Bay 005 view and slots of SM NEYYAR

007 (006)

Bay 007 view and slots of SM NEYYAR

009

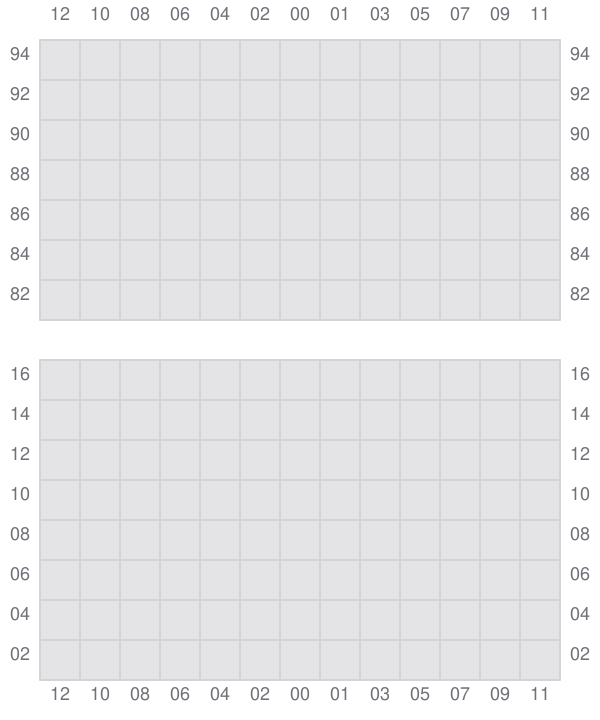

Bay 009 view and slots of SM NEYYAR

011 (010)

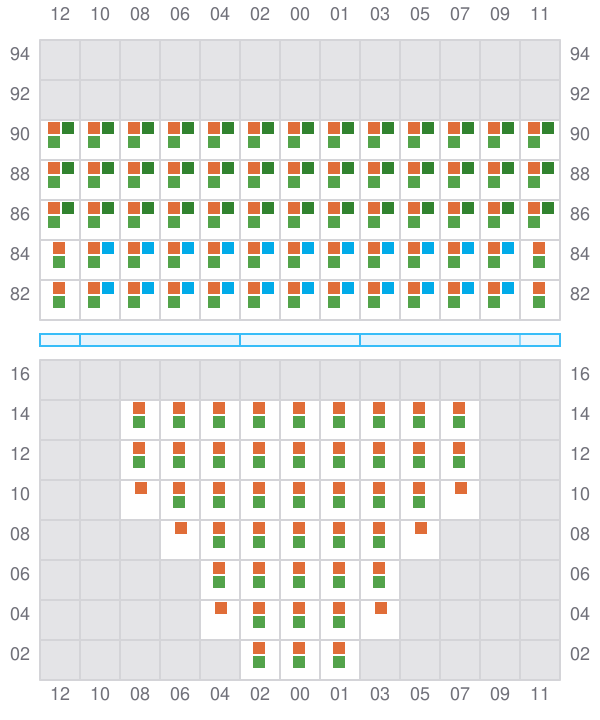

Bay 011 view and slots of SM NEYYAR

013

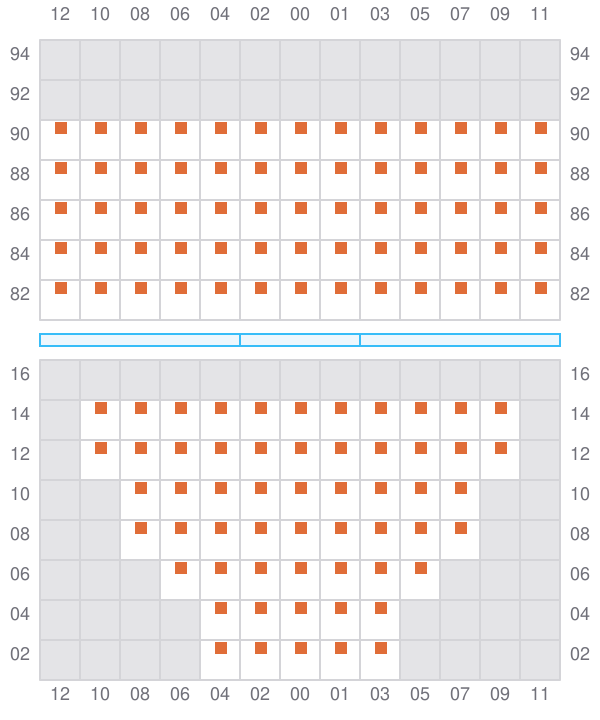

Bay 013 view and slots of SM NEYYAR

015 (014)

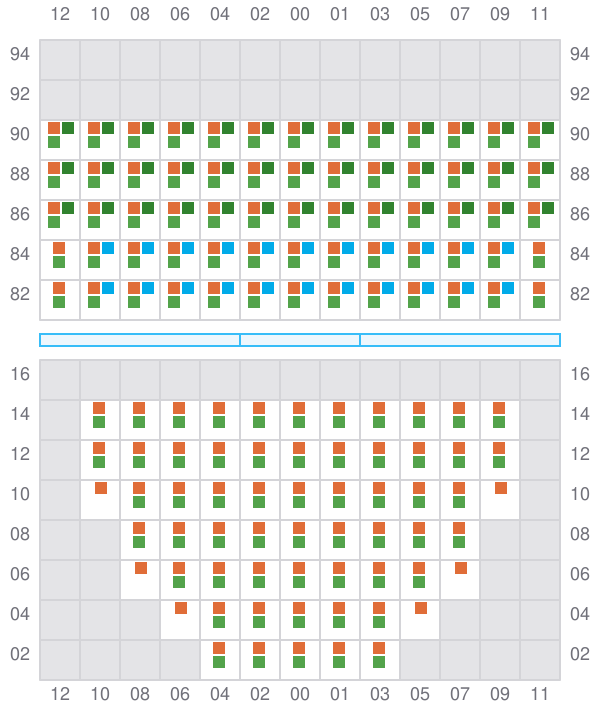

Bay 015 view and slots of SM NEYYAR

017

Bay 017 view and slots of SM NEYYAR

019 (018)

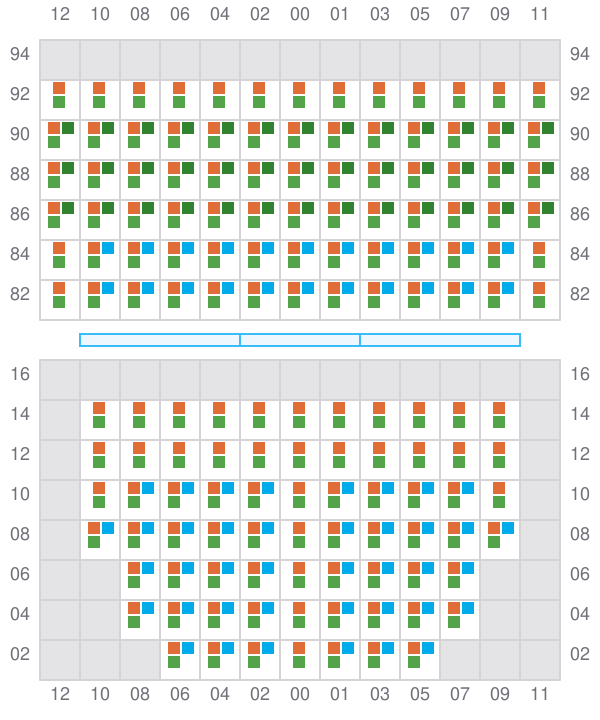

Bay 019 view and slots of SM NEYYAR

021

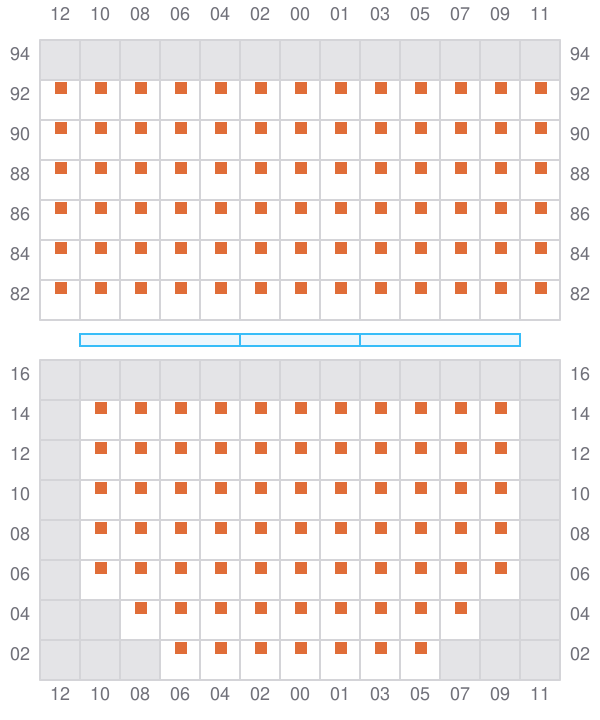

Bay 021 view and slots of SM NEYYAR

023 (022)

Bay 023 view and slots of SM NEYYAR

025

Bay 025 view and slots of SM NEYYAR

027 (026)

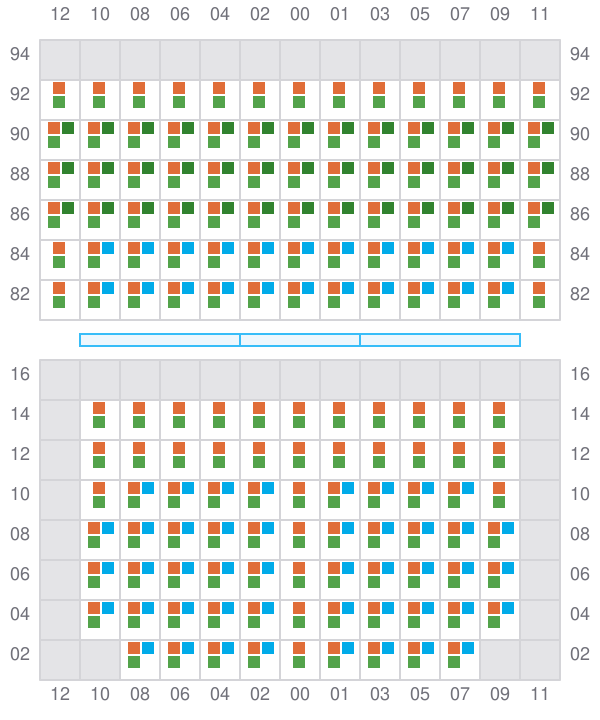

Bay 027 view and slots of SM NEYYAR

029

Bay 029 view and slots of SM NEYYAR

031 (030)

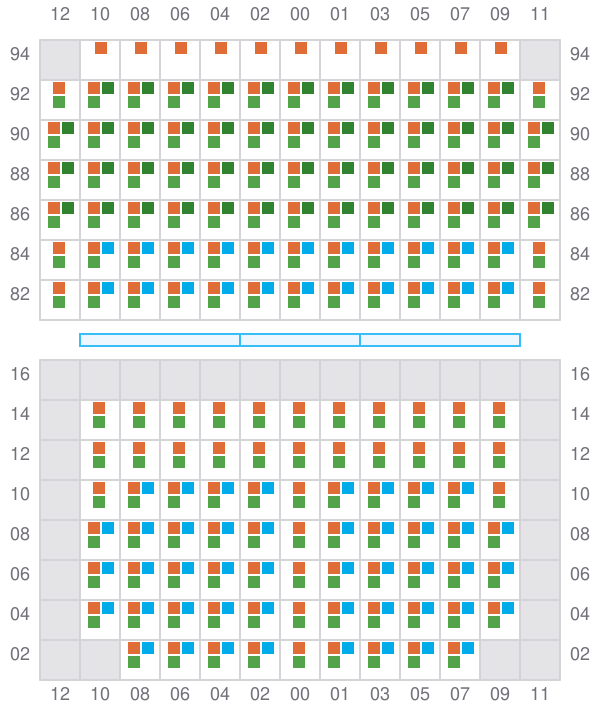

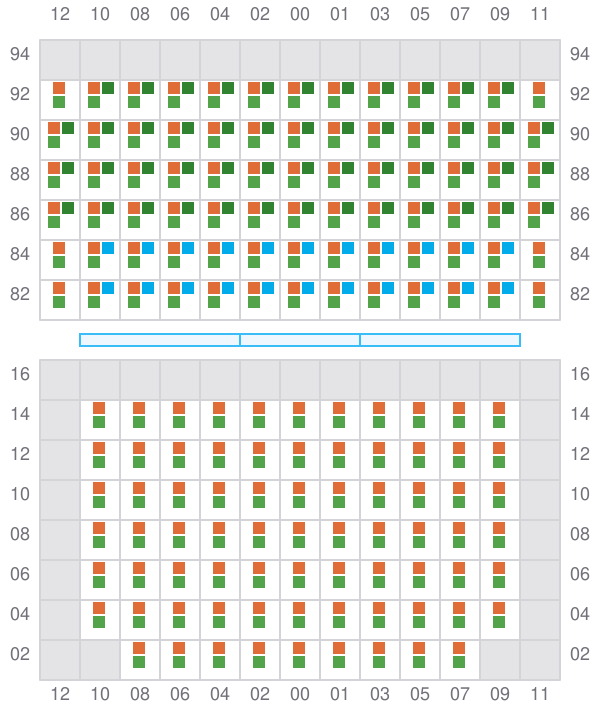

Bay 031 view and slots of SM NEYYAR

033

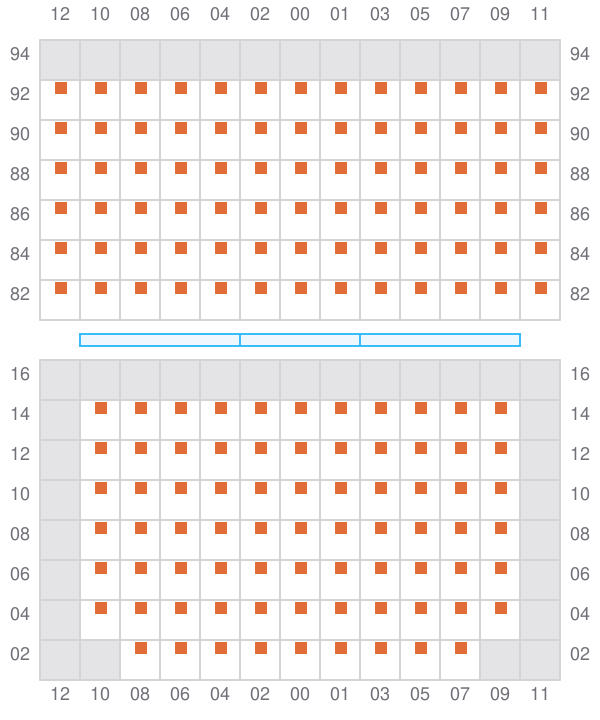

Bay 033 view and slots of SM NEYYAR

035 (034)

Bay 035 view and slots of SM NEYYAR

037

Bay 037 view and slots of SM NEYYAR

039 (038)

Bay 039 view and slots of SM NEYYAR

041

Bay 041 view and slots of SM NEYYAR

043 (042)

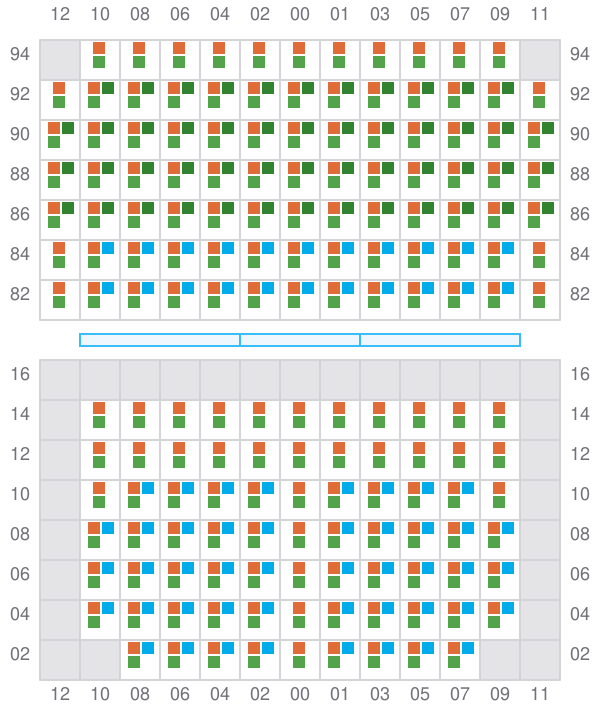

Bay 043 view and slots of SM NEYYAR

045

Bay 045 view and slots of SM NEYYAR

047 (046)

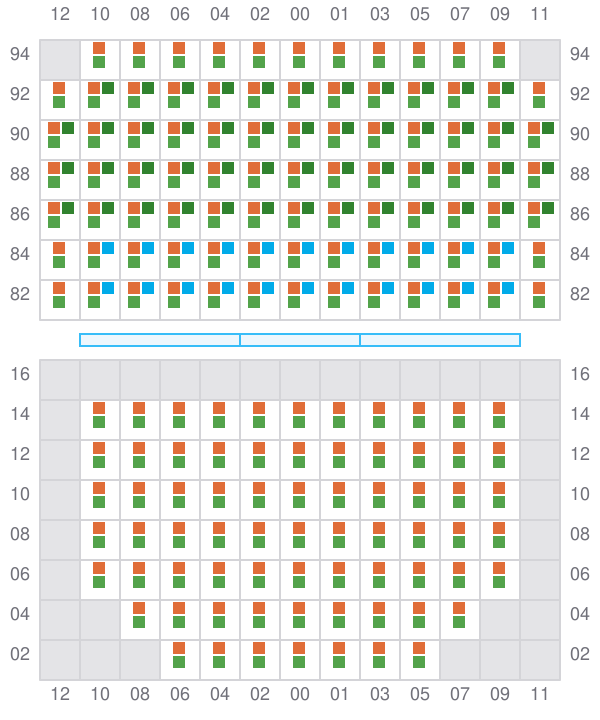

Bay 047 view and slots of SM NEYYAR

049

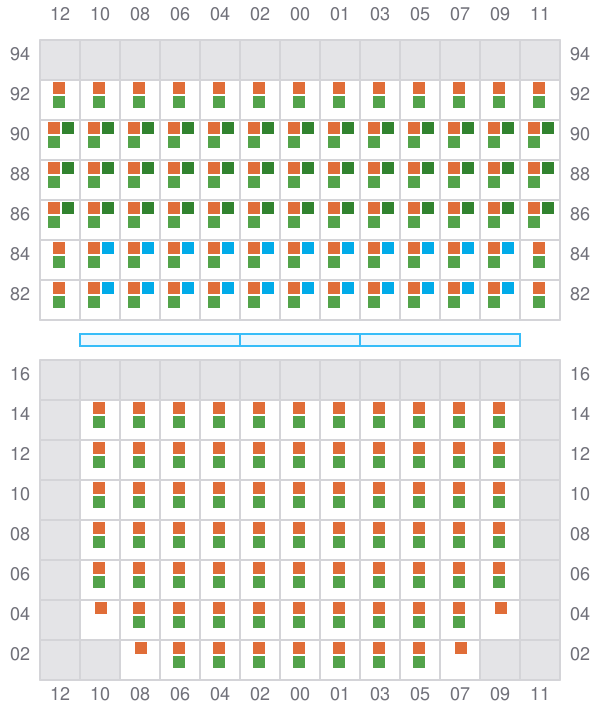

Bay 049 view and slots of SM NEYYAR

051 (050)

Bay 051 view and slots of SM NEYYAR

053

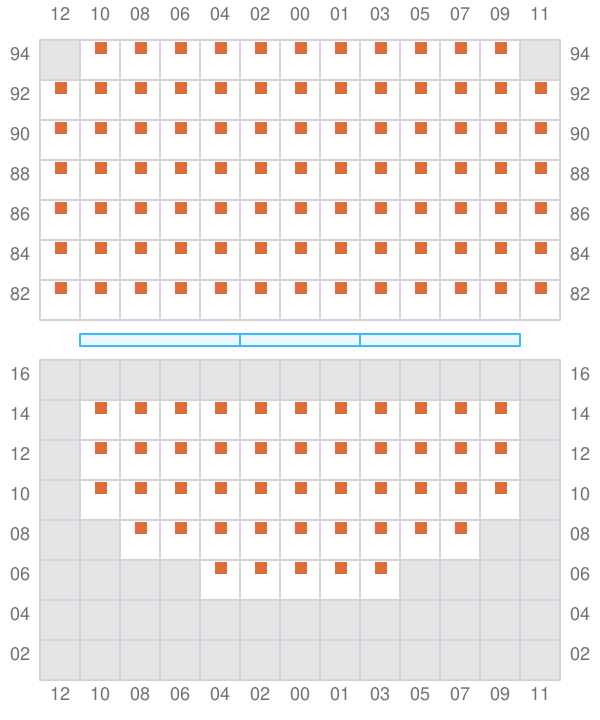

Bay 053 view and slots of SM NEYYAR

055 (054)

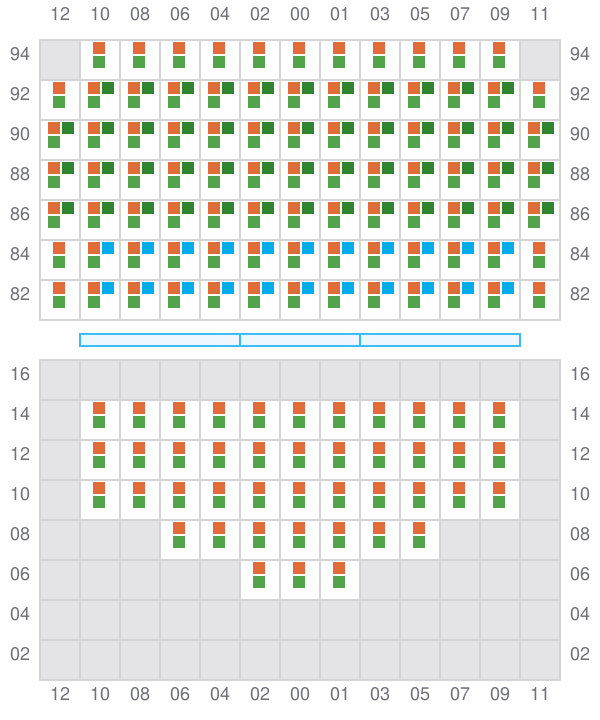

Bay 055 view and slots of SM NEYYAR

057

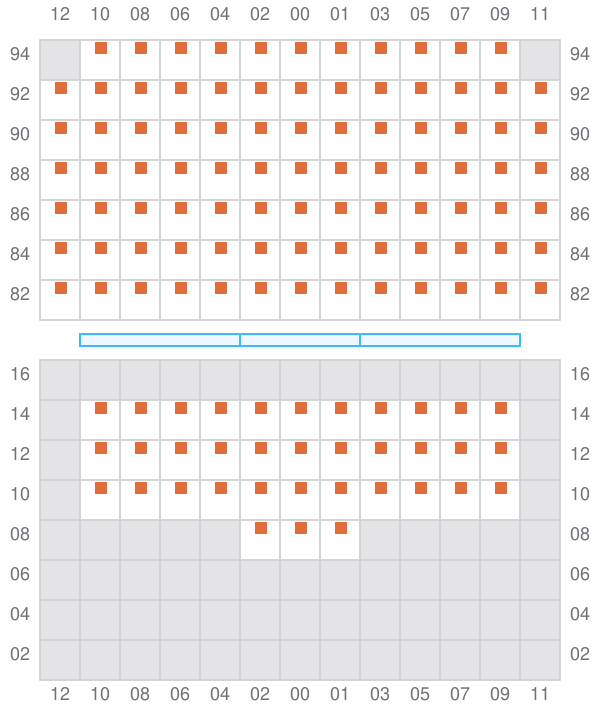

Bay 057 view and slots of SM NEYYAR

059 (058)

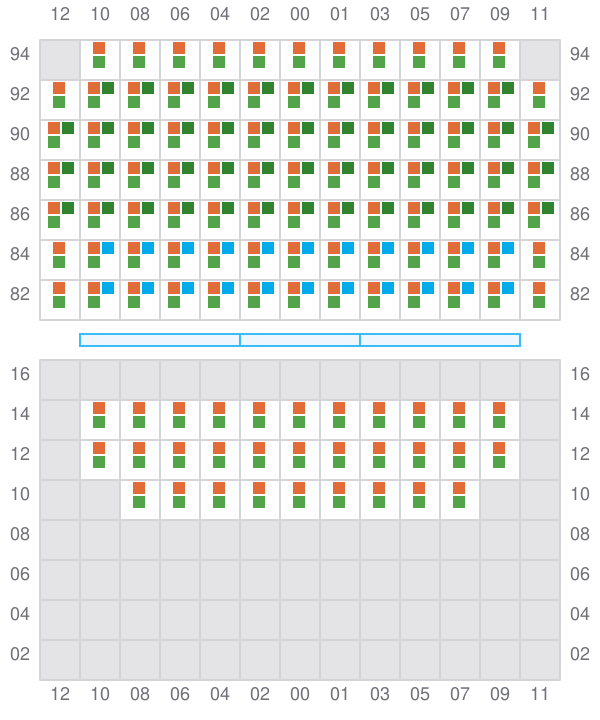

Bay 059 view and slots of SM NEYYAR

061

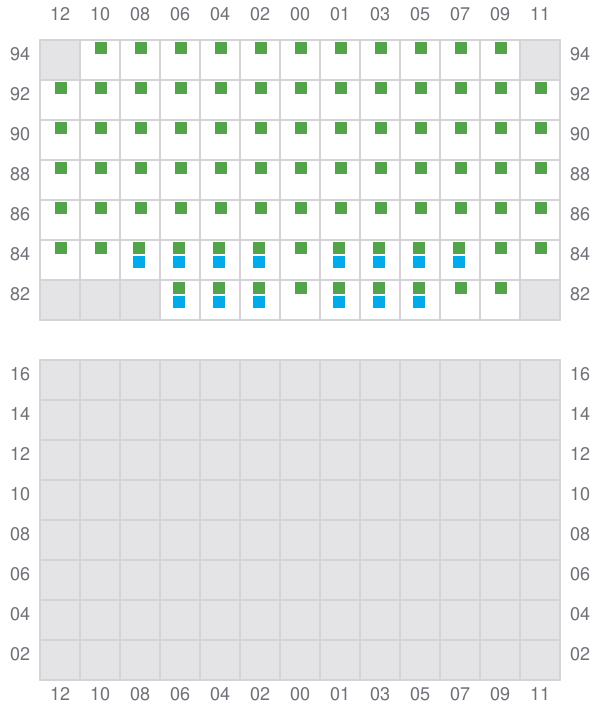

Bay 061 view and slots of SM NEYYAR

063 (062)

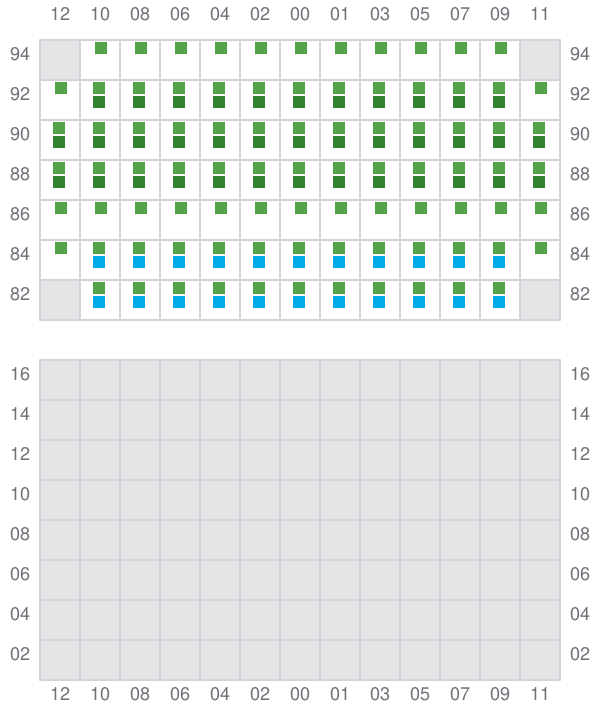

Bay 063 view and slots of SM NEYYAR
