SM NEYYAR
9305635 | VTJU | NYK by ***************************** Last update: Mon May 29 2023
General Info
Ship Name:SM NEYYAR
IMO Code:9305635
Call Sign:VTJU
Line Operator:NYK
Class Name for Sister Ships:NCS
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):248.70
LOA (Length Overall):260.86
Stern to AFT PP:-
Features Informed:
Also Known As...:-
Size Summary
ISO Bays:063
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,130
Centers of Gravity
LCG Values:Known
LCG Data:99%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View

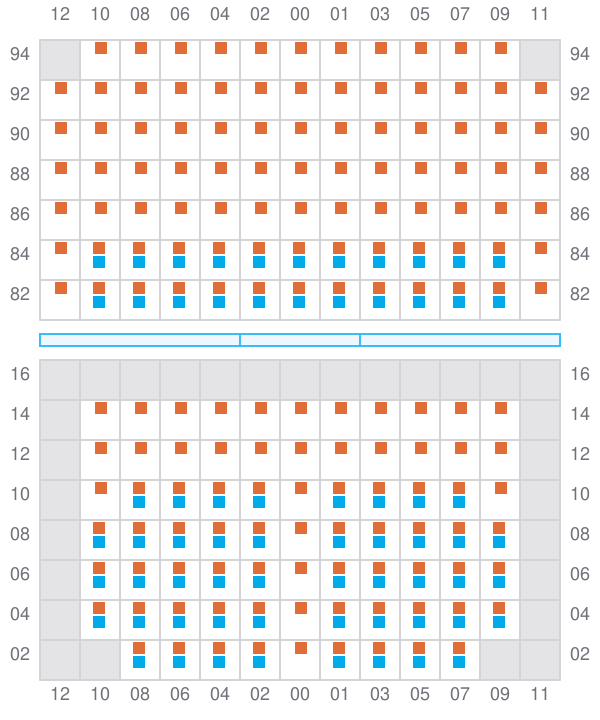

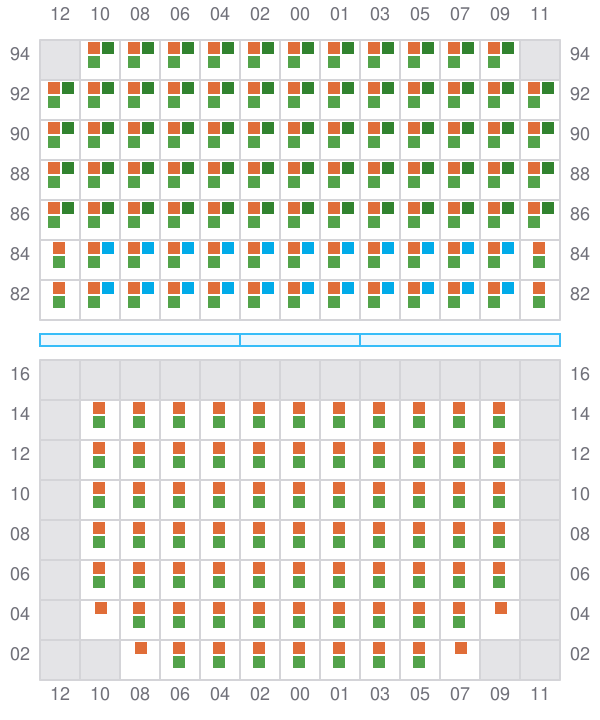

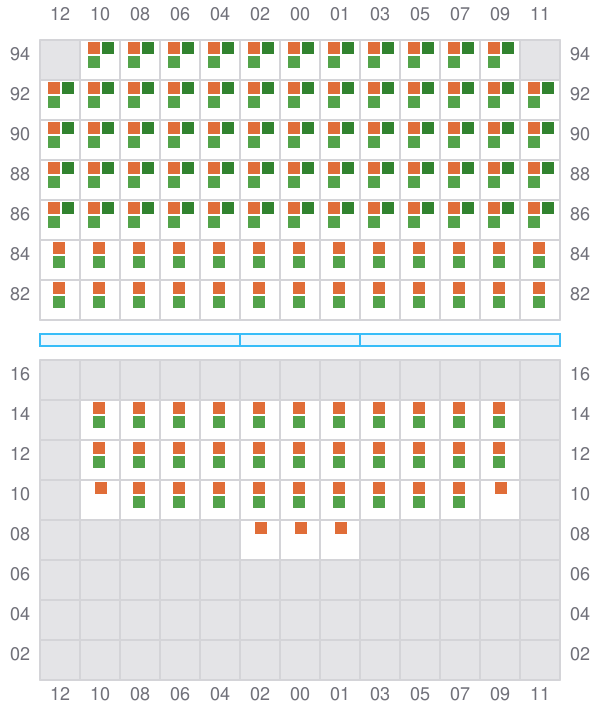

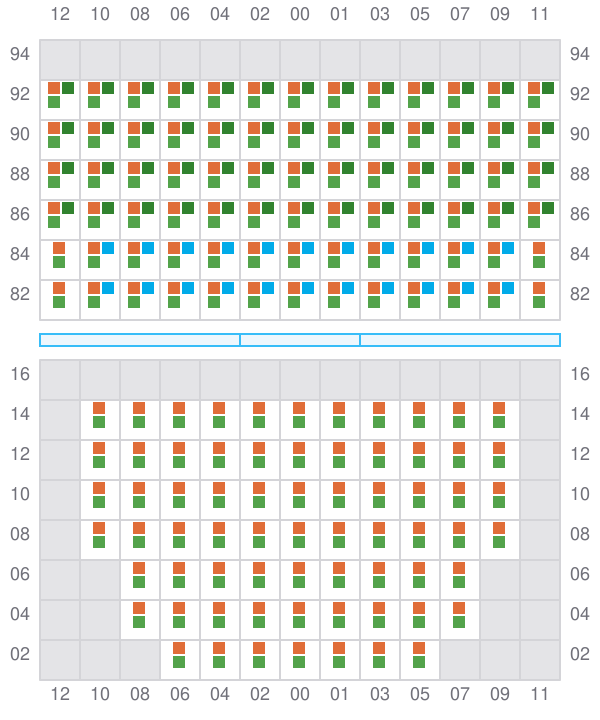

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

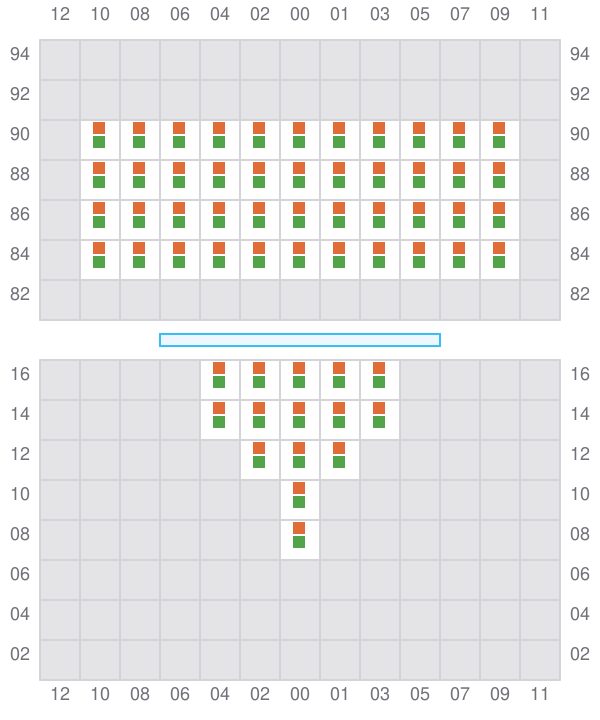

001 (002)
- →
- →

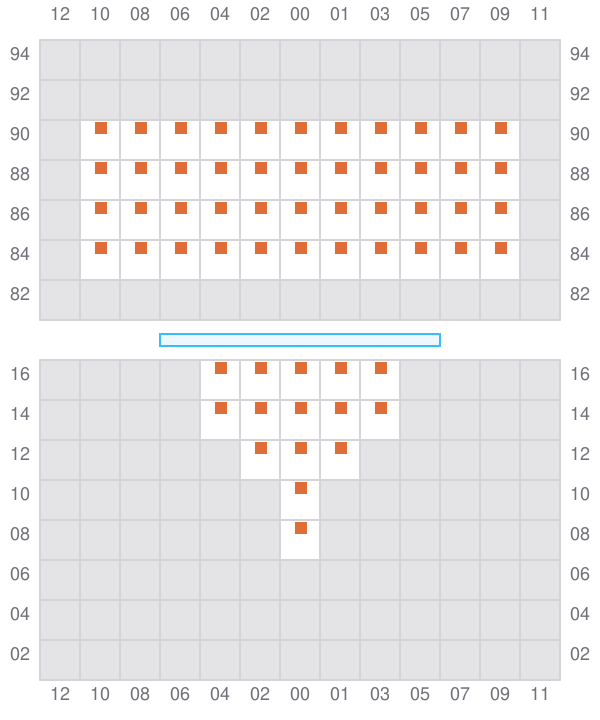

003
- ←
- →

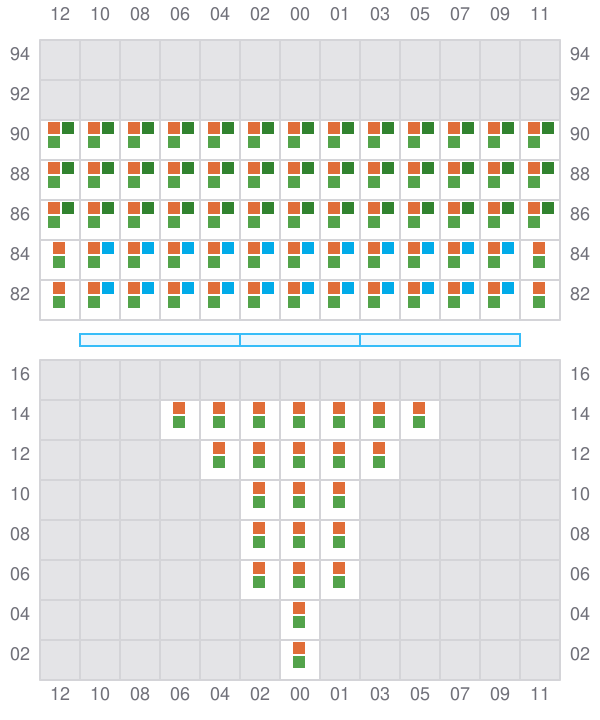

005 (006)
- →
- → / ?
- →

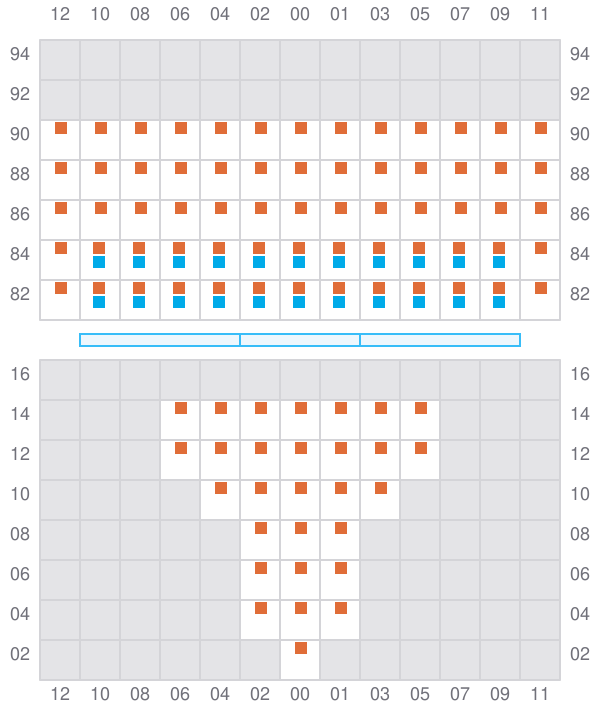

007
- ←
- → / ?
- →

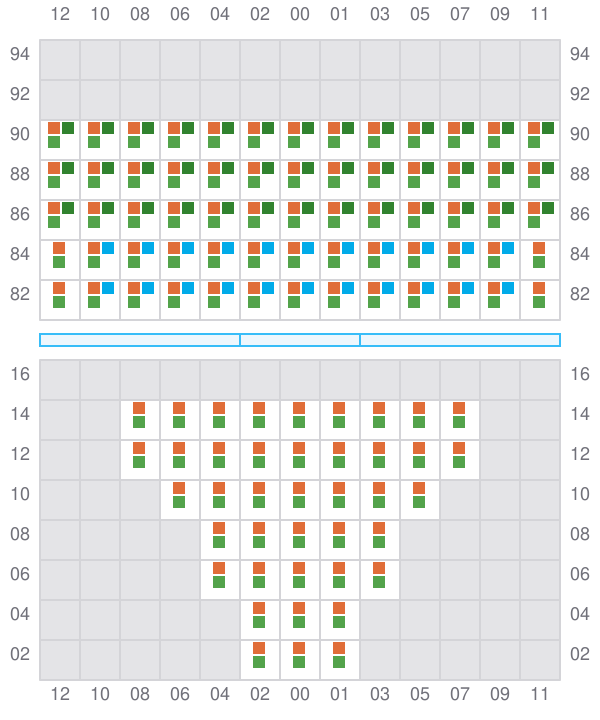

009 (010)
- →
- → / ?
- →
011
- ←
- → / ?
- →

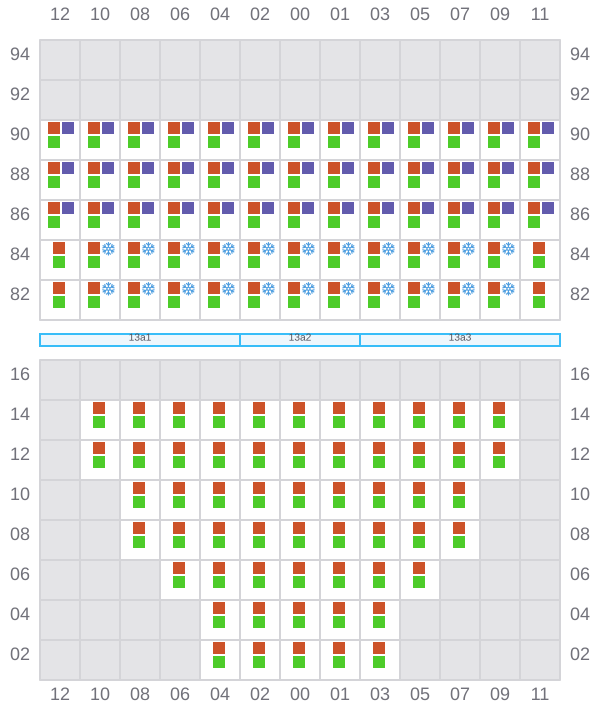

013 (014)
- →
- → / ?
- →

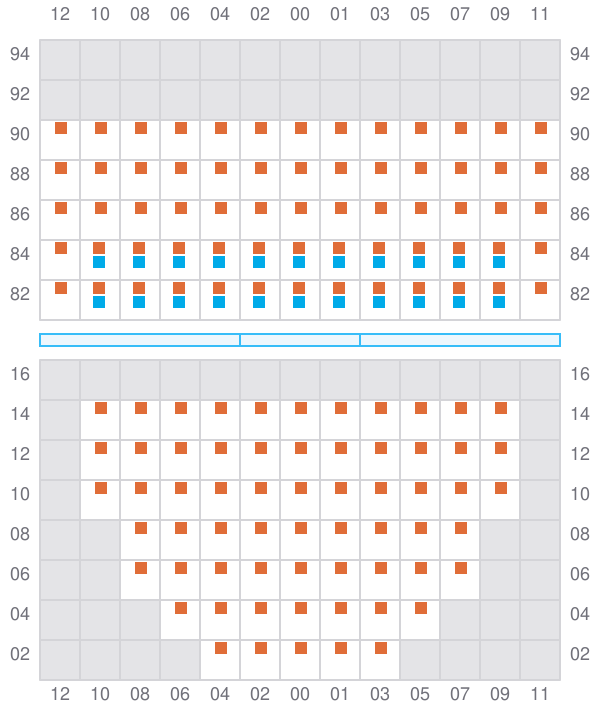

015
- ←
- → / ?
- →
017 (018)
- →
- → / ?
- →
019
- ←
- →
- →

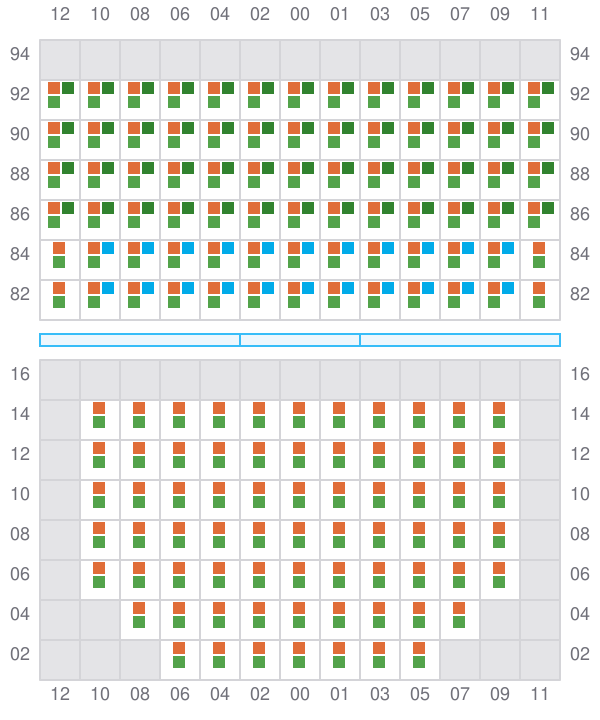

021 (022)
- →
- → / ?
- →
023
- ←
- → / ?
- →

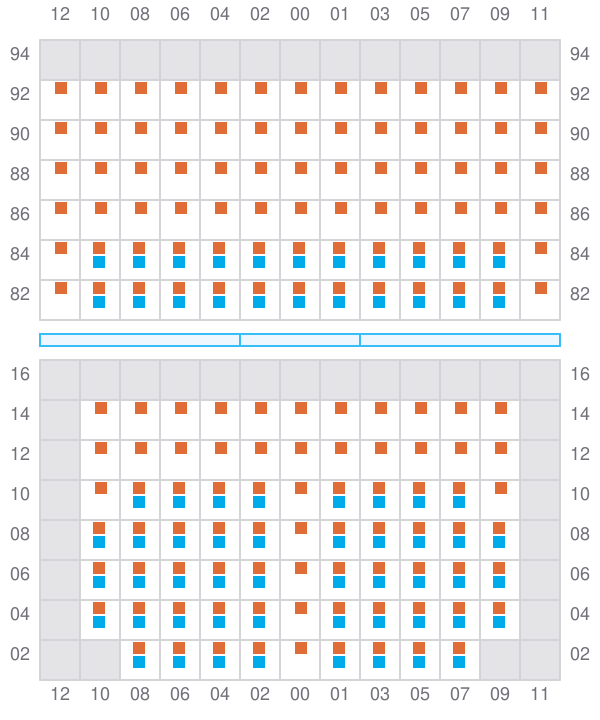

025 (026)
- →
- → / ?
- →
027
- ←
- →
- →

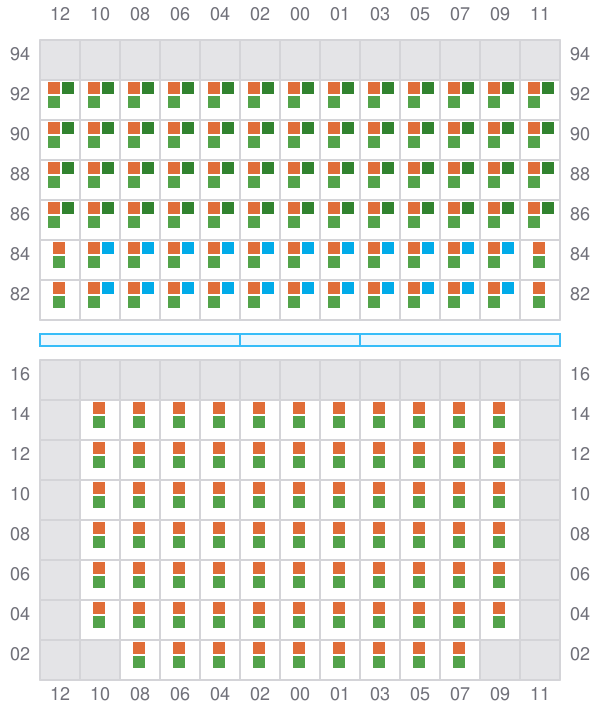

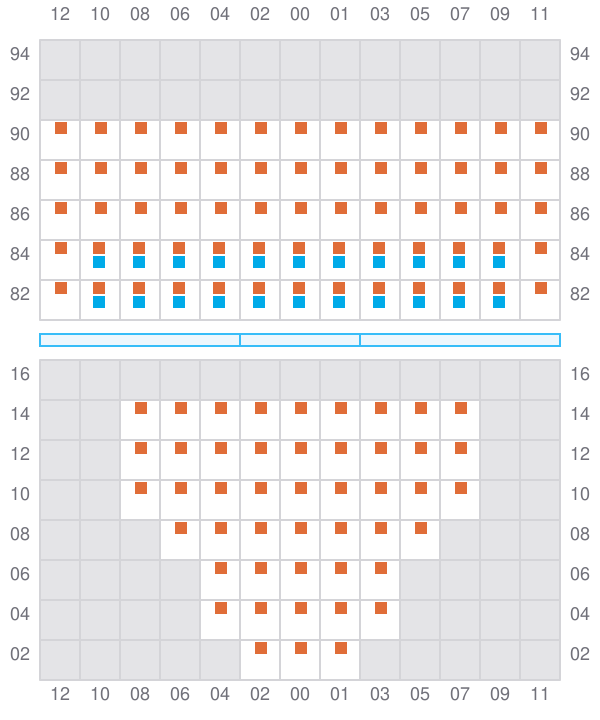

029 (030)
- →
- → / ?
- →

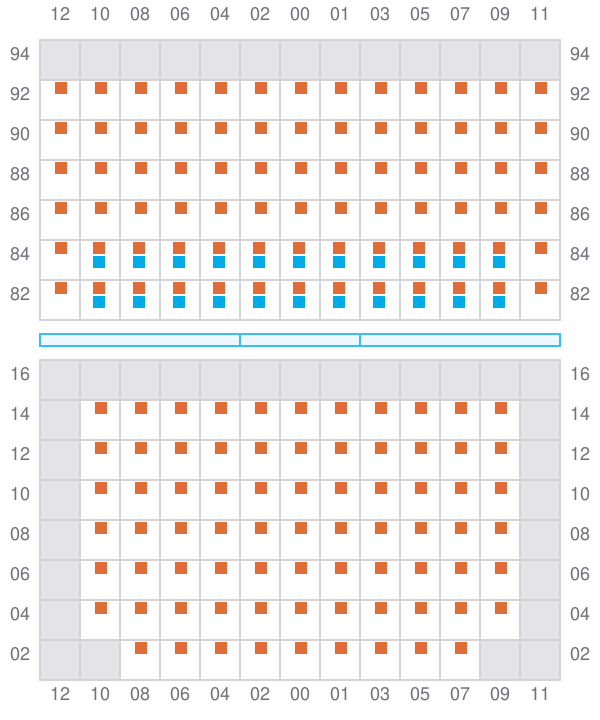

031
- ←
- → / ?
- →
033 (034)
- →
- → / ?
- →
035
- ←
- →
037 (038)
- →
- → / ?
- →

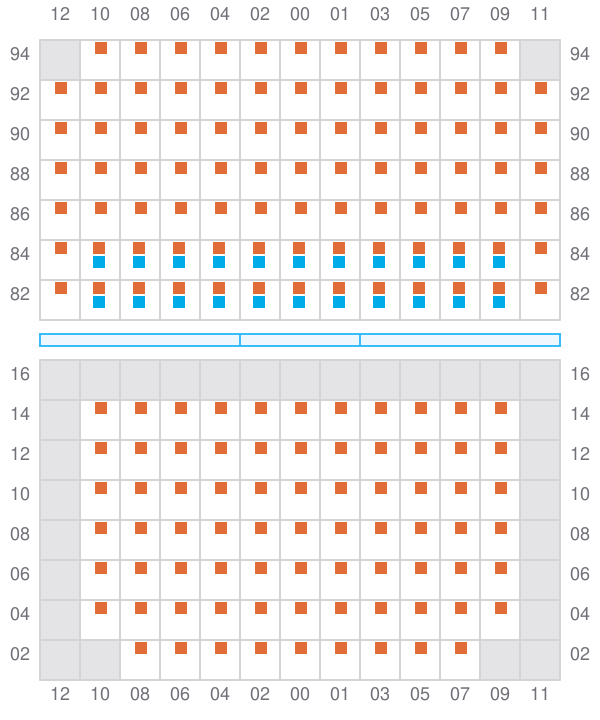

039
- ←
- → / ?
- →

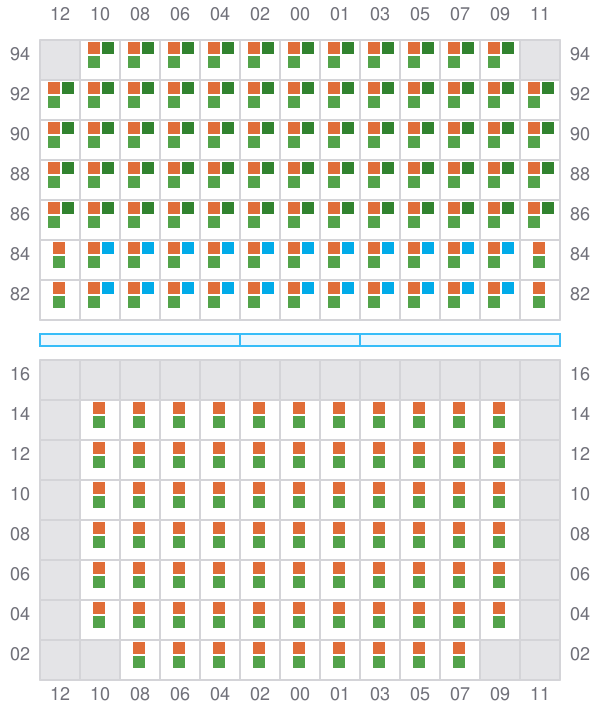

041 (042)
- →
- → / ?
- →
043
- ←
- →
- →
045 (046)
- →
- → / ?
- →

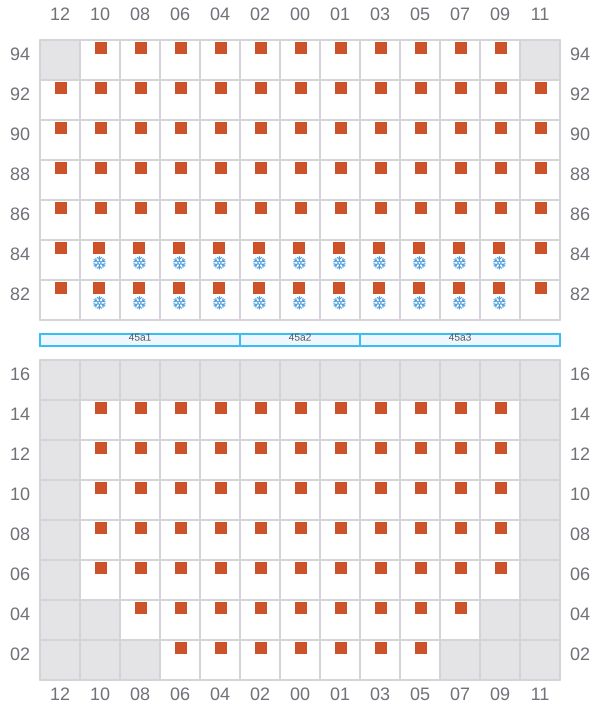

047
- ←
- → / ?
- →

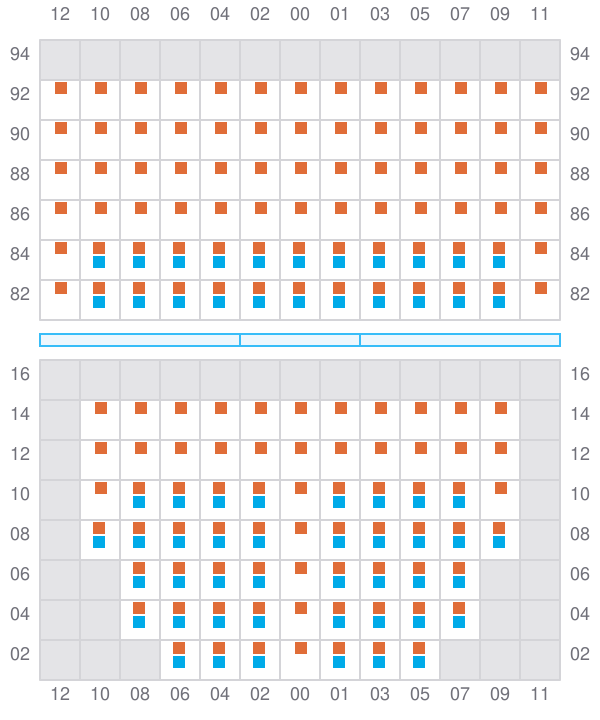

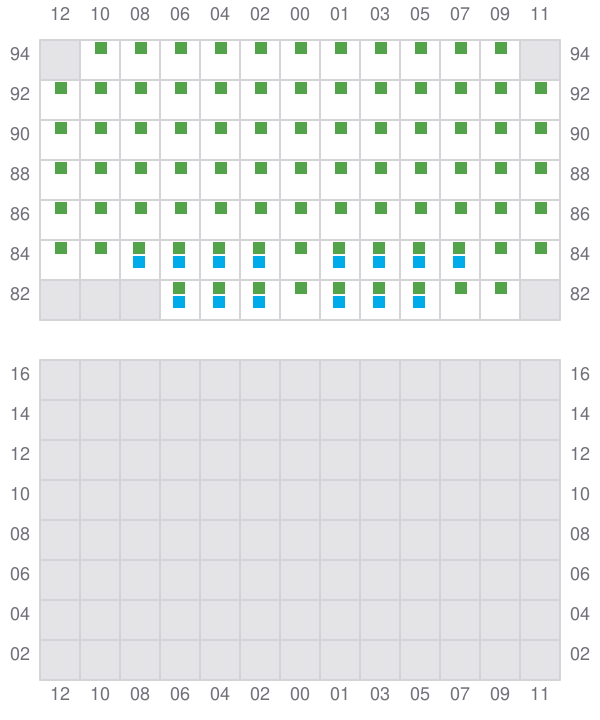

049 (050)
- → / ?
- → / ?
- → / ?
051
053 (054)
- →
- → / ?
- →

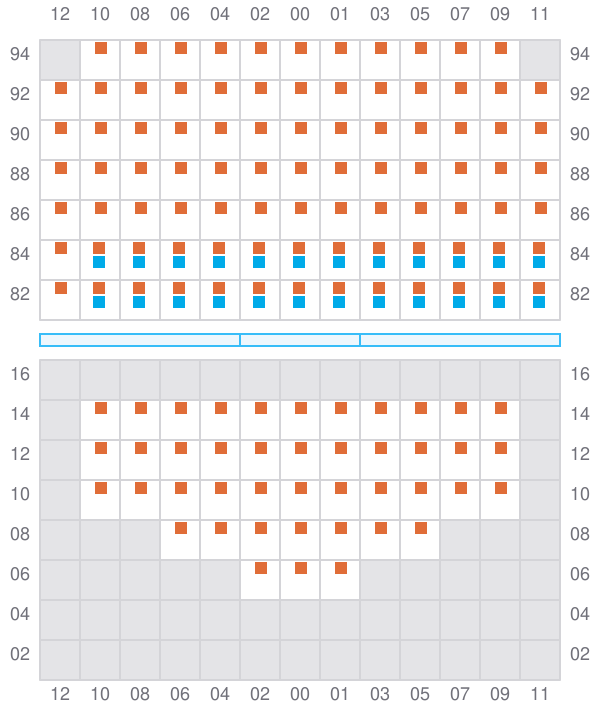

055
- ←
- → / ?
- →
057 (058)
- →
- →

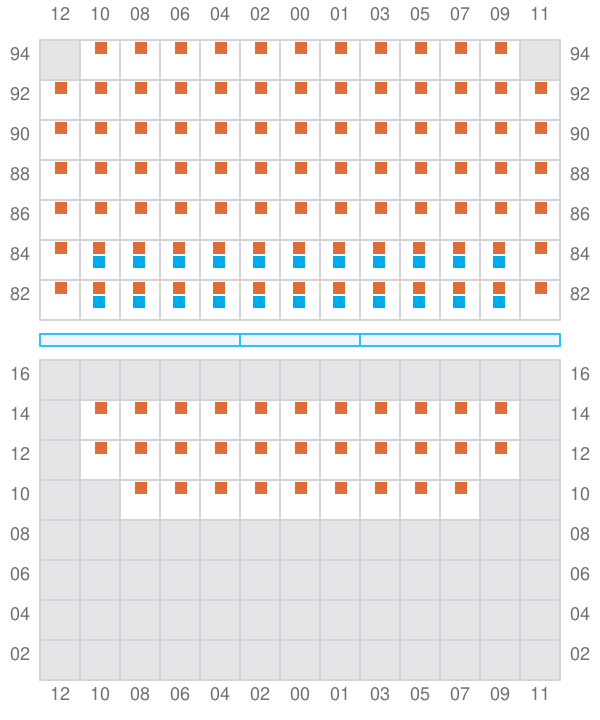

059
- ←
- → / ?
- →

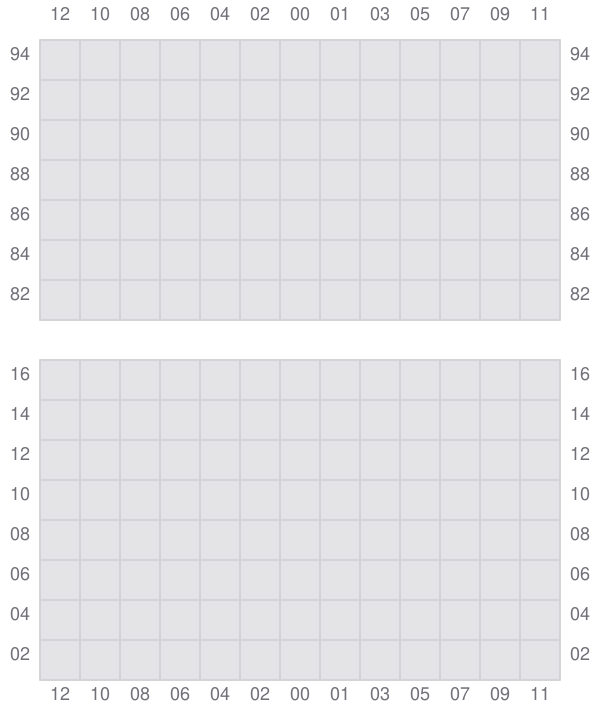

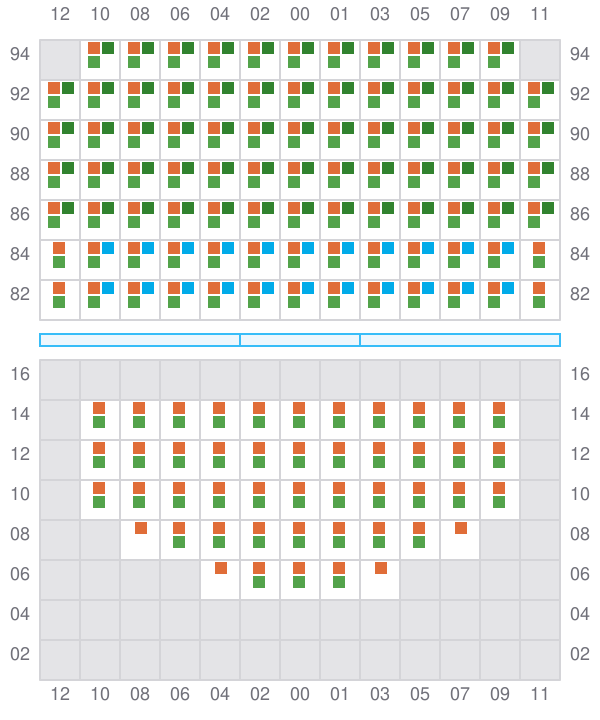

061

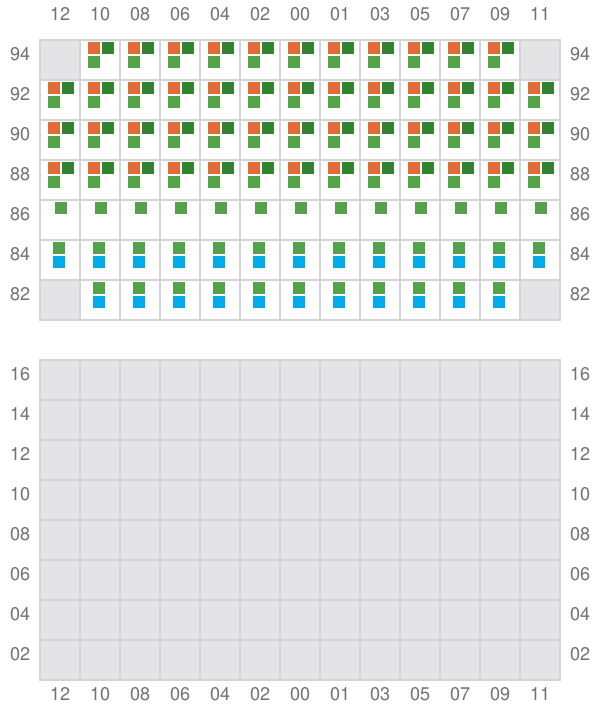

063 (062)
- ← / ?
- ← / ?
- → / ?
