SM QINGDAO
9395939 | D7CL | 9395939 by ********* Last update: Fri Jun 21 2024
General Info
Ship Name:SM QINGDAO
IMO Code:9395939
Call Sign:D7CL
Line Operator:9395939
Class Name for Sister Ships:MCC
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,356
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View

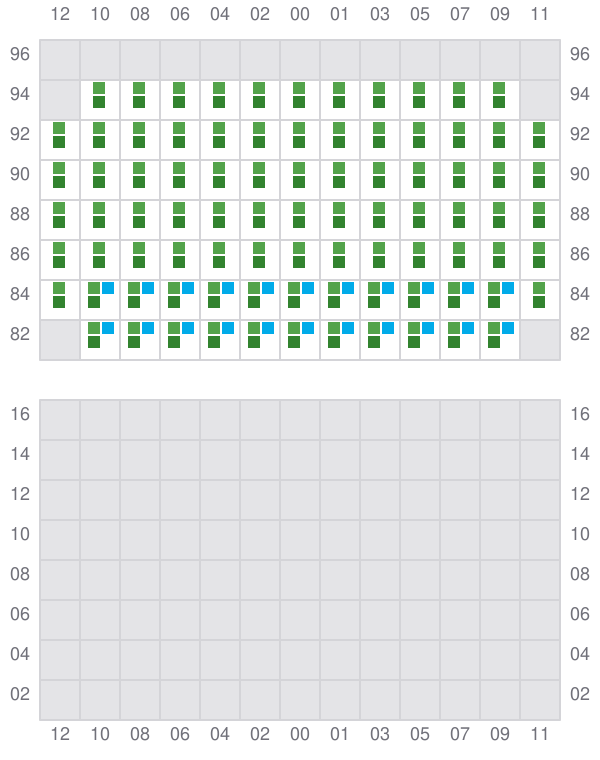

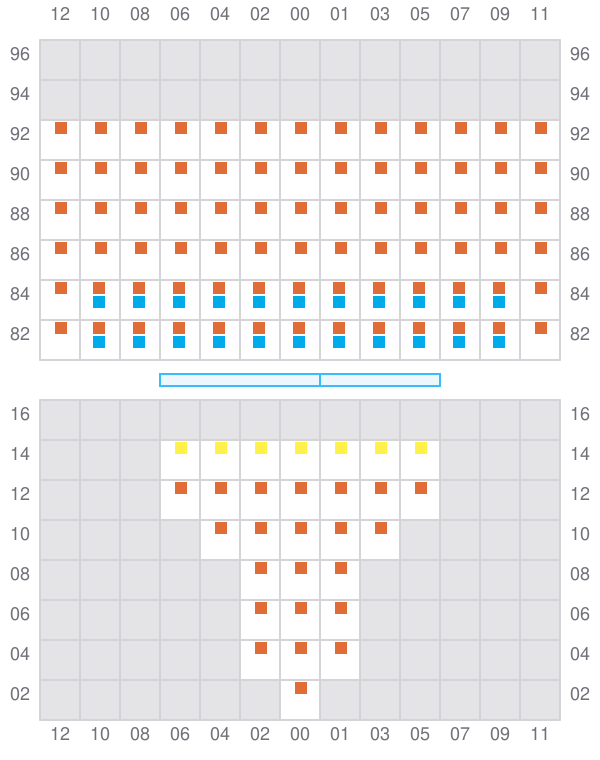

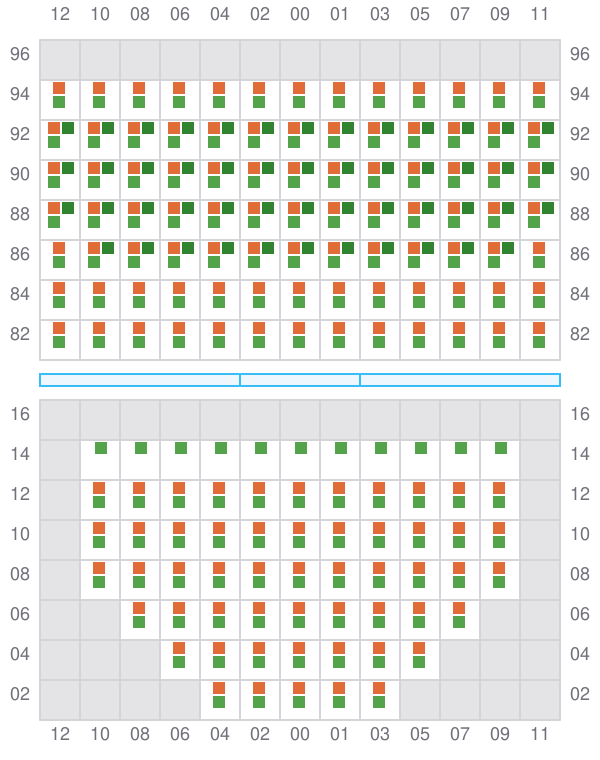

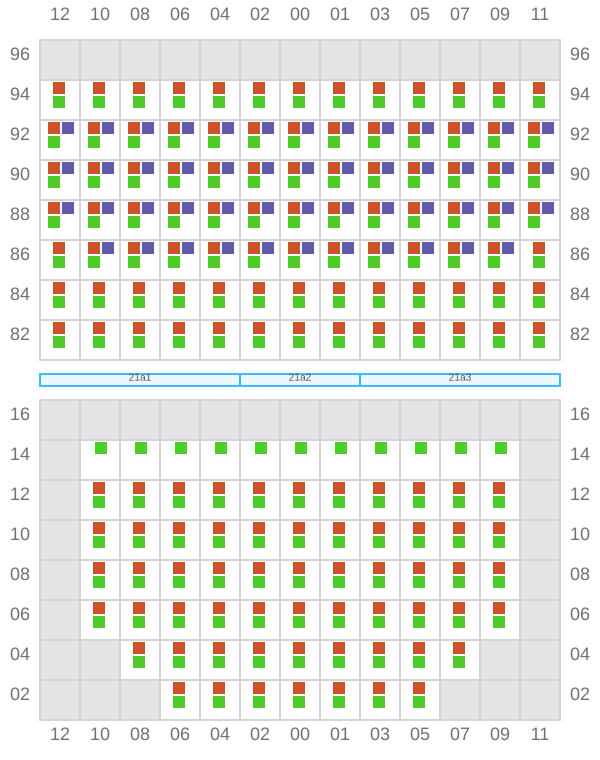

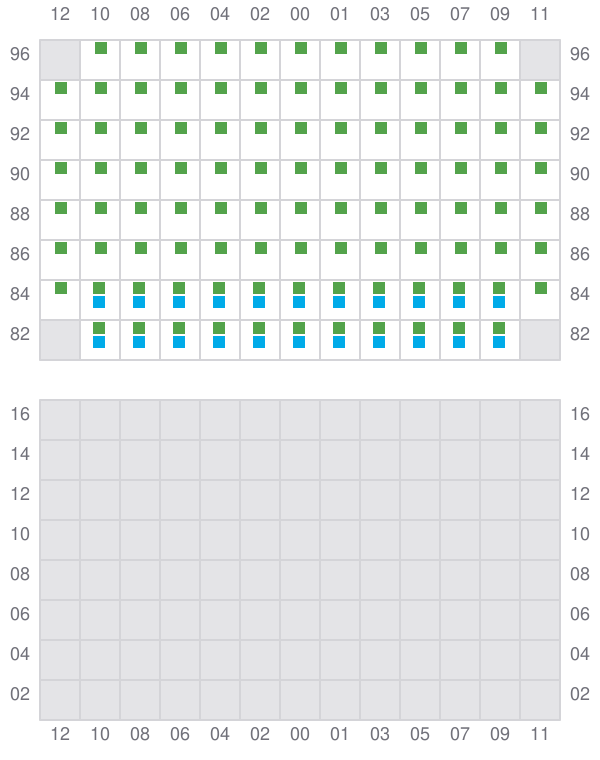

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
- ← / ?
003
- ←
- → / ?
005 (006)
- →
- ← / ?
007
- ←
- → / ?
009 (010)
- →
- ← / ?
011
- ←
- → / ?
013 (014)
- →
- ← / ?
015
- ←
- → / ?
017 (018)
- →
- ← / ?

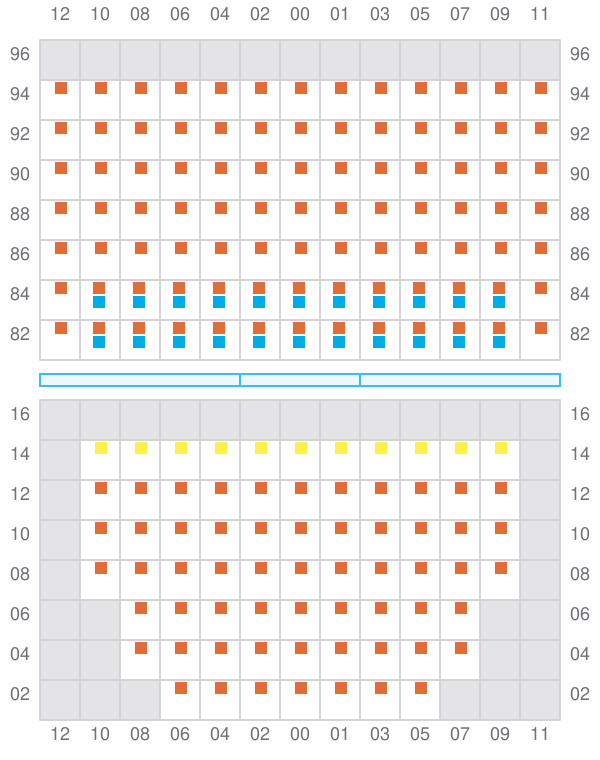

019
- ←
- → / ?
021 (022)
- →
- ← / ?
023
- ←
- → / ?
025 (026)
- →
- ← / ?
027
- ←
- → / ?
029 (030)
- →
- ← / ?
031
- ←
- → / ?
033 (034)
- →
- ← / ?
035
- ←
- → / ?
037 (038)
- →
- ← / ?

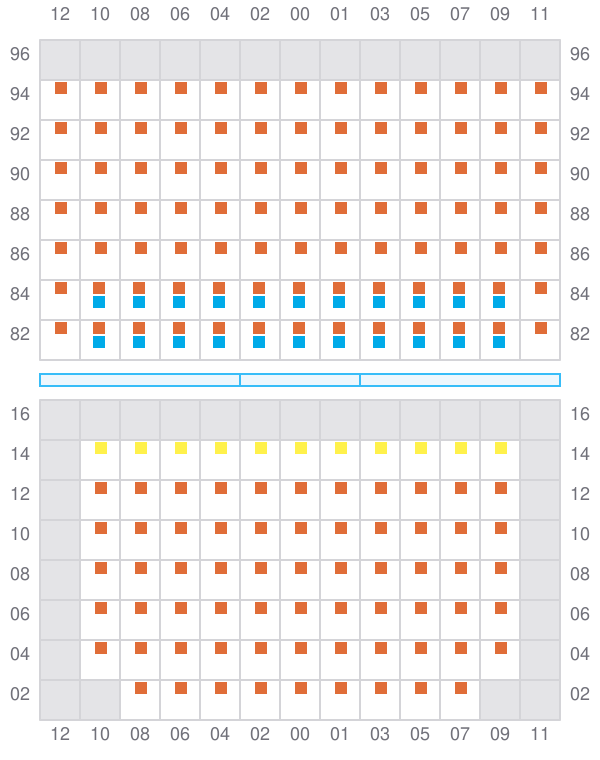

039
- ←
- → / ?
041 (042)
- →
- ← / ?

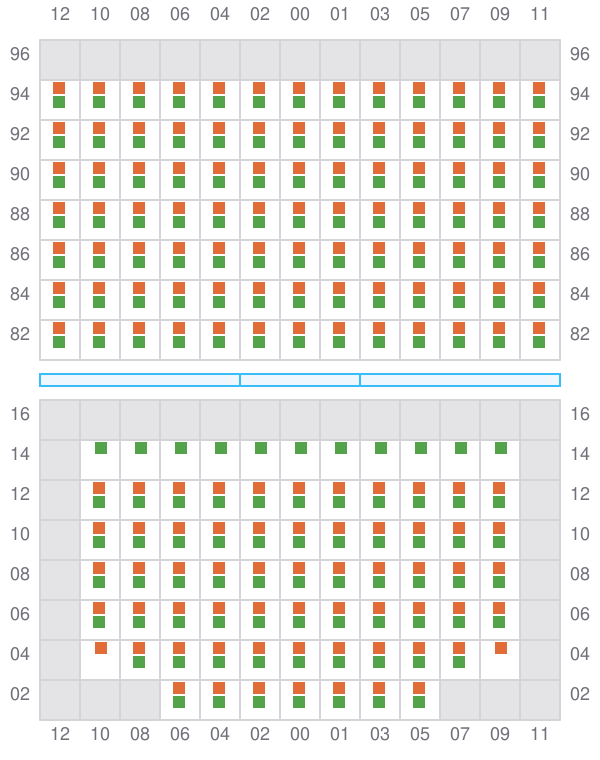

043
- ←
- → / ?
045 (046)
- →
- ← / ?
047
- ←
- → / ?
049 (050)
- → / ?
- → / ?

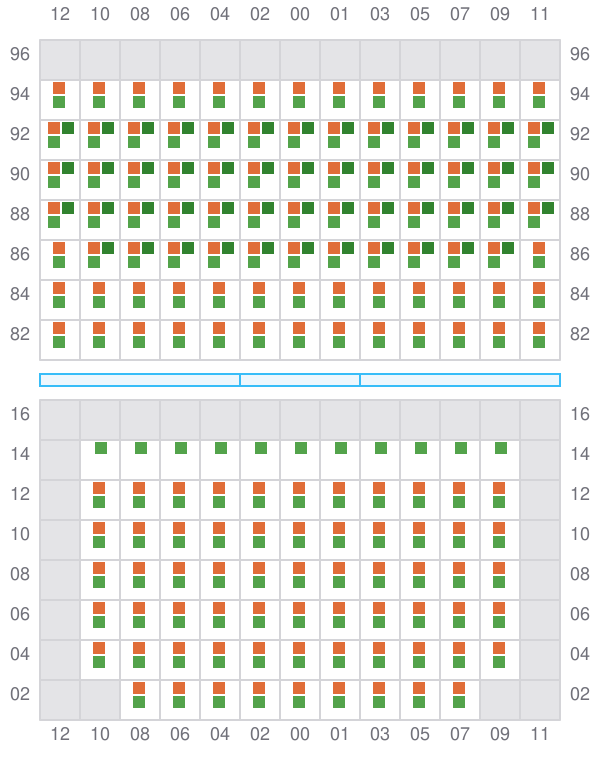

051

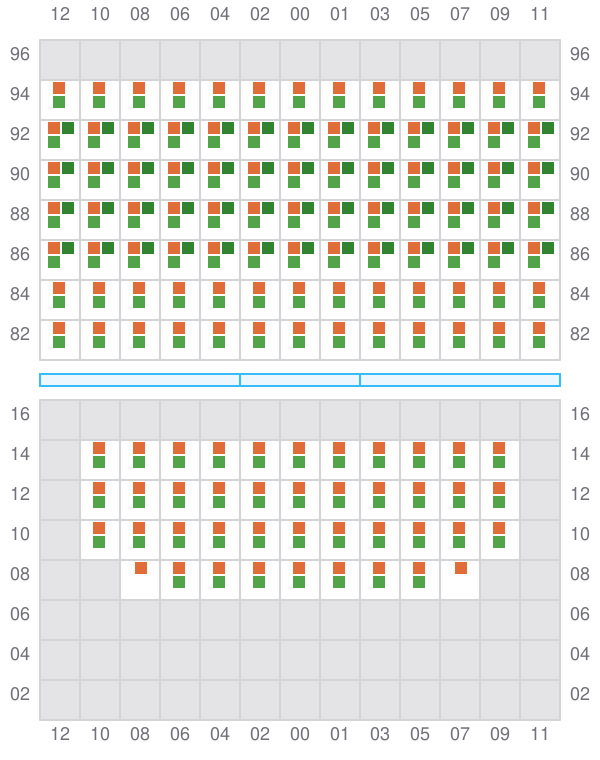

053 (054)
- →
- ← / ?
055
- ←
- → / ?

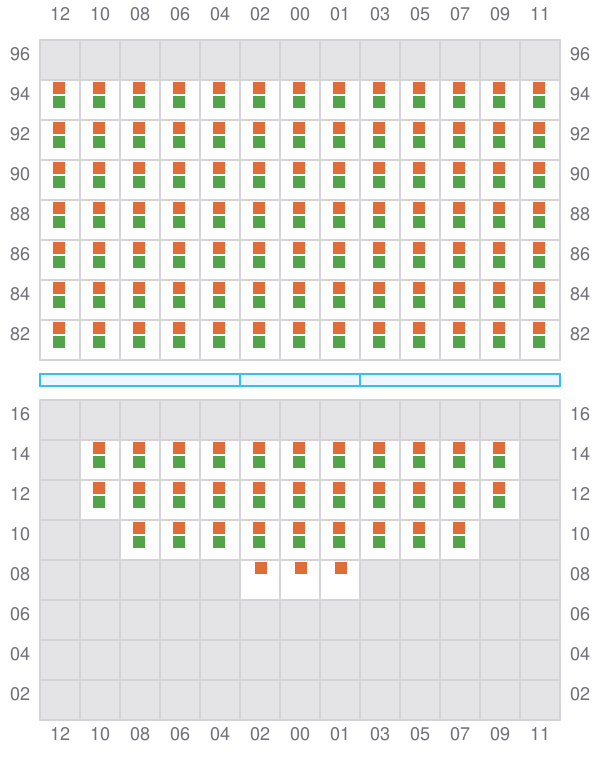

057 (058)
- →
- ← / ?
059
- ←
- → / ?
061 (062)
- → / ?
- ← / ?
