SNOEKGRACHT
9202546 | PCHF | 9202546 by ********* Last update: Wed Aug 21 2024
General Info
Ship Name:SNOEKGRACHT
IMO Code:9202546
Call Sign:PCHF
Line Operator:9202546
Class Name for Sister Ships:PON
Year Built:2000
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:041
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:80
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,019
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

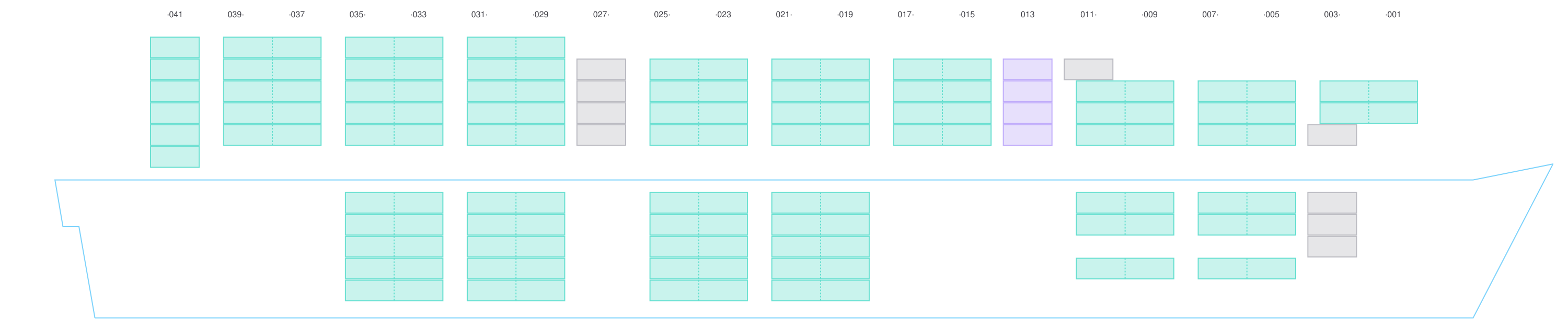

Side View
Hatch-Covers View

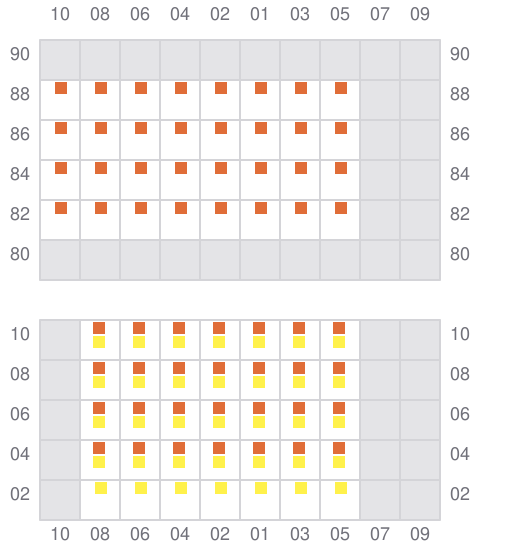

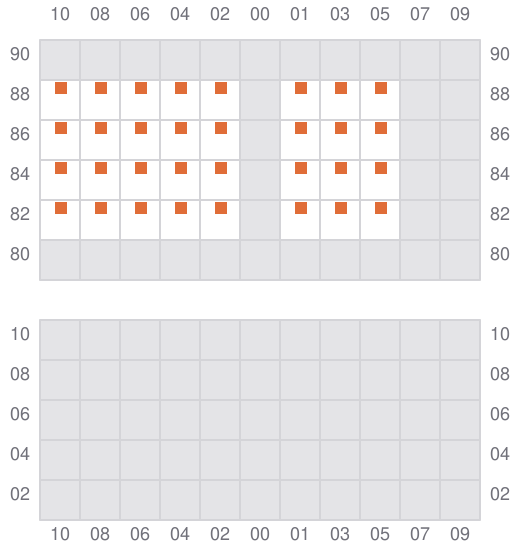

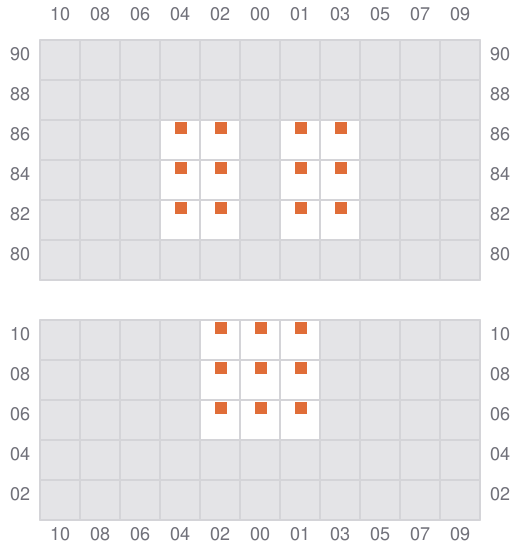

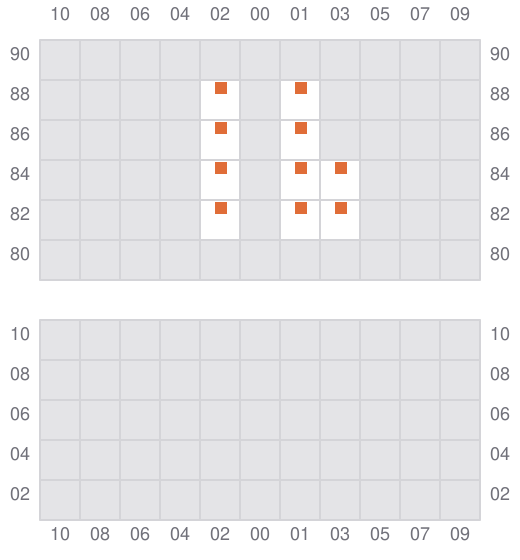

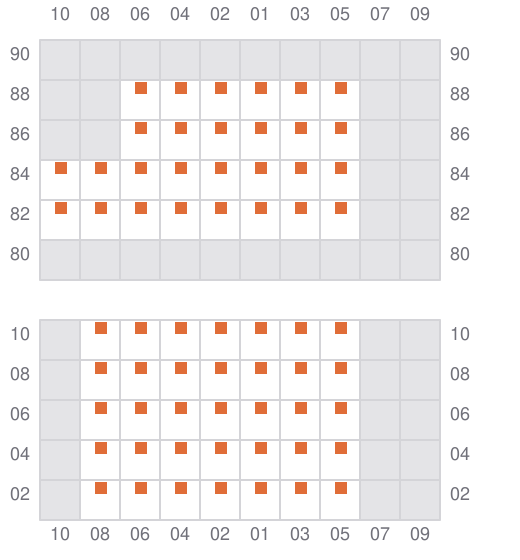

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

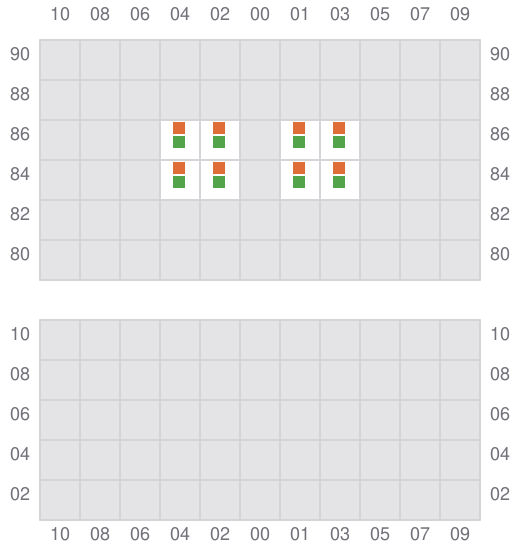

001 (002)
- → / ?
003
- ←
005 (006)
- →
007
- ←
009 (010)
- →

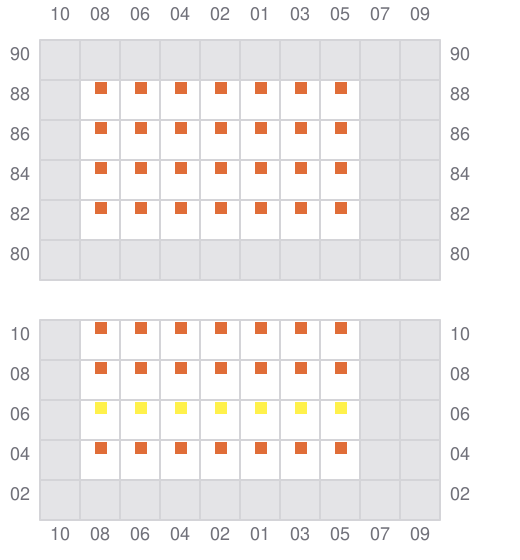

011
- ←
013

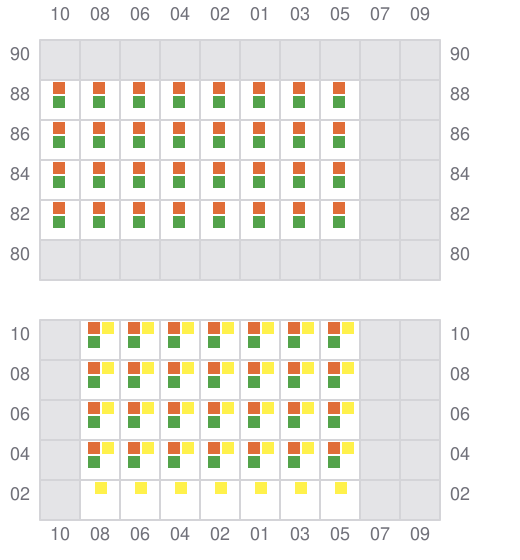

015 (016)
- →
017
- ←

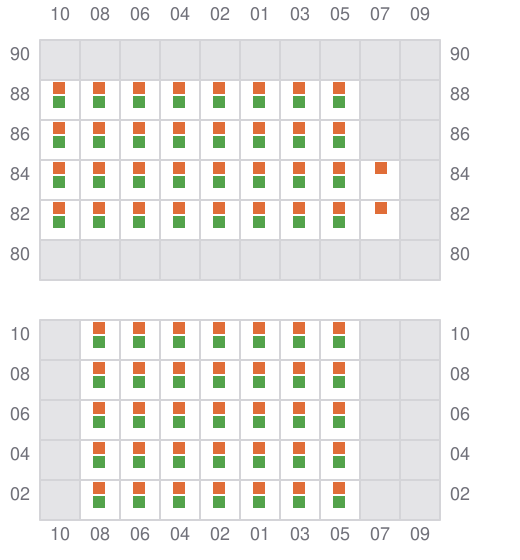

019 (020)
- →
021
- ←

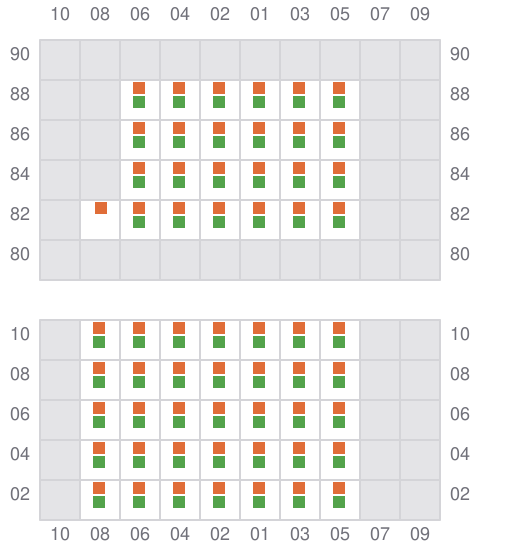

023 (024)
- →
025
- ←
027
- ← / ?

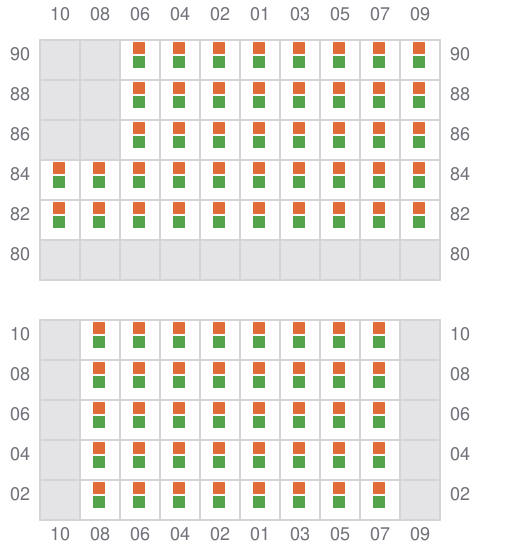

029 (030)
- →
031
- ←
033 (034)
- →
035
- ←
037 (038)
- →
039
- ← / ?

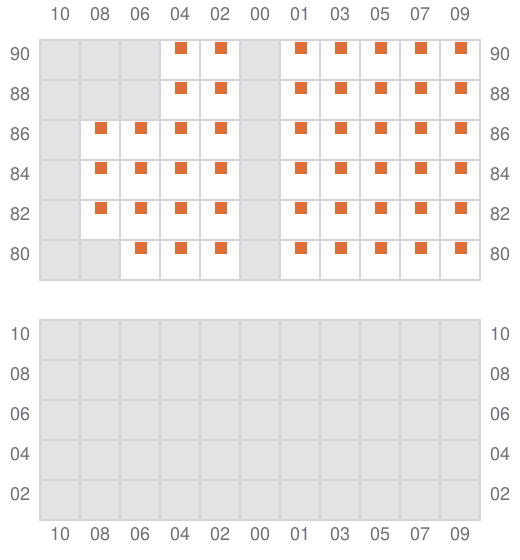

041
- → / ?
