SOL SHANGHAI
9141742 | 3FGA3 | 9141742 by ********* Last update: Thu Mar 07 2024
General Info
Ship Name:SOL SHANGHAI
IMO Code:9141742
Call Sign:3FGA3
Line Operator:9141742
Class Name for Sister Ships:62W
Year Built:1999
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:023
Max ISO Row:08
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:652
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Estimated
TCG Data:0%

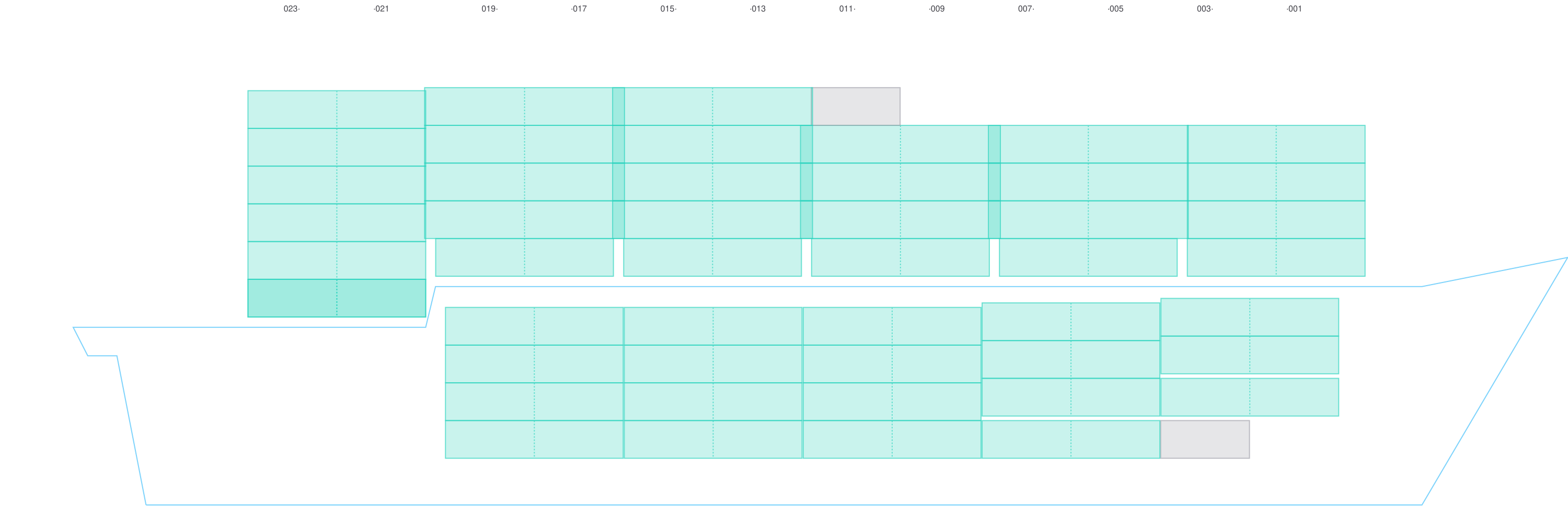

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

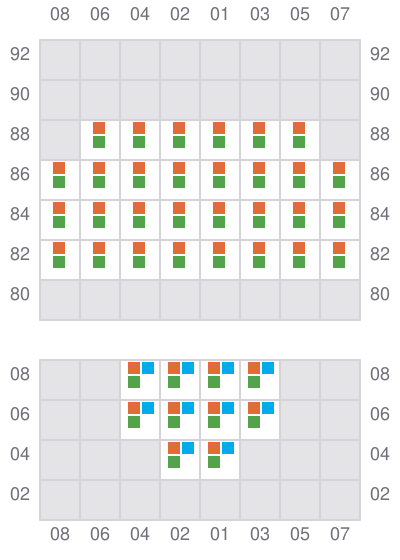

001 (002)
- →
- ? / ←

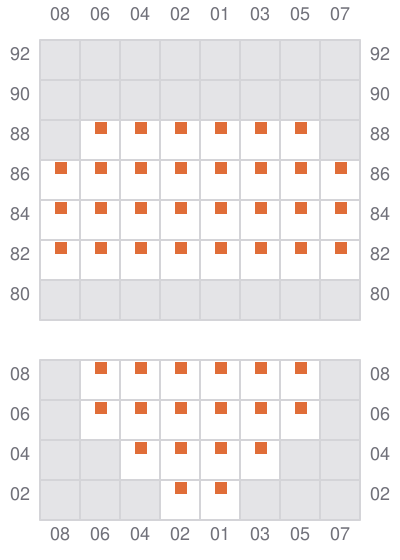

003
- ←

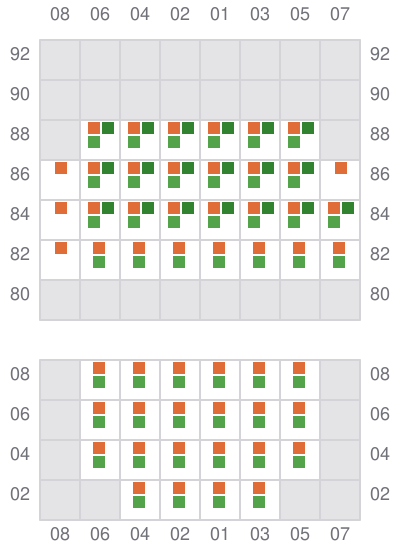

005 (006)
- →

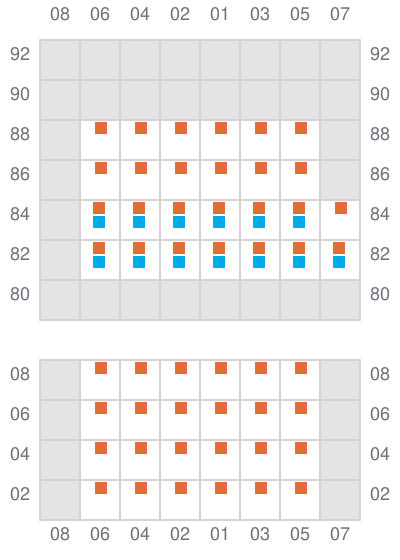

007
- ←
- → / ?

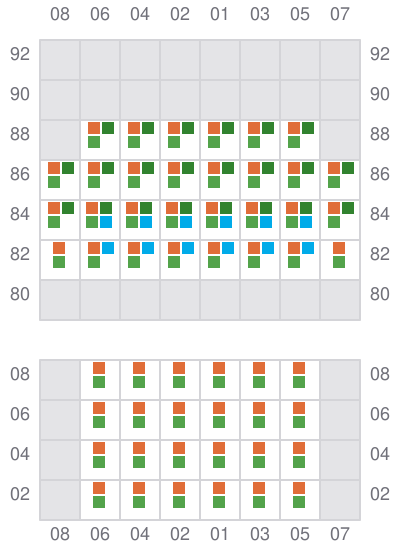

009 (010)
- →
- ← / ?

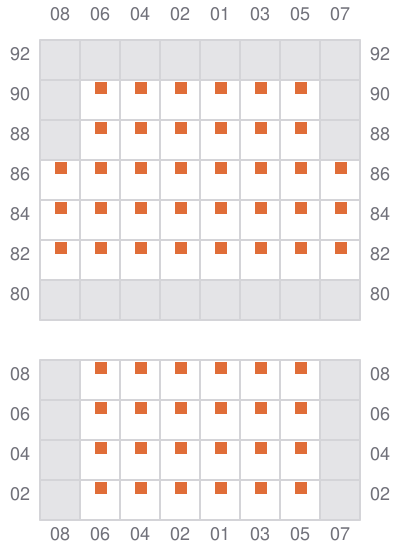

011
- ←

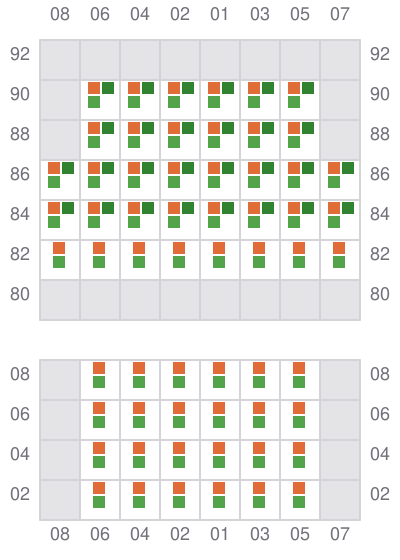

013 (014)
- →

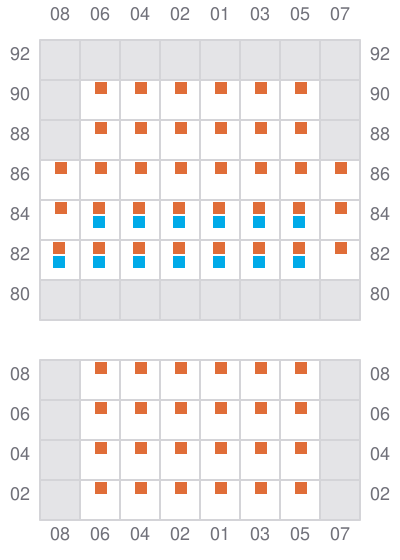

015
- ←

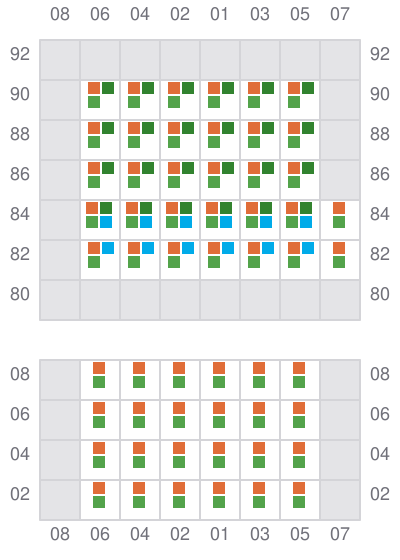

017 (018)
- →
- ← / ?

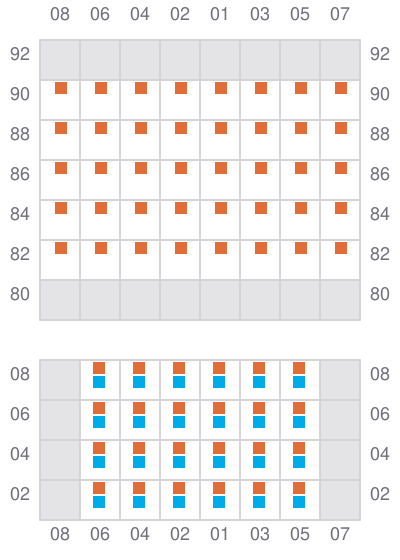

019
- ←
- ? / →

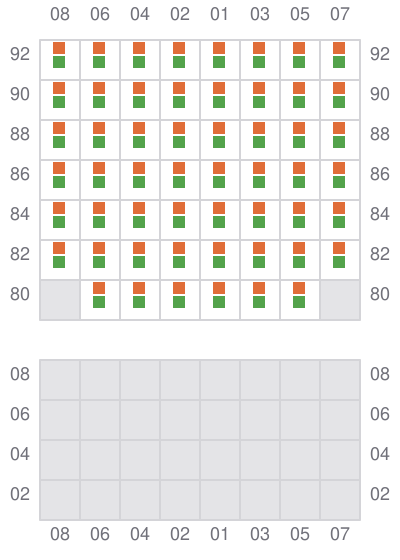

021 (022)
- → / ?

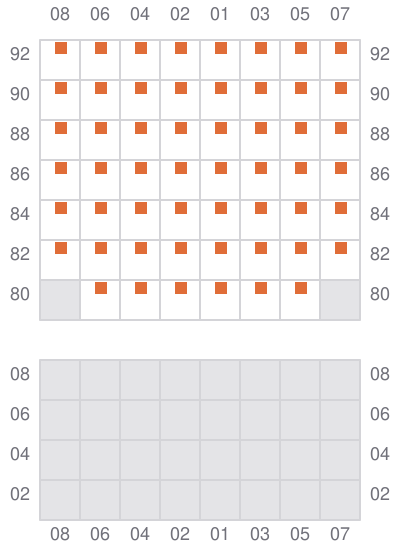

023
- ← / ?
