SONGA PUMA
9399789 | D5YU9 | CSAV by ************************** Last update: Fri Jun 23 2023
General Info
Ship Name:SONGA PUMA
IMO Code:9399789
Call Sign:D5YU9
Line Operator:CSAV
Class Name for Sister Ships:ALG
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-
Size Summary
ISO Bays:049
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,872
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

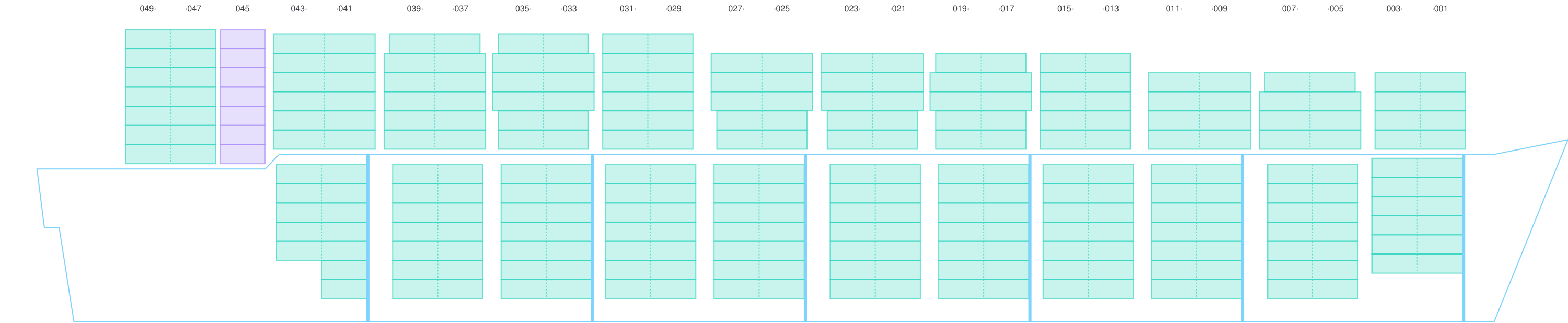

Side View
Hatch-Covers View

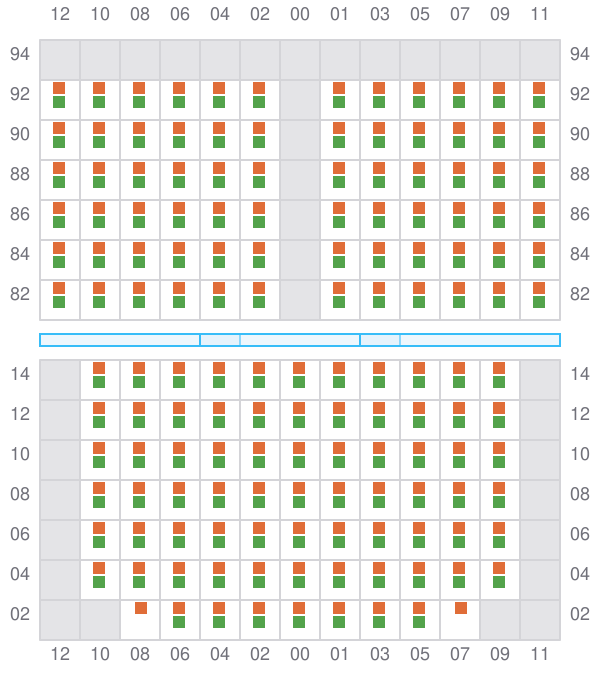

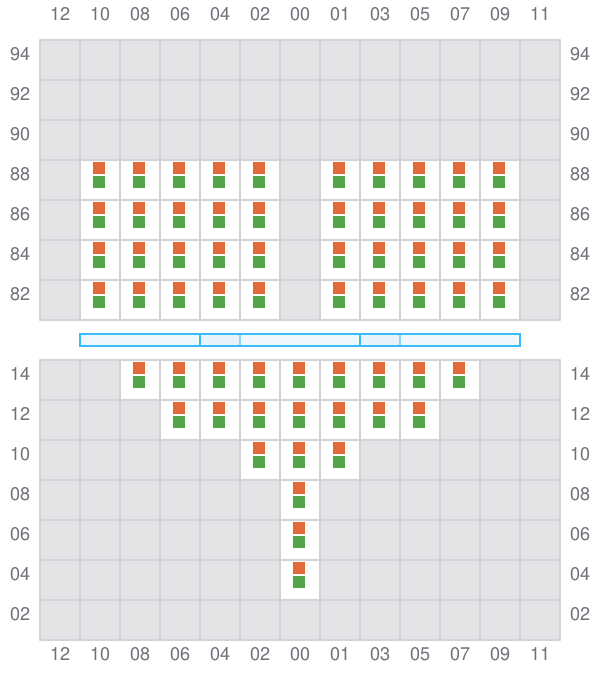

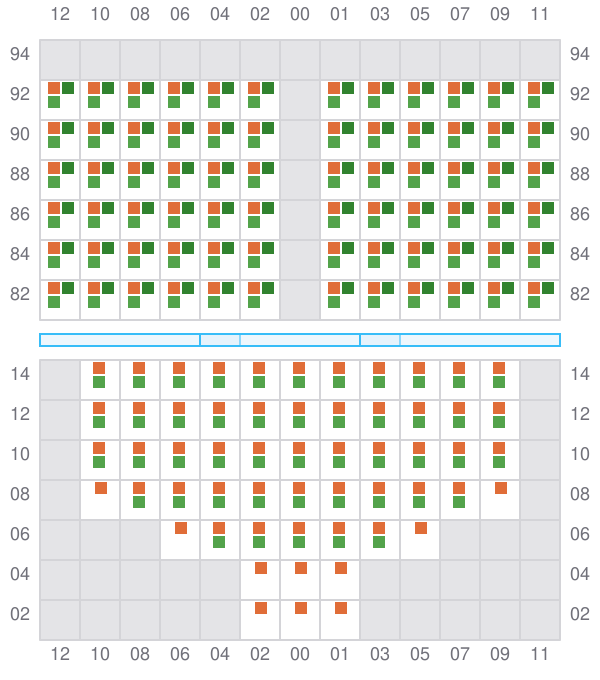

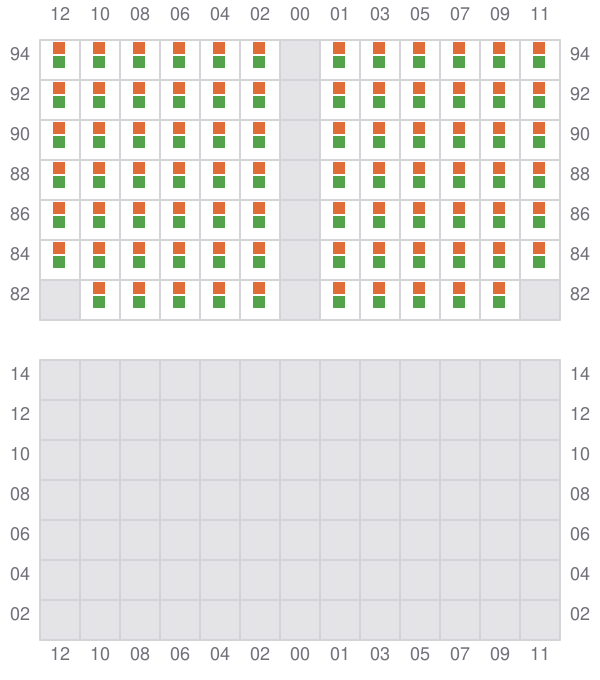

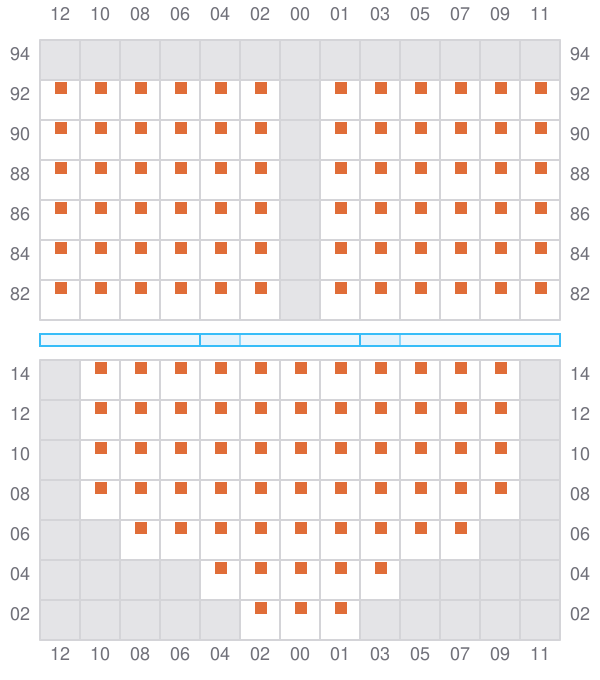

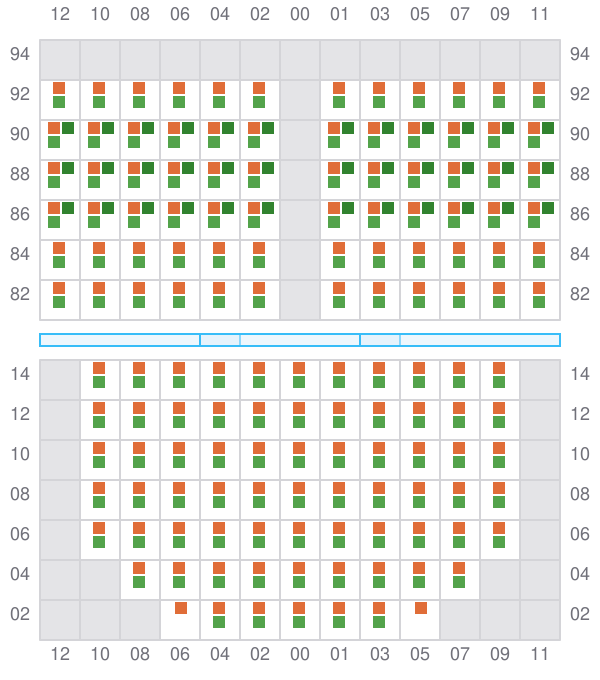

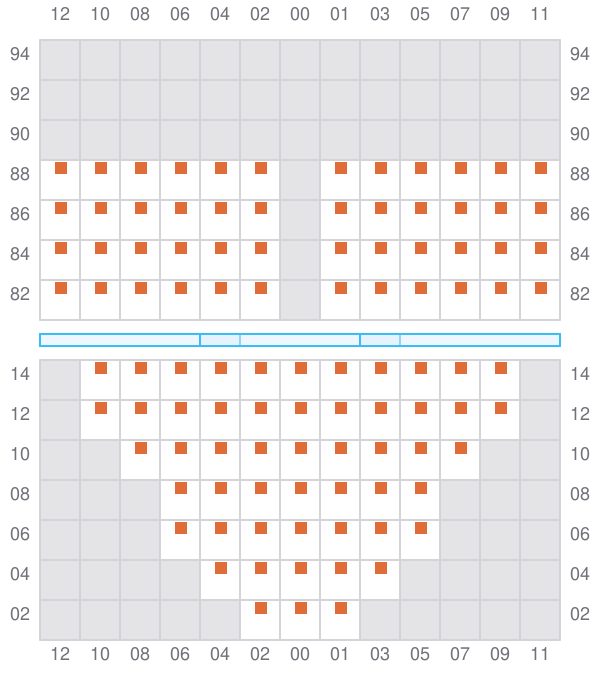

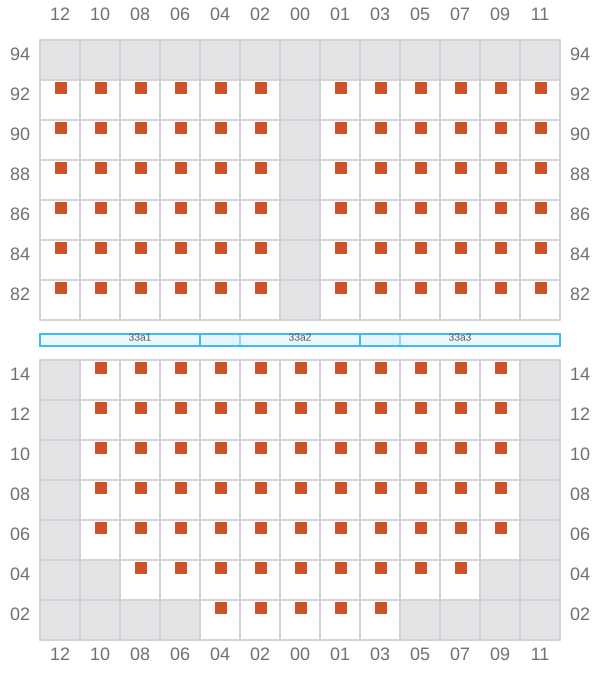

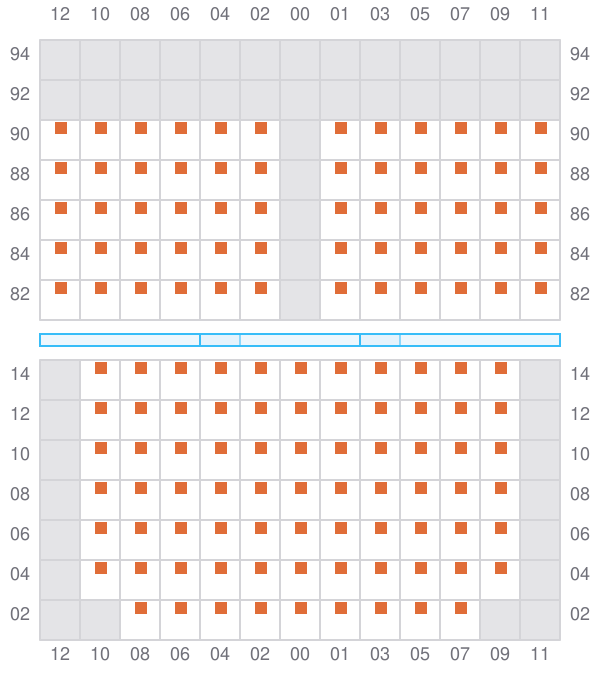

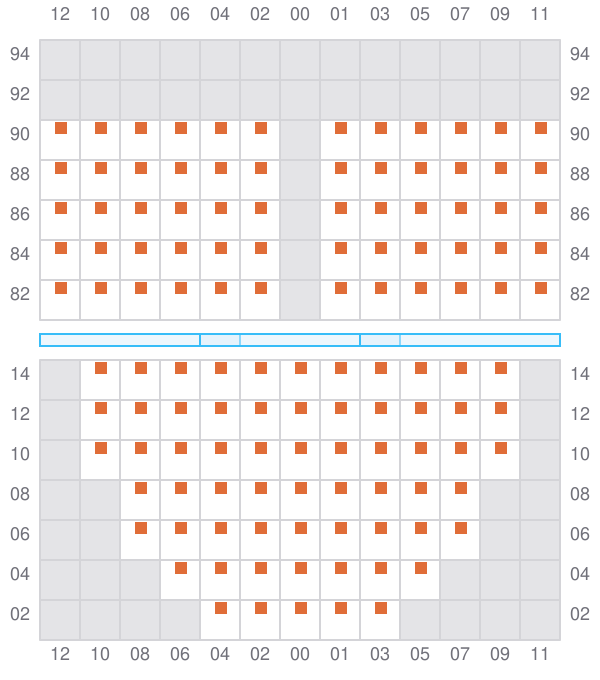

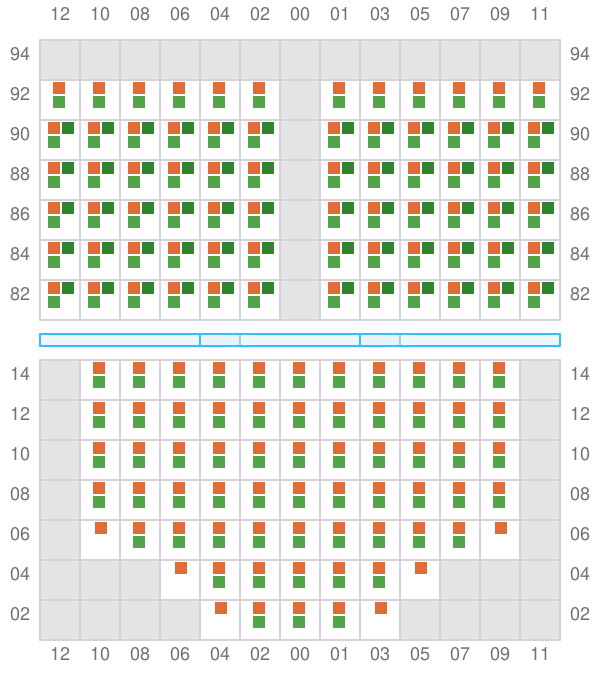

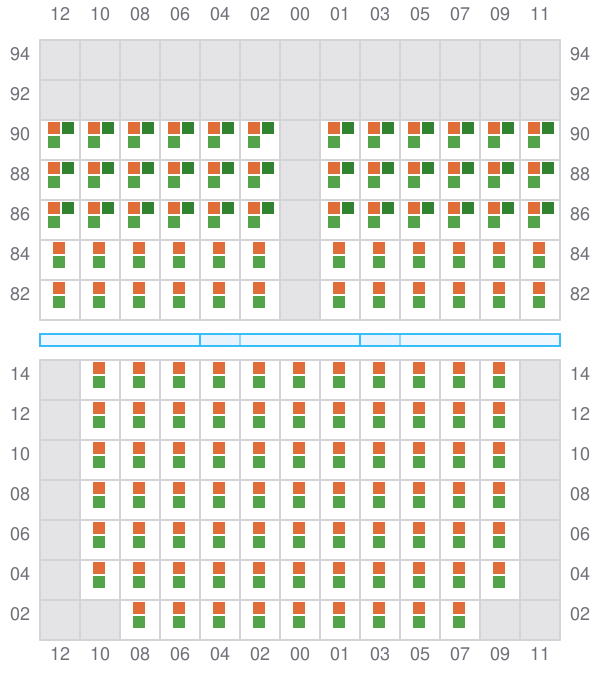

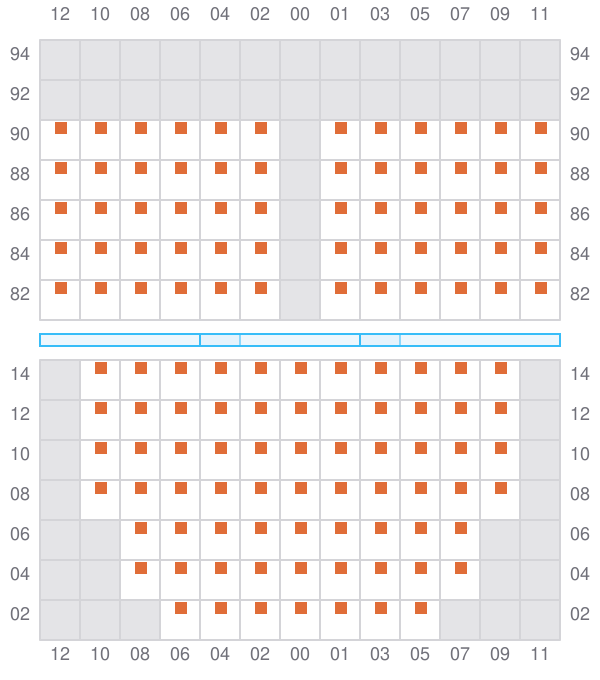

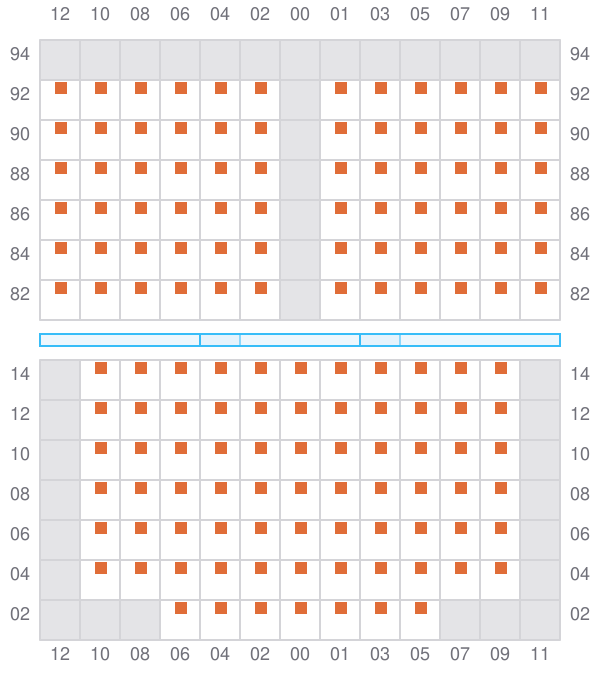

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

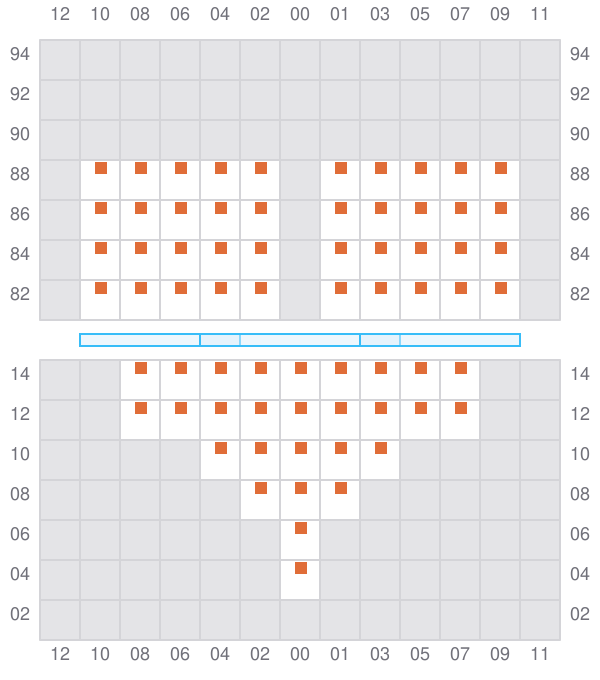

001 (002)
- →

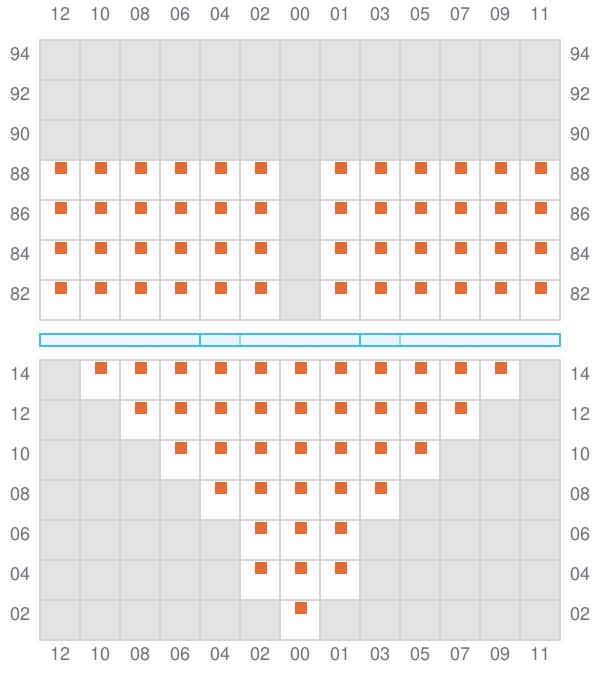

003
- ←
- → / ?

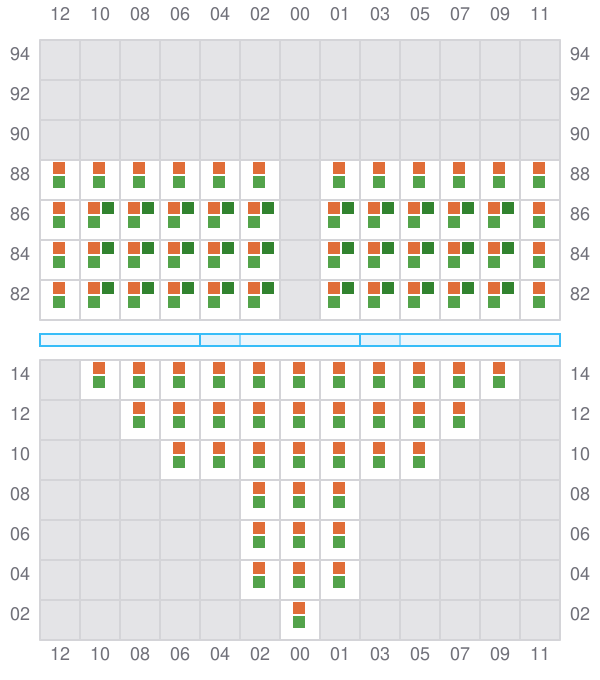

005 (006)
- →
007
- ←
- → / ?

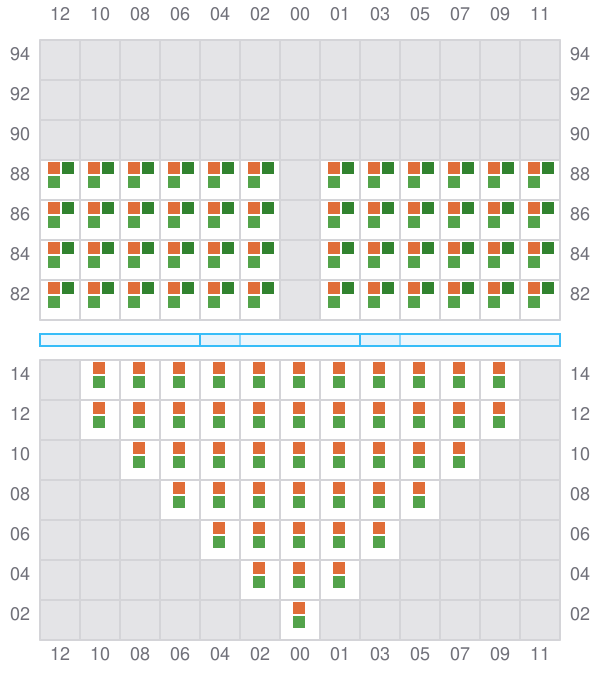

009 (010)
- →
011
- ←
- →

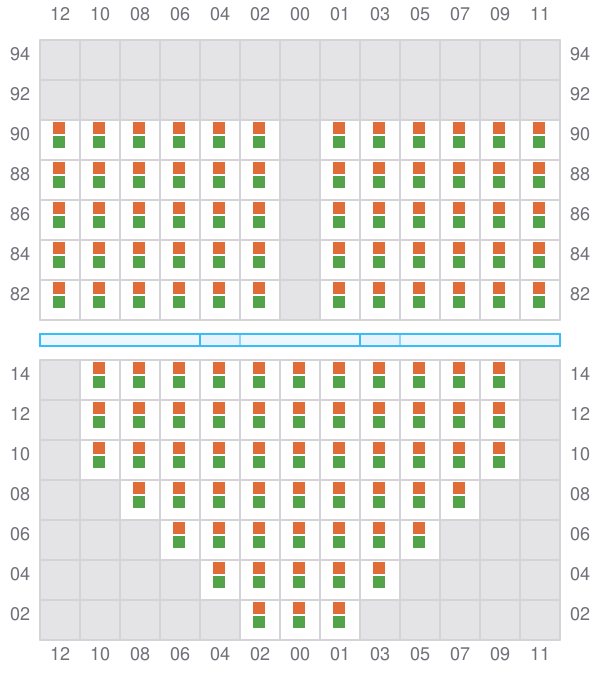

013 (014)
- →
- ? / ←
015
- ←
- → / ?

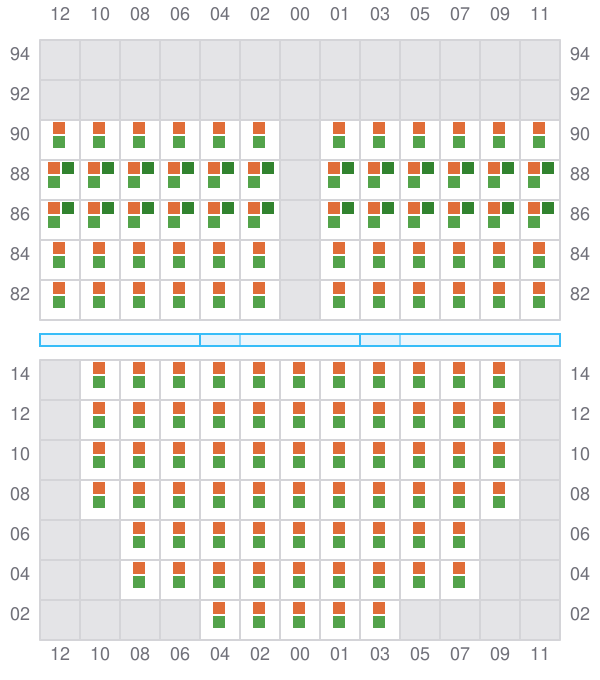

017 (018)
- →
019
- ←
- →

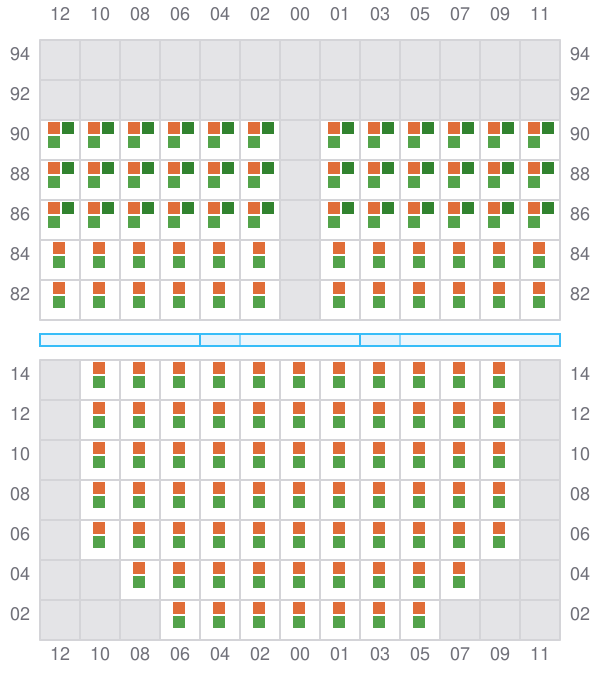

021 (022)
- →
- ? / ←
023
- ←
- → / ?
025 (026)
- →
- ← / ?
027
- ←
- ? / →
029 (030)
- →
- ? / ←
031
- ←
- → / ?
033 (034)
- →
035
- ←
- →
037 (038)
- →
- ? / ←
039
- ←
- → / ?
041 (042)
- →
- ← / ?

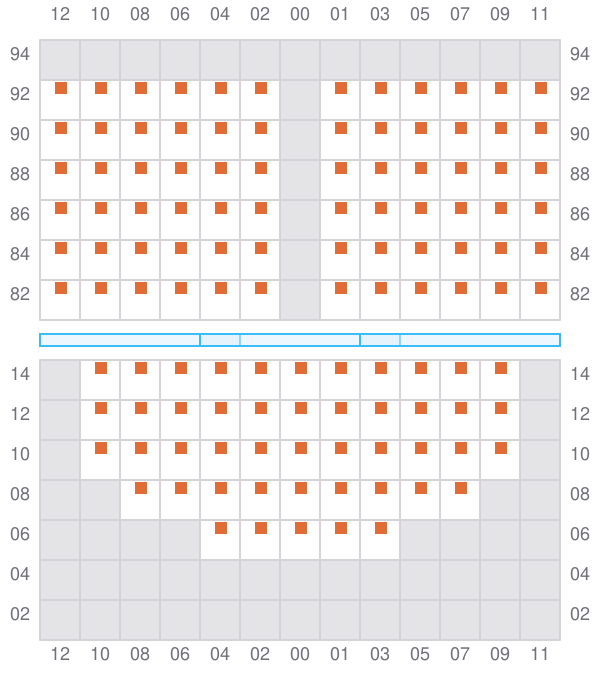

043
- ←

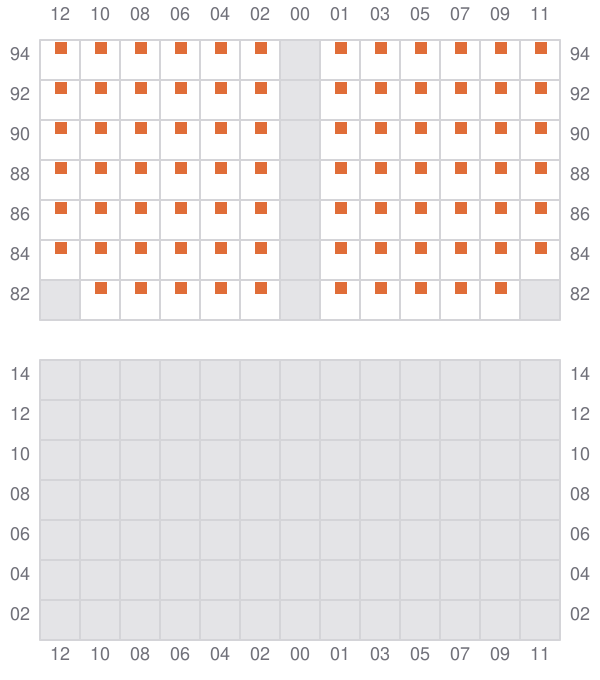

045
047 (048)
- → / ?
049
- ← / ?
- → / ?
