SPAN ASIA 10
9076351 | DUA3216 | 9076351 by *********** Last update: Mon Mar 04 2024

General Info

Ship Name:SPAN ASIA 10
IMO Code:9076351
Call Sign:DUA3216
Line Operator:9076351
Class Name for Sister Ships:24A
Year Built:1994
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:021
Max ISO Row:06
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:06
Min Below ISO Tier:02
Total TEU:442

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Estimated
TCG Data:0%

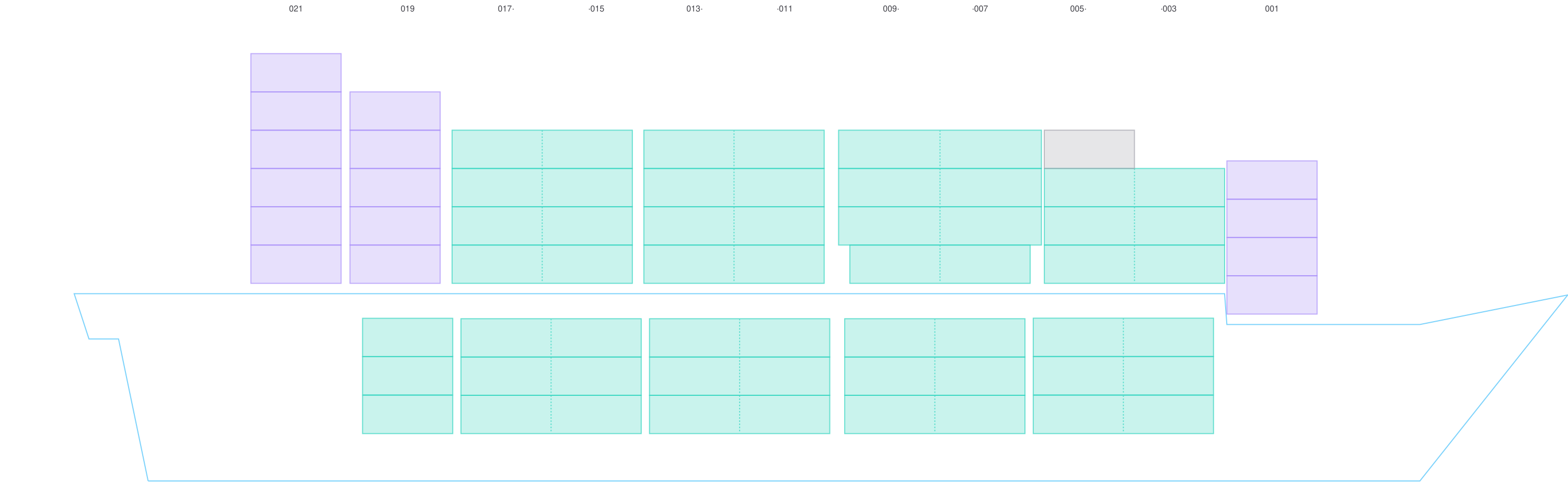

Side View

Side view of SPAN ASIA 10

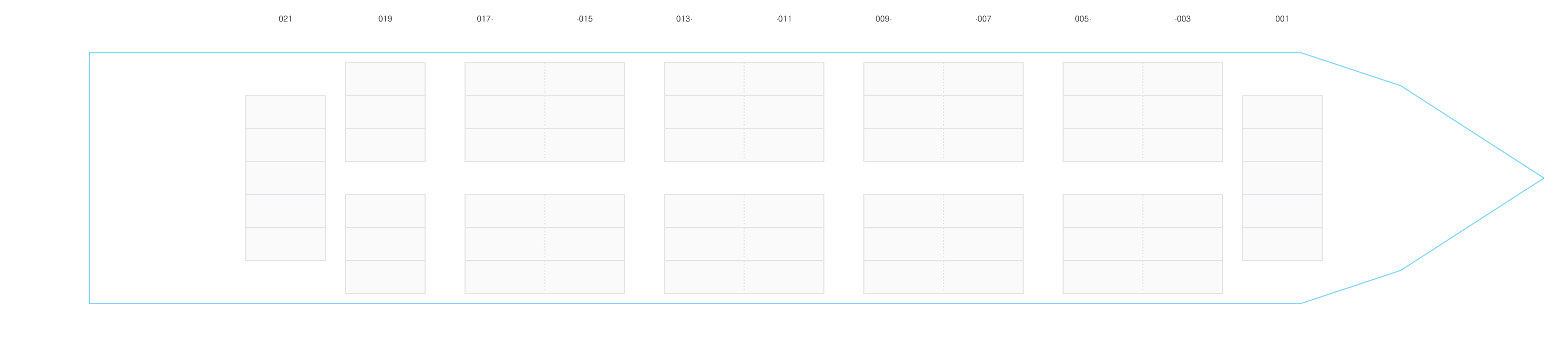

Hatch-Covers View

Deck view of SPAN ASIA 10

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

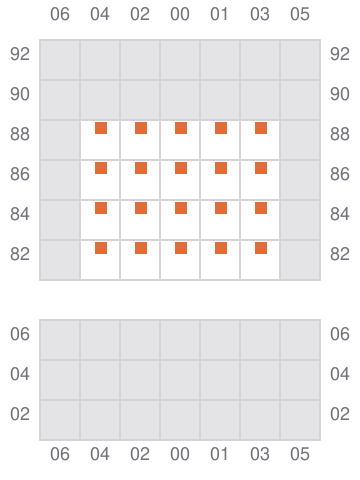

001

Bay 001 view and slots of SPAN ASIA 10

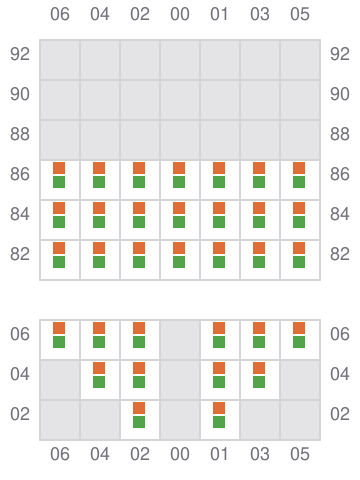

003 (004)

  • →
Bay 003 view and slots of SPAN ASIA 10

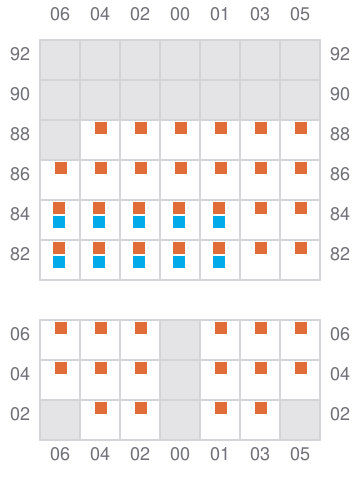

005

  • ←
  • → / ?
Bay 005 view and slots of SPAN ASIA 10

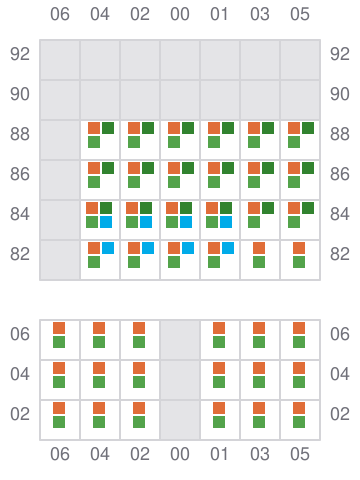

007 (008)

  • →
  • ← / ?
Bay 007 view and slots of SPAN ASIA 10

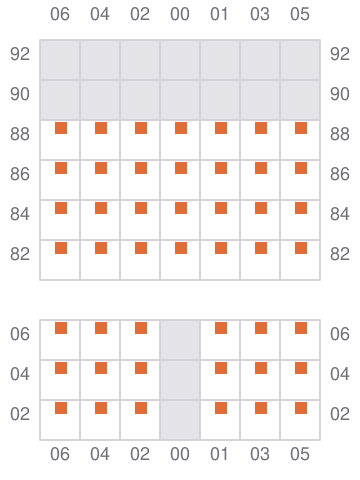

009

  • ←
Bay 009 view and slots of SPAN ASIA 10

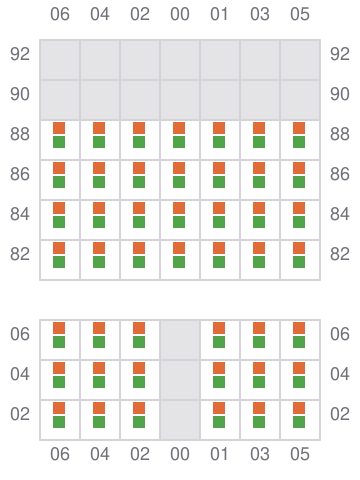

011 (012)

  • →
Bay 011 view and slots of SPAN ASIA 10

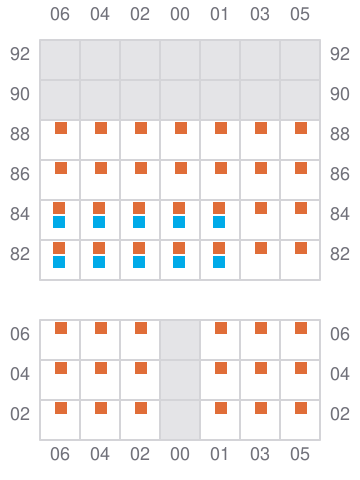

013

  • ←
  • → / ?
Bay 013 view and slots of SPAN ASIA 10

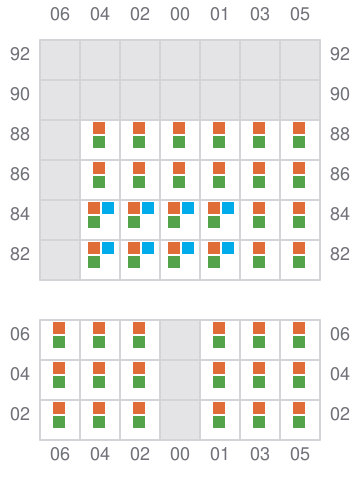

015 (016)

  • →
  • ← / ?
Bay 015 view and slots of SPAN ASIA 10

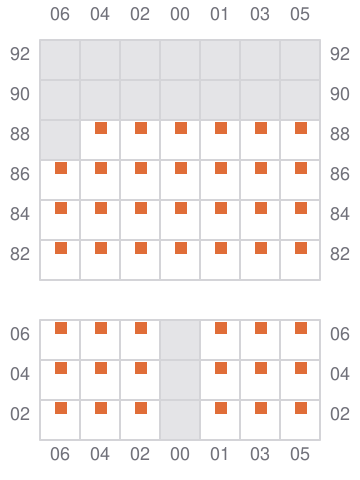

017

  • ←
Bay 017 view and slots of SPAN ASIA 10

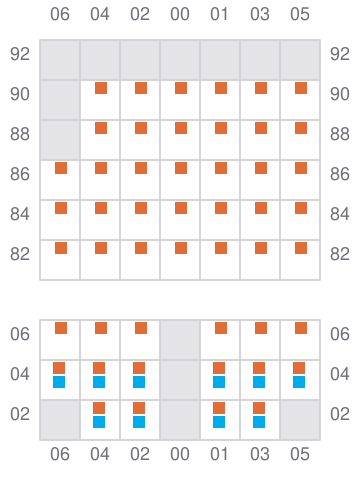

019

  • ? / →
Bay 019 view and slots of SPAN ASIA 10

021

Bay 021 view and slots of SPAN ASIA 10
