SPAN ASIA 21
9202089 | DUA3336 | 9202089 by ********* Last update: Mon Mar 11 2024
General Info
Ship Name:SPAN ASIA 21
IMO Code:9202089
Call Sign:DUA3336
Line Operator:9202089
Class Name for Sister Ships:78Q
Year Built:2000
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:029
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:697
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

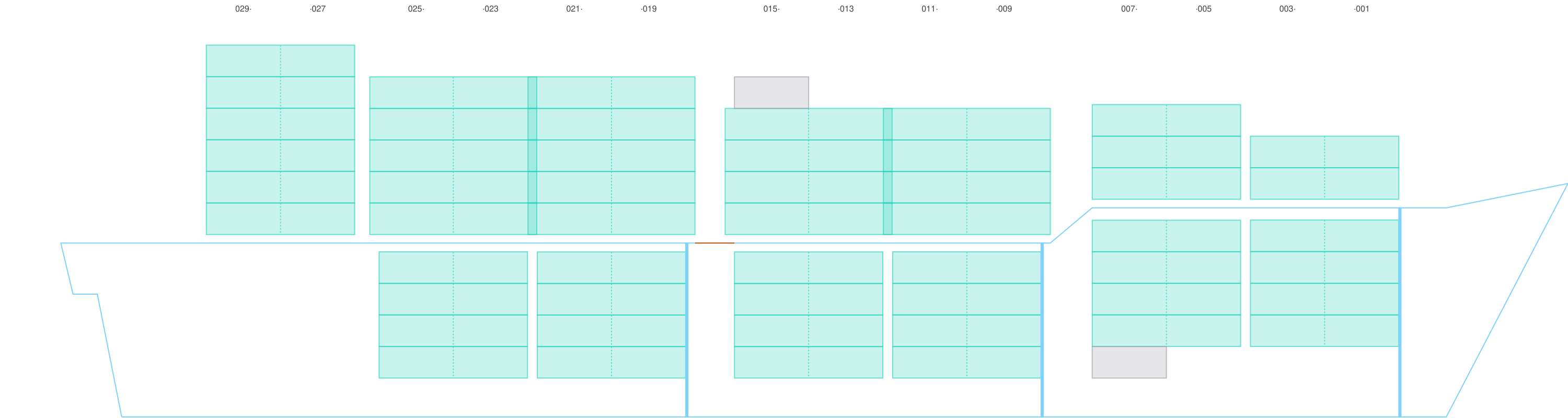

Side View

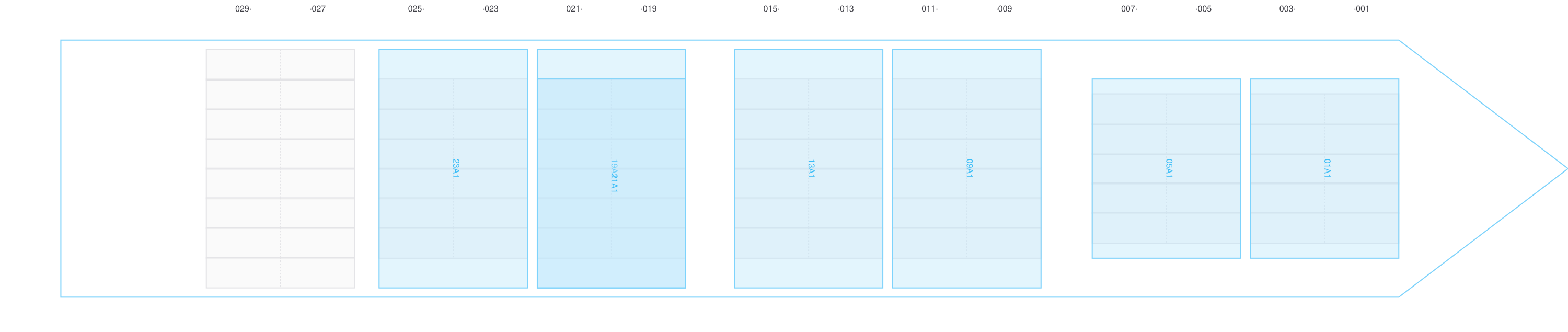

Hatch-Covers View

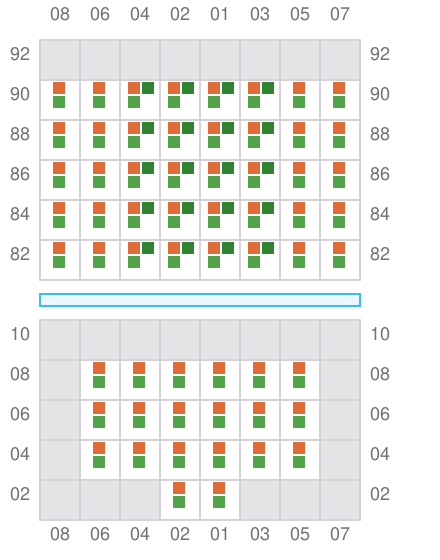

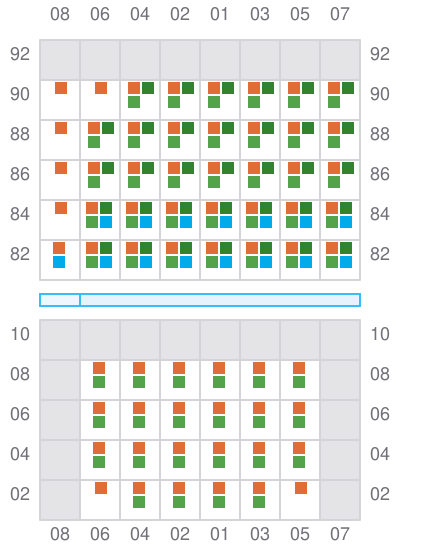

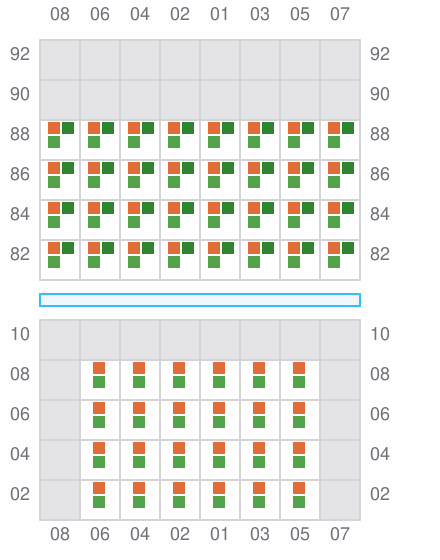

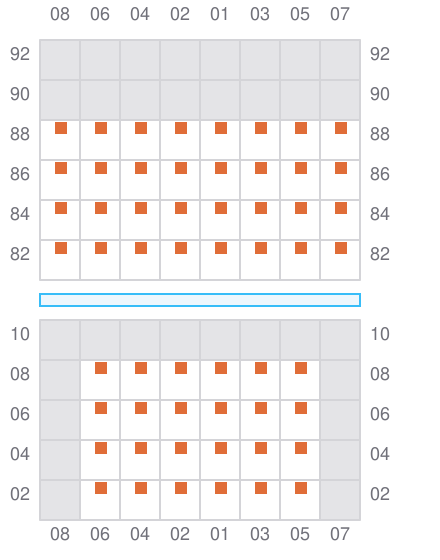

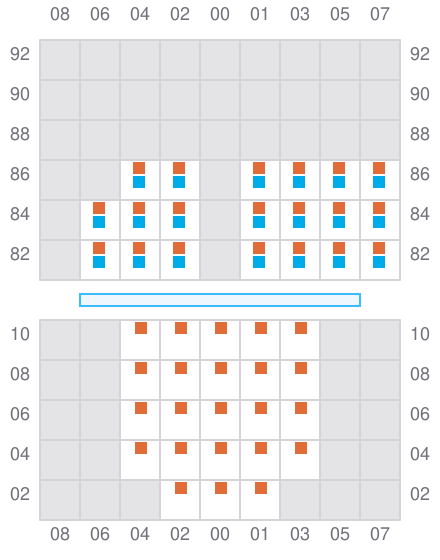

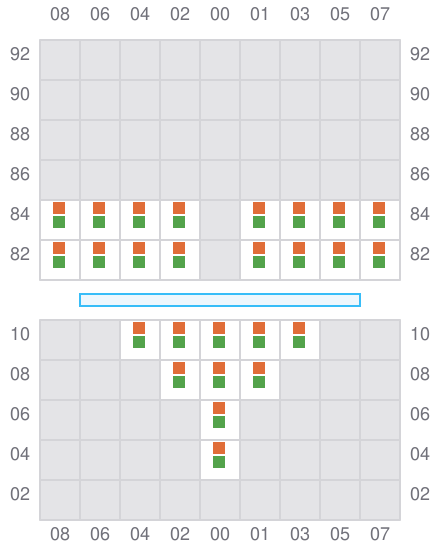

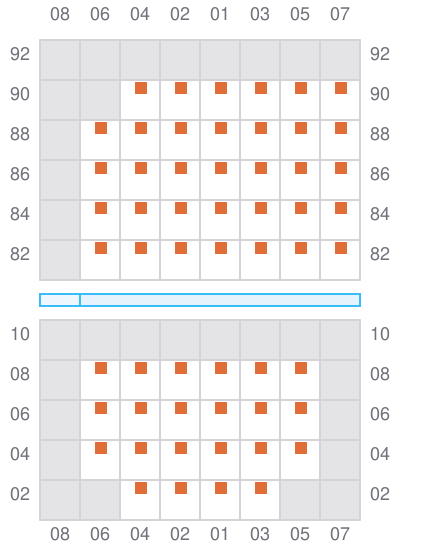

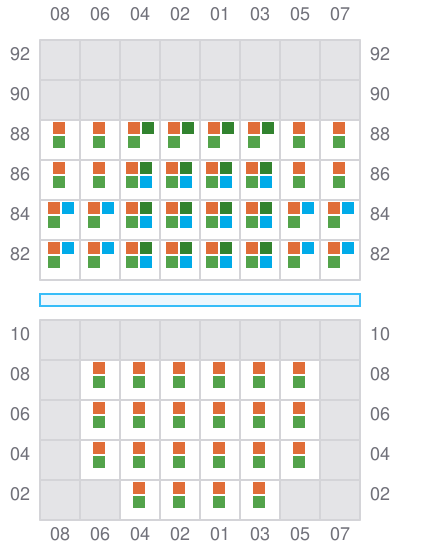

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →

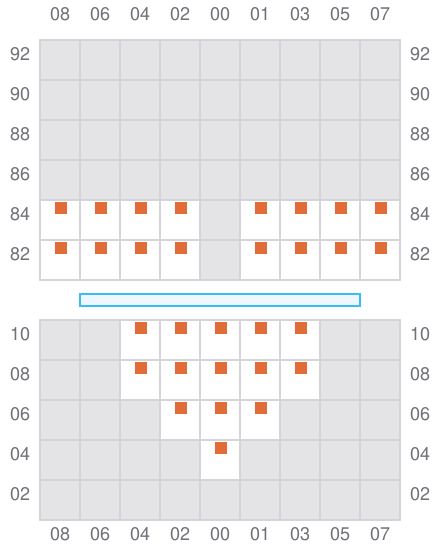

003
- ←

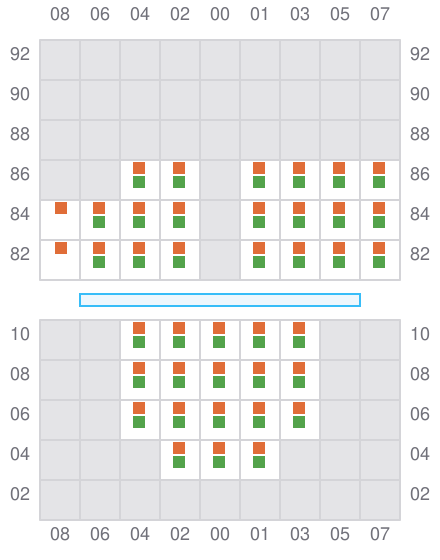

005 (006)
- →
007
- ←
- → / ?
009 (010)
- →
- ← / ?
011
- ←
013 (014)
- →
015
- ←
- → / ?

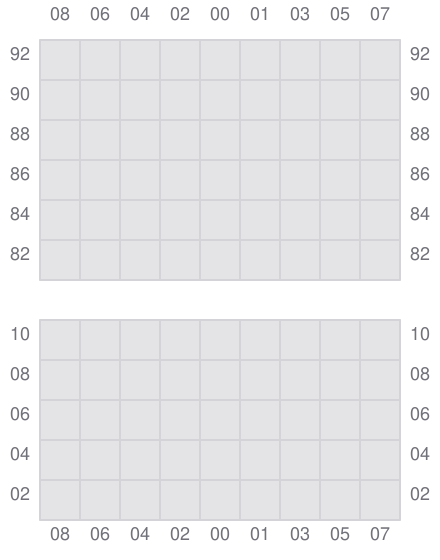

017
019 (020)
- →
- ← / ?
021
- ←
023 (024)
- →

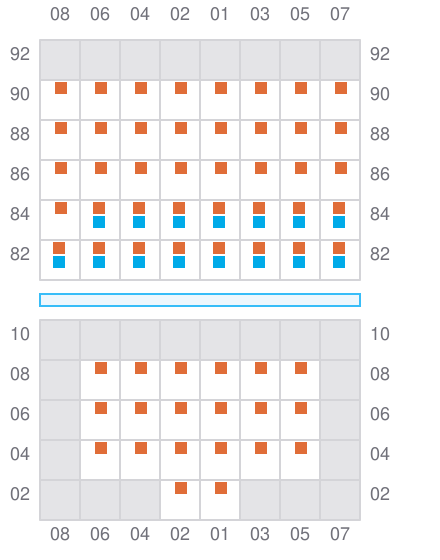

025
- ←
- → / ?

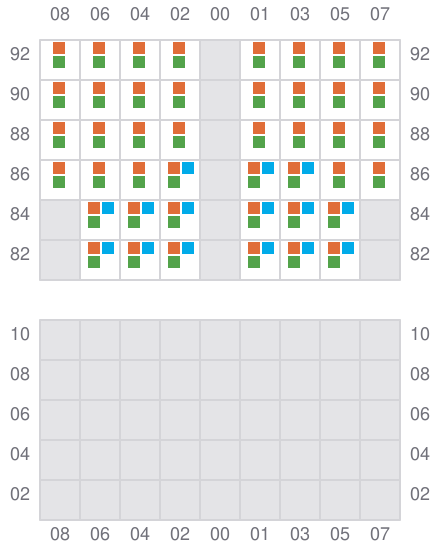

027 (028)
- → / ?
- ← / ?

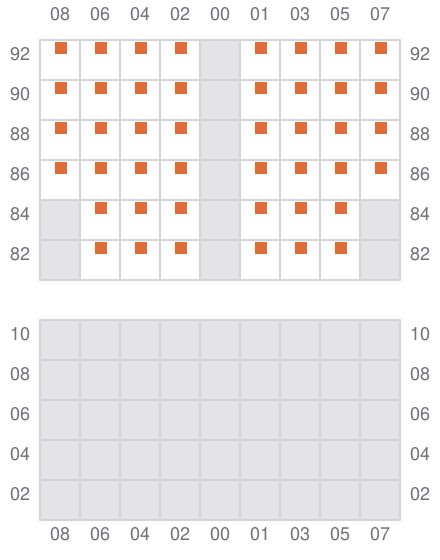

029
- ← / ?
