SPAN ASIA 27
8914556 | DUA3500 | 891455 by *********** Last update: Sun Mar 03 2024

General Info

Ship Name:SPAN ASIA 27
IMO Code:8914556
Call Sign:DUA3500
Line Operator:891455
Class Name for Sister Ships:211
Year Built:1991
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:027
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:726

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of SPAN ASIA 27

Hatch-Covers View

Deck view of SPAN ASIA 27

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

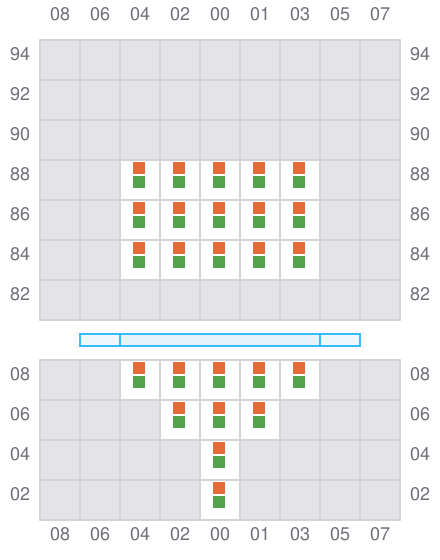

Bay 001 view and slots of SPAN ASIA 27

003

  • ←

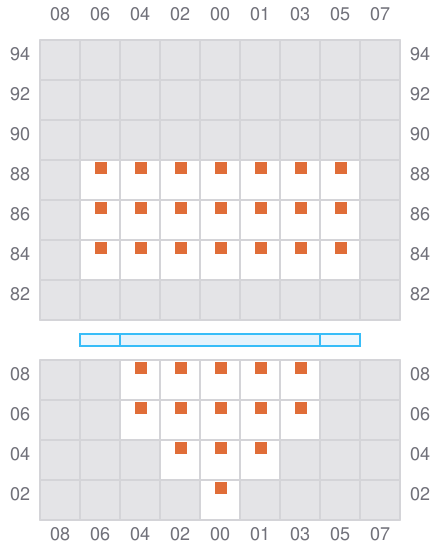

Bay 003 view and slots of SPAN ASIA 27

005 (006)

  • →
  • → / ?
Bay 005 view and slots of SPAN ASIA 27

007

  • ←
  • → / ?

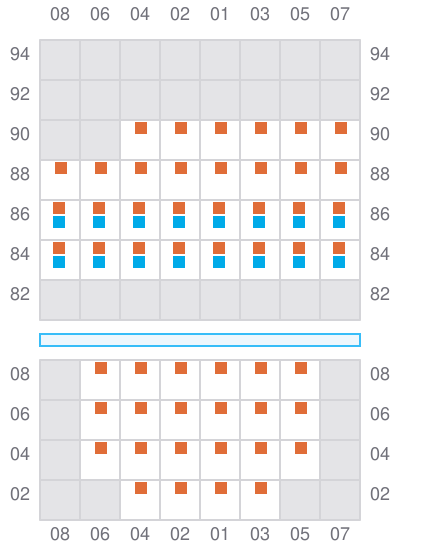

Bay 007 view and slots of SPAN ASIA 27

009 (010)

  • →
  • → / ?
Bay 009 view and slots of SPAN ASIA 27

011

  • ←
  • → / ?
Bay 011 view and slots of SPAN ASIA 27

013 (014)

  • →
  • →

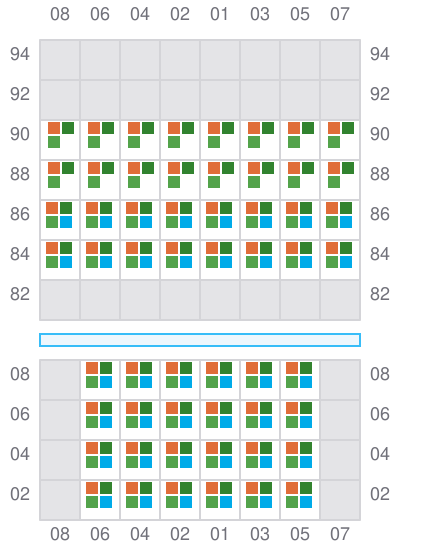

Bay 013 view and slots of SPAN ASIA 27

015

  • ←
  • →

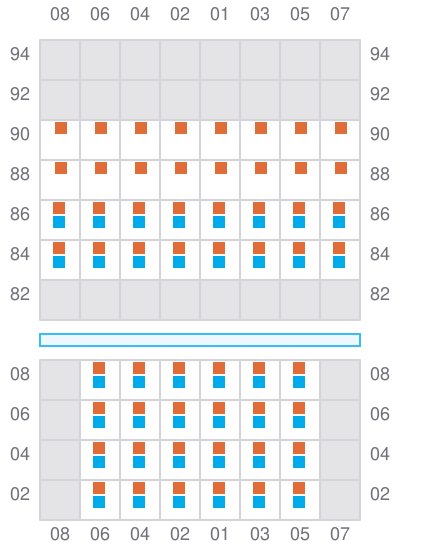

Bay 015 view and slots of SPAN ASIA 27

017 (018)

  • →
  • → / ←
Bay 017 view and slots of SPAN ASIA 27

019

  • ←
  • → / ?

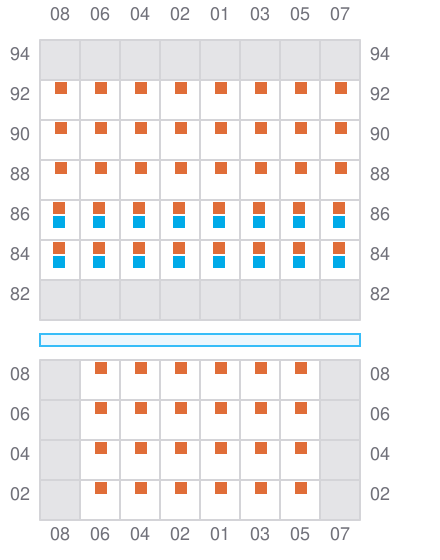

Bay 019 view and slots of SPAN ASIA 27

021 (022)

  • →
  • → / ?
Bay 021 view and slots of SPAN ASIA 27

023

  • ←
  • → / ?
Bay 023 view and slots of SPAN ASIA 27

025 (026)

  • → / ?
  • → / ?

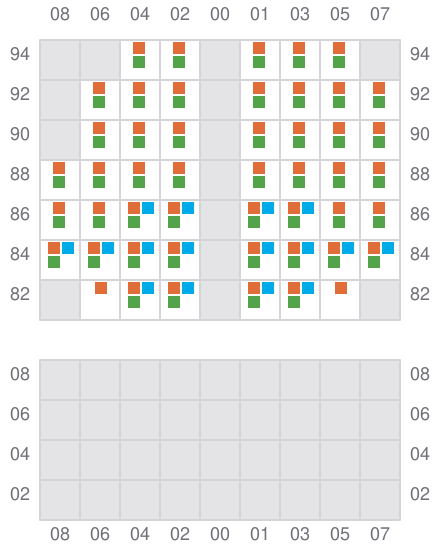

Bay 025 view and slots of SPAN ASIA 27

027

  • ← / ?
  • → / ?

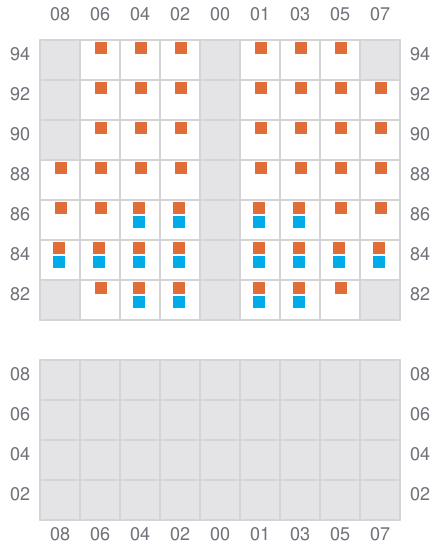

Bay 027 view and slots of SPAN ASIA 27
