SPAN ASIA 31
8914568 | DUA3547 | 891456 by *********** Last update: Sun Mar 03 2024
General Info
Ship Name:SPAN ASIA 31
IMO Code:8914568
Call Sign:DUA3547
Line Operator:891456
Class Name for Sister Ships:212
Year Built:1992
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:027
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:726
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

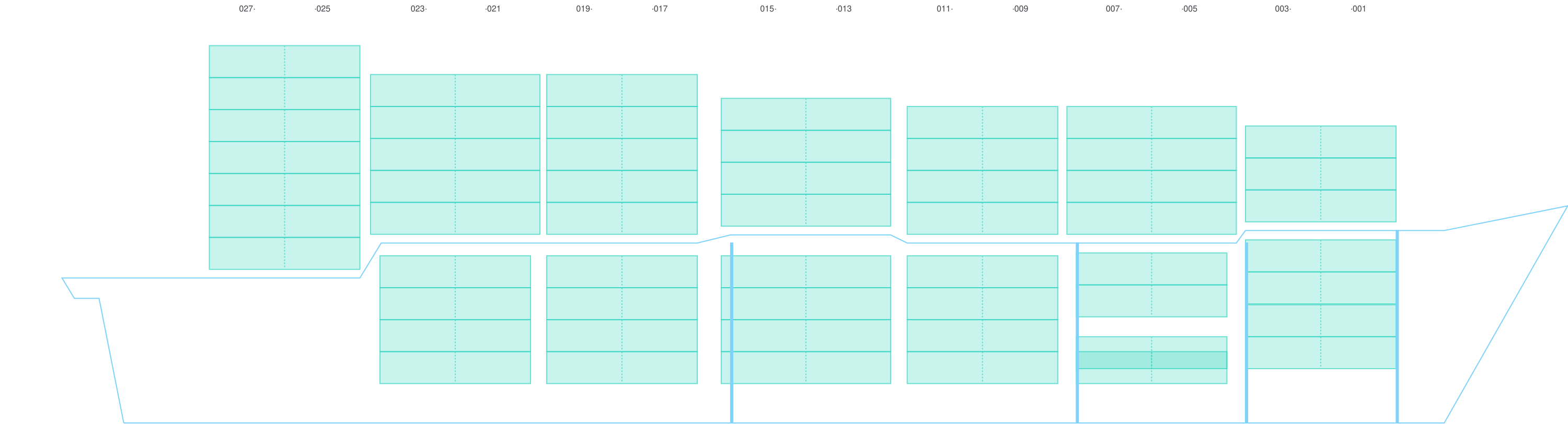

Side View

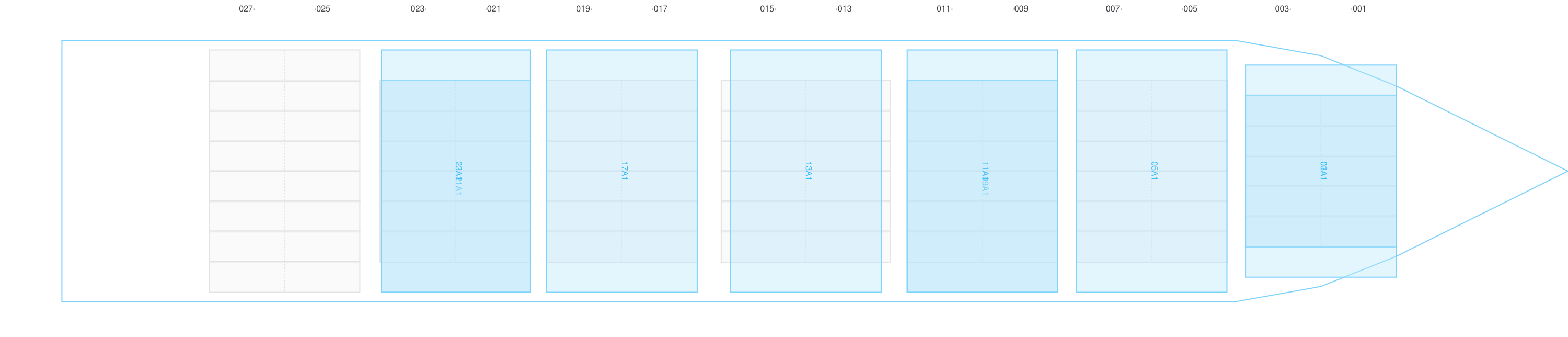

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

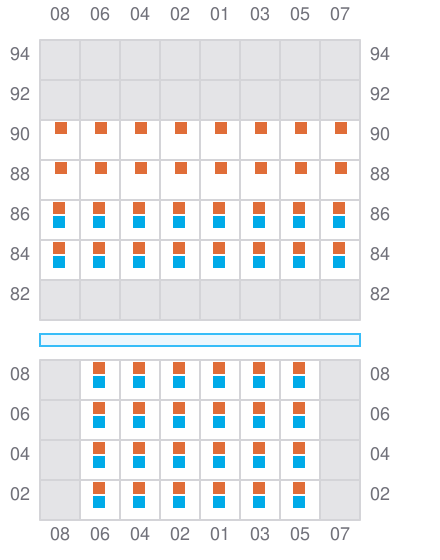

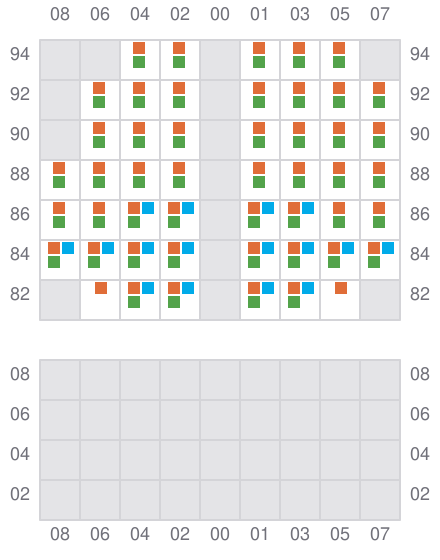

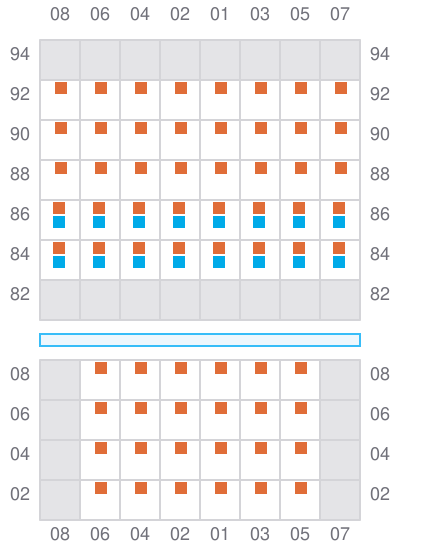

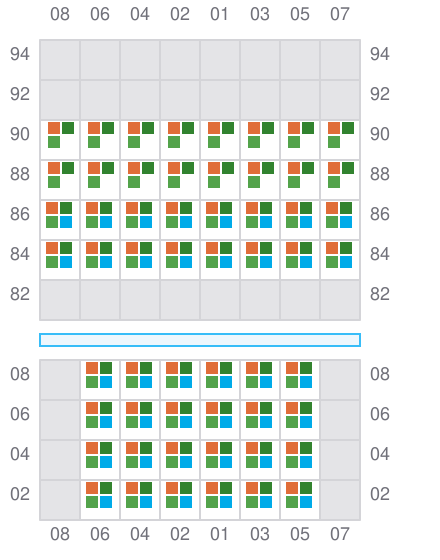

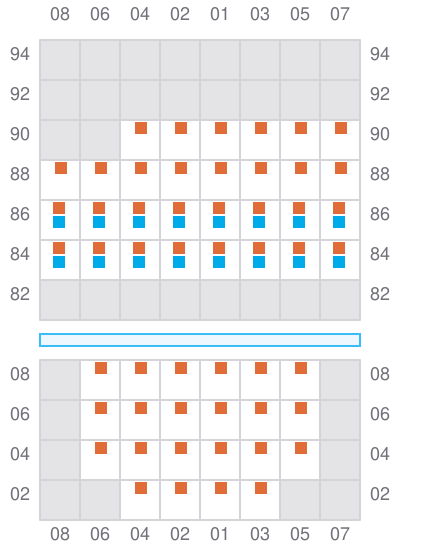

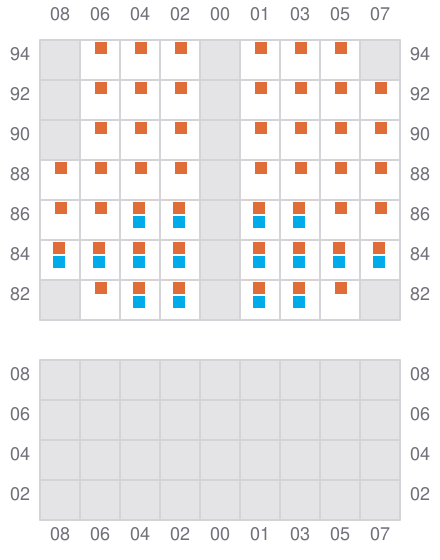

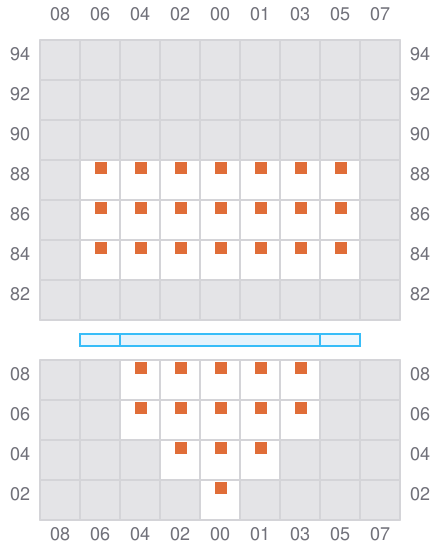

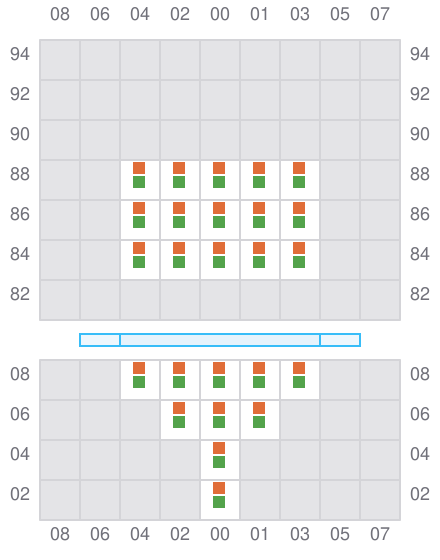

001 (002)
- →
003
- ←
005 (006)
- →
- → / ?
007
- ←
- → / ?
009 (010)
- →
- → / ?

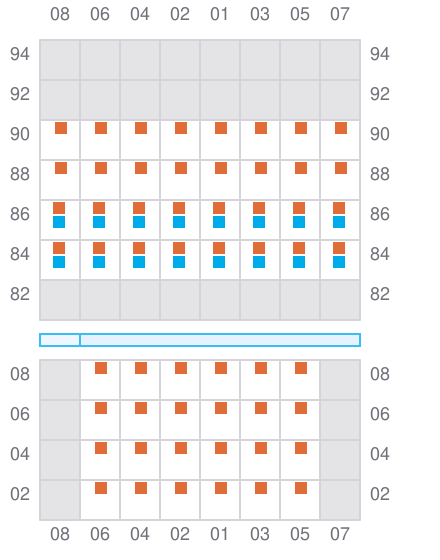

011
- ←
- → / ?
013 (014)
- →
- →
015
- ←
- →
017 (018)
- →
- → / ←
019
- ←
- → / ?
021 (022)
- →
- → / ?
023
- ←
- → / ?
025 (026)
- → / ?
- → / ?
027
- ← / ?
- → / ?
