SPAN ASIA 9
8421224 | DUA3185 | 8421224 by *********** Last update: Sun Mar 03 2024
General Info
Ship Name:SPAN ASIA 9
IMO Code:8421224
Call Sign:DUA3185
Line Operator:8421224
Class Name for Sister Ships:35W
Year Built:1985
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:023
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:88
Min Above ISO Tier:80
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:535
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View

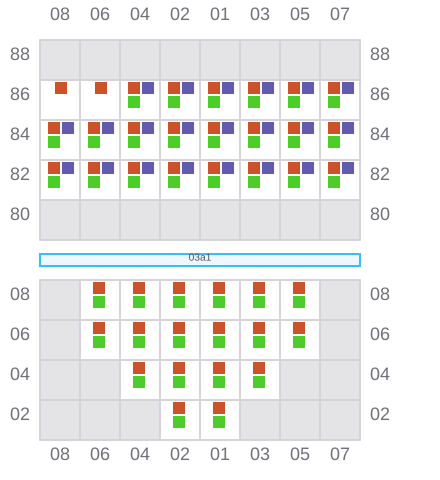

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001
- → / ?
003 (004)
- →

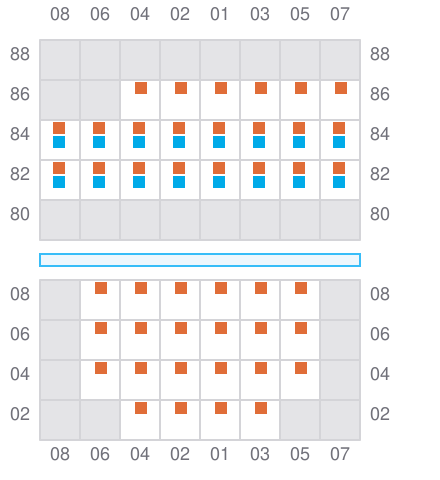

005
- ←
- → / ?

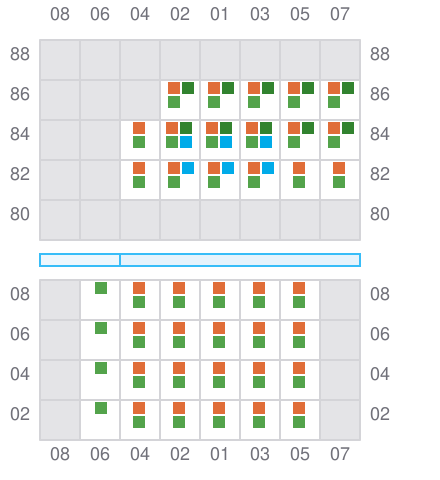

007 (008)
- →
- ← / ?

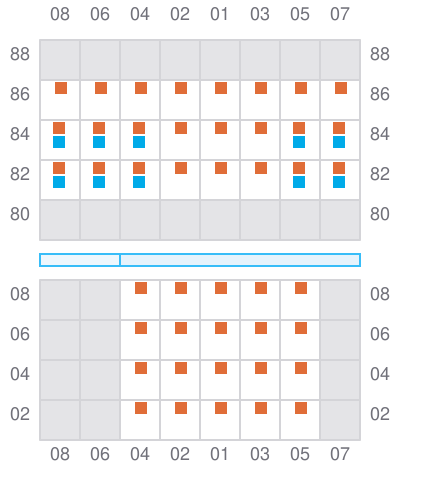

009
- ←
- → / ?
011 (012)
- →
- ← / ?
013
- ←
- →

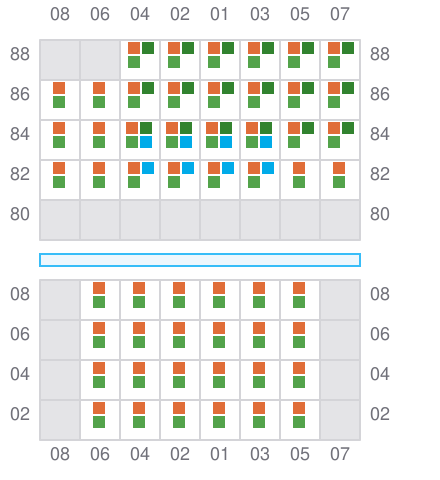

015 (016)
- →
- ← / ?

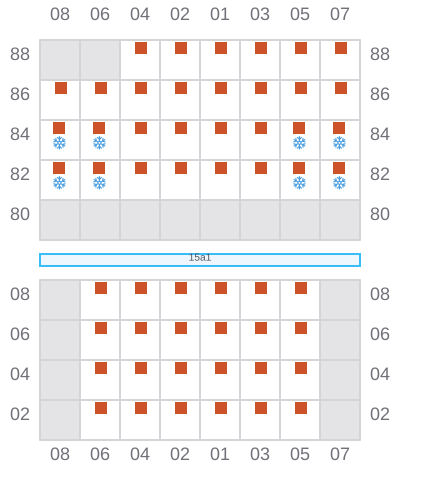

017
- ←
- → / ?
019 (020)
- →
- ← / ?
021
- ←
- → / ?

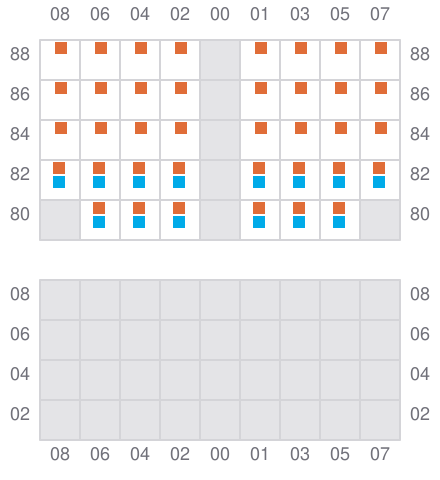

023
- → / ?
