SPECTRUM N
9429314 | D5IZ9 | MCC by ********* Last update: Wed Jul 31 2024
General Info
Ship Name:SPECTRUM N
IMO Code:9429314
Call Sign:D5IZ9
Line Operator:MCC
Class Name for Sister Ships:MCC
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,546
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View

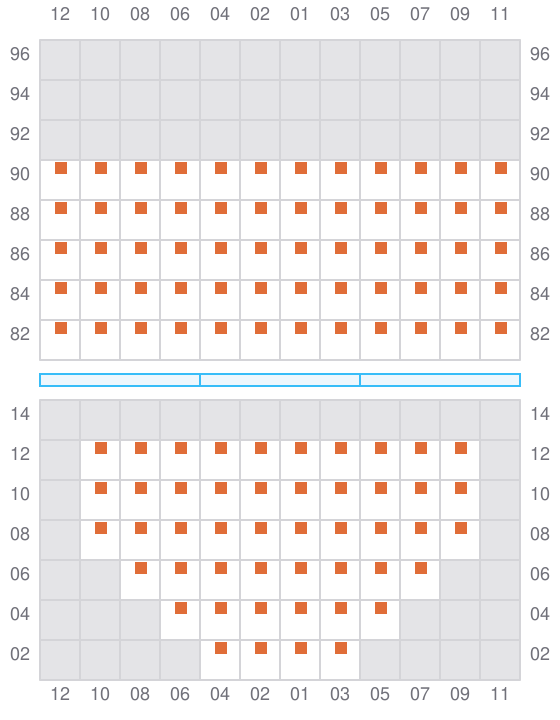

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
- ← / ?
003
- ←
- → / ?
005 (006)
- →
007
- ←
- → / ?
009 (010)
- →
- ← / ?
011
- ←

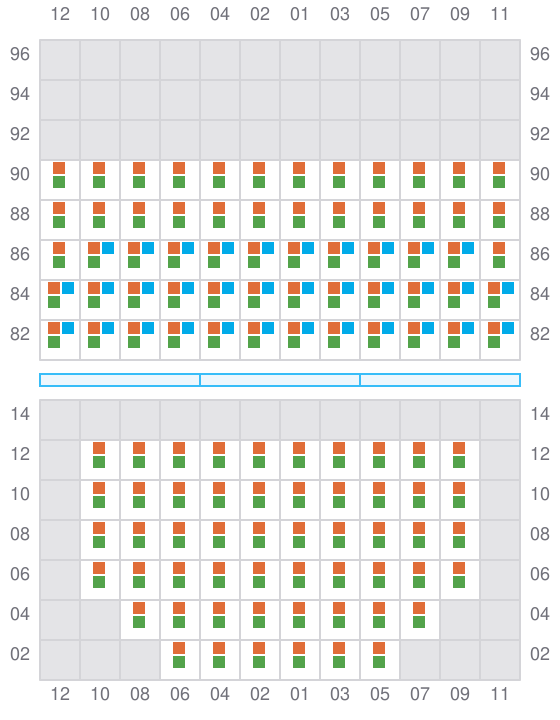

013 (014)
- →
- ← / ?

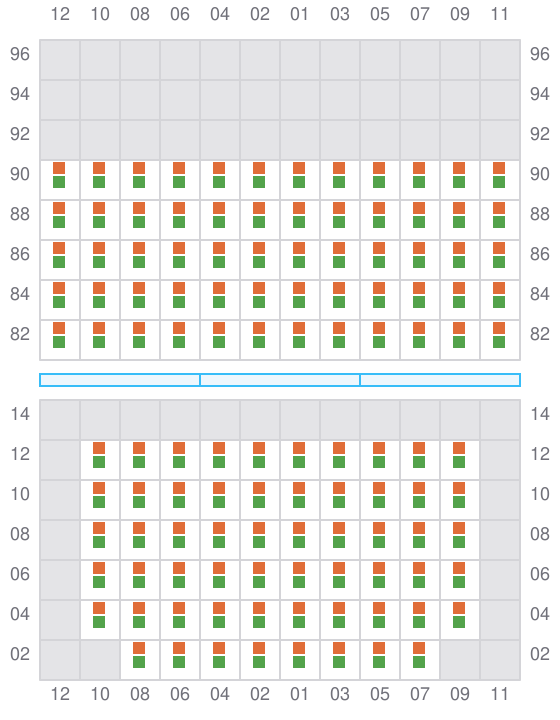

015
- ←
017 (018)
- →
019
- ←
- →
021 (022)
- →
- ? / ←
023
- ←
- → / ?
025 (026)
- →
- ←
027
- ←
029 (030)
- →
- ←

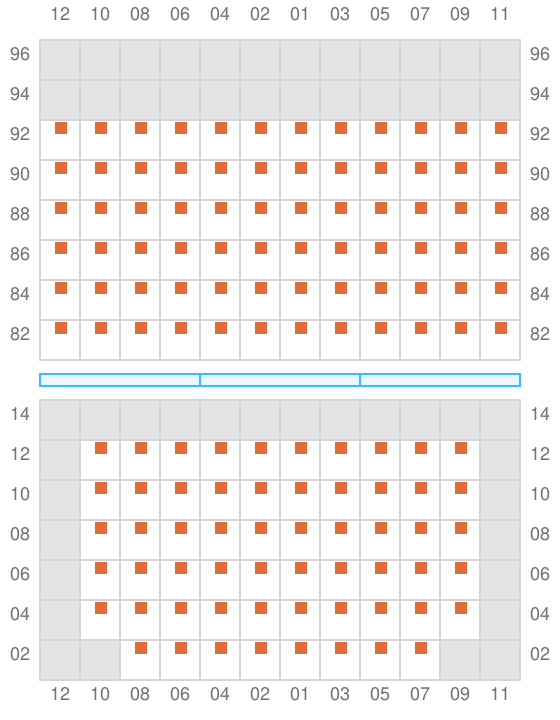

031
- ←
033 (034)
- →

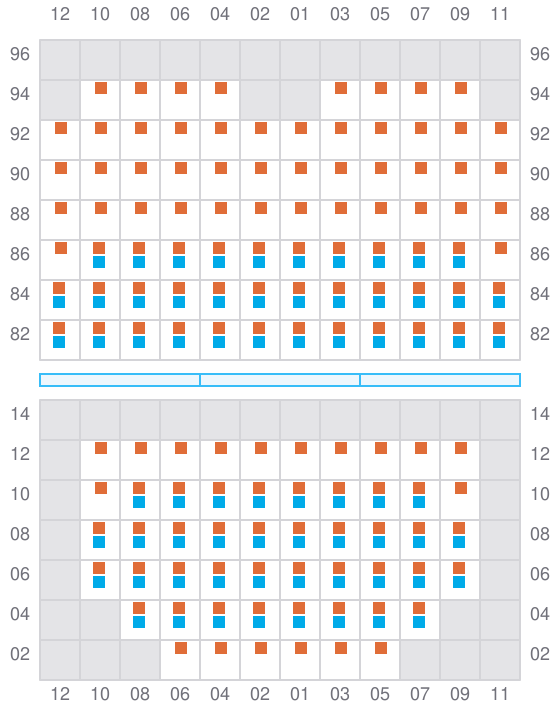

035
- ←
- →
037 (038)
- →
039
- ←
- → / ?

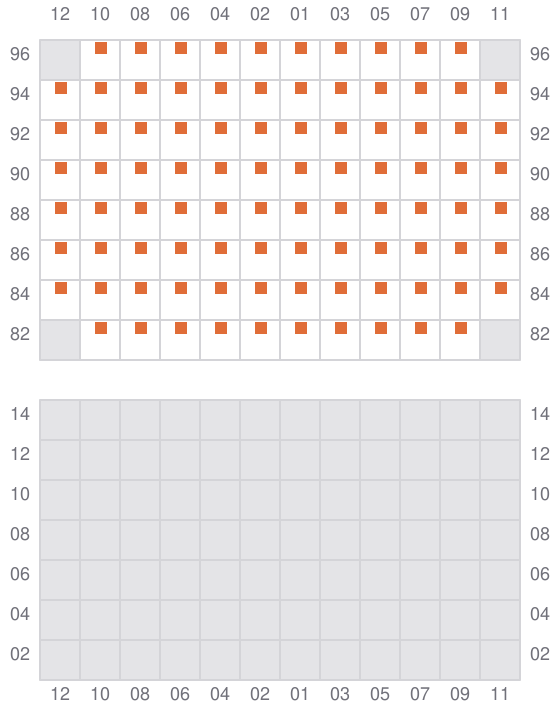

041
043 (044)
- → / ?

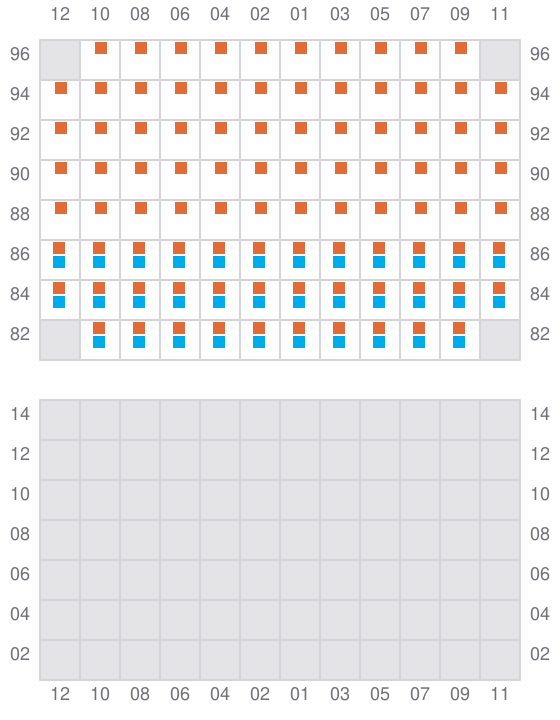

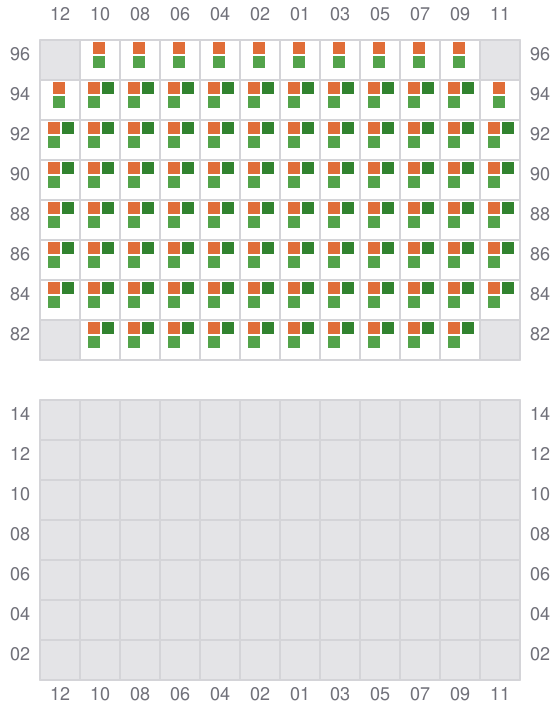

045
- ← / ?
- → / ?
