SPICA STAR
9400590 | 8PKO3 | 9400590 by ********* Last update: Sun Mar 24 2024
General Info
Ship Name:SPICA STAR
IMO Code:9400590
Call Sign:8PKO3
Line Operator:9400590
Class Name for Sister Ships:6RT
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:031
Max ISO Row:06
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:704
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

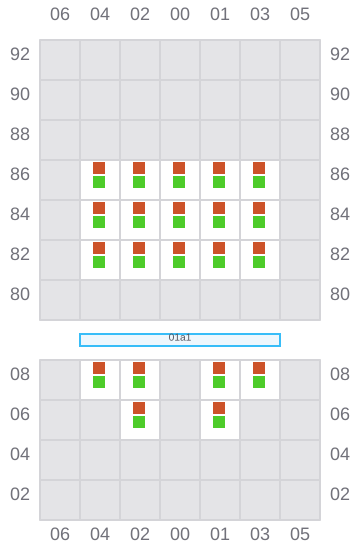

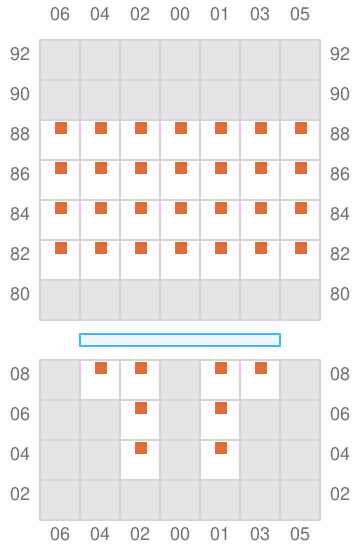

001 (002)
- →
003
- ←

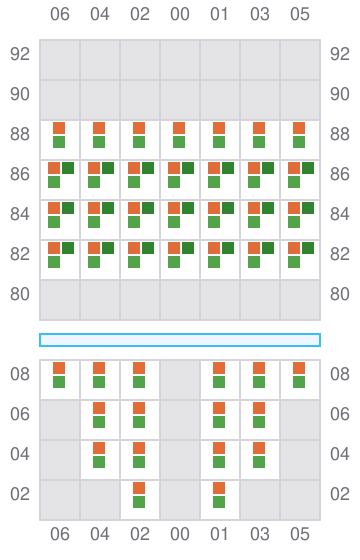

005 (006)
- →

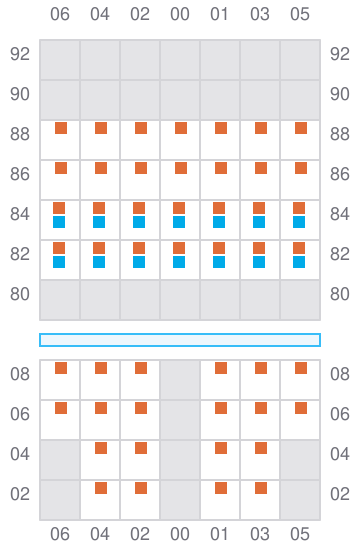

007
- ←
- → / ?

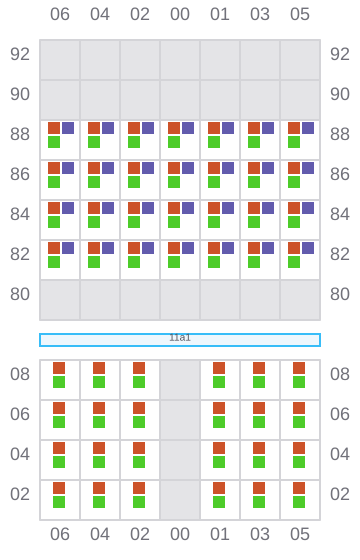

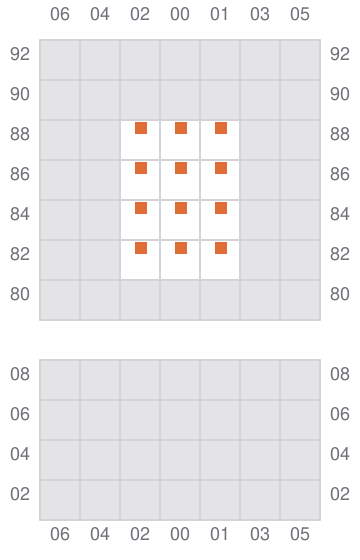

009
- → / ?

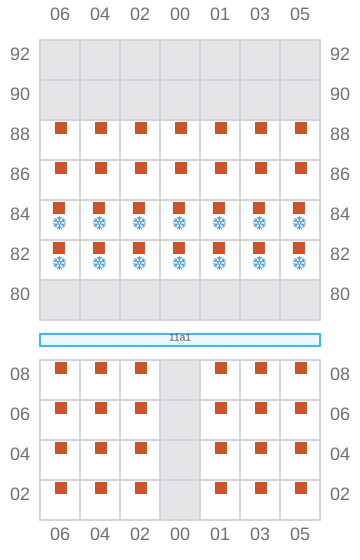

011 (012)
- →
013
- ←
- → / ?

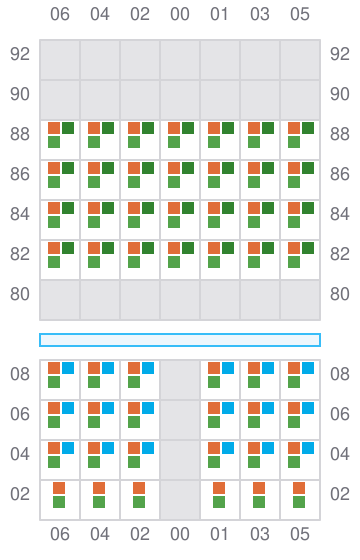

015 (016)
- →
- ? / ←

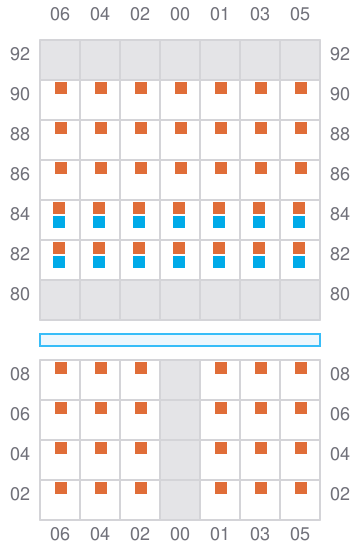

017
- ←
- → / ?

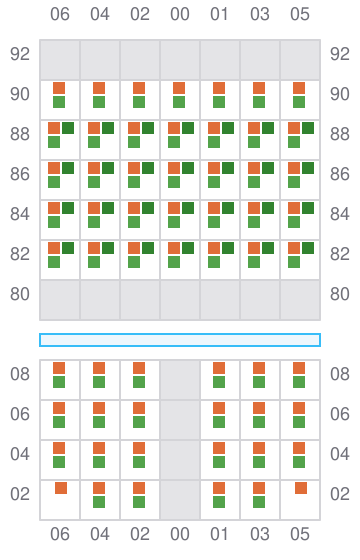

019
- ← / ?

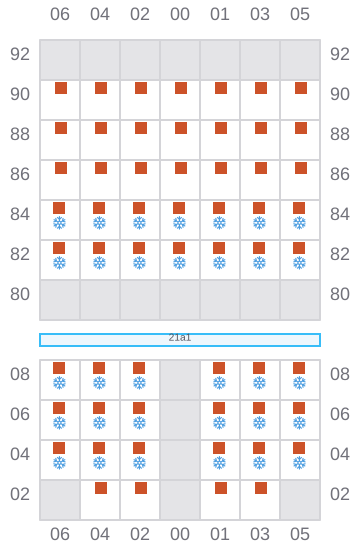

021 (022)
- →
023
- ←
- →

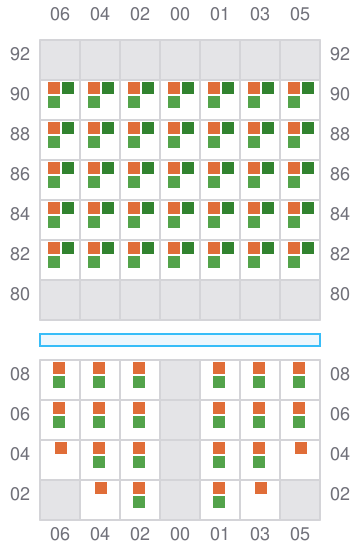

025 (026)
- →

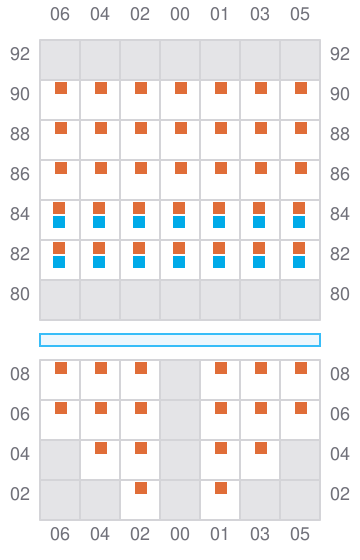

027
- ←
- → / ?

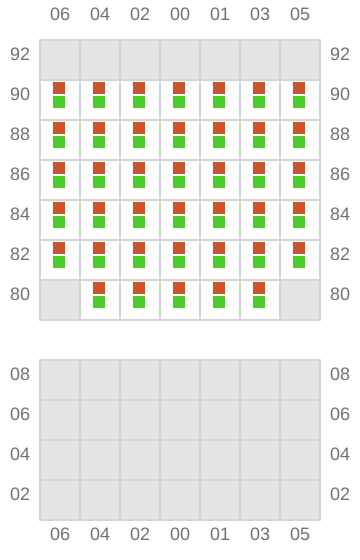

029 (030)
- → / ?

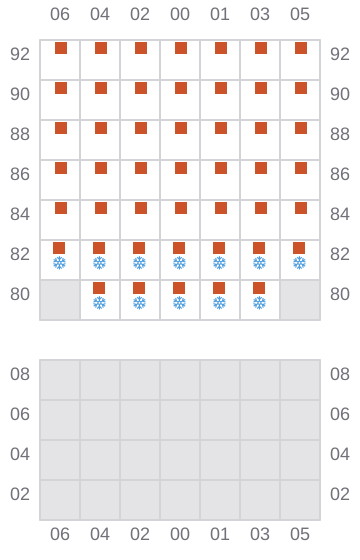

031
- ← / ?
