SPIL CAYA
9418640 | H3VD | 9418640 by ********* Last update: Thu Aug 01 2024
General Info
Ship Name:SPIL CAYA
IMO Code:9418640
Call Sign:H3VD
Line Operator:9418640
Class Name for Sister Ships:MCC
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:053
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:3,534
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

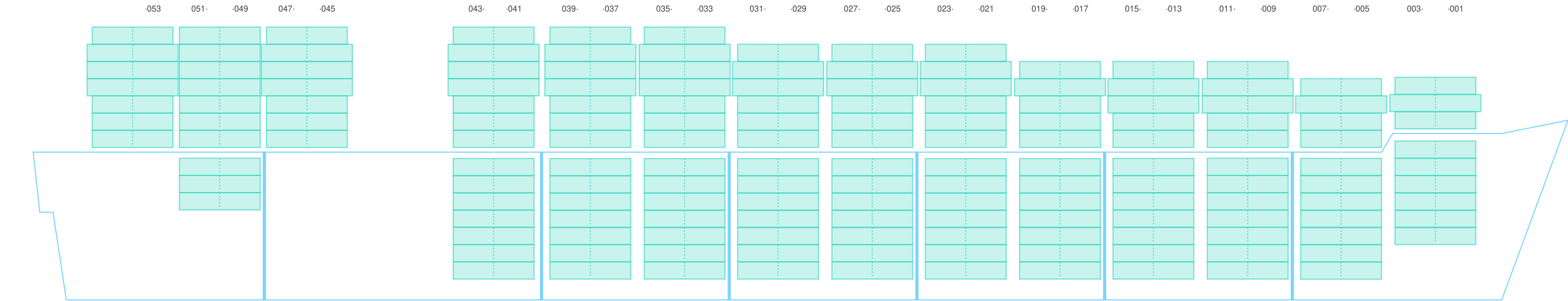

Side View
Hatch-Covers View

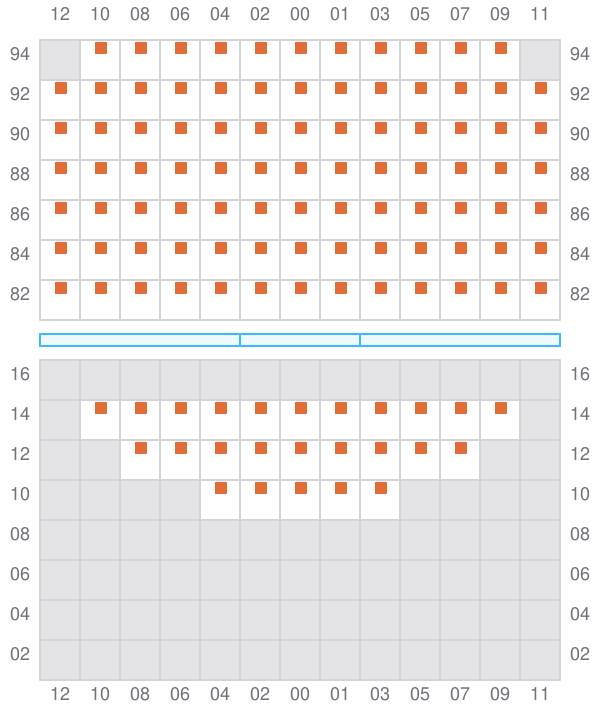

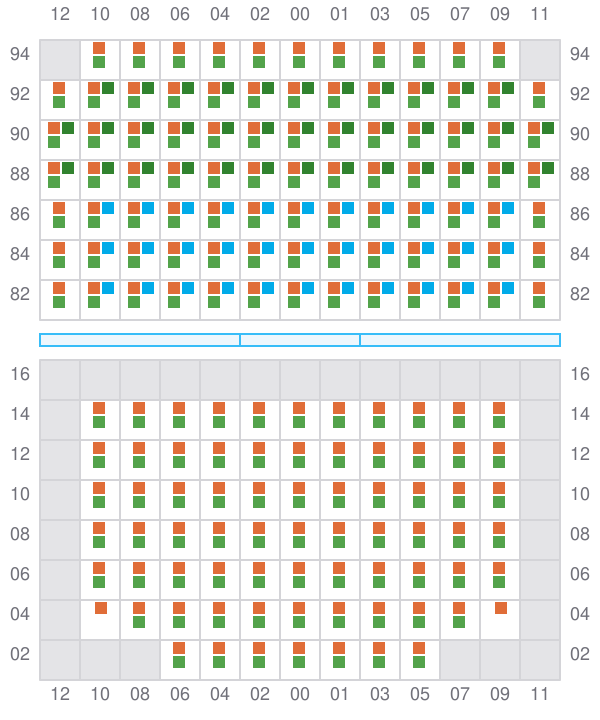

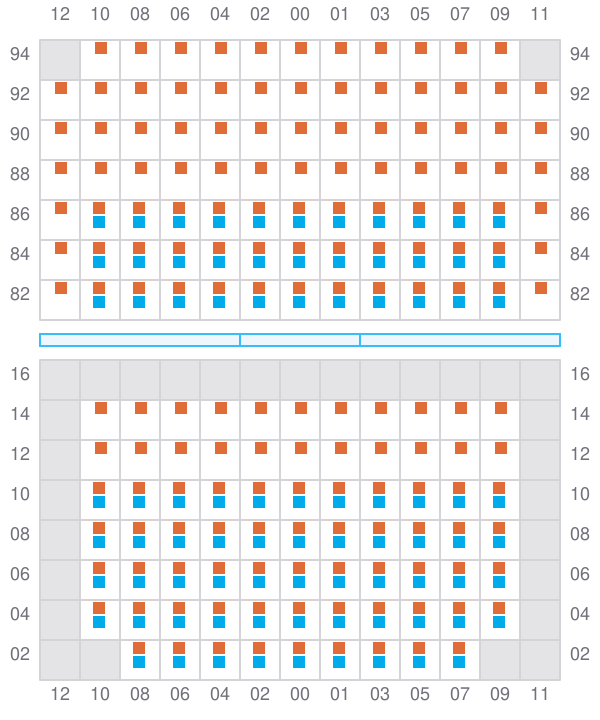

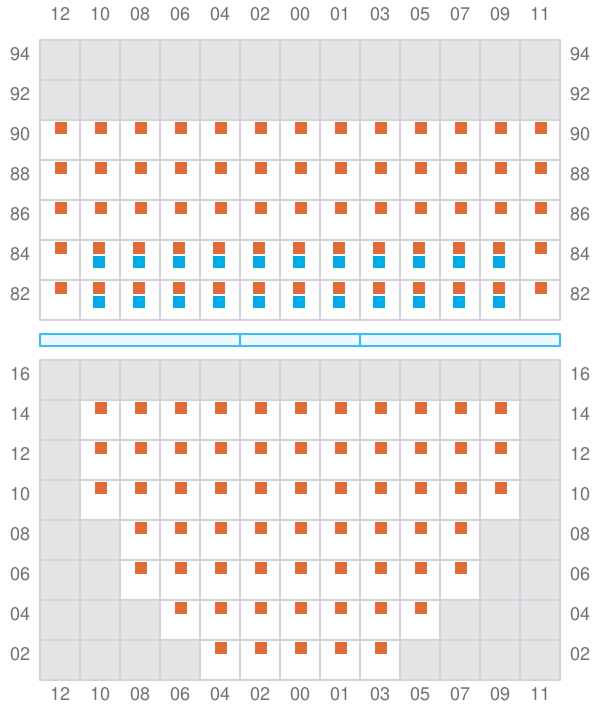

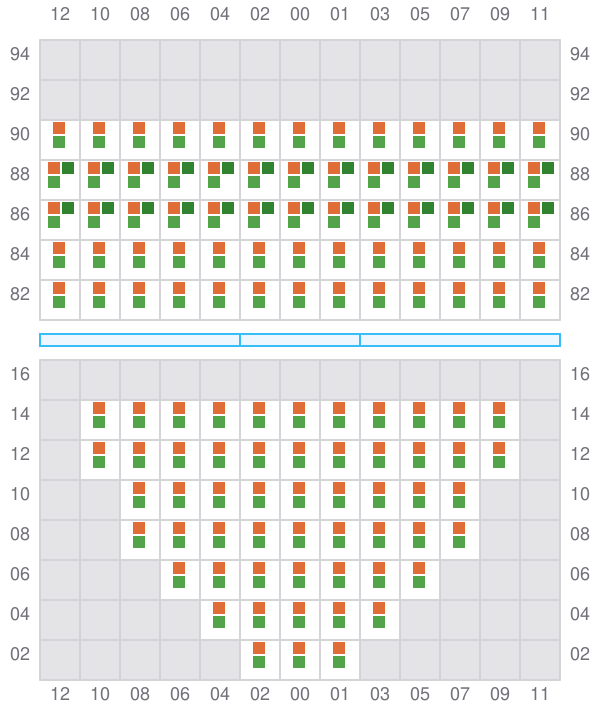

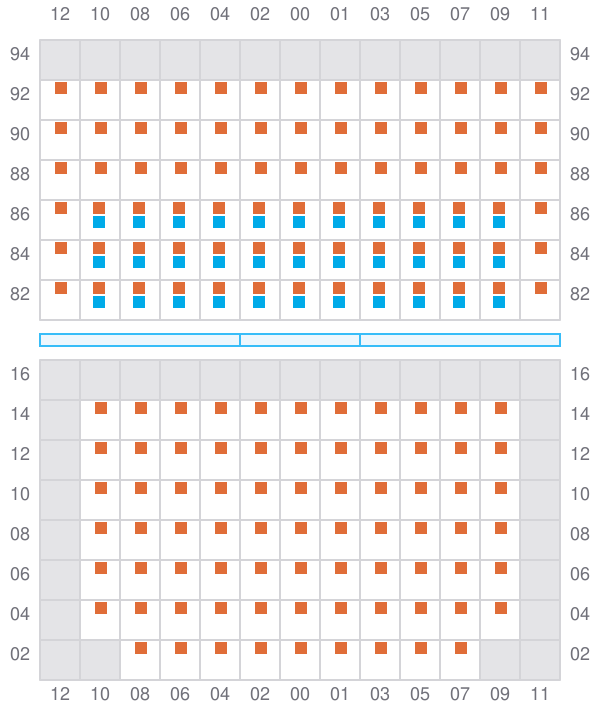

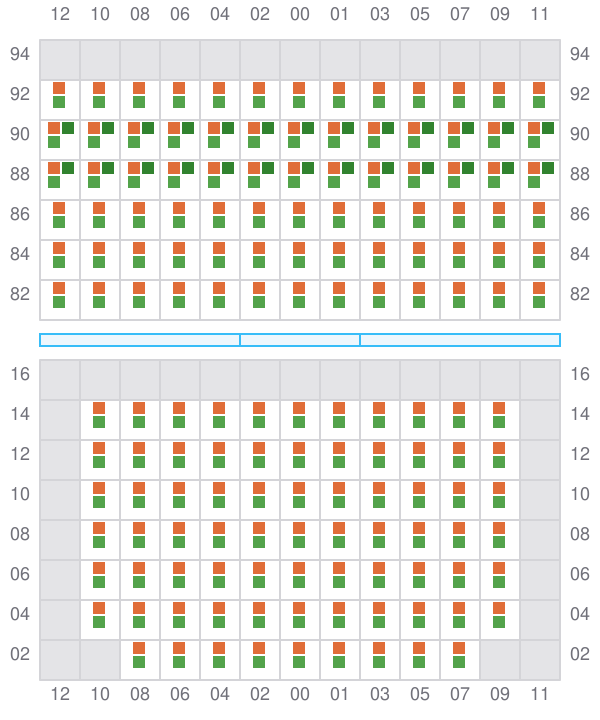

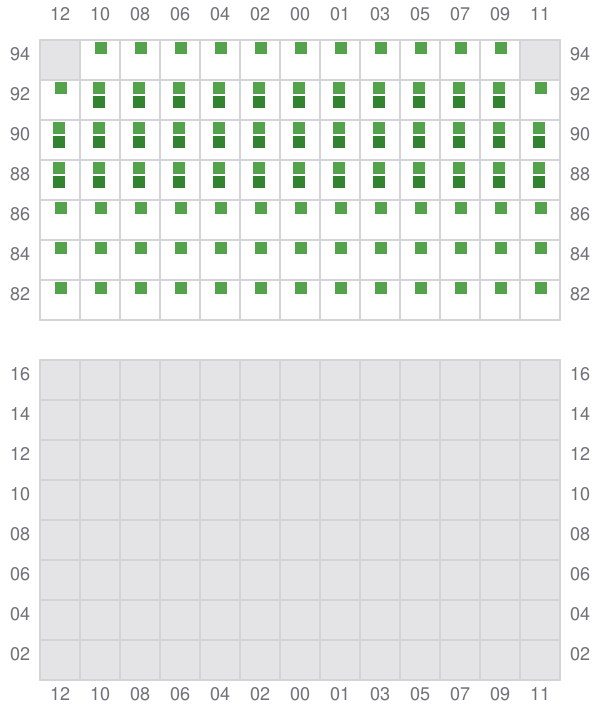

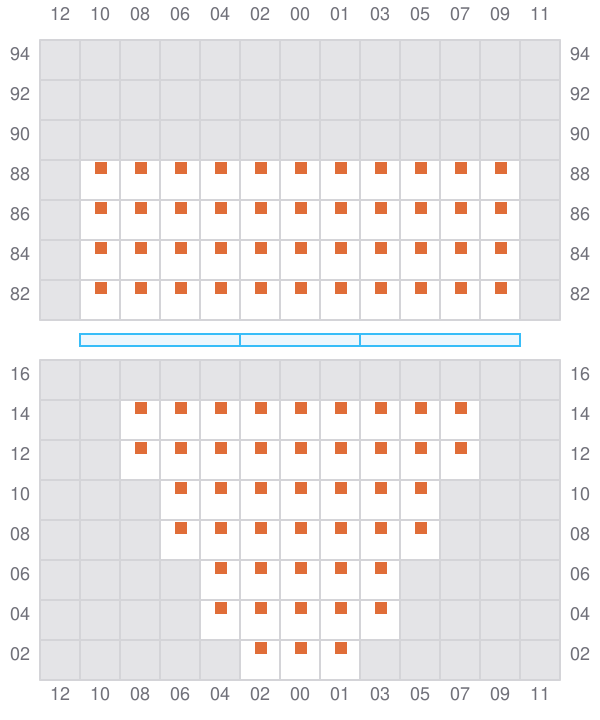

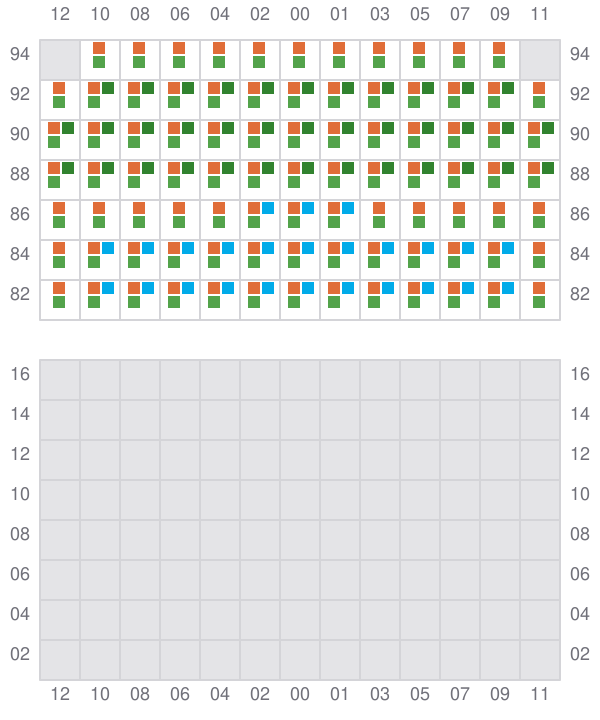

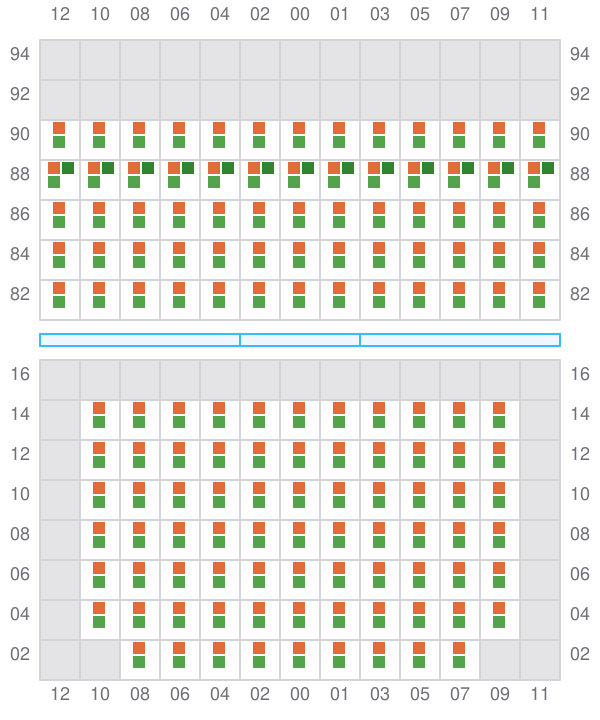

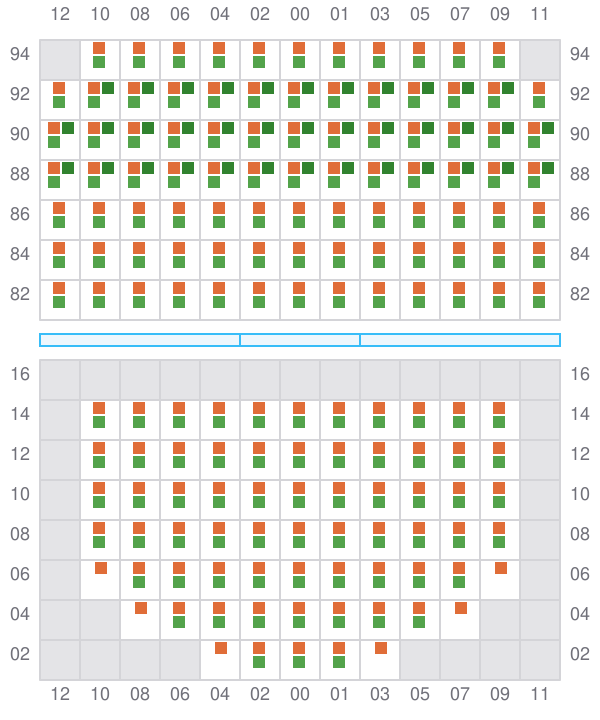

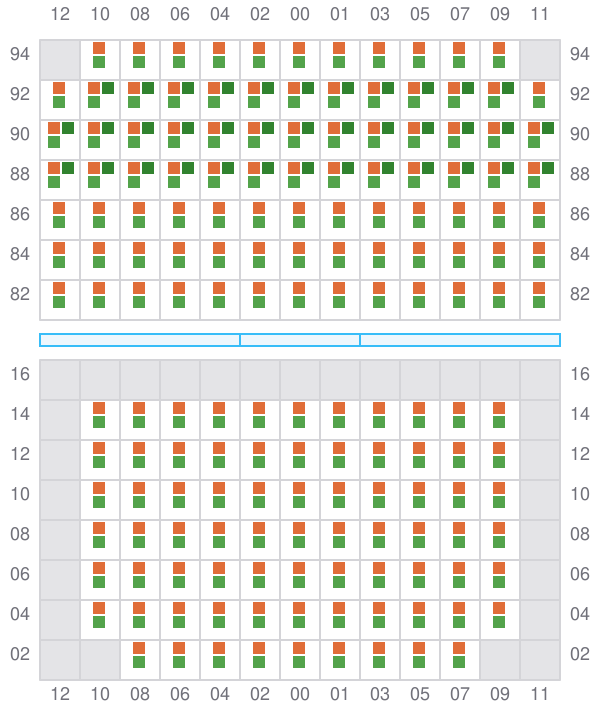

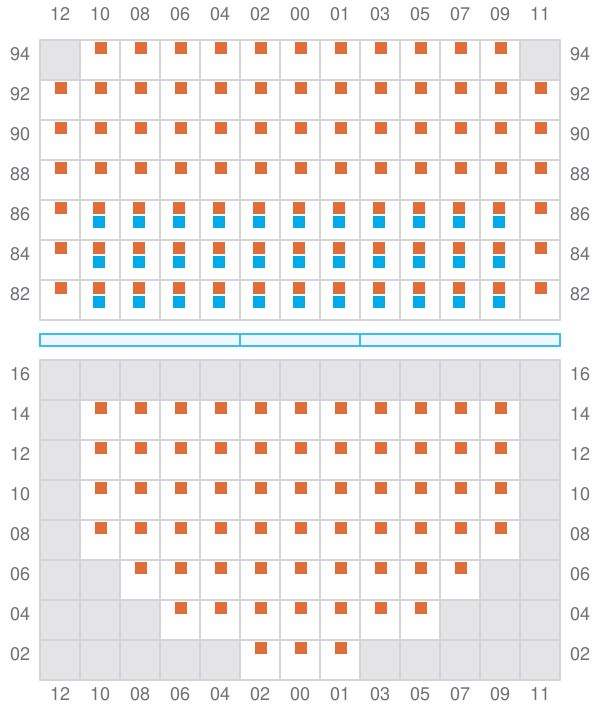

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

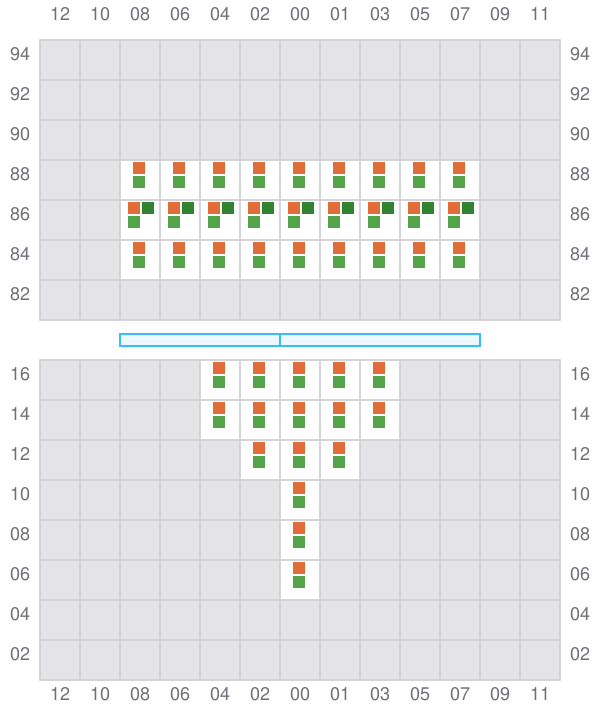

001 (002)
- →

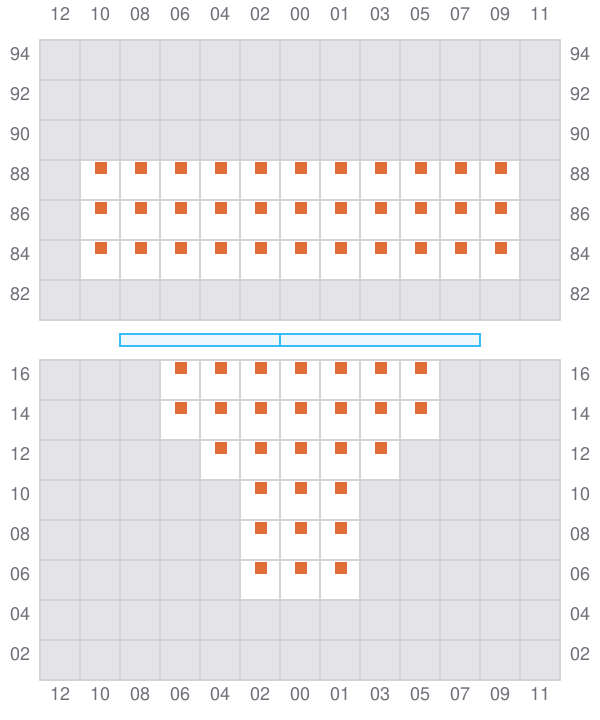

003
- ←
005 (006)
- →
007
- ←
- → / ?
009 (010)
- →
- ←
011
- ←
- →

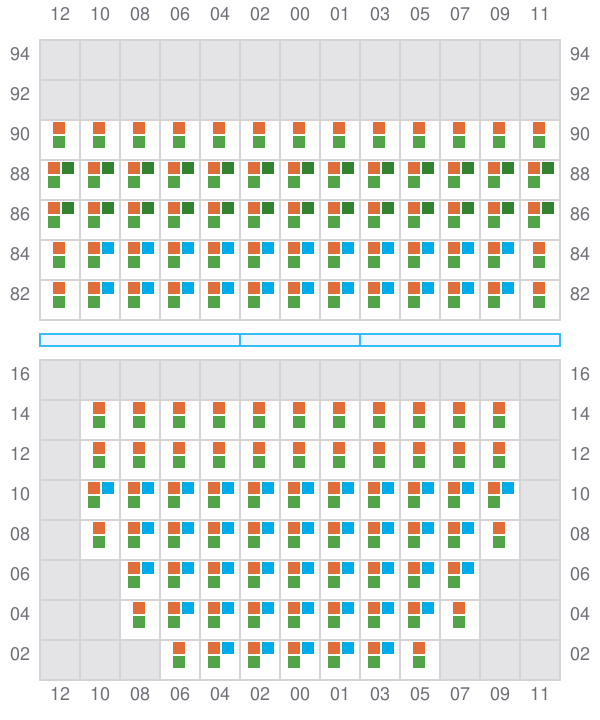

013 (014)
- →
- ←
015
- ←
- → / ?
017 (018)
- →
- ← / ?
019
- ←
- →
021 (022)
- →
- ←

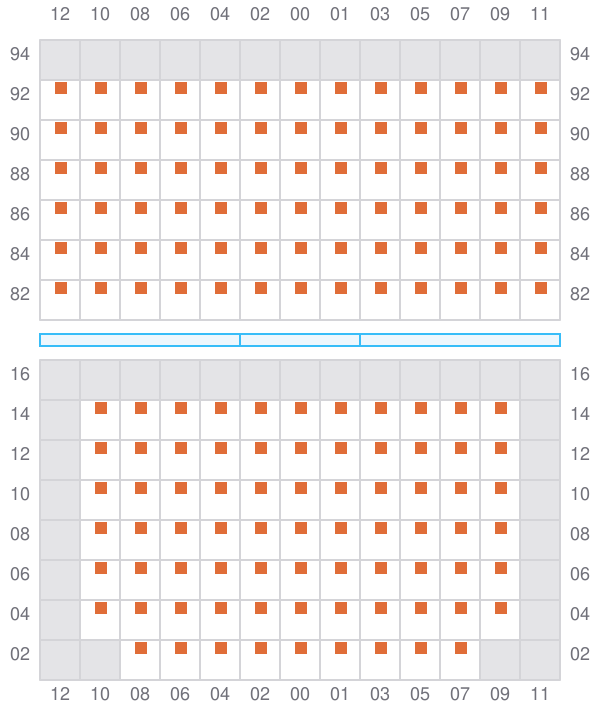

023
- ←
- → / ?
025 (026)
- →
- ← / ?
027
- ←
- →

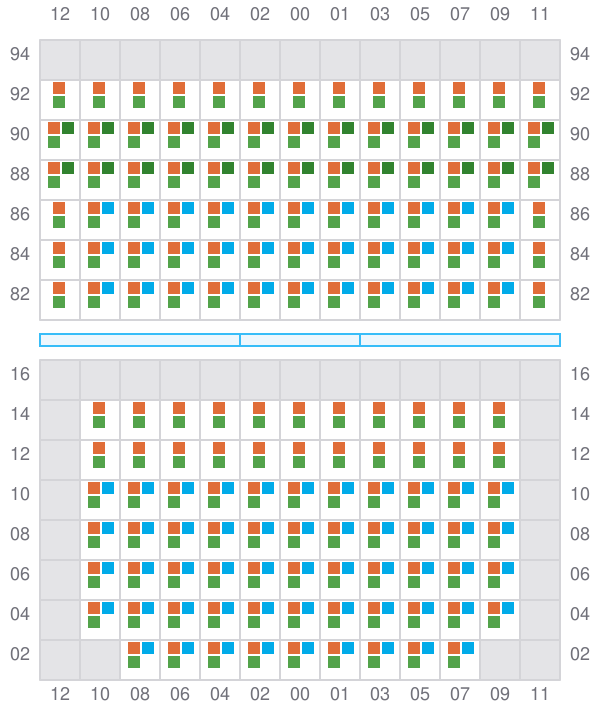

029 (030)
- →
- ←
031
- ←
- → / ?
033 (034)
- →
- ← / ?
035
- ←
- →
037 (038)
- →
- ←
039
- ←
- → / ?
041 (042)
- →
- ← / ?
043
- ←
- → / ?
045 (046)
- → / ?
- ← / ?
047
- ← / ?
049 (050)
- →

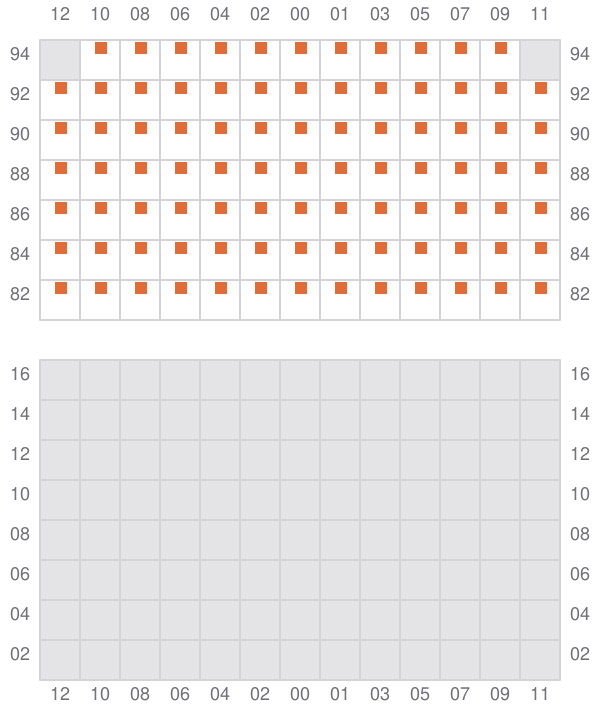

051
- ←

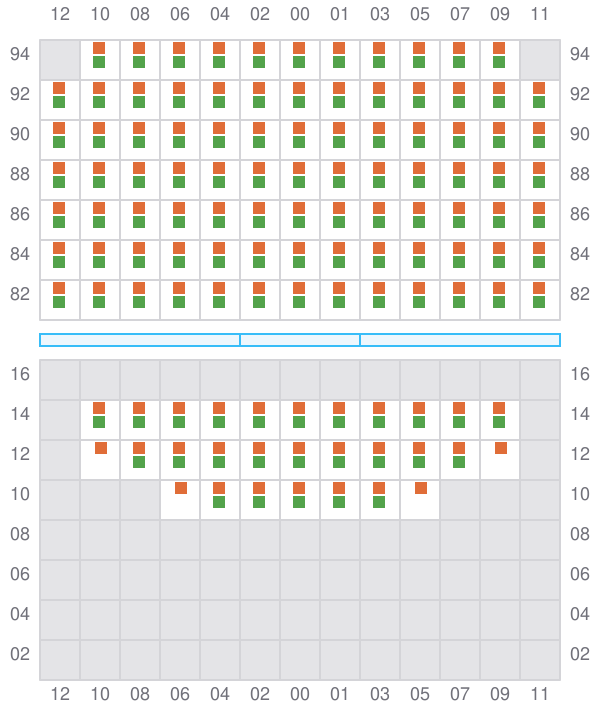

053 (054)
- → / ?
