SPIL KARTIKA
9353254 | H3GY | 9353254 by ********* Last update: Fri May 03 2024
General Info
Ship Name:SPIL KARTIKA
IMO Code:9353254
Call Sign:H3GY
Line Operator:9353254
Class Name for Sister Ships:YM EMINENCE
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:059
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:4,218
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

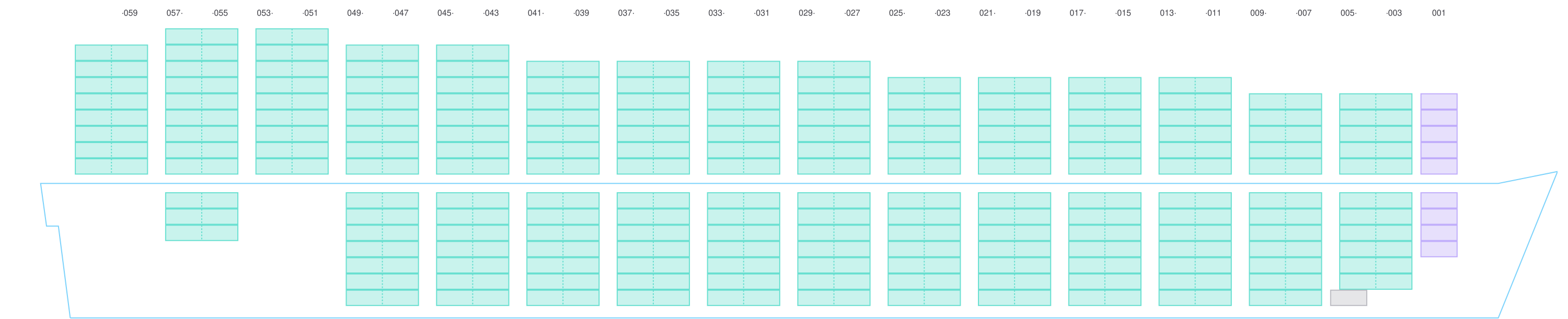

Side View

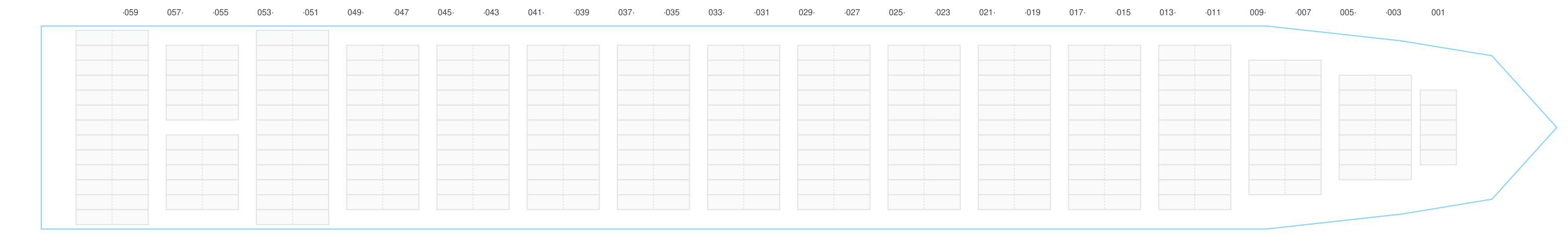

Hatch-Covers View

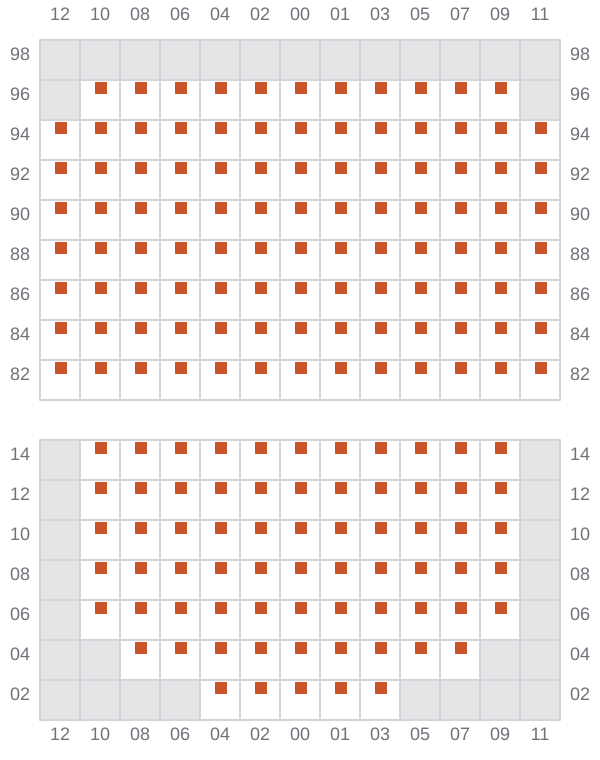

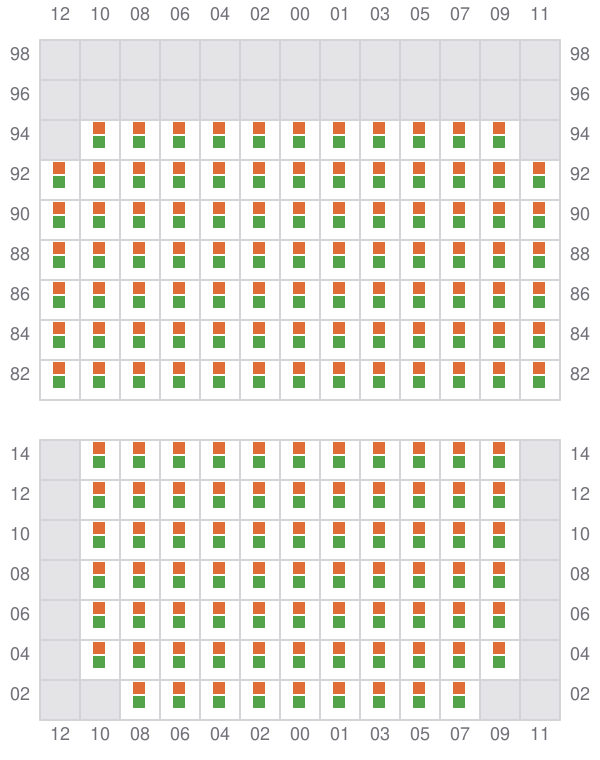

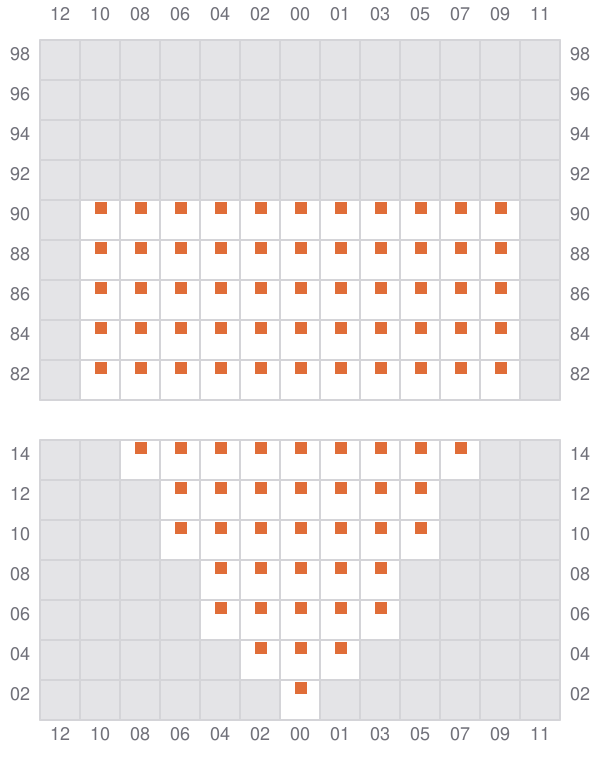

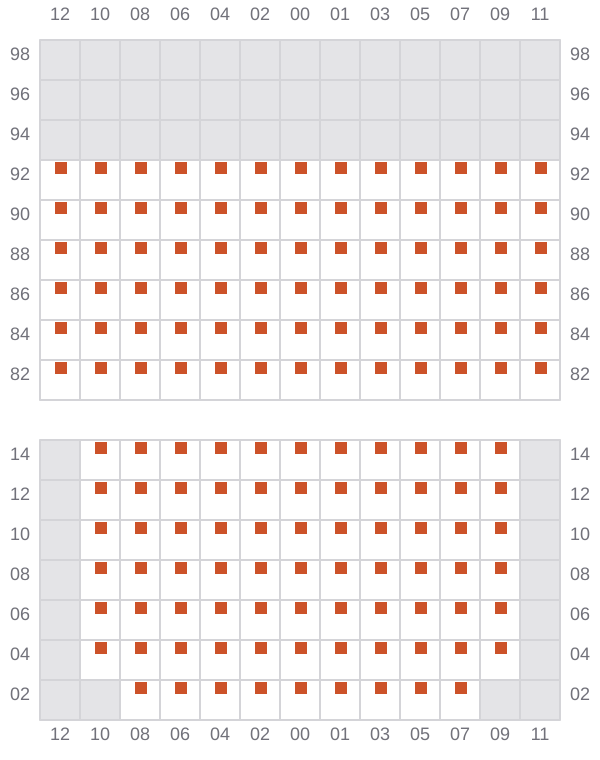

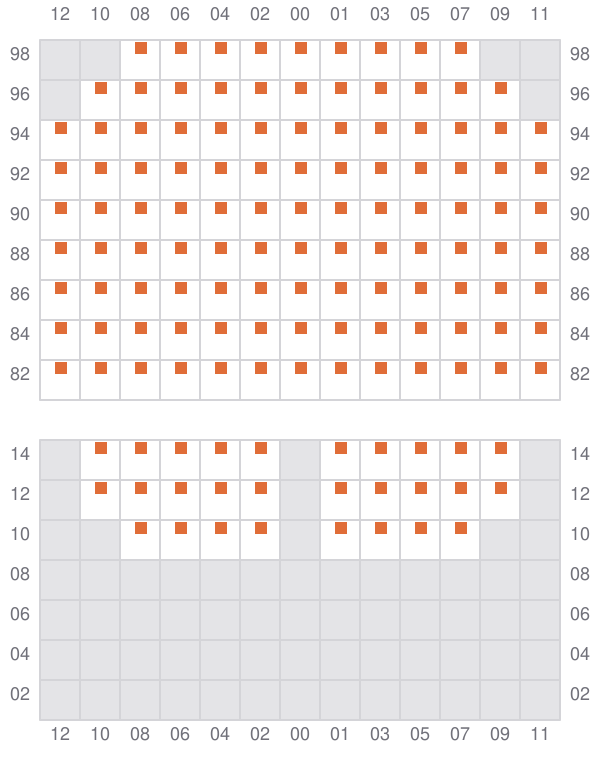

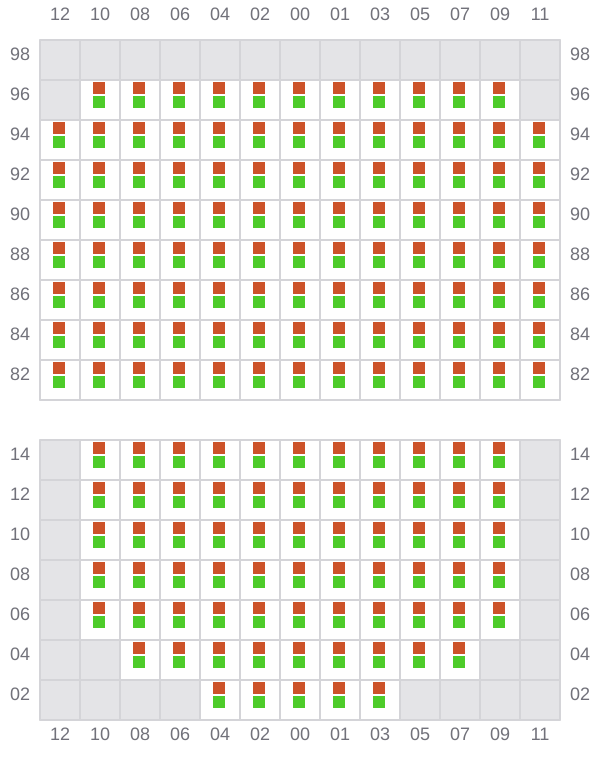

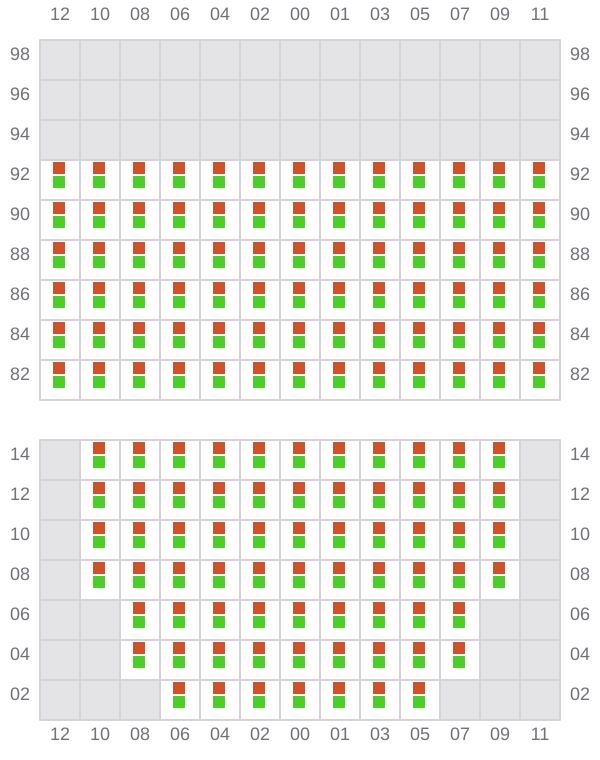

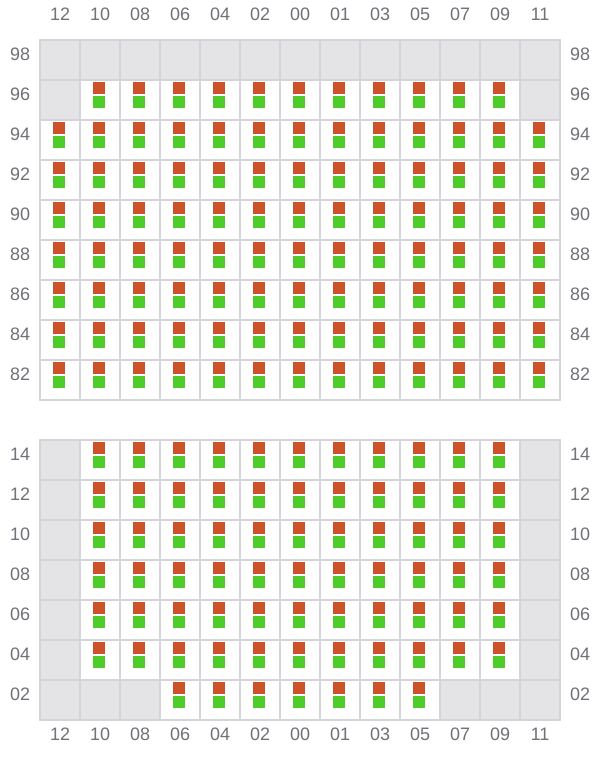

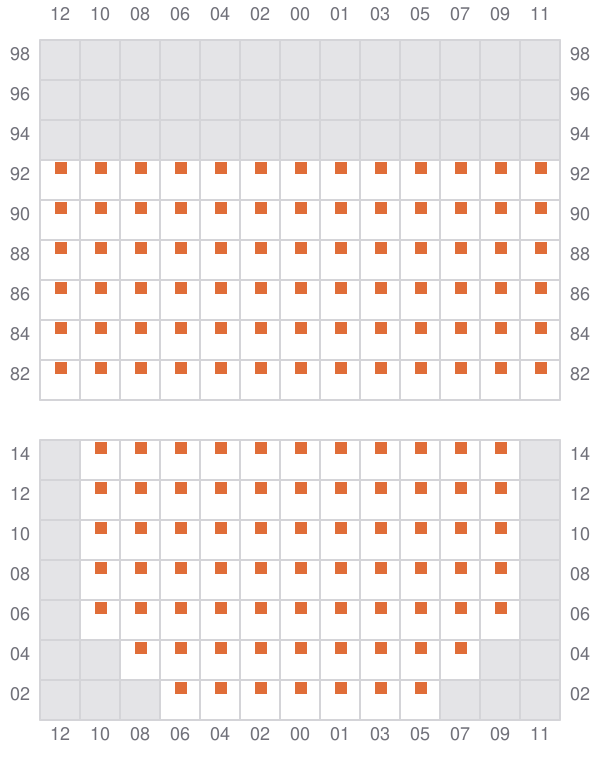

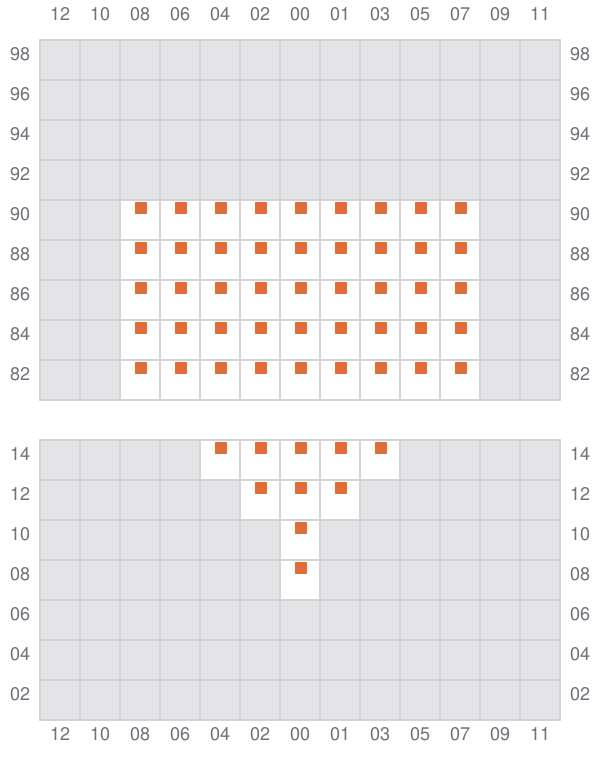

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×
001
003 (004)
- →

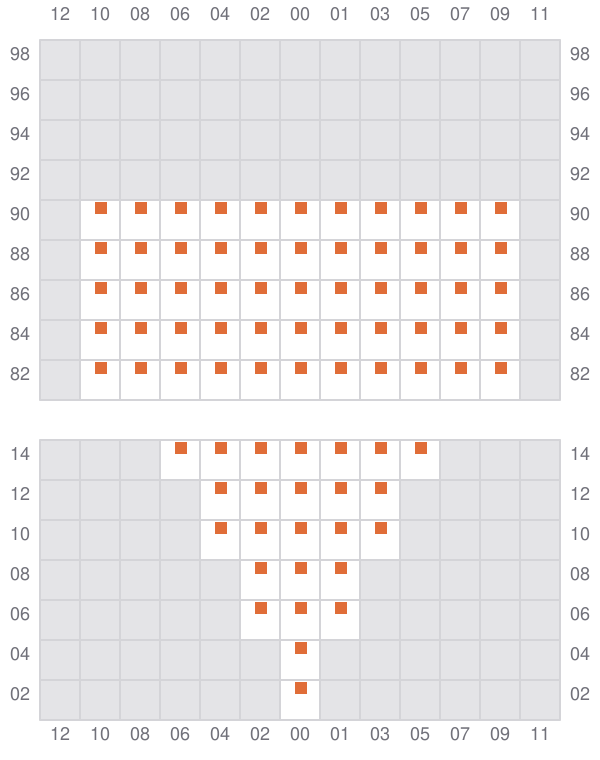

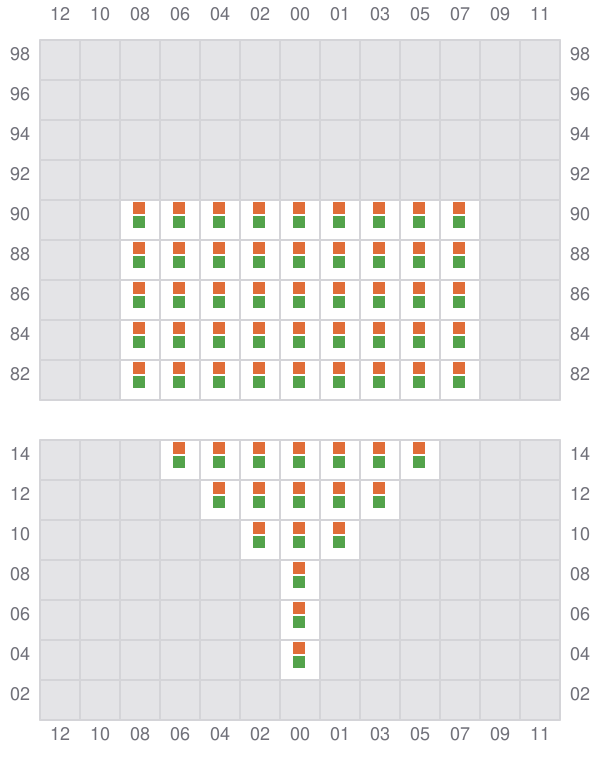

005
- ←

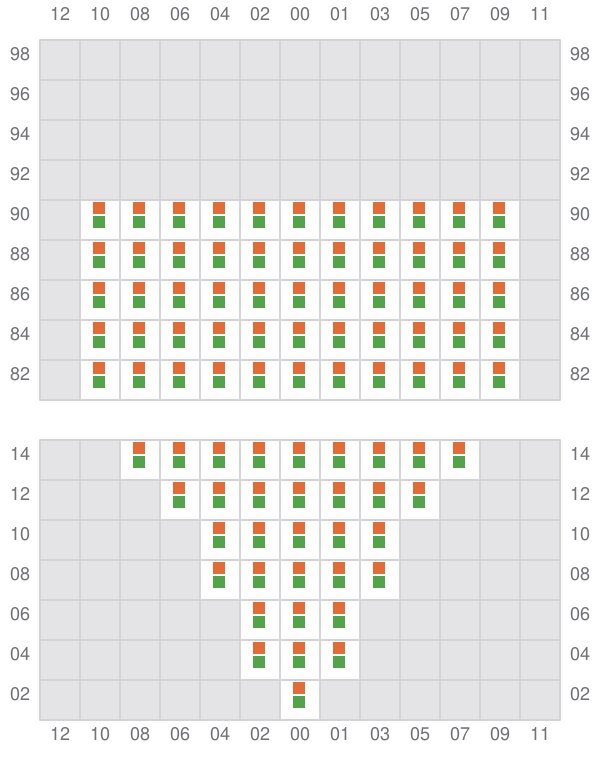

007 (008)
- →
009
- ←
011 (012)
- →
013
- ←

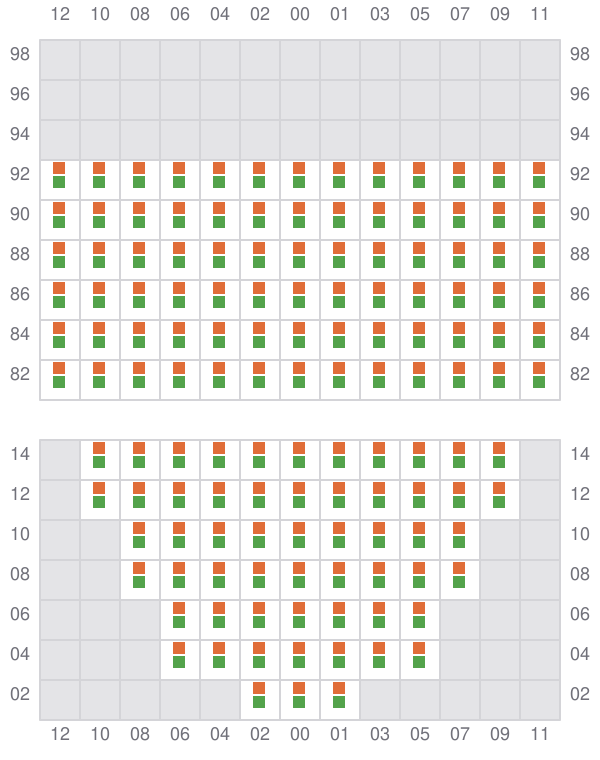

015 (016)
- →

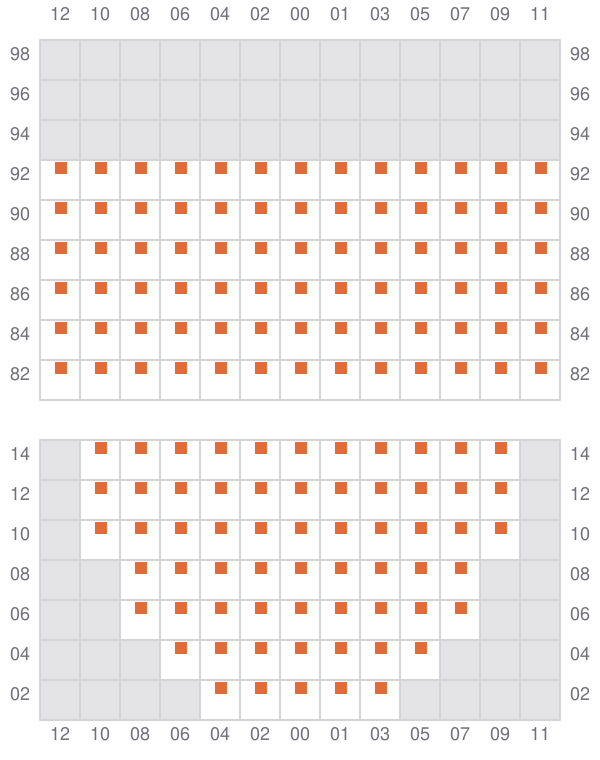

017
- ←
019 (020)
- →
021
- ←

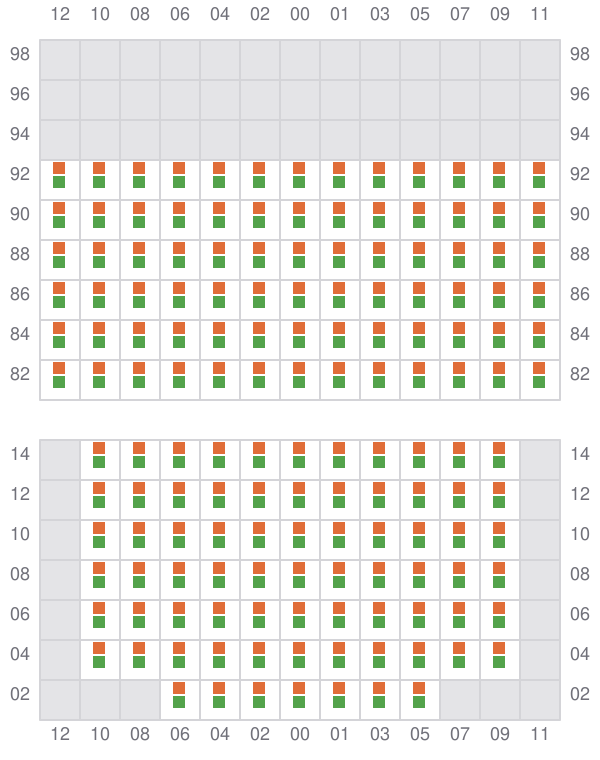

023 (024)
- →
025
- ←
027 (028)
- →
029
- ←
031 (032)
- →
033
- ←
035 (036)
- →
037
- ←
039 (040)
- →

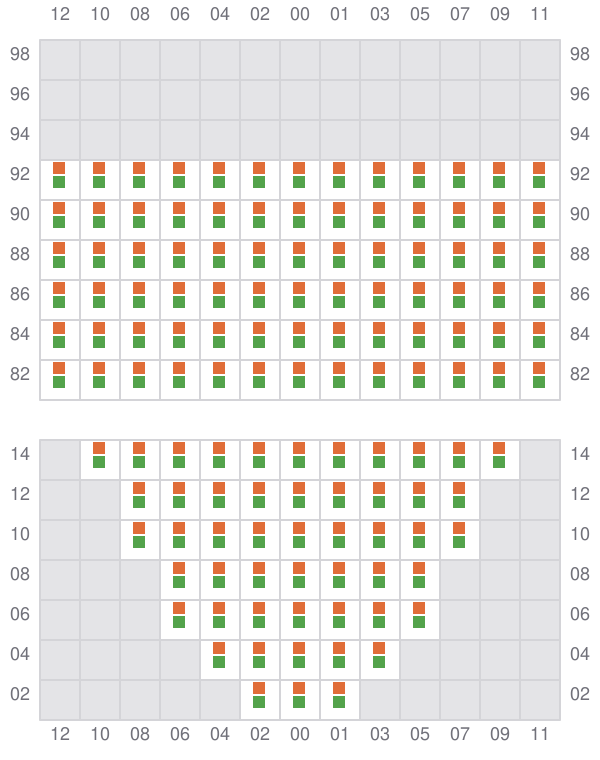

041
- ←
043 (044)
- →

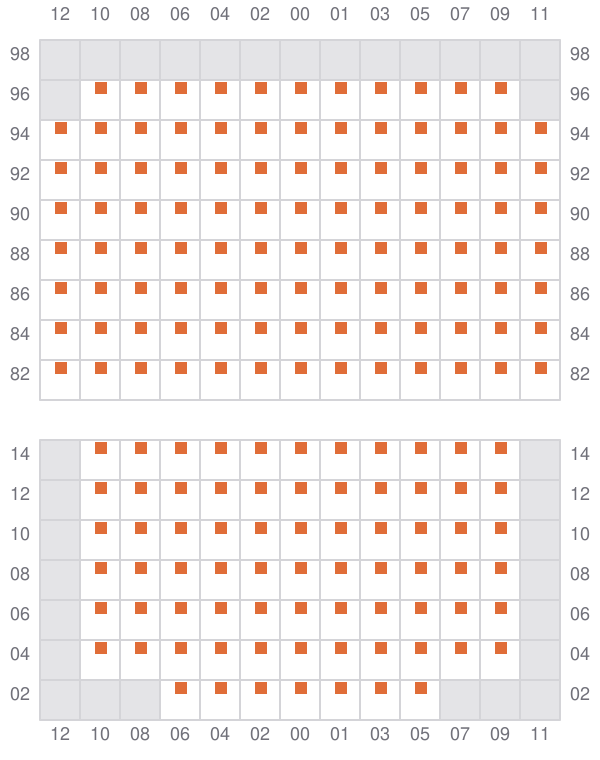

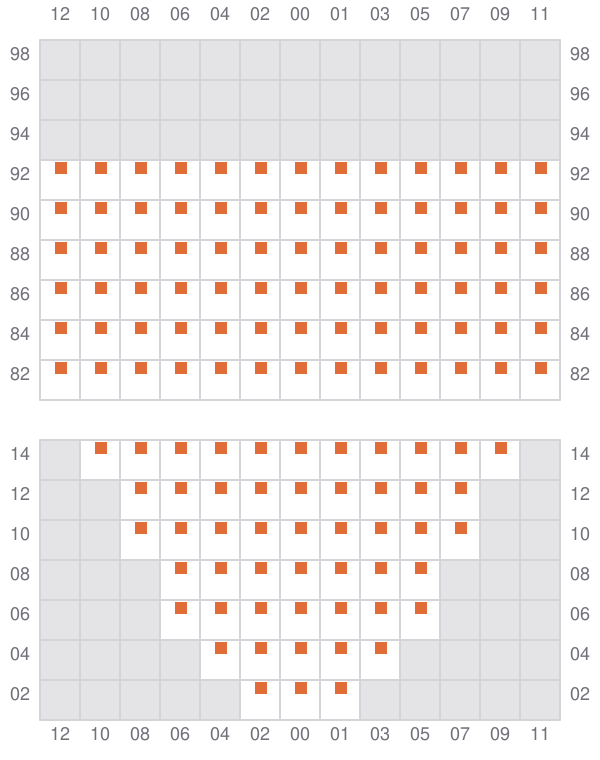

045
- ←
047 (048)
- →

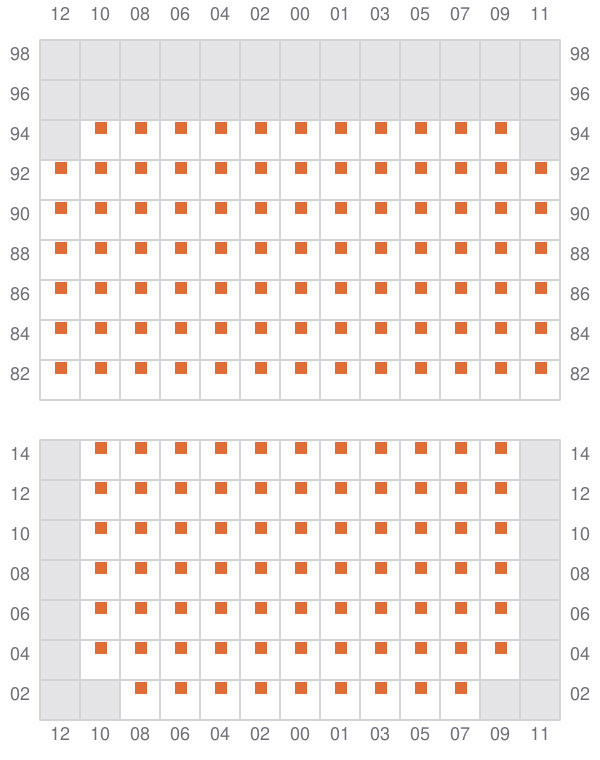

049
- ←

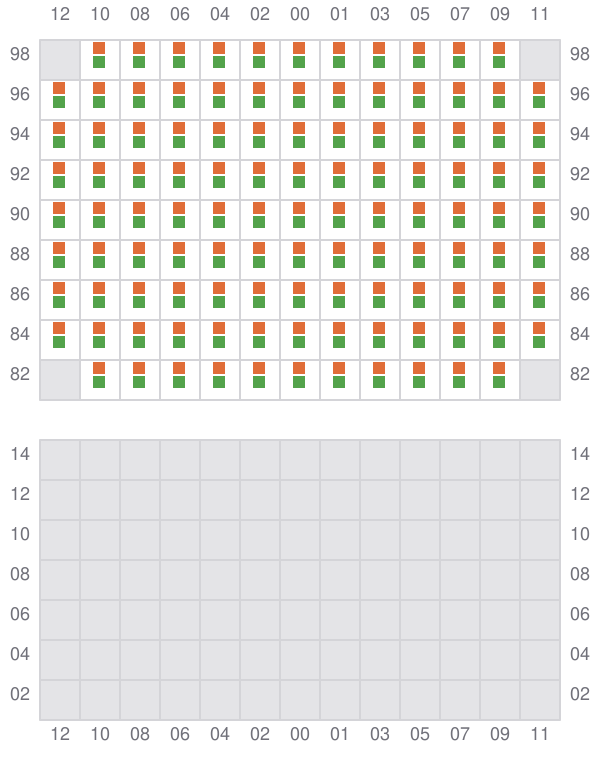

051 (052)
- → / ?

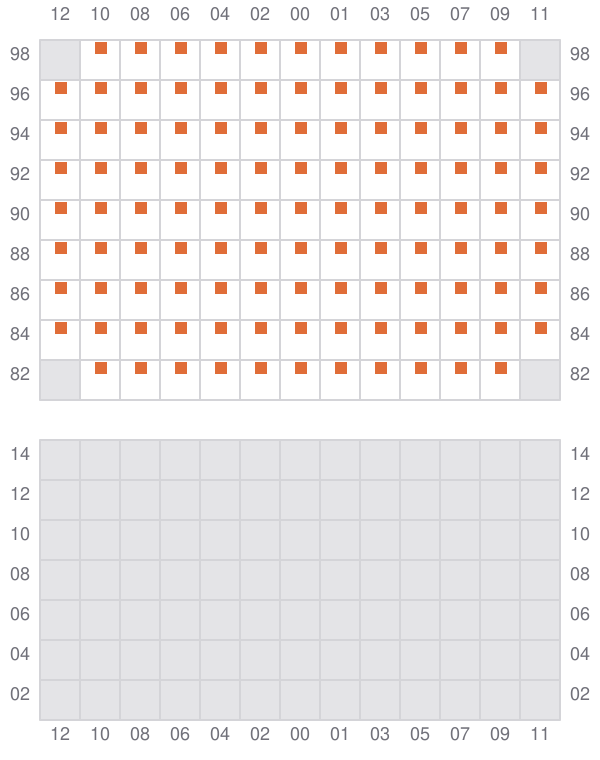

053
- ← / ?

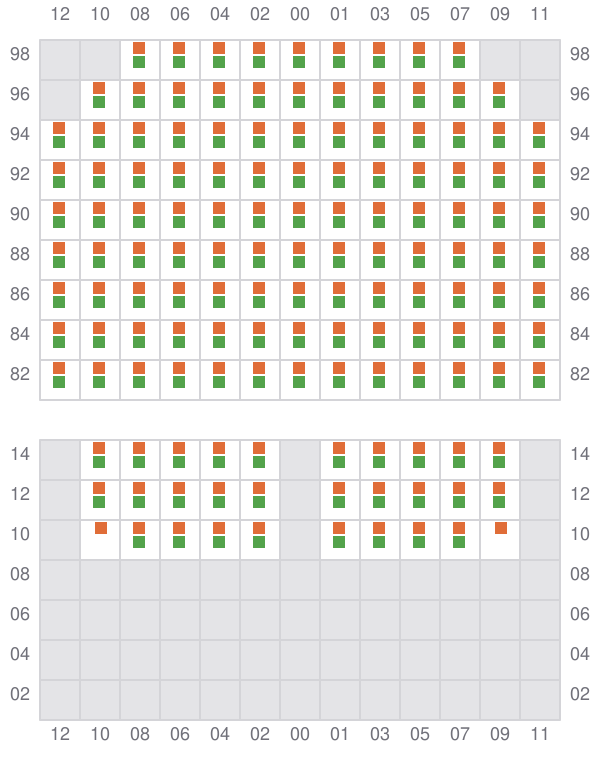

055 (056)
- →
057
- ←

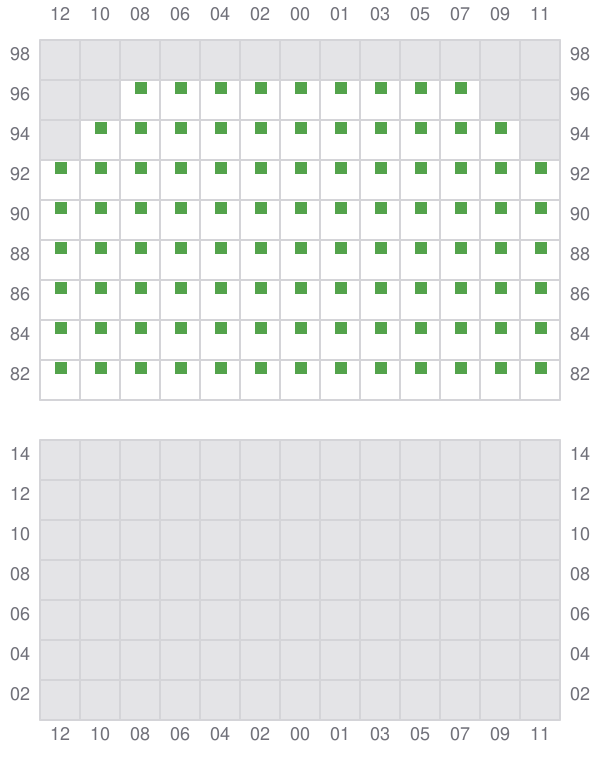

059 (060)
- → / ?
