SPIRIT OF LISBON
9431800 | V7RD6 | 9431800 by ********* Last update: Fri May 10 2024

General Info

Ship Name:SPIRIT OF LISBON
IMO Code:9431800
Call Sign:V7RD6
Line Operator:9431800
Class Name for Sister Ships:CSAV LLANQUIHUE
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):248.59
LOA (Length Overall):261.04
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,256

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of SPIRIT OF LISBON

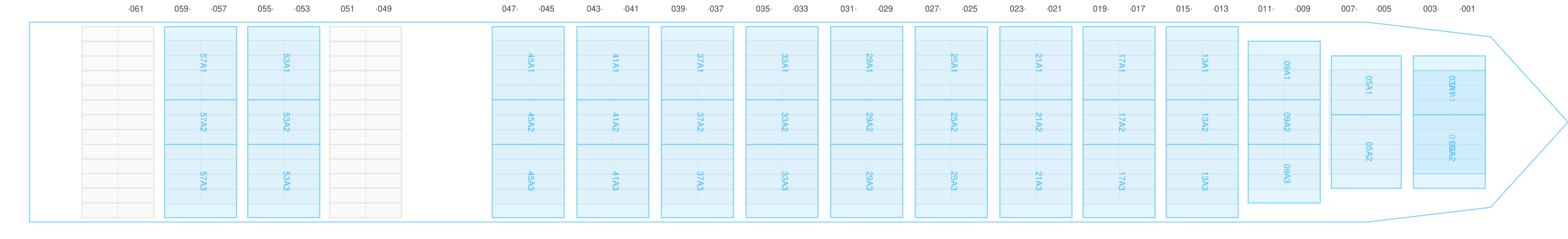

Hatch-Covers View

Deck view of SPIRIT OF LISBON

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

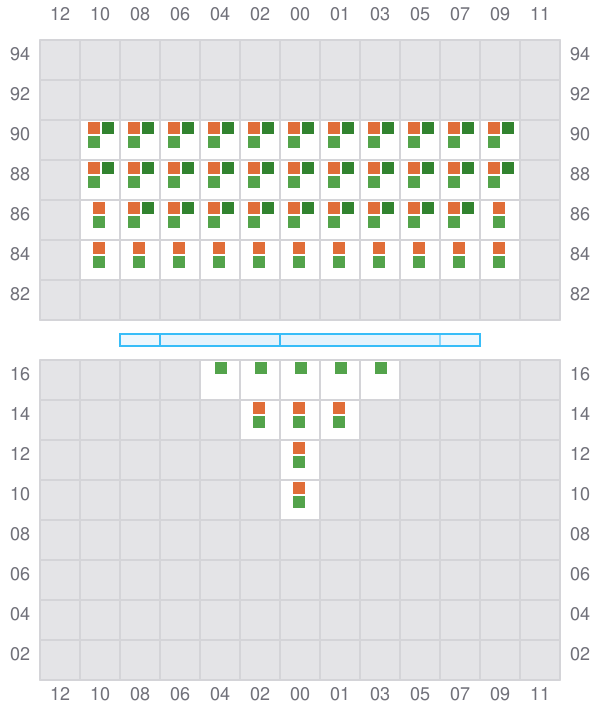

Bay 001 view and slots of SPIRIT OF LISBON

003

  • ←

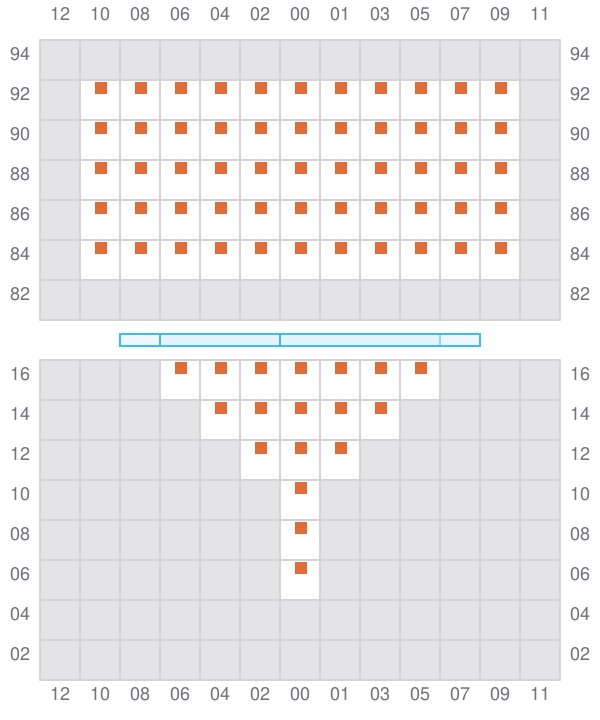

Bay 003 view and slots of SPIRIT OF LISBON

005 (006)

  • →

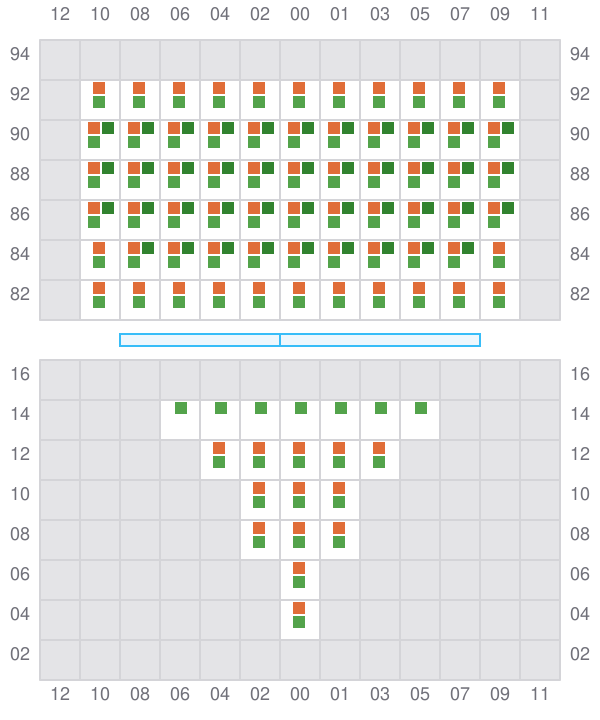

Bay 005 view and slots of SPIRIT OF LISBON

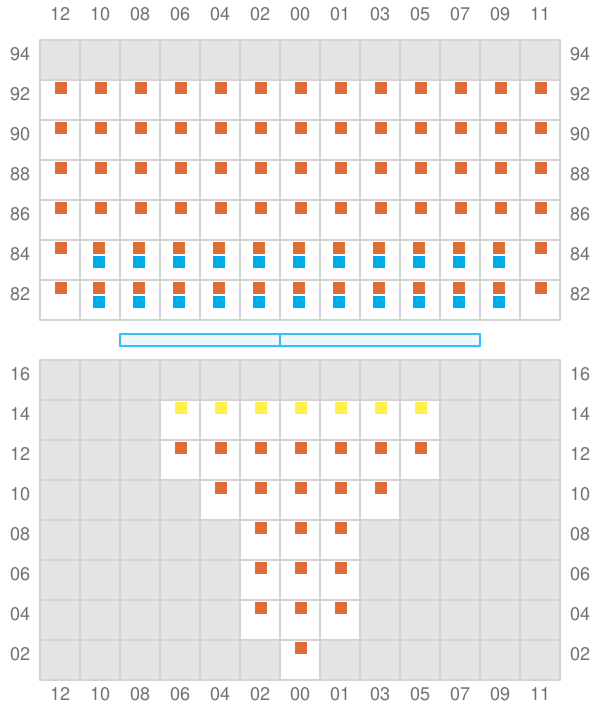

007

  • ←
  • → / ?
Bay 007 view and slots of SPIRIT OF LISBON

009 (010)

  • →

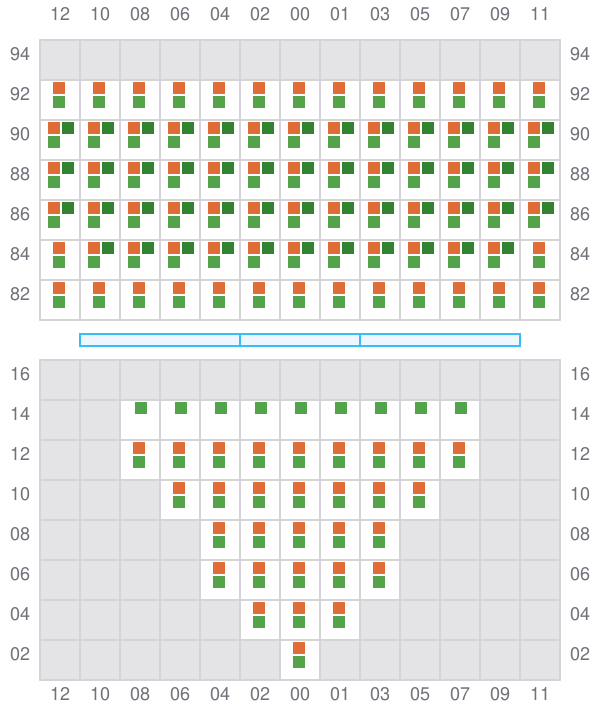

Bay 009 view and slots of SPIRIT OF LISBON

011

  • ←
  • → / ?

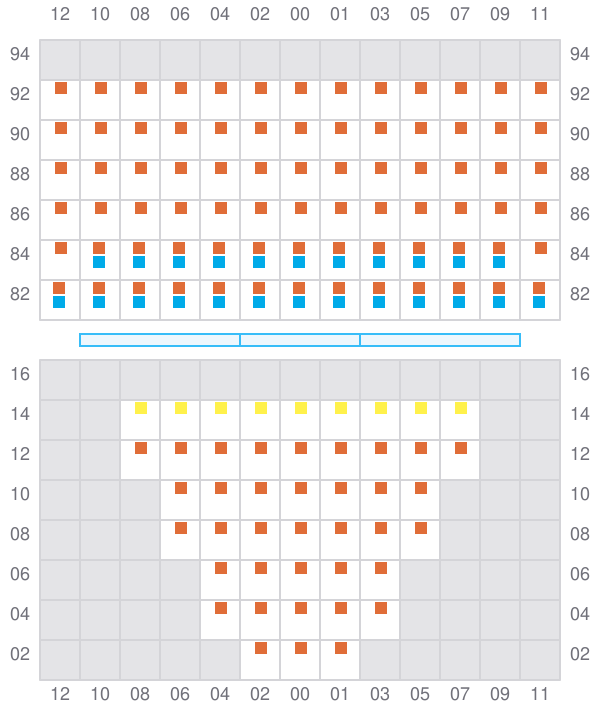

Bay 011 view and slots of SPIRIT OF LISBON

013 (014)

  • →
Bay 013 view and slots of SPIRIT OF LISBON

015

  • ←
  • → / ?

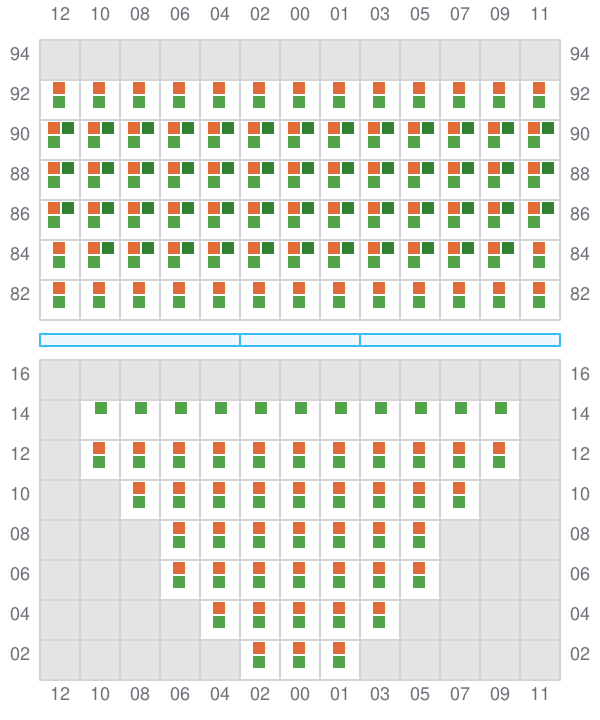

Bay 015 view and slots of SPIRIT OF LISBON

017 (018)

  • →

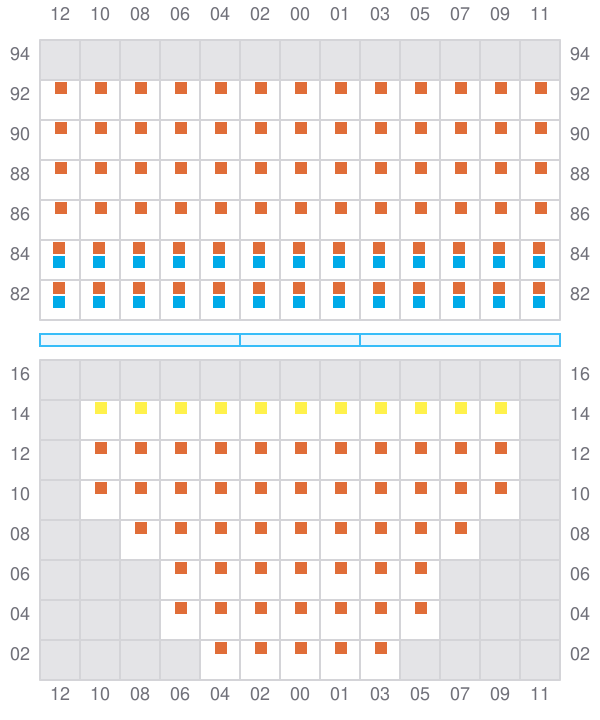

Bay 017 view and slots of SPIRIT OF LISBON

019

  • ←
  • → / ?

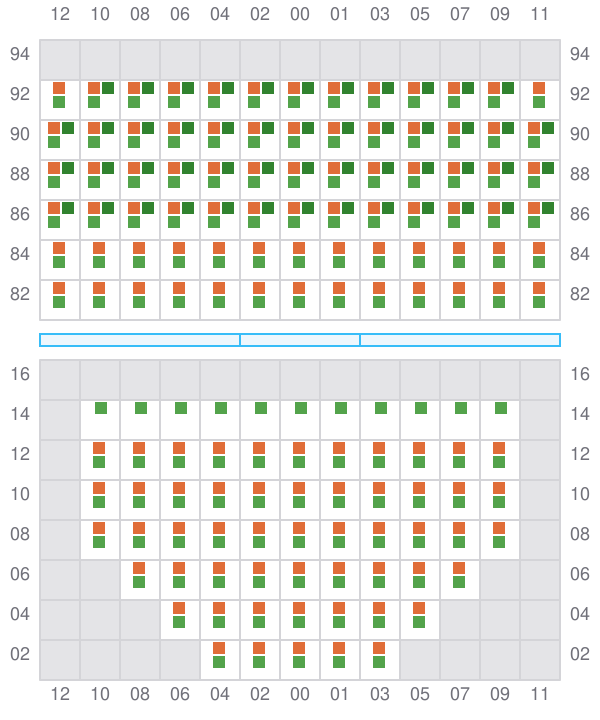

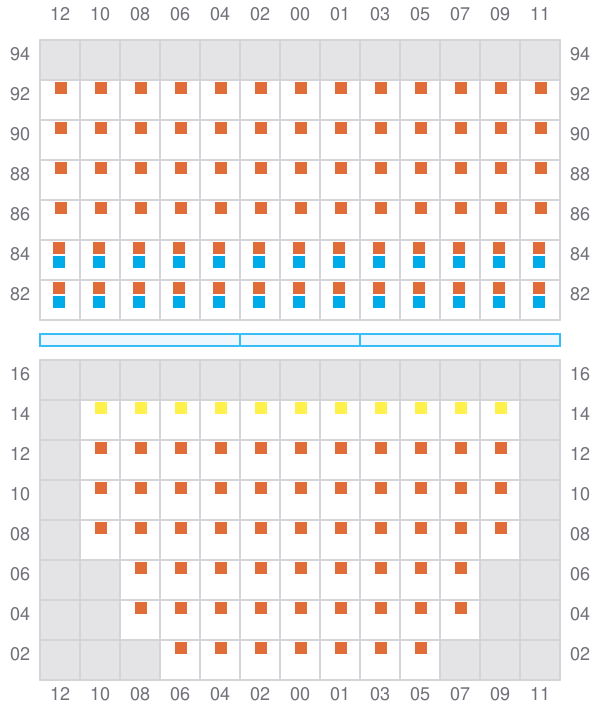

Bay 019 view and slots of SPIRIT OF LISBON

021 (022)

  • →

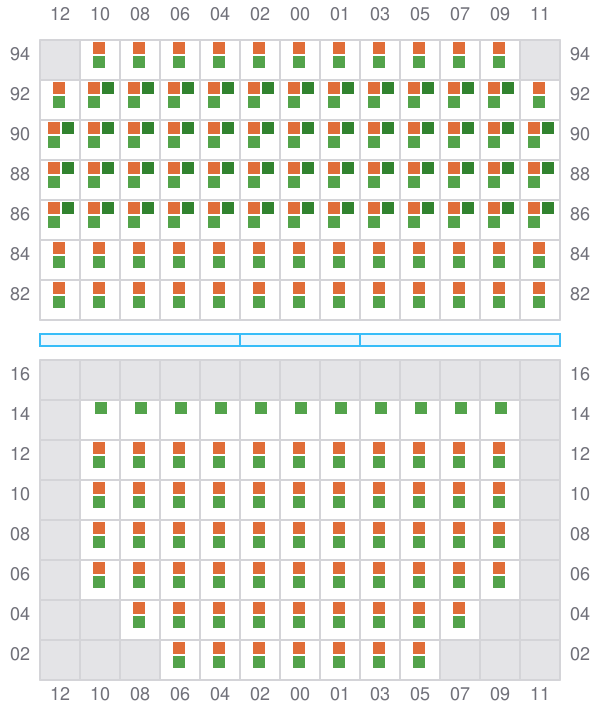

Bay 021 view and slots of SPIRIT OF LISBON

023

  • ←
  • → / ?

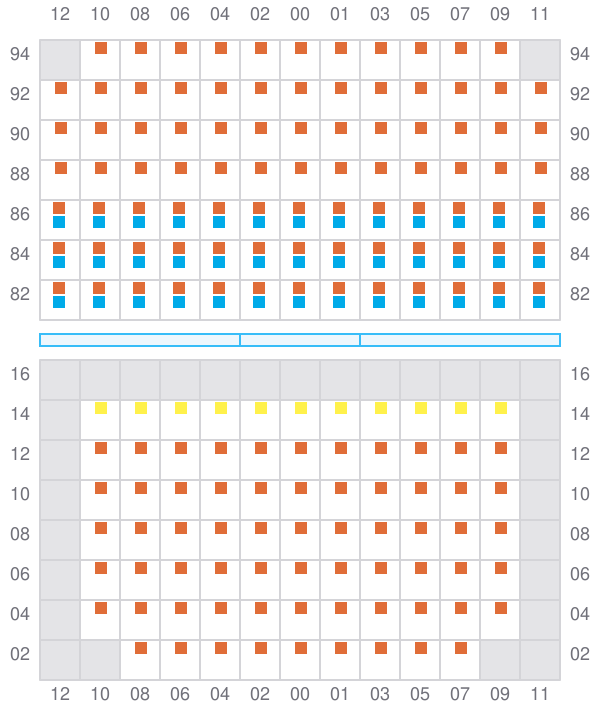

Bay 023 view and slots of SPIRIT OF LISBON

025 (026)

  • →
Bay 025 view and slots of SPIRIT OF LISBON

027

  • ←
  • ? / →

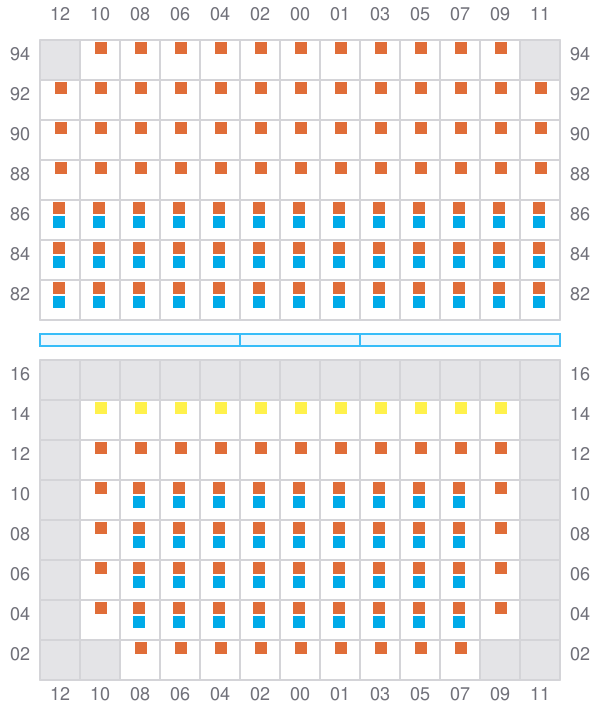

Bay 027 view and slots of SPIRIT OF LISBON

029 (030)

  • →

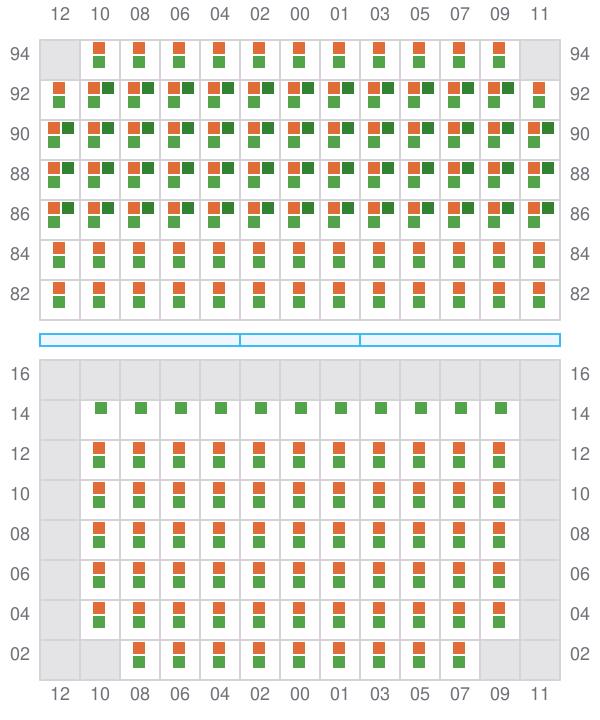

Bay 029 view and slots of SPIRIT OF LISBON

031

  • ←
  • →
Bay 031 view and slots of SPIRIT OF LISBON

033 (034)

  • →

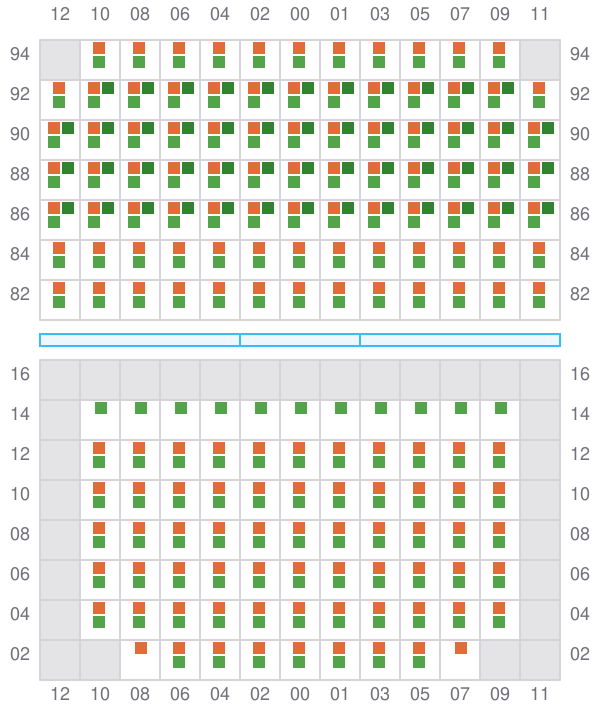

Bay 033 view and slots of SPIRIT OF LISBON

035

  • ←
  • →
Bay 035 view and slots of SPIRIT OF LISBON

037 (038)

  • →
Bay 037 view and slots of SPIRIT OF LISBON

039

  • ←
  • →
Bay 039 view and slots of SPIRIT OF LISBON

041 (042)

  • →

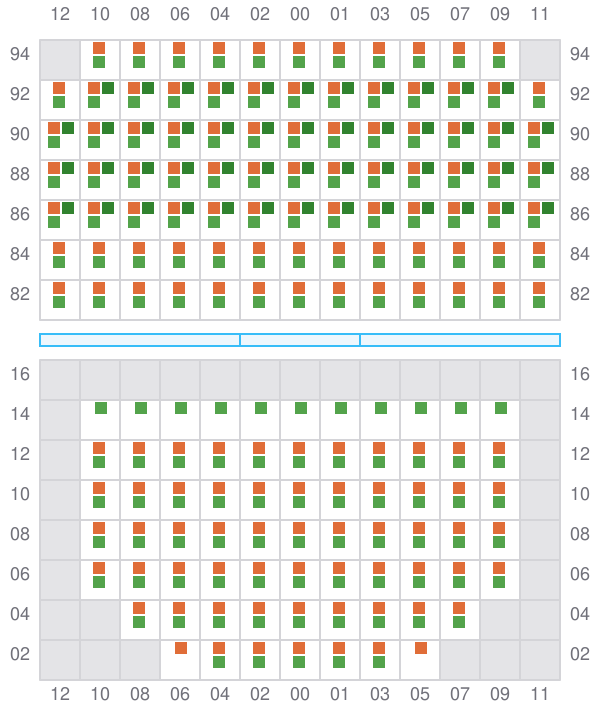

Bay 041 view and slots of SPIRIT OF LISBON

043

  • ←
  • →

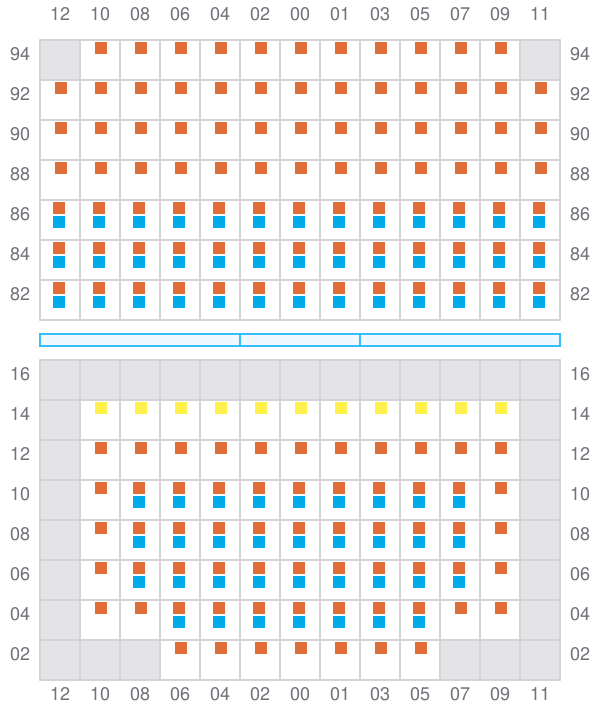

Bay 043 view and slots of SPIRIT OF LISBON

045 (046)

  • →
Bay 045 view and slots of SPIRIT OF LISBON

047

  • ←
  • →
Bay 047 view and slots of SPIRIT OF LISBON

049 (050)

  • → / ?
  • → / ?

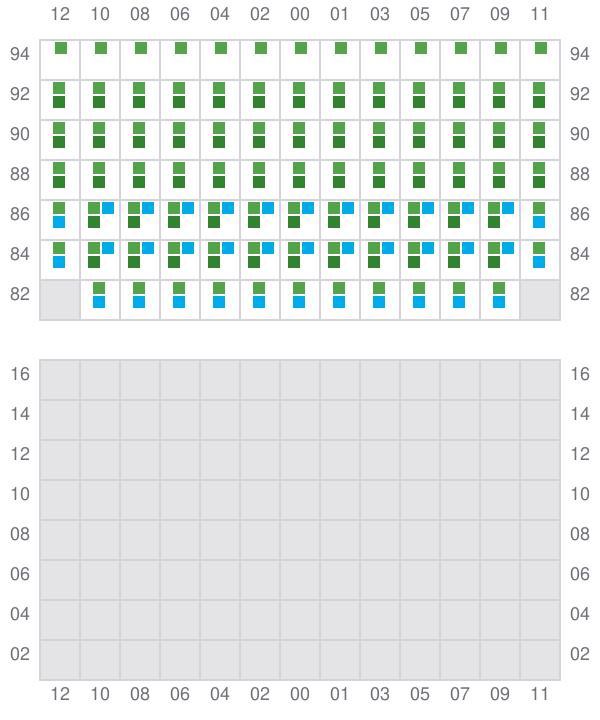

Bay 049 view and slots of SPIRIT OF LISBON

051

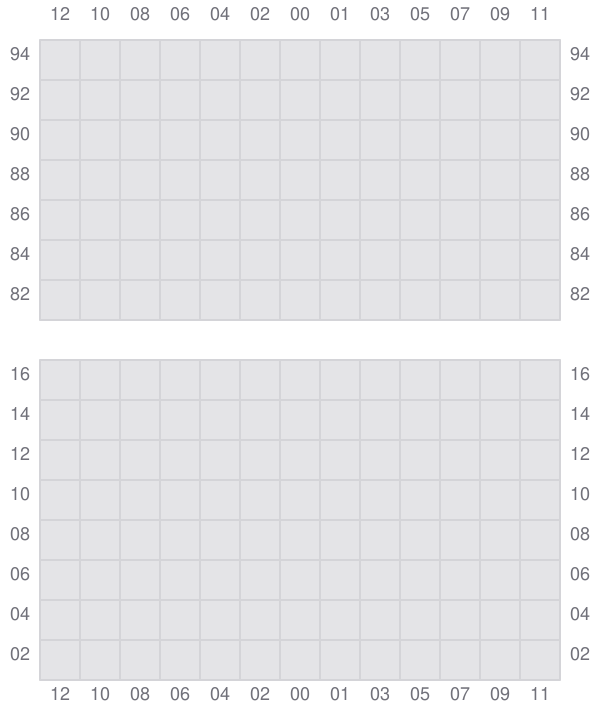

Bay 051 view and slots of SPIRIT OF LISBON

053 (054)

  • →

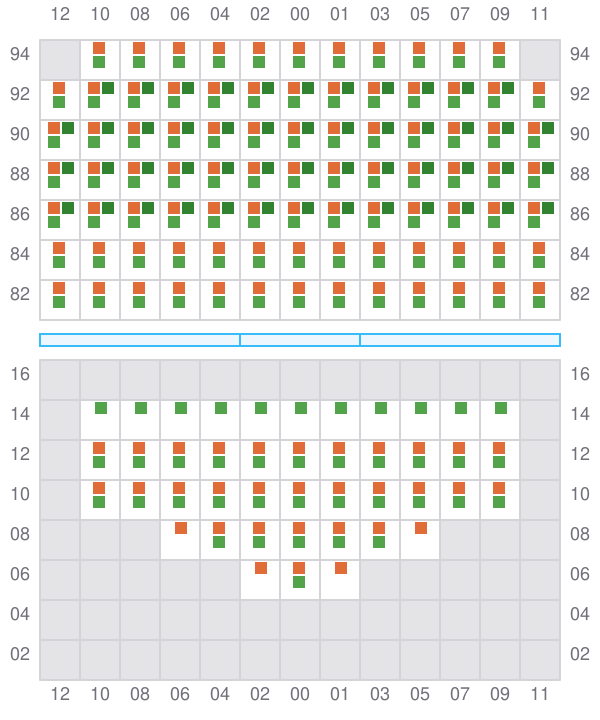

Bay 053 view and slots of SPIRIT OF LISBON

055

  • ←
  • → / ?

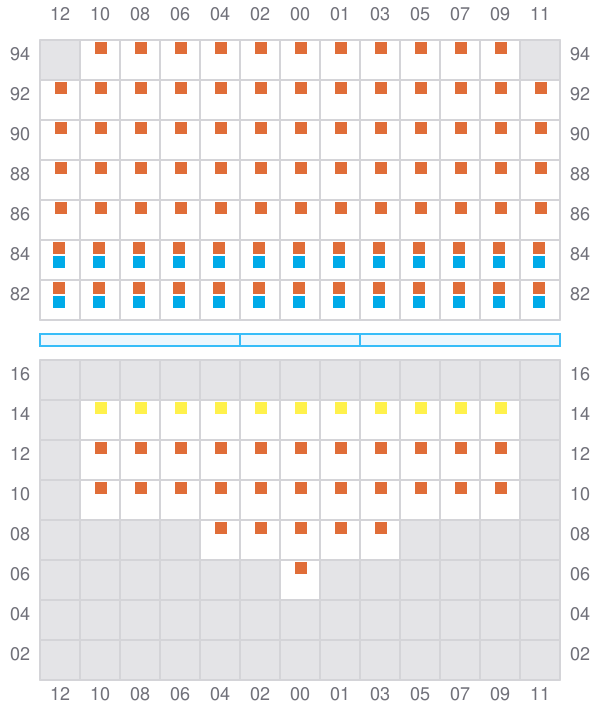

Bay 055 view and slots of SPIRIT OF LISBON

057 (058)

  • →

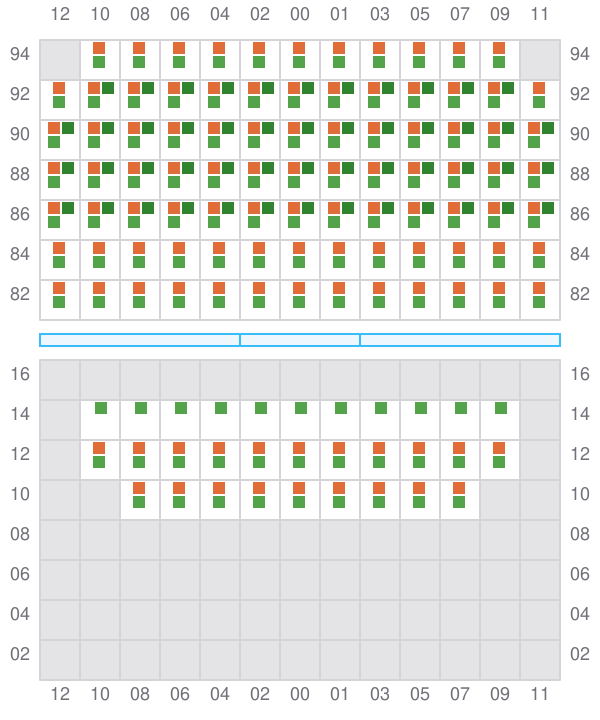

Bay 057 view and slots of SPIRIT OF LISBON

059

  • ←
  • → / ?

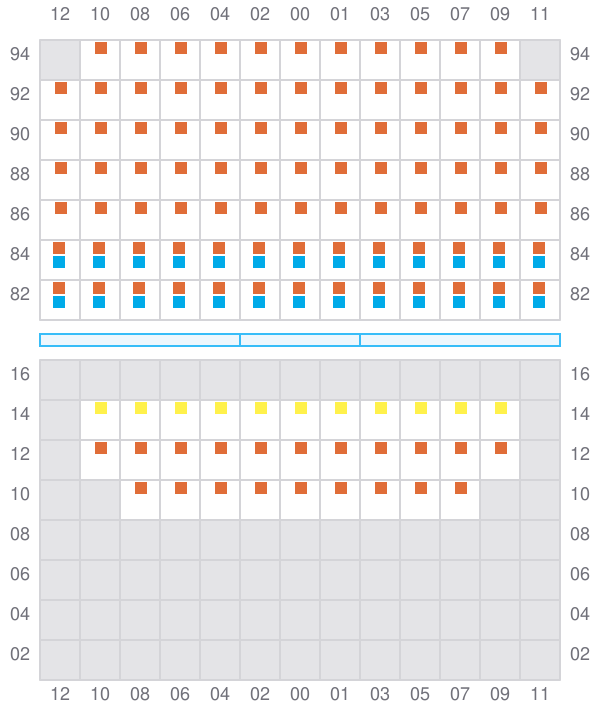

Bay 059 view and slots of SPIRIT OF LISBON

061 (062)

  • → / ?
  • → / ?

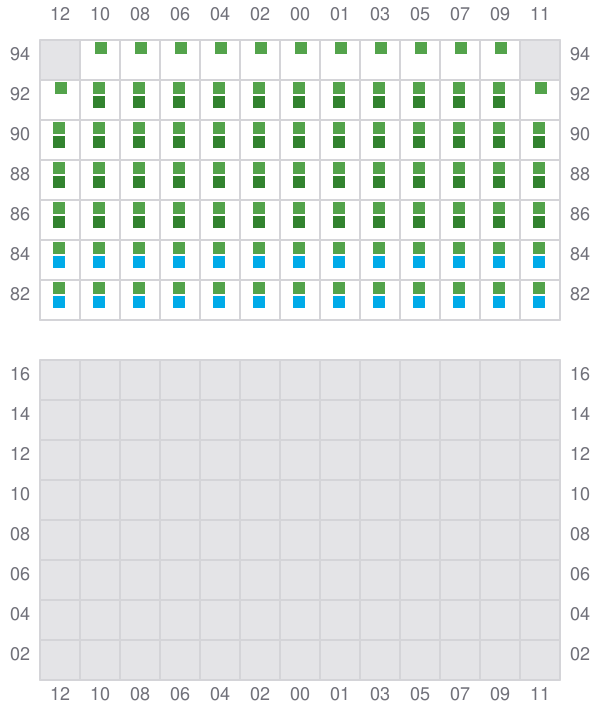

Bay 061 view and slots of SPIRIT OF LISBON
