SPYROS V
9453365 | V7DG7 | 9453365 by ********* Last update: Thu Jun 06 2024

General Info

Ship Name:SPYROS V
IMO Code:9453365
Call Sign:V7DG7
Line Operator:9453365
Class Name for Sister Ships:BELLASCHULTE
Year Built:2011
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):247.09
LOA (Length Overall):261.03
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,253

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of SPYROS V

Hatch-Covers View

Deck view of SPYROS V

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

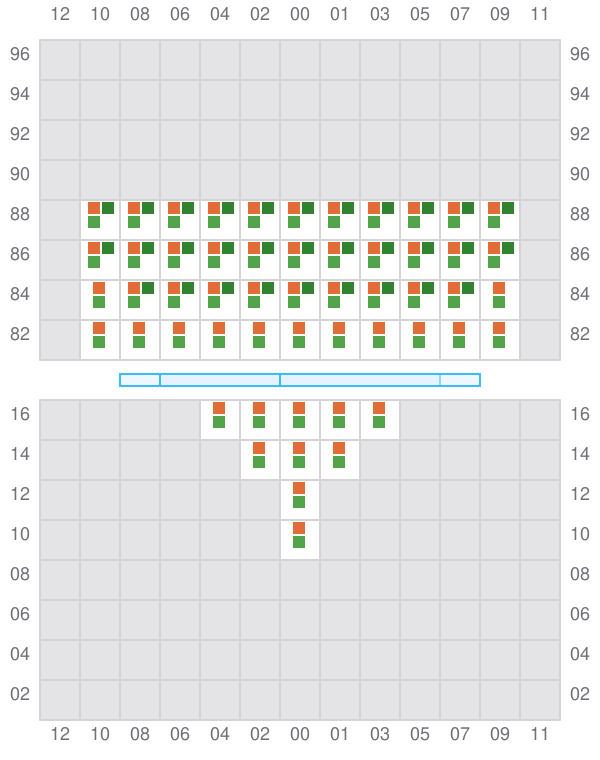

001 (002)

Bay 001 view and slots of SPYROS V

003

Bay 003 view and slots of SPYROS V

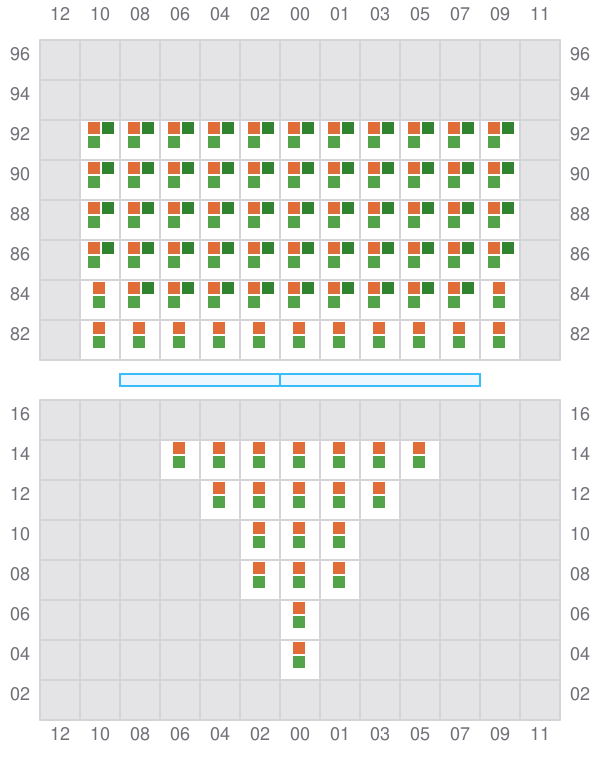

005 (006)

Bay 005 view and slots of SPYROS V

007

  • / ?

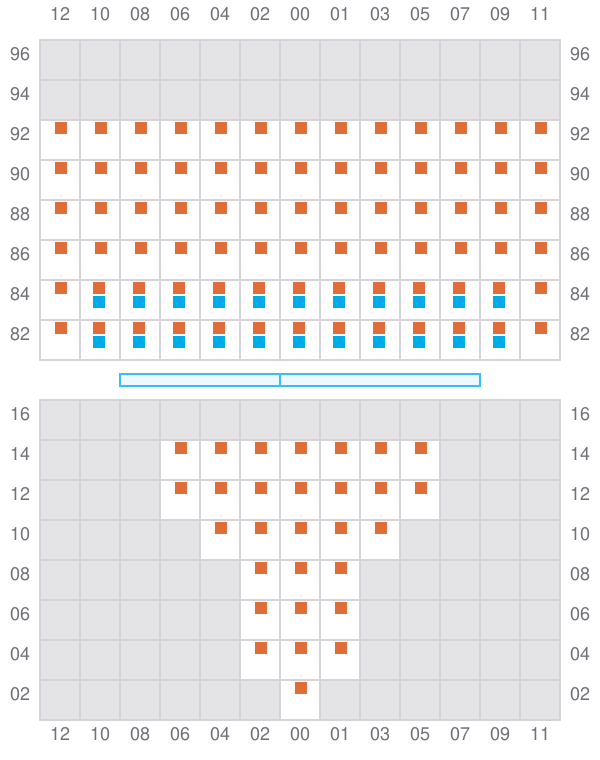

Bay 007 view and slots of SPYROS V

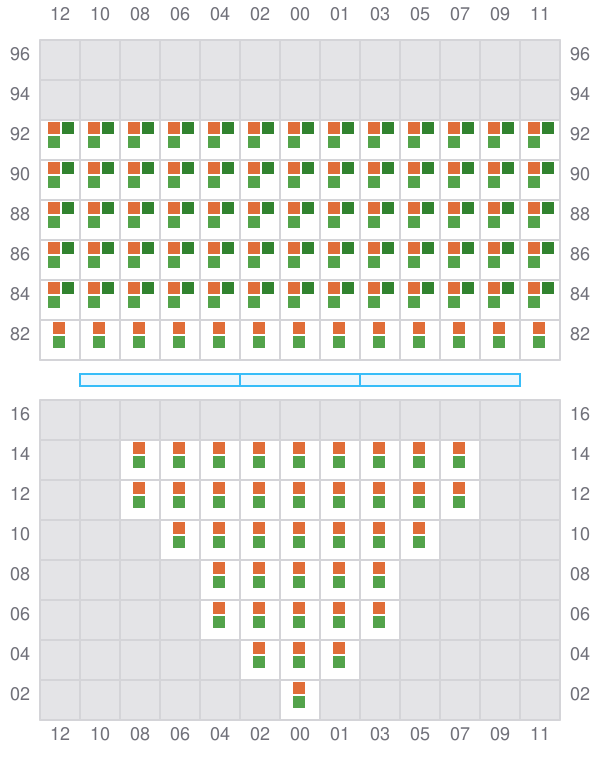

009 (010)

Bay 009 view and slots of SPYROS V

011

  • / ?
Bay 011 view and slots of SPYROS V

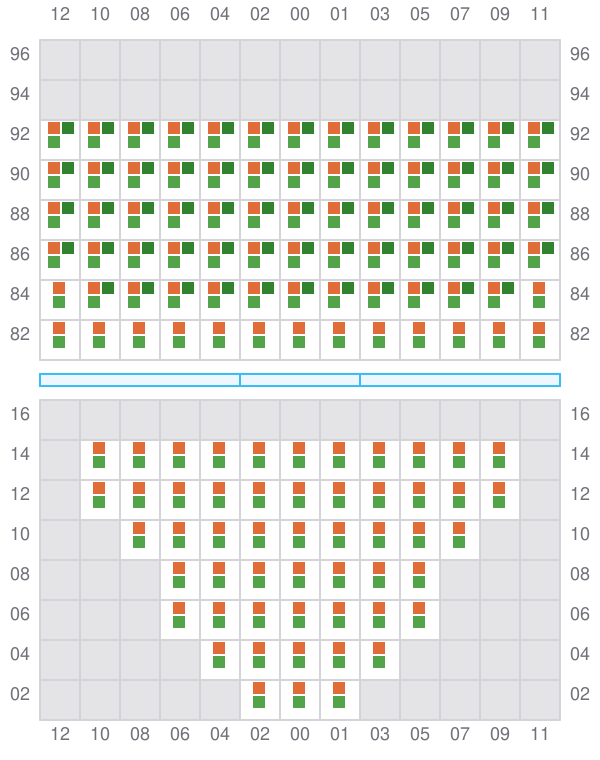

013 (014)

Bay 013 view and slots of SPYROS V

015

  • / ?

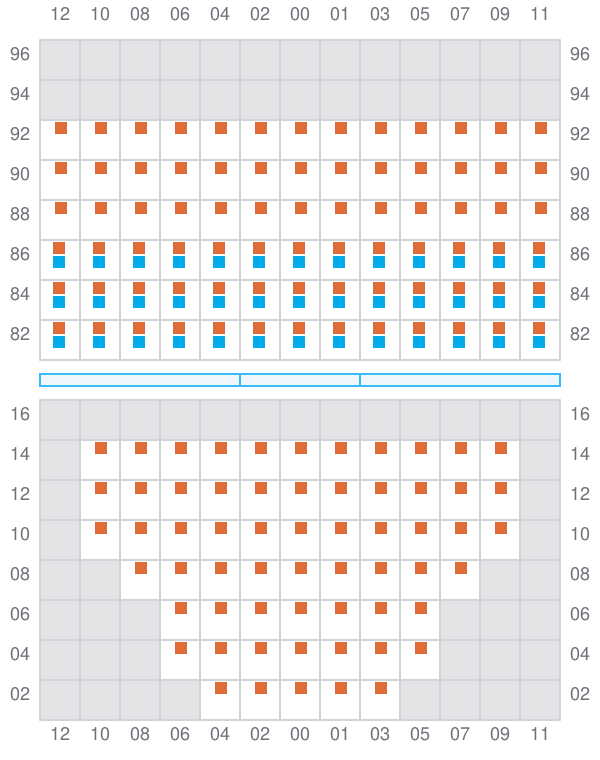

Bay 015 view and slots of SPYROS V

017 (018)

Bay 017 view and slots of SPYROS V

019

  • / ?
Bay 019 view and slots of SPYROS V

021 (022)

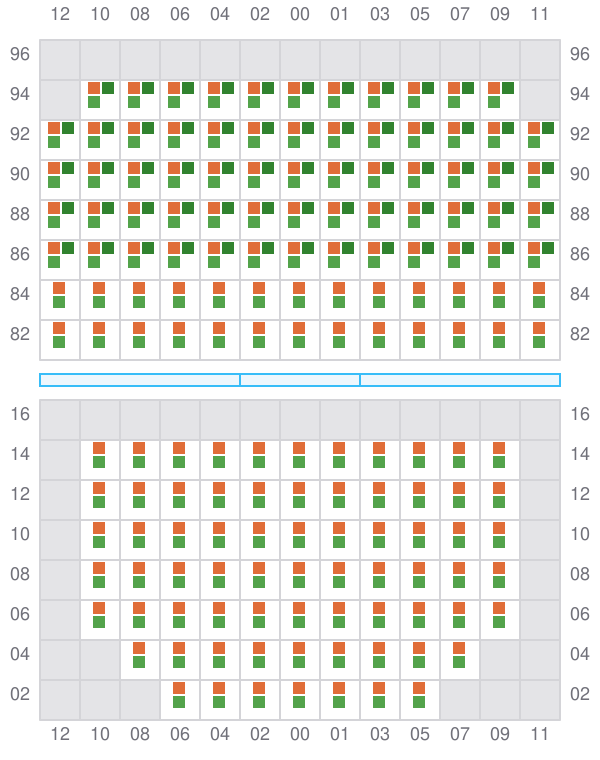

Bay 021 view and slots of SPYROS V

023

  • / ?
Bay 023 view and slots of SPYROS V

025 (026)

Bay 025 view and slots of SPYROS V

027

Bay 027 view and slots of SPYROS V

029 (030)

Bay 029 view and slots of SPYROS V

031

  • / ?
Bay 031 view and slots of SPYROS V

033 (034)

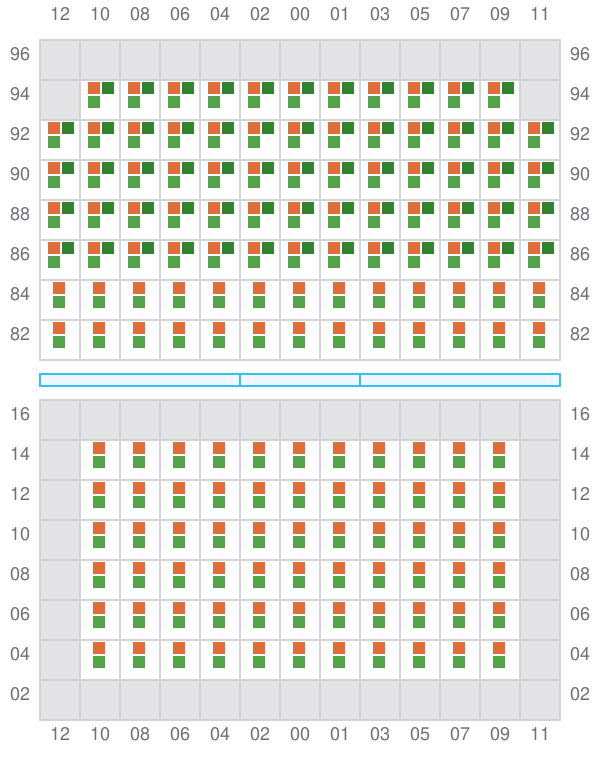

Bay 033 view and slots of SPYROS V

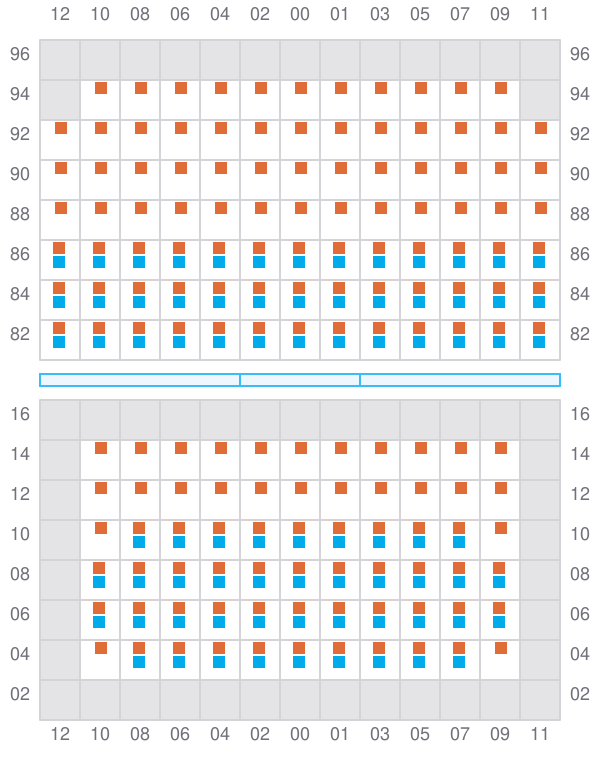

035

Bay 035 view and slots of SPYROS V

037 (038)

Bay 037 view and slots of SPYROS V

039

  • / ?

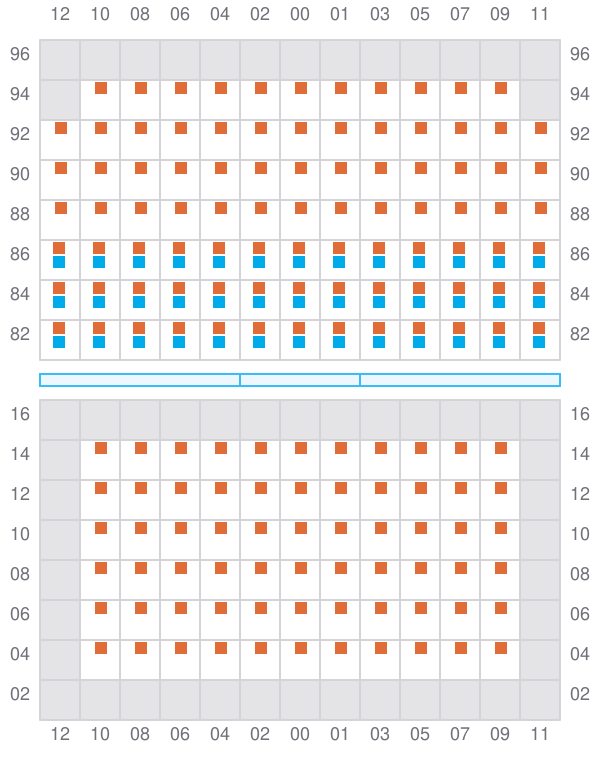

Bay 039 view and slots of SPYROS V

041 (042)

Bay 041 view and slots of SPYROS V

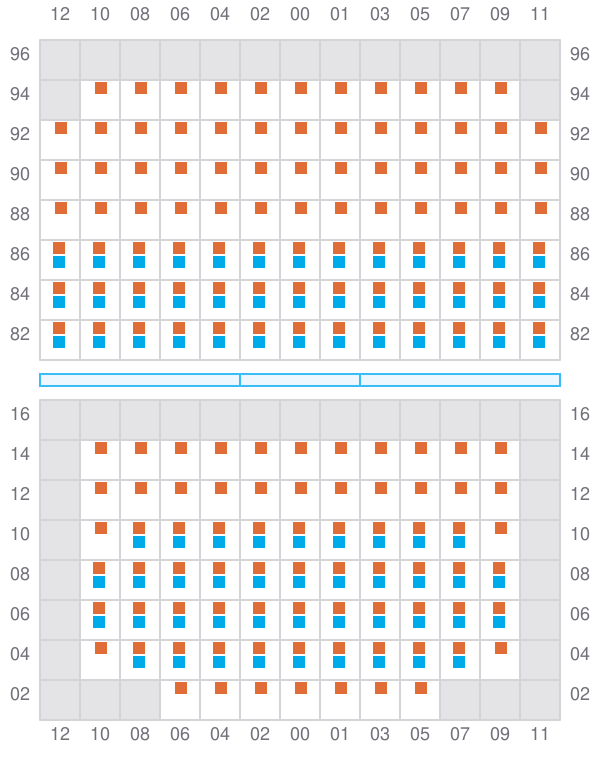

043

Bay 043 view and slots of SPYROS V

045 (046)

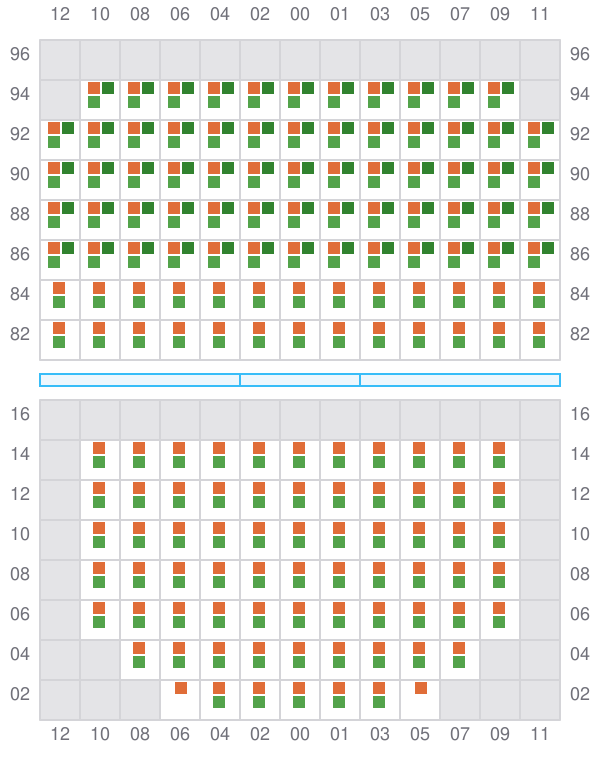

Bay 045 view and slots of SPYROS V

047

Bay 047 view and slots of SPYROS V

049 (050)

  • / ?
Bay 049 view and slots of SPYROS V

051

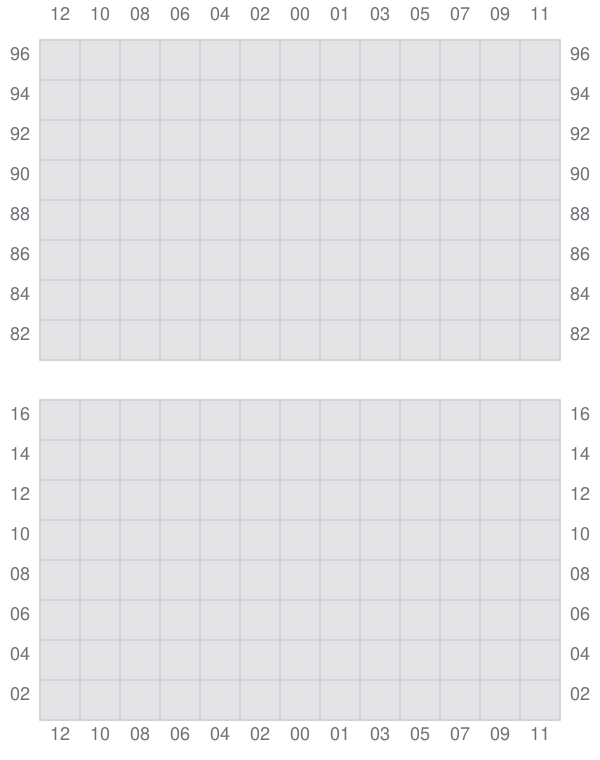

Bay 051 view and slots of SPYROS V

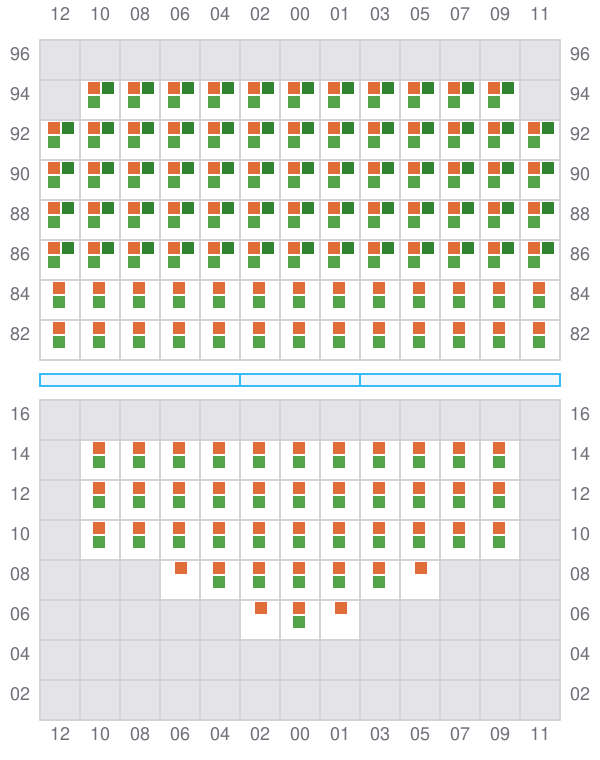

053 (054)

Bay 053 view and slots of SPYROS V

055

  • / ?
Bay 055 view and slots of SPYROS V

057 (058)

Bay 057 view and slots of SPYROS V

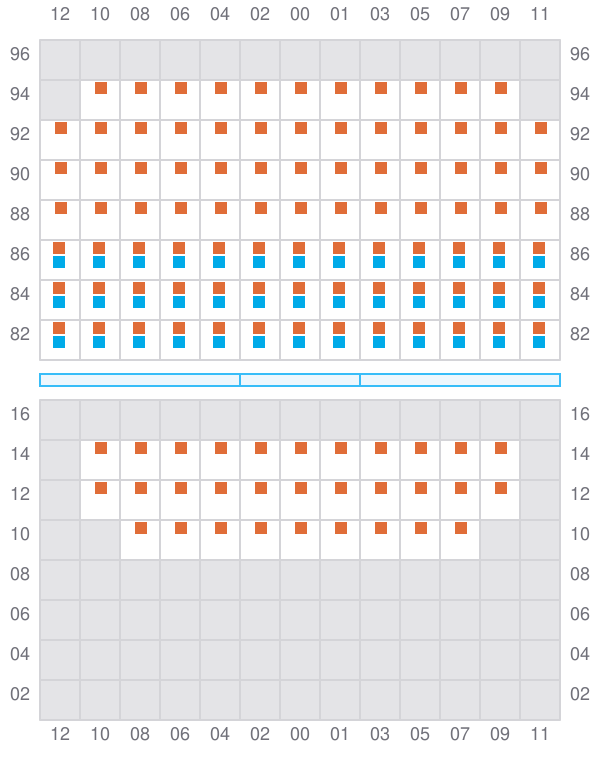

059

  • / ?
Bay 059 view and slots of SPYROS V

061 (062)

  • / ?

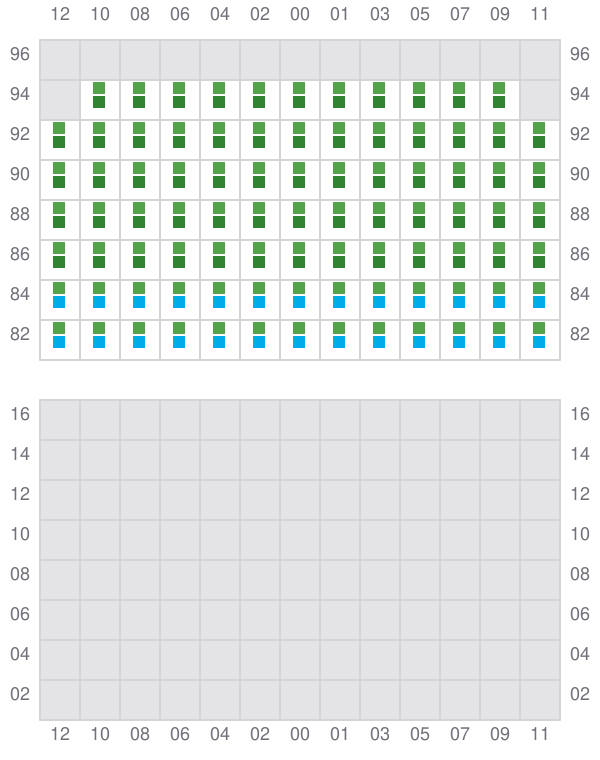

Bay 061 view and slots of SPYROS V
