SSF DREAM
9346005 | 9V8983 | CHI by ************************** Last update: Thu Jun 29 2023
General Info
Ship Name:SSF DREAM
IMO Code:9346005
Call Sign:9V8983
Line Operator:CHI
Class Name for Sister Ships:NDG
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-
Size Summary
ISO Bays:053
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:3,534
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

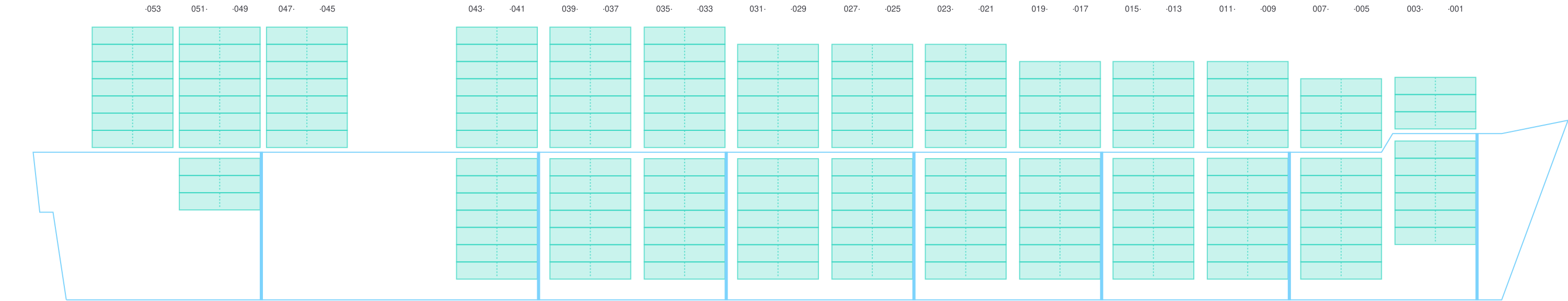

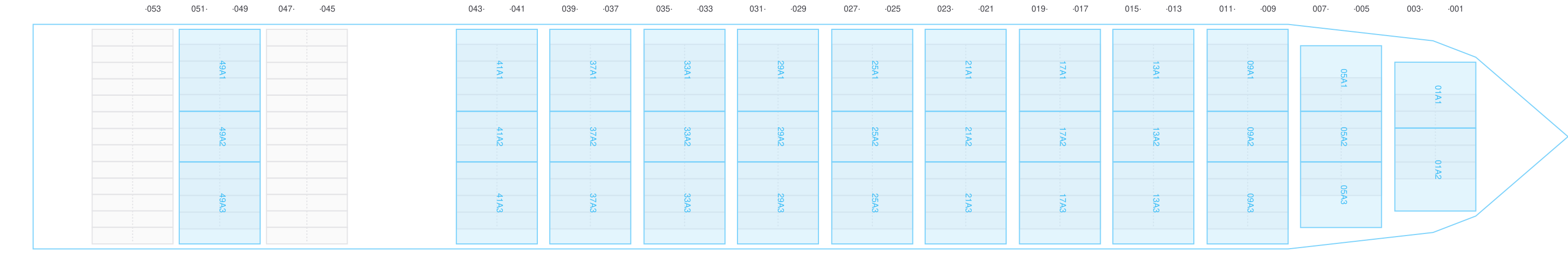

Side View
Hatch-Covers View

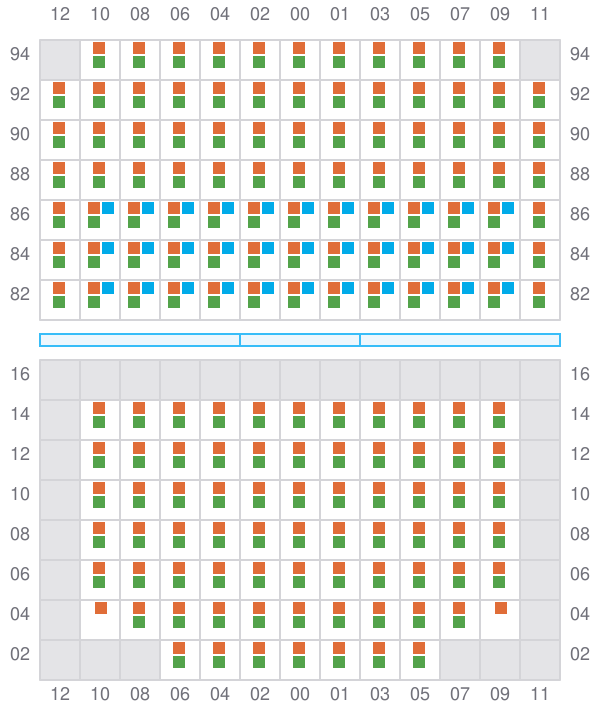

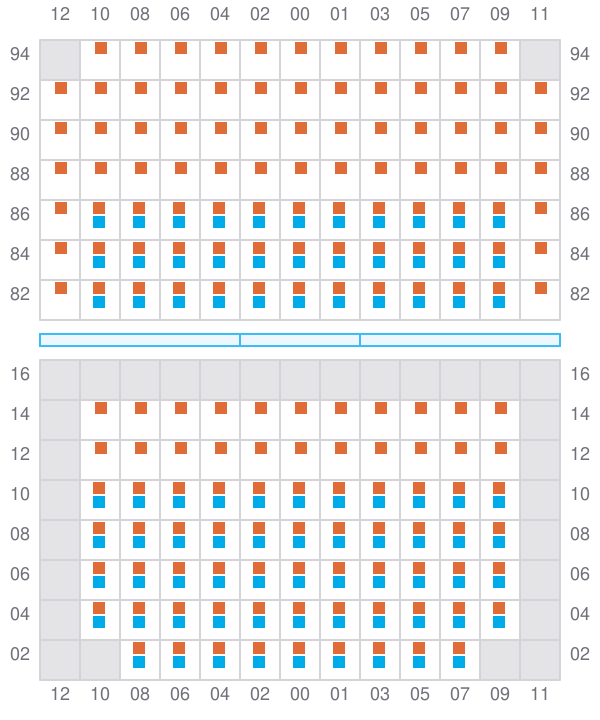

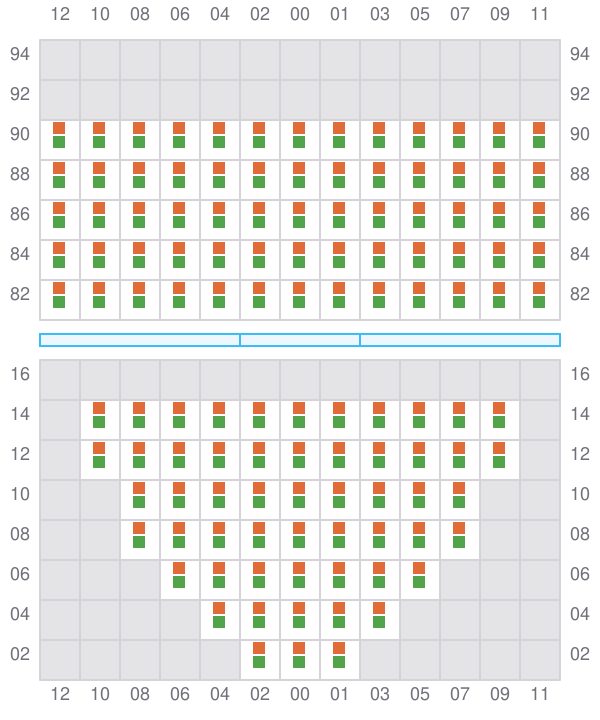

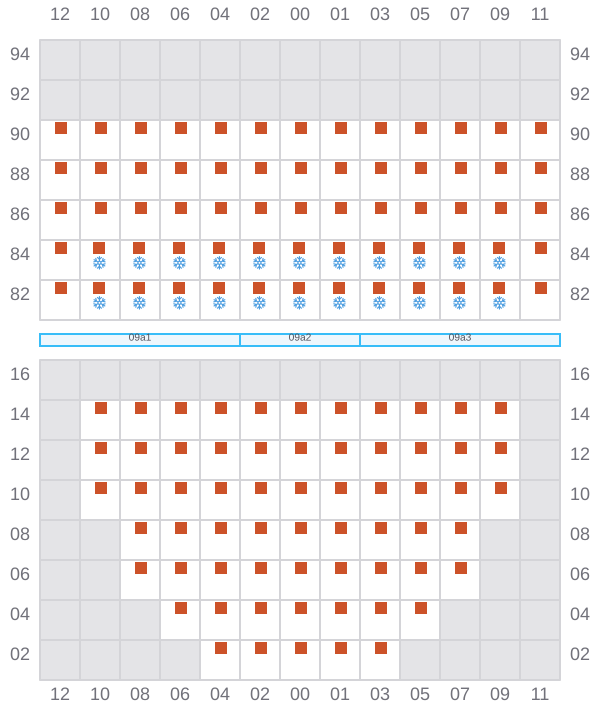

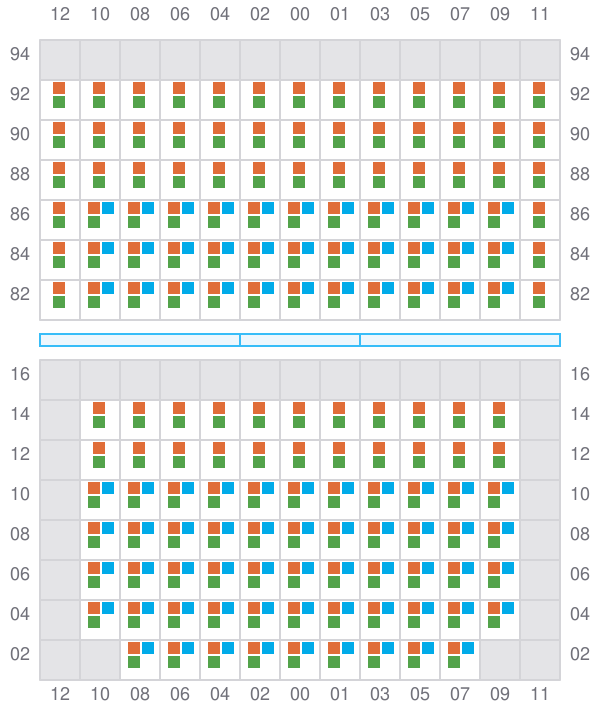

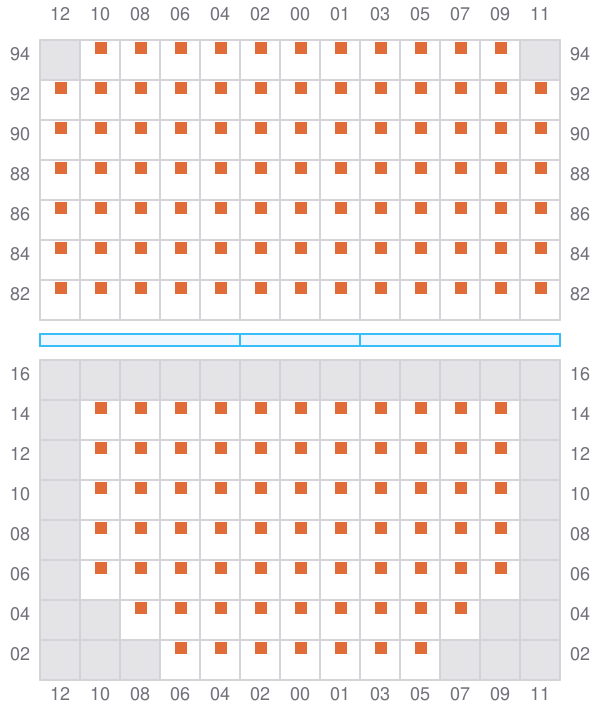

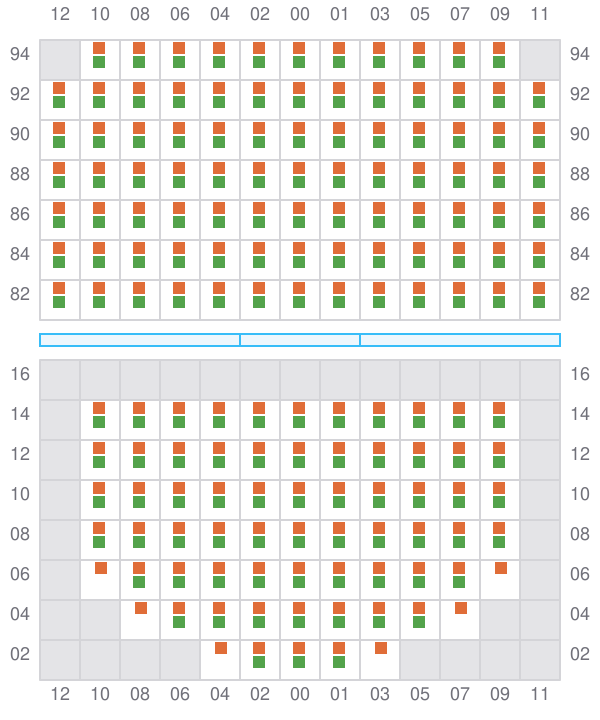

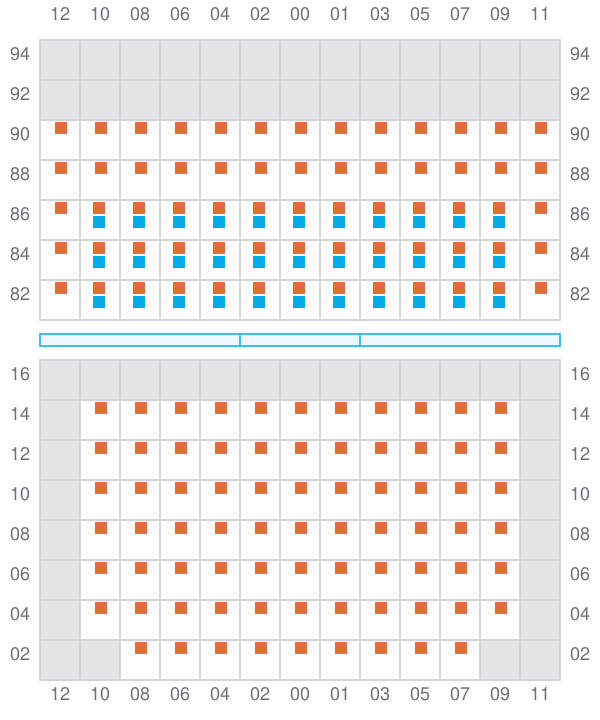

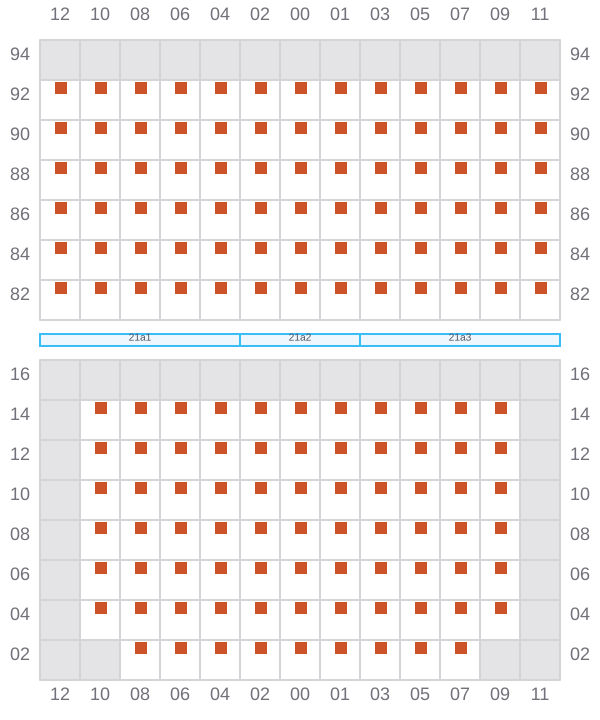

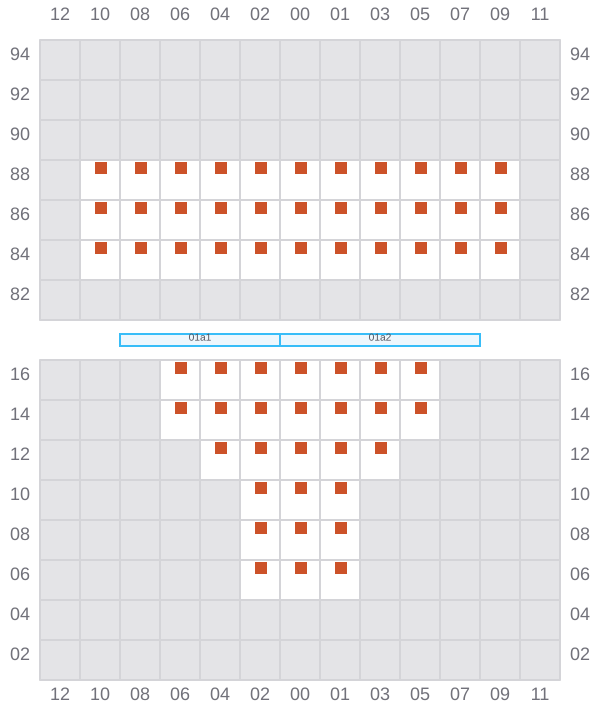

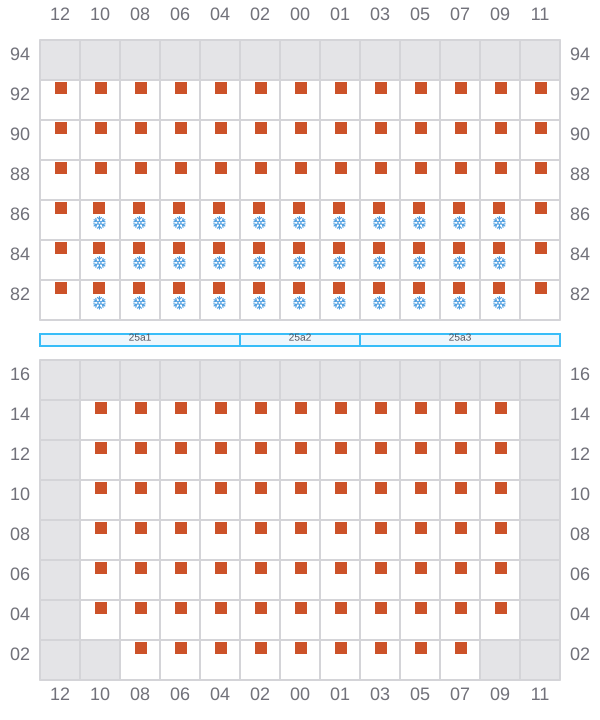

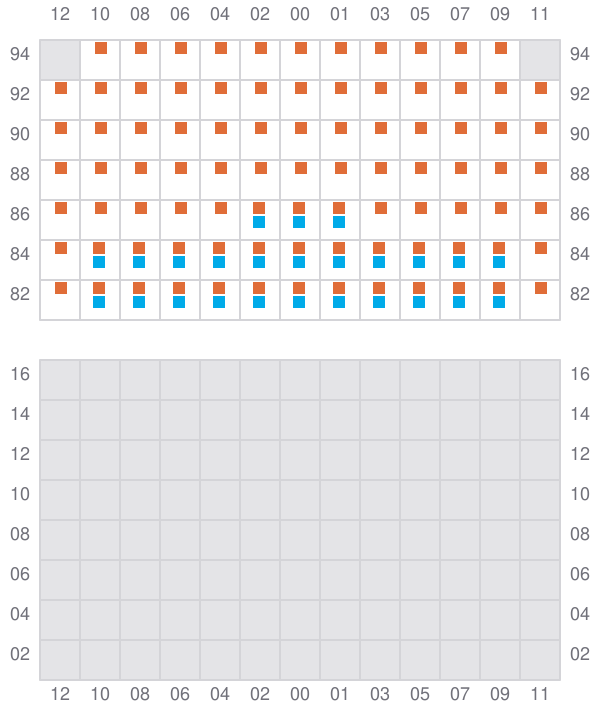

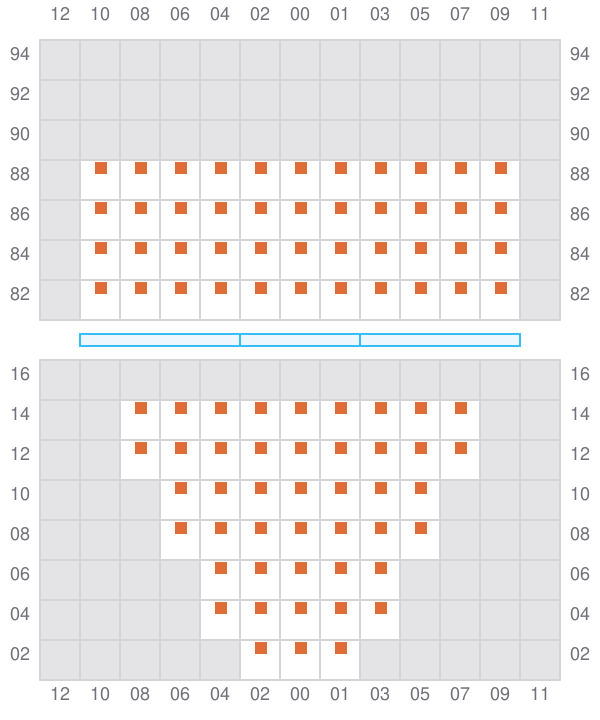

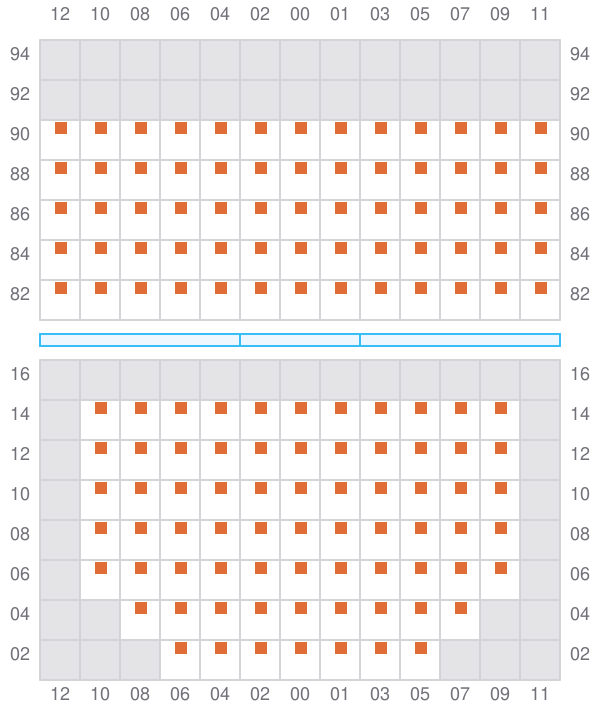

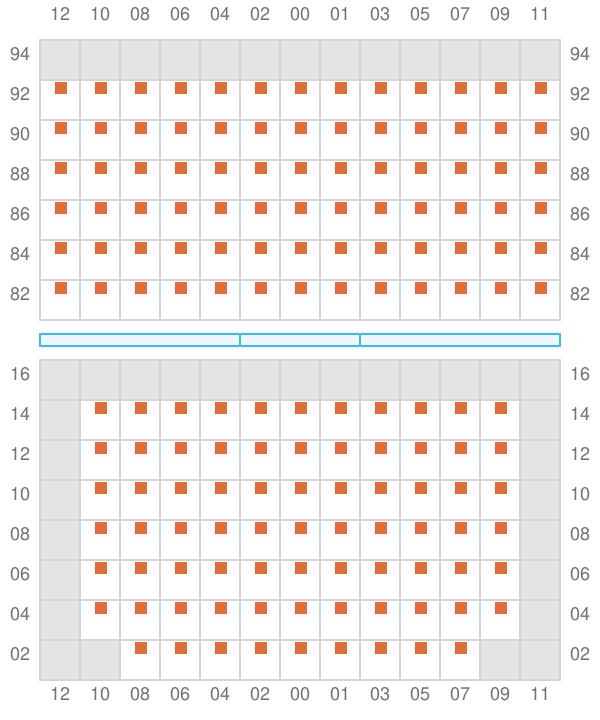

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

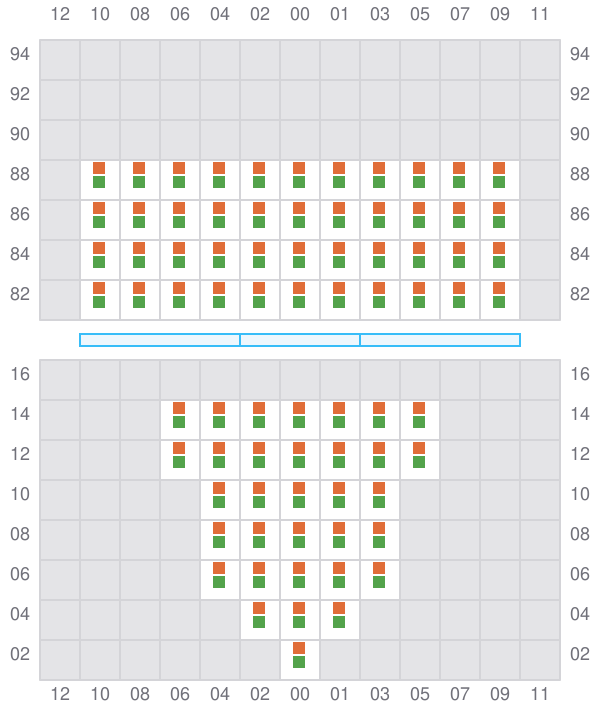

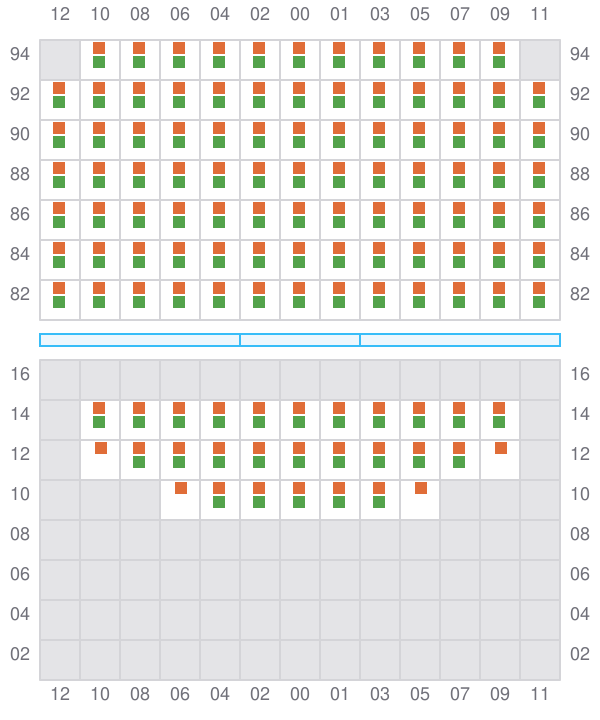

001 (002)
- →
003
- ←
005 (006)
- →
007
- ←
009 (010)
- →
011
- ←
- → / ?

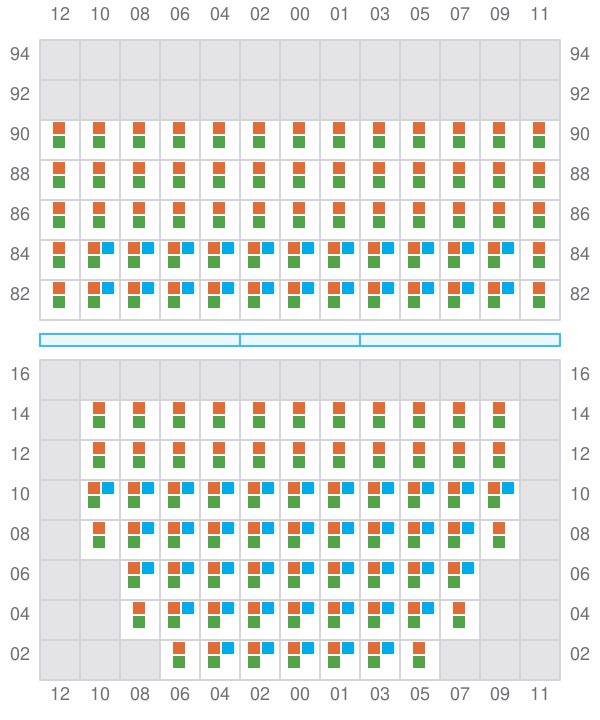

013 (014)
- →
- ←
015
- ←
017 (018)
- →
019
- ←
- → / ?
021 (022)
- →
- ←
023
- ←

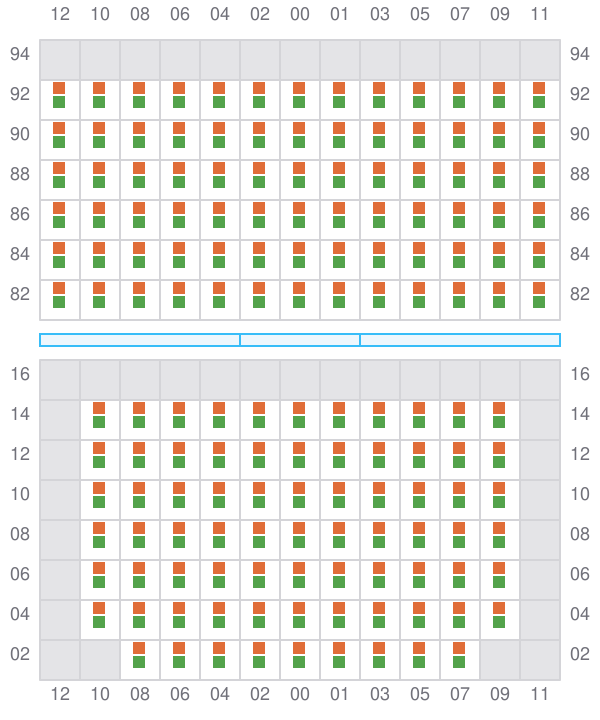

025 (026)
- →
027
- ←
- → / ?
029 (030)
- →
- ←
031
- ←
033 (034)
- →
035
- ←
- →
037 (038)
- →
- ← / ?
039
- ←

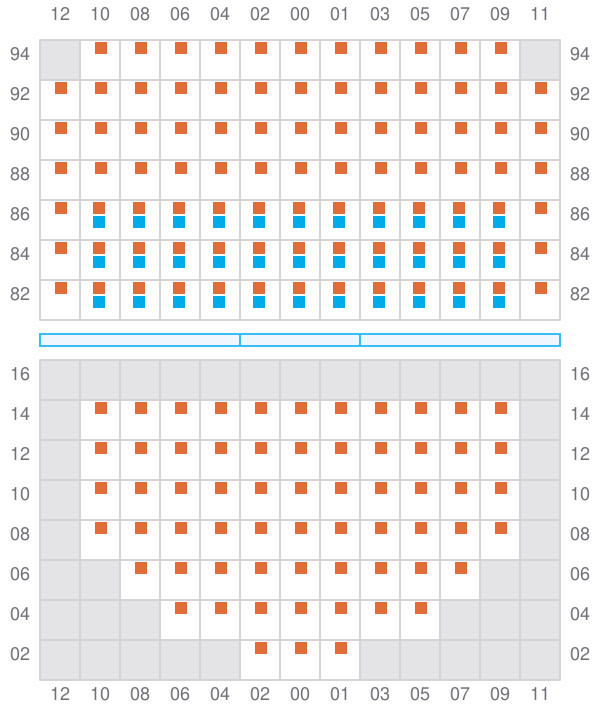

041 (042)
- →
043
- ←
- → / ?

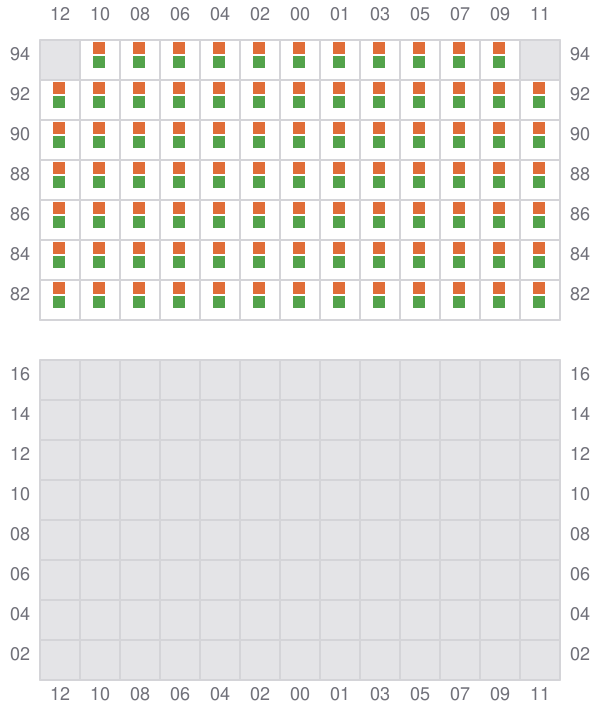

045 (046)
- → / ?
047
- ← / ?
- → / ?

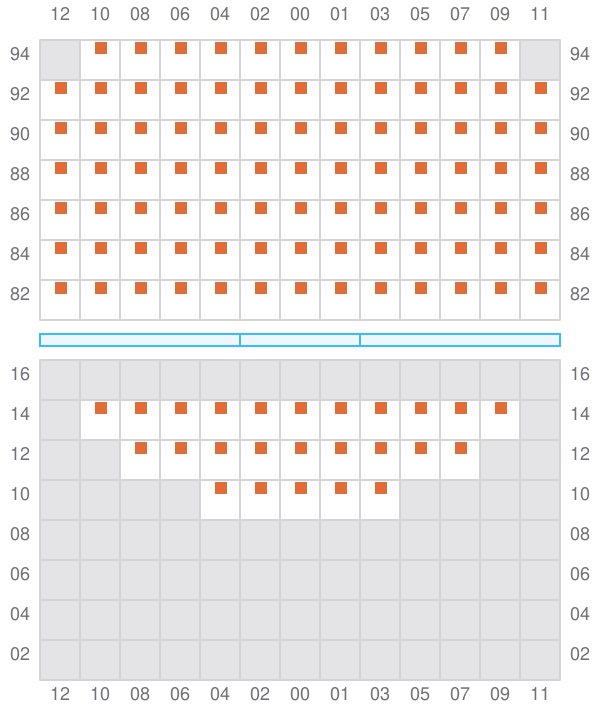

049 (050)
- →
051
- ←

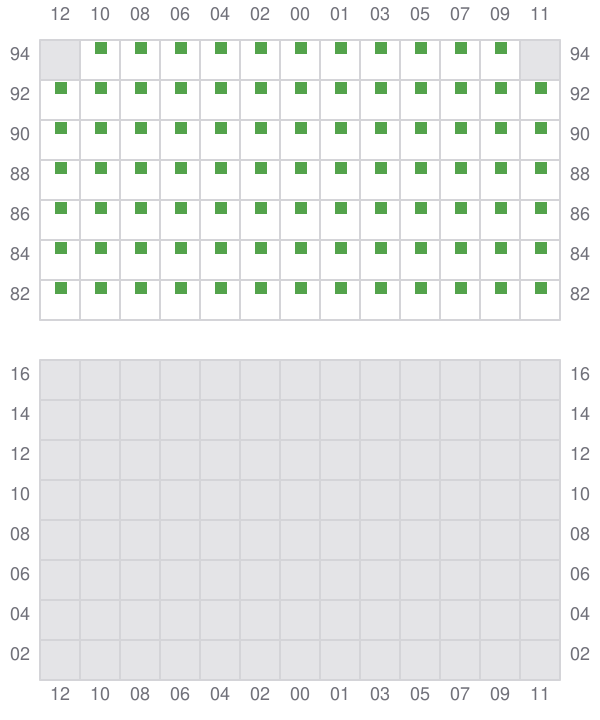

053 (054)
- → / ?
