SSL KOLKATA
9346574 | AWUF | 9346574 by ********* Last update: Mon Jun 24 2024
General Info
Ship Name:SSL KOLKATA
IMO Code:9346574
Call Sign:AWUF
Line Operator:9346574
Class Name for Sister Ships:MCC
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:035
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:1,114
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

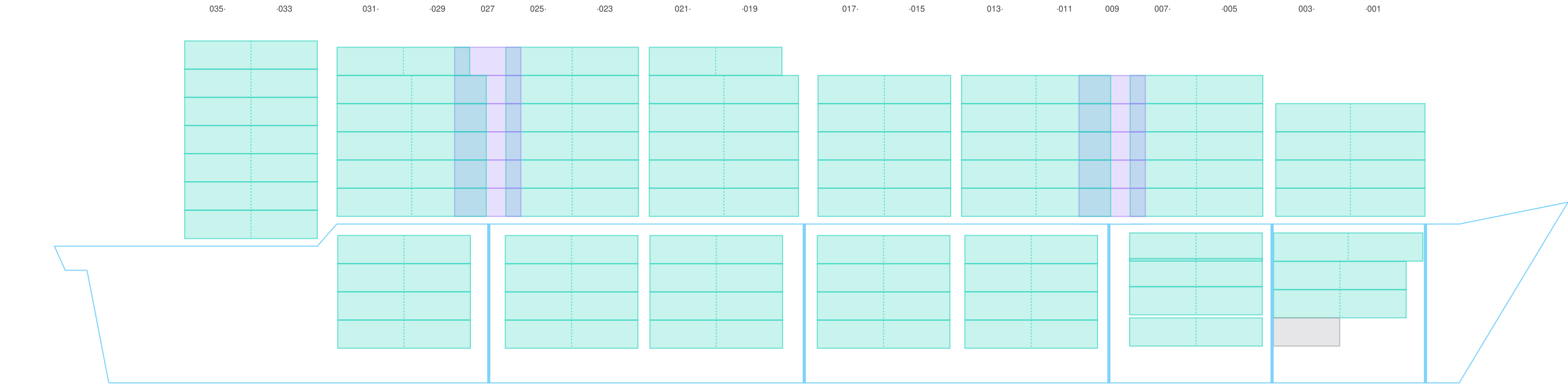

Side View

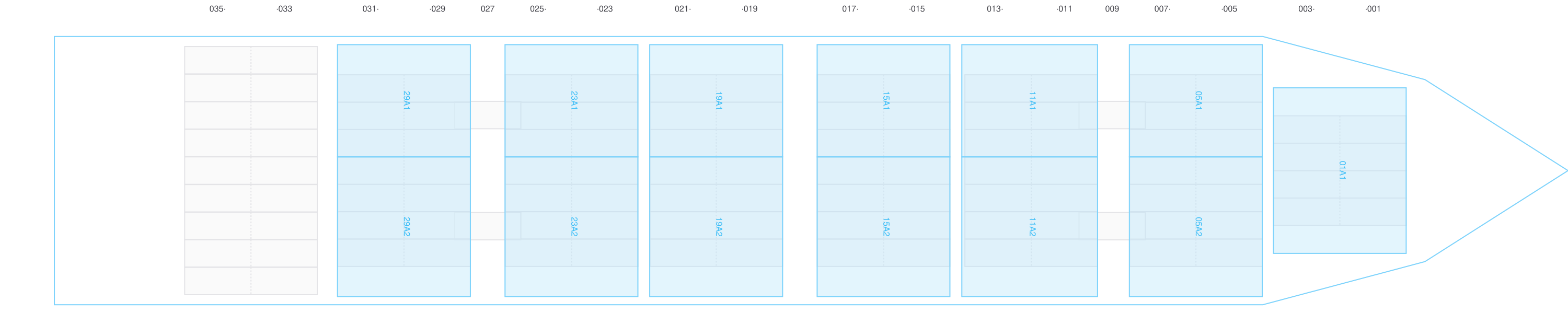

Hatch-Covers View

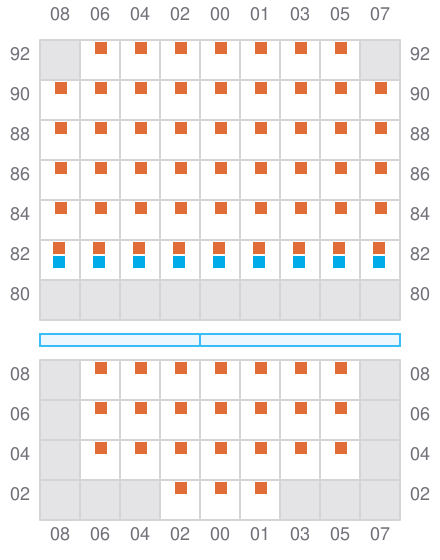

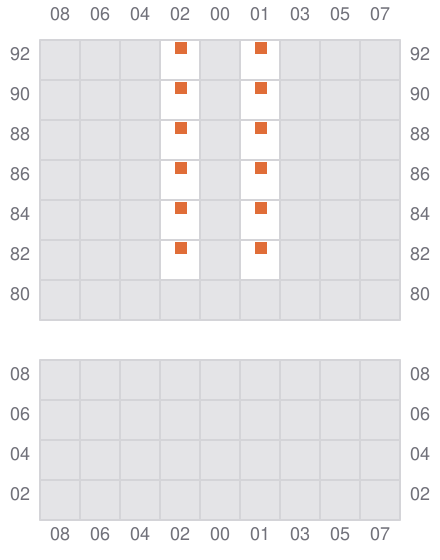

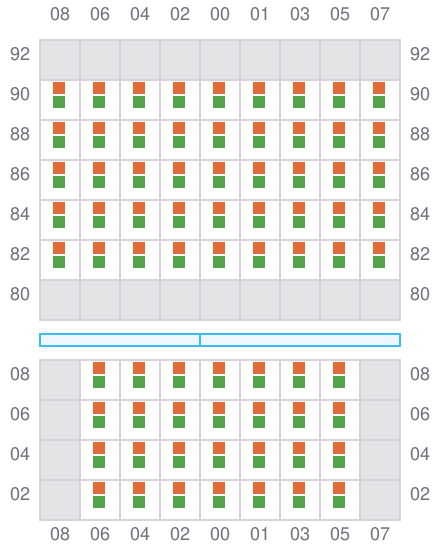

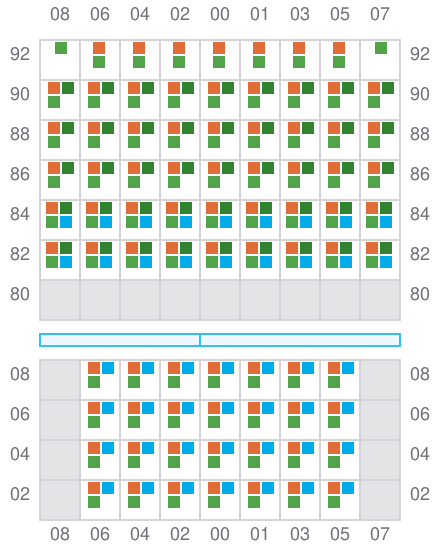

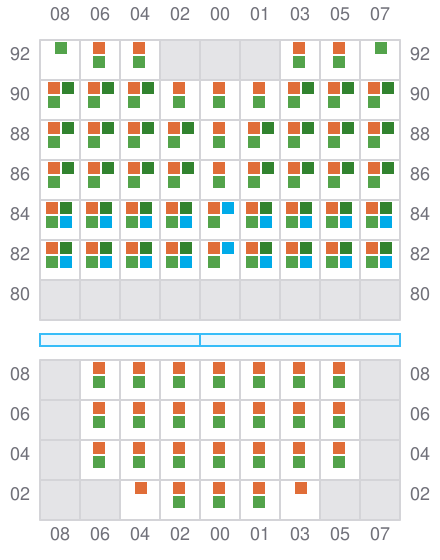

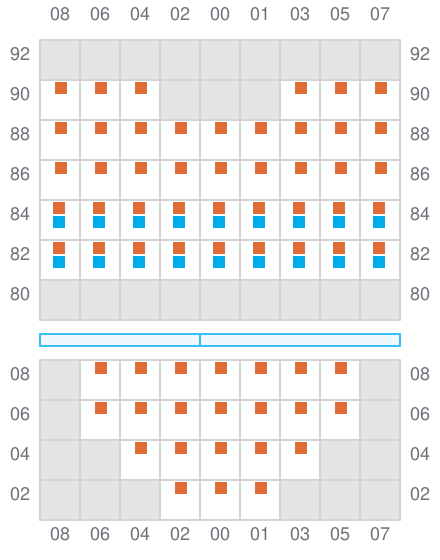

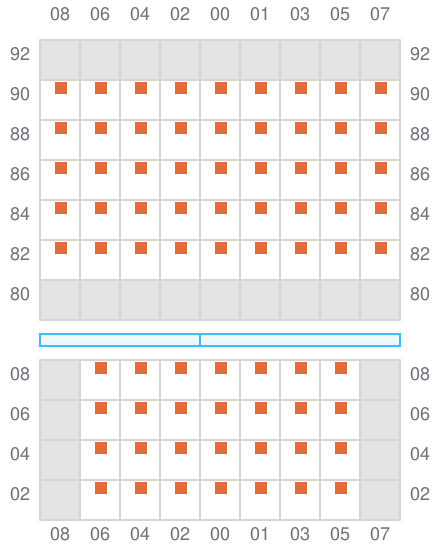

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

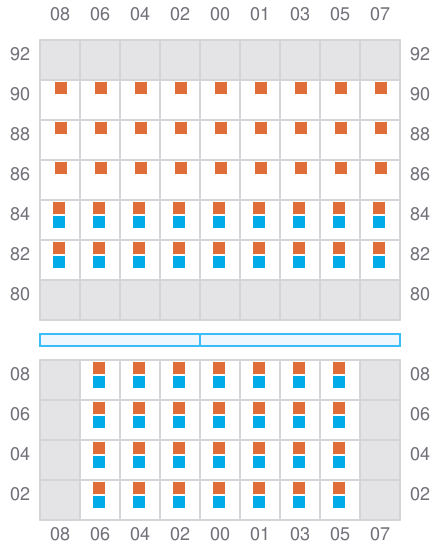

001 (002)
- →
- ← / ?

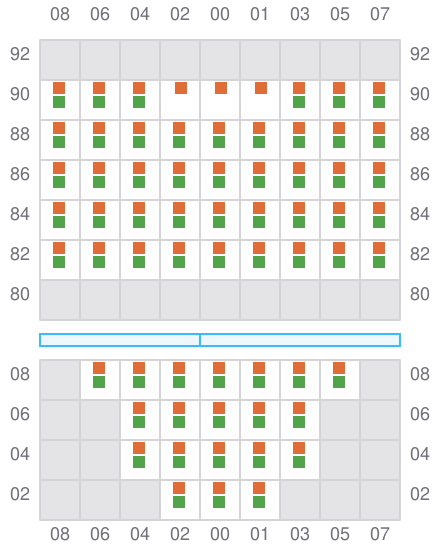

003
- ←
005 (006)
- →
007
- ←
- → / ?
009

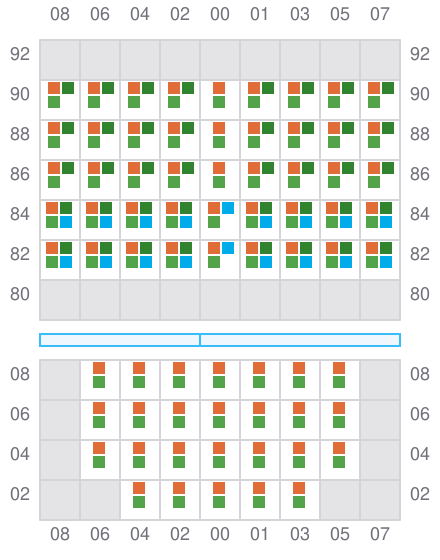

011 (012)
- →
- ← / ?
013
- ←
015 (016)
- →
- ← / ?
017
- ←
- →
019 (020)
- →
- ←

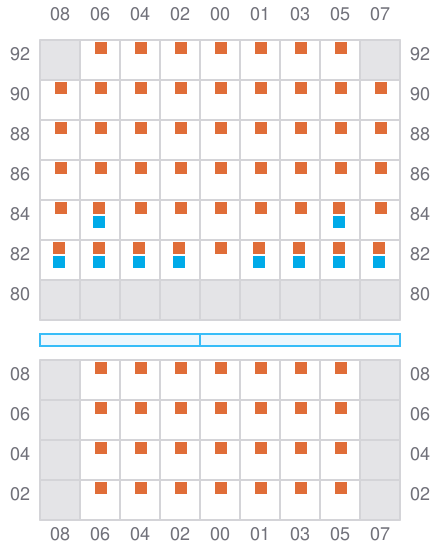

021
- ←
- → / ?

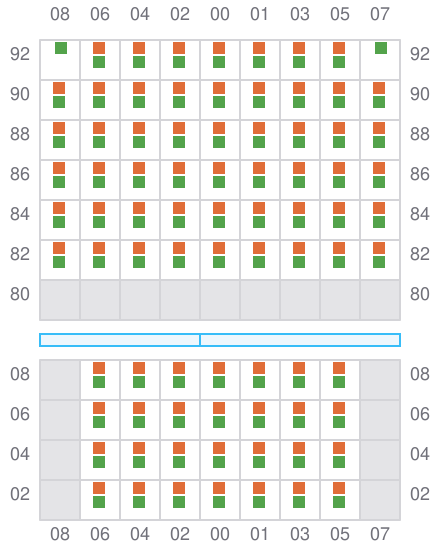

023 (024)
- →

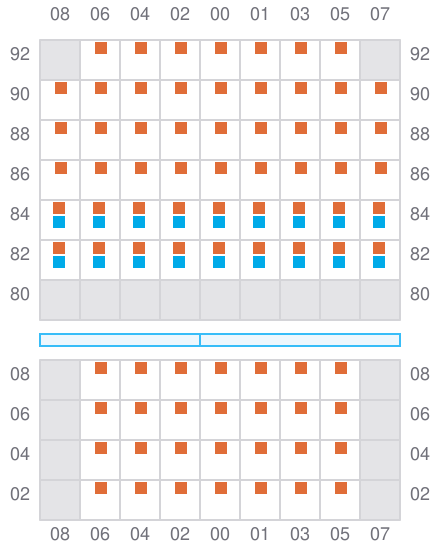

025
- ←
- → / ?
027
029 (030)
- →
- ← / ?
031
- ←
- → / ?

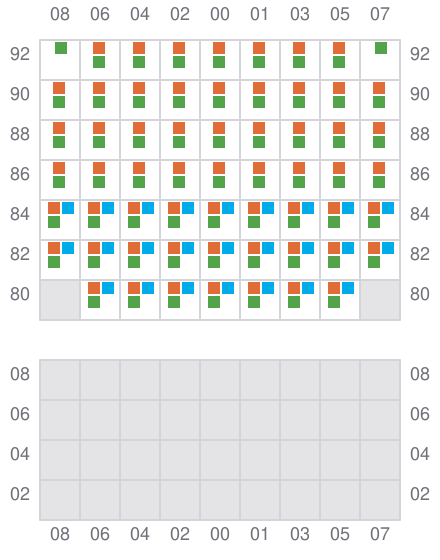

033 (034)
- → / ?
- ← / ?

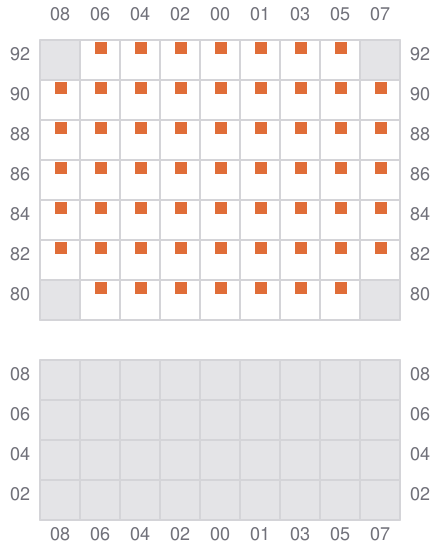

035
- ← / ?
