SSL KRISHNA
9239898 | AWYQ | 923989 by ********* Last update: Fri Mar 15 2024
General Info
Ship Name:SSL KRISHNA
IMO Code:9239898
Call Sign:AWYQ
Line Operator:923989
Class Name for Sister Ships:7XG
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,648
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

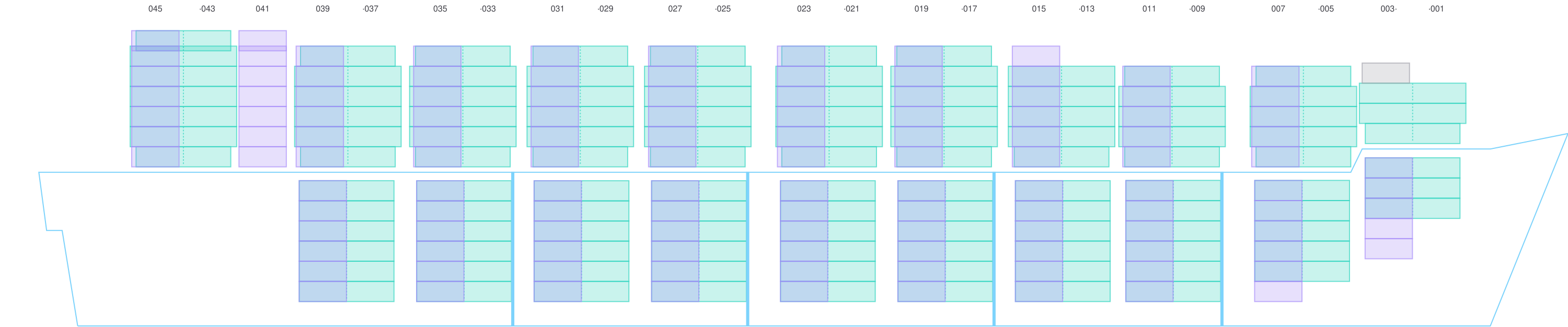

Side View
Hatch-Covers View

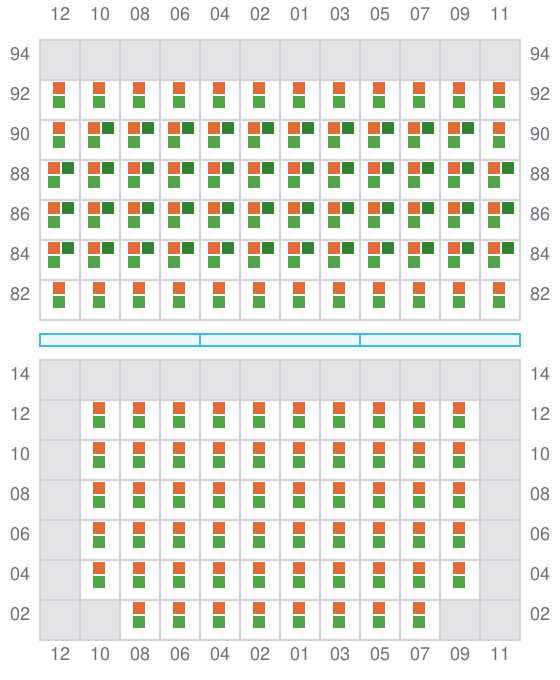

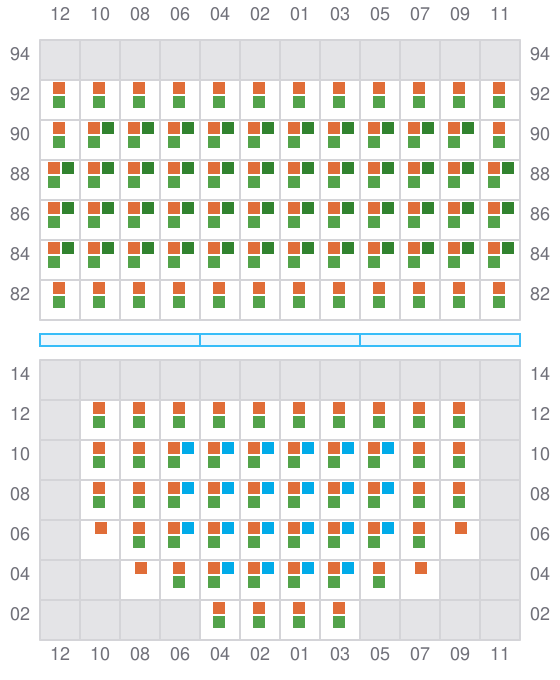

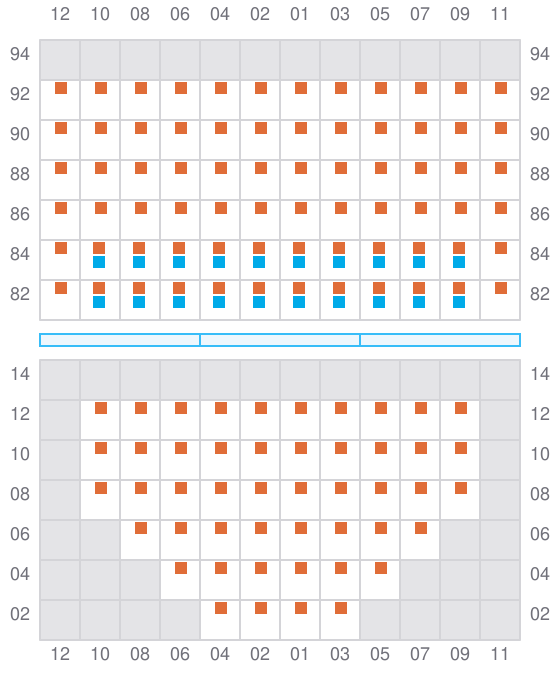

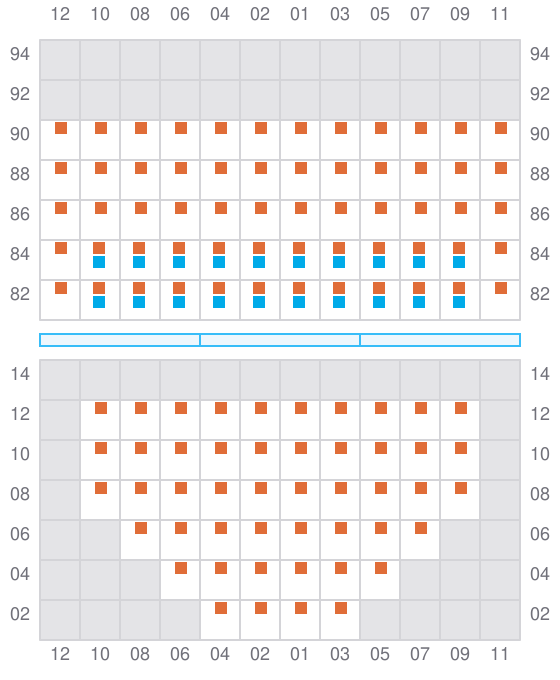

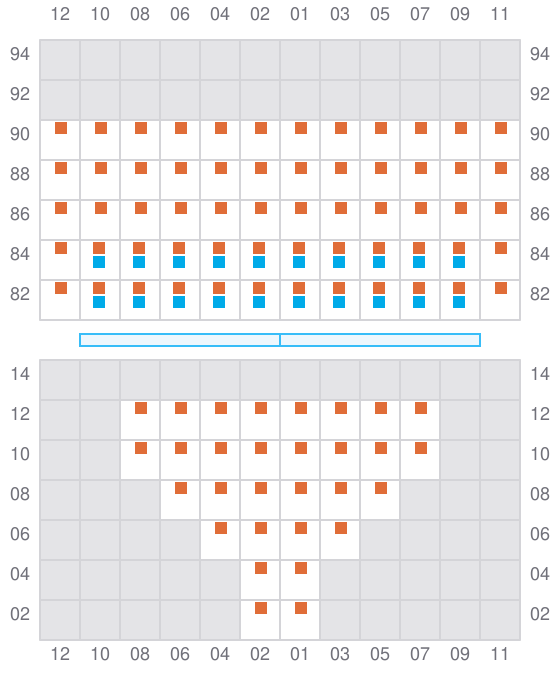

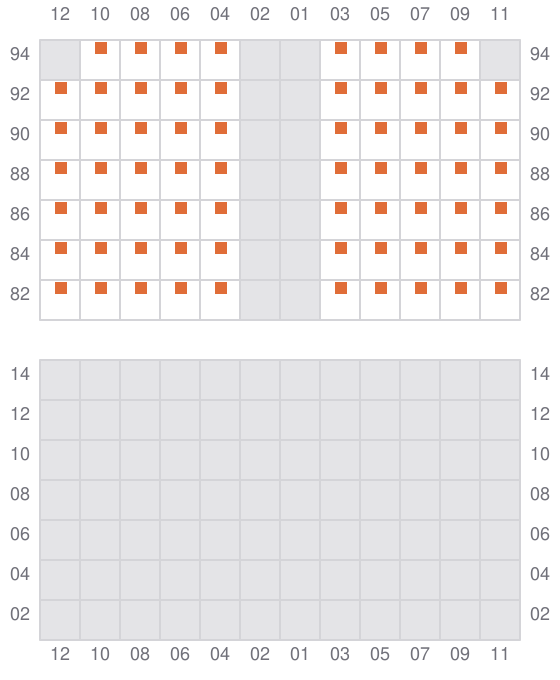

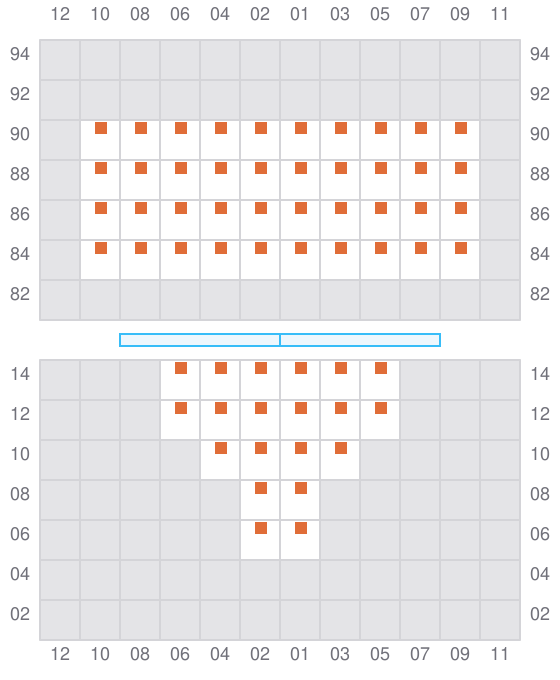

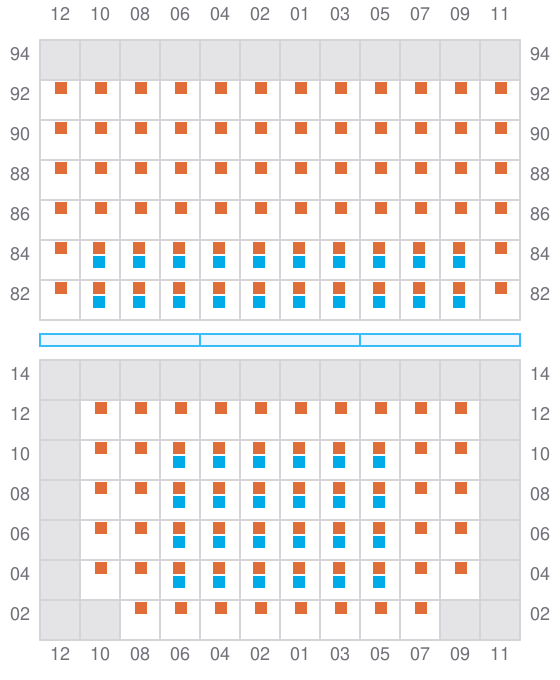

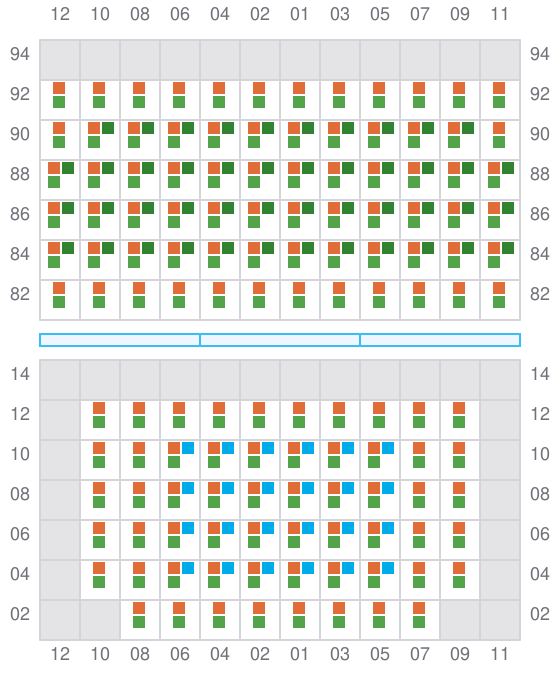

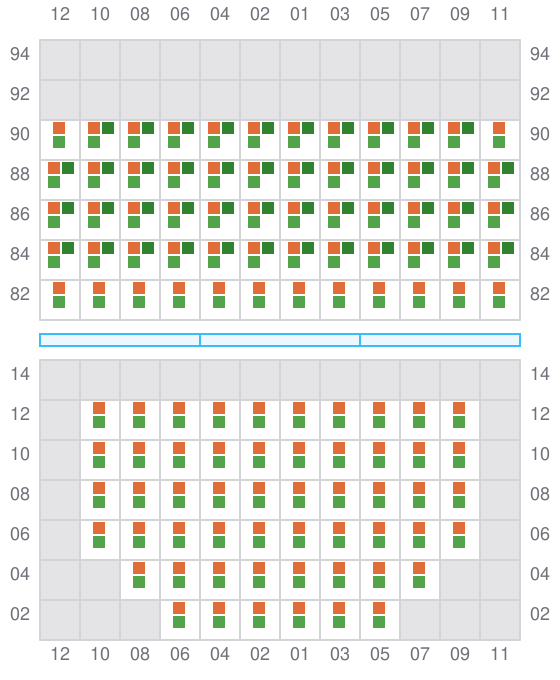

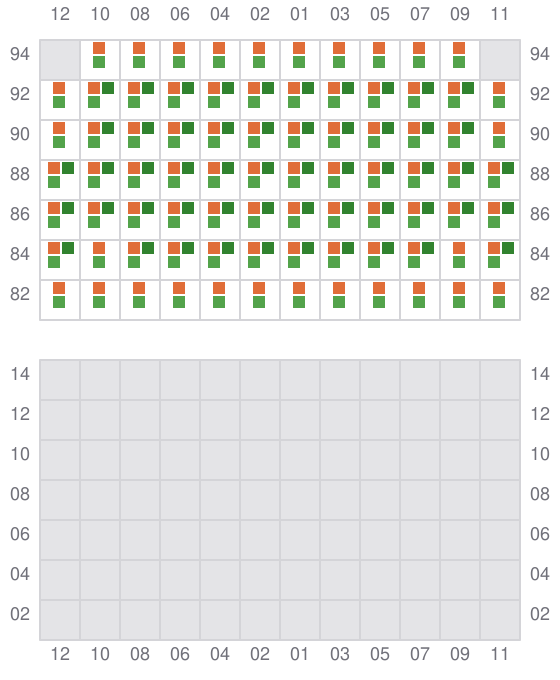

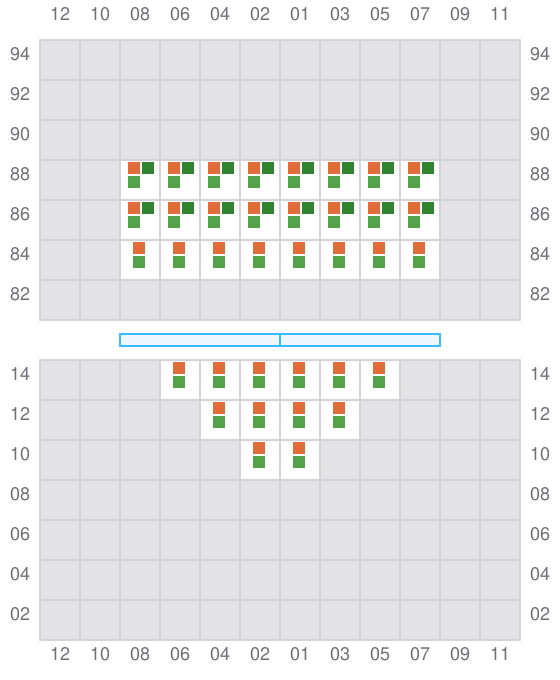

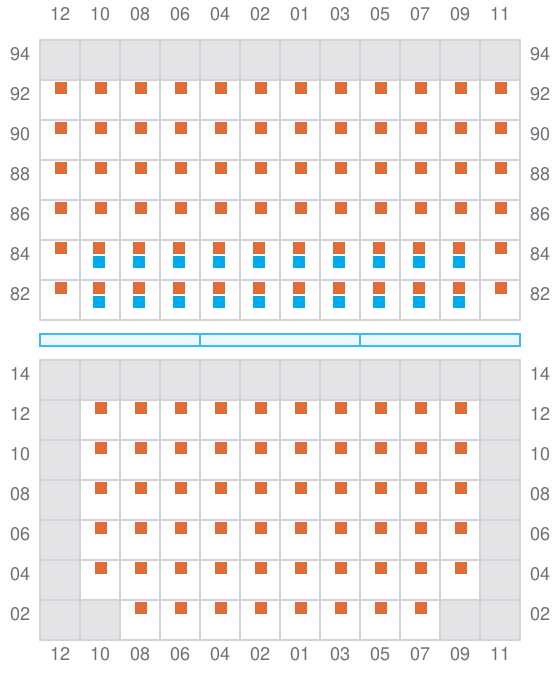

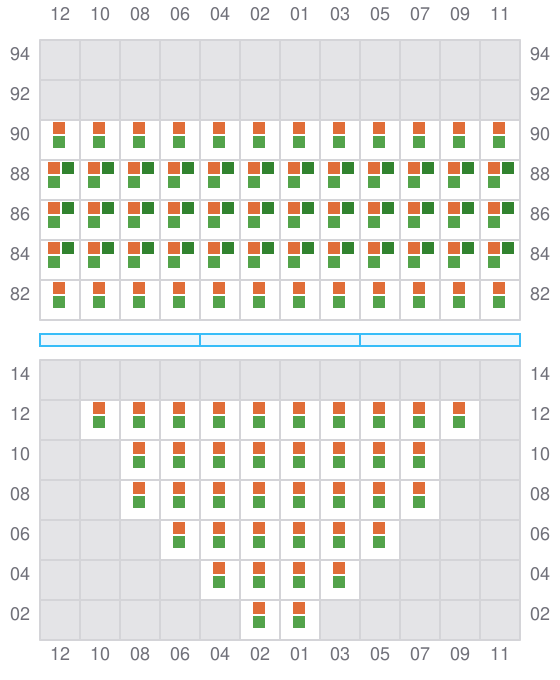

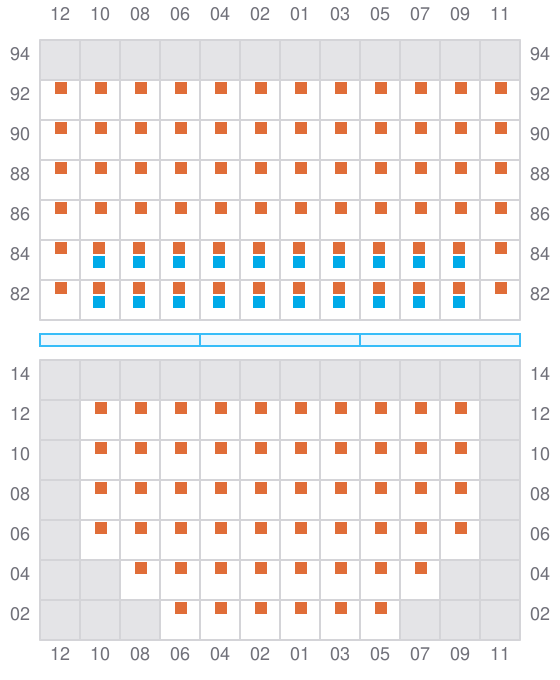

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
003
- ← / ?
005 (006)
- →
007
- → / ?
009 (010)
- →
011
- → / ?
013 (014)
- →
015
- → / ?
017 (018)
- →
019
- →
021 (022)
- →
- ? / ←
023
- → / ?
025 (026)
- →
027
- →
029 (030)
- →
- ? / ←
031
- → / ?
033 (034)
- →
035
- →
037 (038)
- →
- ? / ←
039
- → / ?
041
043 (044)
- → / ?
045
- → / ?
