SSL KRISHNA
9239898 | AWYQ | SFL by ************************** Last update: Fri Jun 30 2023
General Info
Ship Name:SSL KRISHNA
IMO Code:9239898
Call Sign:AWYQ
Line Operator:SFL
Class Name for Sister Ships:ZAM
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,500
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

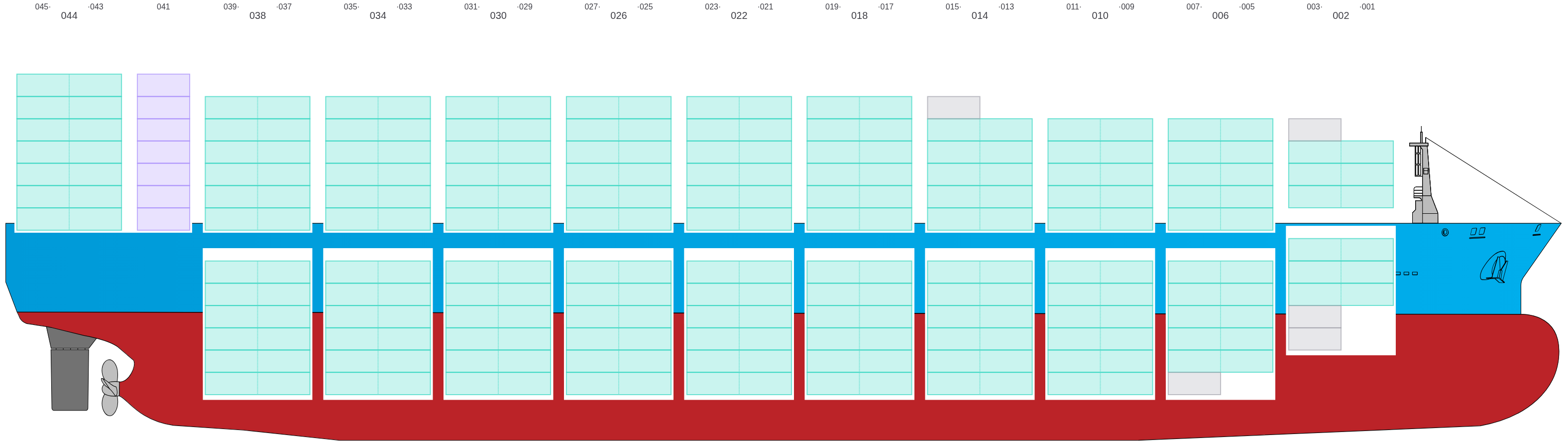

Side View
![Side view of SSL KRISHNA](/vessel-images/e7fb7852-d83c-4aaa-b432-3ae795f36e0a-sideView.png?v=1688145532095)

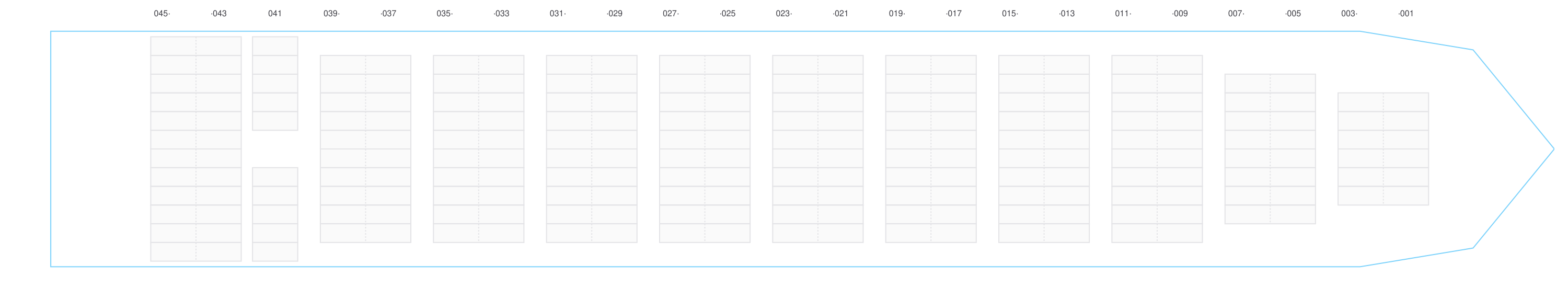

Hatch-Covers View
![Deck view of SSL KRISHNA](/vessel-images/e7fb7852-d83c-4aaa-b432-3ae795f36e0a-deckView.png?v=1688145532095)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

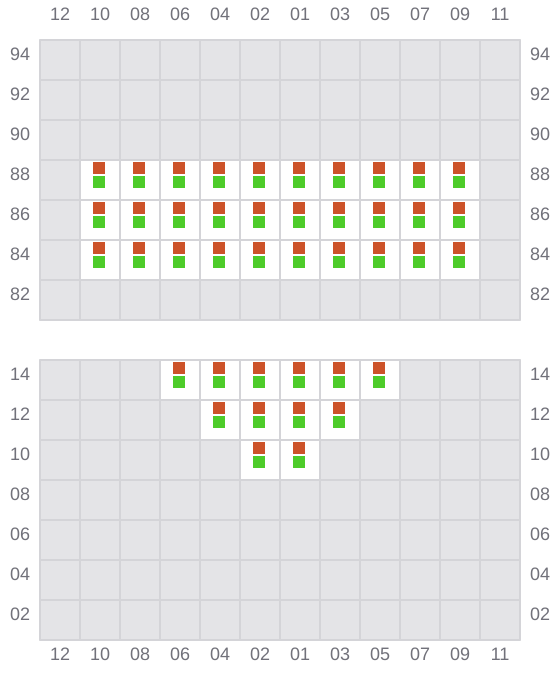

001 (002)
- →
![Bay 001 view and slots of SSL KRISHNA](/vessel-images/e7fb7852-d83c-4aaa-b432-3ae795f36e0a-b001.png?v=1688145532095)

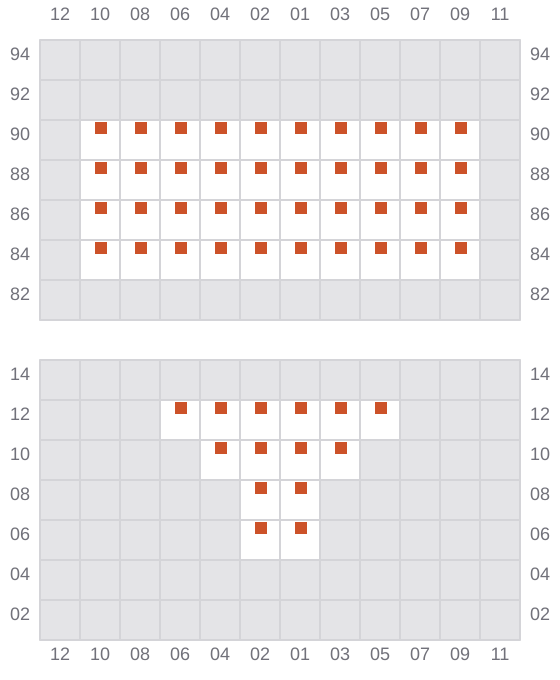

003
- ←
![Bay 003 view and slots of SSL KRISHNA](/vessel-images/e7fb7852-d83c-4aaa-b432-3ae795f36e0a-b003.png?v=1688145532095)

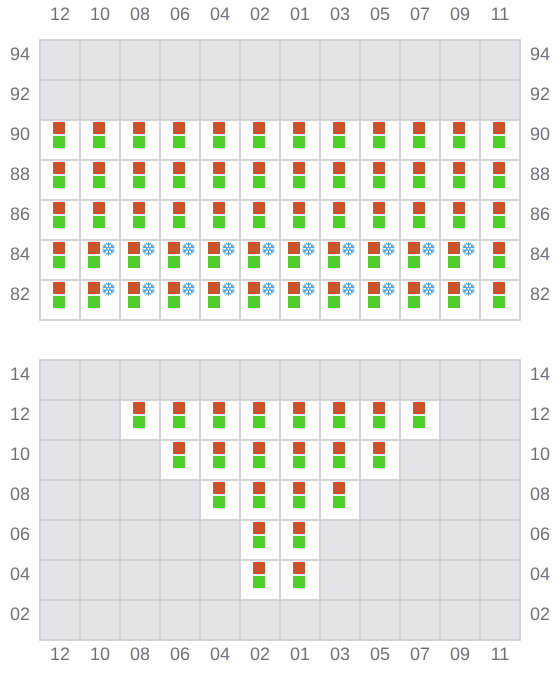

005 (006)
- →
![Bay 005 view and slots of SSL KRISHNA](/vessel-images/e7fb7852-d83c-4aaa-b432-3ae795f36e0a-b005.png?v=1688145532095)

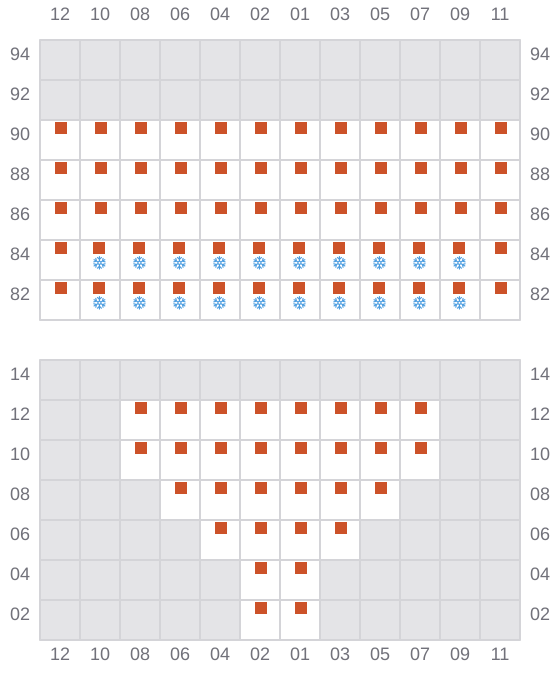

007
- ←
![Bay 007 view and slots of SSL KRISHNA](/vessel-images/e7fb7852-d83c-4aaa-b432-3ae795f36e0a-b007.png?v=1688145532095)

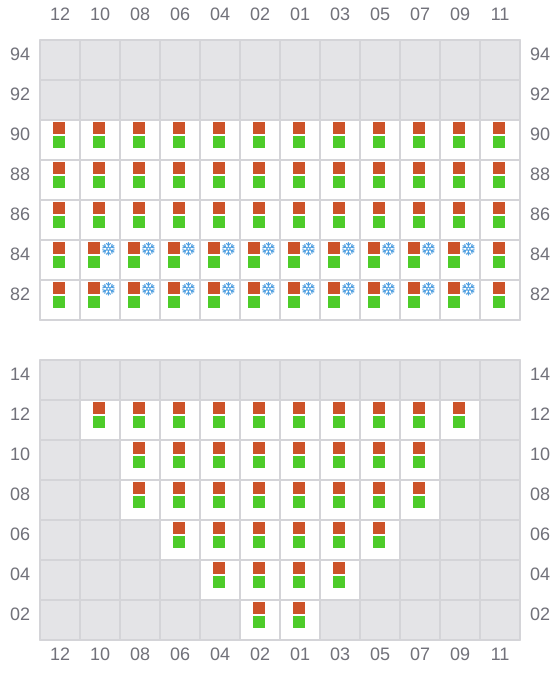

009 (010)
- →
![Bay 009 view and slots of SSL KRISHNA](/vessel-images/e7fb7852-d83c-4aaa-b432-3ae795f36e0a-b009.png?v=1688145532095)

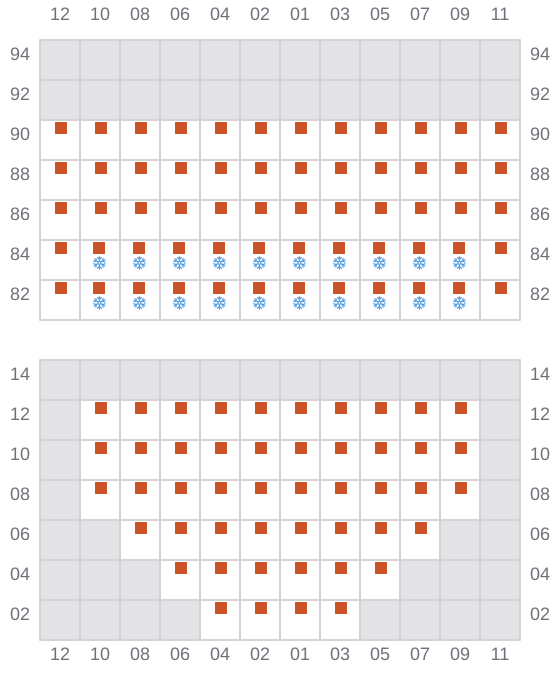

011
- ←
![Bay 011 view and slots of SSL KRISHNA](/vessel-images/e7fb7852-d83c-4aaa-b432-3ae795f36e0a-b011.png?v=1688145532095)

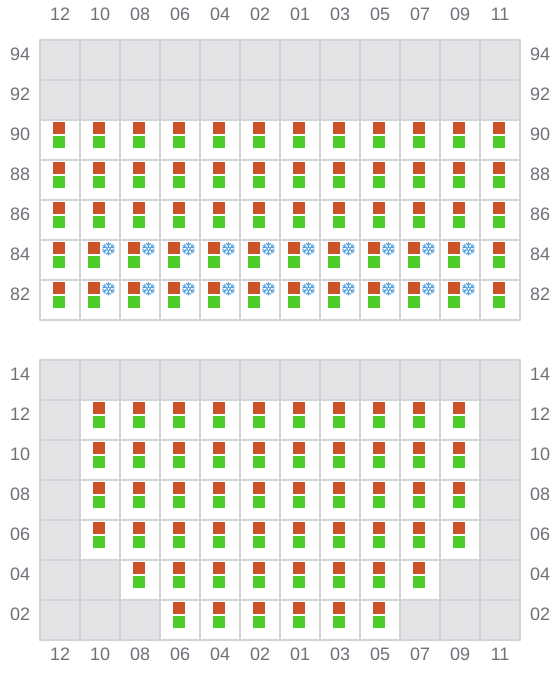

013 (014)
- →
![Bay 013 view and slots of SSL KRISHNA](/vessel-images/e7fb7852-d83c-4aaa-b432-3ae795f36e0a-b013.png?v=1688145532095)

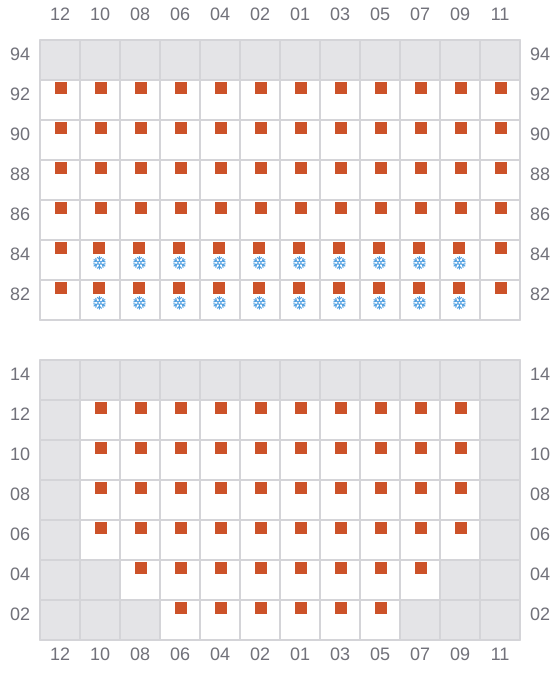

015
- ←
![Bay 015 view and slots of SSL KRISHNA](/vessel-images/e7fb7852-d83c-4aaa-b432-3ae795f36e0a-b015.png?v=1688145532095)
017 (018)
- →
![Bay 017 view and slots of SSL KRISHNA](/vessel-images/e7fb7852-d83c-4aaa-b432-3ae795f36e0a-b017.png?v=1688145532095)
019
- ←
![Bay 019 view and slots of SSL KRISHNA](/vessel-images/e7fb7852-d83c-4aaa-b432-3ae795f36e0a-b019.png?v=1688145532095)

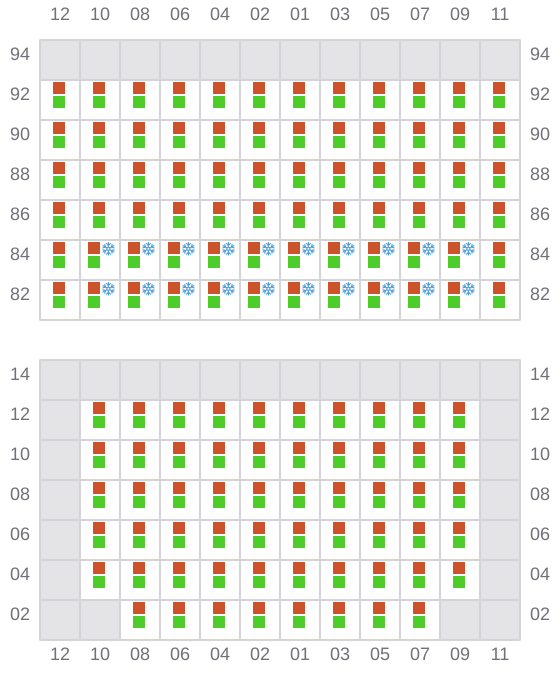

021 (022)
- →
![Bay 021 view and slots of SSL KRISHNA](/vessel-images/e7fb7852-d83c-4aaa-b432-3ae795f36e0a-b021.png?v=1688145532095)
023
- ←
![Bay 023 view and slots of SSL KRISHNA](/vessel-images/e7fb7852-d83c-4aaa-b432-3ae795f36e0a-b023.png?v=1688145532095)
025 (026)
- →
![Bay 025 view and slots of SSL KRISHNA](/vessel-images/e7fb7852-d83c-4aaa-b432-3ae795f36e0a-b025.png?v=1688145532095)
027
- ←
![Bay 027 view and slots of SSL KRISHNA](/vessel-images/e7fb7852-d83c-4aaa-b432-3ae795f36e0a-b027.png?v=1688145532095)
029 (030)
- →
![Bay 029 view and slots of SSL KRISHNA](/vessel-images/e7fb7852-d83c-4aaa-b432-3ae795f36e0a-b029.png?v=1688145532095)
031
- ←
![Bay 031 view and slots of SSL KRISHNA](/vessel-images/e7fb7852-d83c-4aaa-b432-3ae795f36e0a-b031.png?v=1688145532095)
033 (034)
- →
![Bay 033 view and slots of SSL KRISHNA](/vessel-images/e7fb7852-d83c-4aaa-b432-3ae795f36e0a-b033.png?v=1688145532095)

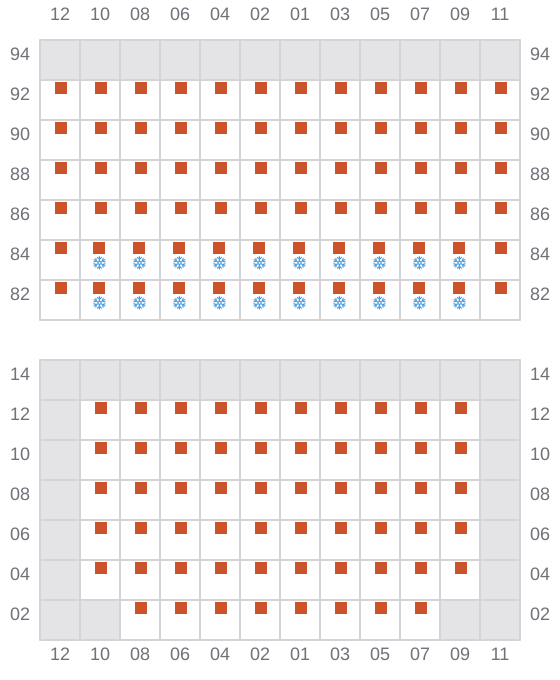

035
- ←
![Bay 035 view and slots of SSL KRISHNA](/vessel-images/e7fb7852-d83c-4aaa-b432-3ae795f36e0a-b035.png?v=1688145532095)

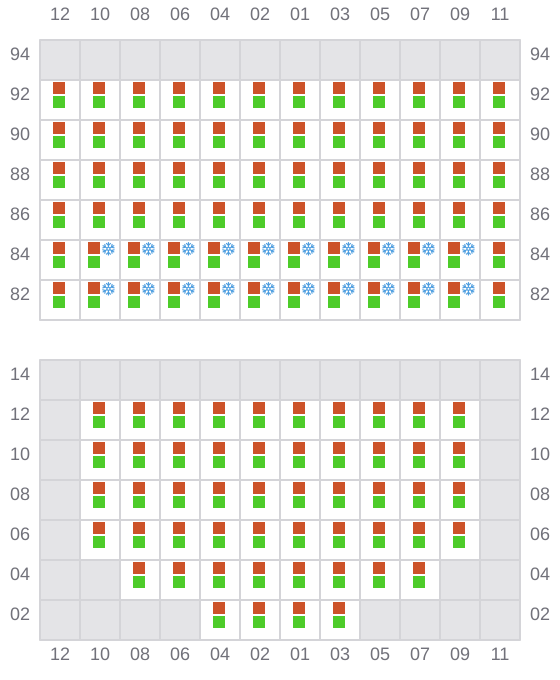

037 (038)
- →
![Bay 037 view and slots of SSL KRISHNA](/vessel-images/e7fb7852-d83c-4aaa-b432-3ae795f36e0a-b037.png?v=1688145532095)

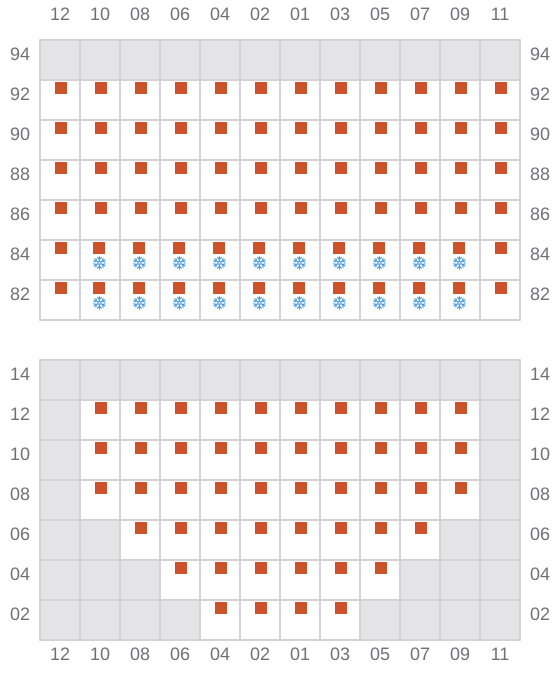

039
- ←
![Bay 039 view and slots of SSL KRISHNA](/vessel-images/e7fb7852-d83c-4aaa-b432-3ae795f36e0a-b039.png?v=1688145532095)

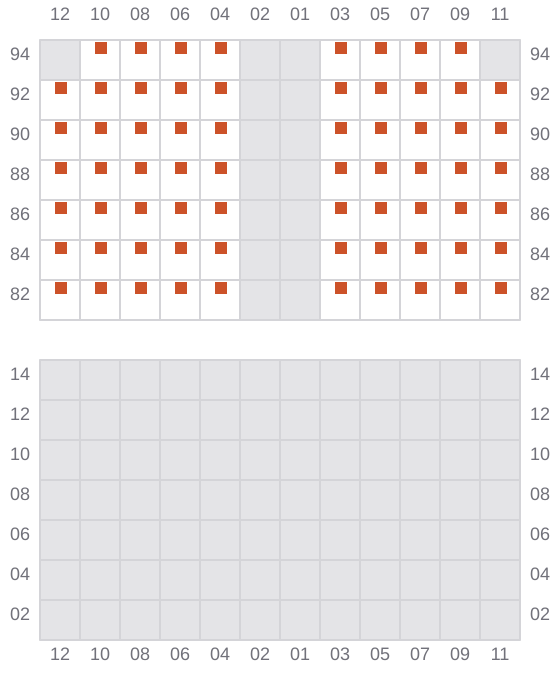

041
![Bay 041 view and slots of SSL KRISHNA](/vessel-images/e7fb7852-d83c-4aaa-b432-3ae795f36e0a-b041.png?v=1688145532095)

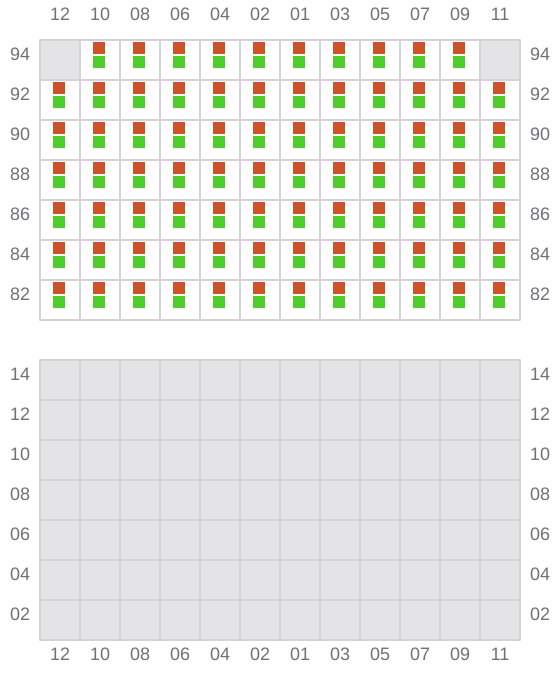

043 (044)
- → / ?
![Bay 043 view and slots of SSL KRISHNA](/vessel-images/e7fb7852-d83c-4aaa-b432-3ae795f36e0a-b043.png?v=1688145532095)

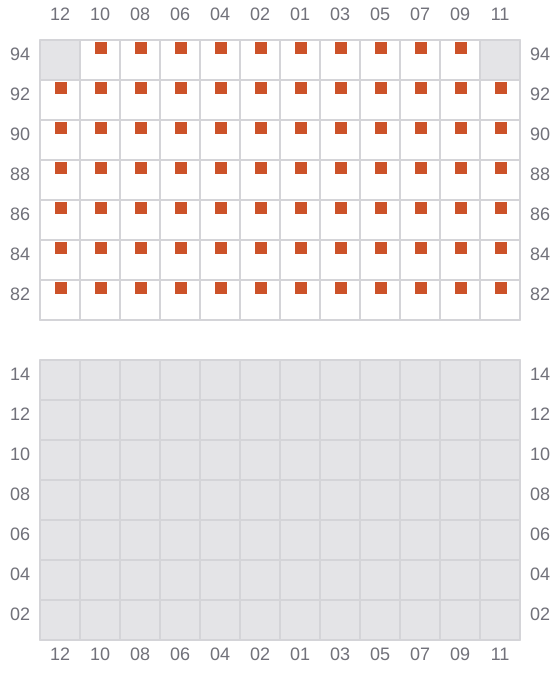

045
- ← / ?
![Bay 045 view and slots of SSL KRISHNA](/vessel-images/e7fb7852-d83c-4aaa-b432-3ae795f36e0a-b045.png?v=1688145532095)
