SSL MUMBAI
9137545 | AWHI | 9137545 by ********* Last update: Fri Jun 21 2024

General Info

Ship Name:SSL MUMBAI

IMO Code:9137545

Call Sign:AWHI

Line Operator:9137545

Class Name for Sister Ships:NOR

Year Built:1996

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:041

Max ISO Row:10

Center Line Row:Yes

Max Above ISO Tier:92

Min Above ISO Tier:82

Max Below ISO Tier:10

Min Below ISO Tier:02

Total TEU:1,664

Centers of Gravity

LCG Values:Estimated

LCG Data:0%

VCG Values:Estimated

VCG Data:0%

TCG Values:Estimated

TCG Data:0%

Side View

Side view of SSL MUMBAI

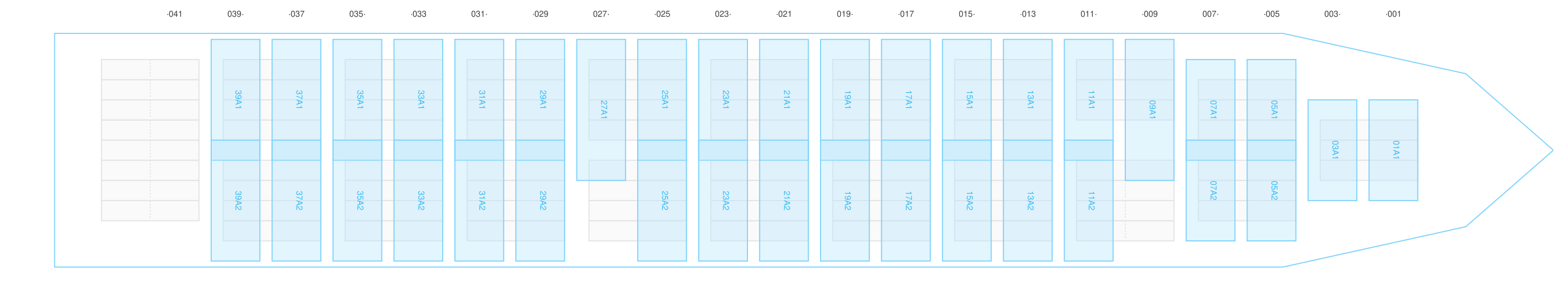

Hatch-Covers View

Deck view of SSL MUMBAI

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001 (002)

→

Bay 001 view and slots of SSL MUMBAI

003

←

Bay 003 view and slots of SSL MUMBAI

005 (006)

→

Bay 005 view and slots of SSL MUMBAI

007

←

Bay 007 view and slots of SSL MUMBAI

009 (010)

→

Bay 009 view and slots of SSL MUMBAI

011

←

Bay 011 view and slots of SSL MUMBAI

013 (014)

→

Bay 013 view and slots of SSL MUMBAI

015

←

Bay 015 view and slots of SSL MUMBAI

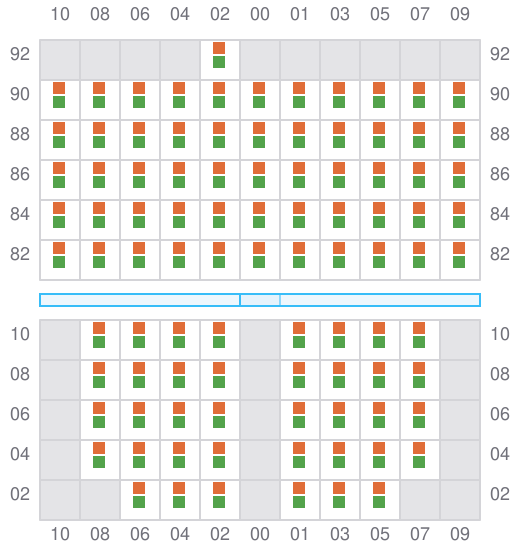

017 (018)

→

Bay 017 view and slots of SSL MUMBAI

019

←

Bay 019 view and slots of SSL MUMBAI

021 (022)

→

Bay 021 view and slots of SSL MUMBAI

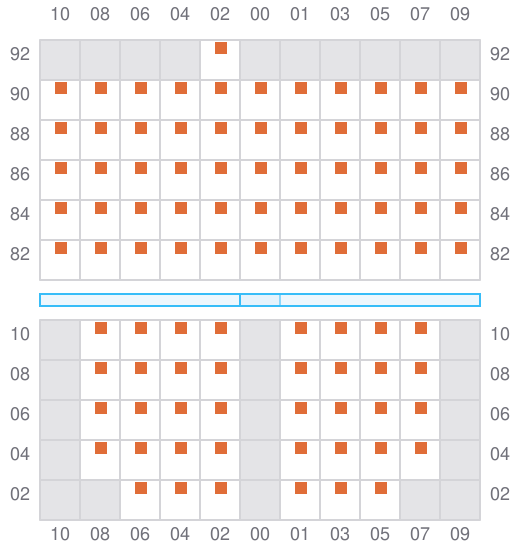

023

←

Bay 023 view and slots of SSL MUMBAI

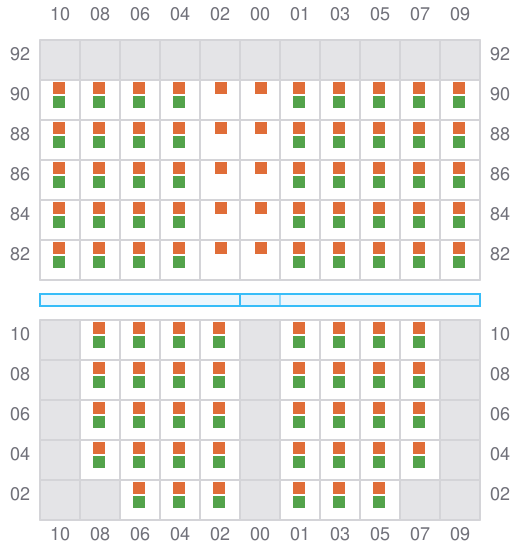

025 (026)

→

Bay 025 view and slots of SSL MUMBAI

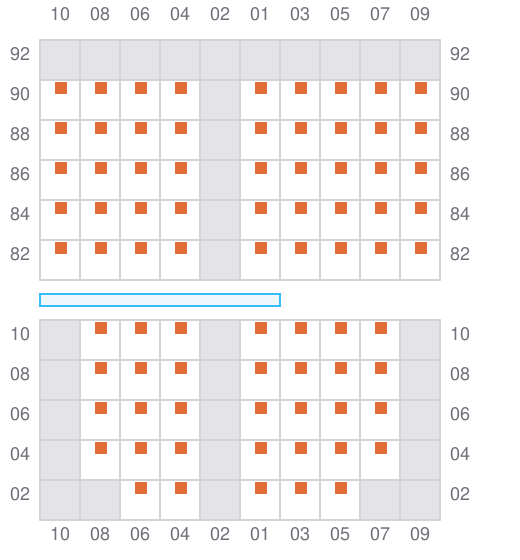

027

←

Bay 027 view and slots of SSL MUMBAI

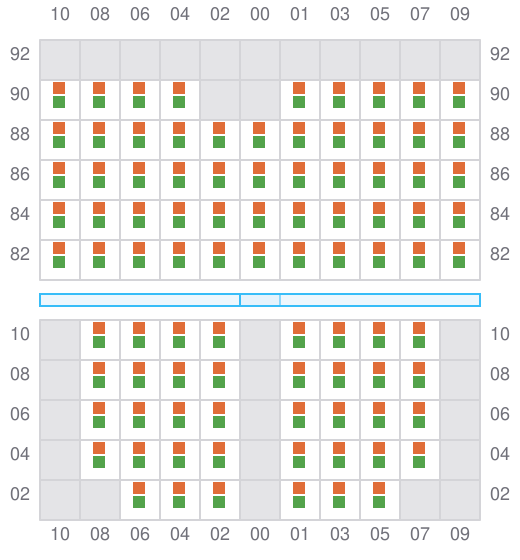

029 (030)

→

Bay 029 view and slots of SSL MUMBAI

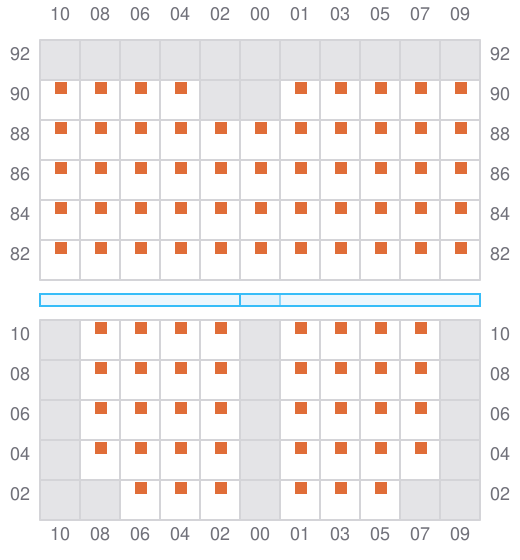

031

←

Bay 031 view and slots of SSL MUMBAI

033 (034)

→

Bay 033 view and slots of SSL MUMBAI

035

←

Bay 035 view and slots of SSL MUMBAI

037 (038)

→

Bay 037 view and slots of SSL MUMBAI

039

←

Bay 039 view and slots of SSL MUMBAI

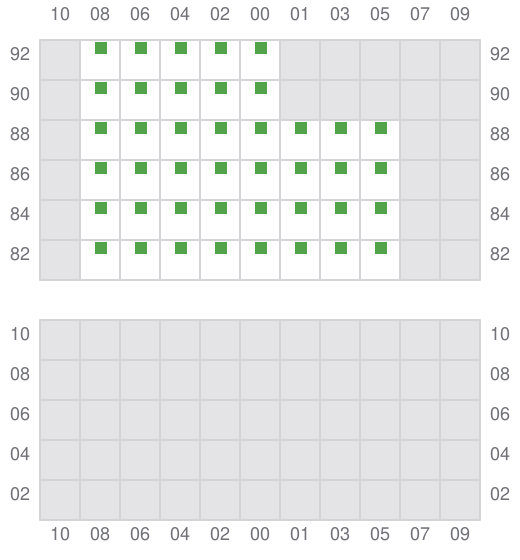

041 (042)

^→ / _?

Bay 041 view and slots of SSL MUMBAI
