STADT DRESDEN
9320049 | CQIT7 | 9320049 by ********* Last update: Mon Jun 24 2024
General Info
Ship Name:STADT DRESDEN
IMO Code:9320049
Call Sign:CQIT7
Line Operator:9320049
Class Name for Sister Ships:MCC
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:049
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,745
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

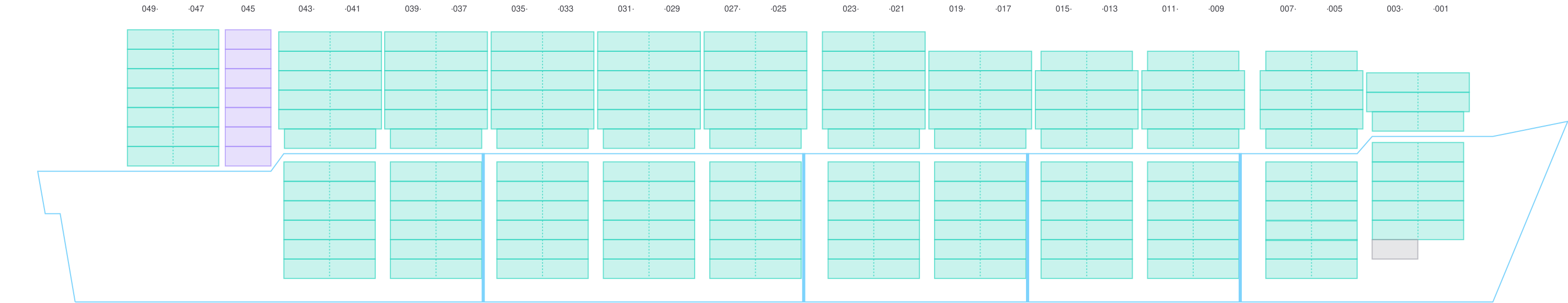

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

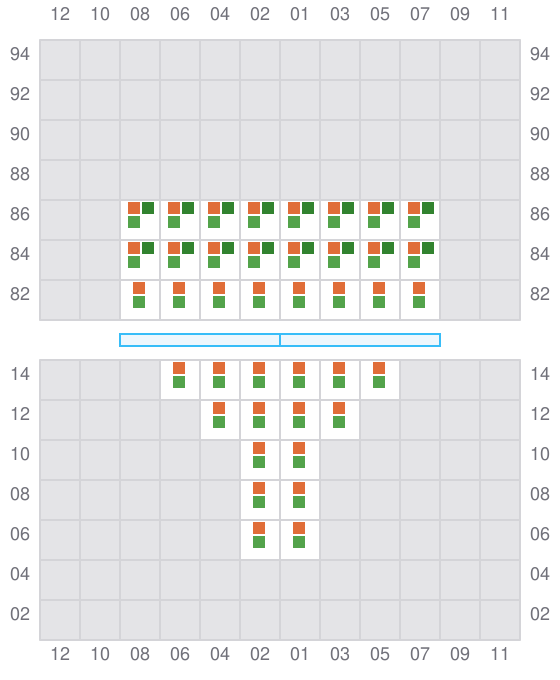

001 (002)
- →
003
- ←

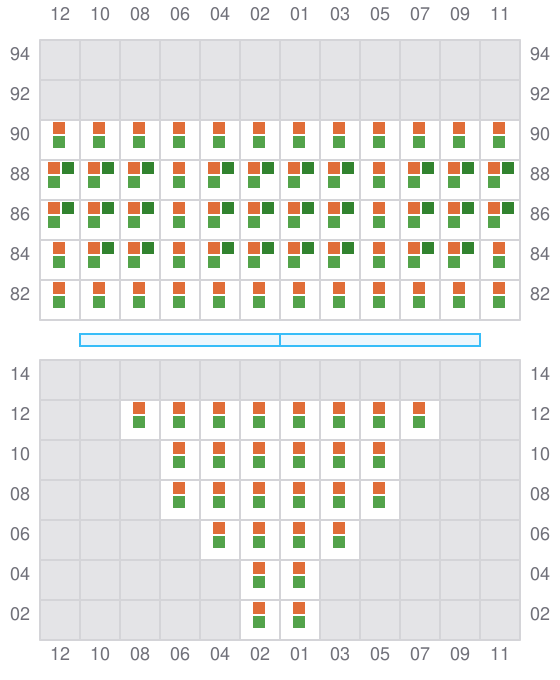

005 (006)
- →

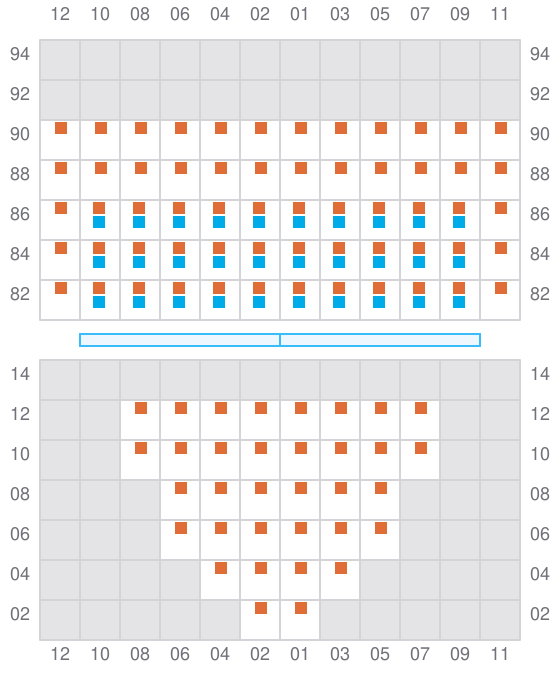

007
- ←
- → / ?

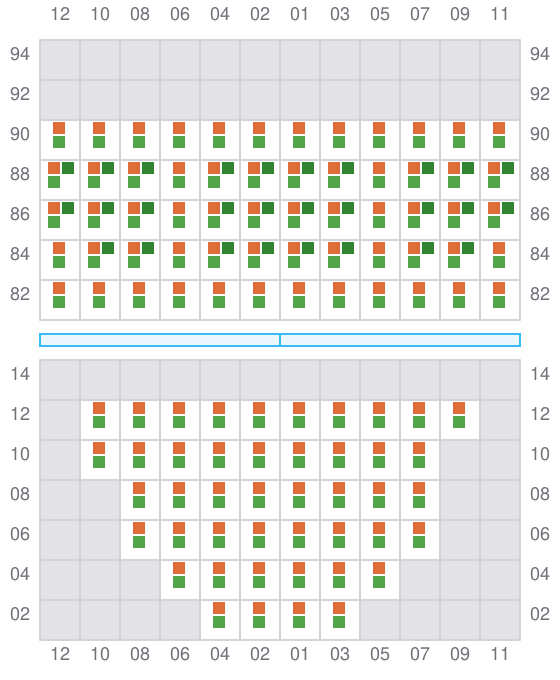

009 (010)
- →

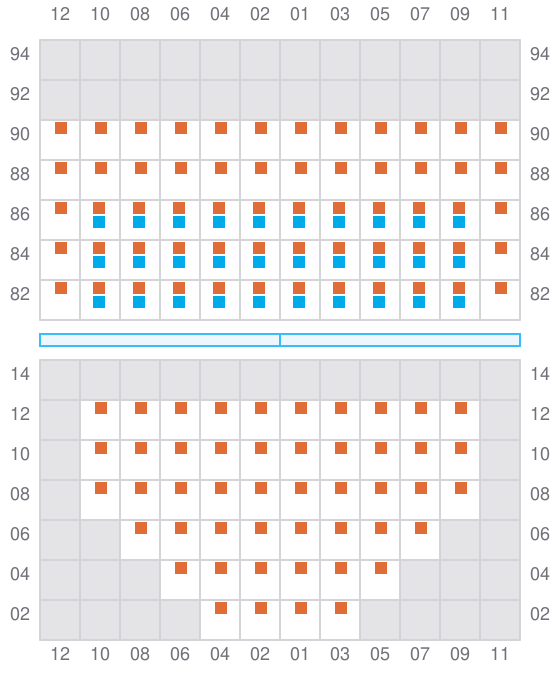

011
- ←
- → / ?
013 (014)
- →

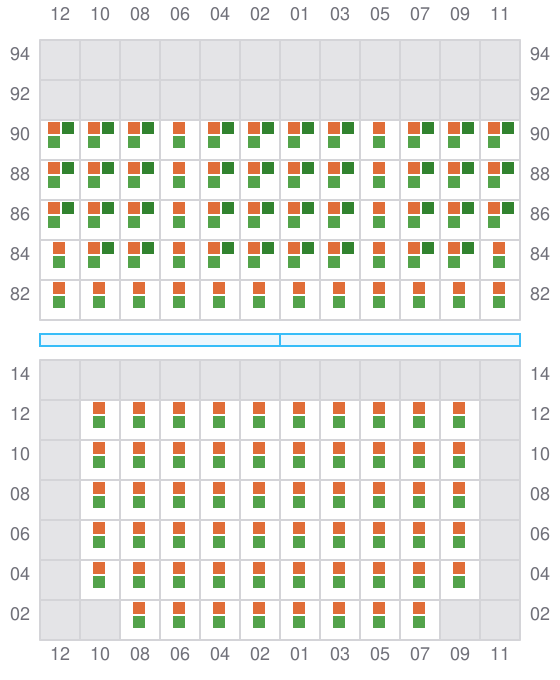

015
- ←
- → / ?
017 (018)
- →
019
- ←
- →
021 (022)
- →

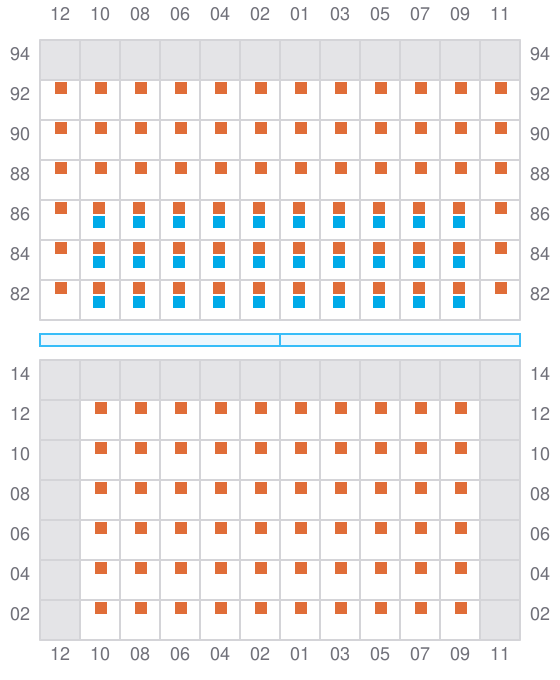

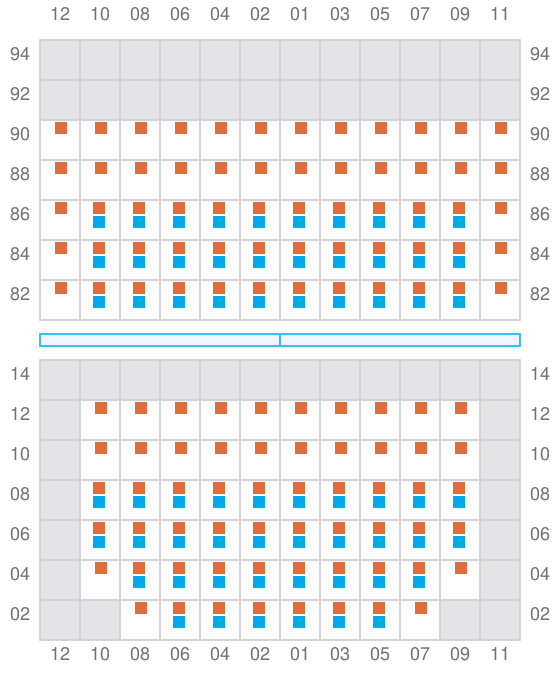

023
- ←
- → / ?
025 (026)
- →
027
- ←
- → / ?

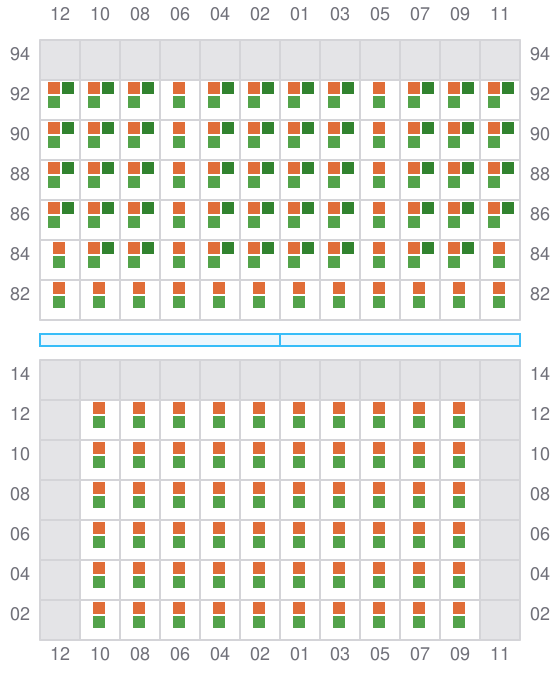

029 (030)
- →
- ? / ←

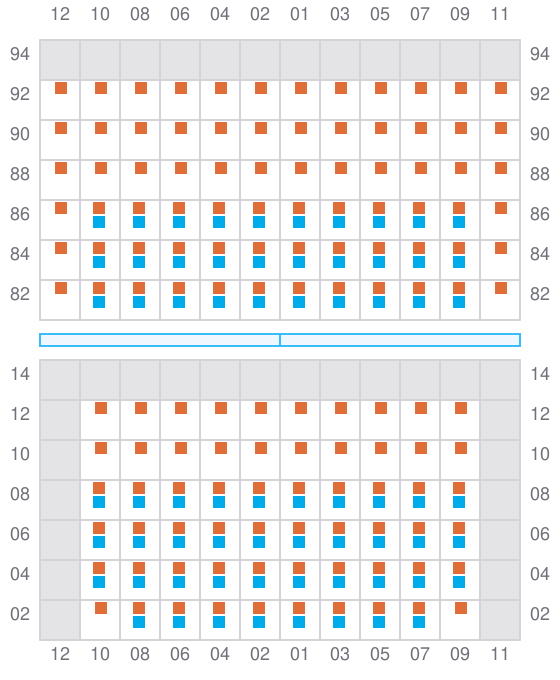

031
- ←
- →
033 (034)
- →
035
- ←
- → / ?
037 (038)
- →
- ← / ?

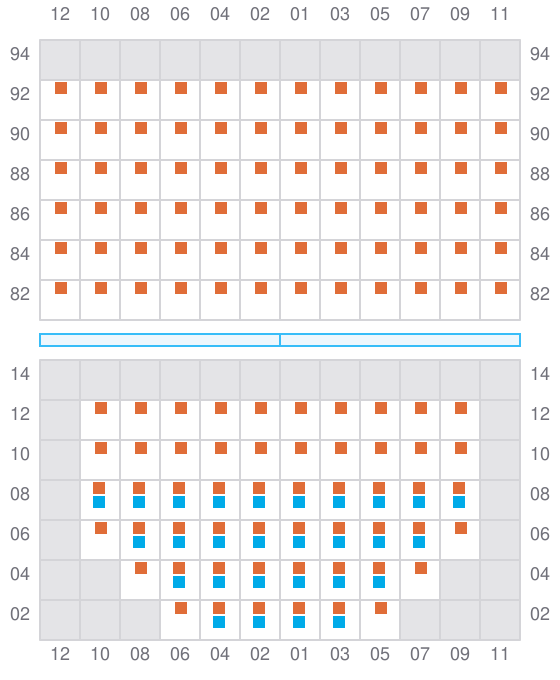

039
- ←
- ? / →

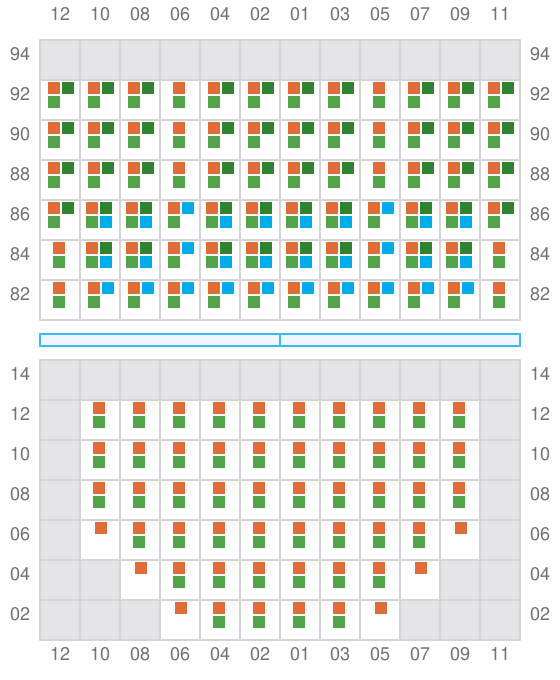

041 (042)
- →
- ← / ?
043
- ←

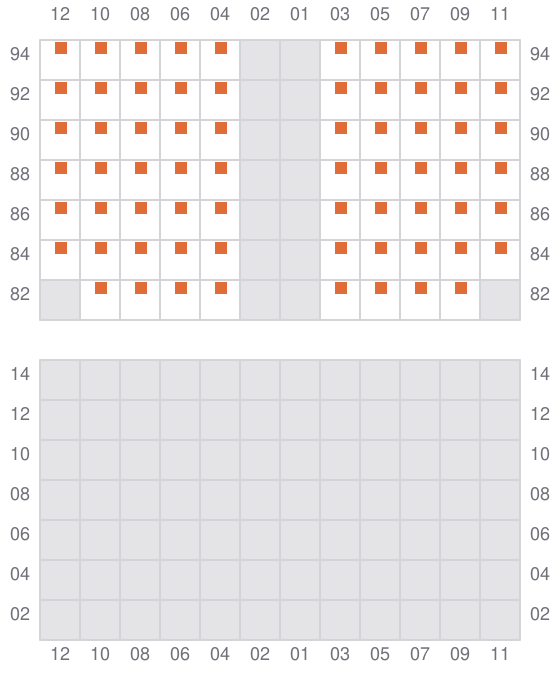

045
047 (048)
- → / ?

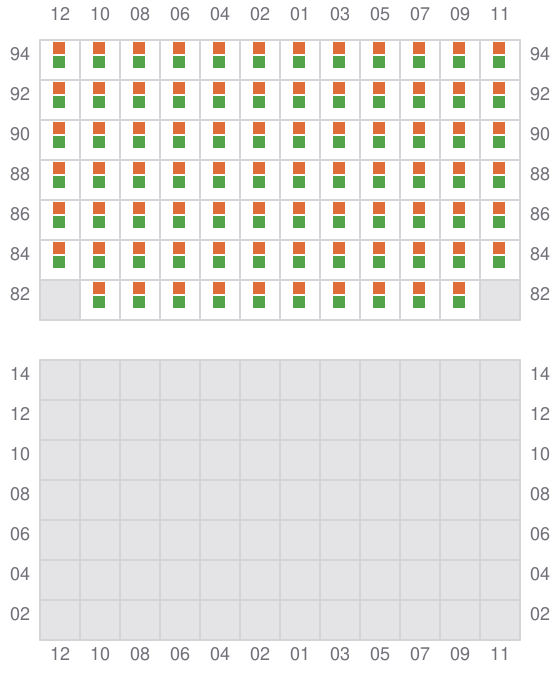

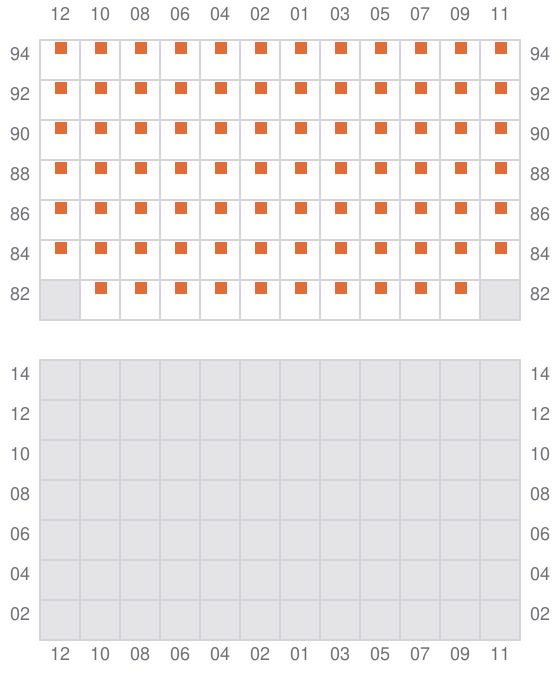

049
- ← / ?
