STANLEY A
9303807 | 9HA3946 | 9303807 by ********* Last update: Mon Mar 18 2024
General Info
Ship Name:STANLEY A
IMO Code:9303807
Call Sign:9HA3946
Line Operator:9303807
Class Name for Sister Ships:L67
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:049
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,822
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

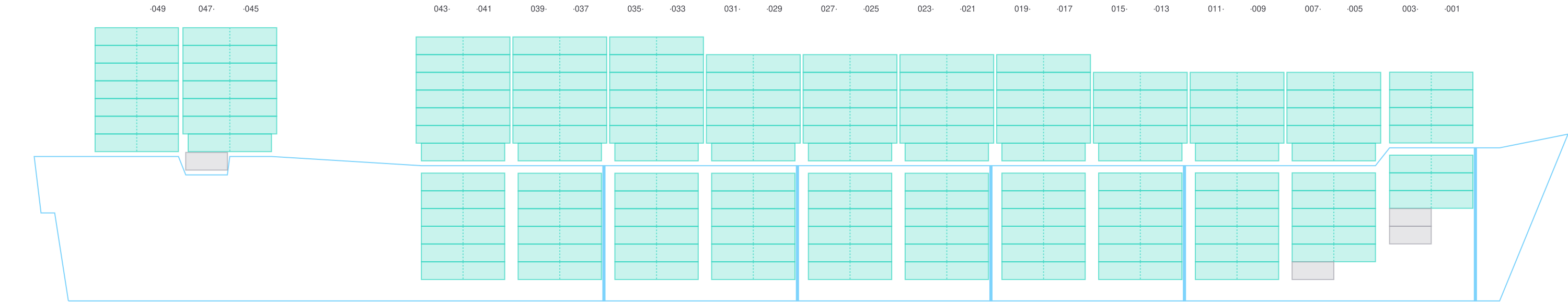

Side View

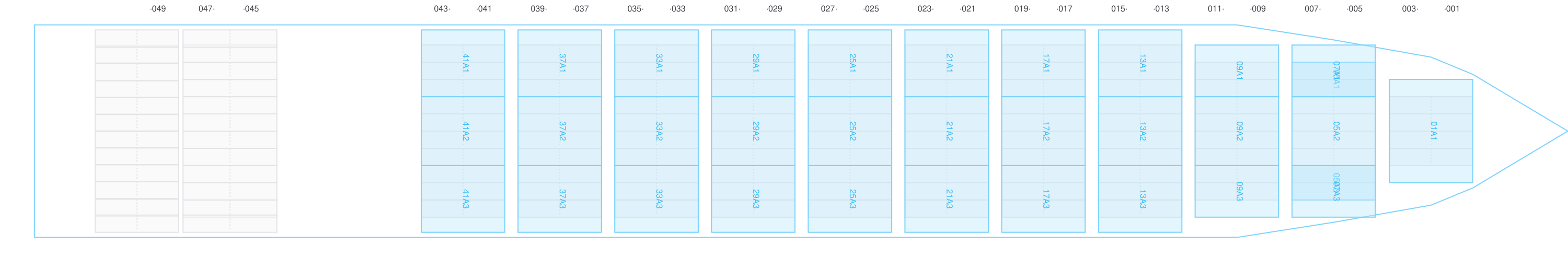

Hatch-Covers View

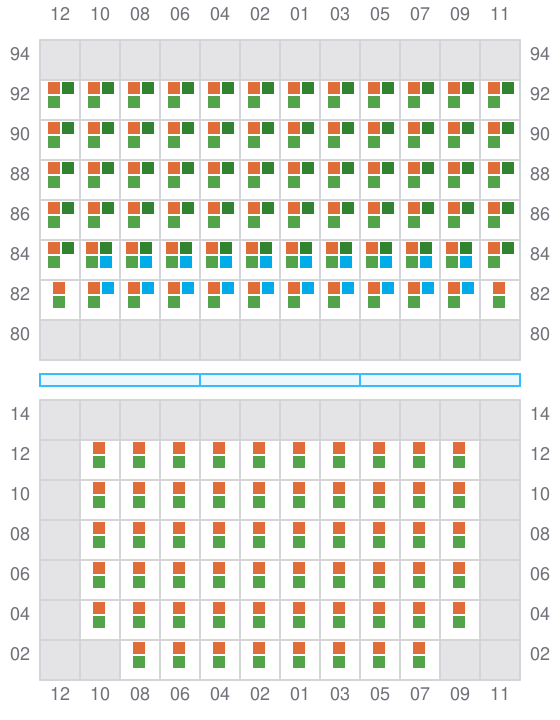

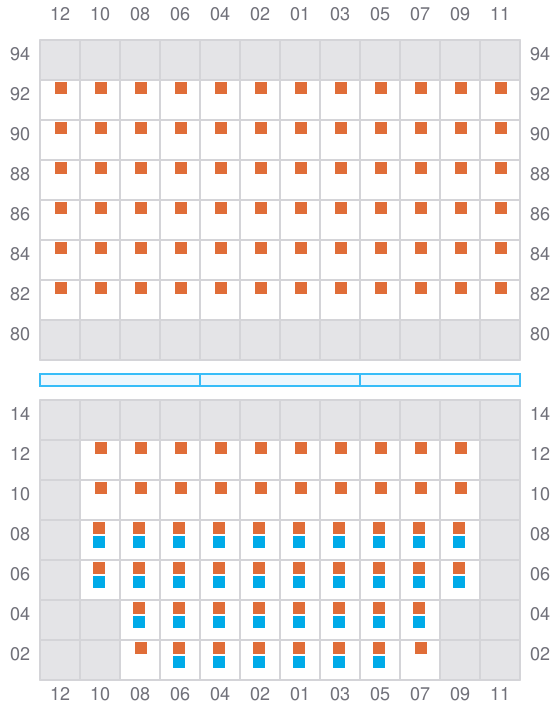

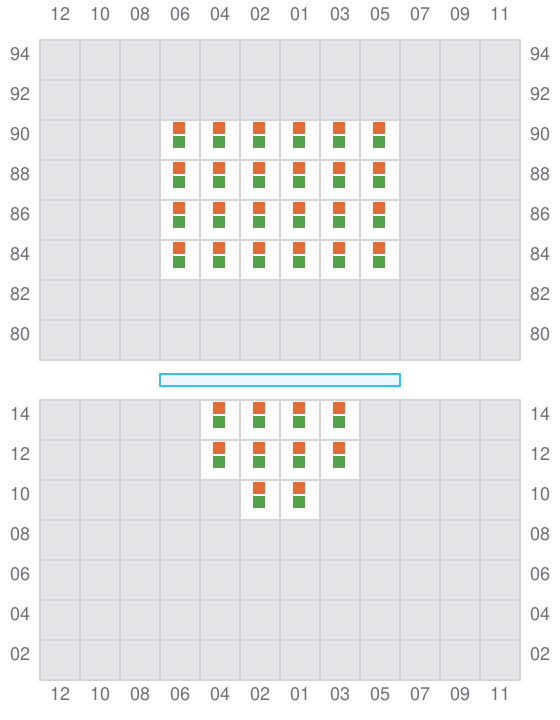

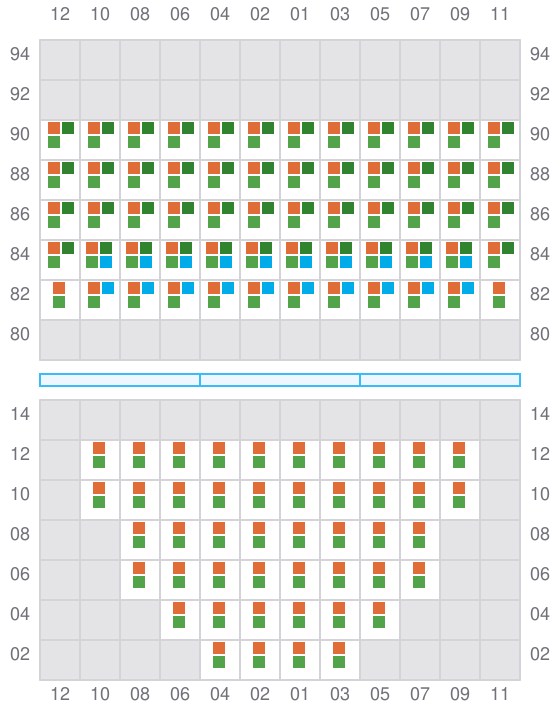

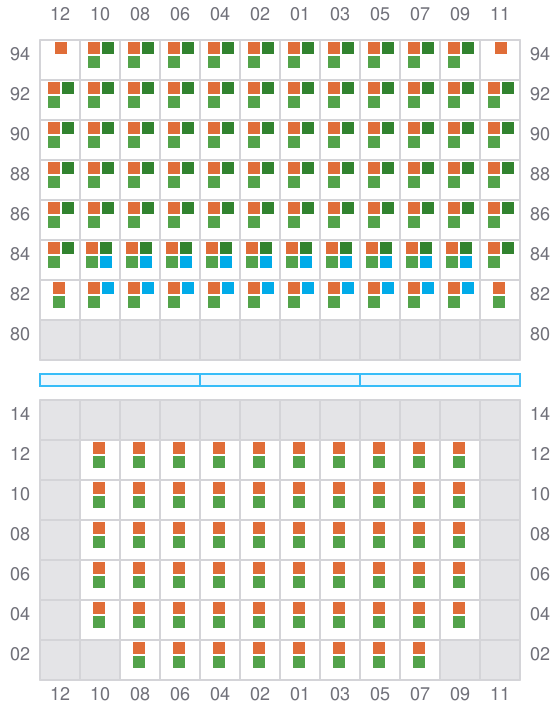

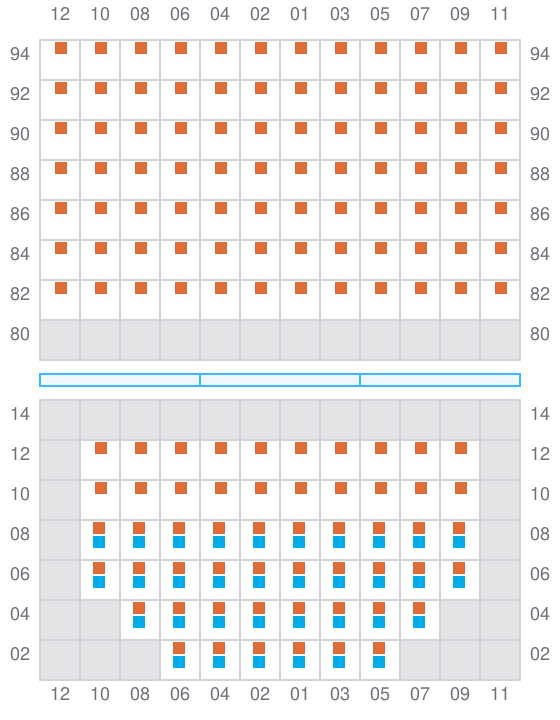

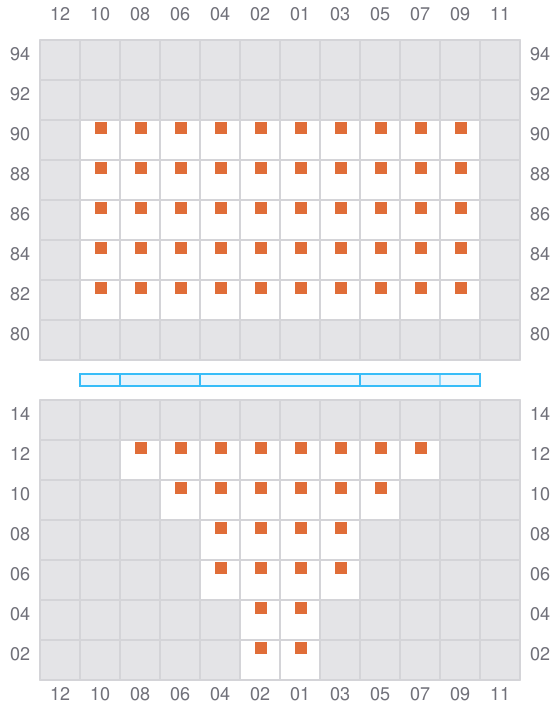

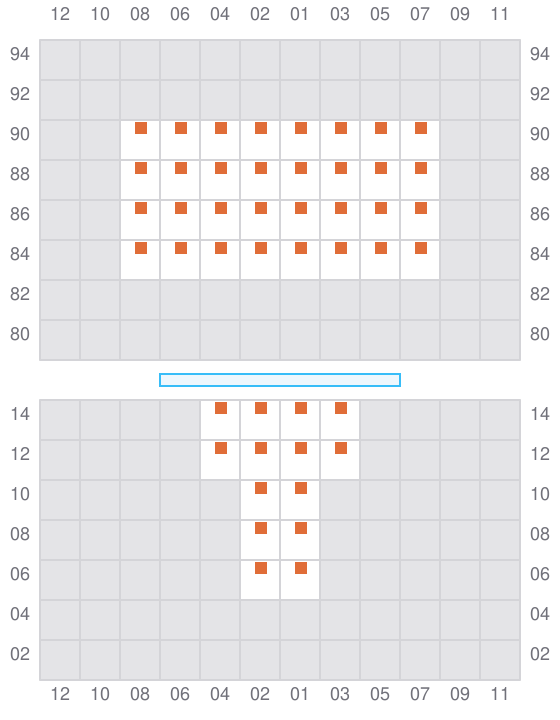

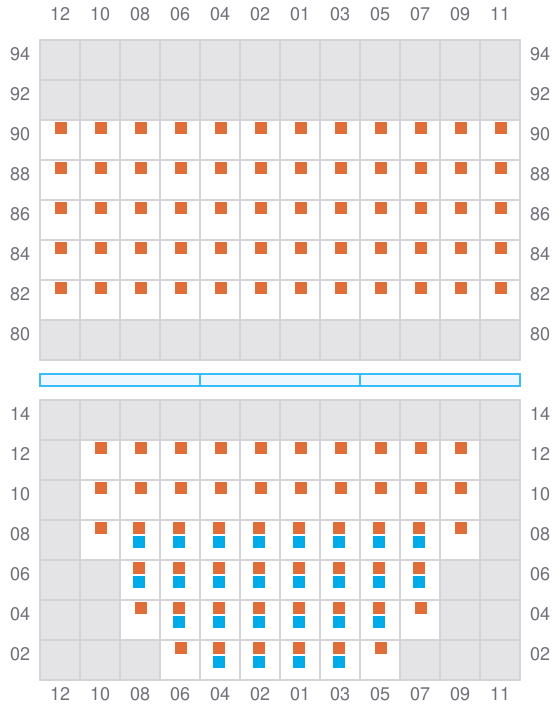

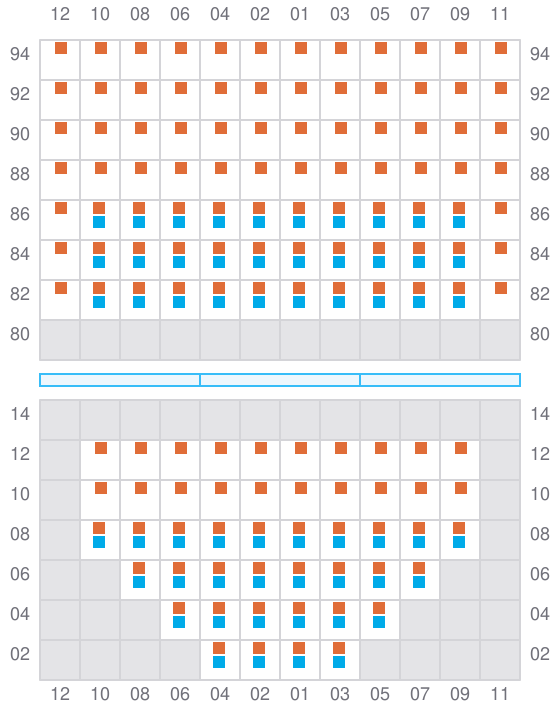

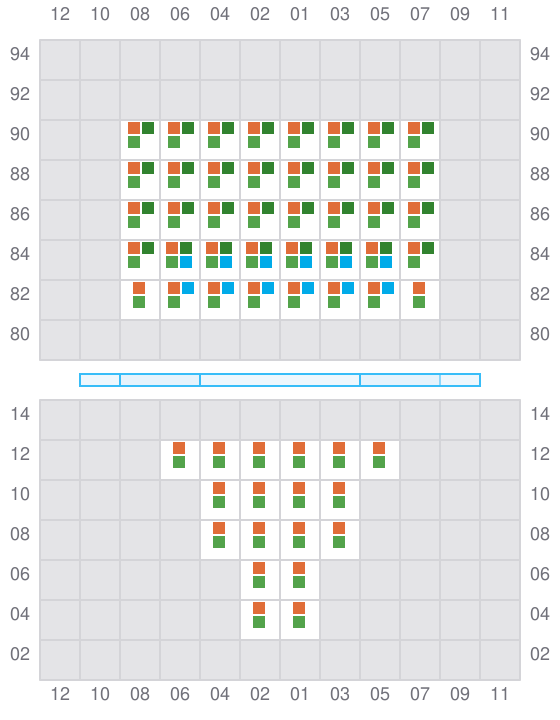

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

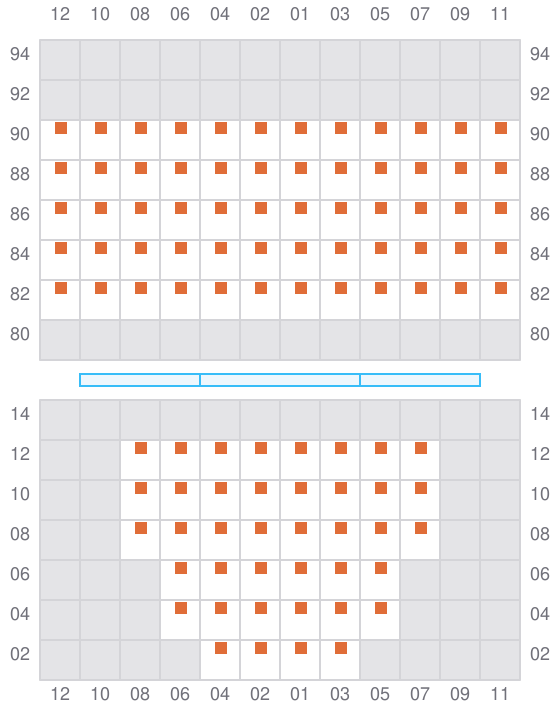

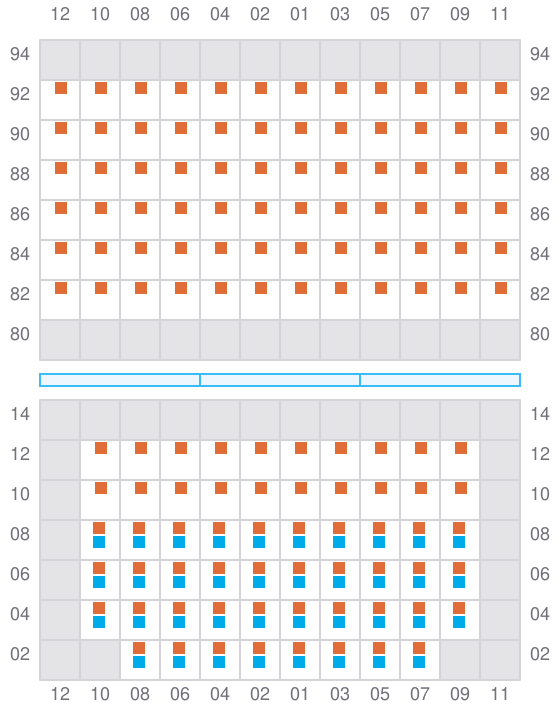

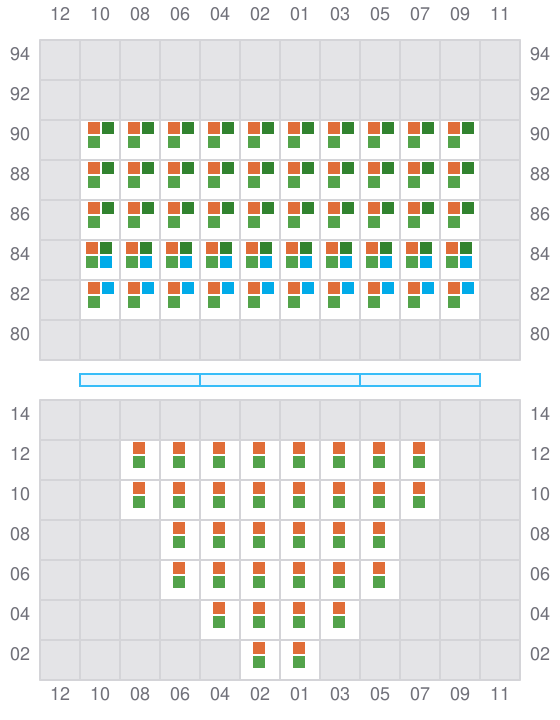

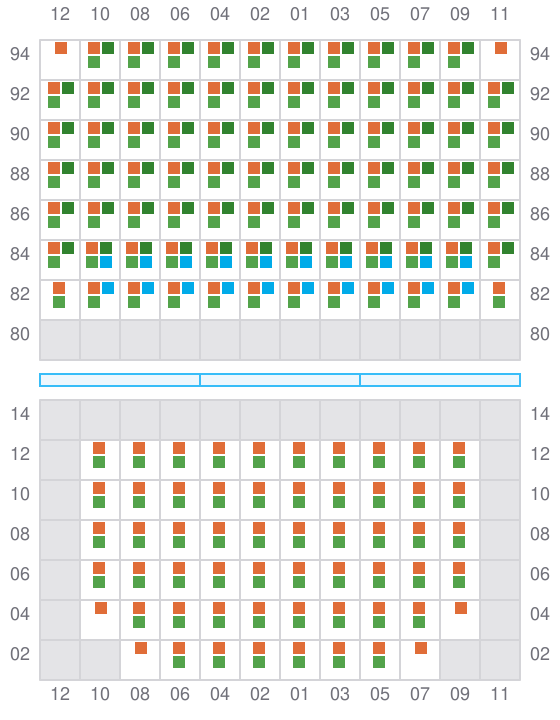

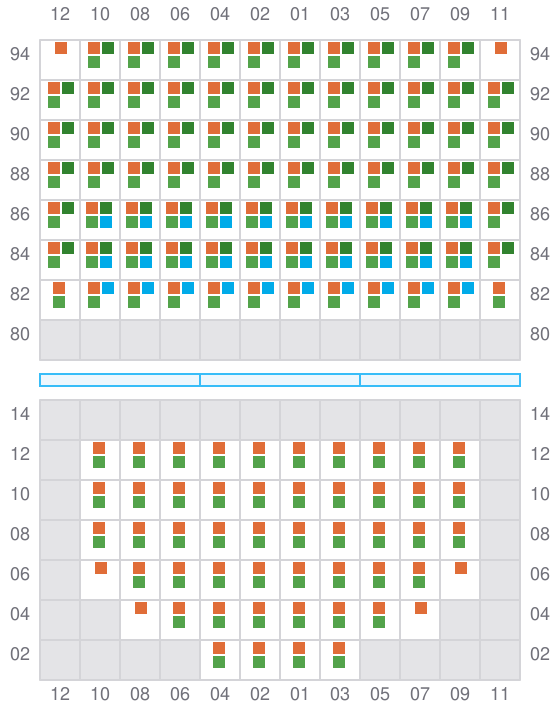

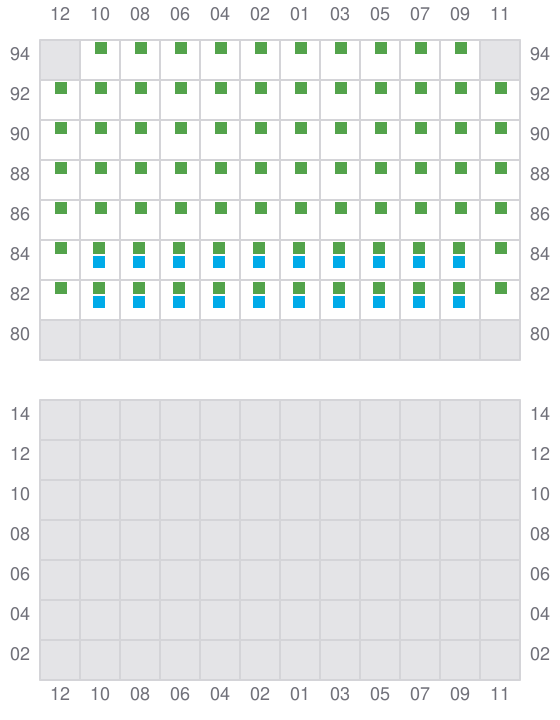

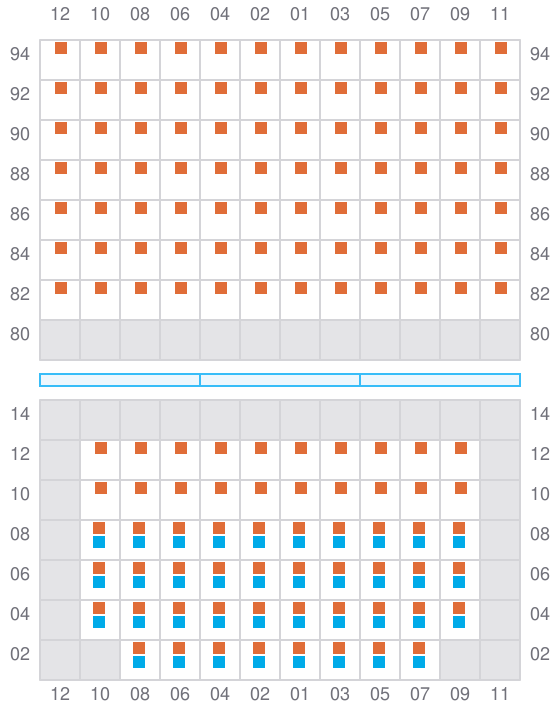

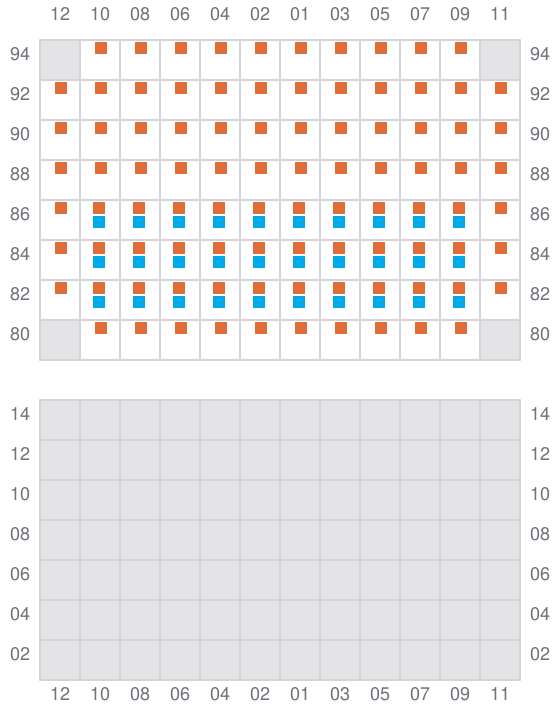

001 (002)
- →
003
- ←
005 (006)
- →
- ← / ?
007
- ←
- → / ?
009 (010)
- →
- ← / ?
011
- ←
- → / ?
013 (014)
- →
- ← / ?
015
- ←
- →
017 (018)
- →
- ← / ?
019
- ←
- →
021 (022)
- →
- ← / ?
023
- ←
- →
025 (026)
- →
- ← / ?
027
- ←
- →
029 (030)
- →
- ← / ?
031
- ←
- →
033 (034)
- →
- ← / ?
035
- ←
- → / ?
037 (038)
- →
- ← / ?
039
- ←
- →
041 (042)
- →
- ← / ?
043
- ←
- →
045 (046)
- → / ?
- ← / ?
047
- ← / ?
- → / ?
049 (050)
- → / ?
- ← / ?
