STONEFISH
9106144 | 5LED2 | 9106144 by *********** Last update: Mon Mar 04 2024
General Info
Ship Name:STONEFISH
IMO Code:9106144
Call Sign:5LED2
Line Operator:9106144
Class Name for Sister Ships:0P5
Year Built:1994
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:041
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,897
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

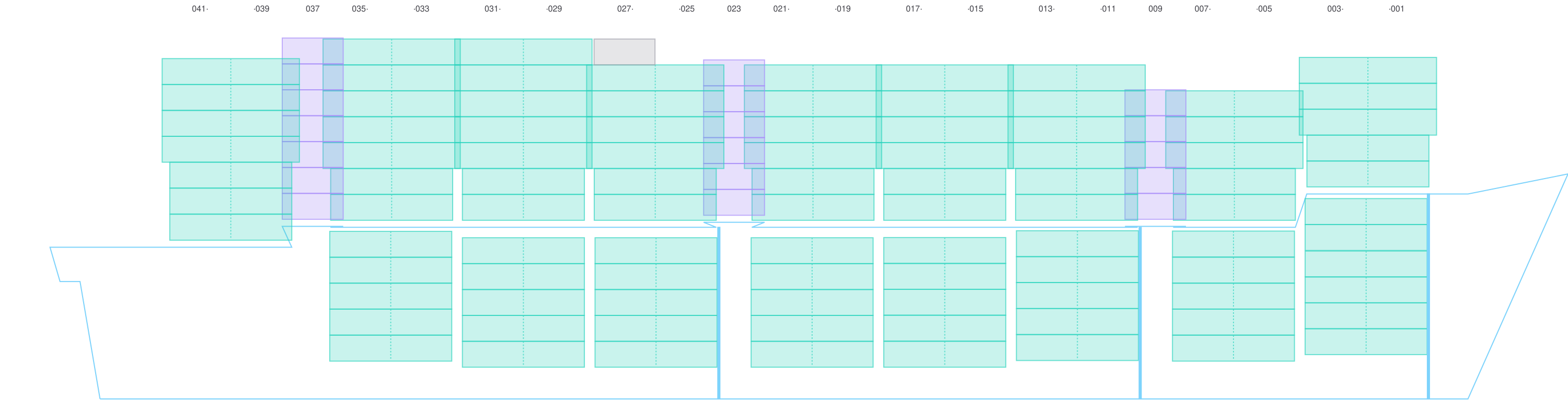

Side View
Hatch-Covers View

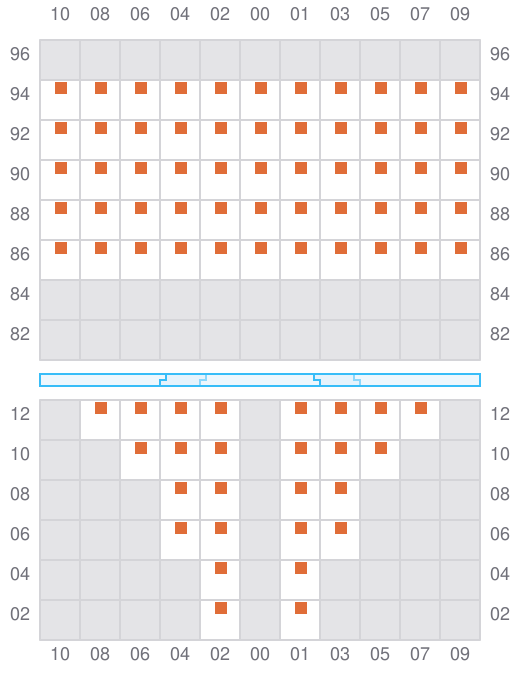

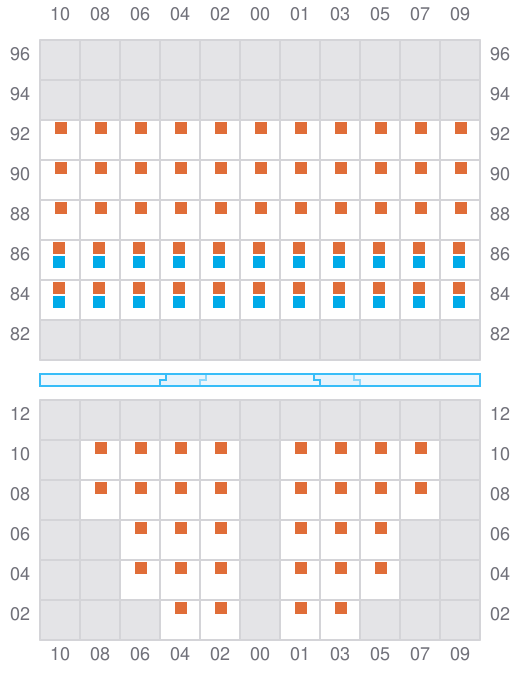

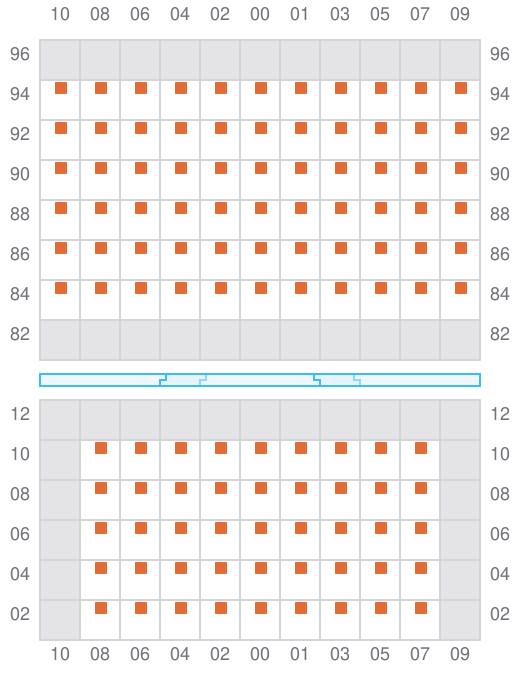

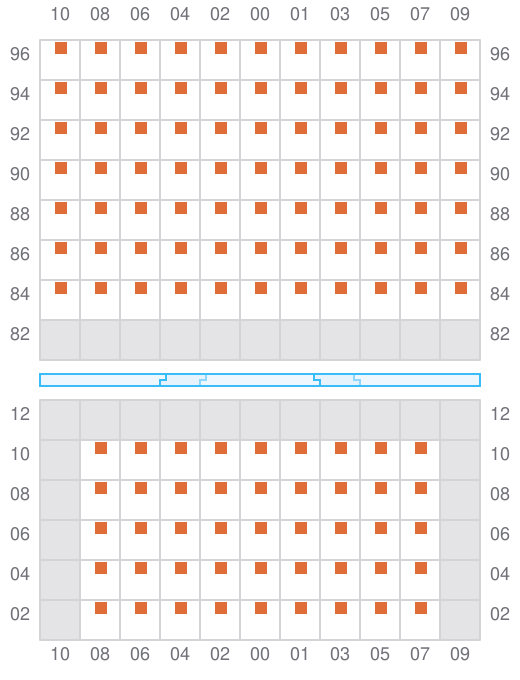

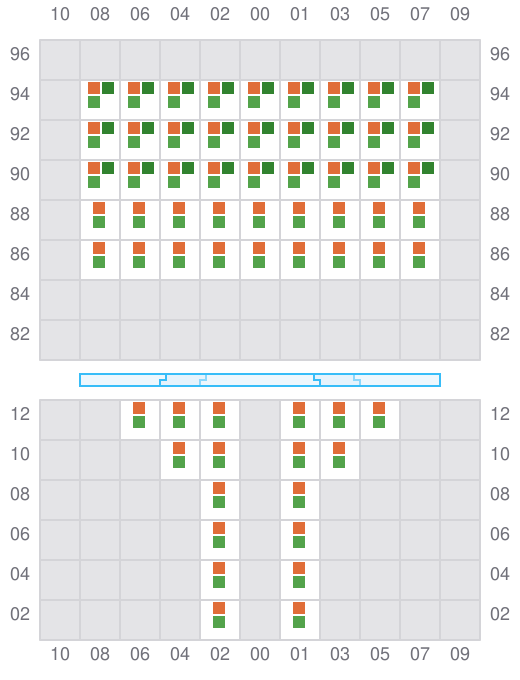

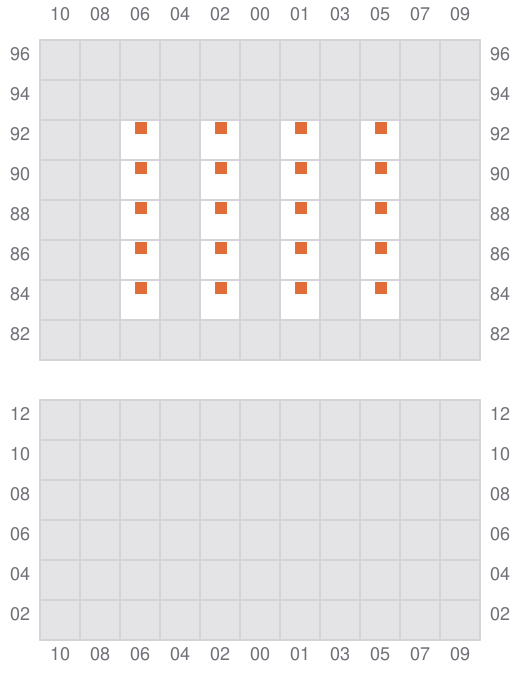

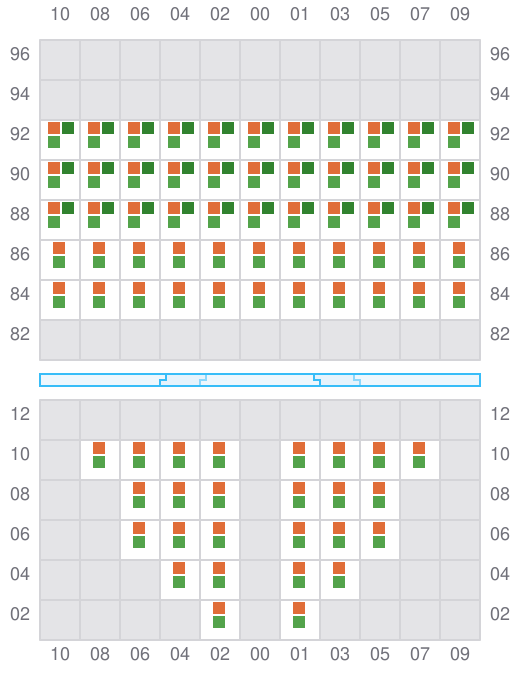

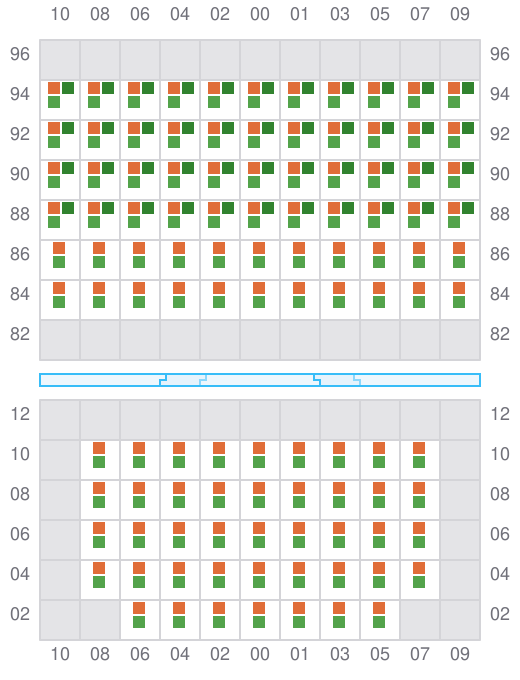

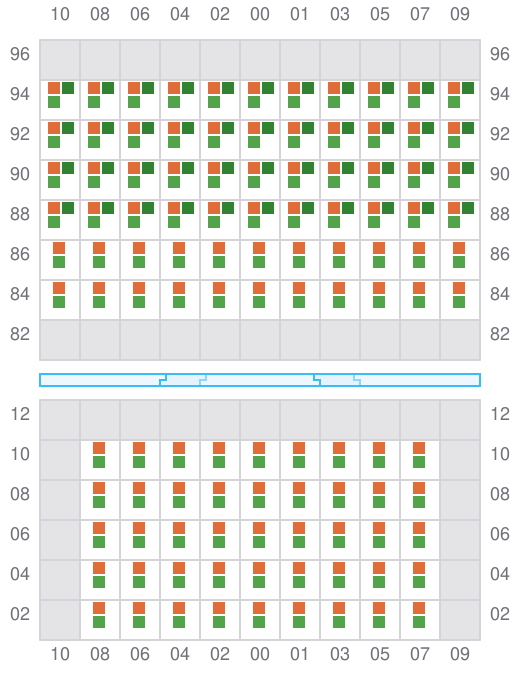

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
003
- ←
005 (006)
- →
007
- ←
- → / ?
009
011 (012)
- →
- ← / ?
013
- ←
015 (016)
- →
017
- ←
019 (020)
- →
021
- ←
- → / ?
023
025 (026)
- →
- ← / ?
027
- ←
029 (030)
- →
031
- ←
- → / ?
033 (034)
- →
035
- ←
- → / ?
037
039 (040)
- → / ?
041
- ← / ?
- → / ?
