STONEWELL GLORY
9307396 | 5LCT9 | 9307396 by ********* Last update: Fri Apr 26 2024
General Info
Ship Name:STONEWELL GLORY
IMO Code:9307396
Call Sign:5LCT9
Line Operator:9307396
Class Name for Sister Ships:KOTA KADO
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:051
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:3,100
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

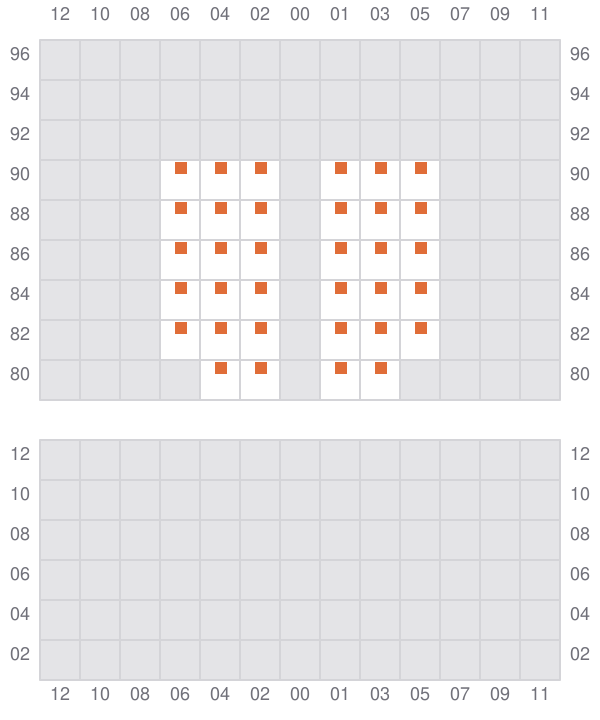

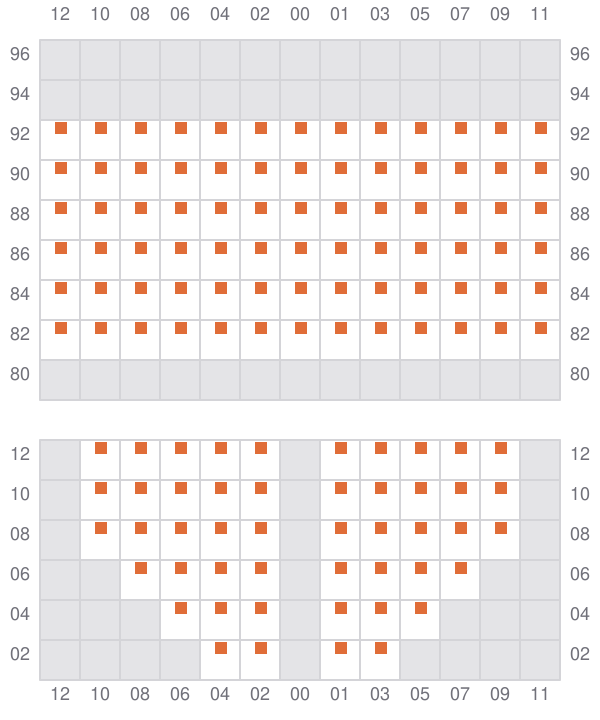

001

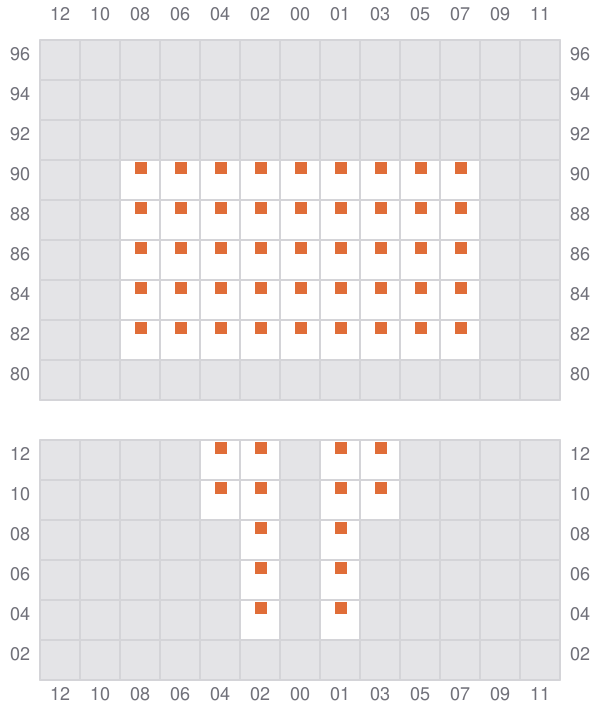

003
- →

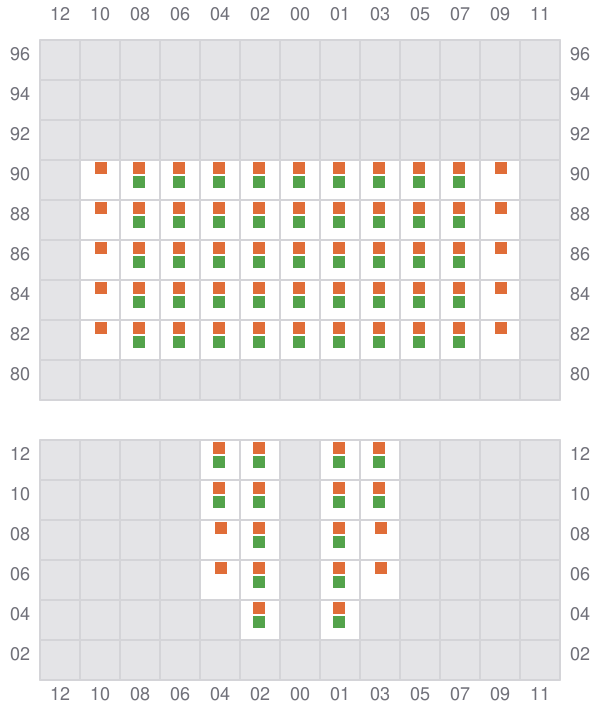

005 (004)
- ←
007
- →

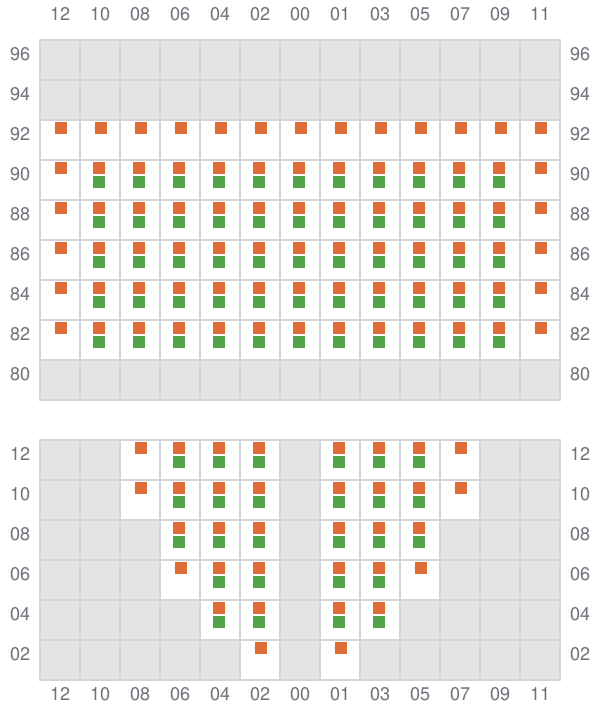

009 (008)
- ←

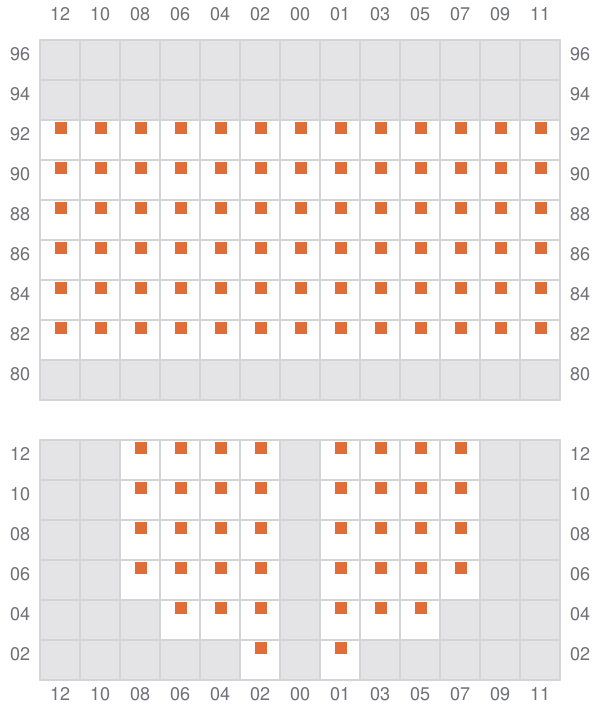

011
- →

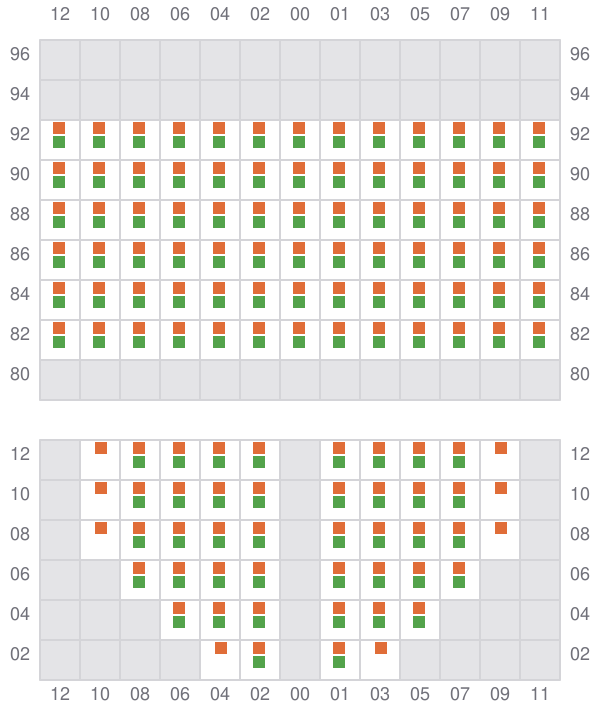

013 (012)
- ←
015
- →

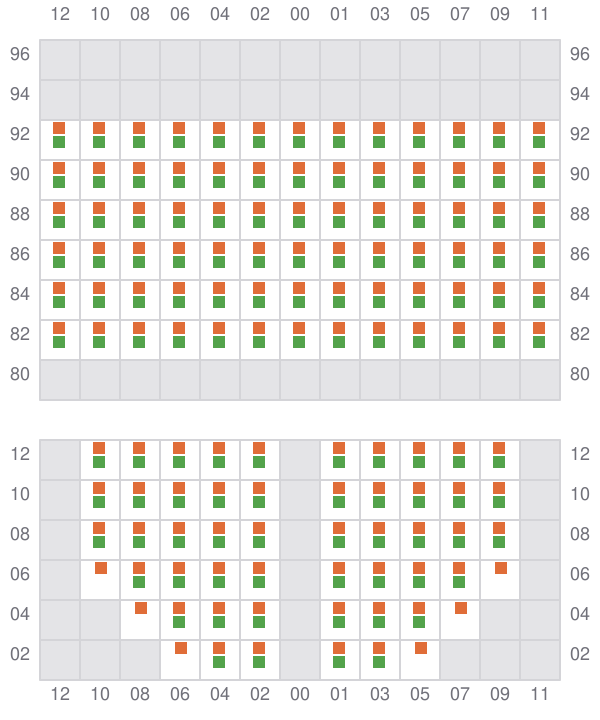

017 (016)
- ←
019
- →

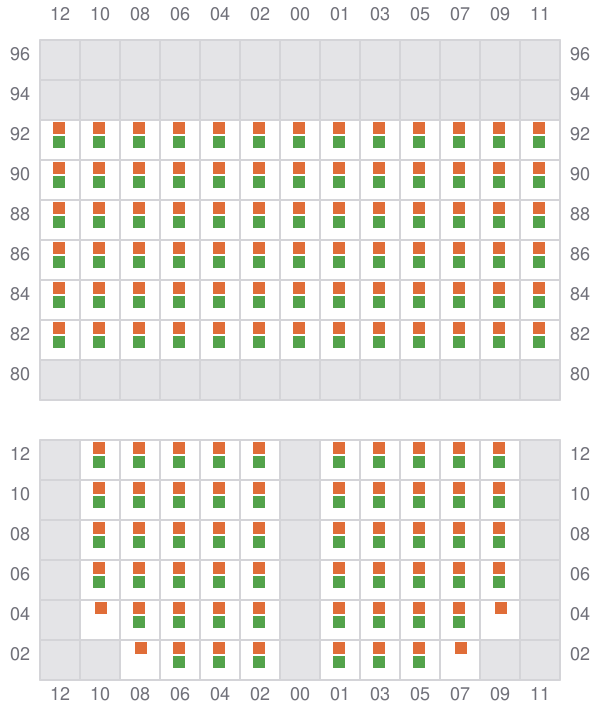

021 (020)
- ←
023
- →
025 (024)
- ←

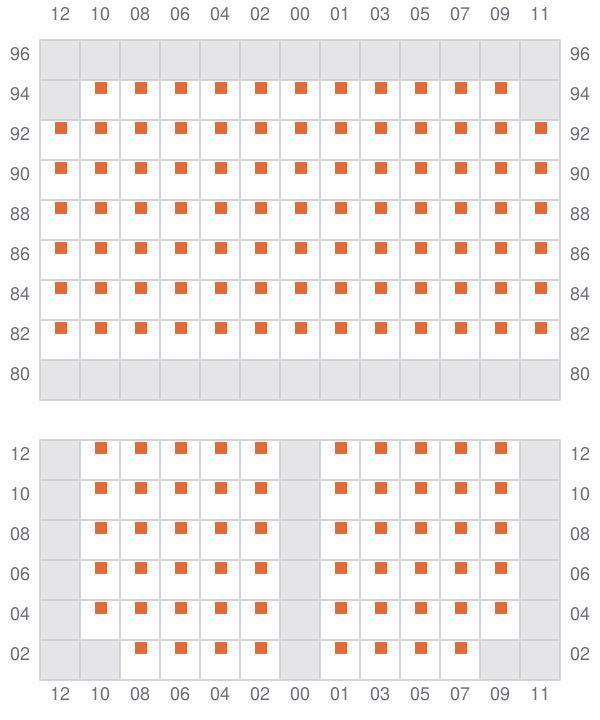

027
- →

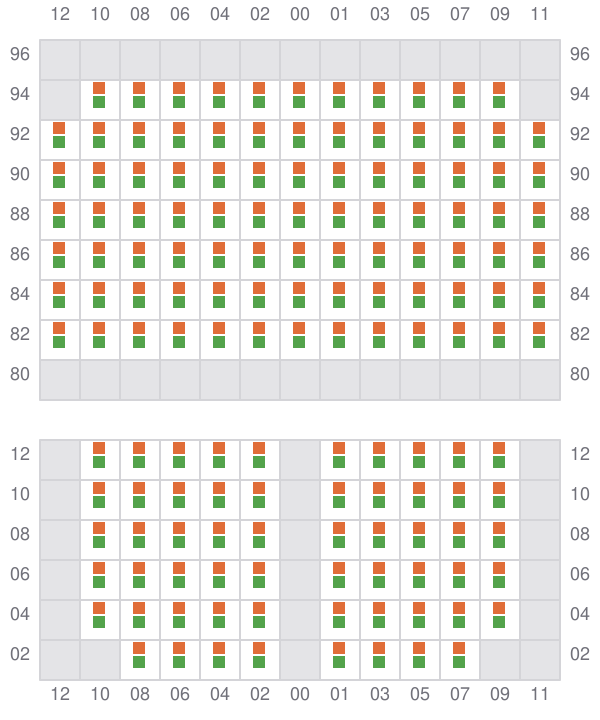

029 (028)
- ←
031
- →

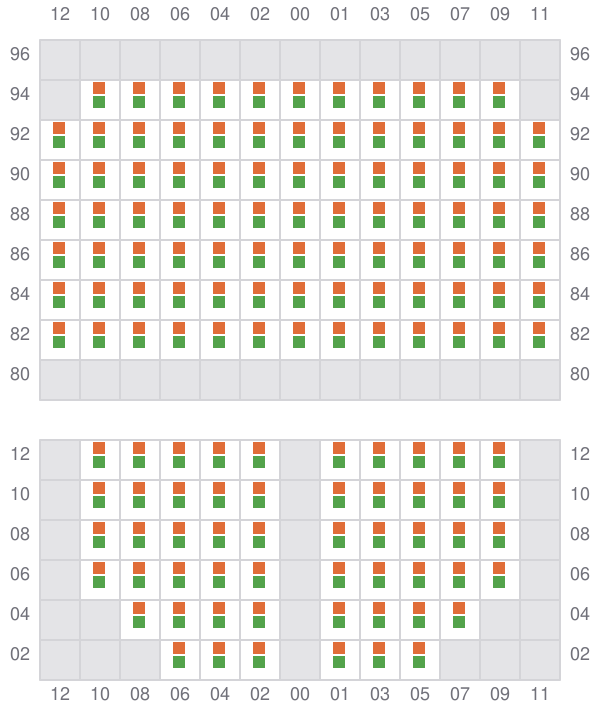

033 (032)
- ←

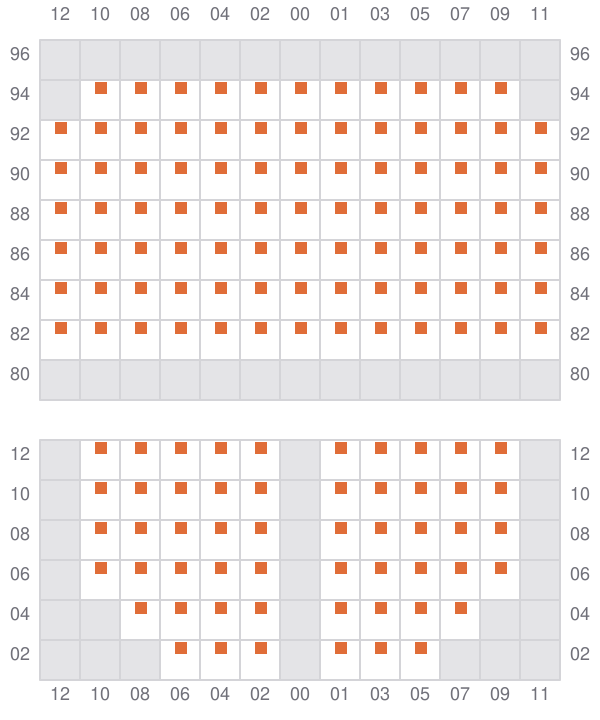

035
- →

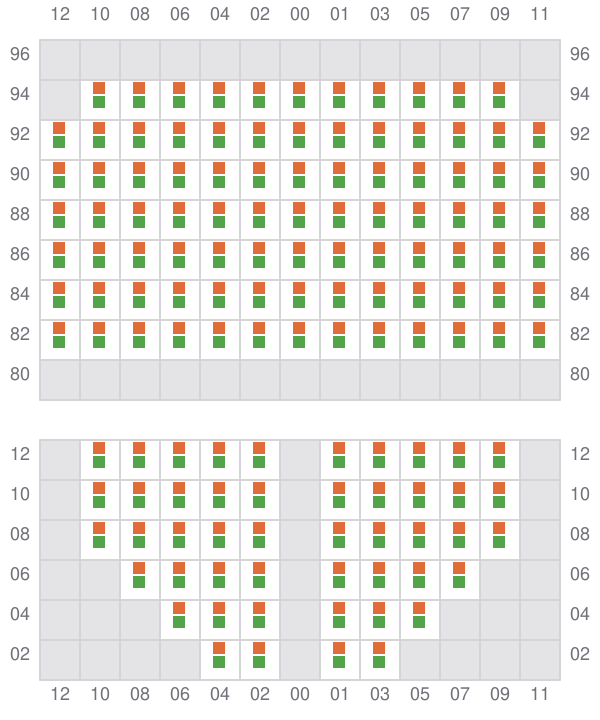

037 (036)
- ←

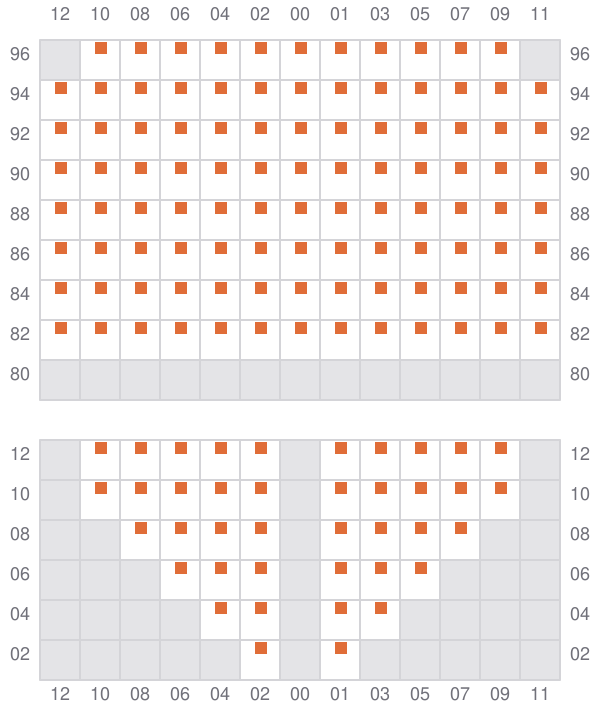

039
- →

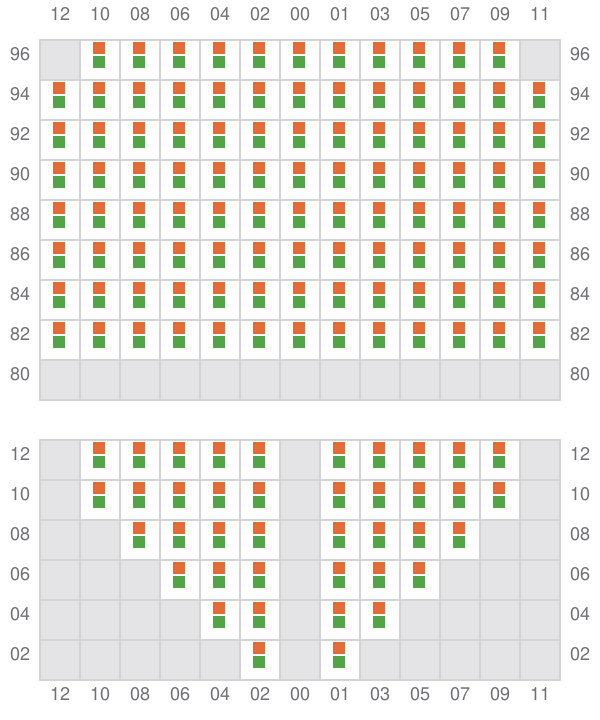

041 (040)
- ←

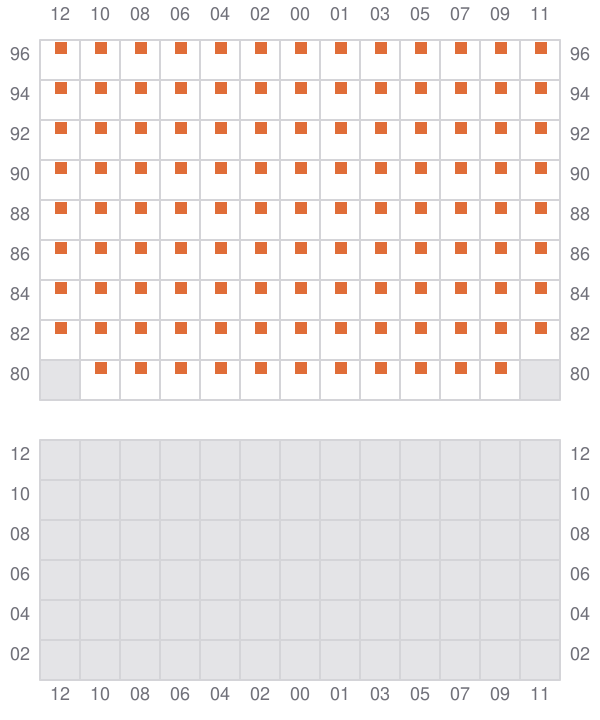

043

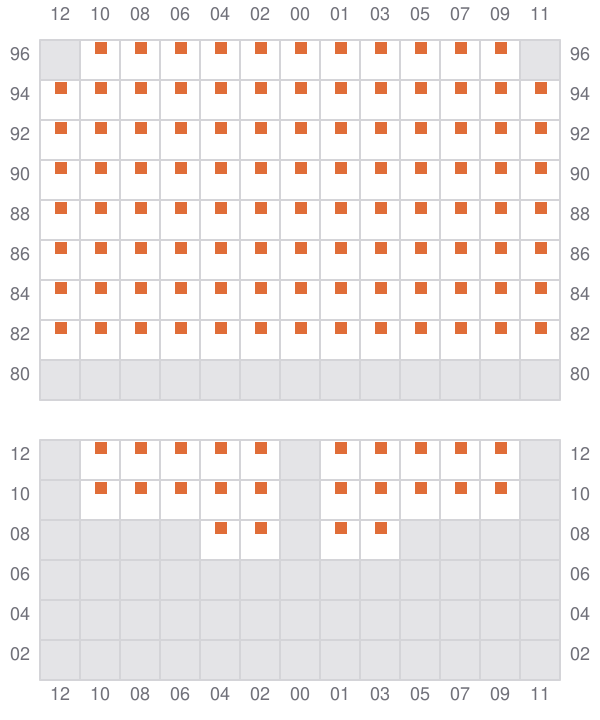

045
- →

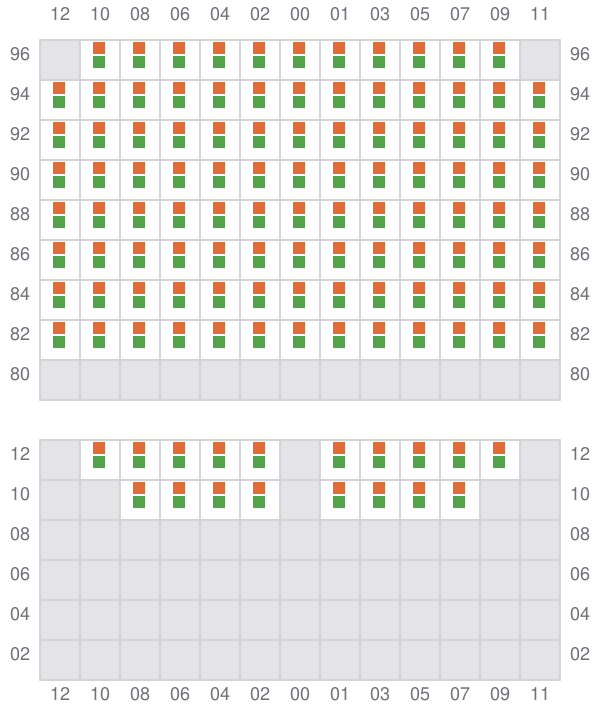

047 (046)
- ←

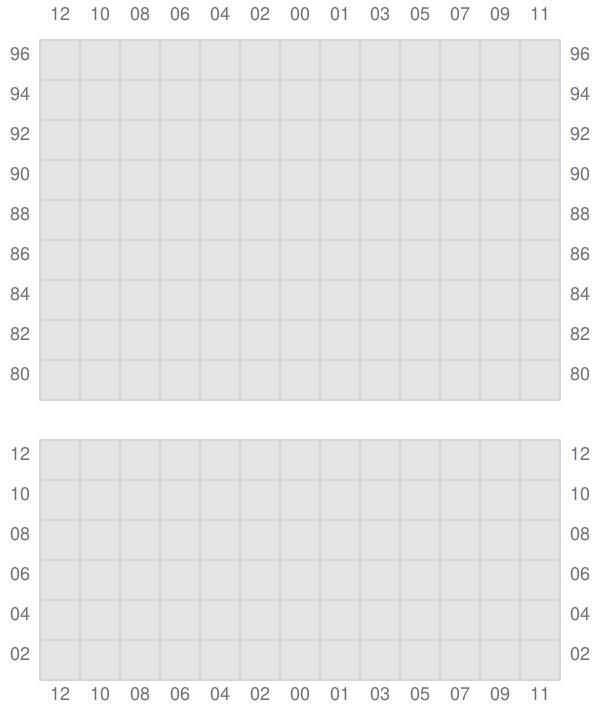

049

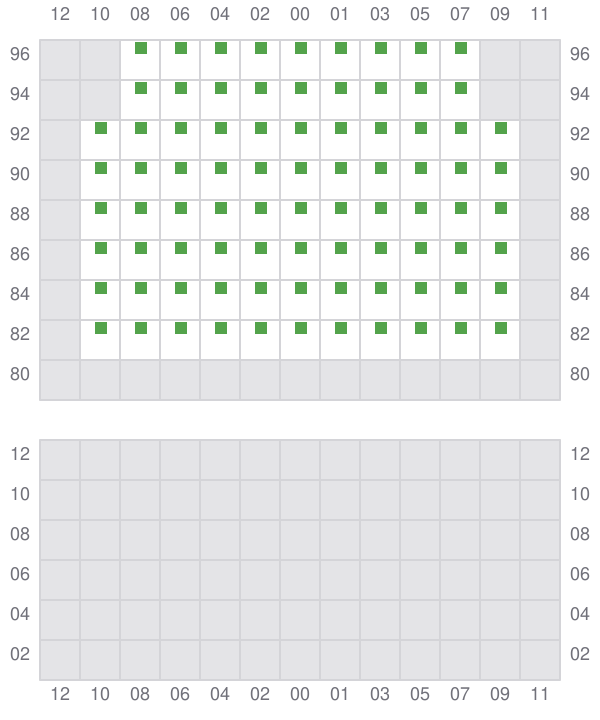

051
