STRAIT MAS
9252369 | YDBO2 | 9252369 by ********* Last update: Wed Apr 24 2024
General Info
Ship Name:STRAIT MAS
IMO Code:9252369
Call Sign:YDBO2
Line Operator:9252369
Class Name for Sister Ships:KOTAGEMBIRA
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:047
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:2,709
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

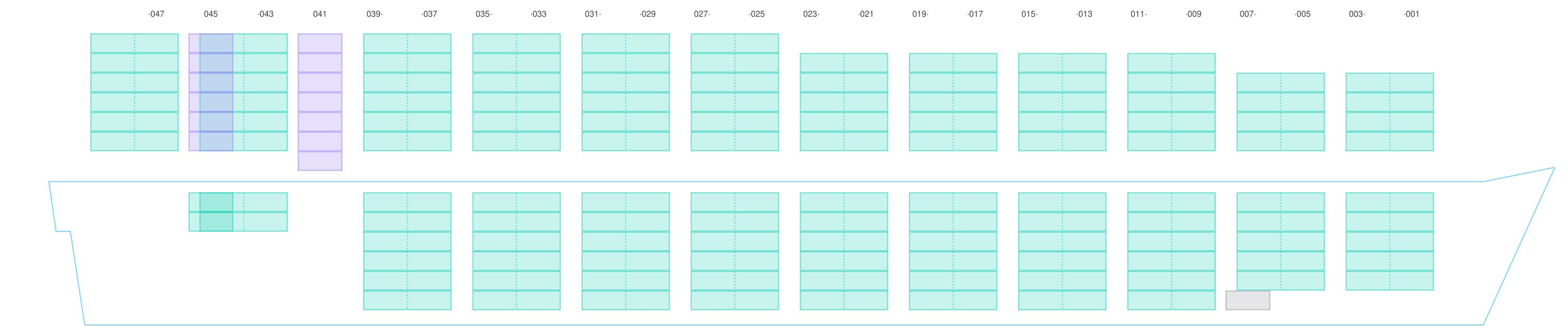

Side View
Hatch-Covers View

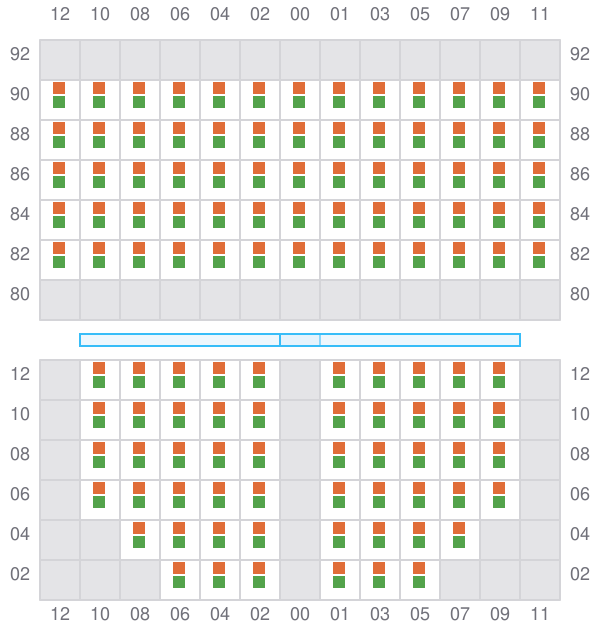

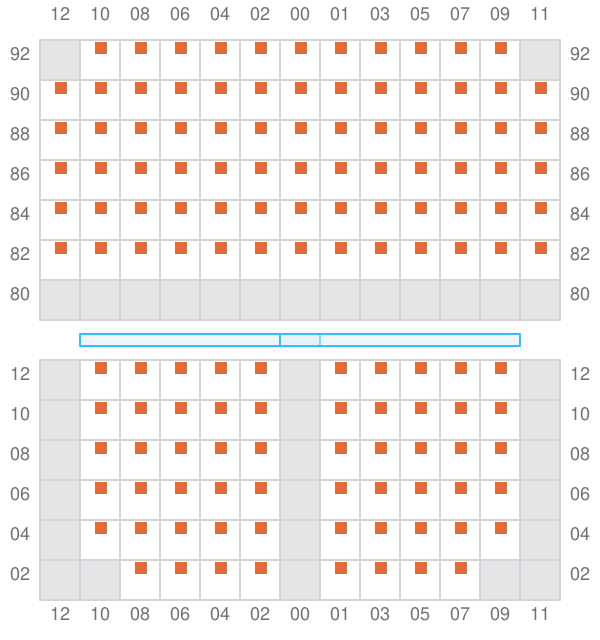

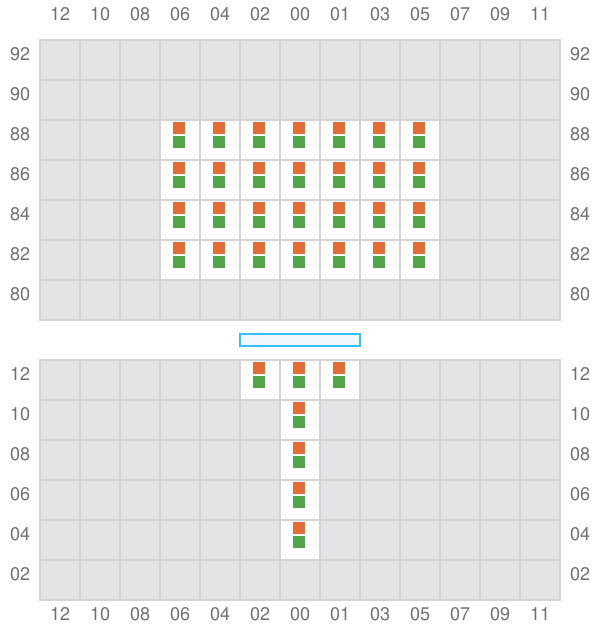

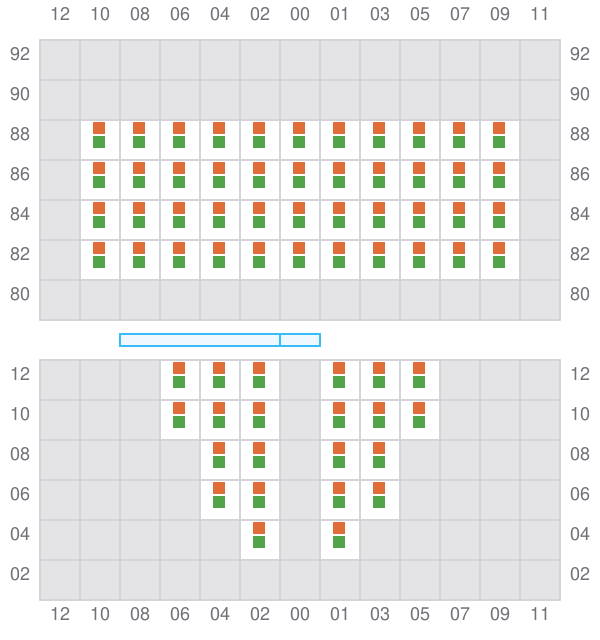

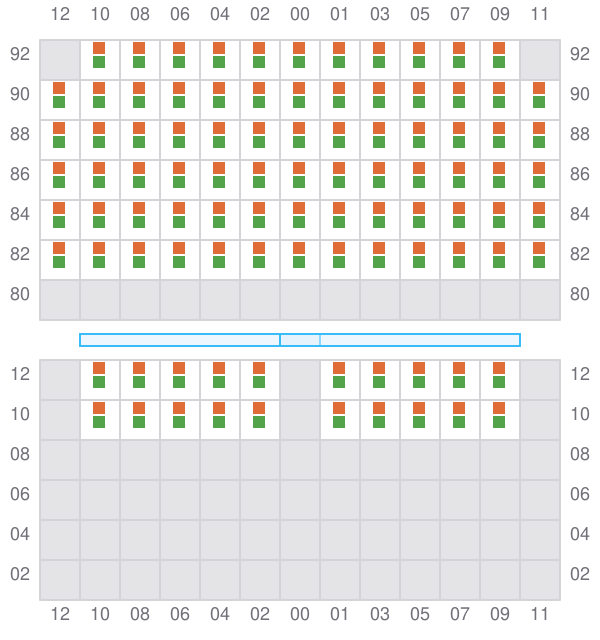

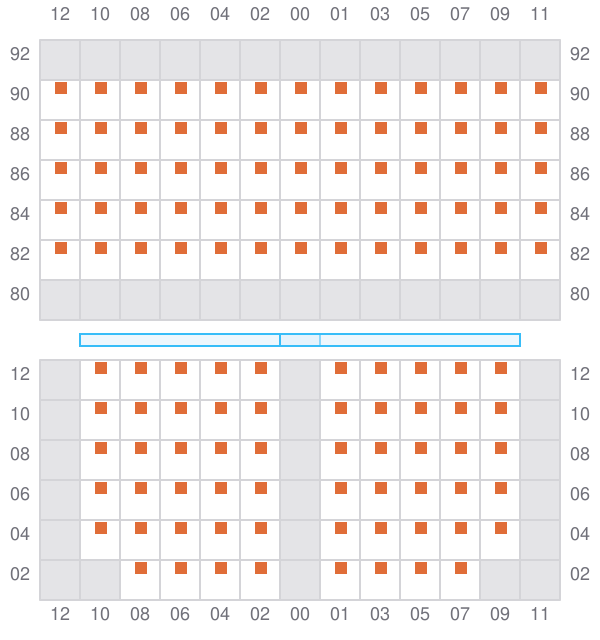

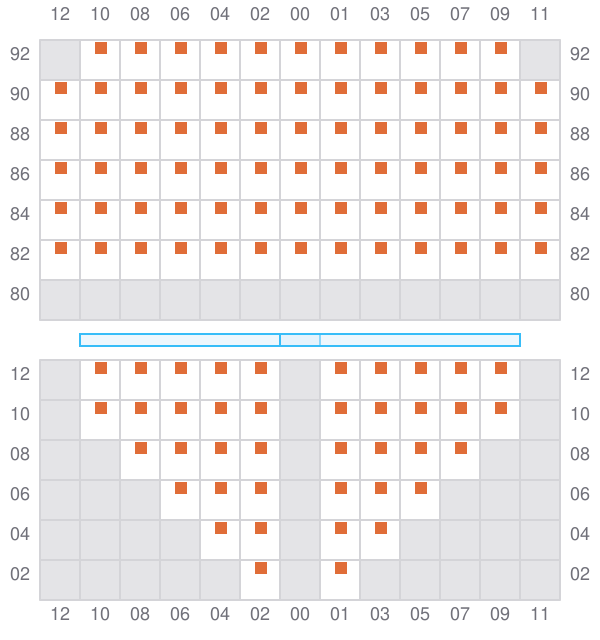

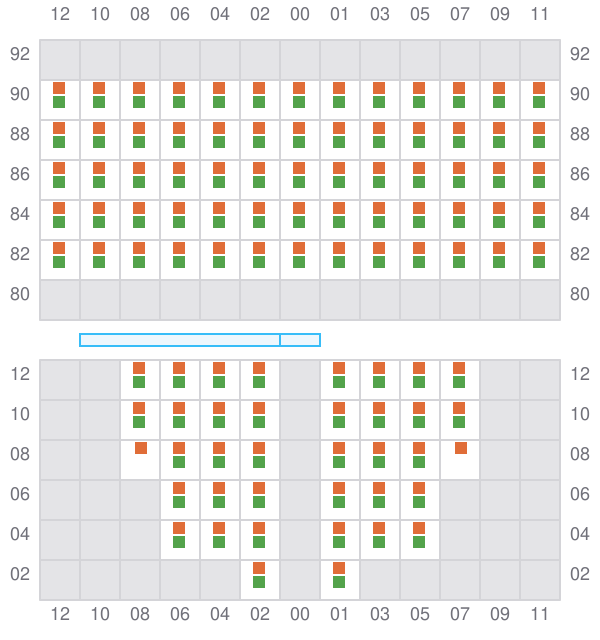

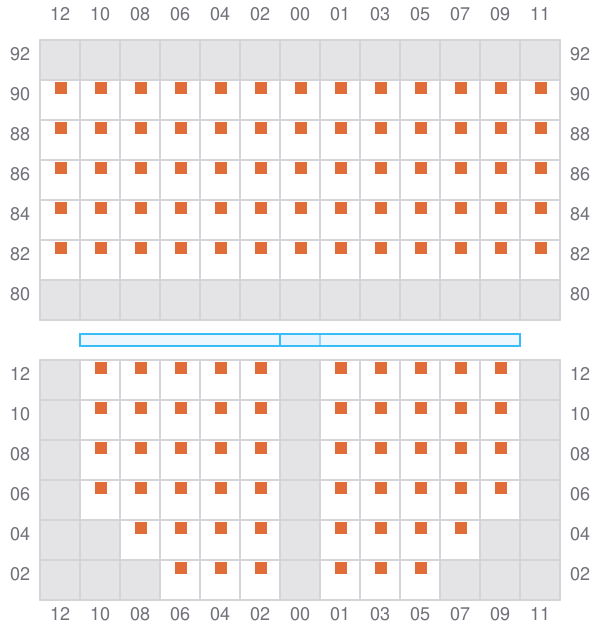

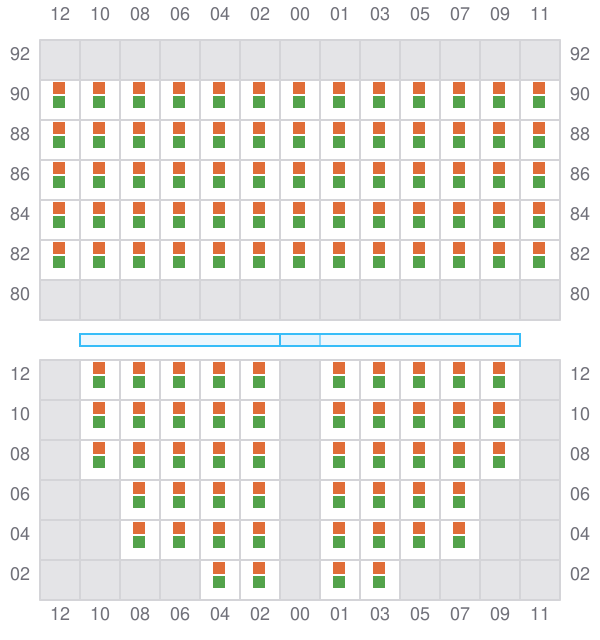

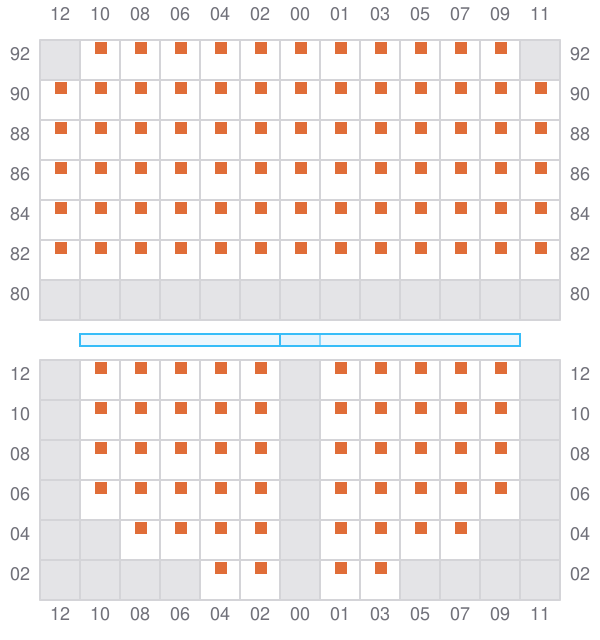

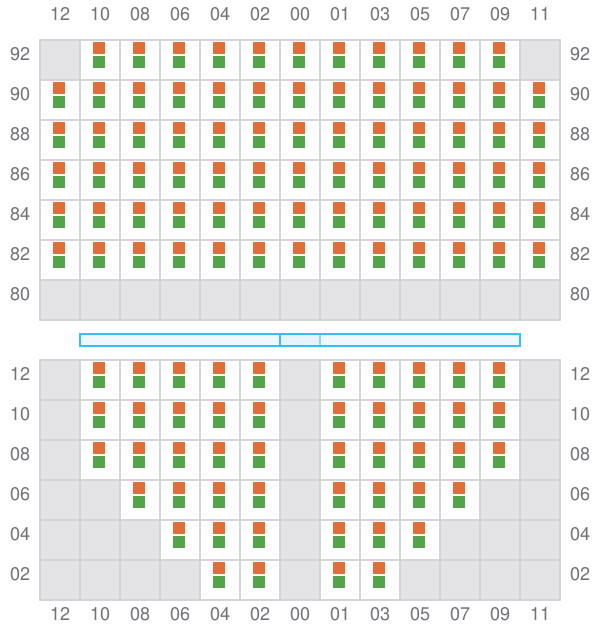

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×
001 (002)
- →
003
- ←
005 (006)
- →
007
- ←
009 (010)
- →
011
- ←
013 (014)
- →
015
- ←
017 (018)
- →
019
- ←
021 (022)
- →
023
- ←
025 (026)
- →
027
- ←
029 (030)
- →
031
- ←
033 (034)
- →
035
- ←
037 (038)
- →
039
- ←
041
043 (044)
- →
045
- ? / →
047 (048)
- → / ?
