STRIDE
9149835 | 3FRT7 | 9149835 by ********* Last update: Thu Aug 01 2024
General Info
Ship Name:STRIDE
IMO Code:9149835
Call Sign:3FRT7
Line Operator:9149835
Class Name for Sister Ships:MCC
Year Built:1997
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:039
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:2,174
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View

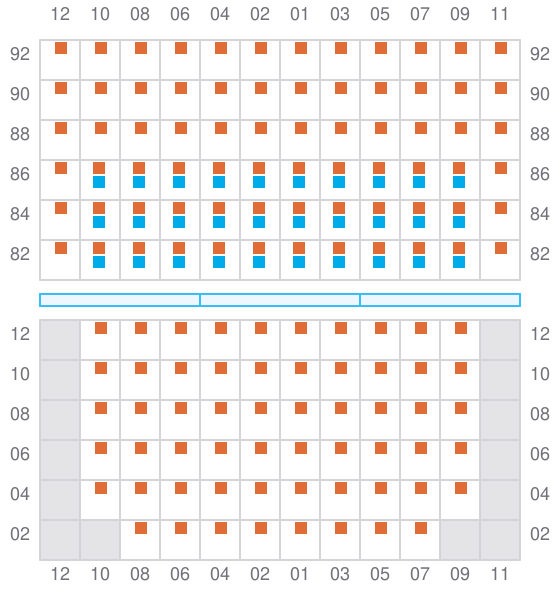

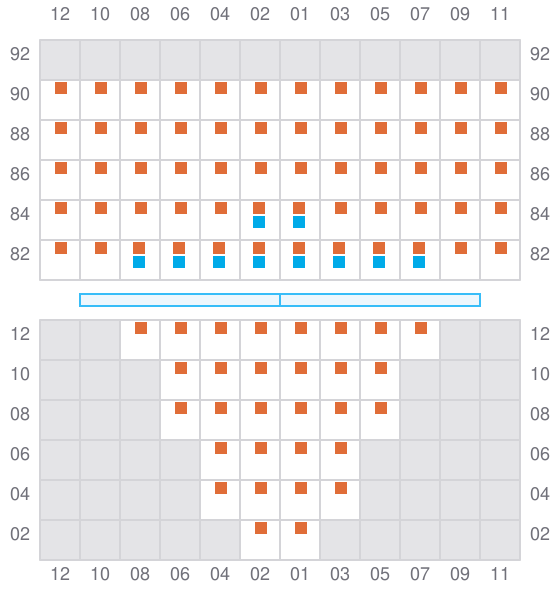

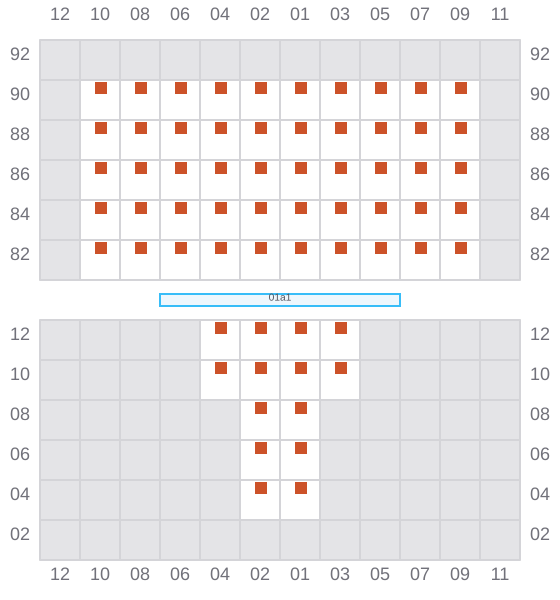

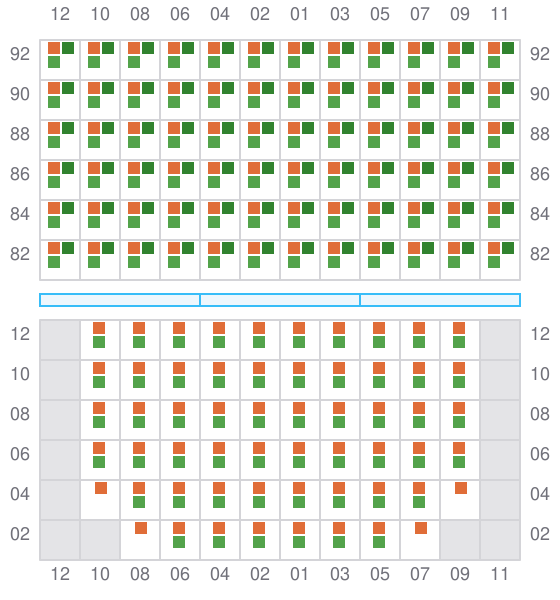

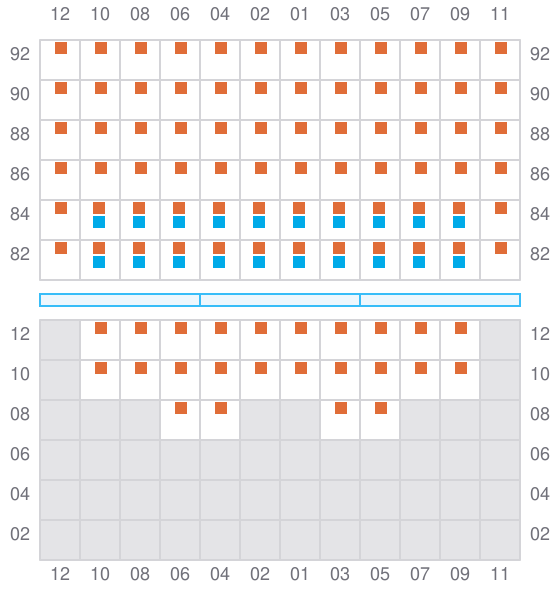

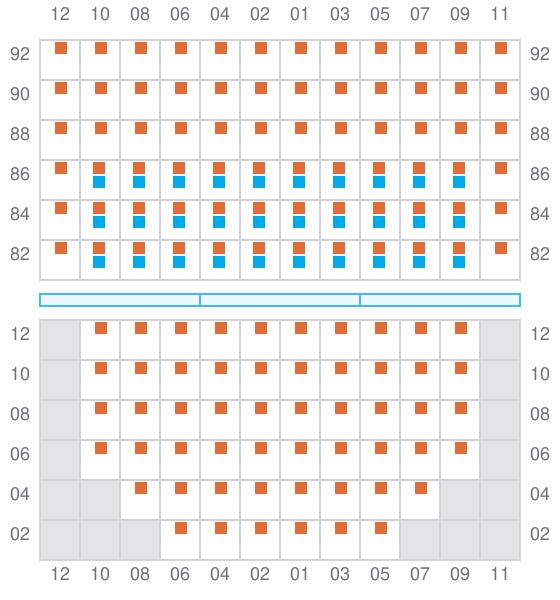

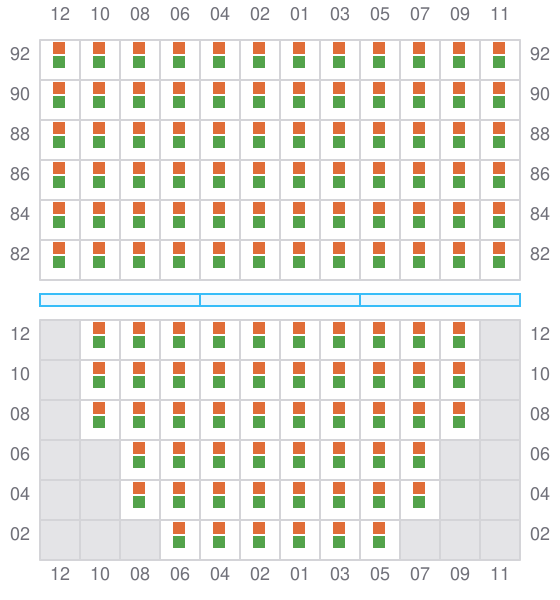

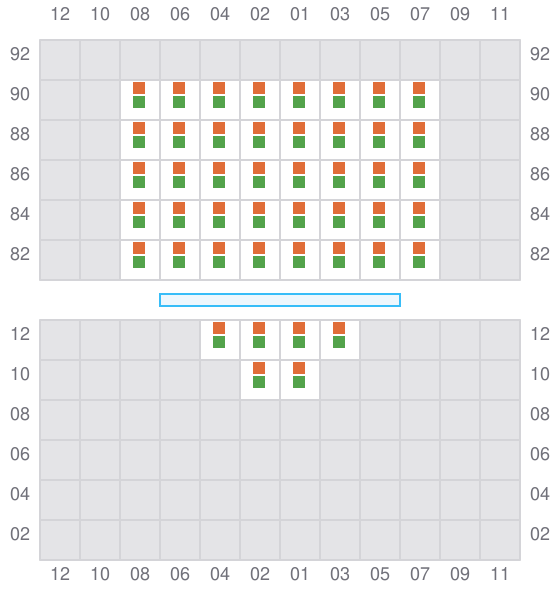

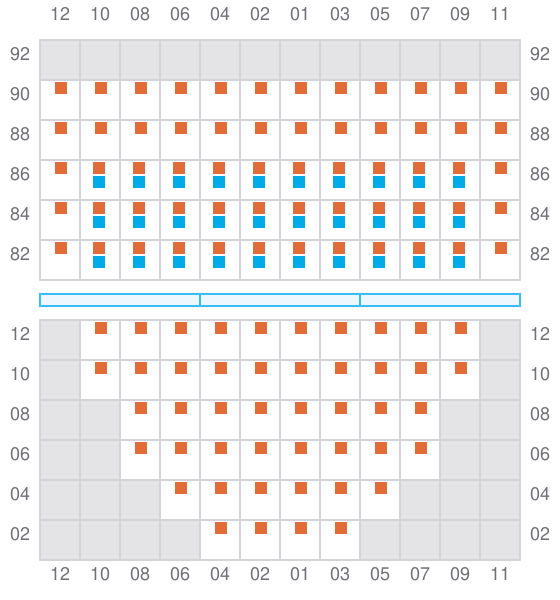

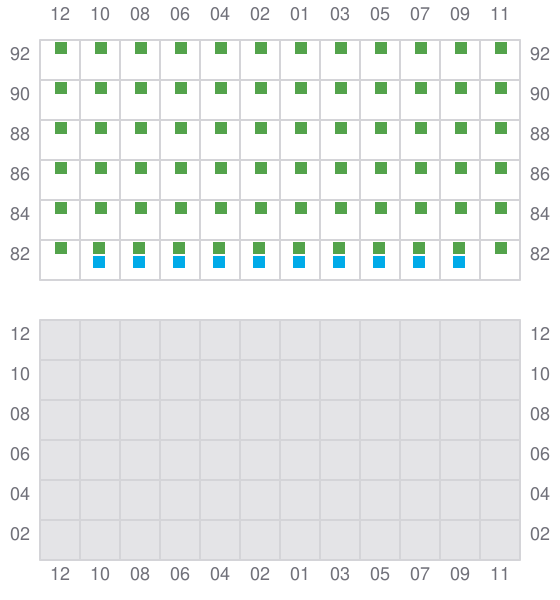

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
003
- ←
- ? / →
005 (006)
- →
007
- ←
- →
009 (010)
- →
- ? / ←
011
- ←
- → / ?
013 (014)
- →
- ← / ?
015
- ←
- →
017 (018)
- →
- ? / ←
019
- ←
- →
021 (022)
- →
023
- ←
- →
025 (026)
- →
- ? / ←
027
- ←
- →
029 (030)
- →
031
- ←
- →
033
035 (036)
- →
- → / ?
037
- ←
- ← / ?
039 (040)
- → / ?
